EW4DWMW006Wireless LAN Module

User Manual MITSUMI Wireless LAN Module MODEL DWM-W006 The purpose of this manual is to explain correct way how to integrate module DWM-W006 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. The MITSUMI Wireless LAN Module, model DWM-W006 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or the manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Regulatory Information USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling MITSUMI WiFi module DWM-W006 labelled as below. FCC ID: EW4DWMW006 The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID:EW4DMW006” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, this device must not be co-located or operating in conjunction with any other antenna or transmitter. Canada-Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of this device. L ‘ utilization de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit étre prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fomctionnement du dispositif. The term “IC” before the equipment certification number only signifies that the Industry Canada technical specifications were met. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit etre utilize a l’interieur et devrait etre place loin des fenetres afinde Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est installe a l’exterieur, il doit faire l’objet d’une licence. Caution: Exposure to Radio Frequency Radiation. The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb.

59994A If you would like to order Nintendo parts, please visit our online store at www.nintendo.com or call 1-800-255-3700. This Nintendo product is not designed for use with any unauthorized accessories. Si vous souhaitez commander des pièces pour les produits de Nintendo, visitez notre magasin en ligne à www.nintendo.com ou appelez le 1-800-255-3700. Ce produit de Nintendo n'est pas conçu pour son utilisation avec des accessoires non autorisés. Si a Usted le gustaría ordenar piezas de Nintendo, por favor visite nuestra tienda en el sitio Internet www.nintendo.com o llame 1-800-255-3700. Este producto no está diseñado por uso con accesorios no autorizados. Nintendo of America Inc. P.O. Box 957, Redmond, WA 98073-0957 U.S.A. PRINTED IN CHINA IMPRIMÉ EN CHINE IMPRESO EN CHINA NEED HELP WITH INSTALLATION, MAINTENANCE OR SERVICE? NINTENDO CUSTOMER SERVICE: WWW.NINTENDO.COM or call 1-800-255-3700, MON.-SUN., 6:00 a.m. to 7:00 p.m, Pacific Time (Times subject to change) TTY Hearing Impaired: 800-422-4281 BESOIN D'AIDE AVEC L'INSTALLATION, L'ENTRETIEN OU LE SERVICE ? SERVICE À LA CLIENTÈLE DE NINTENDO: www.nintendo.ca Ou appelez le 1-800-255-3700 LUN.-DIM., entre 6 h 00 et 19 h 00 , heure du Pacifique. (Heures sujettes à changement) Service à la clientèle ATS : 1-800-422-4281 ¿NECESITA AYUDA CON LA INSTALACIÓN MANTENIMIENTO O SERVICIO? SERVICIO AL CLIENTE DE NINTENDO: WWW.NINTENDO.COM o llame al 1-800-255-3700 LUN. - DOM., 6:00 a.m. a 7:00 p.m. Tiempo del Pacífico (Las horas pueden cambiar) Número de TTY de Servicio al Cliente para individuos con impedimento auditivo: 1-800-422-4281 INSTRUCTION BOOKLET MODE D'EMPLOI (Pages 28-55) FOLLETO DE INSTRUCCIONES (Páginas 56-83) C/USG-USA The official seal is your assurance that this product is licensed or manufactured by Nintendo. Always look for this seal when buying video game systems, accessories, games and related products. Nintendo does not license the sale or use of products without the Official Nintendo Seal. WARNING: PLEASE CAREFULLY READ THE SEPARATE HEALTH AND SAFETY PRECAUTIONS BOOKLET INCLUDED WITH THIS PRODUCT BEFORE USING YOUR NINTENDO ® HARDWARE SYSTEM, GAMES OR ACCESSORIES. THIS BOOKLET CONTAINS IMPORTANT HEALTH AND SAFETY INFORMATION. Nintendo products are protected by some or all of the following patents: United States Patent Numbers: 5,207,426; 5,291,189; 5,327,158; 5,337,069; 5,371,512; 5,400,052; 5,483,257; 5,495,266; 5,509,663; 5,608,424; 5,708,457; D468,743. Canadian Patent Numbers: 2,037,909; 2,048,167; 2,049,899; 2,049,900; 2,049,914; 2,051,655; 2,055,718; 2,055,724; 96,338. Other patents issued and pending in the U.S., Canada and elsewhere. Nintendo DS Lite includes RSA BSAFE Cryptographic software from RSA Security Inc. RSA is a registered trademark of RSA Security Inc. BSAFE is a registered trademark of RSA Security Inc. in the United States and/or other countries. ©2005 RSA Security Inc. All Rights Reserved. This product uses the LC Font by Sharp Corporation, except some characters. LCFONT, LC Font and the LC logo mark are trademarks of Sharp Corporation. TM & ® are trademarks of Nintendo. © 2006 Nintendo. All Rights Reserved. Nintendo of Canada Ltd., Authorized User in Canada. Table of Contents 1 Health & Safety Information 2-3 2 Nintendo DS Lite Components 4-5 3 Charging the Nintendo DS Lite Battery 6-7 4 Using the Nintendo DS Stylus & Touch Screen 8 5 Privacy Information 9 6 System Setup 10 7 Nintendo DS Menu Screen 10-11 8 Using Nintendo DS Game Cards 12-13 9 Using Game Boy Advance Game Paks 12-13 10 Wireless Communication & Game Play Modes 14-15 11 PictoChat™ 16 12 Nintendo Wi-Fi Connection 17 13 Using the On-Screen Keyboard 18 14 Settings Menu – Changing System Settings 19-23 15 Troubleshooting 24-25 16 Warranty & Service Information 26 17 Entertainment Software Rating Information 27 This product is a precision electronic device that can be damaged by direct physical impact or contact with dust or other foreign material. A protective carrying case (sold separately) may help prevent damage to your Nintendo DS. Please carefully read the following instructions and the separate Health and Safety Precautions booklet before setup or use of the Nintendo DS. If, after reading all of the instructions, you still have questions, please visit our customer service area at www.nintendo.com or call 1-800-255-3700. Compatibility with Game Boy ® Games & Accessories The Nintendo DS Lite is compatible with Game Boy Advance Game Paks in single player mode. The Nintendo DS will NOT work with the following games or accessories: • Original Game Boy Game Paks • Game Boy Color Game Paks • Game Boy or Game Boy Advance Game Link ® cables • Game Boy Advance Wireless Adapter • Game Boy Advance e-Reader • Nintendo GameCube™ Game Boy Advance cable • Game Boy Printer • Game Boy Camera • Some people (about 1 in 4000) may have seizures or blackouts triggered by light flashes or patterns, such as while watching TV or playing video games, even if they have never had a seizure before. • Anyone who has had a seizure, loss of awareness, or other symptom linked to an epileptic condition should consult a doctor before playing a video game. • Parents should watch when their children play video games. Stop playing and consult a doctor if you or your child have any of the following symptoms: Convulsions Eye or muscle twitching Loss of awareness Altered vision Involuntary movements Disorientation • To reduce the likelihood of a seizure when playing video games: 1. Sit or stand as far from the screen as possible. 2. Play video games on the smallest available television screen. 3. Do not play if you are tired or need sleep. 4. Play in a well-lit room. 5. Take a 10 to 15 minute break every hour. Playing video games can make your muscles, joints, skin or eyes hurt after a few hours. Follow these instructions to avoid problems such as tendinitis, carpal tunnel syndrome, skin irritation or eyestrain: • Avoid excessive play. It is recommended that parents monitor thei…

Text truncated - open the document above for the full version.

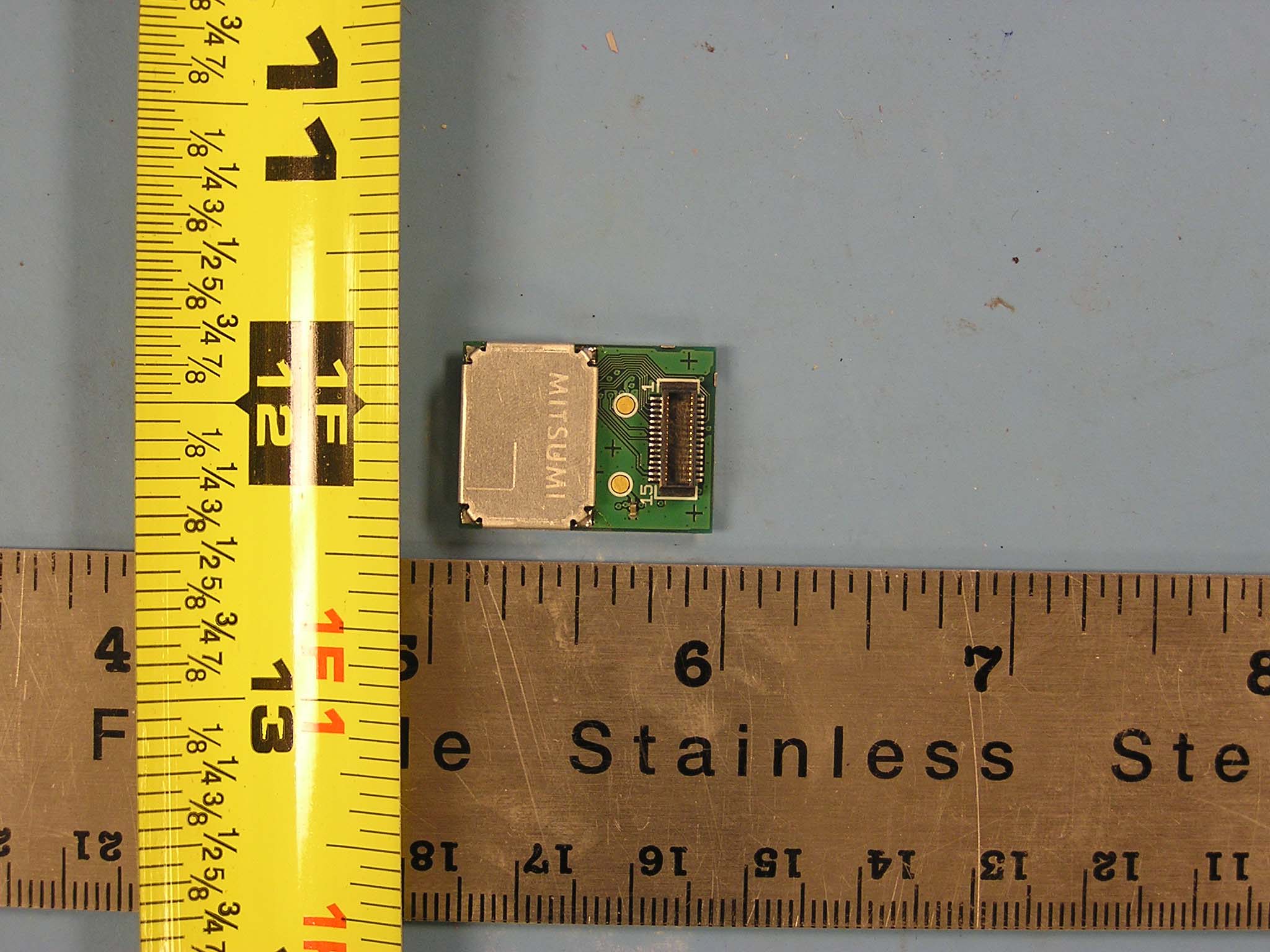

Company: Mitsumi Electric Co., Ltd. FCC ID: EW4DWMW006 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic (MM3218XRBE) inputs. 3 Have it own power supply regulation Internal 1.8V power regulator is inside MM3218XRBE. Refer to MM3218XRBE Data sheet. 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna connector (U.FL-R-SMT). Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside of the final product for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: EW4DWMW006” shall be placed on the outside of final host system. “EW4DWMW006 is the ID of the module. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This module is for handheld use only, not for body worn position.

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR WIRELESS LAN MODULE MODEL NUMBER: DWM-W006 FCC ID: EW4DWMW006 REPORT NUMBER: 06J10546-1 ISSUE DATE: SEPTEMBER 14, 2006 Prepared for MITSUMI ELECTRIC CO., LTD 1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 2 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 9/14/06 Initial Issue A. Ilarina REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 3 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS............................................................................................. 4 2. TEST METHODOLOGY .................................................................................................................. 5 3. FACILITIES AND ACCREDITATION .......................................................................................... 5 4. CALIBRATION AND UNCERTAINTY.......................................................................................... 5 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................................. 5 4.2. MEASUREMENT UNCERTAINTY ............................................................................................... 5 5. EQUIPMENT UNDER TEST............................................................................................................6 5.1. DESCRIPTION OF EUT ..............................................................................................................6 5.2. MAXIMUM OUTPUT POWER .................................................................................................... 6 5.3. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................................. 6 5.4. SOFTWARE AND FIRMWARE .................................................................................................... 6 5.5. WORST-CASE CONFIGURATION AND MODE......................................................................... 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ................................................................................ 9 7. LIMITS AND RESULTS ................................................................................................................. 10 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND ...................................................... 10 7.1.1. 6 dB BANDWIDTH ........................................................................................................... 10 7.1.2. 99% BANDWIDTH............................................................................................................ 14 7.1.3. PEAK OUTPUT POWER .................................................................................................. 18 7.1.4. AVERAGE POWER........................................................................................................... 23 7.1.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 24 7.1.6. CONDUCTED SPURIOUS EMISSIONS.......................................................................... 28 7.2. RADIATED EMISSIONS.............................................................................................................35 7.2.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ................................................. 35 7.2.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND ............................. 37 7.2.3. WORST-CASE RADIATED EMISSIONS BELOW 1 GHz ............................................. 46 7.3. POWERLINE CONDUCTED EMISSIONS ................................................................................ 50 8. SETUP PHOTOS .............................................................................................................................. 54 REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 4 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: MITSUMI ELECTRIC CO., LTD 1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN EUT DESCRIPTION: WIRELESS LAN MODULE MODEL: DWM-W006 SERIAL NUMBER: 001656A1D059 DATE TESTED: SEPTEMBER 5-7, 2006 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nulli…

Text truncated - open the document above for the full version.

REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 54 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 55 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR MOBILE CONFIGURATION RADIATED FRONT PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 56 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 57 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP FOR PORTABLE CONFIGURATION X-AXIS PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 58 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Y-AXIS PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 59 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Z-AXIS PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 60 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 06J10546-1 DATE: SEPTEMBER 14, 2006 EUT: WIRELESS LAN MODULE FCC ID: EW4DWMW006 Page 61 of 61 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
