EW4DWMW052WiFi Module

Page 1 of 7 DWM-W052_User_Manual July. 9. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. User Manual WiFi Module MODEL DWM-W052 The purpose of this manual is to explain correct way how to integrate module DWM-W052 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Content 1. General 2. Product Information 3. USA-Federal Communications Commission (FCC) 4. Canada-Industry Canada (IC) 5. Europe-EU Declaration of Conformity and Restrictions 1. General This WiFi Module, model DWM-W052 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Page 2 of 7 DWM-W052_User_Manual July. 9. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2. Product Information DWM-W052 is a wireless LAN module corresponding to single-band(5GHz). 1×1 SISO method is supported. The specification is shown in the following. Frequency Band: 5.18 - 5.24GHz 5.745 - 5.825GHz Network Standard: IEEE 802.11n Host Interface: SDIO V2.0 Antenna: 2 Antenna Connector (2×2 MIMO) Network: Infrastructure Mode （no ad-hoc) / No AP Mode Frequency Bandwidth: 20MHz Operating Temperature: 0 to 65 degree C Modulation Technology: OFDM with BPSK, QPSK, 16 QAM, 64 QAM Hardware Encryption: AES, TKIP, WEP Quality of Service: IEEE 802.11e Page 3 of 7 DWM-W052_User_Manual July. 9. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 3. USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits , pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling. WiFi Module DWM-W052 labelled as below. FCC ID: EW4DWMW052 The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: EW4DWMW052” shall be placed on the outside of final host system. Caution: This devise for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Page 4 of 7 DWM-W052_User_Manual July. 9. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co- located or operating in conjunction with any other antenna or transmitter. Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC RF Exposure guideline. If this module is intended for use in a portable device, integrators are responsible for separate evaluation and/or approval to satisfy FCC RF Exposure requirements. The antenna used this module is as follows; Antenna Type: PIFA Antenna Gain: 1.23dBi If an antenna with higher gain or new antenna type is used with this module, integrators must contact Mitsumi for additional testing and submission to the FCC. If other radio devices are to be integrated with this module, an additional evaluation and FCC …

Text truncated - open the document above for the full version.

Applicant/Grantee Mitsumi Electric Co., Ltd. FCC ID: EW4DWMW052 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the device are buffered through logic U2 inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 1.2V regulator. Refer to Block Diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna connector (UFL type). Refer to external photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially The device was tested outside of the Laptop PC for full modular approval. Refer to setup photos. Y available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: EW4DWMW052” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

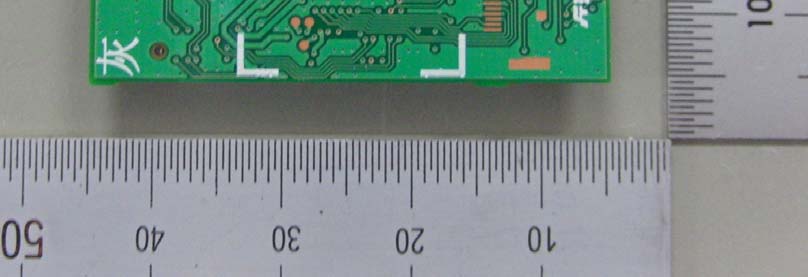

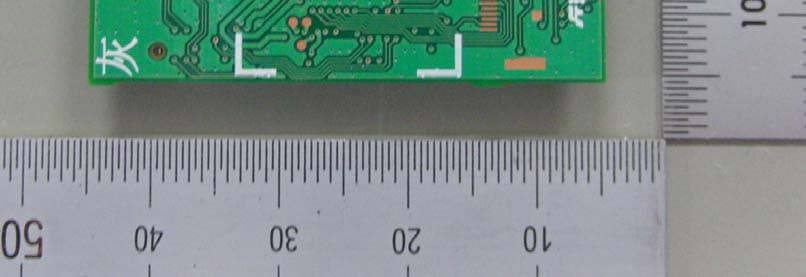

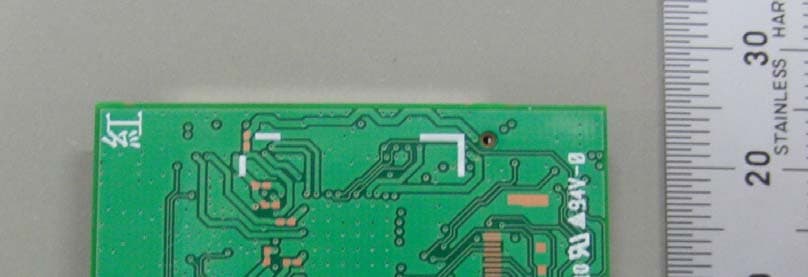

Internal Photo Model: DWM-W052 External Photo Model: DWM-W052

DWM-W052 Label and Label Location <Label Diagram> <Label Location> (Bottom side) Label Location

Internal Photo Model: DWM-W052 External Photo Model: DWM-W052

REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 88 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan 9. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 89 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 90 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. Distance is given by: D = SQRT (EIRP / (4 * Pi * S)) where D = Separation distance in m EIRP = Equivalent Isotropic Radiated Power in W S = Power density in W/m^2 For multiple colocated transmitters operating simultaneously in frequency bands where the limit is identical, the total power density is calculated using the total EIRP obtained by summing the Power * Gain product (in linear units) of each transmitter. Total EIRP = (P1 * G1) + (P2 * G2) + ... + (Pn * Pn) where Px = Power of transmitter x Gx = Numeric gain of antenna x In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 LIMITS for multiple-transmitter From FCC OET Bulletin 65 “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields” Σ [(the highest MPE for each mobile transmitter/antenna included in the simultaneous transmission configuration) / (the corresponding MPE limit)] < 1 Note: This formula is quoted from “KDB616217 D03 Section-Simultaneous Transmission Considerations 4)b)ii) ”. REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 91 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan RESULTS MPE Co-location: WLAN (2.4GHz) + BT Result: DWM-W052 + WLAN (2.4GHz) + BT DistancePowerGainDensityDensity (m)(dBm)(dBi)(dBm)(W)(W/m^2)(mW/cm^2) 5.8 GHzHT200.2015.731.2316.960.050.100.010 BandModeSeparationOutputAntennaEIRPEIRPIC PowerFCC Power Distanc ePowerGa inDensityDensity (m)(dBm)(dBi)(dBm)(W)(W/m^2)(mW/cm^2) 2.4 GHzWL AN0 .202 0.005. 0025. 000.3 20.6 30.06 3 2.4 GHzBT0.205.003. 008.000.010.010.001 (mW/cm^2)(mW/cm^2) 2412 - 2462 0.0630.0630.0100.0100.0731.000Pass 2402 - 24800.0010.0010.0100.0100.0111.000Pass Limit WLAN 5GHz/MPE Limit WLAN/BT /MPE Limit WLAN 5GHz fraction) + (WLAN/BT fraction) Pass/FailTechnology WLAN/BT FCC Power Density WLAN 5GHz FCC Power Density

NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/abo ut/mark1/index.jsp#nvlap FCC CFR47 PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR WIFI MODULE MODEL NUMBER: DWM-W052 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 REPORT NUMBER: 33BE0378-HO-A ISSUE DATE: October 24, 2012 Prepared for MITSUMI ELECTRIC CO., LTD. 1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN Prepared by UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 2 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan Revision History Rev. Issue Date Revisions Revised By -- 10/24/12 Initial Issue T. Hatakeda REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 3 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 5 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. SAMPLE CALCULATION ............................................................................................ 6 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 8 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8 5.4. SOFTWARE AND FIRMWARE .................................................................................... 8 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.1. DESCRIPTION OF TEST SETUP ................................................................................ 9 6. ANTENNA PORT TEST RESULTS ...................................................................................13 6.1. 802.11n HT20 SISO MODE IN THE 5.8 GHz BAND ...................................................13 6.1.1. 6 dB BANDWIDTH ...............................................................................................13 6.1.2. 99% BANDWIDTH ...............................................................................................16 6.1.3. OUTPUT POWER ...............................................................................................18 6.1.4. POWER SPECTRAL DENSITY ...........................................................................19 6.1.5. CONDUCTED SPURIOUS EMISSIONS ..............................................................21 6.2. 802.11n HT20 MIMO MODE IN THE 5.8 GHz BAND ..................................................41 6.2.1. 6 dB BANDWIDTH ...............................................................................................41 6.2.2. 99% BANDWIDTH ...............................................................................................44 6.2.3. OUTPUT POWER ...............................................................................................46 6.2.4. POWER SPECTRAL DENSITY ...........................................................................47 6.2.5. CONDUCTED SPURIOUS EMISSIONS ..............................................................50 7. RADIATED TEST RESULTS .............................................................................................70 7.1. LIMITS AND PROCEDURE ........................................................................................70 7.2. TRANSMITTER ABOVE 1 GHz ..................................................................................71 7.2.1. TX ABOVE 1 GHz FOR 802.11n HT20 SISO MODE IN THE 5.8 GHz BAND ......71 7.2.2. TX ABOVE 1 GHz FOR 802.11n HT20 MIMO MODE IN THE 5.8 GHz BAND .....77 8.2.3 WORST-CASE BELOW 1 GHz ............................................................................80 8. AC POWER LINE CONDUCTED EMISSIONS ..................................................................81 9. MAXIMUM PERMISSIBLE EXPOSURE ............................................................................88 REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 4 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan 10. SETUP PHOTOS ...........................................................................................................92 REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 5 of 94 UL Japan, Inc. Head Office EMC Lab. …

Text truncated - open the document above for the full version.

REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 92 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan 10. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 93 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO RADIATED BACK PHOTO REPORT NO: 33BE0378-HO-A DATE: October 24, 2012 FCC ID: EW4DWMW052 IC: 4250A-DWMW052 Page 94 of 94 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN TEL: +81 596 24 8116 FAX: +81 596 24 8124 This report shall not be reproduced except in full, without the written approval of UL Japan POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP END OF REPORT CONDUCTED FRONT PHOTO CONDUCTED BACK PHOTO
