EW4DWMW081WIFI Module

Page 1 of 7 DWM-W081_User_Manual July 17. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. User Manual MITSUMI WiFi Module MODEL DWM-W081 The purpose of this manual is to explain correct way how to integrate module DWM-W081 to the end product. It includes procedures that shall assist you to avoid unforeseen problems. This manual presents information that shows how module and OEM product, where module integrated, complies with regulations in certain regions. Any modifications, not expressly approved by the manufacturer could void the authority to operate in these regions. Content 1. General 2. Product Information 3. USA-Federal Communications Commission (FCC) 4. Canada-Industry Canada (IC) 5. Europe-EU Declaration of Conformity and Restrictions 1. General This MITSUMI WLAN module, model DWM-W081 has to be installed and used in accordance with the technical description/installation instructions provided by the manufacturer. For detail information concerning type approval of this module (e.g. where this module is already pre-approved) please contact the authorized local distributor or manufacturer. The system may only be implemented in the configuration that was authorized. Note that any changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment. Page 2 of 7 DWM-W081_User_Manual July 17. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 2. Product Information DWM-W081 is a wireless LAN module corresponding to single-band(5GHz). 1×1 SISO method is supported. The specification is shown in the following. Frequency Band: 5.18 - 5.24GHz 5.745 - 5.825GHz Network Standard: IEEE 802.11n Host Interface: SDIO V2.0 Chipset: Broadcom BCM4319 Antenna: 2 Antenna Connector (1×1 SISO) Network: Infrastructure Mode （no ad-hoc) / No AP Mode Frequency Bandwidth: 20MHz Operating Temperature: 0 to 65 degree C Modulation Technology: OFDM with BPSK, QPSK, 16 QAM, 64 QAM Hardware Encryption: AES, TKIP, WEP Quality of Service: IEEE 802.11e Page 3 of 7 DWM-W081_User_Manual July 17. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. 3. USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits , pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Labelling MITSUMI 802.11n WLAN module DWM-W081 labelled as below. FCC ID: EW4DWMW081 The proposed with FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: EW4DWMW081” shall be placed on the outside of final host system. Caution: Exposure to Radio Frequency Radiation To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Page 4 of 7 DWM-W081_User_Manual July 17. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agreement in writing. Instructions to OEM Integrators A User manual provided to the end user must indicate the operating requirements and conditions that must be observed to ensure compliance with the above-mentioned FCC RF Exposure guideline. If this module is intended for use in a portable device, integrators are responsible for separate evaluation and/or approval to satisfy FCC RF Exposure requirements. The antenna used this module is as follows; Antenna Type: PIFA Antenna Gain: 2.55dBi If an antenna with higher gain or new antenna type is used with this module, integrators must contact Mitsumi for additional testing and submission to the FCC. If other radio devices are to be integrated with this module, an additional evaluation and FCC submission may be required. Integrators are responsible for such additional evaluation and FCC submission. Page 5 of 7 DWM-W081_User_Manual July 17. 2012 COMMERCIAL IN CONFIDENCE This material may not in whole or part be copied, stored electronically or communicated to third parties without MITSUMI ELECTRIC CO., LTD’s prior agree…

Text truncated - open the document above for the full version.

Applicant/Grantee Mitsumi Electric Co., Ltd. FCC ID: EW4DWMW081 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The device is equipped with Metal shielding to cover RF section. Refer to external photos Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over- modulation. All inputs to the device are buffered through logic U2A inputs. Refer to Schematic Diagram. Y 3 The modular transmitter must have its own power supply regulation. The device is equipped with Internal 1.2 and 1.4 VDC regulator. Refer to Block Diagram. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Device is equipped with unique antenna connector (UFL type). Refer to external photos. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially The device was tested outside of the Laptop PC for full modular approval. Refer to setup photos. Y available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The proposed FCC ID label format is to be placed on the module. If FCC ID is not visible when the module is installed into the system, “Contains FCC ID: EW4DWMW081” shall be placed on the outside of final host system. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Refer to “User’s Guide” Exhibit Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. The device complies with RF exposure compliance requirement Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

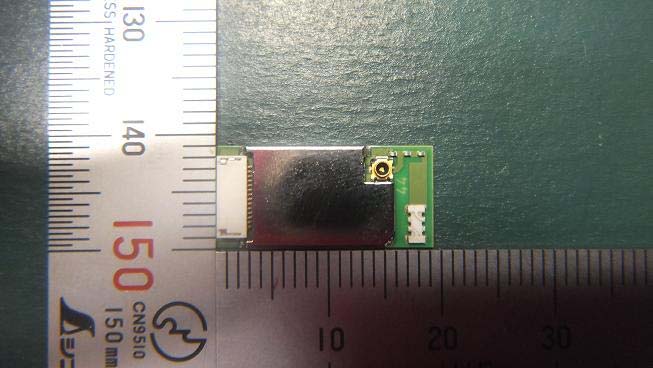

DWM-W081 External Photos

Outline Drawing 26/June/2012 MITSUMI ELECTRIC CO.,LTD. Model Name: WiFi Module Model No.: DWM-W081 Hardware: Version 1 Label

Internal Photo Model: DWM-W081

REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 39 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 11. MAXIMUM PERMISSIBLE EXPOSURE FCC RULES §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 40 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. IC RULES IC Safety Code 6, Section 2.2.1 (a) A person other than an RF and microwave exposed worker shall not be exposed to electromagnetic radiation in a frequency band listed in Column 1 of Table 5, if the field strength exceeds the value given in Column 2 or 3 of Table 5, when averaged spatially and over time, or if the power density exceeds the value given in Column 4 of Table 5, when averaged spatially and over time. REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 41 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. EQUATIONS Power density is given by: S = EIRP / (4 * Pi * D^2) where S = Power density in W/m^2 EIRP = Equivalent Isotropic Radiated Power in W D = Separation distance in m Power density in units of W/m^2 is converted to units of mWc/m^2 by dividing by 10. In the table(s) below, Power and Gain are entered in units of dBm and dBi respectively and conversions to linear forms are used for the calculations. LIMITS From FCC §1.1310 Table 1 (B), the maximum value of S = 1.0 mW/cm^2 From IC Safety Code 6, Section 2.2 Table 5 Column 4, S = 10 W/m^2 RESULTS BandModeSeparationOutputAntennaIC PowerFCC Power DistancePowerGainDensityDensity (m)(dBm)(dBi)(W /m^2)(mW/cm^2) 5.2 GHzWLAN0.2010.852.550.040.004

FCC CFR47 PART 15 SUBPART E INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR WIFI MODULE MODEL NUMBER: DWM-W081 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 REPORT NUMBER: 12J14490-1, REVISION ISSUE DATE: JULY 24, 2012 Prepared for MITSUMI ELECTRIC CO., LTD. 1601, SAKAI, ASUGI-SHI, KANAGAWA, 243-8533 JAPAN Prepared by UL CCS 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 2 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. Revision History Rev. Issue Date Revisions Revised By -- 07/18/12 Initial Issue A 07/24/12 Revised Section 8.1.4 T. Chan REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 3 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ..................................................................................... 5 2. TEST METHODOLOGY .......................................................................................................... 6 3. FACILITIES AND ACCREDITATION ..................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................... 6 4.1. MEASURING INSTRUMENT CALIBRATION .................................................................. 6 4.2. SAMPLE CALCULATION ................................................................................................. 6 4.3. MEASUREMENT UNCERTAINTY ................................................................................... 6 5. EQUIPMENT UNDER TEST ................................................................................................... 7 5.1. DESCRIPTION OF EUT ................................................................................................... 7 5.2. MAXIMUM OUTPUT POWER .......................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS .................................................................. 7 5.4. SOFTWARE AND FIRMWARE ........................................................................................ 7 5.5. WORST-CASE CONFIGURATION AND MODE ............................................................. 8 5.6. DESCRIPTION OF TEST SETUP .................................................................................... 9 6. TEST AND MEASUREMENT EQUIPMENT ........................................................................ 11 7. ON TIME, DUTY CYCLE AND MEASUREMENT METHODS ............................................ 12 7.1.1. ON TIME AND DUTY CYCLE RESULTS ............................................................... 12 7.1.2. MEASUREMENT METHOD FOR POWER AND PPSD ......................................... 12 7.1.3. MEASUREMENT METHOD FOR AVERAGE SPURIOUS EMISSIONS ABOVE 1 GHz 12 7.1.4. DUTY CYCLE PLOTS ............................................................................................. 13 8. ANTENNA PORT TEST RESULTS ...................................................................................... 14 8.1. 802.11n HT20 MODE IN THE 5.2 GHz BAND ............................................................... 14 8.1.1. 26 dB BANDWIDTH ................................................................................................. 14 8.1.2. 99% BANDWIDTH ................................................................................................... 17 8.1.3. AVERAGE POWER ................................................................................................. 20 8.1.4. OUTPUT POWER AND PPSD ................................................................................ 21 8.1.5. PEAK EXCURSION ................................................................................................. 25 9. RADIATED TEST RESULTS ................................................................................................ 28 9.1. LIMITS AND PROCEDURE ........................................................................................... 28 9.2. TX ABOVE 1 GHz 802.11n HT20 MODE IN THE 5.2 GHz BAND ................................ 29 9.3. WORST-CASE BELOW 1 GHz ...................................................................................... 34 10. AC POWER LINE CONDUCTED EMISSIONS ................................................................. 35 11. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................... 39 REPORT NO: 12J14490-1A DATE: JULY 24, 2012 FCC ID: EW4DWMW081 IC: 4250A-DWMW081 Page 4 of 48 UL CCS FORM NO: CCSUP4701H 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL CCS. 12. SETUP PHOTOS ............................................................................................................... 42 REPORT FCC ID: UL CCS 47173 B This 1. ATT COMP A EUT D E MODE L SERIA L DATE T UL CC S standard on inter taken i n the equ docum e Note: T conditio revised section. shall nu certific a Governm Approve THU C H EMC SU UL CCS T NO: 12J144 EW4DWMW ENICIA STR s report shal TESTAT ANY NAME: ESCRIPTIO L: L NUMBER TESTED: INDUSTRY INDUS S tested the ds. All indic pretations a nto account ipment test e ented in this The results d ons and mod in any way Any alter a llify the doc ation, approv ment, or an ed & Releas HAN UPERVISOR S 490-1A W081 EET, FREMO ll not be rep ION OF T : M 1 K ON: W D : 4 J STAN CFR 47 Part Y CANADA R STRY CANAD above equ cations of Pa and/o…
