` User’s Guide Keyboard: Scorpius KIV, Scorpius MVII, Scorpius N1,Gemini M1, Gemini K1,Gemini N1 Mouse: Lynx KIV, Lynx LV ,Lynx N2,Gemini M1, Gemini K1,Gemini N1 Receiver: RceiverKI, Gemini M1, Gemini K1,Gemini N1 PM: Electronic Engineer: Mechanical Engineer: Produce by: Gemini MI (P) 2 WARNING NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void your authority to operate such equipment. The manufacturer is not responsible for any radio or TV Interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received ,including interference that may cause undesired operation. Gemini MI (P) 3 SCOPE The purpose of this specification is to define the electrical and mechanical characteristics of the “ Gemini MI P “. GENERAL Description The “Gemini MI P” keyboard and Mouse Combination has an enhanced NetMedia design and can work with any IBM PC PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology, the Scorpius MVII offers durability and style that will enhance any system for years to come. 16 Extra rubber buttons let keyboard link more closer with PC, touch one button to make some functions work immediately. Features Radio Frequency technology Netmedia for easy Internet and Multimedia control Low power consumption 800dpi resolution High quality Rubber-Membrane key switches Tactile key stroke 1,000,000 life cycles per switch 104,105,106,107,109 key layout Package Contents: Color box Pcs /Carton: 10pcs Package contents - RF Keyboard - RF Mouse - Receiver - 3AA & 2AA batteries Gemini MI (P) 4 - User Manual System requirements • Designed to work with IBM PC compatible • Perfected for using with Windows ® 98SE / 2000 / ME / XP. Electrical specification Environmental of Temperatures Operating temperature 0 to 50. Non-operation temperature -10 to 60. Humidity Test Condition temperature 25C~55C Operating humidity 10% to 85% Non-operation Humidity 10% to 85% Heat storage 60, 24Hours Cool storage -10, 24Hours Humidity storage 85%, 24Hours Performance specification/ Keyboard Switch Life 1,000,000 cycle life Performance specification/ Mouse X,Y Encoder Solid-State Optical Mouse Sensor Scroll Encoder Mechanical Switch Life 1,000,000 cycle life Scroll Encode Life 100,000 cycle life Hardware Resolution 800dpi Power Requirements Power Consumption Mode Operation Voltage Max Nom Min Working Mode 3V 7mA Sleeping Mode 3V 0.14 0.1mA 0.06 Keyboard Operation voltage 2V~4.5V Working Mode 3V 40mA Sleeping Mode 3V 4mA 0.2mA 0.01mA Mouse Operation voltage 3.5V~1.5V Power Consumption 30mA Receive Operation Voltage 5Vdc+5% EMI / EMC FCC ID Keyboard: F2QRFCOMBOSCM7ITR Mouse: F2Q96C96001M7 CE 1.EN55022: 1998 Class B 2.EN 301 489-3 3.EN 300 220-3 Gemini MI (P) 5 4.IEC 60 950:1991+A1+A2+A3+A4+A11 5.EN 60 950:1992+A1+A2+A3+A4+A11 BSMI CNS13438. Environmental of electrical Shock test The mouse shall withstand a shock equal to 20G forces, half sine wave for 11 msec duration in all three (3) orthogonal axes. Drop test (unpackage) Drop the mouse from 60 cm height above a wood board 15mm thick placed on a concrete floor, 3 times in the same direction. Mechanical specification Material Keyboard Mouse Receiver Cover HIPS PC HIPS Key top ABS ABS HIPS Body Weight & Dimension Keyboard Mouse Receiver Weight 800g 100.5grams 88.5grams Length 475.5mm 130.1mm 102.8mm Width 172mm 73.1mm 82.2mm High 32mm 39.5 mm 30.3mm Body colors Keyboard Mouse Receiver Upper color Black Black Black Lower color Black Black Black Key color Black 6U Silver(877c) - Left and Right key color - Silver(877c) - Roller color - Cool Gray - Cable color - - Black Windows - - Black Rubber key color Grey Grey Grey Model Label color White White White Rubber/ Membrane Rubber Dome contact Resister 100(max) Membrane Contact Resister 100 Membrane Open Resister 10M Box Dimension: Length 470mm Width 205mm High 95mm Gemini MI (P) 6 Hot keys explain Definition of the 16 Multimedia Hot Keys Refresh : Refresh web sites Mail : Open Default E-mail application Media Select : Turn on the Media player program. « Volume Up : Increase volume output Mute : Mute volume output temporarily Volume Down : Decrease volume output Stop : Stop Playing Play/Pause : Instruct the CD/VCD/DVD player to the previous track Previous Track : Instruct the CD/VCD/DVD player to t…

Text truncated - open the document above for the full version.

Block Diagram

Keyboard MCU 32.768KHz ANT 27.092MHz KEY MATRIX ID BUTTON

Cover Letter(s)

FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: I, hereby, declare that the following EMI suppression components on the EUT, FCC ID: F2QRFCOMBOSCM7ITR, will be added or layout on the mass production products. 1. Add a core on data cable. 2. Add copper on main board. Sincerely, Mine Wang / Product Engineer Applicant: Itron Technology Inc. Address: 9F, #75, Sec.1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R.O.C. TEL: 886-2-2698-2566 #367 FAX: 886-2-2698-3133

External Photos

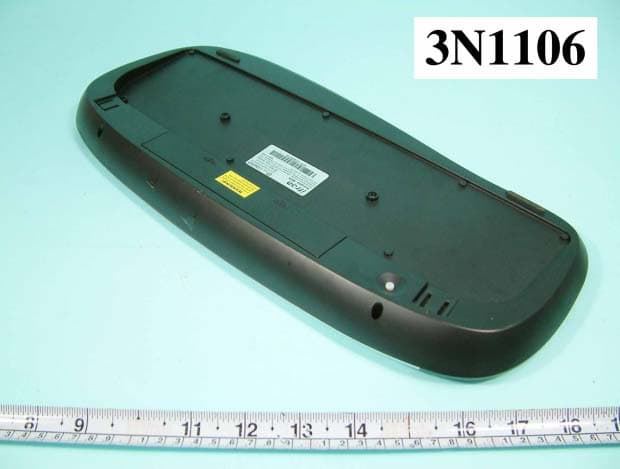

FCC ID: F2QRFCOMBOSCM7ITR Number 1 FRONT SIDE OF EUT FCC ID: F2QRFCOMBOSCM7ITR Number 2 REAR SIDE OF EUT

ID Label/Location Info

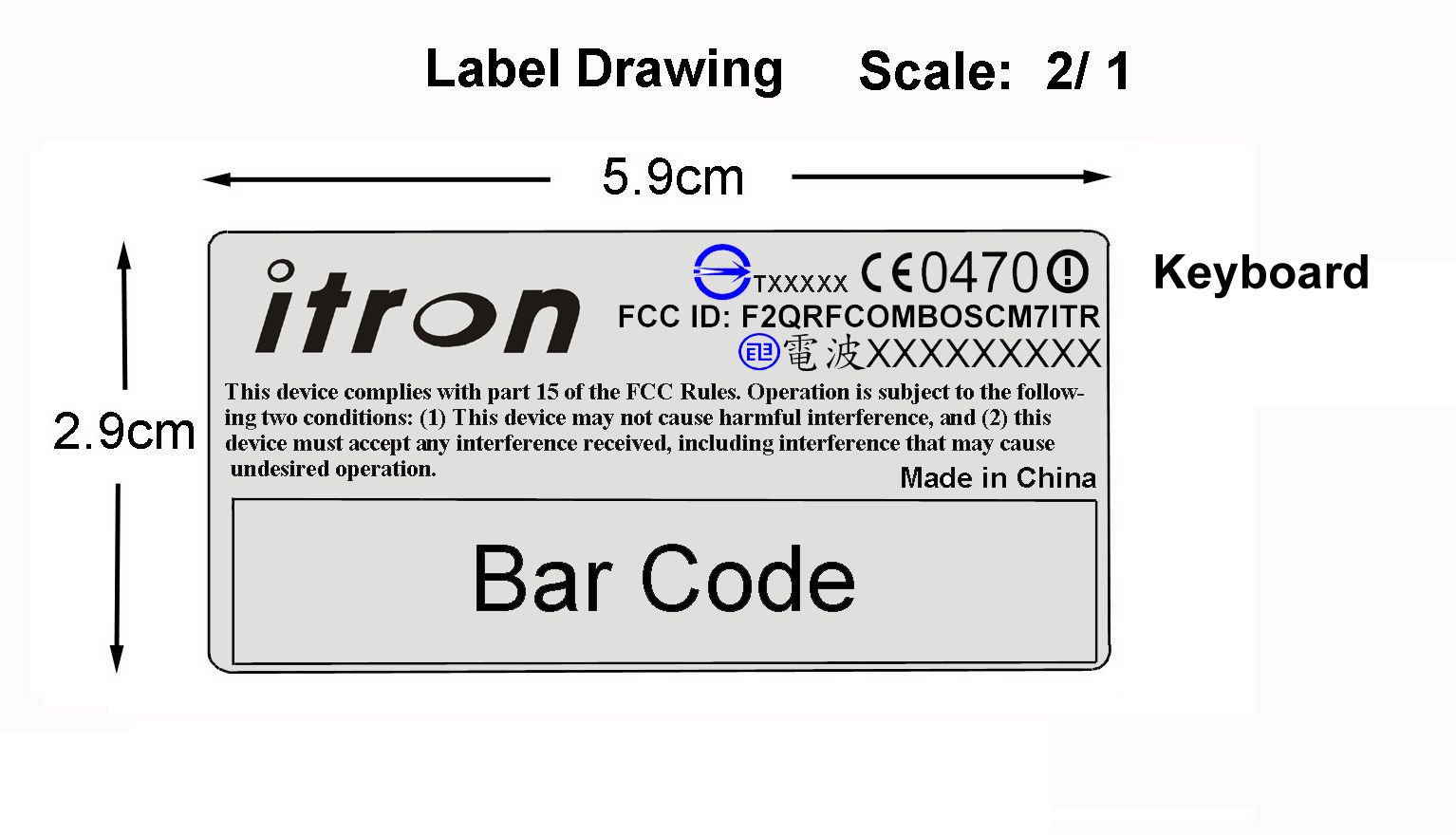

FCC ID: F2QRFCOMBOSCM7ITR Label Location

Operational Description

Illustration for RF Keyboard: Scorpius KIV, Scorpius MVII, Scorpius N1,Gemini M1, Gemini K1,Gemini N1 RF KEYBOARD SCORPIUS KIV is designed to work as a input and pointing device of PC (or Notebook) When pushing buttons of RF KEYBOARD SCORPIUS KIV, signals go into MA60H121 CHIP. After modulates, signals be emited the radio frequency at 27.095 MHz through an antenna. Receiver captures the radio frequency through antenna. MC3361 CHIP of receiver receives and demodulates the signals, then sends data at 26.64 to MA60A13 CHIP. After processing, data go into PC through USB (PS2) connector. Thus, an action of RF KEYBOARD SCORPIUS KIV is completed.

Schematics

Keyboard 00 0 0 0 BAT+ 0 VDD COL17COL9COL14COL13COL11COL1ROW[0]COL12ROW[4]COL3ROW[2]COL8COL5ROW[7]COL10COL16COL15COL2COL0ROW[3]COL7ROW[1]COL6ROW[5]COL4ROW[6]ROW[7]ROW[6]ROW[4]ROW[5]ROW[3]COL0COL15 MA60H121 U1 MA60H121 123456789 10111213141516 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33343536373839404142434445464748 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 COL[1]COL[0]VDDFBUTBBUTOSC1OSC2RBUTMBUTLBUTTXCBORF1ORF2RFOUTRFCTLTXD TEST X1IN X2IN Y1IN Y2IN Z1IN Z2IN XREST W1IN W2IN XIR SVDIN VSS ROW[7] ROW[6] ROW[5] ROW[4]ROW[3]ROW[2]ROW[1]ROW[0] P2[6]R1INR2IN L1INL2IN TURBO VSSS VL DCVR COL[19]COL[18] COL[17] COL[16] COL[15] COL[14] COL[13] COL[12] COL[11] COL[10] COL[9] COL[8] COL[7] COL[6] COL[5] COL[4] COL[3] COL[2] CN1 12345678910111213141516171819202122232425262728293031323334 R9100k 1% C15104 R710 R8220k 1% C12 104 C13 104 + C14 100uf/16V + C10 100uf/16V + C11 100uf/16V D21N4148 1 2 L3 100UH --- B1 BATTERY ID-BUTTOM R14.7M X1 32.768KHz C2 33P 5% C133P 5% C633P 5% C5 75P C4O OHM C3 L2 1.8UH L1 0.82UH C927P 5% X2 27.092 MHz 20PPM 18PF R3 1.2M J1 COL9COL8COL7COL6COL5COL4COL3COL2COL1COL0 COL10COL11COL12COL13COL14COL15 ROW[5]ROW[6]ROW[7] VDD VDD BAT PCB ANT ROW[0]ROW[1]ROW[2]ROW[3]ROW[4] Impendance match OPEN COL16COL17 1.5uH TP1 TP2TP3 TP4 TP5 TP6 TP7 TP9 TP10 TP11 TP12 TP13 0 0 0 0 0 C7P 5% C83P +-0.25PF R4 680K X2 C7 27P X2 C7 33P TP8

Test Report

FCC TEST REPORT Report No. : F3N1106 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : RF Keyboard Model No. : Scorpius KIV, Scorpius MVII, Scorpius N1, PCL-KB200, KMS400, CC40529 FCC ID : F2QRFCOMBOSCM7ITR Filing Type : Certification Applicant : Itron Technology Inc. 9F, #75, Sec.1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R.O.C. The test result refers exclusively to the test presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F3N1106 SPORTON International Inc. FCC ID : F2QRFCOMBOSCM7ITR TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Dec. 19, 2003 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................2 2. Test Configuration of Equipment under Test ...............................................................................................3 2.1. Test Manner ....................................................................................................................................................................................3 2.2. Description of Test System .............................................................................................................................................................3 2.3. Connection Diagram of Test System ..............................................................................................................................................5 2.4. Band edge compliance plot per 15.227(b). .....................................................................................................................................6 3. Test Software ...................................................................................................................................................8 4. General Information of Test............................................................................................................................9 4.1. Test Facility .....................................................................................................................................................................................9 4.2. Test Voltage ....................................................................................................................................................................................9 4.3. Standard for Methods of Measurement...........................................................................................................................................9 4.4. Frequency Range Investigated .......................................................................................................................................................9 4.5. Frequency Range Investigated .......................................................................................................................................................9 4.6. Test Distance ..................................................................................................................................................................................9 5. Test of Conducted Powerline .......................................................................................................................10 6. Test of Radiated Emission............................................................................................................................11 6.1. Major Measuring Instruments........................................................................................................................................................11 6.2. Test Procedures ............................................................................................................................................................................12 6.3. Typical Test Setup Layout of Radiated Emission..........................................................................................................................13 6.4. Test Result of Radiated Emission .................................................................................................................................................14 7. EMI Suppression Component List ...............................................................................................................18 8. Antenna Factor & Cable Loss .........................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC TEST REPORT Report No. : F3N1106 SPORTON International Inc. FCC ID : F2QRFCOMBOSCM7ITR TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued Date : Dec. 19, 2003 1.1. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
