F2QRFCOMBOSCM7UPRF KEYBOARD

Itron Technology Inc. ( Product: RF Keyboard & Mouse Combo ) Block Diagarm 1、 Keyboard 2、Receiver MCU 32.768KHz ANT 27.142MHz KEY MATRIX ID BUTTON MCU 32.768KHz MC3361 LED93C46 ID BUTTON ANT 26.69MHz 26.59MHz MC3361 PS/2 PORT Keyboard PS/2 PORT MOUSE

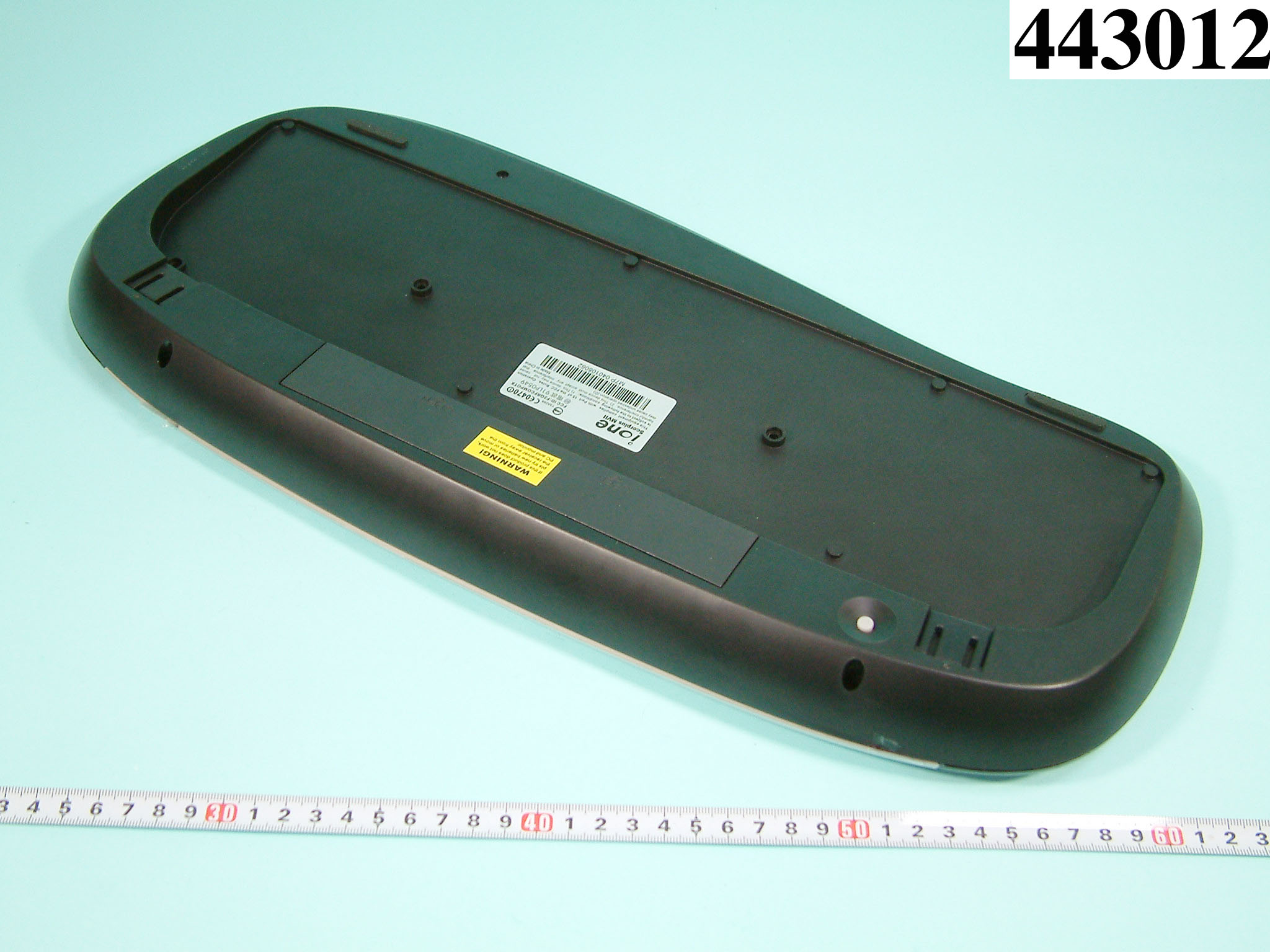

APPENDIX A. Photographs of EUT

REPORT NO. : F443012 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : May 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F443012 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : May 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F443012 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 26, 2004 FAX : 886-2-2696-2255 REPORT NO. : F443012 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : May 26, 2004 FAX : 886-2-2696-2255

Illustration for RF Keyboard: Scorpius MVII Scorpius MVII is designed to work as an input and pointing device of PC (or Notebook) When pushing buttons of Gemini N1 Keyboard, signals go into MA6231 CHIP. After modulates, signals be emitted the radio frequency at 27.142MHZ through an antenna. Receiver captures the radio frequency through antenna. MC3361 CHIP of receiver receives and demodulates the signals. After processing, data go into PC through USB (PS2) connector. Thus, an action of Scorpius MVII is completed.

Itron Technology Inc. ( Product: RF Keyboard & Mouse Combo ) DIAGRAM Keyboard 27-050-0001-0015A 11Monday, March 29, 2004 KTX-SC-M7(V5) 奎聚 Title SizeDocument NumberRev Date:Sheet of 0 0 0 0 0 0 0 0 BAT+ 0 0 VDD VDD 0 COL17 COL9 COL14 COL13 COL11 COL1 ROW[0] COL12 ROW[4] COL3 ROW[2] COL8 COL5 ROW[7] COL10 COL16 COL15 COL2 COL0 ROW[3] COL7 ROW[1] COL6 ROW[5] COL4 ROW[6] ROW[7] ROW[6] ROW[4] ROW[5] ROW[3] COL0 COL15 MA6231 U1 MA6231 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17181920212223242526272829303132 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49505152535455565758596061626364 COL[1] COL[0] VDD FBUT BBUT OSC1 OSC2 RBUT MBUT LBUT TXCB ORF1 ORF2 RFOUT RFCTL TXD TESTX1INX2INY1INY2INZ1INZ2INXRESTW1INW2INXIRSVDINVSSROW[7]ROW[6]ROW[5] ROW[4] ROW[3] ROW[2] ROW[1] ROW[0] P2[6] R1IN R2IN L1IN L2IN TURBO VSSS VL DCVR COL[19] COL[18] COL[17]COL[16]COL[15]COL[14]COL[13]COL[12]COL[11]COL[10] COL[9]COL[8]COL[7]COL[6]COL[5]COL[4]COL[3]COL[2] CN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 + C11 100uf/16V + C10 100uf/16V + C14100uf/16V C13 104 C12 104 R7 10 C15 104 --- - BATTERY L3100UH B1 0 OHM C18104 C19104 R2 OPEN ID-BUTTOM R1 4.7M X1 32.768KHz C1 47P 5% C2 47P 5% C7 - C3 C4 15P C5 75P C6 33P 5% L10.82UH L21.8UH C8 - X2 27.142 MHz C9 - R3 1.2M Q1 AME8800B 1 3 2 GND VIN VOUT C16 104 R4 680K COL9 COL8 COL7 COL6 COL5 COL4 COL3 COL2 COL1 COL0 COL10 COL11 COL12 COL13 COL14 COL15 ROW[5] ROW[6] ROW[7] VDD PCB ANT ROW[0] ROW[1] ROW[2] ROW[3] ROW[4] 5P COL16 COL17 TP1 TP2 TP3 TP4 TP5 TP6 TP8 TP9 TP12 TP13 104 Itron Technology Inc. ( Product: RF Keyboard & Mouse Combo ) Receiver 94-C14-001 C SC-K4-P-RXM-MA A3 11Saturday, July 06, 2002 Title SizeDocument NumberRev Date:Sheet of VDDVCC VCC VDD VDD VDD K_NRZ M_NRZ VCC M_NRZ VCC K_NRZ RF_IN RF_IN C2B27P C5B 104 C23 15P C22 15P X5 32.768KHz U3 93LC46A 1 2 3 45 6 7 8 CS SK DI DOGND NC NC VCC U4 MA60H13 1 2 3 4 5 6 7 8 9 10 11 12 13 1415 16 17 18 19 20 21 22 23 24 25 26 27 28 P2[3] P2[2] P2[1] P2[0] P1[2] P1[1] P1[0] VDD NC OSC1 OSC2 M_NRZIN K_NRZIN RXCBM_PLUG K_PLUG TEST XLED M_PSCK M_PSDT K_PSCK K_PSDT XRESET VSS P2[7] P2[6] P2[5] P2[4] X2B CDBM C28 C7B 103 CN1 KEYBOARD 1 2 3 4 GND +5V CLK DATA D71N4148 D81N4148 F1B CFWM455E 12 3 12 3 X1B 26.59MHz C1B 22P C3B104 C4B 104 C6B 22P C8B 104 U2 MC3361 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 OSCB OSCE MBCO VCC IFI DEC1 DEC2 BUADAUTO FI FO SQI SCAN MUTE GND MOCI CN2 MOUSE 1 2 3 4 GND +5V CLK DATA R5B 4.7K R18 0 R6B 3.3K R7B 100K Q2B 2N3904 3 2 1 D2B 1N4148 R13 240K R12 240K D5CAP D6SCR D4NUM R8B27K C26 0.1u(DIP) F1A CFWM455E 12 3 12 3 R7A 100K R8A27K X1A 26.64MHz C7A 103 U1 MC3361 1 2 3 4 5 6 7 89 10 11 12 13 14 15 16 OSCB OSCE MBCO VCC IFI DEC1 DEC2 BUADAUTO FI FO SQI SCAN MUTE GND MOCI R6A 3.3K C6A 22P D2A 1N4148 Q2A 2N3904 3 2 1 C8A 104 C2A27P C5A 104 C1A 22P X2A CDBM C28 C3A104 R5A 4.7K C4A 104 R19ARC25AC R16560 R17560 R15560 R19BRC25BC JP90ohm(1206) C9A 1000P C10A 150P C10B150P C9B 1000P R20R C6 0.1uF C25 104 C24 100U R922 C21 100U L1 JUMP R11560 D3 ACTIVE LED R210 SW1 ID SWITCH R140R10 4.7M SCHEMATIC OF RF KEYBOARD FILE NAME DRAWN DESIGEND CHECKED APPROVED SC-K4-P-RXM-MA MINE MINE KEYBOARD RECEIVER MOUSE RECEIVER

FCC ID: F2QRFCOMBOSCM7UP Issued on May 26, 2004 Report No.: F443012 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY: Mobile End Product PRODUCT NAME: RF Keyboard FCC ID.: F2QRFCOMBOSCM7UP FILING TYPE: Certification BRAND NAME: ITRON, IONE MODEL NAME: Gemini M1 Keyboard, Scorpius MVII APPLICANT: Itron Technology Inc. 9F, #75, Hsin Tai Wu Rd., Hsichih, Taipei Hsien, Taiwan, R.O.C. MANUFACTURER: Qumax Elec. (Dongguan) Co., Ltd. Sec. B, Hopewell Industrial City, Sima, Changping Town, Dongguan City, Guangdong Province, Post Code: 523570, P.R.C. ISSUED BY: SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager SPORTON International Inc. Lab Code: 200079-0 FCC ID: F2QRFCOMBOSCM7UP Issued on May 26, 2004 Report No.: F443012 SPORTON International Inc. FCC ID. : F2QRFCOMBOSCM7UP TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : May 26, 2004 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment Under Test ............................................................................................1 1.1. Applicant..........................................................................................................................................................................................1 1.2. Manufacturer ...................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test ....................................................................................................................................1 1.4. Feature of Equipment under Test ...................................................................................................................................................1 2. Test Configuration of the Equipment Under Test ........................................................................................2 2.1. Description of the Test ....................................................................................................................................................................2 2.2. Frequency Range Investigated .......................................................................................................................................................2 2.3. Details of the Supporting Units........................................................................................................................................................2 2.4. Connection Diagram of Test System ..............................................................................................................................................3 3. Test Software ...................................................................................................................................................4 4. Test Location and Standards .........................................................................................................................5 4.1. Test Location...................................................................................................................................................................................5 4.2. Test Standards ................................................................................................................................................................................5 5. Band edge ........................................................................................................................................................6 5.1. Measuring Instruments....................................................................................................................................................................6 5.2. Test Procedures ..............................................................................................................................................................................6 5.3. Test Setup Layout ...........................................................................................................................................................................7 5.4. Test Results ....................................................................................................................................................................................8 6. Carrier Field Strength......................................................................................................................................9 6.1. Measuring Instruments....................................................................................................................................................................9 6.2. Test Procedures ..............................................................................................................................................................................9 6.3. Test Setup Layout .........................................................................................................................................................................10 6.4. Test Results and Limit..............................................................................................................................…

Text truncated - open the document above for the full version.

1.1. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
