F2QRFCOMKBTXRF Keyboard

` Messrs: User’s Guide FCC ID: F2QRFCOMKBTX / KEYBOARD: SCORPIUS RF/SCORPIUS MVII/SCORPIUS KIV FCC ID: F2QRFCOMPOTX / MOUSE: LYNX RF /LYNX KIV/LYNX LV/LYNX KV RECEIVER: RECEIVER RF/RECEIVER KI PM: Electronic Engineer: Mechanical Engineer: Produce by: Email Address: [email protected] World Wide Web: http://www.qtronix.com.tw 9F, # 75, Se . 1, Hsin Tai Wu Rd. Hsichih, Taipei Hsien,Taiwan, R.O.C.(Far East World Center-Bldg. A) Tel: (886-2) 2698-2566 Fax: (886-2)2698-3133 QTRONIX CORPORATION C Approval Signatures: Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 2 WARNING Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 3 Setup Guide Reset ID before using Step 1: Connect the receiver to your computer Step 2: Push the “CONNECT” button on the receiver. Step 3: Push the button on the back of the mouse (in upper left corner). Please note that this step must be completed after Step 2 within 8 seconds. Step 4: Move pointer,when the receiver and the mouse are connected, the LED will blink , the setting has been completed. Step 5: Please go back to Step 2 if the LED does not behave as that in Step 4. Step 6: Push the “CONNECT” button on the receiver. Step 7: Push the button on the back of the keyboard (in upper left corner). Please note that this step must be completed after Step 6 within 8 seconds. Step 8: Push “Space” key ,when the receiver and the keyboard are connected, the LED will blink , the setting has been completed. Note: If same ID is used by other users and causes interference, just repeat this reset procedure. Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 4 GENERAL Description keyboard has an enhanced NedMedia design and can work with any IBM PC PS/2 compatible computer. Utilizing the latest in rubber mechanical key switch technology, Keyboard offers durability and style that will enhance any system for years to come. 21 Extra rubber buttons (Windows ACPI keys included) let keyboard link more closer with PC, touch one button to make some functions work immediately. Features Radio Frequency technology Netmedia for easy Internet and Multimedia control Low power consumption 400dpi resolution High quality Rubber-Membrane key switches Tactile key stroke 1,000,000 life cycles per switch 104,105,106,107,109 key layout Package Contents: color box Package dimension(L*W*H): 485*315*50 mm Pcs /Carton: 10pcs Package contents - RF Keyboard - RF Mouse - Receiver - 2AAA & 2AA batteries - 12 CD-ROM driver - User Manual System requirements • Designed to work with IBM PC PS/2 Compatible Computer • Perfected for using with Windows® 98 / 2000 / ME / XP. Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 5 Electrical specification Environmental of Temperatures Operating temperature 0 to 50. Non-operation temperature -10 to 60. Humidity Test Condition temperature 25C~55C Operating humidity 10% to 85% Non-operation Humidity 10% to 85% Heat storage 60, 24Hours Cool storage -10, 24Hours Humidity storage 85%, 24Hours Performance specification/ Keyboard Switch Life 1,000,000 cycle life Performance specification/ Mouse X,Y Encoder Opto-Mechanical Scroll Encoder Mechanical Switch Life 1,000,000 cycle life Scroll Encode Life 100,000 cycle life Hardware Resolution 400dpi Power Requirements Power Consumption Mode Operation Voltage Max Nom Min Working Mode 3V 7mA Sleeping Mode 3V 0.14 0.1mA 0.06 Keyboard Operation voltage 3.5V~1.5V Working Mode 3V 10mA Sleeping Mode 3V 3mA 0.2mA 0.16mA Mouse Operation voltage 3.5V~1.5V Power Consumption 30mA Receive Operation Voltage 5Vdc+5% EMI / EMC FCC The mouse shall meet the requirements of FCC Part 15 for Class B Computing Devices. CE 1.EN55022: 1998 Class B Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 6 2.EN 61000-3-2: 1995+A1: 1998+A2: 1998 3.EN 61000-3-3:1995 4.EN 55024; 1998 BSMI CNS13438. ESD Contact discharge: +2 / +4 KV Air Discharge: +2/ +4 / +6 / +8 KV Environmental of electrical Shock test The mouse shall withstand a shock equal to 20G forces, half sine wave for 11 msec duration in all three (3) orthogonal axes. Drop test (unpackage) Drop the mouse from 60 cm height above a wood board 15mm thick placed on a concrete floor, 3 times in the same direction. Scorpius KIV (P) & Lynx KIV (p) SPECIFICATIONS 7 Mechanical specification Material Cover HIPS Key top HIPS Body Weight & Dimension Keyboard Mouse Receiver Weight 800g 100.5grams 88.5grams Length 475.5mm 130.1mm 102.8mm Width 172mm 73.1mm 82.2mm High 32mm 39.5 mm 30.3mm Body colors Keyboard Mouse Receiver Upper color 3361 877C 3361 Lower color 3361 Blue (Pantone: 8181C ) 3361 Key color 3361 - - Left and Right key …

Text truncated - open the document above for the full version.

FCC ID: F2QRFCOMKBTX KEYBOARD: SCORPIUS RF /SCORPIUS MVII/SCORPIUS KIV BLOCK DIAGRAM MCU 32.768KHz ANT 27.092MHz KEY MATRIX ID BUTTON

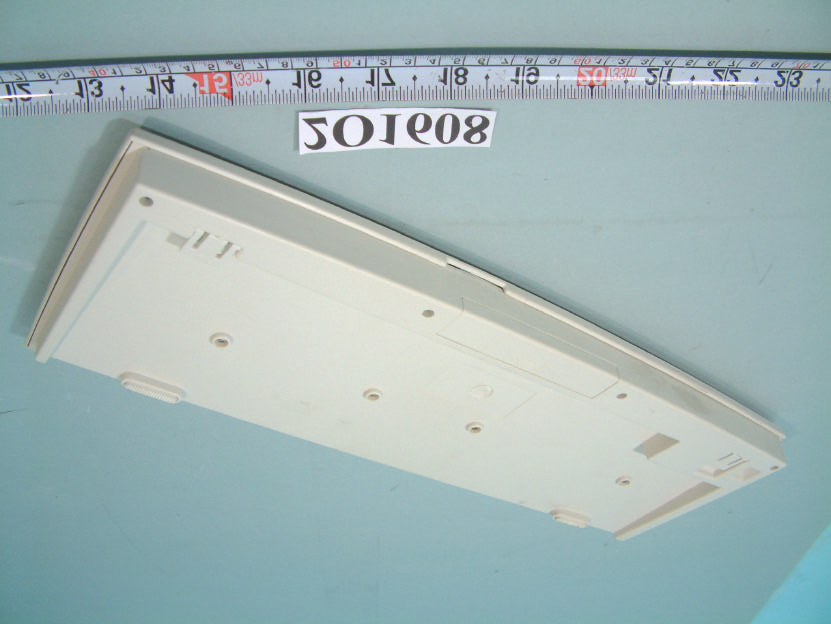

FCC ID: F2QRFCOMKBTX NUMBER 1 FRONT SIDE OF EUT(KEYBOARD) FCC ID: F2QRFCOMKBTX NUMBER 2 REAR SIDE OF EUT(KEYBOARD)

FCC ID: F2QRFCOMKBTX KEYBOARD:

FCC ID : F2QRFCOMKBTX FCC ID LOCATION (KEYBOARD)

FCC ID : F2QRFCOMKBTX Number 1 Mechanical Construction(KEYBOARD) FCC ID : F2QRFCOMKBTX Number 2 Mechanical Construction(KEYBOARD) FCC ID : F2QRFCOMKBTX Number 3 Mechanical Construction(KEYBOARD) FCC ID : F2QRFCOMKBTX Number 4 Front side of Main Board(KEYBOARD) FCC ID : F2QRFCOMKBTX Number 5 REAR side of Main Board(KEYBOARD) FCC ID : F2QRFCOMKBTX Number 6 Mechanical Construction(KEYBOARD)

Illustration for RF KEYBOARD SCORPIUS KIV & RF MOUSE LYNX KIV RF KEYBOARD FCC ID: F2QRFCOMKBTX RF MOUSE FCC ID: F2QRFCOMPOTX RF KEYBOARD SCORPIUS KIV and RF MOUSE LYNX KIV is designed to work as a input and pointing device of PC (or Notebook) When pushing or moving buttons of RF KEYBOARD SCORPIUS KIV or RF MOUSE LYNX KIV, signals go into MA60H12 and MC60A092 CHIP. After modulates, signals be emited the radio frequency at 27.092 and 27.042 MHz through an antenna. Receiver captures the radio frequency through antenna. MC3361 CHIP of receiver receives and demodulates the signals, then sends data at 26.64 and 26.59 MHz to MA60A13 CHIP. After processing, data go into PC through USB (PS2) connector. Thus, an action of RF KEYBOARD SCORPIUS KIV and RF MOUSE LYNX KIV is completed.

FCC ID: F2QRFCOMKBTX Keyboard: SCORPIUS RF /SCORPIUS MVII/SCORPIUS KIV 94-C13-001 C SC-KIV-P-TX-MA A4 11Saturday, July 06, 2002 Title SizeDocument NumberRev Date:Sheetof VDD VDD BAT BAT VDD VDD C0 C1 R0 R1 R2 R3 R4 R5R6R7 C2C3C4C6C5C7C8C9C10C11C12C13C14C15C16C17 C11 C12 C14 C13 C9 C0 C1 C4 C5 C10 C7 C8 C11 C6 C12 C13 C14 C3 C2 C9 C15 C17 C16 R4 R6 R7 R0 R6 R4 R2 R1 R5 R3 U1 MA60H12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17181920212223242526272829303132 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49505152535455565758596061626364 COL1 COL0 VDD FBUT BBUT OSC1 OSC2 RBUT MBUT LBUT TXCB ORF1 ORF2 RFOUT RFCTL TXD TESTX1INX2INY1INY2INZ1INZ2INXRESTW1INW2INXIRSVDINVSSROW7ROW6ROW5 ROW4 ROW3 ROW2 ROW1 ROW0 P2 R1 R2 L1IN L2IN TURBO VSSS VL DCVR COL19 COL18 COL17COL16COL15COL14COL13COL12COL11COL10 COL9COL8COL7COL6COL5COL4COL3COL2 J1 CON33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 D2 RB421 C133P B1 BATTERY R1 4.7M Y1 32.768KHzC233P Y2 27.092MHz SW1SW ID C718P C927P C8OPEN C3 22P C4 SHORTC5 75P C6 33P L4 0 L1 0.82U L2 1.8U R5 1k D1 BATLOW R3 1.2M R4 680K C12 104 C15 104 C10 100U C11 100U R7 10 L3 100UH C13 104 C14 470UF R8 220K R9 100K SCHEMATIC OF RF KEYBOARD FILE NAMEDRAWNDESIGENDCHECKEDAPPROVED SC-K4-P-TX-MA MINEMINE

FCC TEST REPORT Report No.: F2O1608-01 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : RF Keyboard Model No. : Scorpius KIV, Scorpious MVII FCC ID : F2QRFCOMKBTX Filing Type : Certification Applicant : Qtronix Corporation 9F, No. 75, Sec.1, Hsih Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan, R.O.C † The test result refers exclusively to the test presented test model / sample. † Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. † Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No.: F2O1608-01 SPORTON International Inc. FCC ID : F2QRFCOMKBTX TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Nov. 23, 2002 Table of Contents History of this test report.........................................................................................................................ii CERTIFICATE OF COMPLIANCE..............................................................................................................1 1. General Description of Equipment under Test......................................................................................2 1.1. Applicant.......................................................................................................................................................................................2 1.2. Manufacturer.................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test..................................................................................................................................2 1.4. Feature of Equipment under Test.................................................................................................................................................3 2. Test Configuration of Equipment under Test........................................................................................4 2.1. Test Manner..................................................................................................................................................................................4 2.2. Description of Test System...........................................................................................................................................................4 2.3. Band edge compliance plot per 15.227(b)....................................................................................................................................6 2.4. Connection Diagram of Test System.............................................................................................................................................8 3. General Information of Test..................................................................................................................9 3.1. Test Facility...................................................................................................................................................................................9 3.2. Standard for Methods of Measurement.........................................................................................................................................9 3.3. Test in Compliance with................................................................................................................................................................9 3.4. Frequency Range Investigated.....................................................................................................................................................9 3.5. Test Distance................................................................................................................................................................................9 4. Test of Conducted Powerline..............................................................................................................10 5. Test of Radiated Emission..................................................................................................................11 5.1. Major Measuring Instruments......................................................................................................................................................11 5.2. Test Procedures..........................................................................................................................................................................12 5.3. Typical Test Setup Layout of Radiated Emission........................................................................................................................13 5.4. Test Result of Radiated Emission...............................................................................................................................................14 6. EMI Suppression Component List......................................................................................................15 7. Antenna Factor & Cable Loss.............................................................................................................16 8. List of Measuring Equipments Used...................................................................................................17 9. Uncertainty of Test Site......................................................................................................................18 FCC TEST REPORT Report No.: F2O1608-01 SPORTON International Inc. FCC ID : F2QRFCOMKBTX TEL : 886-2-2696-2468 Page No. : ii FAX : 886-2-2696-2255 Issued Date : Nov. 23, 2002 History of this test report Original Report Issue Date: Nov…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F2O1608-01 SPORTON International Inc. FCC ID : F2QRFCOMKBTX TEL : 886-2-2696-2468 Page No. : 1 of 1 FAX : 886-2-2696-2255 Issued Date : Nov. 23, 2002 1.1. Photographs of Radiated Emission Test Configuration n The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
