F9CC1C-3Wireless Power Meter

CENTRON® Meter Technical Reference Guide Revision 2.0 Effective Date: May, 2002 ii Proprietary Rights Notice This manual is an unpublished work and contains the trade secrets and confidential infor- mation of SchlumbergerSema Inc., which are not to be divulged to third parties and may not be reproduced or transmitted in whole or part, in any form or by any means, electronic or mechanical for any purpose, without the express written permission of SchlumbergerSema Inc. All rights to designs or inventions disclosed herein, including the right to manufacture, are reserved to SchlumbergerSema Inc. The information contained in this document is subject to change without notice. Schlum- bergerSema reserves the right to change the product specifications at any time without incurring any obligations. Trademarks Used in This Manual EnergyPAC is a trademark of SchlumbergerSema Inc. FULCRUM, QUANTUM and PC-PRO+ are registered trademarks of SchlumbergerSema Inc. Protocol Editor is a trademark of SchlumbergerSema Inc. Windows is a trademark of Microsoft Corporation. LonWorks and LonTalk are trademarks of Echelon Corporation. Hyperterminal is a copyright of Hilgraeve, Inc. Hayes, Smartcom, Smartmodem, Accura, & Optima, are trademarks of Hayes Microcom- puter Products, Inc. USRobotics, Sportster, Megahertz, Courier, & RapidComm are trademarks of U.S. Robotics. CENTRON® Meter Technical Reference Guide RES-CEN-0025-05.02 SchlumbergerSema Inc. 313-B North Highway 11 West Union, SC 29696 Tel: (864) 638-8300 Fax: (864) 638-4950 Copyright© 2000-2002 SchlumbergerSema Inc. All Rights Reserved. iii Compliance With FCC Regulations FCC Part 15, Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These rules are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential/ commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Re-orient or relocate the receiving antenna. •Increase the separation between the equipment and the receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC rules. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION FCC Part 15, Subpart C When equipped with a radio transmitter option, this equipment has been tested and found to comply with the limits for an intentional radiator, pursuant to Part 15, Subpart C of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. The limits are designed to provide reasonable protection against such interference in a resi- dential situation. However, there is no guarantee that interference will not occur in a partic- ular installation. If this equipment does cause interference to radio or television reception. which can be determined by turning the equipment on and off, the user is encouraged to try to correct the interference by one of more of the following measures: •Reorient or relocate the receiving antenna of the affected radio or television. •Increase the separation between the equipment and the affected receiver. •Connect the equipment and the affected receiver to power outlets on separate circuits. •Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Schlumberger Resource Management Services, Inc. could void the user’s authority to operate the equipment. iv Factory Repair of Meters SchlumbergerSema recommends that all repairs be performed at the factory. Certain repairs may be performed by the user; however, unauthorized repairs will void any existing war- ranty. All surface mounted parts must be replaced by the factory. Repair of Meters Under Warranty If the meter is under warranty, then SchlumbergerSema will repair the meter at no charge if the meter has failed due to components or workmanship. A return authorization number must be obtained before the equipment can be sent back to the factory. Contact your SchlumbergerSema RMS Sales Representative for assistance. Repair of Meters Not Under Warranty The same procedure as above applies. SchlumbergerSema will charge for the necessary repairs based on the failure. Replacement Parts Refer to Chapter 9 for a list of available parts and SchlumbergerSema part numbers. Service Return Address SchlumbergerSema Customer Repair Department 313 North Highway 11 Dock C West Union, SC 29696 AT T E N T I O N The product you have purchased contains a battery (or batteries), circuit boards, and switches. The batteries are recyclable. At the end of the meter’s useful life, under various state and local laws, it may be illegal to dispose of certain components into the municipal waste system. Check with your local solid waste officials for details about recycling options or proper disposal. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions manual, this equipment can cause interference to radio com- mun…

Text truncated - open the document above for the full version.

Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 1 FCC Part 15 Subpart C Direct Sequence Spread Spectrum Transmitter Certification Test Report Appendix B External Photos Manufacturer: SchlumbergerSema, Inc. Model: CENTRON 00K FCC ID: F9CC1C-3 ACS Report Number: 02-0057-15C Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 2 Figure B1: EUT Front View Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 3 Figure B2: EUT Rear View

Due to limited space on the unit, the text shown below, required by 15.19(b)(3), will be placed in the manual on page iii as allowed by 15.19(a)(5). The FCC identifier will be placed on the exterior of the devices as required by 15.19(a)(5). The photo below shows its placement. F9CC1C-3 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

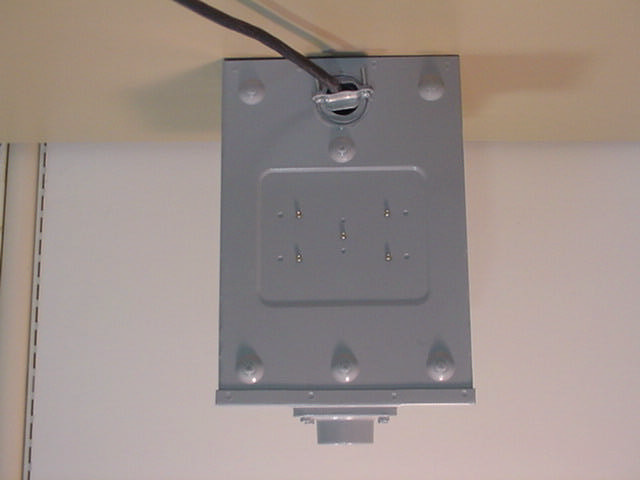

Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 1 FCC Part 15 Subpart C Direct Sequence Spread Spectrum Transmitter Certification Test Report Appendix C Internal Photos Manufacturer: SchlumbergerSema, Inc. Model: CENTRON 00K FCC ID: F9CC1C-3 ACS Report Number: 02-0057-15C Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 2 Figure C1: Meter Base and Rear View of Meter Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 3 Figure B2: Meter Module Front View Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 4 Figure B3: Meter Module with Cover Removed Exposing RF Board Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 5 Figure B4: Meter Module – RF Board Removed Exposing Metrology Board Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 6 Figure B5: Meter Module All Boards Removed Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 7 Figure B6: RF Board With Shield Top View Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 8 Figure B7: RF Board No Shield Top View Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 9 Figure B8: RF Board Underneath Shield Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 10 Figure B9: Metrology Board Top View Model: CENTRON 00K Advanced Compliance Solutions FCC ID: F9CC1C-3 ACS Report: 02-0057-15C Page 11 Figure B10: Metrology Board Bottom View

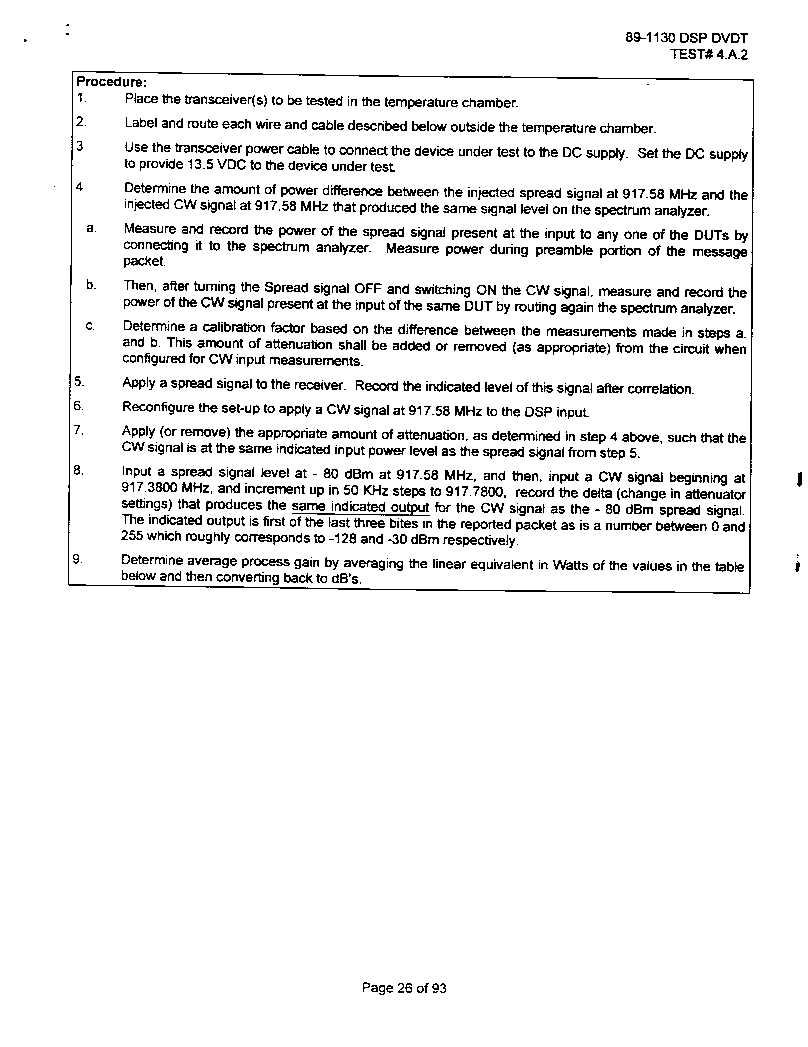

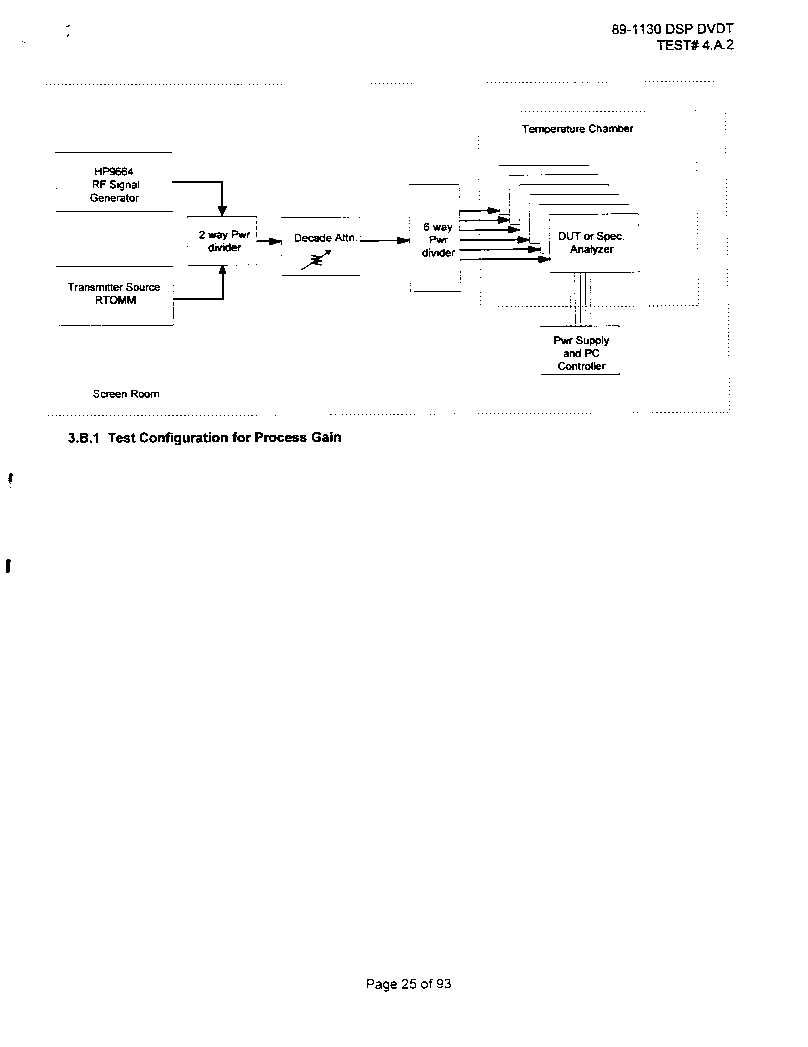

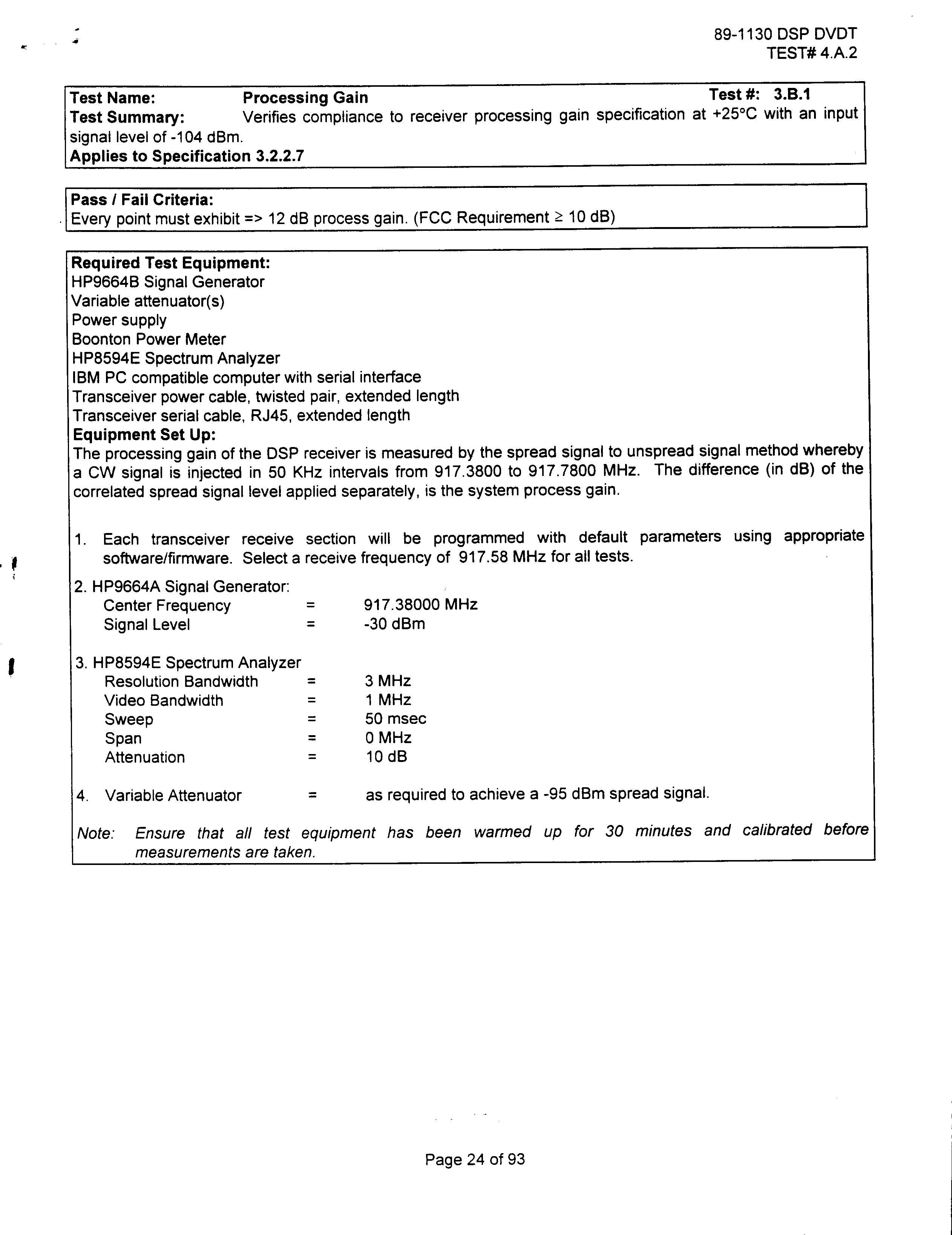

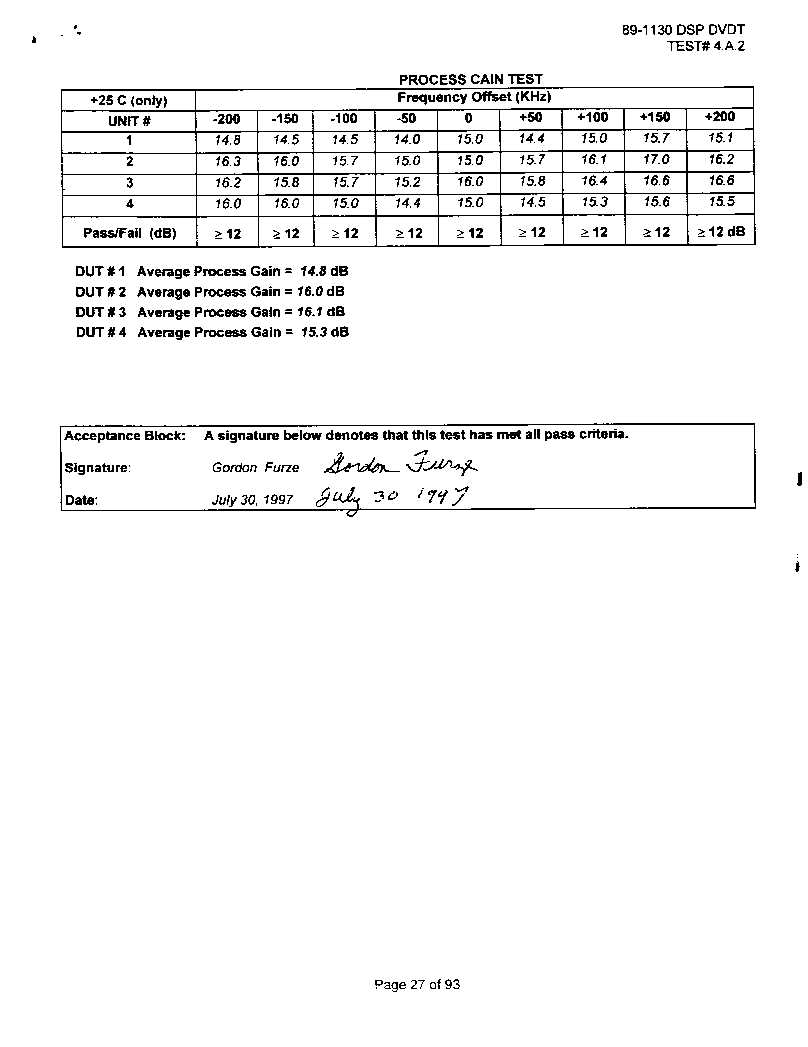

FCC Part 15 Subpart C Direct Sequence Spread Spectrum Transmitter Certification Test Report Manufacturer: SchlumbergerSema, Inc. Model: CENTRON OOK RF MODULE WITH CENTRON 2S METER FCC ID: F9CC1C-3 Rules Section: 15.247(Modular Approval) Test Begin Date: March 20, 2002 Test End Date: March 21, 2002 Report Issue Date: April 9, 2002 ACS Report Number: 02-0057-15C Test Result: PASS Prepared by: R. Sam Wismer Engineering Manager Table of Contents 1.0 General 3 1.1 Introduction 3 1.2 Product Description 3 1.2.1 General 3 1.2.2 Intended Use 3 1.2.3 Technical Specifications 3 1.2.4 Antennas 3 2.0 Location of Test Facility 4 2.1 Description of Test Facility 4 2.2 Radiated Test Site Illustration 4 3.0 Applicable Standards and References 5 4.0 List of Test Equipment 5 5.0 Support Equipment 5 6.0 EUT Setup Block Diagram 6 7.0 Summary of Tests 6 7.1 Section 15.203 - Antenna Requirement 6 7.2 Section 15.207 - Power Line Conducted Emissions 7 7.3 Section 15.209 - Radiated Emissions 7 7.4 Section 15.247(b)(1) – Peak Output Power 8 7.5 Section 15.247(a)(2)(iii) – Channel Usage 8 7.5.1 20dB Bandwidth 9 7.5.2 Hopping Channels 9 7.5.3 Adjacent Channels 10 7.5.4 Channel Dwell Time 10 7.6 Section 15.247(c) - Spurious Emissions 10 7.6.1 RF Conducted Spurious Emissions 10 7.6.2 Radiated Spurious Emissions(Restricted Bands) 11 7.6.2.1 Test Procedure 11 7.6.2.2 Duty Cycle Correction Factor 11 7.6.2.3 Correction Factors and Sample Calculations 12 7.6.2.4 Test Results 12 8.0 RF EXPOSURE - Section 15.247(b)(4) 13 9.0 CONCLUSION 13 Appendix A - Conducted Spurious Emissions Appendix B - Radiated Spurious Emissions Model: CENTRON OOK RF Module with Centron 2S Meter FCC ID: F9CC1C- 3 ACS Report: 02-0057-15C Advanced Compliance Solutions Page 3 1.0 GENERAL 1.1 Introduction The purpose of this report is to demonstrate compliance with Part 15, Subpart C of the FCC’s Code of Federal Regulations. 1.2 Product Description 1.2.1 General The Equipment Under Test (EUT), is the Model CENTRON OOK RF Module with the Centron 2S Meter manufactured by SchlumbergerSema, Inc. Located at the following address: SchlumbergerSema, Inc. 313-B North Highway 11 West Union, South Carolina 29696 Detailed photographs of the EUT are filed separately with this filing. 1.2.2 Intended Use The EUT is intended to transmit power usage to a data collection point via a Direct Sequence Spread Spectrum RF link. The power meters are fixed devices typically installed outdoors on the sides of buildings, or otherwise greater than 2 meters from nearby persons. 1.2.3 Technical Specifications Table 1.2.3-1: Specifications Frequency Band 902-928 Number of Channels 1 Channel Bandwidth 1.200 MHz Channel Spacing N/A Output power 23.83dBm nominal Antenna Type Folded Dipole Antenna Gain 2dBi Antenna Connector Type Permanently Attached to PCB 1.2.4 Antennas Table 1.2.4-1 below gives the antennas that will be employed with the CENTRON OOK RF Module with the Centron 2S Meter. Photographs are submitted separately as appendix B with this filing. Table 1.2.4-1: Antennas Mfg. Mfg. Antenna Gain Connector System EIRP Model No. Type (dBi) Type (dBm) Schlumberger Dipole 2 Soldered to Board 25.83 Model: CENTRON OOK RF Module with Centron 2S Meter FCC ID: F9CC1C- 3 ACS Report: 02-0057-15C Advanced Compliance Solutions Page 4 2.0 LOCATION OF TEST FACILTY All testing was performed by qualified ACS personnel located at the following address: ACS, Inc. 5015 B.U. Bowman Drive Buford, GA 30518 2.1 DESCRIPTION OF TEST FACILITY Radiated and conducted emissions were conducted at an ACS facility specifically prepared for this testing. Both sites have been fully described and submitted to, and accepted by the FCC and Industry Canada. FCC registration number 89450 and Industry Canada Lab Code IC 4175 have been assigned in recognition of the sites. Both sites are also in conformance with publication CISPR16. 2.1.1 Open Area Test Site The open area test site consists of a 40’ x 66’ concrete pad covered with a perforated electro-plated galvanized sheet metal. The perforations in the sheet metal are 1/8” holes that are staggered every 3/16”. The individual sheets are placed to overlap each other by 1/4” and are riveted together to provide a continuous seam. Rivets are spaced every 3” in a 3 x 20 meter perimeter around the antenna mast and EUT area. Rivets in the remaining area are spaced as necessary to properly secure the ground plane and maintain the electrical continuity. The entire ground plane extends 12’ beyond the turntable edge and 16’ beyond the antenna mast when set to a 10 meter measurement distance. The ground plane is grounded via 4 - 8’ copper ground rods, each installed at a corner of the ground plane and bound to the ground plane using 3/4" stainless steel braided cable. The turntable is an all aluminum 10’ flush mounted table installed in an all aluminum frame. The table is remotely operated from inside the control room located 40’ from the range. The turntable is electrically bonded to the surrounding ground plane via steel fingers installed on the edge of the turn table. The steel fingers make constant contact with the ground plane during operation. Adjacent to the turntable is a 7’ x 7’ square and 4’ deep concrete pit used for support equipment if necessary. The pit is equipped with 5 - 4” PVC chases from the pit to the control room that allow for cabling to the EUT if necessary. The underside of the turntable can be accessed from the pit so cables can be supplied to the EUT from the pit. The pit is covered with 2 sheets of 1/4" diamond style re-enforced steel sheets. The sheets are painted to match the perforated steel ground plane, however the underside edges have been masked off to maintain the electrical continuity of the ground plane. All reflecting objects are located outside of the ellipse defined in ANSI C63.4. Model: CENTRON OOK RF Module with Centron 2S Meter FCC ID: F9CC1C- 3 ACS Report: 02-0057-15C Advanced Compliance Solutions Page 5 A diagram of the Open Area Test S…
