FC3HDT1000LSCompact HD/SD Digital Video Transmitter

User and Technical Manual Preliminary Draft - April 2010 HDT-1000S2 Compact HD/SD Digital Video Transmitter Manual Part No. RD000079 Rev.1 January 2011 Preliminary Draft - April 2010 Copyright © 2011 Part number RD000079 Printed in U.S.A. Authorized EU representative: Vislink PLC Quality Certification Vislink is certified to ISO 9001:2008. The Vislink trademark and other trademarks are registered trademarks in the United States and/or other countries. Microsoft®, Windows®, and Internet Explorer® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Proprietary Material The information and design contained within this manual was originated by and is the property of Vislink. Vislink reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein, except to the extent rights are expressly granted to others. The foregoing does not apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice, Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual or for any decisions based on its use. This manual is supplied for information purposes only and should not be construed as a commitment by Vislink. The information in this manual remains the property of Vislink and may not be used, disclosed, or reproduced in any form whatsoever, without the prior written consent of Vislink. Vislink reserves the right to make changes to equipment and specifications of the product described in this manual at any time without notice and without obligation to notify any person of such changes. General Safety Information The following safety requirements, as well as local site requirements and regulations, must be observed by personnel operating and maintaining the equipment covered by this manual to ensure awareness of potential hazards. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. About this Manual This manual is intended for use by qualified operators, installers, and service personnel. Users of this manual should already be familiar with basic concepts of radio, video, and audio. For information about terms in this manual, see Glossary of Terms and Abbreviations (Part No. 400576-1). Pay special attention to Notes, Cautions, and Warnings. Read Notes for important information to assist you in using and maintaining the equipment. Follow CAUTIONS to prevent damage to the equipment. Follow WARNINGS to prevent personal injury or death. Symbols The following symbols may be on the equipment or in this manual: WARNING: General Warning. Risk of Danger. Frame or Chassis Ground: Identifies the frame or chassis terminal. WARNING: Risk of Electric Shock.Earth Ground: Identifies the earth ground terminal. CAUTION: Electrostatic Discharge. Possible Damage to Equipment. Fuse: Identifies fuses or their location. Protective Earth Ground: Identifies any terminal intended for connection to an external conductor for protection against elec- tric shock in case of a fault, or the terminal on a protective earth electrode. Waste Electrical and Electronic Equipment (WEEE): The product must not be disposed of with other waste. You must dispose of the waste equipment by handing it over to a desig- nated collection point for recycling. 101 Billerica Avenue - Bldg. 6 North Billerica, MA 01862-1256 USA TEL: 800.490.5700 or +1.978.671.5700 1-1HDT-1000S2 User and Technical Rev 1 1About the HDT-1000S2 The HDT-1000S2 Compact HD/SD Digital Video Transmitter is designed for short-range, portable and fixed transmission applications and transmits remote video to a central receive location. The HDT-1000S2 is designed to transmit up to two NTSC (or PAL) standard definition (SD) video signals or one high-definition (HD) video signal (up to 1080i) plus two audio signals and an RS-232 data channel. Common uses include law enforcement surveillance and video collection. The HDR-1000 can transmit DVB-T COFDM digital transmissions consisting of either standard definition (SD) (NTSC or PAL) or high-definition (HD) video formats. The transmitter uses the H.264 MPEG video compression format for high-quality imagery. Accessories You can order an RF cable, omni antenna, and encryption license. 2Band and Frequency of Operation The HDT-1000S2 covers the following range: •HDT-1000S2 S2 band2.41—2.45 GHz (unlicensed)* * Unlicensed operation under FCC Part 15 in S Band is factory limited to 2.414 - 2.458 GHz This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation 1-2 HDT-1000S2 User and Technical Rev 1 3Unpacking the HDT-1000S2 Before you install your new equipment, carefully unpack your new equipment to avoid accidental damage. •Locate all parts and accessories and verify that they are listed on the packing list. DO NOT discard the container or packing material until you have inspected the equipment and are sure there is no shipping damage. The container and packing must be available in case you need to f…

Text truncated - open the document above for the full version.

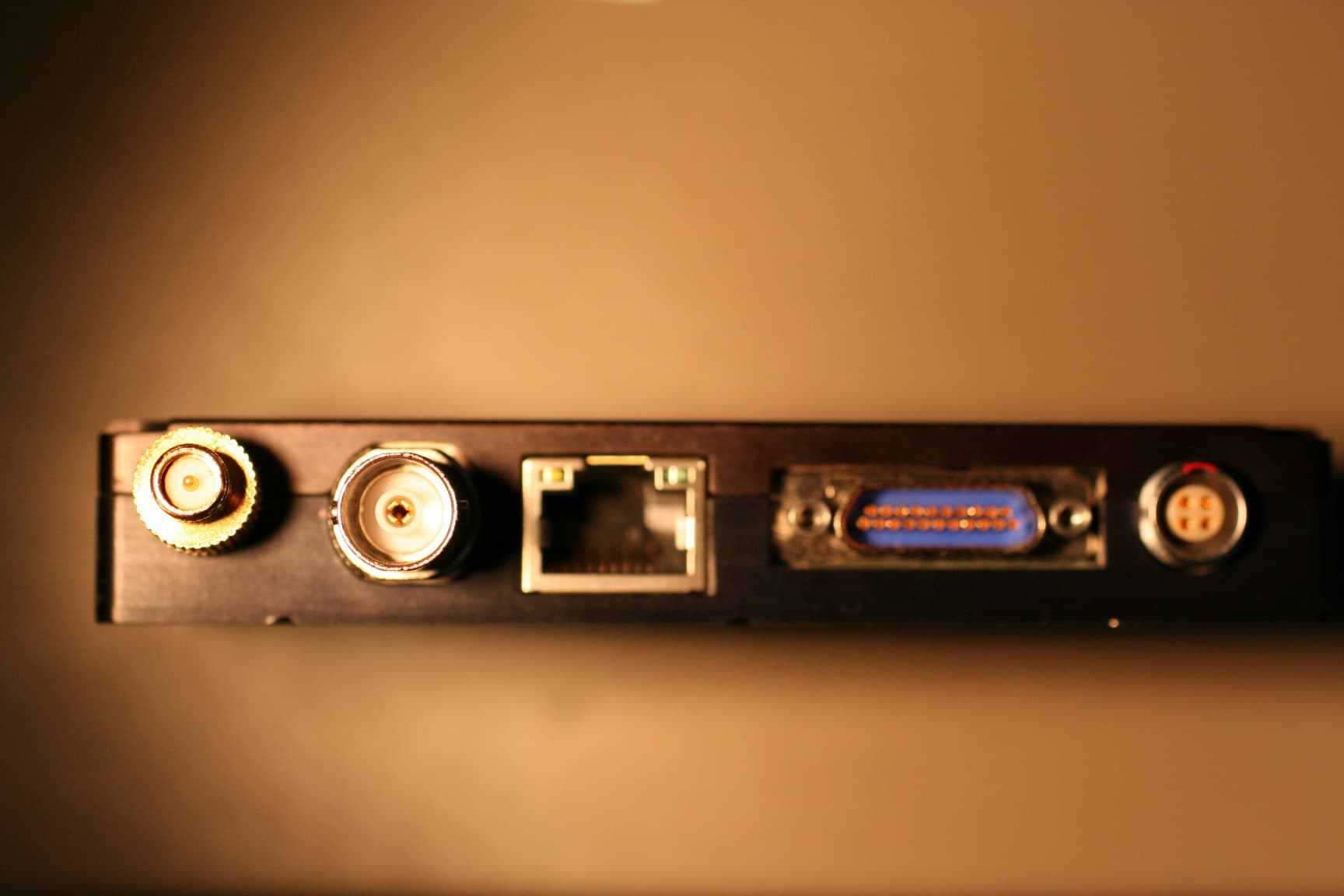

EK0751-2 Microwave Radio Communications LLC External Pictures EK0751-2 Microwave Radio Communications LLC External Pictures EK0751-2 Microwave Radio Communications LLC External Pictures EK0751-2 Microwave Radio Communications LLC External Pictures

EK0751-2 Microwave Radio Communications LLC Internal Pictures EK0751-2 Microwave Radio Communications LLC Internal Pictures EK0751-2 Microwave Radio Communications LLC Internal Pictures EK0751-2 Microwave Radio Communications LLC Internal Pictures

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at the antenna terminal: 22.20(dBm) Maximum peak output power at the antenna terminal:165.9586907(mW) Antenna gain(typical):5(dBi) Maximum antenna gain:3.16227766(numeric) Prediction distance:20(cm) Prediction frequency: 2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.104407(mW/cm^2) Therefore device complies with FCC and Industry Canada RF radiation exposure limits for gereral population as a mobile device (distance > 20cm) 2 4R PG S π =

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 1 of 25 Test Report Curtis-Straus LLC, a wholly owned subsidiary of BV CPS Report No EK0751-2 Client Microwave Radio Corporation LLC Address 101 Billerica Ave. Building 6 North Billerica, MA 01862 Phone 978-671-5720 Items tested HDT1000 FCC ID FC3HDT1000LS FRN 0004267712 Equipment Type DTS Equipment Code Digital Transmission System FCC/IC Rule Parts 47 CFR 15.247 Test Dates September 21-27, 2010 Results As detailed within this report Prepared by Matthew Burman – Test Engineer Authorized by Mairaj Hussain – EMC Supervisor Issue Date December 10, 2010 Conditions of Issue This Test Report is issued subject to the conditions stated in the ‘Conditions of Testing’ section on page 24 of this report. Test Report for Microwave Radio Corporation LLC • •• • Report No. EK0751-2 December 10, 2010 ______________________________________________________________________ ____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • FAX (978) 486-8828 page 2 of 25 Contents Contents..................................................................................................................................2 Summary.................................................................................................................................3 Test Methodology ....................................................................................................................3 Product Tested - Configuration Documentation .......................................................................4 Statement of Conformity......................................................................................................5 Modifications Required for Compliance ...................................................................................5 Test Results ............................................................................................................................6 Bandwidth............................................................................................................................6 Peak Power.........................................................................................................................8 Band Edge Measurements.................................................................................................12 Radiated Spurious Emissions............................................................................................14 Conducted Spurious Emissions.........................................................................................15 Power Spectral Density......................................................................................................17 AC Line Conducted Emissions...........................................................................................19 Voltage Variations..............................................................................................................20 Measurement Uncertainty......................................................................................................21 Test Equipment Used ............................................................................................................22 Product Documentation .........................................................................................................23 Conditions Of Testing ............................................................................................................24 Form Final Report REV 7-20-07 (DW) Test Report for Microwave Radio Corporation LLC • •• • Report No. EK0751-2 December 10, 2010 ______________________________________________________________________ Release Control Record Issue No. Reason for change Date Issued 1 Original Release December 10, 2010 _____________________________________________________________ Curtis-Straus LLC, a wholly owned subsidiary of BV CPS One Distribution Center Circle, #1 • •• • Littleton, MA • •• • TEL (978) 486-8880 • •• • FAX (978) 486-8828 page 3 of 25 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.247. The product is the HDT1000. It is a transmitter that operates in the range 2400- 2483.5MHz. We found that the product met the above requirements with modification (see Modifications Required for Compliance section on page 5). Sal Blatti from Microwave Radio Corporation LLC was present during the testing. The test sample was received in good condition. Verification testing was performed and issued under a separate report EK0751-1. Test Methodology Radiated emission and AC Line conducted testing was performed according to the procedures specified in ANSI C63.4 (2009). Radiated Emissions were maximized by rotating the device around three orthogonal axes as well as varying the test antenna’s height and polarity. The device antenna was maximized separately. Conducted emission at the antenna port was performed, as required by rule section. The EUT operating voltage is 16Vdc. The following bandwidths were used during radiated spurious and line conducted emissions. Frequency RBW VBW 0.15-30MHz 9kHz 30kHz 30-1000MHz 120kHz 1MHz 1-25GHz 1MHz 3MHz Low Channel = 2404.0MHz Mid Channel = 2442.0MHz High Channel = 2470.0MHz The EUT does not receive, it transmits only. EUT has two power levels, a high and reduced power. Test Report for Microwave Radio Corporation LLC • •• • Report No. EK0751-2 December 10, 20…

Text truncated - open the document above for the full version.

EK0751-2 Microwave Radio Communications LLC Test Setup Pictures Radiated Measurements above 1GHz Conductive Measurements EK0751-2 Microwave Radio Communications LLC Test Setup Pictures AC Line Conducted Emissions - Rear AC Line Conducted Emissions - Front EK0751-2 Microwave Radio Communications LLC Test Setup Pictures Radiated Measurements below 1GHZ Radiated Measurements above 18GHz
