FC3HDX2025DMicrowave Downlink transmitter

HDX-1100 Aircraft/Terrestrial High Power SD/HD Video Transmitter User and Technical Manual Manual Part No. 400609-1 Rev. XX - March 2011 PRELIMINARY COPY Copyright © 2010 Part number 400609-1 Printed in U.S.A. Authorized EU representative: Vislink PLC Quality Certification Vislink is certified to ISO 9001:2008. The Vislink trademark and other trademarks are registered trademarks in the United States and/or other countries. Microsoft®, Windows®, and Internet Explorer® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Proprietary Material The information and design contained within this manual was originated by and is the property of Vislink. Vislink reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein, except to the extent rights are expressly granted to others. The foregoing does not apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice, Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual or for any decisions based on its use. This manual is supplied for information purposes only and should not be construed as a commitment by Vislink. The information in this manual remains the property of Vislink and may not be used, disclosed, or reproduced in any form whatsoever, without the prior written consent of Vislink. Vislink reserves the right to make changes to equipment and specifications of the product described in this manual at any time without notice and without obligation to notify any person of such changes. General Safety Information The following safety requirements, as well as local site requirements and regulations, must be observed by personnel operating and maintaining the equipment covered by this manual to ensure awareness of potential hazards. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. About this Manual This manual is intended for use by qualified operators, installers, and service personnel. Users of this manual should already be familiar with basic concepts of radio, video, and audio. For information about terms in this manual, see Glossary of Terms and Abbreviations (Part No. 400576-1). Pay special attention to Notes, Cautions, and Warnings. Read Notes for important information to assist you in using and maintaining the equipment. Follow CAUTIONS to prevent damage to the equipment. Follow WARNINGS to prevent personal injury or death. Symbols The following symbols may be on the equipment or in this manual: WARNING: General Warning. Risk of Danger. Frame or Chassis Ground: Identifies the frame or chassis terminal. WARNING: Risk of Electric Shock. Earth Ground: Identifies the earth ground terminal. CAUTION: Electrostatic Discharge. Possible Damage to Equipment. Fuse (either icon): Identifies fuses or their location. Protective Earth Ground: Identifies any terminal intended for connection to an external conductor for protection against elec- tric shock in case of a fault, or the terminal on a protective earth electrode. Waste Electrical and Electronic Equipment (WEEE): The product must not be disposed of with other waste. You must dispose of the waste equipment by handing it over to a desig- nated collection point for recycling. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 USA +1-978-671-5700 1 1 About the HDX-1100 The Kamelyon TM HDX-1100 high power digital microwave transmitter is a ruggedized unit designed to support high quality video and data transmission in airborne and mobile applications, where vibration, shock, humidity, and temperature swings are everyday occurrences. The HDX-1100 is compliant with aircraft industry mounting standards, making it perfectly suited for airborne or ground based mobile platforms. Typical applications include real time video for law enforcement, public safety, fire, utility, and other agency based surveillance tasks. The HDX-1100 includes an H.264/MPEG-4 encoder that provides standard or high definition (SD or HD) video on DVB-T/ COFDM, or Vislink RangeMaster TM single carrier modulation. An MPEG-2 encoder option is available to support legacy receivers. Video inputs may be configured for composite NTSC or PAL in standard analog formats, or digital video in SDI, HD-SDI, or ASI formats. Other inputs include two full range audio channels, and an RS-232 data channel. The transmitter RF output is 8W in high power mode, and about 4 W in low power mode. The HDX-1100 may be operated via the touch screen user interface (see Section 4), however it is typically controlled by an optional aircraft remote panel (RCU) (see Section 5). Initial HDX-1100 programming and presets should be configured via PC using the integrated web browser utility (see Section 6). 2 Operating in Safety Guidelines for safe operation are derived from OET bulletin 65, August 1997, as recommended by the Federal Communications Commission (FCC). WARNING High levels of RF power are present in the unit. Exposure to RF or microwave power can cause burns and may be harmful to health. Remove power from the unit before disconnecting any RF cables and before inspecting damaged cables and/or anten…

Text truncated - open the document above for the full version.

HDX-1100 Aircraft/Terrestrial High Power SD/HD Video Transmitter User and Technical Manual Manual Part No. 400609-1 Rev. D – May 2013 Copyright © 2010 Part number 400609-1 Printed in U.S.A. Authorized EU representative: Vislink PLC Quality Certification Vislink is certified to ISO 9001:2008. The Vislink trademark and other trademarks are registered trademarks in the United States and/or other countries. Microsoft®, Windows®, and Internet Explorer® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Proprietary Material The information and design contained within this manual was originated by and is the property of Vislink. Vislink reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein, except to the extent rights are expressly granted to others. The foregoing does not apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice, Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual or for any decisions based on its use. This manual is supplied for information purposes only and should not be construed as a commitment by Vislink. The information in this manual remains the property of Vislink and may not be used, disclosed, or reproduced in any form whatsoever, without the prior written consent of Vislink. Vislink reserves the right to make changes to equipment and specifications of the product described in this manual at any time without notice and without obligation to notify any person of such changes. General Safety Information The following safety requirements, as well as local site requirements and regulations, must be observed by personnel operating and maintaining the equipment covered by this manual to ensure awareness of potential hazards. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. About this Manual This manual is intended for use by qualified operators, installers, and service personnel. Users of this manual should already be familiar with basic concepts of radio, video, and audio. For information about terms in this manual, see Glossary of Terms and Abbreviations (Part No. 400576-1). Pay special attention to Notes, Cautions, and Warnings. Read Notes for important information to assist you in using and maintaining the equipment. Follow CAUTIONS to prevent damage to the equipment. Follow WARNINGS to prevent personal injury or death. Symbols The following symbols may be on the equipment or in this manual: WARNING: General Warning. Risk of Danger. Frame or Chassis Ground: Identifies the frame or chassis terminal. WARNING: Risk of Electric Shock. Earth Ground: Identifies the earth ground terminal. CAUTION: Electrostatic Discharge. Possible Damage to Equipment. Fuse (either icon): Identifies fuses or their location. Protective Earth Ground: Identifies any terminal intended for connection to an external conductor for protection against elec- tric shock in case of a fault, or the terminal on a protective earth electrode. Waste Electrical and Electronic Equipment (W EEE): The product must not be disposed of with other waste. You must dispose of the waste equipment by handing it over to a desig- nated collection point for recycling. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 USA +1-978-671-5700 1 1 About the HDX-1100 The Kamelyon TM HDX-1100 high power digital microwave transmitter is a ruggedized unit designed to support high quality video and data transmission in airborne and mobile applications, where vibration, shock, humidity, and temperature swings are everyday occurrences. The HDX-1100 is compliant with aircraft industry mounting standards, making it perfectly suited for airborne or ground based mobile platforms. Typical applications include real time video for law enforcement, public safety, fire, utility, and other agency based surveillance tasks. The HDX-1100 includes an H.264/MPEG-4 encoder that provides standard or high definition (SD or HD) video on DVB-T/ COFDM, or Vislink RangeMaster TM single carrier modulation. An MPEG-2 encoder option is available to support legacy receivers. Video inputs may be configured for composite NTSC or PAL in standard analog formats, or digital video in SDI, HD-SDI, or ASI formats. Other inputs include two full range audio channels, and an RS-232 data channel. Model are available to cover the bands shown in the chart below. Band Designation HDX-1100 Operating Range L Band 1.7 – 1.9 GHz S Band 2.0 – 2.5 GHz C1 Band 3.1 - 3.5 GHz C2 Band 4.4 - 5.0 GHz C3 Band 6.4 - 7.1 GHz The HDX-1100 may be operated via the touch screen user interface (see Section 4), however it is typically controlled by an optional aircraft remote panel (RCU) (see Section 5). Initial HDX-1100 programming and presets should be configured via PC using the integrated web browser utility (see Section 6). 2 2 Operating in Safety Guidelines for safe operation are derived from OET bulletin 65, August 1997, as recommended by the Federal Communications Commission (FCC). WARNING High levels of RF power are present in the unit. Exposure to RF or microwave power can cause burns and may be harmful to health…

Text truncated - open the document above for the full version.

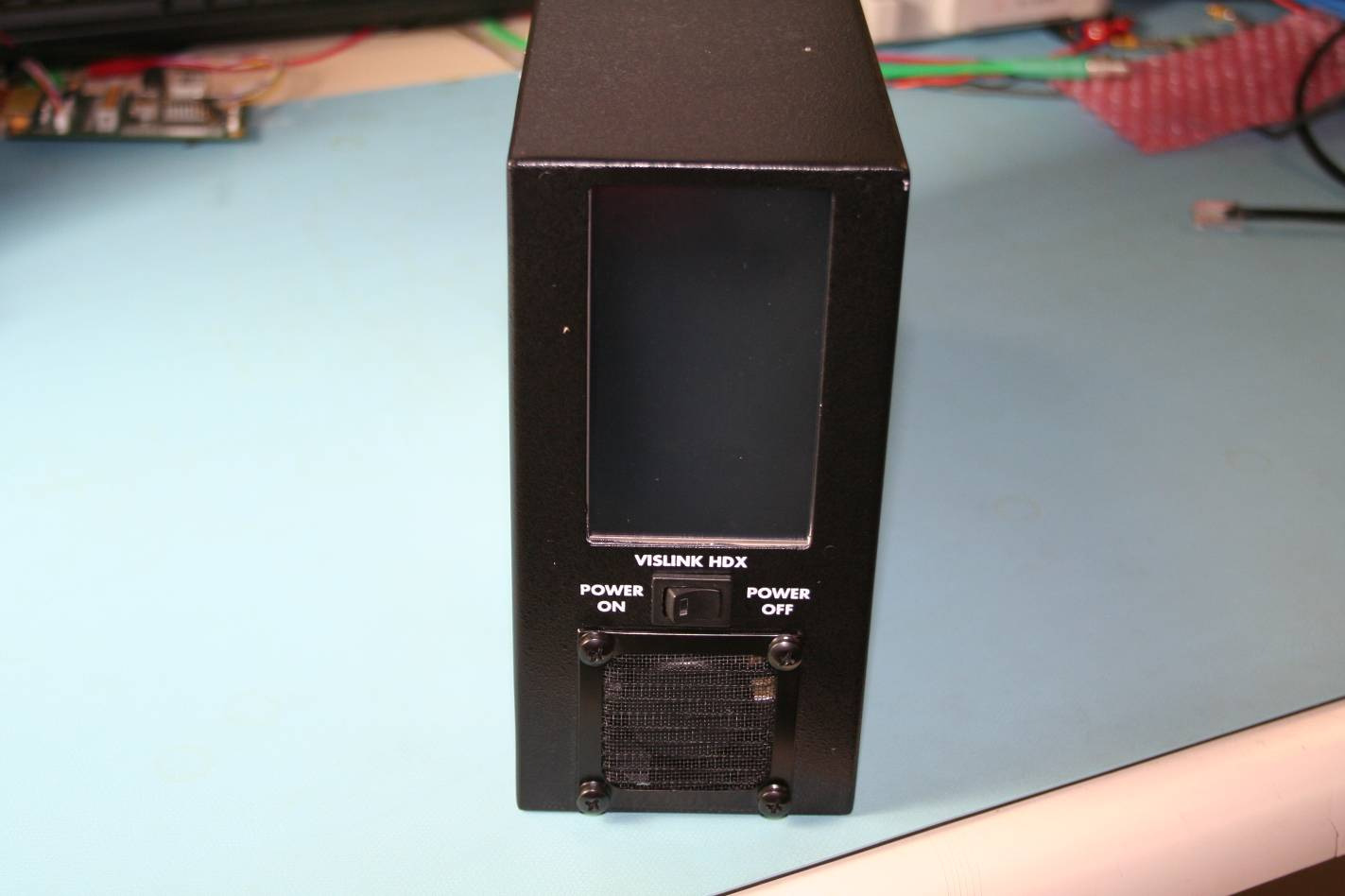

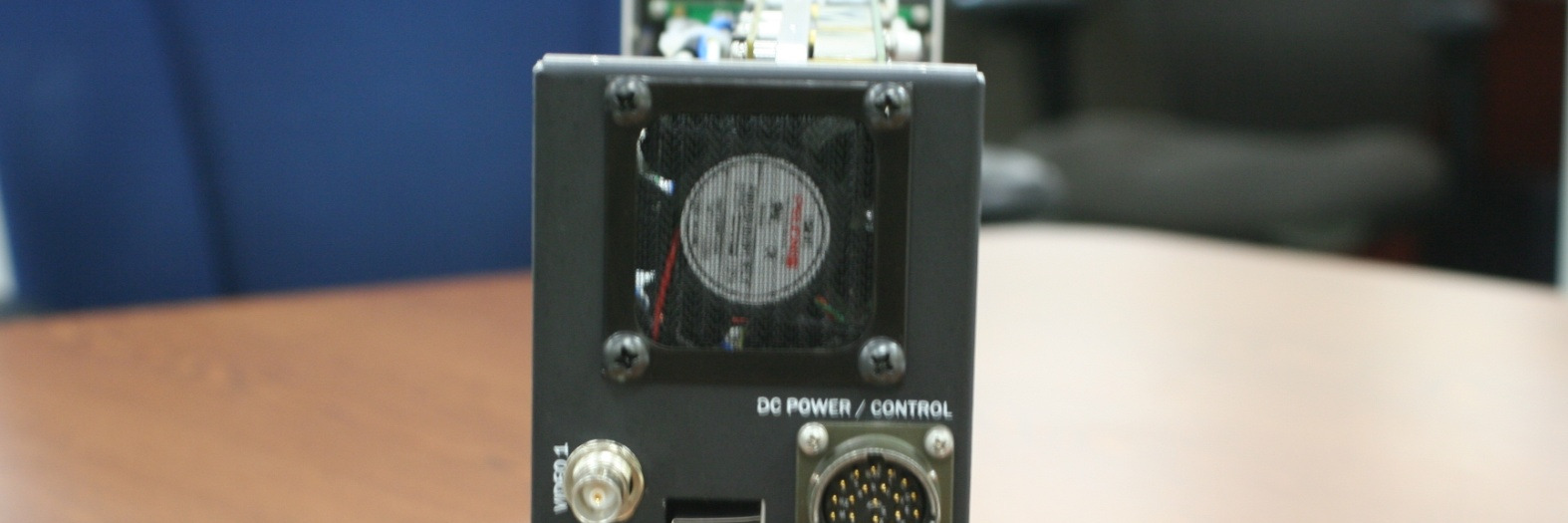

P A G E 1 9 O F 3 0 V I S L I N K – A PP L I C A L T I O N F O R C E R T I F I C A T I O N – F C 3 H D X2 02 5 D S E C T I O N 4 T R AN S M I T T E R P H O T O S FC3HDX20252D HDX1100 TRANSMITTER PHOTOS MANUFACTURERS PART # 9000390 FC3HDX2025D FRONT PANEL VIEW P A G E 2 2 O F 3 0 V I S L I N K – A PP L I C A L T I O N F O R C E R T I F I C A T I O N – F C 3 H D X2 02 5 D FC3 HDX064D REAR VIEW SECTION 5 - TEST SET UP PHOTOS RF OUTPUT CONNECTOR

PAGE 30 OF 30 A P P E N D I X B - F C C L A B E L L O C AT I O N List of Attachments and Exhibits to this Application

P A G E 2 0 O F 3 0 V I S L I N K – A PP L I C A L T I O N F O R C E R T I F I C A T I O N – F C 3 H D X2 02 5 D Modulator / H264 Encoder MPEG-2 Encoder Controller Board FC3HDX2025D INTERNAL VIEW (Modulator side) P A G E 2 1 O F 3 0 V I S L I N K – A PP L I C A L T I O N F O R C E R T I F I C A T I O N – F C 3 H D X2 02 5 D Power Supply Power Amp FC3HDX2025D INTERNAL VIEW (Power Amp side)

A Division of Vislink, Inc. Microwave Radio Communications 101 Billerica Avenue, Bldg 6 N. Billerica, MA 01862-1256 USA Tel: +1-978-671-5700 Fax: +1-978-671-5800 Web: www.mrcbroadcast.com February 15, 2013 Applicant: Microwave Radio Communication. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX2025D Technical Description: The HDX1100 FC3HDX2025D is a compact, mobile transmitter, designed to be adaptable to a wide range of field applications; particularly those requiring ruggedized, vehicular mounted equipment. The transmitter accepts a wide range of SMPTE based video input signals, including HD-SDI, SDI, ASI, and NTSC. Raw video, audio, and data are delivered to an integral MPEG-2 Encoder which feeds a COFDM-DVB-T modulator, operating in the 2K carrier mode, to produce a 1705 carrier spectrum. The I and Q outputs of the COFDM modulator are supplied directly to an RF generator and up- converted to the operating band from 2000 to 2500 MHz at an RF power level of +20dBm. A 20 dB gain RF amplifier follows the exciter to boost the final RF output power to + 40dBm (10Watt). The exciter RF drive level is factory set to limit the RF output from the PA to 10 Watt or less. RF ExciterRF AMP Control & DC Distribution Front Panel MPEG2 Encoder & COFDM Modulator Video Switch RF Out 11 – 32 VDC In Remote Panel/ RS-232 Mgmt HDX1100 Functional Block Diagram Composite in SDI/HD-SDI inI-Q Web browser interface ASI Input A Division of Vislink, Inc. The specific operating frequency is determined by a high stability wide band VCO. The VCO set-up voltage is controlled by a microprocessor that is factory programmed to provide channel plans in accordance with the rules as specified in §74.602(h)(4)(i)(2)&(3), §78.18(b)(5), and §90. Digital modulation of the COFDM carriers changes between QPSK, 16QAM, and 64QAM as determined by user bit rate requirements. The symbol rate is set to maintain the occupied bandwidth mask to be in compliance with the ETSI EN 300 744 V1.51 standards for either a 6 or 8 MHz COFDM pedestal as shown in the chart above, and to be in compliance with the emission bandwidth limits as required in § 74.637(a)(2)(i), 78.103(e), and 90. An LCD touch screen display located on the front panel of the transmitter is used to control basic transmission parameters and provide operational status of internal systems. The transmitter can also be operated from an external remote panel via hard wired RS-232 link. Additional information may be found in the HDX-1100 User and Technical Manual, included with this application.

A Division of Vislink, Inc. Microwave Radio Communications 101 Billerica Avenue, Bldg 6 N. Billerica, MA 01862-1256 USA Tel: +1-978-671-5700 Fax: +1-978-671-5800 Web: www.mrcbroadcast.com May 8, 2013 Applicant: Microwave Radio Communication. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX2025D Technical Description: The HDX1100 FC3HDX2025D is a compact, mobile transmitter, designed to be adaptable to a wide range of field applications; particularly those requiring ruggedized, vehicular mounted equipment. The transmitter accepts a wide range of SMPTE based video input signals, including HD-SDI, SDI, ASI, and NTSC. Raw video, audio, and data are delivered to an integral MPEG-2 Encoder which feeds a COFDM-DVB-T modulator, operating in the 2K carrier mode, to produce a 1705 carrier spectrum. The I and Q outputs of the COFDM modulator are supplied directly to an RF generator and up- converted to the operating band from 2000 to 2500 MHz at an RF power level of +20dBm. A 20 dB gain RF amplifier follows the exciter to boost the final RF output power to + 40dBm (10Watt). The exciter RF drive level is factory set to limit the RF output from the PA to 10 Watt or less. RF ExciterRF AMP Control & DC Distribution Front Panel MPEG2 Encoder & COFDM Modulator Video Switch RF Out 11 – 32 VDC In Remote Panel/ RS-232 Mgmt HDX1100 Functional Block Diagram Composite in SDI/HD-SDI inI-Q Web browser interface ASI Input A Division of Vislink, Inc. The specific operating frequency is determined by a high stability wide band VCO. The VCO set-up voltage is controlled by a microprocessor that is factory programmed to provide channel plans in accordance with the rules as specified in §74.602(h)(4)(i)(2)&(3), §78.18(a)(6), and §90. Digital modulation of the COFDM carriers changes between QPSK, 16QAM, and 64QAM as determined by user bit rate requirements. The symbol rate is set to maintain the occupied bandwidth mask to be in compliance with the ETSI EN 300 744 V1.51 standards for either a 6 or 8 MHz COFDM pedestal as shown in the chart above, and to be in compliance with the emission bandwidth limits as required in § 74.637(a)(2)(i), 78.103(e), and 90. An LCD touch screen display located on the front panel of the transmitter is used to control basic transmission parameters and provide operational status of internal systems. The transmitter can also be operated from an external remote panel via hard wired RS-232 link. Additional information may be found in the HDX-1100 User and Technical Manual, included with this application.

Pending VersionHistoric VersionsEngineering Changes AX UKM AX USM Event Log SpecificationHistory Sheet Where Used Product Data Manager. Copyright © 2012 Vislink. All Rights Reserved. PARTREV DESCRIPTIONSTATUS 9000390 A1 TOP ASSY HDX-1100 S BAND 2.0 - 2.5GHz, 10WOfficial Parts List Line# ComponentRev DescriptionQtyUnitsRoHS Production State 19000026BHDX HOUSING1EachYesProduction Ready 2 9000027ACOVER HOUSING HDX1EachYesProduction Ready 39000019BCOVER SIDE HDX BOX1EachYesProduction Ready 49000028AHEAT SINK FOLDED FIN HIGH POWER HDX1EachYesProduction Ready 5 9000029ACOVER HEATSINK1EachYesProduction Ready 69000362ACOVER PLATE RH PLENUM1EachYesProduction Ready 79000363ACOVER PLATE LH PLENUM1EachYesProduction Ready 8 9000364ACOVER PLATE TOP PLENUM1EachYesProduction Ready 99000174APWA HDX PWR BD,400W, 75W 12V1EachYesProduction Ready 11 9000624ATHERMAL PAD 2.3 X 2.3 X .06"2EachYesProduction Ready 139000052CPWA CONTROLLER HDX11001EachYesProduction Ready 149001867ATOP ASSY HDT-1000S1Each?Production Ready 159000378ATHERMAL GAP PAD .22THK HDT10001EachYesProduction Ready 169000626AKIT HDX AMP S-BAND 2.0- 2.5GHz 10W LINEAR WITH POWER CABLE 1EachYesProduction Ready 1853701-130B3DISPLAY,4.3 INCH1EachYesProduction Ready 19909485-1AGSKT,FRONT PANEL1EachNoProduction Ready 2052190-1BADPTR,STR,"N",SMA,4HOLE1EachYesProduction Ready 2258200-42ACB,THERMAL1EachYesProduction Ready 2352500-463AJ-HOOK2EachYesProduction Ready 24 52901-30AFAN,FLTR,SCRN,60MM SQ,AL BLK,.6 TH2EachYesProduction Ready 2558444-27AGSKT,'U',NEOPRENE,3.54LG1EachYesProduction Ready 319000366ACABLE ASSY CONTROLLER POWER1EachYesProduction Ready 329000367ACABLE ASSY HDT POWER1EachYesProduction Ready 339000368ACABLE ASSY FAN POWER2EachYesProduction Ready 349000369ACABLE ASSY FRONT DISPLAY1EachYesProduction Ready 359000370ACABLE ASSY HDT 21 PIN1EachYesProduction Ready 369000371ACABLE ASSY MAIN INPUT 26 PIN1EachYesProduction Ready 37 56500-133ACA,COAX,BNC PLUG,(75-OHM), MMCX (50-OHM),RG187,12" LG 1EachYesProduction Ready 38906716-14ECA,ASSY,14",FLEX,SMA,M-M1EachNoProduction Ready 39906716-6ECA,ASSY,6",FLEX,SMA,M-M1EachNoProduction Ready 4088353-6ATBG,SHRINK,1/4" DIA ROHS COMPLIANT0.2FeetYesProduction Ready 5152800-93ASCR,PAN HD,10-14 X 1/2 LG, SST,SELF-TAPPING,ZINC,BLK 8EachYesProduction Ready 529000621ASCR FLT HD 6-32 X 1/4 SST UNDERCUT BLACK38EachYesProduction Ready 53 88424-3ASCR,PAN HD 4-40X3/8 SST4EachYesProduction Ready 54 88426-3LFASCR,PAN HD 6-32X3/8 PHL SST LOCK/FLAT3EachYesProduction Ready 55 88424-90LFASCR,PAN HD 4-40X5/16 SST LCK/FLT,.230DX.025THK27EachYesProduction Ready 59 88424-7LFASCR,PAN HD 4-40X3/4 SST LCK/FLT,.230DX.025THK8EachNoProduction Ready 6188481-2AWSHR,LOCK #2 SST REF:8014124EachYesProduction Ready 6388480-17AWSHR,FLAT #2 SST .175ODX.093IDX.020THK4EachYesProduction Ready 6652500-386ANUT,HEX,KEP,4-40,SST10EachYesProduction Ready 6788460-2ANUT,HEX 2-56 SST4EachYesProduction Ready 6952090-95ASTDF,(F),1/8"HEX,1/4'LONG,2-56 TOP4EachYesProduction Ready 70FW00216BFW,FRNT PNL BD,FOR HDX10001EachNoProduction Ready 90908323-1DLBL,FCC,PART 15 & 742EachYesProduction Ready 91900697-1TLBL,RADIO DATA2EachNoProduction Ready 45 records found. Official Version Parts List Page 1 of 1Part 9000390 Parts List 1/15/2013http://pdm.vislink.com/parts/partslist.aspx?part=9000390

55 44 33 22 11 D D C C B B A A 1.8V regulator 1.5V regulator VFB4 VFB3 VBYP3 VBYP4 VIN_UNFILT VBYP2 VOADJ VIN 3V3 1V8 1V5 3V3 3V3 3V3 3V3 FAN_5V55V5 12V C147_TXD 4 C147_RXD 4 PA_INPUT 8 PA_MUTE 4 DISP_TXD 9 DISP_RXD 9 DISP_5V 8 SYS_VIN 8 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 3 11 Wednesday, February 16, 2011 Dash 1 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 3 11 Wednesday, February 16, 2011 Dash 1 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 3 11 Wednesday, February 16, 2011 Dash 1 R10 2K R0603 1% R10 2K R0603 1% C463 0.1uF C0603 C463 0.1uF C0603 + C464 180uF cap_314_452_118ls 16V + C464 180uF cap_314_452_118ls 16V R219 100 R0603 R219 100 R0603 MTG6MTG6 1 LED2 YEL LED2 YEL 21 84pF 84pF 305nH FL5 NFL21SP506X1C3D 84pF 84pF 305nH FL5 NFL21SP506X1C3D 1 2 3 4 C16 10UF_6.3V C0805C16 10UF_6.3V C0805 FB1 FB FB1 FB C12 0.1uF C0603 C12 0.1uF C0603 FB4 FB FB4 FB C460 22uF C1206 16V C460 22uF C1206 16V R12 8.66K_1% R0603R12 8.66K_1% R0603 C922UF C0805 C922UF C0805 MTG5MTG5 1 + C455 180uF cap_314_452_118ls 16V + C455 180uF cap_314_452_118ls 16V FB3 FB FB3 FB + C459 180uF cap_314_452_118ls 16V + C459 180uF cap_314_452_118ls 16V J6 2MM J6 2MM 1 2 3 4 5 6 7 8 9 10 TP3TP3 1 R13 4.22K_1% R0603R13 4.22K_1% R0603 84pF 84pF 305nH FL6 NFL21SP506X1C3D 84pF 84pF 305nH FL6 NFL21SP506X1C3D 1 2 3 4 R366 41.2 R0603 1% R366 41.2 R0603 1% TP6TP6 1 C13 0.01UF C0603 C13 0.01UF C0603 C377 0.1uF C0603 50V C377 0.1uF C0603 50V PCB 9000053 A1PWB PCB 9000053 A1PWB C465 22uF C1206 16V C465 22uF C1206 16V U3 LT1763CS8 53120-764 U3 LT1763CS8 53120-764 VIN 8 SHDN 5 VOUT 1 ADJ 2 BYP 4 G 3 G 6 G 7 C378 0.1uF C0603 50V C378 0.1uF C0603 50V C376 0.1uF C0603 50V C376 0.1uF C0603 50V R11 2K R0603R11 2K R0603 C461 22UF C0805 10V C461 22UF C0805 10V U459 MIC5319-5.0YML U459 MIC5319-5.0YML OUT 4 GND 2 BYP 6 EN 1 NC 5 IN 3 GNDPAD 7 R14 10K_1% R0603R14 10K_1% R0603 U457 PTH12050WAD U457 PTH12050WAD TRACK 2 INH 4 GND 1 Vo 6 VoADJ 5 Vin 3 MTG11 125X250 MTG11 125X250 1 R367 41.2 R0603 1% R367 41.2 R0603 1% MTG3MTG3 1 C18 10UF_6.3V C0805 C18 10UF_6.3V C0805 MTG10MTG10 1 84pF 84pF 305nH FL3 NFL21SP506X1C3D 84pF 84pF 305nH FL3 NFL21SP506X1C3D 1 2 3 4 TP7TP7 1 JP7 2MM JP7 2MM 6543217 C458 22uF C1206 16V C458 22uF C1206 16V J143045-0602J143045-0602 123456 U2 PTH08080WAH U2 PTH08080WAH INH 5 GND 2 VO 3 VOADJ 4 Vin 1 C462 10UF C0603 10V C462 10UF C0603 10V C11 10UF_6.3V C0805 C11 10UF_6.3V C0805 C381 0.1uF C0603 50V C381 0.1uF C0603 50V MTG2MTG2 1 TP1TP1 1 C383 0.1uF C0603 50V C383 0.1uF C0603 50V R8 1.82K_1% R0603 R8 1.82K_1% R0603 TP4TP4 1 C17 10UF_6.3V C0805 C17 10UF_6.3V C0805 C374 0.1uF C0603 50V C374 0.1uF C0603 50V U458 PTH12050WAD U458 PTH12050WAD TRACK 2 INH 4 GND 1 Vo 6 VoADJ 5 Vin 3 C379 0.1uF C0603 50V C379 0.1uF C0603 50V 84pF 84pF 305nH FL4 NFL21SP506X1C3D 84pF 84pF 305nH FL4 NFL21SP506X1C3D 1 2 3 4 R9 300 R0603 R9 300 R0603 MTG1MTG1 1 MTG8MTG8 1 R15 10K_1% R0603R15 10K_1% R0603 C382 0.1uF C0603 50V C382 0.1uF C0603 50V 84pF 84pF 305nH FL2 NFL21SP506X1C3D 84pF 84pF 305nH FL2 NFL21SP506X1C3D 1 2 3 4 C10 0.01UF C0603 C10 0.01UF C0603 TP5TP5 1 C375 0.1uF C0603 50V C375 0.1uF C0603 50V C14 0.01UF C0603 C14 0.01UF C0603 C23 22UF C0805 C23 22UF C0805 C22 22UF C0805 C22 22UF C0805 C380 0.1uF C0603 50V C380 0.1uF C0603 50V C15 10UF_6.3V C0805 C15 10UF_6.3V C0805 MTG7MTG7 1 FB9 FB FB9 FB U4 LT1763CS8 53120-764 U4 LT1763CS8 53120-764 VIN 8 SHDN 5 VOUT 1 ADJ 2 BYP 4 G 3 G 6 G 7 Q4 FDV301N Q4 FDV301N 1 32 55 44 33 22 11 D D C C B B A A NVDD1 Decoupling N/CPF21 NVDD2/3/4/5/6 Decoupling QVDD Decoupling TEST_WB3 & 4 = N/C EXT_266M & 44M -> GND. OSC266N_TEST = N/C N/CN/CN/CN/CN/CN/C FlashEthernetSDRAM N/C Boot/Configuration Settings R71 DNI for -1 Assy BOOT[3:0] = 0x6 => Boot from 32-bit NORFlash @ CS0 (0xc8000000) PF15 PE2 PE1 PE0 If using U101 and U104 flash (32bit bus), place R57 and DNI R58 (boot setting 0x6) BOOT[3:0] = 0x5=> Boot from 16-bit NORFlash @ CS0 (0xc8000000) NVDD1 NVDD1 NVDD2 NVDD3 NVDD3 VDDA VDDA NVDD3 NVDD4 NVDD5 NVDD6 NVDD3 NVDD1 place R23 to change reset state of PA_MUTE D6 D0 A4 A5 A6 A9 A10 A11 A7 A8 A14 A15 A16 A12 A13 A19 A20 A21 A17 A18 A24 A25 A22 A23 A0 A1 A2 A3 26M VDDA_MX21 BOOT0BOOT1 BOOT2BOOT3 JTAG_CTROL SW_SEL EXTAL_26M_IN MX21_SPARE7 D29 D30 D26 D27 D23 D24 D20 D21 D17 D18 D14 D15 D11 D12 D8 D9 D5 D2 D3 D31 D19 D22 D25 D28 D7 D10 D13 D16 D1 D4 EXTAL_32K_IN MX21_SPARE6 32K RST_IN PUSHBUTTON CAS_B 5 CS0_B 5 CS1_B 6 CS2_B 5 DQM0_EB0_B 5 DQM1_EB1_B 5 DQM2_EB2_B 5 DQM3_EB3_B 5,6 LBA_B 5 MA10 5 MA11 5 OE_B 5,6 RAS_B 5 RW_B 6 SDCKE0 5 SDCLK 5 SDWE_B 5 UART2_TXD 9 UART3_TXD 9 UART4_RXD 9 UART4_TXD 9 LED_1 6 LED_2 6 EXT_RESET_IN_L INTRQ0 7 UART2_RXD 9 UART3_RXD 9 A[0..25] 5,6 D[0..31] 5,6 1V8 1V8 1V5 1V8 3V33V3 3V3 3V3 3V3 3V3 UART_CS_L 6 IRQ_UART_L 9 SDA 8 SCL 8 TCK 8 TMS 8 TDI 8 TRST_B 8 TDO 8 RTCK 8 JTAG_RESET_IN_L 8 FAN_FAIL_2_L 8 FAN_FAIL_1_L 8 C147_RXD 3 EXT_ASI_CTL 11 HDT_OUT_CTL 11 EXT_SDI_CTL 11 ASI_SEL_CTL 11 SDI_ASI_SEL_CTL 11 CV_IN_CTL 11 C147_TXD 3 PA_MUTE 3 FAN_ALM_CLR 8 RESET_BASE 6 AUDIO_IN_SEL 10 RESET_OUT_L 5,9 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 4 11 Wednesday, February 16, 2011 Dash 1 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 4 11 Wednesday, February 16, 2011 Dash 1 Title Size Document Number Rev Date: Sheet of 9000052 2 HDX CONTROLLER BOARD C 4 11 Wednesday, February 16, 2011 Dash 1 R56 10K_1% R0603R56 10K_1% R0603 R66 1K R0603 R66 1K R0603 R52 10K_1% R0603R52 10K_1% R0603 U51 MIC8114TUY 53120-914 U51 MIC8114TUY 53120-914 GND 1 RST 2 MR 3 VCC 4 R68 DNI R0603 DNI R68 DNI R0603 DNI C78 12PF C0603 C78 12PF C0603 R7810K_1% R0603 R7810K_1% R0603 C75 18PF C0603 C75 18PF C0603 R57 DNI R0603 DNI R57 DNI R0603 DNI TP50TP50 1 C69 0.1uF C0603 C69 0.1uF C0603 C72 10UF_6.3V C0805C72 10UF_6.3V C0805 C51 0.1uF C0603C51 0.1uF C0603 R70 0.0 R0603 R70 0.0 R0603 C56 10UF_6.3V C0805C56 10UF_6.3V C0805 C53 0.1uF C0603C53 0.1uF C0603 C66 0…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A 10-36 Vin SYNQOR IQ18120HPC16NRS-G 180W, 89% Eff $215 XP QSB20024S12 200W , 86% Eff TRACO TEP200-2412WI 180W, 90% -- May not exist 18-36 Vin all of above , plus at least one choice from every vendor in the industry... Cosel CBS2002412-T 200W 87% $123 1/2 Brick DC/DC converter ~1/4 Brick 7A EMI Filter & Surge Suppressor ~1/2 Brick 28A Surge Proteciton ~1/2 Brick 28A EMI Filter overlapping footprints between U1 and U2+U3 HDT1000 Controller Card PA Molex HCS pins & 16 AW G wire required in mating connector for 13A current capacity 0.75 A @ 12V 3.3 A @ 12V 11 A @ 12V up to 13 A @ Vin 1/4 Brick DC/DC converter overlapping footprints between U4 and U5 Micro-Fit 2x3 R/A 12V PA (full 12V system) Wide range PA (12V to Controller and HDT only) XP QSB7524S12 75W , 86% Eff or Use R1 for positve logic on/off modules Use R2,R3, Q1 for negative logic SWAGE STANDOFFS THIS SCHEMATIC IS USED WITH THE FOLLOWING ASSEMBLIES 9000171 - DO NOT INSTALL: Q1,R2,R3,U2,U3,U5. 9000172 - DO NOT INSTALL: Q1,R2,R3,U1.U4. 9000174 - DO NOT INSTALL: Q1,R2,R3,U1,U5. FILTERED+FILTERED- 12V PA_FAULTPA_CNTLCLEAN_VIN RAW_VIN+RAW_VIN- Title Size Document Number Rev Date: Sheet of RD000039 2 HDX POWER BOARD C 3 3 Thursday, May 26, 2011 9000174 Title Size Document Number Rev Date: Sheet of RD000039 2 HDX POWER BOARD C 3 3 Thursday, May 26, 2011 9000174 Title Size Document Number Rev Date: Sheet of RD000039 2 HDX POWER BOARD C 3 3 Thursday, May 26, 2011 9000174 1 + C5180uF 16V + C5180uF 16V J1 43045-0802 J1 43045-0802 12345678 U4 QSB7524S12 U4 QSB7524S12 - IN 3 ON/OFF 2 + IN 1 - OUT 4 - S 5 TRIM 6 + S 7 + OUT 8 C90.1uFC0603C90.1uFC0603 1 R1 0.0 R0603 R1 0.0 R0603 + C3150uF50V + C3150uF50V C10 0.1uF C0603C10 0.1uF C0603 + C6180uF 16V + C6180uF 16V C11 2.2UF C1206 C11 2.2UF C1206 1 J4 43045-0602 J4 43045-0602 123456 + C1150uF50V + C1150uF50V U1 Do Not Stuff U1 Do Not Stuff Vin- 1 Vin+ 2 Vout+ 6 INH 4 DIS 5 Vout- 3 1 PWB A1 9000173 PWB A1 9000173 Q1Do Not StuffQ1Do Not Stuff U2 FSO461 U2 FSO461 - IN2 2 - IN1 1 + IN2 4 + IN1 3 - OUT1 5 - OUT2 6 + OUT1 7 + OUT2 8 J6 39-30-3057 J6 39-30-3057 12345 R3 Do Not Stuff R0603 R3 Do Not Stuff R0603 1 C70.1uFC0603C70.1uFC0603 1 + C4180uF 16V + C4180uF 16V 1 U3 DSF500 U3 DSF500 + IN2 4 + IN1 3 - IN2 2 - IN1 1 + OUT1 9 DIS 8 INH 7 - OUT2 6 - OUT1 5 + OUT2 10 + C2150uF50V + C2150uF50V J5 43045-0402 J5 43045-0402 1234 C80.1uFC0603C80.1uFC0603 1 U5 Do Not Stuff U5 Do Not Stuff - IN 4 CASE 3 ON/OFF 2 + IN 1 + OUT 9 + S 8 TRIM 7 - S 6 - OUT 5 R2Do Not StuffR0603R2…
