FC3HDX044DMicrowave Downlink Transmitter

HDX-1100 Aircraft/Terrestrial High Power HD Video Transmitter User and Technical Manual Manual Part No. 400613-1 Rev. 2 March 2010 Copyright © 2010 Part number 400613-1 Printed in U.S.A. Authorized EU representative: Vislink PLC Quality Certification Vislink is certified to ISO 9001:2008. The Vislink trademark and other trademarks are registered trademarks in the United States and/or other countries. Microsoft®, Windows®, and Internet Explorer® are registered trademarks of Microsoft Corporation in the United States and/or other countries. Proprietary Material The information and design contained within this manual was originated by and is the property of Vislink. Vislink reserves all patent proprietary design, manufacturing, reproduction use, and sales rights thereto, and to any articles disclosed therein, except to the extent rights are expressly granted to others. The foregoing does not apply to vendor proprietary parts. Vislink has made every effort to ensure the accuracy of the material contained in this manual at the time of printing. As specifications, equipment, and this manual are subject to change without notice, Vislink assumes no responsibility or liability whatsoever for any errors or inaccuracies that may appear in this manual or for any decisions based on its use. This manual is supplied for information purposes only and should not be construed as a commitment by Vislink. The information in this manual remains the property of Vislink and may not be used, disclosed, or reproduced in any form whatsoever, without the prior written consent of Vislink. Vislink reserves the right to make changes to equipment and specifications of the product described in this manual at any time without notice and without obligation to notify any person of such changes. General Safety Information The following safety requirements, as well as local site requirements and regulations, must be observed by personnel operating and maintaining the equipment covered by this manual to ensure awareness of potential hazards. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. About this Manual This manual is intended for use by qualified operators, installers, and service personnel. Users of this manual should already be familiar with basic concepts of radio, video, and audio. For information about terms in this manual, see Glossary of Terms and Abbreviations (Part No. 400576-1). Pay special attention to Notes, Cautions, and Warnings. Read Notes for important information to assist you in using and maintaining the equipment. Follow CAUTIONS to prevent damage to the equipment. Follow WARNINGS to prevent personal injury or death. Symbols The following symbols may be on the equipment or in this manual: WARNING: General Warning. Risk of Danger. Frame or Chassis Ground: Identifies the frame or chassis terminal. WARNING: Risk of Electric Shock. Earth Ground: Identifies the earth ground terminal. CAUTION: Electrostatic Discharge. Possible Damage to Equipment. Fuse (either icon): Identifies fuses or their location. Protective Earth Ground: Identifies any terminal intended for connection to an external conductor for protection against elec- tric shock in case of a fault, or the terminal on a protective earth electrode. Waste Electrical and Electronic Equipment (WEEE): The product must not be disposed of with other waste. You must dispose of the waste equipment by handing it over to a desig- nated collection point for recycling. 101 Billerica Avenue - Bldg. 6 North Billerica, MA 01862-1256 USA TEL: 800.490.5700 or +1.978.671.5700 1 About the HDX-1100 The HDX-1100 Aircraft/Terrestrial High Power HD Video Transmitter (HDX-1100) (shown) is a lightweight and rugged transmitter that is suited for mobile and aircraft environments; able to withstand constant vibration, shock, temperature swings, and humidity. Common uses include law enforcement surveillance and video collection. The HDX-1100 supports H.264/MPEG-2 and HD/SD. The HDX-1100 can transmit DVB-T COFDM digital transmission (QPSK, 16QAM, 64QAM) consisting of a standard definition (SD) NTSC or PAL video signals or high- definition (HD) video signal (up to 1080i), plus two audio signals and an RS-232 data channel. The transmitter uses the MPEG-2 video compression format for high-quality imagery. The amplifier operates at 8W for all bands except 4940-4990 MHz which is limited to 1.0W maximum. Low power mode is typically 3 to 6 dB below the maximum rating. You can control the HDX-1100 with the touch screen user interface (see Section 3), or an optional remote control unit (RCU) (see Section 4). You also can configure the HDX-1100 with a PC using a web browser (see Section 5). 2 Operating in Safety Guidelines for safe operation are derived from OET bulletin 65, August 1997, as recommended by the Federal Communications Commission (FCC). WARNING High levels of RF power are present in the unit. Exposure to RF or microwave power can cause burns and may be harmful to health. Remove power from the unit before disconnecting any RF cables and before inspecting damaged cables and/or antennas. Avoid standing in front of high gain antennas (such as a dish antenna) and never look into the open end of a waveguide or cable where RF power may be present. The HDX-1100, operated without an antenna, will not create RF energy exceeding 1.0 mW/cm 2 , the FCC limit for exposure. Connecting an ant…

Text truncated - open the document above for the full version.

Page 1 of 4 VISLINK – FC3HDX044D EXTERNAL PHOTOS Applicant: Vislink, Inc. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX044D HDX1100 (FC3HDX044D) EXTERNAL PHOTOS FC3 HDX044D VIEW OF FRONT PANEL MAIN DC POWER SWITCH Page 2 of 4 VISLINK – FC3HDX044D EXTERNAL PHOTOS FC3HDX044D EXTERNAL PHOTOS VIEW OF REAR PANEL RF OUTPUT CONNECTOR DC POWER INPUT AUDIO INPUT SERIAL CONTROL VIDEO INPUTS CIRCUIT BREAKER Page 3 of 4 VISLINK – FC3HDX044D EXTERNAL PHOTOS FC3HDX044D EXTERNAL PHOTOS VIEW OF RIGHT SIDE Page 4 of 4 VISLINK – FC3HDX044D EXTERNAL PHOTOS FC3HDX044D EXTERNAL PHOTOS VIEW OF LEFT SIDE

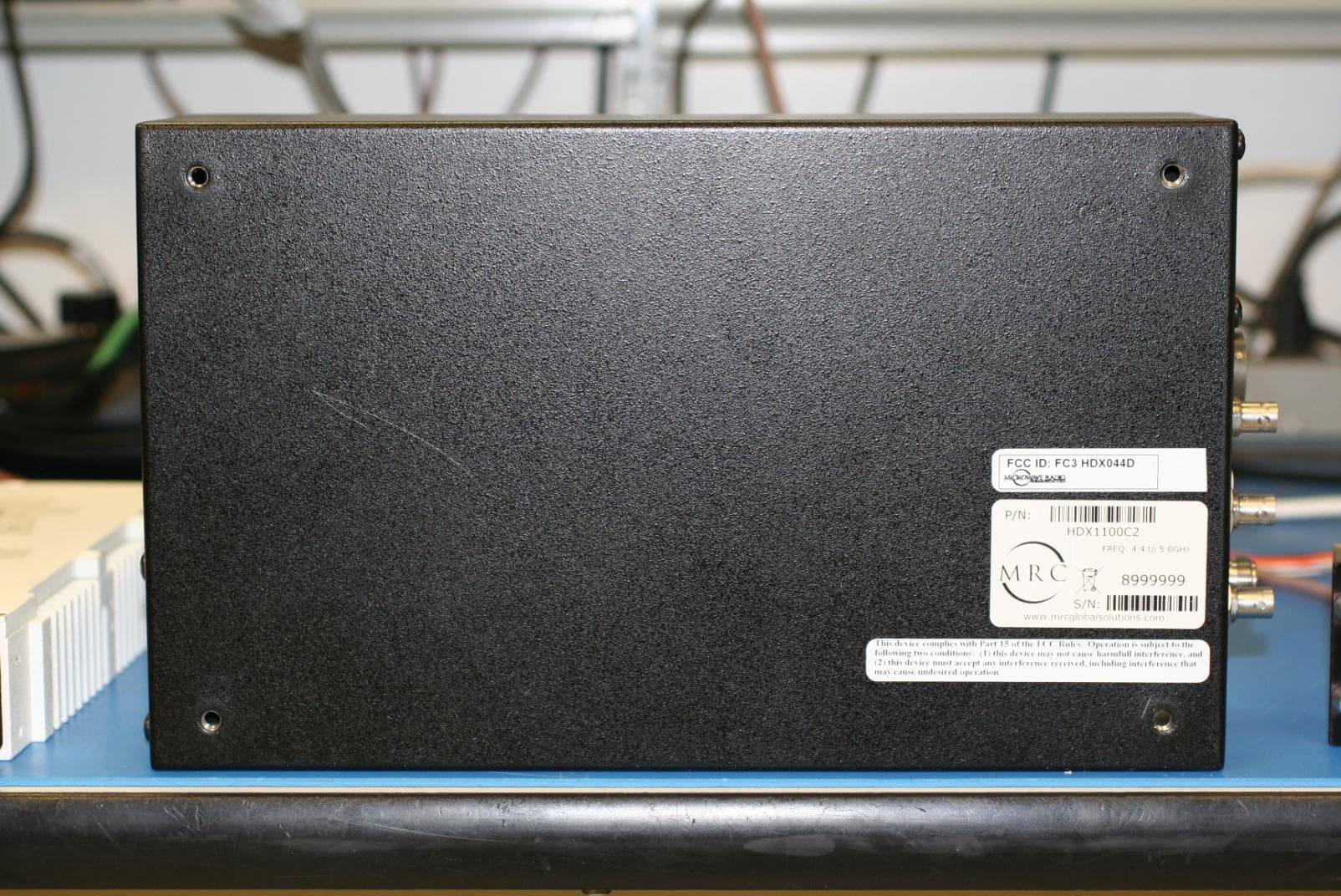

Page 1 of 2 VISLINK – FCC LABEL PHOTOS – FC3HDX044D Applicant: Vislink, Inc. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX044D FC3 HDX044D HDX1100 FCC LABEL PHOTOS FCC LABEL PLACEMENT Page 2 of 2 VISLINK – FCC LABEL PHOTOS – FC3HDX044D SAMPLE FCC LABEL CONTENT

Page 1 of 1 VISLINK – FC3HDX044D INTERNAL PHOTO RF Power Amplifier Module MPEG-2 Encoder DVB-T Modulator Applicant: Vislink, Inc. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX044D INTERNAL PHOTO NOTE: THERE IS ONLY ONE REMOVEABLE COVER. ALL INTERNAL COMPONENTS CAN BE VIEWED AND ACCESSED THROUGH THE SINGLE COVER, AS SHOWN ABOVE. Touch Screen Display DC Filter & Regulator

P A G E 1 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D TEST REPORT MOBILE MICROWAVE VIDEO TRANMITTER FCC ID: FC3HDX044D MODEL: HDX-1100C2 APPLICANT: VISLINK, Inc. November 12, 2010 P A G E 2 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D TABLE OF CONTENTS Section 1 INTRODUCTION 3-6 APPLICATION 4 TECHNICAL DATA SUMMARY 5 TECHNICAL DISCRIPTION EMISSIONS DESIGNATORS 6 Section 2 MEASUREMENTS 6 RF Power Output – 2.1046 Modulation Characteristics – 2.1047 Occupied Bandwidth – 2.1049 Spurious Emissions at Antenna Terminals – 2.1051 Field Strength of Spurious Radiation – 2.1053 Frequency Stability – 2.1055 Section 3 QUALITY DECLARATION 15 NQA CERTIFICATE Fig.2 Section 4 TRANSMITTER DESCRIPTION 16 PHOTOS Section 5 TEST STATION SETUP 21 PHOTOS Section 6 MPE CALCULATIONS 24 Section 7 RADIATION HAZARD WARNING 26 Section 8 TEST FACILITIES AND COMPLIANCE DIRECTIVE 27 APPENDIX A – RADIO CHARACTERISTICS APPENDIX B – FCC LABEL LOCATION APPENDIX C - PARKER CHROMERICS EMC REPORT OF MEASUREMENTS P A G E 3 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D SECTION 1 INTRODUCTION GENERAL INFORMATION – 2.1033 Applicant: Vislink, Inc. 101 Billerica Avenue, Building 6 North Billerica, MA 01862 Tel. 978-671-5700 Attn: Sal Blatti, Compliance Manager FCC ID: FC3HDX044D Installation and Operating Manual: HDX-1100 User and Technical Manual attached Equipment Description: Mobile Video Transmitter – see below Block Diagram: See Technical Description, below Equipment model: HDX-1100C2 Frequency Range: 4940 – 4990 MHz FCC Part number: §90; subpart Y (90.1201 thru 90.1217) Rated RF Power: 1.0 Watts (+33 dBm) Frequency Tolerance: 0.0005 % Emission Designator: 10M07WD The data provided in this document will show that the Vislink/Microwave Radio Communications HDX1100C2 transmitter is in compliance with 47 CFR Part 90 for use by eligible Private Land Mobile Radio Services licensees in the 4940 – 4990 MHz band, under Subpart Y. Radiated emission tests were conducted by Parker Chromerics in their laboratory facility in Woburn, MA, while the part 90 emission testing was conducted in the Vislink/Microwave Radio Communications facility in North Billerica, MA. The HDX1100C2 was designed to comply with permissible operation as specified in § 90.1205, for the transmission of video, audio, and data by a mobile transmitter. Under the referenced rules, the licensee may operate this equipment in a continuous and unattended mode if required. Typical applications may include surveillance, command center operations, emergency restoration, or other video, voice and data requirements as deemed necessary and appropriate for a specific mission. Technical Description: The HDX1100 FC3HDX044D is a compact, mobile transmitter, designed to be adaptable to a wide range of field applications; particularly those requiring ruggedized, vehicular mounted equipment. The transmitter accepts a wide range of SMPTE based video input signals, including HD-SDI, SDI, ASI, and NTSC. Raw video, audio, and data are delivered to an integral MPEG-2 Encoder which feeds a COFDM-DVB-T modulator, operating in the 2K carrier mode, to produce a 1705 carrier spectrum. The I and Q outputs of the COFDM modulator are supplied directly to an RF generator and up-converted to the operating band from 4940 to 4990 MHz at an RF power level of 100 mW (+20 dBm). A 10 dB gain RF amplifier follows the exciter to boost the final RF output power to + 30 dBm (1.0 Watt). The exciter RF drive level is factory set to limit the RF output from the PA to 1.0 Watt or less. P A G E 4 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D RF ExciterRF AMP Control & DC Distribution Front Panel MPEG2 Encoder & COFDM Modulator Video Switch RF Out 11 –32 VDC In Remote Panel/ RS-232 Mgmt HDX1100 Functional Block Diagram Composite in SDI/HD-SDI inI-Q Web browser interface ASI Input Figure 1 The specific operating frequency is determined by a high stability wide band VCO. The VCO set-up voltage is controlled by a microprocessor that is factory programmed to provide a channel plan in accordance with the rules as specified in § 90.1213, for aggregation of multiple channels to achieve the required 10 MHz bandwidth for video applications, as shown below: FC3HDX044D/ HDX-1100-C2 Channel Plan 12354 4940 4950 4960 4970 4980 4990 78910111213432165 1 7 1 6 1 5 1 4 1 8 §90.1213 Channel Plan: 1 MHz & 5 MHz Channels FC3HDX044D Channel Plan: aggregated 10 MHz channels per 90.1213 P A G E 5 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D Ch 14940.51 Ch 24941.51 Ch 34942.51 Ch 44943.51 Ch 54944.51 Ch 64947.55 Ch 74952.55 Ch 84957.55 Ch 94962.55 Ch 104967.55 Ch 114972.55 Ch 124977.55 Ch 134982.55 Ch 144985.51 Ch 154986.51 Ch 164987.51 Ch 174988.51 Ch 184989.51 4985 Ch 1 Ch 2 Ch 3 Ch 4 Ch 5 4945 4955 4965 4975 Std PlanCH CTRsCH B/WCH CTRs Aggregate 10 MHz Video CH Table 1 - HDX-1100C2 Channel plan center frequencies Digital modulation of the COFDM carriers changes between QPSK, 16QAM, and 64QAM as determined by user bit rate requirements. The symbol rate is limited to maintain the occupied bandwidth to be in compliance with the ETSI EN 300 744 V1.51 standards for an 8 MHz COFDM pedestal, which fits well in the aggregate 10 MHz channel bandwidth provision of § 90.1213. An LCD touch screen display located on the front panel of the transmitter is used to control basic transmission parameters and provide operational status of internal systems. The transmitter can also be operated from an external remote panel via hard wired RS-232 link. Additional information may be found in the HDX-1100 User and Technical Manual, included with this application. P A G E 6 O F 30 V I S L I NK – A P P L I CA L T I O N F O R CE RT I F I CA T I O N – F C3 HDX0 4 4 D SECTION 2 - MEASUREMENTS TECHNICAL DATA SUMMARY Frequency band: Operati…
