EA_Mobile for the EnergyAxis ® System Release 1.0 User Guide TM42-4025A Contents FCC Compliance statement (Part 15.19) . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 FCC Compliance statement (Part 15.105) . . . . . . . . . . . . . . . . . . . 7 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Warning (Part 15.21) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 1Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 About this book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Automated meter reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Basic AMR components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 System overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 How the system works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 EA_Mobile overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Features and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Interrogator unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GPS receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Vehicle Interactive Display (optional) . . . . . . . . . . . . . . . . 12 How the EA_Mobile operates. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Endpoint selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Data accuracy verification . . . . . . . . . . . . . . . . . . . . . . . . 13 Meter data acquisition and processing . . . . . . . . . . . . . 13 Route data collection made fast, easy and safe . . . . . . 13 RF signals and conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 EA_Mobile range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Obstructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Transaction capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Interrogation window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting interrogation window size . . . . . . . . . . . . . . . 14 Data Processing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2Preparation and installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Vehicle requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Unpacking and assembling EA_Mobile components. . . . . . . . . . . . . . 16 Received equipment inventory. . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Unpacking the EA_Mobile. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 EnergyAxis transceiver (RX) antenna . . . . . . . . . . . . . . . . 17 Transmit (TX) antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the EA_Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing the 7 inch LCD touch screen monitor. . . . . . . . . . . . . . 18 EA Mobile User Guide EA Mobile User Guide Contents 4 Option 1 -to a dashboard . . . . . . . . . . . . . . . . . . . . . . . . . 18 Option 2 - to a windshield . . . . . . . . . . . . . . . . . . . . . . . . 19 Connecting the monitor to the EA_Mobile. . . . . . . . . . . . . . . . . . 19 3Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Installing the EA_Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Operating the EA_Mobile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Loading a new route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Reading endpoints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Pausing or ending a reading session . . . . . . . . . . . . . . . . . . . . . 34 Resuming a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 4Controls and indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Controls and indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Transmit and power manager controls and indicators. . . . . . . 36 Main POWER switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 [Alarm] SILENCE button . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 CHARGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 TEMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 BATT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ENABLED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 EnergyAxis panel indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 ACTIVITY . . …
Text truncated - open the document above for the full version.
EA_MOBILE Transmitter Board Block Diagram Microcontroller Direct Digital Synthesizer IO FR TCXO 100 MHz ≤ 0.01 ppm USB RF Amplifier Module Mitsubishi RA07H4047M Directional Coupler Low Pass Filter D/A A/D USB UART Serial C C 5.00 Vdc 3.30 Vdc RF Power Control (DC) SAW Filter Center: 451.35 MHz BW: 1 MHz RF Power Measurement C 1.80 Vdc Control Bus RF Amp Current Monitor C TX Enabled LED C 13.8Vdc REGULATED Power Supplies x 10 10 SAW Filter Center: 451.35 MHz BW: 1 MHz REGULATED External to transmitter Serial Tuning Range: 451.35 MHz +/- 500 kHz 12/19/2012 RTMI2 WUTX Block Diagram for FCC 1

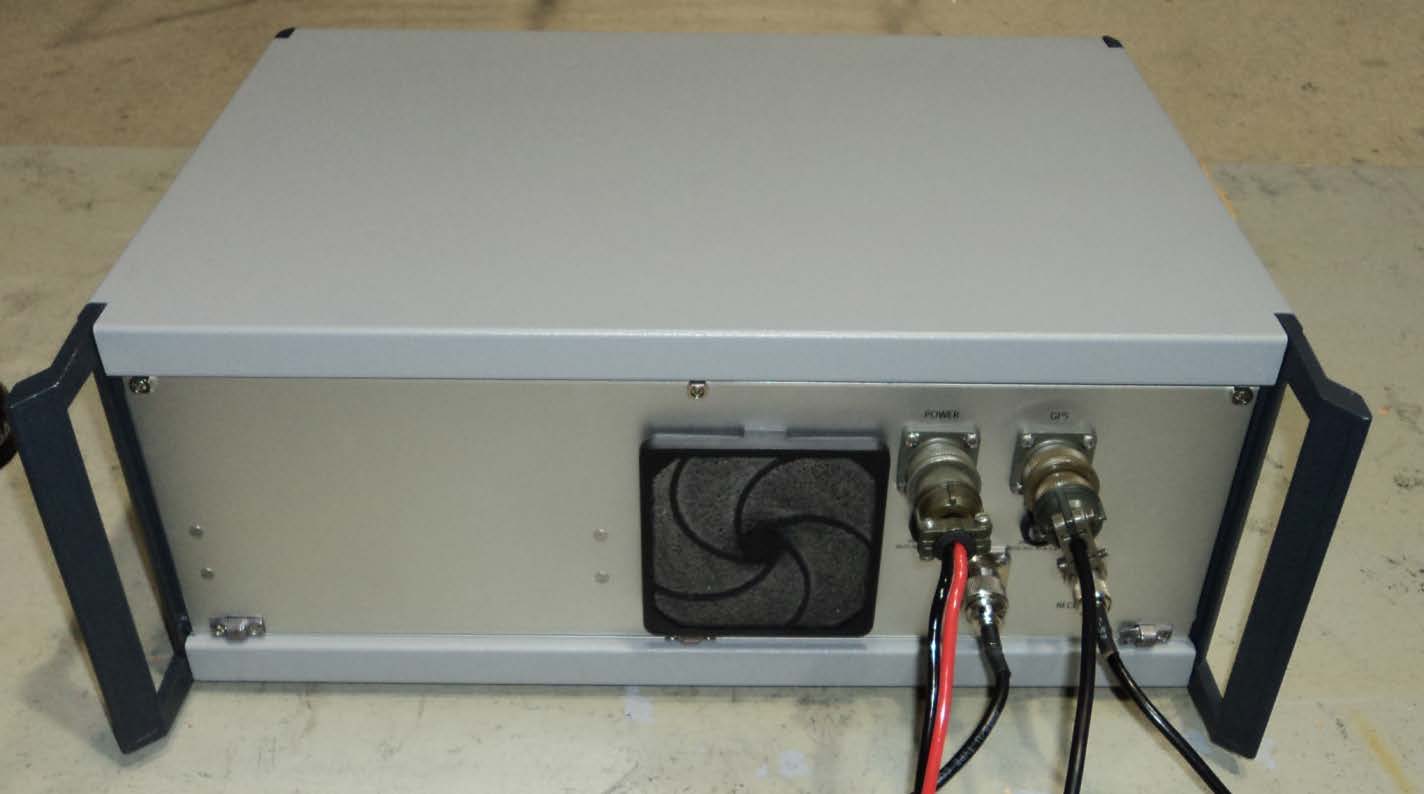

TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - External Photos Page 1 of 3 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile External Photos EUT Name: Energy Axis Mobile Interrogator EUT Model: EA_Mobile FCC ID: G8JEAMOBILE1 FCC Title 47, Part 15C Prepared for: Mark Holman Elster Solutions 208 South Rogers Lane Raleigh, NC 27610 USA Tel: 919-212-4899 Fax: 919-250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 19 December 2012 Report Number: Supplement to 31252737.001 - External Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - External Photos Page 2 of 3 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile External Photos: Figure 1: Front View of EUT. Figure 2: Rear View of EUT TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - External Photos Page 3 of 3 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 3: View of EUT showing external antennas with Computer Controller
4.00 3.00 3.17±.062 2.29±.062 .91±.062 .53±.062 R.13 SERIAL NUMBER RANGE TO BE PROVIDED. BEGINNING WITH 003000 18 PT 10 PT 8 PT 8 PT NOTES: THIS PART IS BOUGHT OUTSIDE1. ABLE LABEL P/N: 4-3-TT-PLAT2. MATERIAL: ADHESIVE BACKED WEATHER RESISTANT 3. POLYESTER WITH GLOSSY FINISH. COLOR: BACKGROUND - MATTE SILVER4. LETTERING AND LOGO - BLACK PMS 289 H01 & H02 WILL BE MADE FROM H035. FONT: SANS SERIF6. H01 SYMPARTPART - DESCRIPTION - MATERIAL FINISH NO. ELSTER REF. MATERIAL NO. ELSTER REF. 1LABEL, FCC, S/N, ELECTRIC ONLY 2LABEL, FCC, S/N, E,G&W 3LABEL STOCK, SILVERSEE NOTES 1,2 &3 % 7,7/( 6,=( % ':*12 5(9 6&$/( 6+((72) 127('5$:,1* ',0(16,21(',1,1&+(6 (OVWHU6ROXWLRQV//& 5DOHLJK1& ),5670$'()25$66<':* &$'12':* 6/' '5$)760$1'$7( 5()(5(1&(':* 60 $33529(''$7( 8163(& '72/ ;;;;;;; $1*/(6 7+(9(1'256+$//68%0,7$48$/,7<5(3257:,7+($&+/279(5,)<,1*7+($&&(37$%,/,7<2)($&+/272)3$576'(/,9(5('3(5 7+,6'5$:,1*7+(5(32576+$//%(%$6('21$6$03/(,163(&7,213(5)250(',1$&&25'$1&(:,7+0,/67''$4/$7 /($67/(9(/6$//.(<',0(16,2160$5.('217+,6'5$:,1*6+$//%(7$%8/$7(',17+(5(3257$&23<2)7+(5(32576+$// %(0$,17$,1('%<7+(9(1'25)25$0,1,0802)21(<($57+,6&203$1<25,76$*(1760$<$/623(5)250$6$03/(,163(&7,21 2)($&+/272)3$576:+(15(&(,9('$1':,//5(-(&7$1</277+$7)$,/6720((77+,648$/,7</(9(/ .(<,1&20,1*,163(&7,21 6833/,(5&(57,),&$7,215(48,5(' 7+()2//2:,1*$5(&5,7,&$/)81&7,21$/ ',0(16,21686('%<(/67(562/87,216//& )2563&,163(&7,21$1'27+(5385326(6 ',0(16,21$/&+(&.6 LABEL, FCC, S/N '&%.. ' 0+2/0$1 02 RN ES20120509-03ADDED "E" TO THE FCC ID AS A DESIGNATOR FOR ELECTRIC ONLY. REMOVED TEXT "PART 90 NARROWBAND COMPLIANT".SM 05/09/12M. HOLMAN 05/10/12 03 RN ES20121106-02SHEET 1: ADDED H02 & H03 TO BOM. MODIFIED FCC ID, LABEL SIZE & FONT SIZE.ADDED SHEET 2 FOR H02 VERSION OF LABEL. SM 11/06/12 4.00 3.00 3.17±.062 2.29±.062 R.13 .91±.062 .53±.062 SERIAL NUMBER RANGE TO BE PROVIDED. BEGINNING WITH 004000 18 PT 10 PT 8 PT 8 PT H02 % 7,7/( 6,=( % ':*12 5(9 6&$/( 6+((72) 127('5$:,1* ',0(16,21(',1,1&+(6 (OVWHU6ROXWLRQV//& 5DOHLJK1& ),5670$'()25$66<':* &$'12':* 6/' '5$)760$1'$7( 5()(5(1&(':* 60 $33529(''$7( 8163(& '72/ ;;;;;;; $1*/(6 7+(9(1'256+$//68%0,7$48$/,7<5(3257:,7+($&+/279(5,)<,1*7+($&&(37$%,/,7<2)($&+/272)3$576'(/,9(5('3(5 7+,6'5$:,1*7+(5(32576+$//%(%$6('21$6$03/(,163(&7,213(5)250(',1$&&25'$1&(:,7+0,/67''$4/$7 /($67/(9(/6$//.(<',0(16,2160$5.('217+,6'5$:,1*6+$//%(7$%8/$7(',17+(5(3257$&23<2)7+(5(32576+$// %(0$,17$,1('%<7+(9(1'25)25$0,1,0802)21(<($57+,6&203$1<25,76$*(1760$<$/623(5)250$6$03/(,163(&7,21 2)($&+/272)3$576:+(15(&(,9('$1':,//5(-(&7$1</277+$7)$,/6720((77+,648$/,7</(9(/ .(<,1&20,1*,163(&7,21 6833/,(5&(57,),&$7,215(48,5(' 7+()2//2:,1*$5(&5,7,&$/)81&7,21$/ ',0(16,21686('%<(/67(562/87,216//& )2563&,163(&7,21$1'27+(5385326(6 ',0(16,21$/&+(&.6 LABEL, FCC, S/N '&%.. ' SEE SHEET 1 FOR REVISIONS
FRONT 1.63 .50 CENTER LABEL UNDER FCC LABEL FRACTIONAL TOLERANCES TO BE 1/16 5D26054 01 TITLE: SIZE D DWG. NO. REV SCALE: 1:1 SHEET 3 OF 8 NOTE: DRAWING DIMENSIONED IN INCHES Elster Solutions, LLC. Raleigh, N.C. FIRST MADE FOR ASSY. DWG CAD NO. DWG SLD12158 DRAFTSMAN DATE REFERENCE DWG APPROVED DATE UNSPEC'D TOL. X.XX.010 X.XXX.005 ANGLES 1 EA_MOBILE (E. G & W) •••••••••••••••••••••• SM 09/25/12
TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 1 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Internal Photos EUT Name: Energy Axis Mobile Interrogator EUT Model: EA_Mobile FCC ID: G8JEAMOBILE1 FCC Title 47, Part 15C Prepared for: Mark Holman Elster Solutions 208 South Rogers Lane Raleigh, NC 27610 USA Tel: 919-212-4899 Fax: 919-250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 19 December 2012 Report Number: Supplement to 31252050.001 - Internal Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 2 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Internal Photos: Figure 1: View of EUT top cover open Figure 2: View of EUT with the rear cover opened TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 3 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 3: Top View of new Single Board Computer Figure 4: Bottom View of new Single Board Computer TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 4 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 5: Front View of TX/Power Mgr Assembly Figure 6: Top View of TX/Power Mgr Assembly TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 5 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 7: Top view of Power Management Board Figure 8: Bottom view of Power Management Board TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 6 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 9: Top view of Wake-Up TX board Figure 10: Bottom view of Wake-Up TX board TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 7 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 11: Front View of Energy Axis Assembly Figure 12: Top of LANOB Boards TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252050.001 - Internal Photos Page 8 of 8 EUT: Energy Axis Mobile Interrogator, Model: EA_Mobile Figure 13: Bottom of LANOB Carrier
Page 1 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 Distribution: Quality, EL Assembly, Manufacturing (1) • The following document is a procedure to assemble, test, and calibrate a Wakeup TX Module for the EA_MOBILE Gas/Water/Electric Interrogator, FCC ID G8JEAMOBILE1. • MUST assemble in an ESD safe environment and must wear an ESD wrist strap. • It’s recommended that this document be printed in color. • Reference 5D26056G01 Assembly, Wakeup TX and gather materials list on GKS. Procedures For Assembly of Assembly of Wakeup TX Module. 1 Assembly 1. Connect cable (7S1939H002) to the right angle SMA conttection on the back of the Wakeup TX PCBA (5D25958G01). Torque to 4 ± 1 in-lb with 5/16” pre-calibrated SMA torque wrench, such as Fairview Microwave 74Z-0-0-79 or Mountz 06003B- 106. Note that the wrench is only calibrated in ONE DIRECTION, and the wrench must be applied accordingly. Also, grab the torque wrench only at the “load point line” (notch around end of handle) or you will apply more torque than rated. 2. Feed cable through slot in the heat sink, as shown below. Page 2 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 3. Attach the heat sink to the PCB with (8) #4-40 truss-head screws, ¼” long (52807P050). Torque all the screws to 3 ± 1 in-lb. The resulting assembly is shown below (ignore scratches on the heatsink; picture taken of prototype): Page 3 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 4. Using best ESD control practices, retrieve an RA30H4047M1 Power Amplifier (PA) module, and cut the 4 pins of the PA to a length of 0.270”, as shown below. Uncut: Cut to length: Page 4 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 5. Using Wakefield Type 126 Non-Silicone Thermal Joint Compound, coat both the heat sink and PA areas shown below with a thin layer, using a Q-tip or similar spreader. DO NOT COAT the entire PA and heatsink area! The PA must make electrical contact with the heatsink on the left end. 6. Align the PA such that its 4 pins are centered laterally on the PCB pads. 7. Position a PA Ground Strap (1B11997H01) on top of the PA and the PCBA so that one notch lines up with the right-side PA heat sink hole, and the other notch lines up with the hole to the right of the PA. 8. Fasten the PA and ground strap using three (3) #4-40 truss-head screws, ¼” long (52807P050). Torque all three screws to 3 ± 1 in-lb. A close-up of the resulting assembly is shown below: Page 5 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 9. Using a flat-blade screwdriver or spudger, gently bend the 4 PA leads so that they rest on the pads on the PCB. 10. Solder all 4 PA leads to the PCB. The resulting assembly is shown below: 11. Clean all flux residue from around the pads using flux remover or IPA. Be careful not to bend the leads of the inductor between the two large capacitors. Page 6 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 2 Test 2.1 Power Up 1. Set power supply to 13.6V at 5A current limit. Attach power supply cable with an ammeter or power analyzer in line to the green connector. 2.2 Voltage, Current and Signal Checks 1. Check that PCBA doesn't pull over 500 mA at 13.6V initially. A power analyzer in line with the power supply is useful for this purpose (example below shows the board pulling 270 mA), or an ammeter can be used. It is normal for the board to pull less current as it warms up. After a 2-minute warmup, values under 300 mA are typical. If the PCBA pulls more than 500 mA, there is a short somewhere on the board, and the board should be given to Engineering to follow up with the contract manufacturer. Page 7 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 2. Using a DMM, check for 3.3V ± 0.2V with respect to GND (attaching at power input is OK) at the following places: a) U10 (switching regulator) pin 3; b) OSC1 pin 5; c) “North” end of C112 (next to U18, DDS); d) U9 (RF detector) via just “southwest” of R28; e) “South” end of C74 (“northwest” of U12, Microcontroller). a) c) d) e) b) Page 8 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 3. Using a DMM, check for 1.8V ± 0.1V w/r/t GND at following places: a) At the “north” end of C127 (“south” of U18), an 0402-size capacitor (DVDD_1.8V) b) At the “north” end of C132 (“south” of U18), a larger 2012-size capacitor (AVDD_1.8V) a)C127 b)C132 Page 9 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 4. Check for 9V ± 0.3V w/r/t GND at the following places: a) “East” end of C192 (“Northeast” of large regulator); b) R4/C8 junction near amplifier U3; c) R3/C5 junction near amplifier U2; d) R5/C11 junction near amplifier U4. a) C192 b) d) c ) Page 10 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal/Test Procedure DCN2012131 5. Using an oscilloscope with frequency measurement, check for 100 MHz +/- 200 Hz at the following places: a) Pin 1 of OSC1; sine wave >= 1.2V p-p b) L13/C100 junction, sine wave of >= 500 mV p-p (this checks for correct values for L12 & L13) b) L13/C100 junction a ) OSC1 pin1 Page 11 of 23 Elster Document # 103-225 OPERATOR INSTRUCTION SHEET Issued by: Manufacturing Draft 1 Wakeup TX Module Assy/Cal…
Text truncated - open the document above for the full version.
FCCID: G8JEAMOBILE1 Report No.: 31252602.001 Page 1 of 54 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 QF09B040 Revision 2 Electromagnetic Compatibility Test Report Prepared in accordance with ANSI C63.4:2009 On Energy Axis Mobile Interrogator EA_MOBILE w/ WAKEUP Elster Solutions 208 South Rogers Lane Raleigh, NC 27610 Prepared by: TUV Rheinland of North America, Inc. FCCID: G8JEAMOBILE1 Report No.: 31252602.001 Page 2 of 54 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 QF09B040 Revision 2 Manufacturer’s statement - attestation The manufacturer; Elster Solutions, LLC as the responsible party for the equipment tested, hereby affirms: a) That he has reviewed and concurs that the test shown in this report are reflective of the operational characteristics of the device for which certification is sought; b) That the device in this test report will be representative of production units; c) That all changes (in hardware and software/firmware) to the subject device will be reviewed. d) That any changes impacting the attributes, functionality or operational characteristics documented in this report will be communicated to the body responsible for approving (certifying) the subject equipment. Steve Bragg Printed name of official Signature of official 208 South Rogers Lane Raleigh, NC 27610 20 December 2012 Address Date 919-212-4899 [email protected] Telephone number Email address of official FCCID: G8JEAMOBILE1 Report No.: 31252602.001 Page 3 of 54 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 QF09B040 Revision 2 Client: Elster Solutions 208 South Rogers Lane Raleigh, NC 27610 USA Steve Bragg 919-212-4899 / 919-250-5439 [email protected] Identification: Energy Axis Mobile Interrogator Serial No.: PRODUCTION PROTOTYPE Test item: EA_MOBILE W/ WAKEUP Date tested: 22 October 2012 Testing location: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596-9470 U.S.A. Tel: (919) 554-3668 Fax: (919) 554-3542 Test specification: Emissions: CFR 47 FCC Part 90, FCC Part 90.203(j)(3), FCC Parts 90.205(h)(1), 2.985, FCC Part 90.207 FCC Part 90.209(a), FCC Part 90.209(b)(5), FCC Part 2.997(a)(1), FCC Parts 90.210(d), FCC Parts 90.35(a)(1) and (b)(3), FCC Parts 90.213, 2.1055, FCC Part 15B, FCC Part 2.1091 Test Result The above product was found to be Compliant to the above test standard(s) tested by: Mark Ryan reviewed by: Michael Moranha 20 December 2012 . Signature 22 December 2012 Signature Other Aspects: None Abbreviations: OK, Pass, Compliant, Complies = passed Fail, Not Compliant, Does Not Comply = failed N/A = not applicable Industry Canada 90552 and 100881 Testing Cert #3331.05 2932H-1 and 2932H-2 FCCID: G8JEAMOBILE1 Report No.: 31252602.001 Page 4 of 54 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 762 Park Avenue, Youngsville, NC 27596-9470, Tel: 919-554-3668, Fax: 919-554-3542 QF09B040 Revision 2 TABLE of CONTENTS 1 GENERAL INFORMATION ......................................................................................................................... 5 1.1 S COPE ......................................................................................................................................................... 5 1.2 P URPOSE ..................................................................................................................................................... 5 1.3 R EVISION HISTORY ..................................................................................................................................... 5 1.4 S UMMARY OF TEST RESULTS ..................................................................................................................... 6 2 LABORATORY INFORMATION ................................................................................................................ 7 2.1 A CCREDITATIONS AND…
Text truncated - open the document above for the full version.
TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 1 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Test Setup Photos EUT Name: Energy Axis Mobile Interrogator EUT Model: EA_Mobile FCC ID: G8JEAMOBILE1 FCC Title 47, Part 15C Prepared for: Mark Holman Elster Solutions 208 South Rogers Lane Raleigh, NC 27610 USA Tel: 919-212-4899 Fax: 919-250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 19 December 2012 Report Number: Supplement to 31252737.001 - Test Setup Photos TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 2 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Test Setup Photos: Figure 1: Typical Conducted RF Measurements. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 3 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 2: Rear View of Conducted RF Measurements. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 4 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 3: Typical Conducted RF Power Measurements. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 5 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 4: Test Setup for Modulation Requirements and Characteristics. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 6 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 5: Test Setup for Transient Frequency Behavior Tests. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 7 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 6: Rear View of Conducted RF Measurements. TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 8 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 7 - Radiated Emissions Test Setup (Semi-Anechoic Chamber): 30 to 1000 MHz Shown with the laptop configuration (Worst case) TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: Supplement to 31252737.001 - Test Setup Photos Page 9 of 15 EUT: Energy Axis Mobile Interrogator Model: EA_Mobile Figure 8 - Radiated Emissions Test Setup (Semi-Anechoic Chamber): 30 to 1000 MHz Shown with the touch-screen configuration (Worst case) TUV Rheinland 762 Park Ave., Youngsville, NC 27596 FCC ID: G8JEAMOBILE1 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Numb…
Text truncated - open the document above for the full version.
