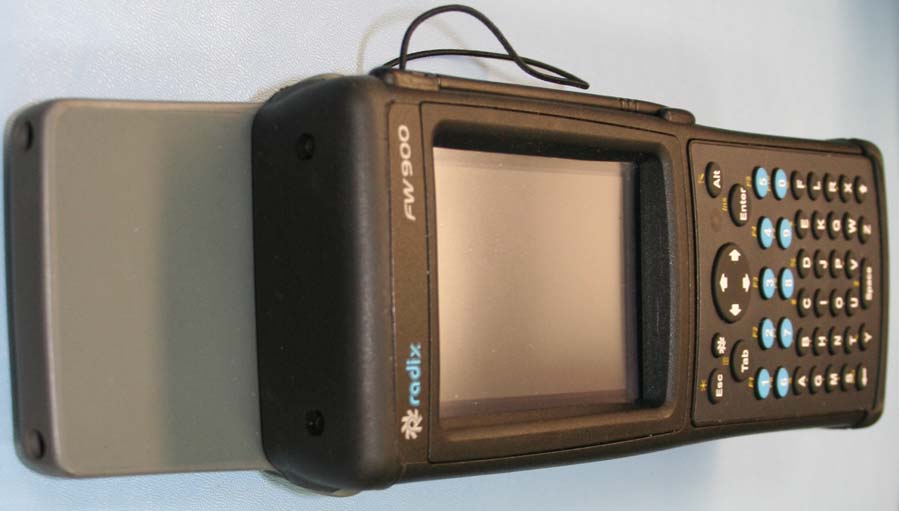

G8JHHI03PI900 Handheld Interrogator

Elster Handhelds User Guide Release 1.0 www.elster.com Elster Handhelds User Guide3Contents Contents FCC and Industry Canada compliance . . . . . . . . . . . . . . . . . . . 7 Disclaimer of warranties and limitation of liability . . . . . . . . . .8 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Revisions to this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 About handheld devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 About This manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 New users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Existing users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Automatic meter reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Basic AMR components . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2 About handheld devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 PI 500 handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Dap CE5240X handheld computer specifications . . . . . . 13 Using an external antenna . . . . . . . . . . . . . . . . . . . . . . . . 14 Safe RF exposure using external antenna . . . . . . . . . . . 14 More about Dap CE5240x . . . . . . . . . . . . . . . . . . . . . . . . . 14 evoWalk and PI 900 handhelds . . . . . . . . . . . . . . . . . . . . . . . . 14 Radix specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Safe RF exposure using external antenna . . . . . . . . . . . 15 More about Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Transmission accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 PI 500 installation tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 PI 900 installation tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Database warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3 Handheld operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Commonly used keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 <Esc> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 <Enter> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Arrow keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 <Tab> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Entering responses (Yes/No) . . . . . . . . . . . . . . . . . . . . . . . 19 Using the stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Reading meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Turning the device on and off . . . . . . . . . . . . . . . . . . . . . . . . . 20 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Elster Handhelds User Guide4Contents Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Resetting the handheld device . . . . . . . . . . . . . . . . . . . . . . . . . 21 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Logging in to the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Holding the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 For meter reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 For RTM installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4 About Interrogator software . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Selecting a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 RM Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Viewing handheld configuration . . . . . . . . . . . . . . . . . . . . . . 25 Updating handheld configuration . . . . . . . . . . . . . . . . . . 26 Exiting Elster Interrogator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5 Reading accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Navigating accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Esc> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Enter> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Up> and <Down> arrow keys . . . . . . . . . . . . . . . . . . . 29 Reading an account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Performing a default read of an unread account . . . . . 30 Performing a manual index reading . . . . . . . . . . . . . . . . 31 Moving on to the next account . . . . . . . . . . . . . . . . . . . . 32 Additional account reading options . . . . . . . . . . . . . . . . . . . 32 Clearing index read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Forcing unattempted account . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

RF Exposure to FCC Rules and Regulations Prt 1.1307, 1.1310, 2.1091, and 2.1093 1. FCCID G8JHHI03 2. The environment will be for the General Population / Uncontrolled Category for Mobile Devices per Part 2.1091 3. Antenna Information a. The antenna is a integral antenna with a numeric gain of 1.32 at 927.6 MHz 4. MPE Calculations Limit for environment is 0.618 mW / cm 2 Highest Output Power is 0.211 Watts The calculated power density is based on the following equation: 2 4xdx PxG S π = where S=Power density in mW/cm 2 , P=power in Watts, G= Numeric Gain, D=Distance in cm S=0.0554 mW/ cm 2 The maximum distance from the antenna at which MPE is met is based on the following equation: xSxPxGDπ4/= Based on the above formula, the maximum distance form the antenna at which the MPE is met will be 5.99 cm.

Report Number: 30762512.001 Page 1 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 Emissions Test Report EUT Name: Handheld Interrogator EUT Model: PI900 FCC ID: G8JHHI03 FCC Title 47, Part 15, SubpartC, RSS-210 Issue 7 Prepared for: John Casaer Elster Integrated Solutions, LLC 208 South Rogers Lane Raleigh, NC 27610 Tel: 919 250-5700 Fax: 919 250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-0901 Fax: (919) 556-2043 http://www.tuv.com/ Report/Issue Date: 02 January 2007 Report Number: 30762512.001 Statement of Compliance Report Number: 30762512.001 Page 2 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 Manufacturer: Elster Integrated Solutions, LLC 208 South Rogers Lane Raleigh, NC 27610 919 250-5700 Requester / Applicant: John Casaer Name of Equipment: Handheld Interrogator Operation Frequency Range 902.8 MHz to 927.6 Type of Equipment: Intentional Radiator Application of Regulations: FCC Title 47, Part 15, SubpartC, RSS-210 Issue 7 Test Dates: 02 November 2006 to 28 November 2007 Guidance Documents: Emissions: FCC 47 CFR Part 15, RSS-210 Issue 7 Test Methods: Emissions: ANSI C63.4:2003 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland of North America, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that a sample of one, of the equipment described above, has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of the laboratory. 14 December 2007 14 December 2007 Test Engineer Date NVLAP Signatory Date Industry Canada 200094-0 90552 and 100881 IC3755 200094-0 Table of Contents Report Number: 30762512.001 Page 3 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 1 EXECUTIVE SUMMARY................................................................................................................. 4 1.1 SCOPE............................................................................................................................................ 4 1.2 PURPOSE........................................................................................................................................ 4 1.3 SUMMARY OF TEST RESULTS........................................................................................................ 5 1.4 SPECIAL ACCESSORIES.................................................................................................................. 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 6 2 LABORATORY INFORMATION ................................................................................................... 6 2.1 ACCREDITATIONS & ENDORSEMENTS.......................................................................................... 6 2.2 TEST FACILITIES............................................................................................................................ 7 2.3 MEASUREMENT UNCERTAINTY..................................................................................................... 8 2.4 CALIBRATION TRACEABILITY....................................................................................................... 8 3 PRODUCT INFORMATION ............................................................................................................9 3.1 PRODUCT DESCRIPTION................................................................................................................ 9 3.2 EQUIPMENT CONFIGURATION....................................................................................................... 9 4 EMISSIONS ...................................................................................................................................... 10 4.1 CHANNEL SEPARATION PART 15.247(A)(1) ................................................................................ 10 4.2 PSEUDORANDOM HOPPING ALGORITHM FCC PART 15.247(A)(1) ............................................. 11 4.3 OCCUPIED BANDWIDTH FCC PART 15.247(A)(1)(I) ................................................................... 16 5 EMISSIONS ...................................................................................................................................... 24 5.1 SPURIOUS EMISSIONS FCC PART 15.247(C) ............................................................................... 24 5.2 FREQUENCY HOPPING SPREAD SPECTRUM SYSTEMS FCC PART 15.247(G) .............................. 37 5.3 INCORPORATION OF INTELLIGENCE WITHIN A FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM FCC PART 15.247(H)................................................................................................................. 37 6 TEST EQUIPMENT USE LIST ...................................................................................................... 38 7 SECONDARY TEST EQUIPMENT USE LIST............................................................................ 38 TUV Rheinland of North America FCC ID QZC-REXILC 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: 30762512.001 Page 4 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 1 Executive Summary 1.1 Scope This report is intended to document the status of conformance with the requirements of the…

Text truncated - open the document above for the full version.

Report Number: 30762512.001 Page 1 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 Emissions Test Report EUT Name: Handheld Interrogator EUT Model: PI900 FCC ID: G8JHHI03 FCC Title 47, Part 15, SubpartC, RSS-210 Issue 7 Prepared for: John Casaer Elster Integrated Solutions, LLC 208 South Rogers Lane Raleigh, NC 27610 Tel: 919 250-5700 Fax: 919 250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-0901 Fax: (919) 556-2043 http://www.tuv.com/ Report/Issue Date: 02 January 2007 Report Number: 30762512.001 Statement of Compliance Report Number: 30762512.001 Page 2 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 Manufacturer: Elster Integrated Solutions, LLC 208 South Rogers Lane Raleigh, NC 27610 919 250-5700 Requester / Applicant: John Casaer Name of Equipment: Handheld Interrogator Operation Frequency Range 902.8 MHz to 927.6 Type of Equipment: Intentional Radiator Application of Regulations: FCC Title 47, Part 15, SubpartC, RSS-210 Issue 7 Test Dates: 02 November 2006 to 28 November 2007 Guidance Documents: Emissions: FCC 47 CFR Part 15, RSS-210 Issue 7 Test Methods: Emissions: ANSI C63.4:2003 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland of North America, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that a sample of one, of the equipment described above, has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of the laboratory. 14 December 2007 14 December 2007 Test Engineer Date NVLAP Signatory Date Industry Canada 200094-0 90552 and 100881 IC3755 200094-0 Table of Contents Report Number: 30762512.001 Page 3 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 1 EXECUTIVE SUMMARY................................................................................................................. 4 1.1 SCOPE............................................................................................................................................ 4 1.2 PURPOSE........................................................................................................................................ 4 1.3 SUMMARY OF TEST RESULTS........................................................................................................ 5 1.4 SPECIAL ACCESSORIES.................................................................................................................. 6 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 6 2 LABORATORY INFORMATION ................................................................................................... 6 2.1 ACCREDITATIONS & ENDORSEMENTS.......................................................................................... 6 2.2 TEST FACILITIES............................................................................................................................ 7 2.3 MEASUREMENT UNCERTAINTY..................................................................................................... 8 2.4 CALIBRATION TRACEABILITY....................................................................................................... 8 3 PRODUCT INFORMATION ............................................................................................................9 3.1 PRODUCT DESCRIPTION................................................................................................................ 9 3.2 EQUIPMENT CONFIGURATION....................................................................................................... 9 4 EMISSIONS ...................................................................................................................................... 10 4.1 CHANNEL SEPARATION PART 15.247(A)(1) ................................................................................ 10 4.2 PSEUDORANDOM HOPPING ALGORITHM FCC PART 15.247(A)(1) ............................................. 11 4.3 OCCUPIED BANDWIDTH FCC PART 15.247(A)(1)(I) ................................................................... 16 5 EMISSIONS ...................................................................................................................................... 24 5.1 SPURIOUS EMISSIONS FCC PART 15.247(C) ............................................................................... 24 5.2 FREQUENCY HOPPING SPREAD SPECTRUM SYSTEMS FCC PART 15.247(G) .............................. 37 5.3 INCORPORATION OF INTELLIGENCE WITHIN A FREQUENCY HOPPING SPREAD SPECTRUM SYSTEM FCC PART 15.247(H)................................................................................................................. 37 6 TEST EQUIPMENT USE LIST ...................................................................................................... 38 7 SECONDARY TEST EQUIPMENT USE LIST............................................................................ 38 TUV Rheinland of North America FCC ID QZC-REXILC 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: 30762512.001 Page 4 of 38 EUT: Handheld Interrogator Model: PI900 FCC ID: G8JHHI03 33_EME/I 01/29/2001 1 Executive Summary 1.1 Scope This report is intended to document the status of conformance with the requirements of the…

Text truncated - open the document above for the full version.

FCC Part 15.247 Test Set-up Photos Figure 1: 15.247 Antenna Port Measurements Figure 2: Additional 15.247 Antenna Port Measurements Figure 3: Radiated Emissions 30 MHz to 1 GHz Setup Figure 4: Spurious Radiated Emissions 1 GHz to 10 GHz Setup
