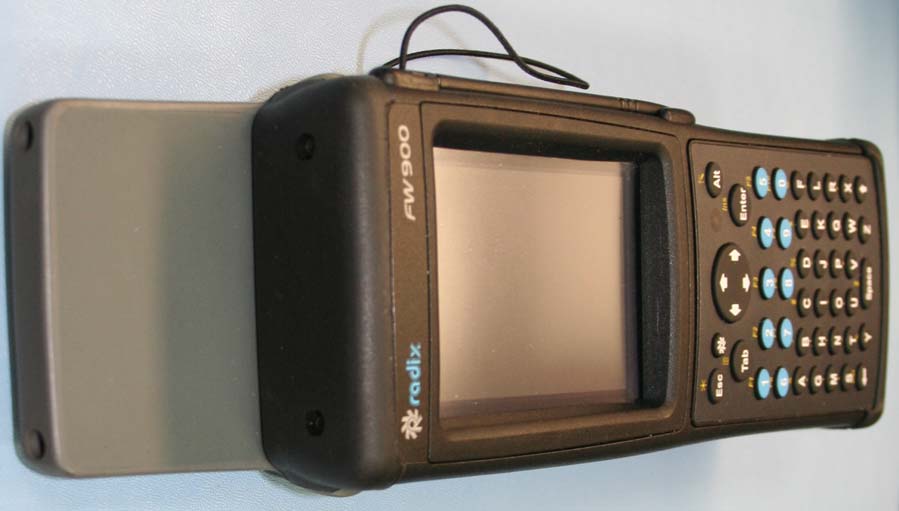

G8JHHI04Hand Held Interrogator

Elster Handhelds User Guide Release 1.0 www.elster.com Elster Handhelds User Guide3Contents Contents FCC and Industry Canada compliance . . . . . . . . . . . . . . . . . . . 7 Disclaimer of warranties and limitation of liability . . . . . . . . . .8 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Revisions to this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 About handheld devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 About This manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 New users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Existing users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Automatic meter reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Basic AMR components . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2 About handheld devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 PI 500 handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Dap CE5240X handheld computer specifications . . . . . . 13 Using an external antenna . . . . . . . . . . . . . . . . . . . . . . . . 14 Safe RF exposure using external antenna . . . . . . . . . . . 14 More about Dap CE5240x . . . . . . . . . . . . . . . . . . . . . . . . . 14 evoWalk and PI 900 handhelds . . . . . . . . . . . . . . . . . . . . . . . . 14 Radix specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Safe RF exposure using external antenna . . . . . . . . . . . 15 More about Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Transmission accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Navigating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 PI 500 installation tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 PI 900 installation tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Database warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 3 Handheld operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Commonly used keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 <Esc> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 <Enter> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Arrow keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 <Tab> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Entering responses (Yes/No) . . . . . . . . . . . . . . . . . . . . . . . 19 Using the stylus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Reading meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Turning the device on and off . . . . . . . . . . . . . . . . . . . . . . . . . 20 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Charging the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Elster Handhelds User Guide4Contents Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Resetting the handheld device . . . . . . . . . . . . . . . . . . . . . . . . . 21 Dap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Radix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Logging in to the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Holding the handheld . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 For meter reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 For RTM installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 4 About Interrogator software . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Selecting a route . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 RM Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Viewing handheld configuration . . . . . . . . . . . . . . . . . . . . . . 25 Updating handheld configuration . . . . . . . . . . . . . . . . . . 26 Exiting Elster Interrogator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27 5 Reading accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Navigating accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Esc> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Enter> . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 <Up> and <Down> arrow keys . . . . . . . . . . . . . . . . . . . 29 Reading an account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Performing a default read of an unread account . . . . . 30 Performing a manual index reading . . . . . . . . . . . . . . . . 31 Moving on to the next account . . . . . . . . . . . . . . . . . . . . 32 Additional account reading options . . . . . . . . . . . . . . . . . . . 32 Clearing index read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Forcing unattempted account . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

RF Exposure to FCC Rules and Regulations Prt 1.1307, 1.1310, 2.1091, and 2.1093 1. FCCID G8JHHI04 2. The environment will be for the General Population / Uncontrolled Category for Mobile Devices per Part 2.1091 3. Antenna Information a. The antenna is a integral antenna with a numeric gain of 1.32 at 451.35 MHz 4. MPE Calculations Limit for environment is 0.301 mW / cm 2 Highest Output Power is 0.194 Watts The calculated power density is based on the following equation: 2 4xdx PxG S π = where S=Power density in mW/cm 2 , P=power in Watts, G= Numeric Gain, D=Distance in cm Based on 20 cm seperation S=0.051 mW/ cm 2 The maximum distance from the antenna at which MPE is met is based on the following equation: xSxPxGDπ4/= Based on the above formula, the maximum distance form the antenna at which the MPE is met will be 8.23 cm.

Report Number: 30762513.001 Page 1 of 20 EUT: Hand Held Interrogator Model: 52808K500 FCCID: G8JHHI04 Emissions Test Report EUT Name: Hand Held Interrogator EUT Model: 52808K500 FCC ID: G8JHH104 FCC Part 90 Prepared for: John Casaer AMCO Automated Systems, Inc. 201 S. Rogers Lane Raleigh, NC 27610 Tel: 919 250-5440 Fax: 919 250-5439 Prepared by: TUV Rheinland of North America 762 Park Avenue Youngsville, NC 27596 Tel: (919) 554-3668 Fax: (919) 554-3542 http://www.tuv.com/ Report/Issue Date: 16 January 2008 Report Number: 30762513.001 Statement of Compliance Report Number: 30762513.001 Page 2 of 20 EUT: Hand Held Interrogator Model: 52808K500 FCCID: G8JHHI04 Manufacturer: AMCO Automated Systems, Inc. 201 S. Rogers Lane Raleigh, NC 27610 919 250-5440 Requester / Applicant: John Casaer Name of Equipment: Hand Held Interrogator Model No. 52808K500 Type of Equipment: Itentional Radiator Class of Equipment: N/A Application of Regulations: FCC Part 90 Test Dates: 29 October 2007 to 28 November 2007 Guidance Documents: Emissions: FCC 47 CFR Part 90 Test Methods: Emissions: ANSI/TIA-603-C-2004 The electromagnetic compatibility test and documented data described in this report has been performed and recorded by TUV Rheinland of North America, in accordance with the standards and procedures listed herein. As the responsible authorized agent of the EMC laboratory, I hereby declare that a sample of one, of the equipment described above, has been shown to be compliant with the EMC requirements of the stated regulations and standards based on these results. If any special accessories and/or modifications were required for compliance, they are listed in the Executive Summary of this report. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. This report contains data that are not covered by NVLAP accreditation. This report shall not be reproduced except in full, without the written authorization of the laboratory. 16 January 2008 16 January 2008 Test Engineer Date NVLAP Signatory Date Table of Contents Report Number: 30762513.001 Page 3 of 20 EUT: Hand Held Interrogator Model: 52808K500 FCCID: G8JHHI04 1 EXECUTIVE SUMMARY................................................................................................................. 4 1.1 SCOPE............................................................................................................................................ 4 1.2 PURPOSE........................................................................................................................................ 4 2 LABORATORY INFORMATION ................................................................................................... 4 2.1 ACCREDITATIONS & ENDORSEMENTS.......................................................................................... 4 2.2 TEST FACILITIES............................................................................................................................ 5 2.3 MEASUREMENT UNCERTAINTY..................................................................................................... 5 2.4 CALIBRATION TRACEABILITY....................................................................................................... 6 2.5 PRODUCT INFORMATION............................................................................................................... 7 2.6 2.1046 RF POWER OUTPUT........................................................................................................... 8 2.7 90.210 EMISSION MASK C........................................................................................................... 10 2.8 2.1053 FIELD STRENGTH OF SPURIOUS RADIATION................................................................... 14 2.9 2.1055 FREQUENCY STABILITY................................................................................................... 16 2.10 90.214 TRANSIENT FREQUENCY BEHAVIOR............................................................................... 18 3 TEST EQUIPMENT USE LIST ...................................................................................................... 20 3.1 TEST EQUIPMENT USE LIST......................................................................................................... 20 TUV Rheinland of North America 762 Park Ave., Youngsville, NC 27596 Tel: (919) 554-3668, Fax: (919) 554-3542 Report Number: 30762513.001 Page 4 of 20 EUT: Hand Held Interrogator Model: 52808K500 FCCID: G8JHHI04 1 Executive Summary 1.1 Scope This report is intended to document the status of conformance with the requirements of the FCC Part 90 based on the results of testing performed on 29 October 2007 through 28 November 2007 on the Hand Held Interrogator Model No. 52808K500 manufactured by AMCO Automated Systems, Inc.. This report only applies to the specific samples tested under the stated test conditions. It is the responsibility of the manufacturer to assure that additional production units of this model are manufactured with identical or EMI equivalent electrical and mechanical components. This report is further intended to document changes and modifications to the EUT throughout its life cycle. All documentation will be included as a supplement. 1.2 Purpose Testing was performed to evaluate the EMC performance of the EUT in accordance with the applicable requirements, procedures, and criteria defined in the application of regulations and application of standards listed in this report. 2 Laboratory Information 2.1 Accreditations & Endorsements 2.1.1 US Federal Communications Commission TUV Rheinland of North America at the 762 Park Ave. Youngsville, N.C 27596 address is accredited by the commission for performing testing services for the general public on a fee basis. This laboratory test facilities have been fully described in reports submitted to and accepted by the FCC (Registration No 90552 and 100881). The laboratory scope of accred…

Text truncated - open the document above for the full version.

FCC Part 90 Test Set-up Photos Figure 1: Conducted Power and Emissions Mask Setup Figure 2: Radiated Emissions Below 1GHz Setup Figure 3: Substitution Method Below 1 GHz Setup Figure 4: Spurious Radiated Emissions Setup 1 GHz to 5 GHz Figure 5: Substitution Method 1 GHz to 5 GHz Setup Figure 6: Frequency Stability External Setup Figure 7: Frequency Stability Internal Setup
