G9B-MATRIXInductive Loop Sensors

75.1046 V3 July 2005 [Rev. 7/21/2005] Page 1 of 6





















The MATRIX Digital Inductive Loop Detector is the ideal solution for parking barrier control, motorized gates and doors, vehicle access control and industrial control systems. The MATRIX is a high performance single or dual-channel vehicle detector packaged in a compact housing. The connection is made with a standard industrial 11-pin round connector. The six versions listed below include single or dual-channel, and 3 possible power supplies: 10MATRIXS110 : Single loop detector with 110 to 120 V AC power supply. 10MATRIXS220 : Single loop detector with 220 to 240 V AC power supply. 10MATRIXS1224 : Single loop detector with 12 to 24 V AC/DC power supply. 10MATRIXD110 : Dual loop detector with 110 to 120 V AC power supply. 10MATRIXD220 : Dual loop detector with 220 to 240 V AC power supply. 10MATRIXD1224 : Dual loop detector with 12 to 24 V AC/DC power supply. Technology : Inductive loop Tuning : automatic Detection mode : presence Presence time : 1 min to infinity (permanent presence) with 250 steps. Pulse time output : 100 ms or 500 ms Inductance range : 20 μH to 1000 μH Frequency range : 20 kHz to 130 kHz Frequency steps : 4 for single loop 2 for dual loop (for each loop) Sensitivity (DL/L) : 0.005% to 0.5% with 250 steps Reaction time : 25ms for single loop 50ms for dual loop(each channel) Setup time at power on : 8 s max by channel Setup time after configuration : 2s max by channel Power supply (depending on model) : ∑ 12-24 AC/DC ± 10% ∑ 230VAC ± 10 % ∑ 115VAC ± 10 % Power Frequency : 48 to 62 Hz Power Consumption : < 2.5 W Temperature range : -22∞F to 158∞F [-30°C to +70°C] Degree of protection : IP40 2 Output relays (free potential change-over contact) : ∑ Max contact voltage : 230 VAC ; ∑ Max contact current : 5A (resistive). LED indicators : ∑ 1 green LED : power ; ∑ 1 red LED : Loop status 1 ; ∑ 1 red LED : Loop status 2. Protections : ∑ loop insulation transformer ; ∑ Zener diodes ; ∑ gas discharge clamping. Connection : Standard 11-pin round connector 86CP11 Dimensions : 3 in (H) x 1.5 in (W) x 3 in (D) [ 77mm (H) x 40mm(W) x 75mm(D)] Weight : 7 ounces [< 200g] Product compliance : R&TTE 1999/5/EC EMC 89/336/EEC FCC 47CFR15 IC RSS-210 Issue 5 ∑ Shut off all power before attempting any wiring procedures. ∑ Maintain a clean & safe environment. ∑ Constantly be aware of traffic around the door or gate area. ∑ Always suspend traffic through the doorway or gate area when performing testing that may result in unexpected reactions by the door or gate. ∑ Always check placement of all wiring and components before powering up to insure that moving parts will not catch any wires and cause damage to equipment. DESCRIPTION OF THE SENSOR APPLICATIONS TECHNICAL SPECIFICATIONS 1.5 in 3 in 3 in SAFETY PRECAUTIONS ! We open up New Horizons USERS GUIDE MATRIX DIGITAL INDUCTIVE LOOP SENSORS 75.1046 V3 July 2005 [Rev. 7/21/2005] Page 2 of 6 WARNING: For conformity reasons, in any installation, the loop surface multiplied by the number of turns should not exceed 215 (for square feet); 20 (for square meters) 10MATRIXS110: Matrix, Single Unit, 110 Volt AC supply 10MATRIXS220: Matrix, Single Unit, 220 Volt AC supply 10MATRIXS1224: Matrix, Single Unit, 12-24 Volt AC/DC supply 10MATRIXD110: Matrix, Double Unit, 110 Volt AC supply 10MATRIXD220: Matrix, Double Unit, 220 Volt AC supply 10MATRIXD1224: Matrix, Double Unit, 12-24 Volt AC/DC supply The Digital Transmitters and Receivers comply with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference and; 2) This device must accept any interference received including interference that may cause undesired operations. Changes or modifications not expressly approved by B.E.A., Inc. for compliance could void the user’s authority to operate the equipment. A . CABLE SPECIFICATIONS FOR LOOP AND FEEDER ∑ 16 AWG (1.5mm²) cross section area ; ∑ Multi-strand cable ; ∑ Insulation material : PVC or Silicone ; ∑ For the feeder cable, the wire must be twisted at least 15 times per yard for each cable. ∑ Feeder for long runs used for foil screened cable is recommended (earth at equipment end only) ∑ The feeder cable must be firmly fixed to avoid any false detection (max length: 330 feet (100 m)). ∑ Waterproof cable junction box is required. B. LOOP GEOMETRY ∑ When two adjacent loops are connected to a dual channel sensor, it is possible for these loops to share a common slot, if so required. As the channels are multiplexed, no interference will occur. ∑ Avoid large loops or long feeder [max 330 feet (100 m)], or else the sensitivity will be affected. C. DETERMINATION OF THE NUMBER OF LOOP TURNS ∑ Measure the length (L) and width (Ea) of one loop. Multiply these numbers together to determine the loop surface area. See above drawing. ∑ For example, if L=10 ft, Ea= 3 ft, then the area = 30 ft 2 ; 4 loop turns are recommended. or if L=2m, Ea=1m, then the area = 2 m 2 ; 4 loop turns are recommended. Recommended values for the turns: D. SLOT DEPTH Area Number of turns <32 ft² <3 m² 4 32 – 54 ft² 3 – 5 m² 3 65 – 108 ft² 6 – 10 m² 2 LOOP INSTALLATION TIPS 1 ¼ - 2” (30 – 50mm) depending on the cable turns number C l e a n a n d d r y s l o t s p r i o r t o i n s e r t i n g c a b l e Loop sealant Ground level L Ea Eb ! FCC COMPLIANCE (FCC ID: G9B-MATRIX) (IC: 4680A-MATRIX) 75.1046 V3 July 2005 [Rev. 7/21/2005] Page 3 of 6 WARNING : Do not remove the grease on the connector's pins. Pin 1 : Power Supply Pin 2 : Power Supply Pin 3 : Relay 2 (NO) Pin 4 : Relay 2 (COM) Pin 5 : Relay 1 (NO) Pin 6 : Relay 1 (COM) Pin 7 : Loop A Pin 8 : Loop common and connect to ground Pin 9 : Loop B Pin 10 : Relay 1 (NC) Pin 11 : Relay 2 (NC) I. THE 3 CONFIGURATIONS ∑ Configuration A : single loop detector (MATRIX-S) ; ∑ Configuration B : dual loop detector in independent mode (MATRIX-D with dip switch #10 OFF) ; ∑ Configuration C : dual l…

Text truncated - open the document above for the full version.

1/3 B.E.A. LOOP DETECTORS : MATRIX FAMILY Matrix Product Family Variances Description 2/3 Matrix Family Product correspondence Table. Standard Devices Designation Alternative Designation (Used in some countries) Customized devices MATRIX-D-110 10MATRIXD110 10MATRIXD110E (D5562.14) * MATRIX-D-1224 10MATRIXD1224 10MATRIXD1224E (D5562.11) * MATRIX-D-220 10MATRIXD220 MATRIX-S-110 10MATRIXS110 10MATRIXIIS110 ** 10MATRIXIIS110E (S5562.13) *** MATRIX-S-1224 10MATRIXS1224 10MATRIXS1224E * 10MATRIXIIS1224 ** 10MATRIXIIS1224E (S5562.10) *** 10MATRIXIIRH (different PCB) MATRIX-S-220 10MATRIXS220 * Same as standard device but with another label (Brand name) and adapted user’s guide ** Same as standard device but with another pins arrangement (Yellow housing) *** Same as standard device but with another label, user’s guide and pins arrangement (Yellow) B.E.A. Detection Loops sensors are a family of loop detectors which can be classified into 6 different models. (The 6 Standard EU devices). These models vary by the number of Loop they can control and by the power supply specifications. The model family is summarized in the board below : Configuration Single Loop Dual Loops 12-24V AC/DC 30.0232 (*) 30.0235 230V AC 20.0370 (=30.0231+tr 220V) 20.0373 (=30.0234+tr220V) 115V AC 20.0371 (=30.0231+tr 115V) (*) 20.0374 (=30.0234+tr115V) 3/3 (*) Some of these are available in different pins arrangement and renamed MATRIX 2. MATRIX 2 (or MATRIX II) may be identified easily due to the YELLOW color of the housing. Even for customized devices, there are no differences in terms of printed circuit board and software between the different supply voltage versions. Only the assembly of the power supply circuitry may vary from one model to another. Transformers are necessary for the 115V and 220V versions. The 12-24V AC/DC version also exists in a customized PCB called ‘Rite-Hite’ (10MATRIXIIRH). There are no differences in terms of circuitry regarding the standard 12-24V AC/DC version. Nevertheless the orientation of some components has been changed from vertical to horizontal because the pcb is designed to be fitted directly in the housing of the customer instead of the standard housing. The dual loops sensors are able to monitor one or two loops simultaneously. When two loops are used, they can be considered independently or combined for advanced detection features.

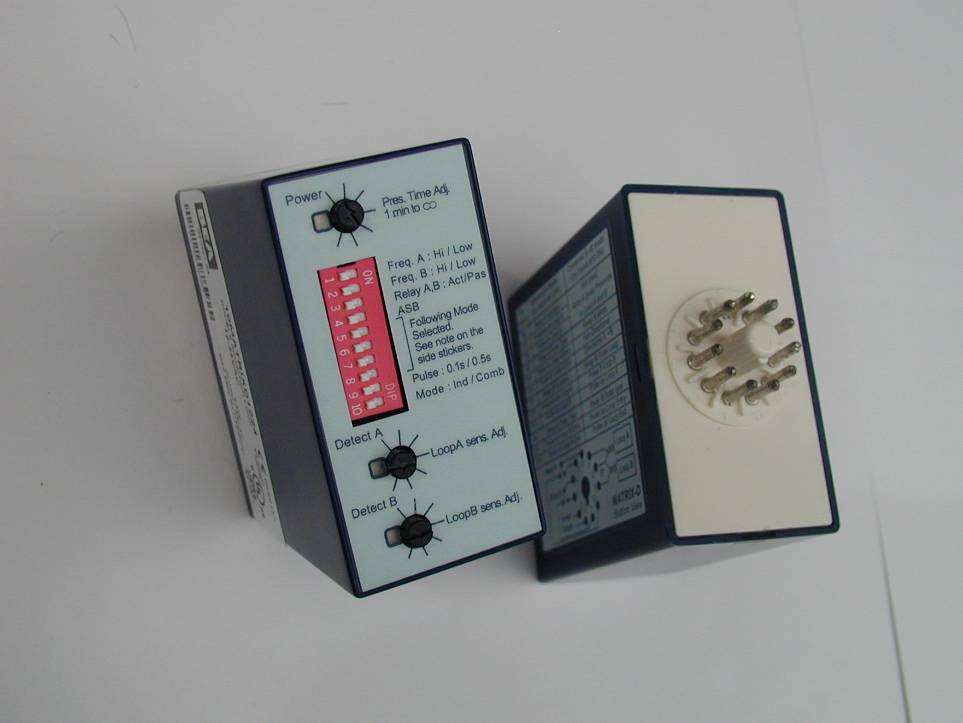

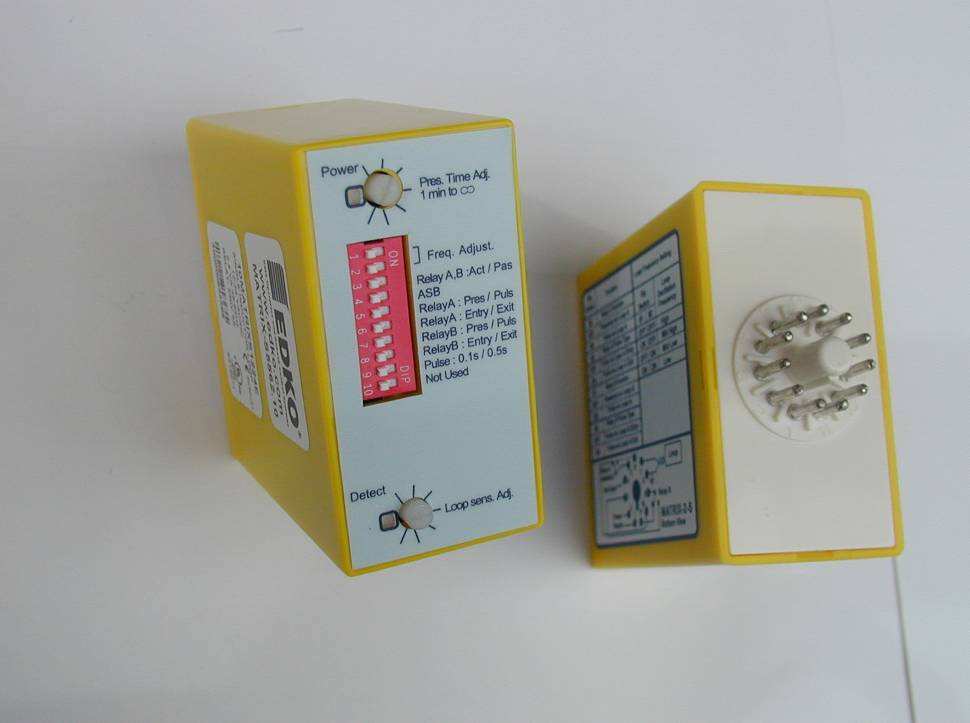

1/8 B.E.A. LOOP DETECTORS : MATRIX Family Pictures 2/8 MATRIX Dual loop – Standard pin out (Blue housing) MATRIX II Dual loop – Customized pin out (Yellow housing) 3/8 Standard 11-pin round connector MATRIX or MATRIX II Single or Dual loop Standard or customized pin out 12-24V, 115V or 230V (Not for Rite-Hite version)

DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com Dimension in mm > 0.5 to 3 > 3 to 6 > 6 to 30 > 30 to 120 > 120 to 400 >400 to 1000 > 1000 to 2000 > 2000 to 4000 > 4000 to 8000 > 8000 to 12000 Tolerance ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ± 2 ± 3 ± 4 Angle ... 10 > 10 to 50 >50 to 120 > 120 to 400 Tolerance ± 1 °± 30’ ± 20’ ± 10’ Dim ensional Tolerances Angular Tolerance 10MATRIXS1224 No. De scription Da te 01 REVISION TABLE DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com No. Description Date 01 REVISION TABLE 10MATRIXIIS1224 No. De scription Da te 01 REVISION TABLE DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com Dimension in mm > 0.5 to 3 > 3 to 6 > 6 to 30 > 30 to 120 > 120 to 400 >400 to 1000 > 1000 to 2000 > 2000 to 4000 > 4000 to 8000 > 8000 to 12000 Tolerance ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ± 2 ± 3 ± 4 Angle ... 10 > 10 to 50 >50 to 120 > 120 to 400 Tolerance ± 1 °± 30’ ± 20’ ± 10’ Dim ensional Tolerances Angular Tolerance 10MATRIXIIS110 No. De scription Da te 01 REVISION TABLE DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com Dimension in mm > 0.5 to 3 > 3 to 6 > 6 to 30 > 30 to 120 > 120 to 400 >400 to 1000 > 1000 to 2000 > 2000 to 4000 > 4000 to 8000 > 8000 to 12000 Tolerance ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ± 2 ± 3 ± 4 Angle ... 10 > 10 to 50 >50 to 120 > 120 to 400 Tolerance ± 1 °± 30’ ± 20’ ± 10’ Dim ensional Tolerances Angular Tolerance 10MATRIXIIRH No. De scription Da te 01 REVISION TABLE DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com Dimension in mm > 0.5 to 3 > 3 to 6 > 6 to 30 > 30 to 120 > 120 to 400 >400 to 1000 > 1000 to 2000 > 2000 to 4000 > 4000 to 8000 > 8000 to 12000 Tolerance ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ± 2 ± 3 ± 4 Angle ... 10 > 10 to 50 >50 to 120 > 120 to 400 Tolerance ± 1 °± 30’ ± 20’ ± 10’ Dim ensional Tolerances Angular Tolerance 10MATRIXD1224 No. De scription Da te 01 REVISION TABLE DWG NO SIZE SHEET SCALE A PH: (412) 249-4100 FAX: (412) 249-4101B.E.A., Inc.100 Enterprise Drive Pittsburgh, PA 15275 KJG KJG www. beasensors.com Dimension in mm > 0.5 to 3 > 3 to 6 > 6 to 30 > 30 to 120 > 120 to 400 >400 to 1000 > 1000 to 2000 > 2000 to 4000 > 4000 to 8000 > 8000 to 12000 Tolerance ± 0.1 ± 0.1 ± 0.2 ± 0.3 ± 0.5 ± 0.8 ± 1.2 ± 2 ± 3 ± 4 Angle ... 10 > 10 to 50 >50 to 120 > 120 to 400 Tolerance ± 1 °± 30’ ± 20’ ± 10’ Dim ensional Tolerances Angular Tolerance 10MATRIXD110 No. De scription Da te 01 REVISION TABLE

4/8 Single loop – 12-24V (Top Layer) Single loop – 12-24V (Bottom Layer) 5/8 Single loop – 115 or 230 V (Top Layer) Single loop – 115 or 230 V (Bottom Layer) 6/8 Dual loop – 12-24V (Top Layer) Dual loop - 12-24V (Bottom Layer) 7/8 Dual loop – 115 or 230 V (Top Layer) Dual loop – 115 or 230V (Bottom Layer) 8/8 Rite-Hite 12-24V (Top Layer) Rite-Hite 12-24V (Bottom Layer)
