G9B-TD433PTRIIPanther

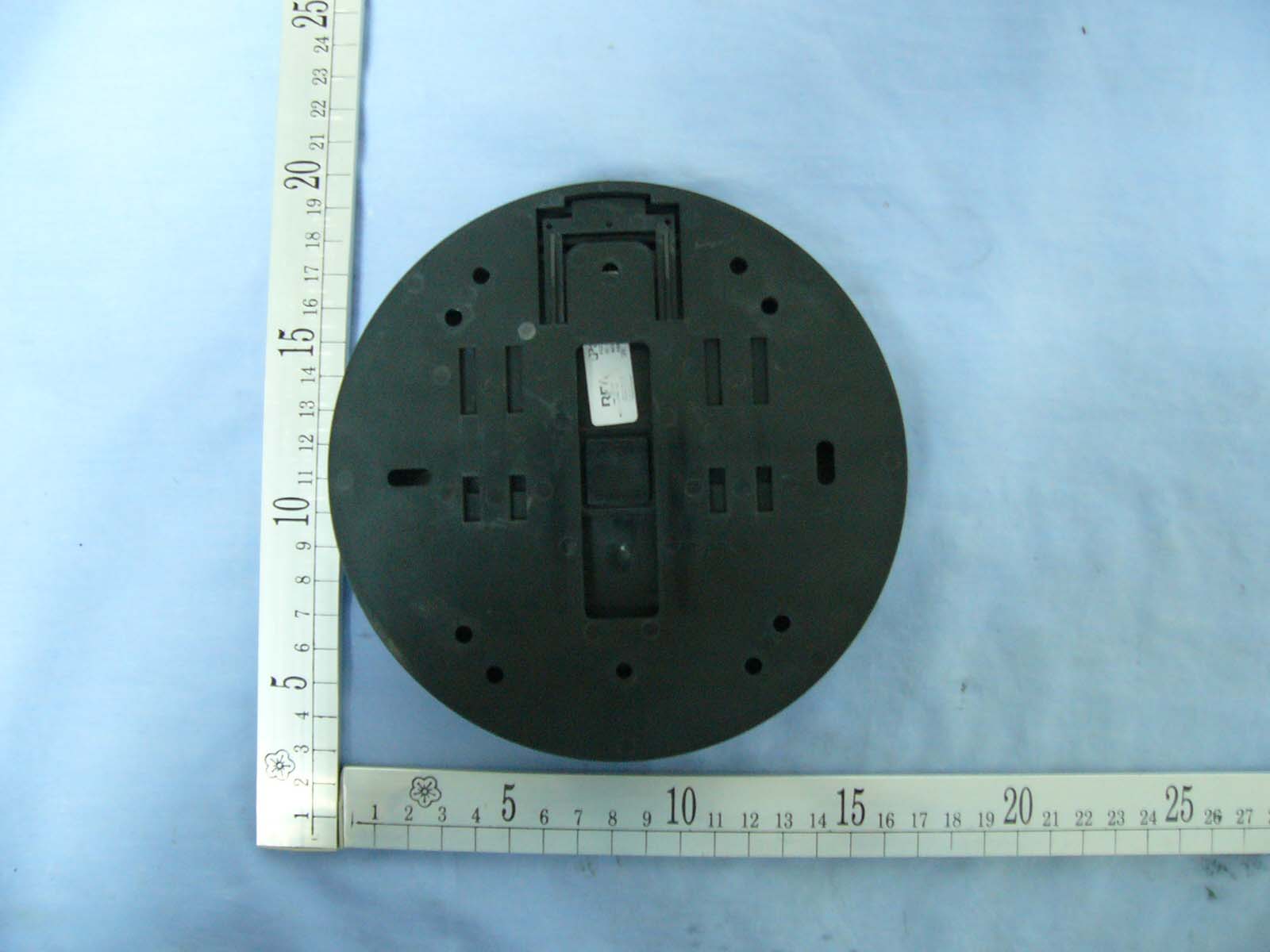

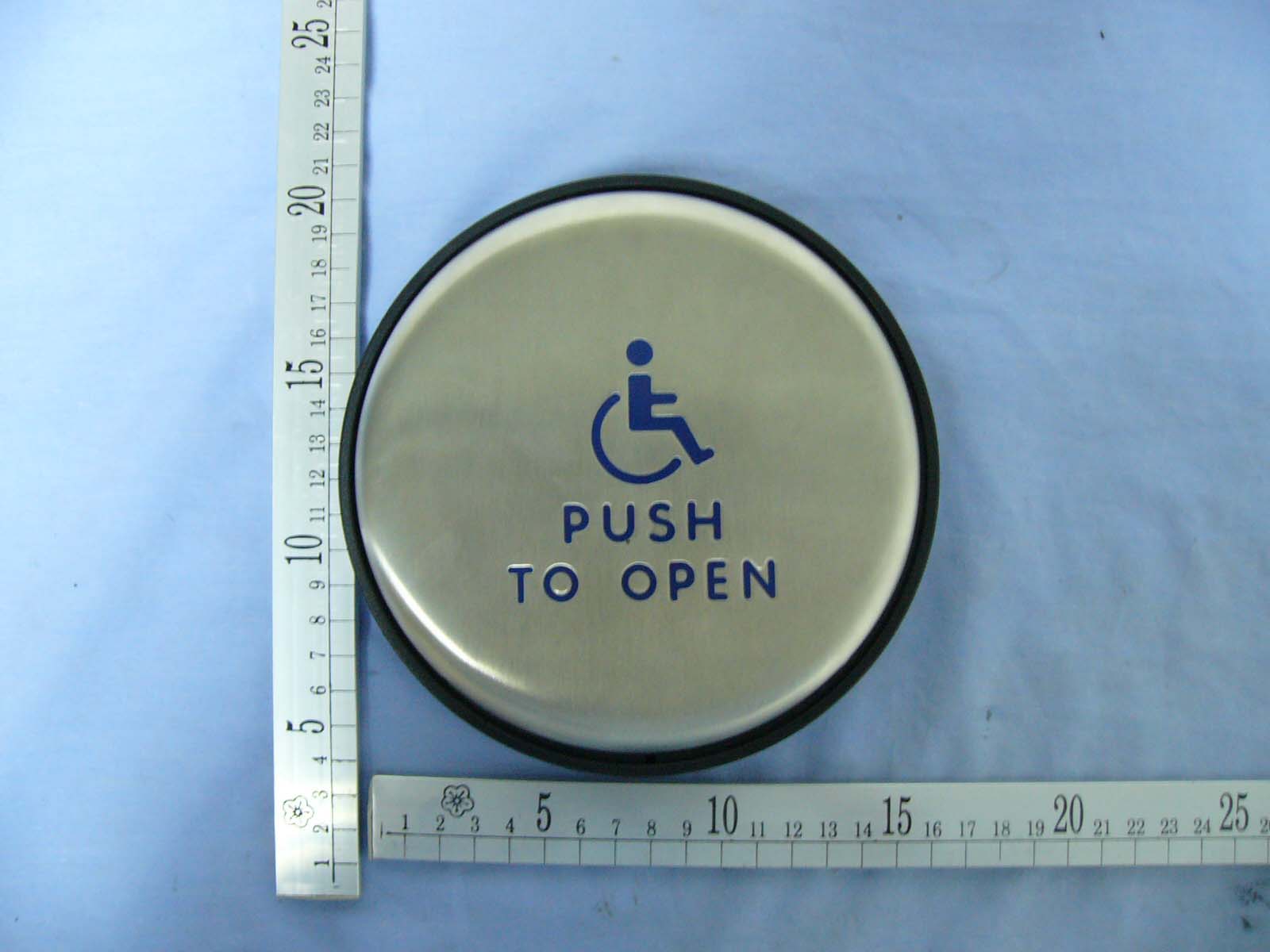

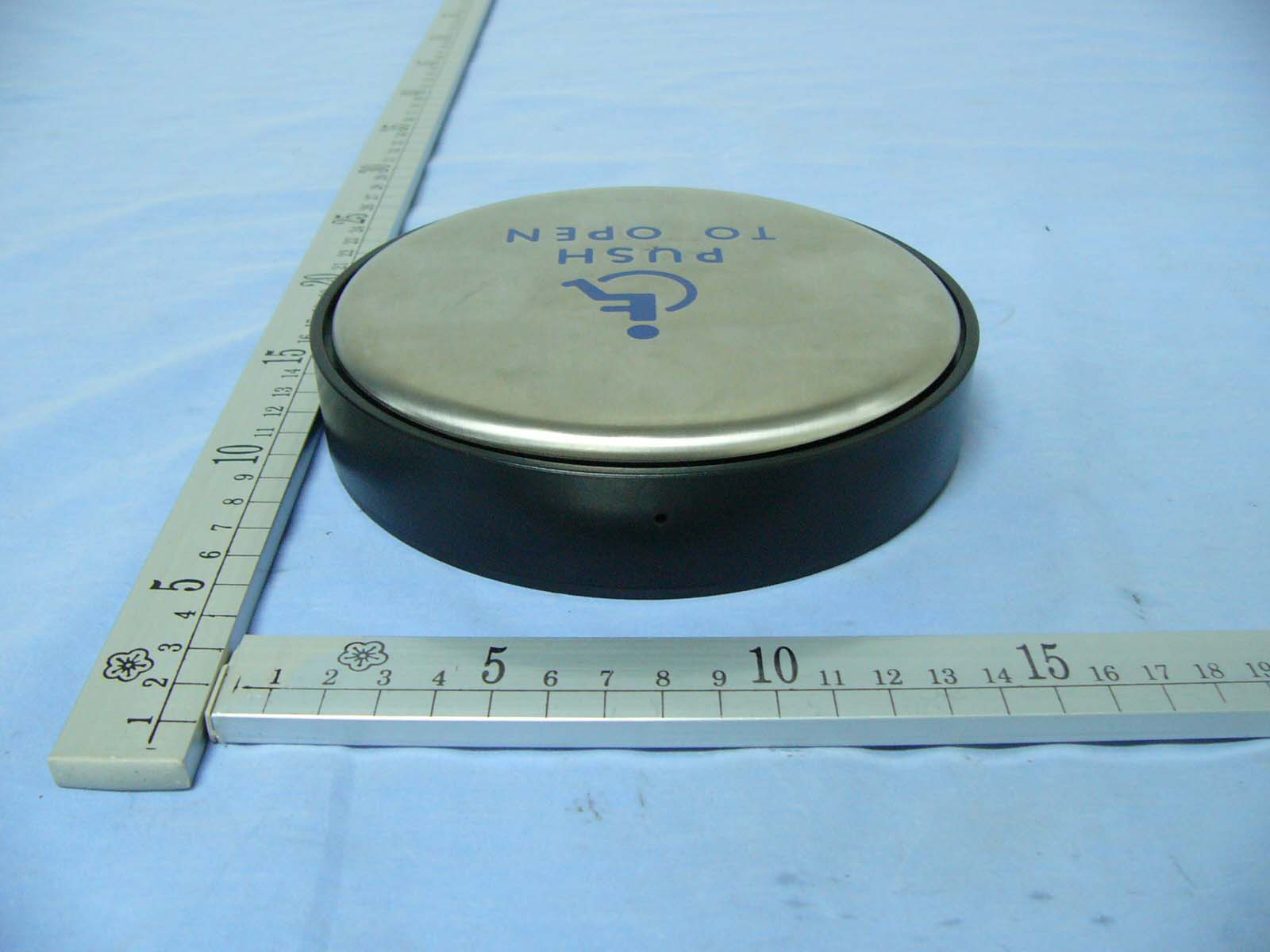

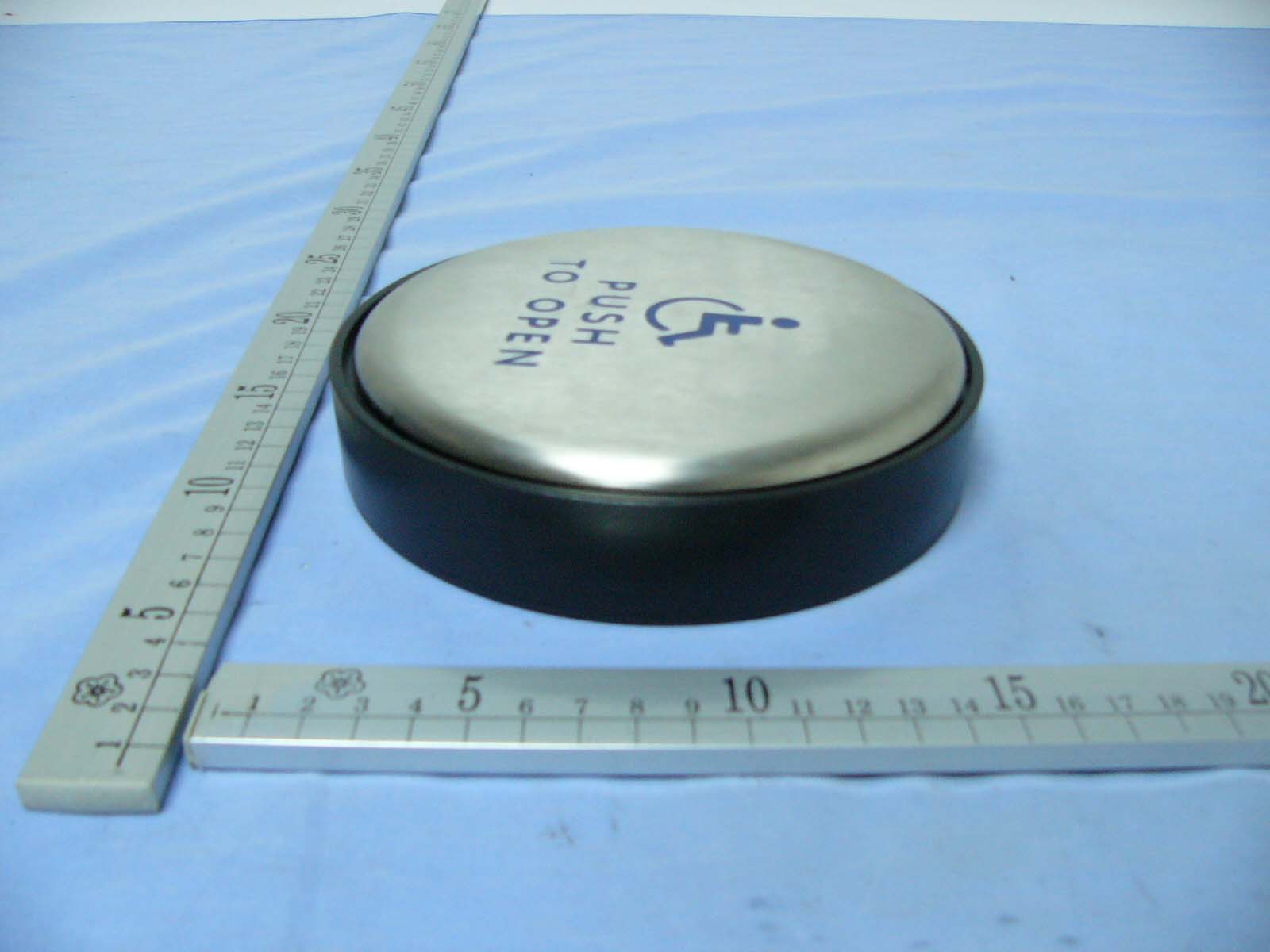

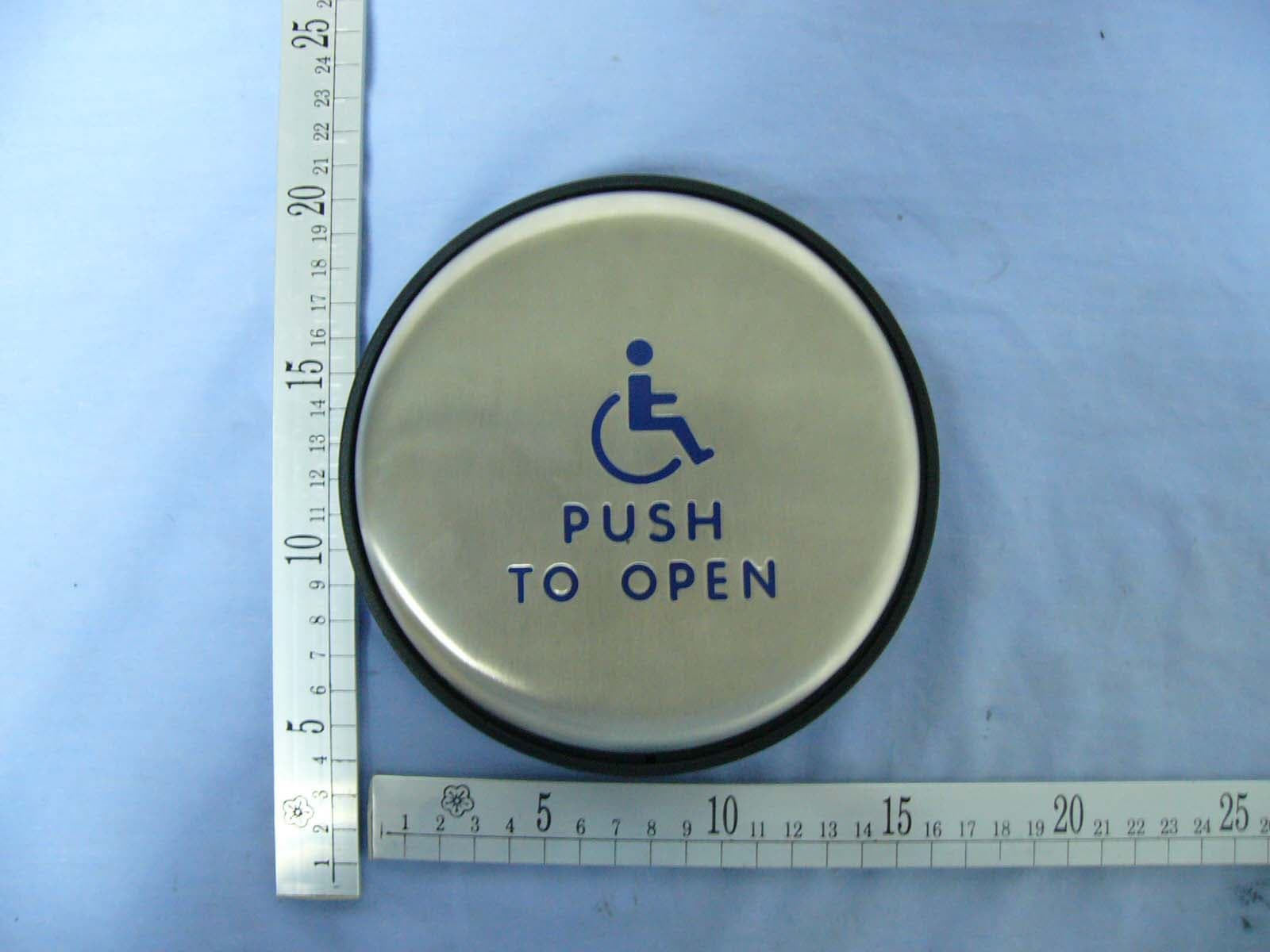

75.5172.03 20060608 1/2 PANTHER SERIES PANTHER SERIES PANTHER SERIES PANTHER SERIES USER GUIDE ` 1 11 1 Mounting the pushplate: LOCKING TAB MOUNTING KEYS DOUBLE GANG MOUNTING HOLES (TOP AND BOTTOM) The Panther pushplate may be mounted with or without the mounting bracket. To use the mounting bracket, screw a minimum of two (2) screws into a solid surface through the holes in the mounting plate (#8 countersunk head screws must be used). The mounting plate must be mounted so that the text side is facing up. To attach the housing to the mounting plate, place the housing over the key tabs on the mounting plate, and then slide the plate downward until the locking tab engages the housing. To remove the housing, press in the locking tab and reverse this procedure. NOTE: To securely lock the plate, put an additional screw through both the housing and the mounting plate. Hex Key Housing Assembly Faceplate Assembly 10EMR61 SHOWN Dimensions : 6 ¼” (160mm) Dia. x 1.5” (36mm) H Weight : 1.2 lbs (0.54 kg) Material : ABS Plastic and Stainless Steel Transmitter Frequency : 433 MHz Certification : FCC 3 Installation 1 Description 2 Technical Specifications We open up New Horizons ENGAGE KEYS LOCK/ UNLOCK 75.5172.03 20060608 2/2 2 Function: To assemble or disassemble the pushplate, use the enclosed hex key (or similar diameter tool) to press in and release the spring clips from the faceplate bracket. The spring clip will need to be engaged/ disengaged from top and bottom, one at a time. When the spring clips are correctly engaged, they will make a click. It may be necessary to rotate the faceplate slightly to have them lock correctly. To replace the battery, remove the faceplate and the four (4) screws holding the battery cover to expose the transmitter assembly. Replace the battery with a fresh 12V, Type A23 battery and reassemble the pushplate. WARNING: DO NOT OVER TIGHTEN THE SCREWS ON THE BATTERY COVER. THIS MAY CAUSE THE TRANSMITTER TO BE IN CONSTANT ACTIVATION. THE HEAD OF THE SCREWS SHOULD BE FLUSH WITH THE TOP OF THE PLASTIC COVER. 3 Tips • Shut off all power going to the header before attempting any wiring procedures. • Maintain a clean & safe environment when working in public areas. • Constantly be aware of pedestrian traffic around the door area. • Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door. • Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause damage to equipment. • Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation. 4 Receiver Setup: To program the receiver (pn 10RD433 sold separately), perform the following steps: 1. On the 433MHz digital receiver, press the brown learn button once (the yellow LED will illuminate). 2. Within 20 seconds, press the faceplate of the assembled pushplate once (the yellow LED on the receiver will go out). 3. Press the faceplate again (the yellow LED will flash for 2 seconds). 4. Press the faceplate again to verify receiver detection (the yellow LED will flash and the red LED will illuminate for the length of time set by the dipswitch). NOTE: To clear the memory of the receiver, press and hold the learn button for 10 seconds. For additional information about the receiver, please review the manual for the 10RD433 receiver. 4 Company Contact BATTERY LOCATION (OBSERVE PROPER POLARITY) PRESS (TOP AND THEN BOTTOM) DETACH/ REATTACH (LISTEN FOR CLICK) Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please call B.E.A., Inc. If you must wait for the following workday to call B.E.A., leave the door inoperable until satisfactory repairs can be made. Never sacrifice the safe operation of the automatic door or gate for an incomplete solution. The following numbers can be called 24 hours a day, 7 days a week. For more information, visit www.beainc.com. West: 1-888-419-2564 Mid-West: 1-888-308-8843 South-East: 1-800-407-4545 North-East: 1-866-836-1863 US and Canada: 1-866-249-7937 Canada: 1-866-836-1863 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Google Gmail Calendar Photos Docs & Spreadsheets Groups all my services » [email protected] | Settings | Help | Sign out Search MailSearch the Web Show search options Create a filter « Back to Inbox Archive Report SpamDelete ‹ Newer 8 of 460 Older › Re:B.E.A INC, FCC ID: G9B-TD433PTRII, Assessment NO.: AN07T6452, Notice#1 Inbox Reply from "aven.zhou" <[email protected]> hide details 4:53 am (11 hours ago) to [email protected] cc [email protected], "eric.wong" <[email protected]> date Jan 29, 2007 4:53 AM subject Re:B.E.A INC, FCC ID: G9B-TD433PTRII, Assessment NO.: AN07T6452, Notice#1 Dear Tim dwyer, Please check the reply below in blue. Best regards! aven.zhou Compliance Certification Service(Shenzhen) Inc. Tel: 0755-28055000 ext. 601 E-mail: [email protected] MSN : [email protected] Dear Colleagues, The review of this application is complete. There were a few items noted. Note that items 1 and 2 require action by you. Action is not required for items 3 and 4, but please make note for future applications. 1. The FCCID label also shows an IC registration number, but no IC application is on file. Please explain if this device is already Industry Canada approved or if an IC application is forthcoming. <Reply> We shall send the materials for IC Certification as soon . 2. The FCCID label must include the following text from section 15.19(a)(3) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. <Reply> Please see the update label. 3. Please note for future applications that the duty cycle must be calculated using worst case 100 msec period. In this case the duty cycle was calculated using a 106 msec period. The relatively small difference in this case would not result in a non compliance, so no corrective action is necessary, but try to use 100 msec in the future 4. The limits shown on page appear to be slightly lower than the limits calculated from the formula on page 18. Since the limits shown are lower but are met, you need not change the report in this case, but in the future, try to use the correct limits. Best regards, Tim Dwyer CCS Techical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. <[email protected] > 2007-01-21 05:55 ???: <[email protected]>, <[email protected]> ????: <[email protected]> ??: B.E.A INC, FCC ID: G9B-TD433PTRII, Assessment NO.: AN07T6452, Notice#1 LabelSmpl.pdf 74K View as HTML Download Reply Reply to all Forward Invite aven.zhou to Gmail Compose Mail Starred Chats Sent Mail Drafts (4) All Mail Spam (1) Trash Contacts Inbox (196) Labels Edit labels Invite a friend Give Gmail to: 50 left Send Invite preview invite < > Web Clip Quote of the Day - Abu Bakr - "Knowledge is the life of the mind." More actions... New window Print all Sponsored Links Top QSU Registrar QMS/EMS ISR Enhancing business processes www.nsf-isr.org Search Remotes Using the FCC ID Aftermarket & OEM Remote FOBs aftermarketremotes.net Find a class in 54 US cities. Save $25 when you register online. trainingforQuality.com Customized in 48 Hrs - Order Online Free Unlimited Implementation Help www.epsilonquality.com Inspection secures goods quality Simple to book inspection online www.kema.com Verify any social security number. Start with your preliminary search. www.ssnrecordssearch.com On-site, cost-effective ISO 9001 implementation and training support www.qualityadvantage.com 100% Success Rate in 60-90 days All Standards /Online/Onsite www.isoaccel.com More about... FCC ID Lookup » FCC License » FCC Standard » FCC Approval » About these links ISO 13485 Find a Keyless Remote Internal Auditor Classes Quality Manuals Online Buying from China? Verify an Invalid SSN ISO 9001 Quality Help Guaranteed Certification Compose messages using colors, bullets, highlighting, and more with rich formatting. You are currently using 132 MB (5%) of your 2811 MB. Gmail view: standard with chat | standard without chat | basic HTML Learn more ©2006 Google - Terms of Use - Privacy Policy - Program Policies - Google Home « Back to Inbox Archive Report SpamDelete ‹ Newer 8 of 460 Older › Compose Mail Starred Chats Sent Mail Drafts (4) All Mail Spam (1) Trash Contacts Inbox (196) Labels Edit labels Invite a friend Give Gmail to: 50 left Send Invite preview invite More actions...

LABEL LOCATION

Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PANTHER Model: 10TD433PTRII Trade Name: N/A Prepared for B.E.A INC RIDC PARK WEST, 100 ENTERPRISE DRIVE, PITTSBURGH, PA 15275 Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT.............................................................................................................. 9 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 10 7.1 20 DB BANDWIDTH .......................................................................................................... 10 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 12 7.3 DUTY CYCLE ..................................................................................................................... 14 7.4 RADIATED EMISSIONS........................................................................................................... 18 7.5 POWERLINE CONDUCTED EMISSIONS.................................................................................... 23 Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: B.E.A INC RIDC PARK WEST, 100 ENTERPRISE DRIVE, PITTSBURGH, PA 15275 Equipment Under Test: PANTHER Tr a d e N a m e : N/A Model: 10TD433PTRII Date of Test: December 15-27, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and Part 15.231. The test results of this report relate only to the tested sample identified in this report. Approved by: Tested By: Henry Ding Reviewed By: Clinton Kao/ Manager Eric Wong / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product PANTHER Trade Name N/A Model Number 10TD433PTRII Model Difference N/A Power Supply DC 12V powered by the battery Frequency Range 433 MHz Antenna Designation PCB Antenna Remark: This submittal(s) (test report) is intended for FCC ID: G9B-TD433PTRII filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measur…

Text truncated - open the document above for the full version.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ061215B01-RP FCC ID: G9B-TD433PTRII Date of Issue: December 27, 2006 Page 24 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
