G9B-MS08Motion Detector

2 Specifi cations MAGIC SWITCH MS-08 USER’S GUIDE MICROWAVE CONTACTLESS SWITCH FOR AUTOMATIC DOORS 1 Description DESCRIPTIONSPECIFICATION TechnologyMicrowave motion sensor Radiated Frequency24.125 GHz Radiated power density 5 mW/cm² Supply voltage12 to 24VAC ± 10% 12 to 24VDC +30% / -10% Main Frequency50 to 60Hz Power Consumption< 1.5W Output Relay contact rating (max voltage) Relay contact rating (max current) Max switching power Relay with switch-over contact (voltage free) 60 VDC/ 125 VAC 1A (resistive) 30W (DC)/ 60VA (AC) Detection Range4” to 24” (adjustable) Detection ModeMotion (bidirectional) Output Hold Time0.5s (in pulsed mode) Temperature Range-4.°F to + 131°F ImmunityImmune to electrical and radio frequency interference Weight0.34 lbs. MaterialABS Certifi cationElectromagnetic compatibility (EMC) according to 2004/108/EC FCC: G9B-MS08 IC: 4680A-MS08 75.5265.01 2007DRAFT2 Page 1 of 3 Screw Faceplate MS-08 Adapter Ring Screw Faceplate MS-08 Screw Screw MS-08 Double Gang MS-08 Single Gang 2 Wire MS-08 1. Wire the 4-conductor cable to the door operator according to manufacturer specifi cations. 2. Attach the 4-conductor cable connector to the Magic Switch. 3 Precautions ‰ Shut off all power going to header before attempting any wiring procedures. ‰ Maintain a clean & safe environment when working in public areas. ‰ Constantly be aware of pedestrian traffi c around the door area. ‰ Always stop pedestrian traffi c through the doorway when performing tests that may result in unexpected reactions by the door. ‰ ESD electrostatic discharge: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling any board ensure you dissipate your body’s charge. ‰ Always check placement of all wiring before powering up to insure that moving door parts will not catch any wires and cause damage to equipment. ‰ Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation. ‰ DO NOT attempt any internal repair of the sensor. All repairs and/or component replacements must be performed by BEA, Inc. Unauthorized disassembly or repair: 1. May jeopardize personal safety and may expose one to the risk of electrical shock. 2. May adversely affect the safe and reliable performance of the product will result in a voided product warranty. 4 Pre Installation Check 1.When preparing to wire multiple devices together for a “system” confi guration, it is best to ensure the correct operation of each device inde- pendently before starting to help reduce troubleshooting time later in the event of a discrepancy. 2.Prior to installing any equipment, ensure the correct line voltage and stability. When applying equipment on a new installation utilizing new electrical supply circuits, always ensure that correct line voltage exists and is stable. Remember to shut the power back off after this is checked and before performing any wiring to the system. 5 Installation and Wiring 1 Install MS-08 1. The MS-08 may be mounted in most conventional metal or plastic electrical gang boxes. Make sure the unit sensor does not come in contact with the metal gang box to avoid shorting out the unit. • Do not place the sensor in the door’s opening range, where the sensor may see door movement. • Do not place objects that could move in front of the sensor. 2. Depending on the door installation, the weather resistant foam gas- ket or the plastic adapter ring may be used. The weather resistant foam is used as a protective barrier against the elements. The plastic adapter ring is designed to enable the face plate to attach to various plastic and metal gang boxes. Page 2 of 3 75.5265.01 2007DRAFT2 M S 0 8 • PWR: Black - 12 to 24 VAC / VDC: -5% to +10% • PWR: Red - 12 to 24 VAC / VDC: -5% to +10% • NC: Empty - NC Contact • NO: Green - NO Contact • COM: White - Common at Door Control C O N T R O L NC NO COMPOWER Gang Box Metal or Plastic MS-08 Assembly Gang Box Metal or Plastic MS-08 Assembly Adapter Ring Foam Gasket  NC NOCOM POWER  Black - 12 to 24 VAC / VDC Red - 12 to 24 VAC / VDC White - Com at Door Control Green - NO Contact Empty - NC Contact 5 Installation and Wiring (Continued) 75.5265.01 2007DRAFT2 Page 3 of 3 3 Setup MS-08 1. Adjust unit to desired setup. Two adjustments can be made to the sensor. The Potentiometer is used to adjust the size of the units’ sensing fi eld and the Output Mode switch is used to select Toggle or Pulse mode. 2. Rotate potentiometer clockwise to increase the size of sensing fi eld. It may be adjusted from 4” to 24”. 2. Adjust Output Mode by moving switch in the up position (Toggle Mode) or in the down positon (Pulse Mode). Toggle Mode: Recommended for switch applications. In Toggle mode a detection activates the relay and a second detection deactivates the relay. Pulse Mode: Recommended for automatic door applications. In Pulse mode a detection activates the relay for a short period of time - depending on the duration of movement in front of door. 6 Troubleshooting 1 Troubleshooting Procedures PROBLEMPROBABLE CAUSECORRECTIVE ACTION Door does not open when swiping hand in front of sensor. 1. Bad or no power supply. 2. Detection range is too small 3. Wrong connection. 1. Check power supply. If LED switches on or fl ashes, power connections are OK. 2. Adjust the detection range. Remove any metal plates in front of sensor. 3. Check wiring and relay connection. Door remains permanently open.1. Environmental conditions are infl uencing the sensor. 2. Wrong connection. 1. Remove any moving objects close to the sensor. 2. Check wiring and relay connection. The door remains open after detection/ activation. 1. Wrong output mode. 2. Wrong connection. 1. Switch the output mode to Pulse mode. 2. Check wiring and relay connection. 12 Company Contact Do not leave problems unresolved. If a satisfactory solution cannot be achieved after troubleshooting a problem, please call BEA, Inc. If you must wait for the following workday to call B.E.A., leave the door…

Text truncated - open the document above for the full version.

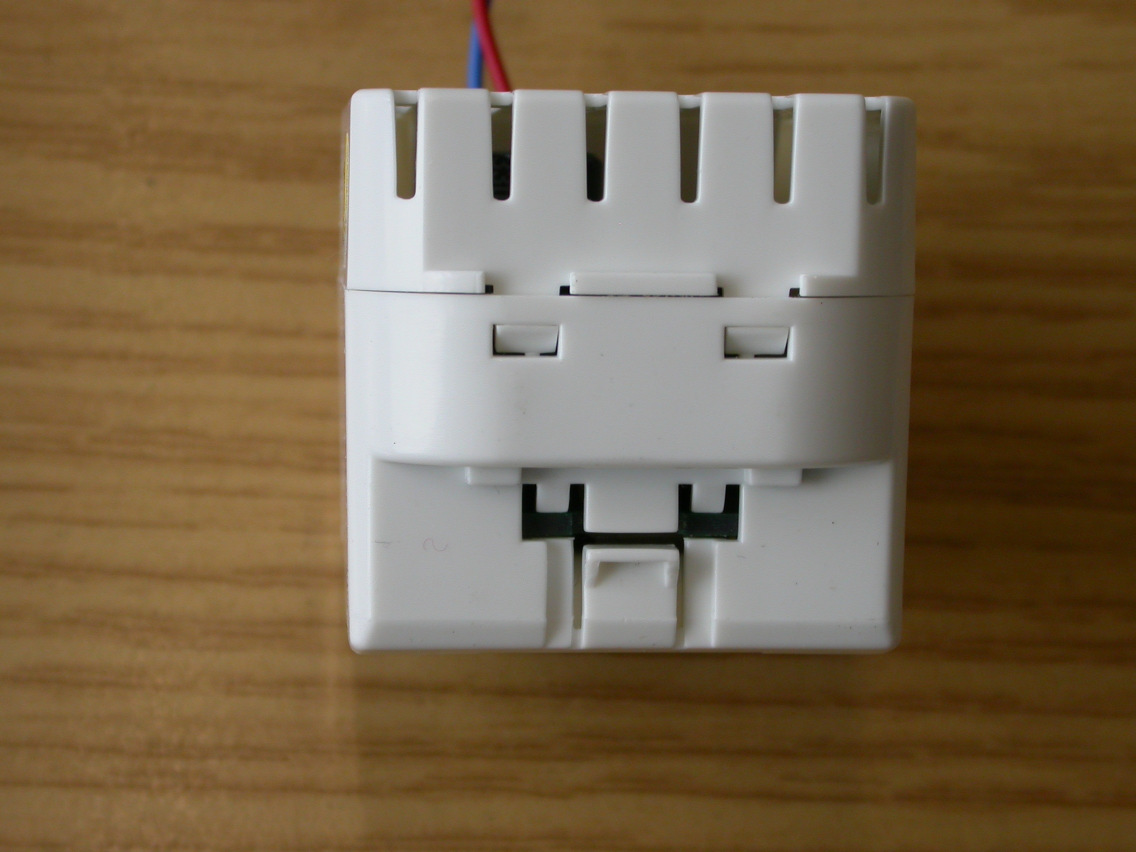

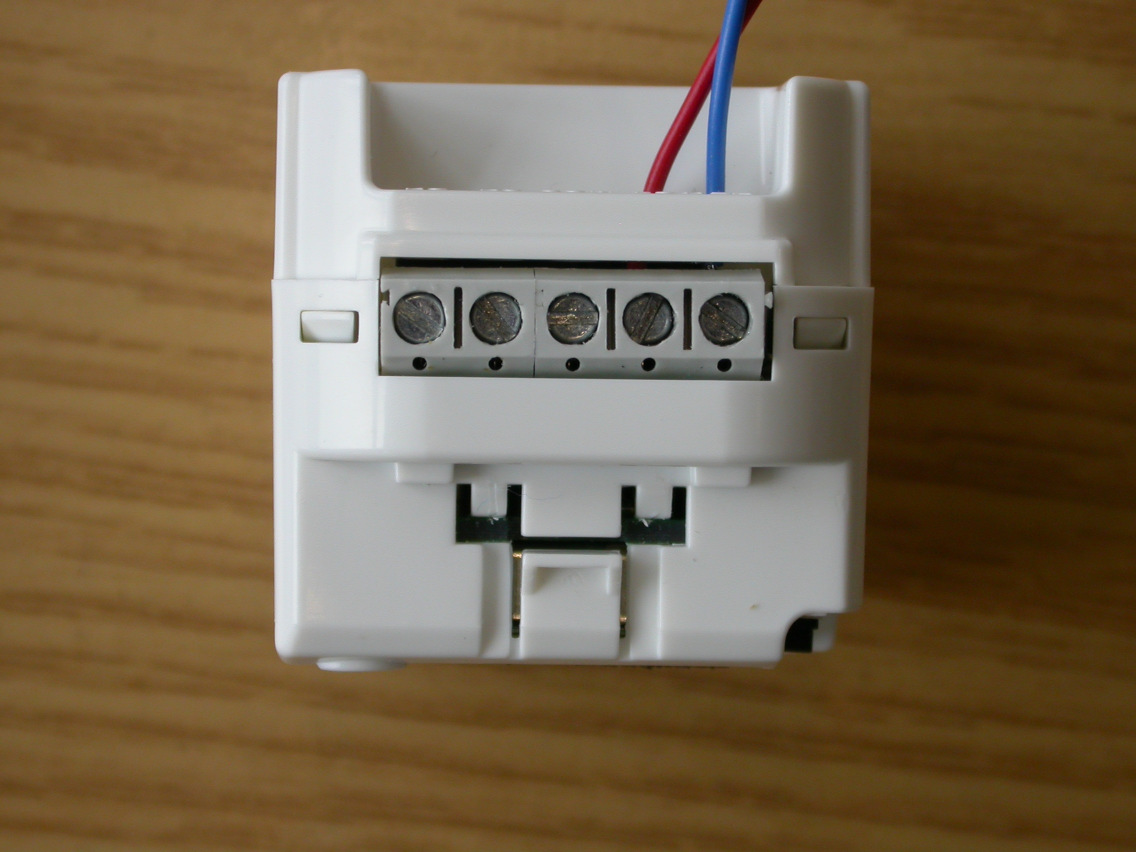

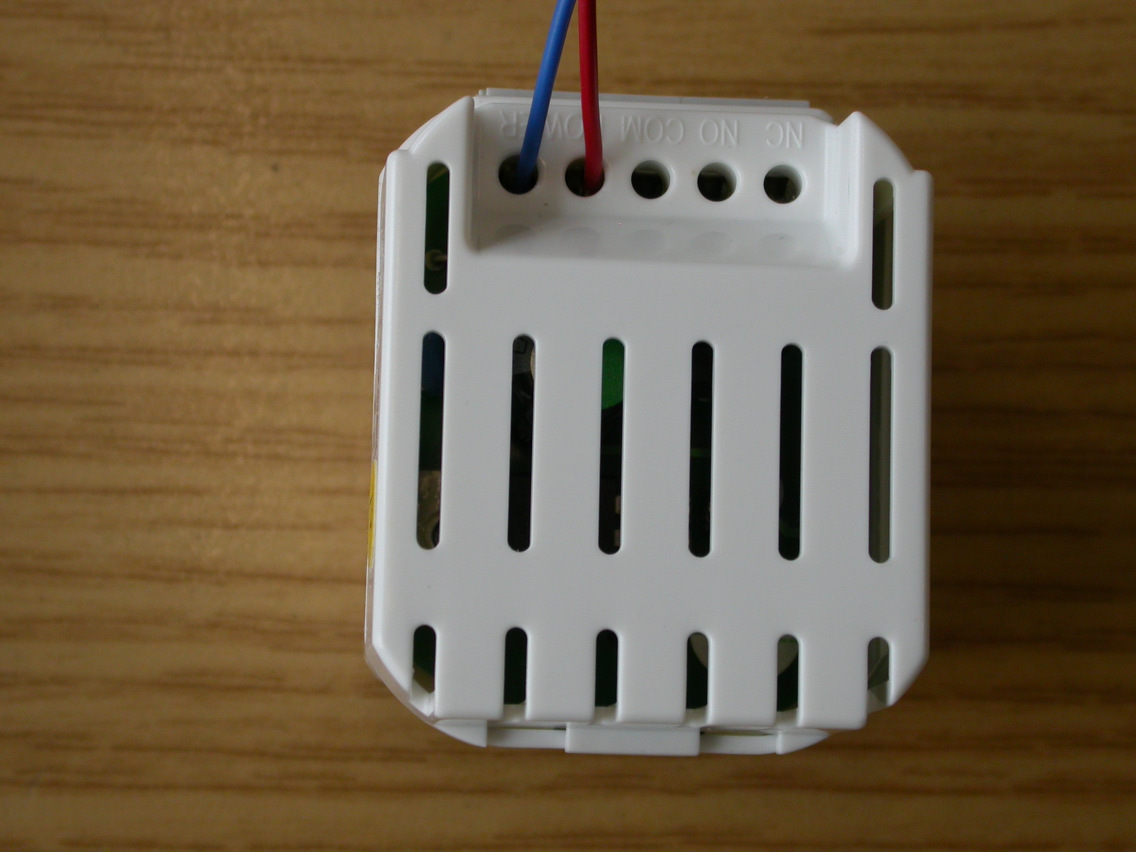

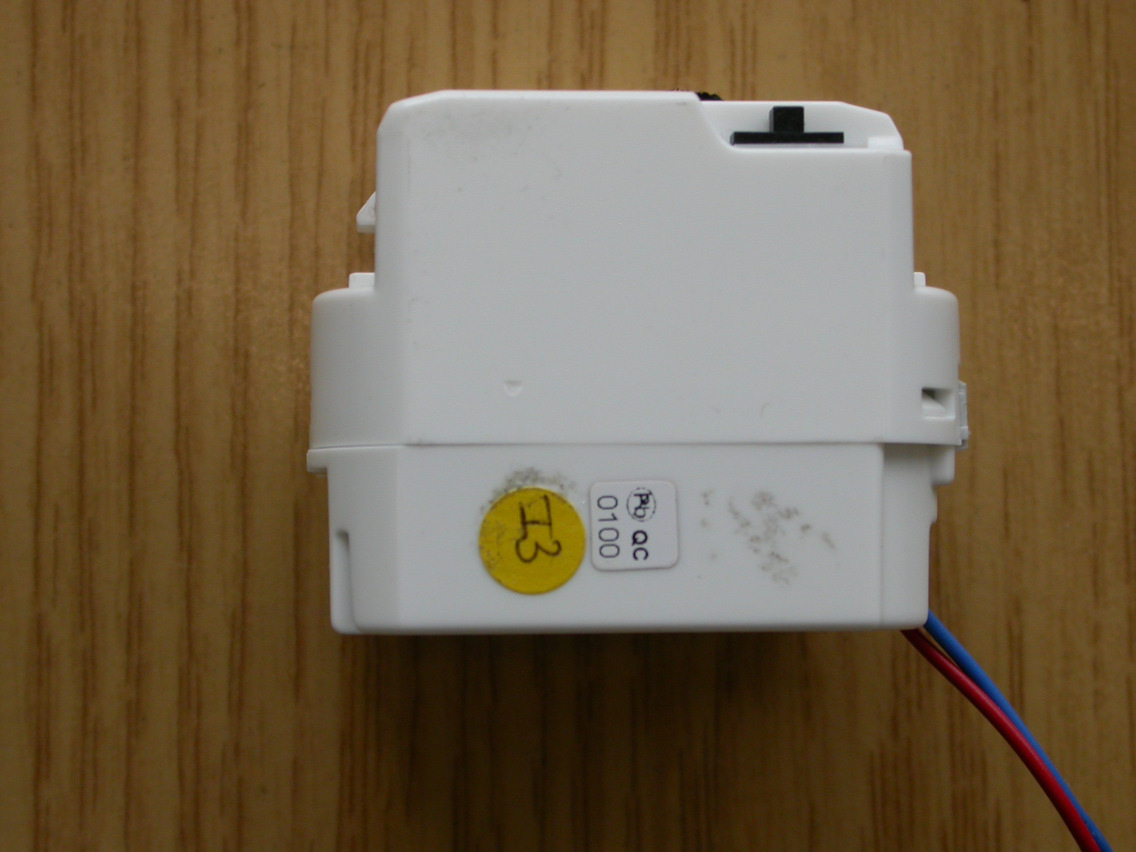

CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 28 of 39 4 Photographs Photo no.: 1 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 29 of 39 Photo no.: 2 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 30 of 39 Photo no.: 3 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 31 of 39 Photo no.: 4 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 32 of 39 Photo no.: 5

Jean-Pierre LERUTH Print : 13/04/2007 Page 1 / 1 File : 4.MagicSwitch Labelling.doc Date : 12/04/2007 B.E.A. MAGIC SWITCH : (MS-08) Labelling information PN : 75.5274 This is example of label printed in-house.

CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 33 of 39 Photo no.: 6 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 34 of 39 Photo no.: 7 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 35 of 39 Photo no.: 8

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0, Fax +49 (0) 681 598 – 9075 Test report No.: 2-4529-01-03/06 This test report consists of 39 pages Page 1 of 39 Recognized by the Federal Communications Commission and Industry Canada Anechoic chamber registration No.: 90462 (FCC) Anechoic chamber registration No.: IC 3463A-1 TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Test report No. 2-4529-01-03/06 Applicant: B.E.A. Inc. Type: B.E.A. MAGIC SWITCH (MS-08) Test standard(s): FCC Part 15.245 RSS-210 Issue 6 FCC G9B-MS08 IC: 4608A-MS08 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/06 Date: 2007-04-03Page 2 of 39 Table of contents Page 1. General information............................................................................ 3 1.1 Notes.................................................................................................... 3 1.2 Testing laboratory................................................................................. 5 1.3 Details of applicant................................................................................ 5 1.4 Application details................................................................................. 5 1.5 Equipment under test (EUT)................................................................. 6 1.6 Technical data....................................................................................... 6 1.7 Test standards...................................................................................... 7 2. Technical tests.................................................................................... 8 2.1 Summary of test results........................................................................ 8 2.2 Test environment.................................................................................. 8 2.3 Measurement and test set-up............................................................... 8 2.4 Measurement uncertainty................................................... 8 2.5 Test equipment utilized and test set-up......................................... 9 - 11 2.6 Test results.................................................................................. 12 - 15 3. Plots, graphs and data sheets.................................................. 16 - 27 4. Photographs............................................................................... 28 - 39 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/06 Date: 2007-04-03Page 3 of 39 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester: Date Name Signature 2007-04-03 Manfred Paschwitz Technical responsibility for area of testing: Date Name Signature 2007-04-03 Karsten Geraldy CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/06 Date: 2007-04-03Page 4 of 39 Certification Number: IC: 4608A-MS08 Model Number: B.E.A. MAGIC SWITCH (MS-08) Manufacturer: B.E.A. Inc. 100 Enterprise Drive, RIDC Park West Pittsburgh, PA 15275 USA Tested to Radio Standards Specification (RSS) No.: RSS-210 Issue 6 Open Area Test Site Industry Canada Number: 3463A-1 Frequency Range (or fixed frequency) [MHz]: 24075 – 24175 MHz (24130 MHz carrier) RF Field strength (max): Radiated: 96.5 dBμV/m@3m Conducted: not performed Antenna Type: Patch antenna Occupied Bandwidth (99% BW) [MHz]: 23.88 Type of Modulation: Amplitude shift keying Emission Designator (TRC-43): 23M88A1D measured, 100kA1D calculated Transmitter Spurious (worst case) [μV/m in 3m]: < 500 μV/m @ 3m Receiver Spurious (worst case) [μV/m in 3m]: -/- ATTESTATION: DECLARATION OF COMPLIANCE: I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above-mentioned Industry Canada standard(s); and that the equipment identified in this application has been subjected to all the applicable test conditions specified in the Industry Canada standards and all of the requirements of the standard have been met. Signature: 2007-04-03 Test engineer: Karsten Geraldy CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/06 Date: 2007-04-03Page 5 of 39 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10 D-66117 Saarbrücken Germany Telephone : + 49 (0) 681 598–0 Fax : + 49 (0) 681 598–9075 e-mail : [email protected] Internet : http://www.cetecom-ict.de Accredited testing laboratory Accredited by : Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by : Federal Communications Commission (FCC) Industry Canada (IC) Authority Identification/Registration No. RegTP DAT-P-176/94-D1 FCC 90462 IC IC 3463A-1 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) 1.3 Details of applicant Name : B.E.A. Inc. Street : 100 Enterprise Drive, RIDC Park West Town : Pittsburgh, PA 15275 Country : USA Phone : + 1 412 249 4100 Fax : + 1 412 249 4101 Contact person Name : Randy Wickman Phone : + 1 412 249 4100 Fax : + 1 412 249 4101 E–Mail : [email protected] 1.4 Application details Date of receipt of application : 2007-03-22 Date of receipt of test item : 2007-03-29 Date of test : 2007-03-29 and 2007-03-30 Person(s) who have been : Mr. Jean-Pierre Leruth present during the test CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/06 Date: 2007-04-03Page 6 of 39 1.5 Equipment under test (EUT) Description : Field disturbance sensor Type designation : B.E.A.…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 36 of 39 Photo no.: 9 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 37 of 39 Photo no.: 10 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 38 of 39 Photo no.: 11 CETECOM ICT Services GmbH Test report No.: 2-4529-01-03/07 Date: 2007-04-03 Page 39 of 39 Photo no.: 12
