DE2294RLU 1 MCT MCTMCT MCT- -- -241MD 241MD241MD 241MD RL RL RL RL Distress / Fall-detector PowerCode™ Transmitter User’s Guide 1. INTRODUCTION 1. INTRODUCTION1. INTRODUCTION 1. INTRODUCTION The MCT-241MD RL is a miniature, microprocessor-controlled personal UHF transmitter. It is designed to transmit coded alert signals manually (when the user presses the button) or automatically (when the user falls down). The transmitter is waterproof and suitable for wearing in a shower. Operating power is obtained from an internal 3V CR-2 Lithium battery. Transmission is initiated in the following cases: ! Depressing the recessed oval pushbutton (see Fig. 1). A built-in timer determines the transmission time to 3 seconds, even if the user maintains the button pressed shorter or longer than that. ! Tilting the transmitter by more than 60° in any direction. In this case, the 3-second transmission will take place after a 2- second delay. When triggered, the MCT-241MD RL transmits a unique 24-bit digital ID, randomly selected in the factory. This code is one of 16 million possible code combinations and is therefore virtually impossible to reproduce. The ID code is followed by the appropriate digital marker that indicates an “alarm” or a ‘fall-detector” event, as the case may be. A red LED (see Fig. 1) lights steadily during transmission, to reassure the user that a transmission is taking place and to indicate that the battery condition is good. If the LED flashes each time the transmitter is triggered, this indicates that the voltage is low and the battery must be replaced as soon as possible. If the transmitter is triggered while the battery voltage is low, a ‘low battery’ digital marker is included in the transmitted message. In addition, the battery is self-tested every 12 hours. A supervisory ‘low battery’ message is transmitted after detection of 3 consecutive “low battery” states. The transmitter case is hermetically sealed (no screws) to ensure complete waterproofing of the case. Battery replacement can therefore be carried out in the factory only. The transmitter is supplied with two wearing accessories, a neck cord (to be worn around the neck - see Fig. 2) and a clip (to be attached to the user belt or shirt pocket - see Fig. 3). The neck cord includes a built-in safety release mechanism. This neck cord must never be replaced with a cord that does not include a safety release. MCT-241MD RL Transmitter Clip LED Transmission pushbutton Front side (don’t cover with hand during transmission) Figure 1 - Using the MCT-241MD RL Figure 2 - MCT-241MD RL with Neck Cord Figure 3 - Clip Attachment 2 22 2. OPERATION AND ENROLLMENT . OPERATION AND ENROLLMENT. OPERATION AND ENROLLMENT . OPERATION AND ENROLLMENT 2.1 Transport Mode New MCT-241MD RL units are shipped with the tilt (fall-detector) function in ‘deep sleep”, to prevent inadvertent transmissions until the unit is placed into service. To ‘awaken” the tilt function, the alarm pushbutton must be pressed at least 5 times in succession. 2.2 Tilt Alarm/Tilt Restore A built-in tilt sensor is activated once the unit is tilted over by more than 60° in any direction. The Base Unit will notify the user after 30 seconds, and the actual tilt alarm transmission to the central station will take place after an additional 30-second delay, throughout which the unit may be restored to 2 DE2294RLU the upright position. This allows the user to prevent an accidental “tilt alarm” message from being transmitted. If a tilt alarm had been transmitted and the unit was subsequently returned to the upright position, a “tilt restore” message will be transmitted. Note: Please refer to the POM3000 user manual for further details on this feature. 2.3 Low Battery Voltage Indication The battery is automatically tested under load once in 12 hours. If a low battery state is registered in 3 consecutive tests, a “low battery” message will be transmitted, and a “low battery” digital marker will be included in every transmission, “alarm” or “tilt”. In addition, when the battery voltage is low, the LED flashes while the pushbutton is pressed. 2.4 Transmitter Stand When putting the transmitter away, it is recommended to use the special stand included in the package (Fig. 5). The stand will maintain the unit in a vertical (upright) position, thus preventing accidental activation of the tilt sensor. Place the stand on a flat surface, then insert the bottom end of the unit into the stand. Figure 4. Transmitter Stand 2.5 Initial Test Upon press of the transmission button, the control panel will sound and display simultaneously CALLING SERVICE BUREAU... until contact is established. This means that the transmitter is working properly. Note: If for any reason the MCT-241 MD RL does not result in the above response from the control panel, please contact the central station at 1-800- 894-1428 and verify the PowerCode ID located both on the unit's package and on the reverse side of the transmitter. 2.6 Teaching the Target Receiver To provide the desired response, the target receiver must “learn” to identify the Transmitter ID code. Advise the Central Station (either by telephone or by fax) of the Transmitter ID located both on the unit's package and on the reverse side of the unit. 3 33 3. SPECIFICATIONS . SPECIFICATIONS. SPECIFICATIONS . SPECIFICATIONS Frequency (MHz): 315, stabilized by SAW resonator Frequency Tolerance: ± 120 kHz Modulation: A.S.K (on-off keying) Encoding: Factory programmed, 24-bit digital word Transmission Duration: 3 seconds (even if the user keeps the transmission button depressed shorter or longer than that) Power Supply: 3 V Lithium Battery, 0.7 Ah Panasonic CR-2 only. (Battery replacement is performed at the factory.) Current Consumption: 7 μA (during standby), 10 mA (during transmission) Battery Life Expectancy: 3 years (for typical use) Battery Condition Indication and Reporting: A. Good battery - the LED lights steadily upon transmission. B. Low battery - when transmissi…

Text truncated - open the document above for the full version.

Antenna BLOCK DIAGRAM TRANSMITTER MCT-241 MD 315 RL 4MHZ RFT-3A 315Mhz PICLC711/SS DATA +3V GND 3V LOW VOLTAGE DETECTOR 2.7V+/-2% 3V BUTTON ALARM 3V RED LED INDICATOR VCC 3V CR-2 3V LITIUHM BAT RB6RB7 MCLR 123450 CONFIDENTIAL This document contains information whichis proprietary to Visonic Ltd., Israel. Theuse, copy or dissemination of this materialfor any purpose other than that for which itis intended is prohibited with out the priorwritten consent of Visonic Ltd.Date Released: To Whom: Apx 2-1-3Designed:Drew:Updated:Approved: Name Date Product Name:Drawing Name: Signature Sheet No./of: Scale:Catalog No.:Drawing No.:File Name: Doc. Rev.: Upd ECOs MCT-241 MD (315) RLBlock Diagram RONEN A NAFTALI B.Y. Pinhas 15.12.03 1/1 0-2294-20F-2294-0T0F22940T.VSD 0 0 15.12.0315.12.03 NPO-03-328 Tiltsw.

December 13, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality for the pendant transmitter, model MCT-241 MD RL, FCC ID: GSAMCT241MDRL Dear Gentlemen, We apply to you with request to withhold Visonic Ltd. trade secrets in Application for Certification for the pendant transmitter, model MCT-241 MD RL, FCC ID: GSAMCT241MDRL. These trade secrets can be found in the schematic diagram “Schematics_15877” (2 pages of this Application). Many thanks in advance. Yaacov Kotlicki Directing Manager Head Office 30 Habarzel Street Tel Aviv 69710 Israel Postal Address P.O.B. 22020 Tel Aviv 61220 Israel Tel 972 3 6456789 Fax 972 3 6456788

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 22, 2004 RE: Visonic Ltd. FCC ID: GSAMCT241MDRL After a review of the submitted information, I have a few comments on the above referenced Application. 1) When a low battery TX actually occurs, the manual states that the device sends 3 consecutive messages. What is the total TX time of these 3 pulses. Note that 15.231 states < 2 seconds per hour is all that is allowed. 2) Because the device is portable, it must be tested/placed in 3 different axis to determine worse case. The report does not appear to adequately reflect if this occurred. 3) The Maximum TX duty cycle reported on page 6 of 54 does not appear to match the data provided later in the report. 4) Please explain the tile restore TX parameters (i.e. transmit duration, etc.) and how they meet 15.231. 5) FYI.....The labeling shows IC labeling as well. Please note that we can also perform IC Certifications as well. Combining both FCC and IC Certifications at the same time usually produces a cost savings for your clients. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 24, 2004 RE: Visonic Ltd. FCC ID: GSAMCT241MDRL After a review of the submitted information, I have a few comments on the above referenced Application. 1) Your previous response to comment 1 states that there is no “special” transmission for low battery message. Note the following from the users manual does mention including it during normal transmissions, but also mentions a “low battery message will be transmitter” ,.... and included in every normal transmission. Please provide information on how the transmitted low battery message that is not included in normal transmission meets 15.231 requirements. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC ID: GSAMCT241MDRL In reply to e-mail dated December 22, 2004 Dear Mr. Johnson, Below are the answers to your questions. 1. There is no “special” transmission for low battery message; it is included in the regular ones as stated in Clauses 1 and 2.3 of the User’s Guide. 2. The device was tested / placed in three different axis as stated in the test report VISRAD_FCC.16101, Section 7.2 (pages 11, 15 – 26), Section 7.5 (pages 34, 37). The emissions from the device in position “Y” were determined as the worst case as recorded in the associated tables (VISRAD_FCC.16101, Section 7.2, Table 7.2.3 (page13), Section 7.5, Table 7.5.3 (page 36). 3. The duty cycle 67.7% represents Tx ON to Tx OFF time relation within one bit: 2/3 – ON, 1/3 – OFF, disregarding pauses between bursts. The actual duty cycle is much lower. Please find the updated test report VISRAD_FCC.16101_rev1, submitted via “Upload files to this application folder”, Test report folder on December 23, 2004. 4. The push button, tilt alarm and tilt restore transmissions are provided in Plots 7.1.1 to 7.1.6 of the test report VISRAD_FCC.16101_rev1 submitted via “Upload files to this application folder”, Test report folder on December 23, 2004. (Section 7.1, pages 9-11 of the test report) With great respect, Natasha

FCC ID: GSAMCT241MDRL In reply to e-mail dated December 24, 2004 Dear Mr. Johnson, Below are the answer to your question. 1. According to customer clarification, “The low battery message is one (the second) bit of the bits out of the 36 bits stream in the transmitted message (alarm or tilt). This second bit is the battery status bit, which can be either “zero” or “one” depending on the battery status. There is no special / automatic transmission when the battery is low. The User manual is addressed to an average user even without a technical skill, which does not know or care what a BIT is, however understands what a message is. This is commercial concern only.” With great respect, Natasha

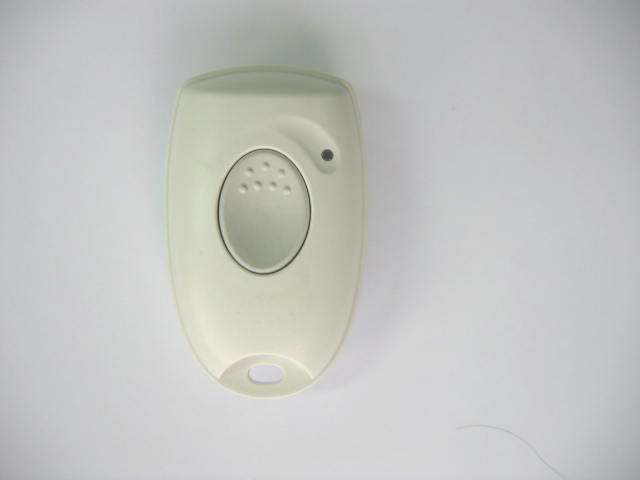

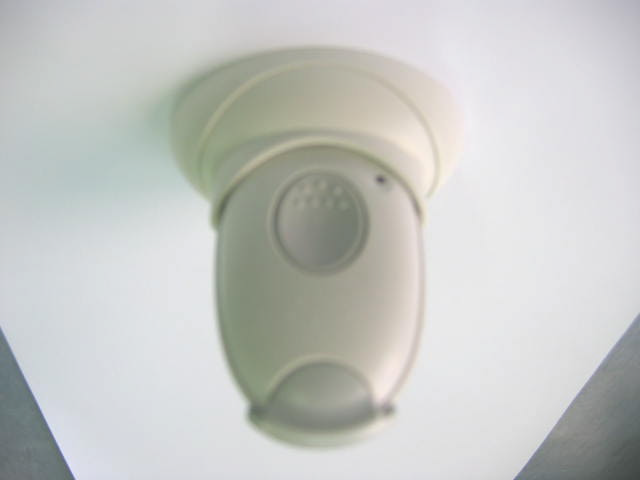

FCC ID:GSAMCT241MDRL Date: December 2004 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs FCC ID:GSAMCT241MDRL Date: December 2004 Page 2 of 5 Photograph No.1 Pendant transmitter General view FCC ID:GSAMCT241MDRL Date: December 2004 Page 3 of 5 Photograph No.2 Pendant transmitter General view with clip and stand FCC ID:GSAMCT241MDRL Date: December 2004 Page 4 of 5 Photograph No.3 Pendant transmitter Front view FCC ID:GSAMCT241MDRL Date: December 2004 Page 5 of 5 Photograph No.4 Pendant transmitter Rear view




  ! "#$%   &    '


     ($      &#%$      )#(      *  +,     #$%   (    '   +#- "  "   ). .         !"  #$%&$ !     &!         '     "  #()&*+*

  +++,,-".)%./#,0


,.)-".)%./#,011+",)%23-4%5,( 0555555)4%(6-".)%./#,0/7 8 .  + 9&!     )," ////// 0!12   334455 477*:.;7  ;()#%7* <=7;7  ;()# Label location Label FCC ID:GSAMCT241MDRL

FCC ID:GSAMCT241MDRL Date: December 2004 Page 1 of 8 INTERNAL PHOTOGRAPHS This document contains 7 photographs FCC ID:GSAMCT241MDRL Date: December 2004 Page 2 of 8 Photograph No.1 Pendant transmitter Internal view FCC ID:GSAMCT241MDRL Date: December 2004 Page 3 of 8 Photograph No.2 Pendant transmitter PCB assembly front side FCC ID:GSAMCT241MDRL Date: December 2004 Page 4 of 8 Photograph No.3 Pendant transmitter PCB assembly rear side FCC ID:GSAMCT241MDRL Date: December 2004 Page 5 of 8 Photograph No.4 Pendant transmitter Component side of the main PCB FCC ID:GSAMCT241MDRL Date: December 2004 Page 6 of 8 Photograph No.5 Pendant transmitter Print side of the main PCB FCC ID:GSAMCT241MDRL Date: December 2004 Page 7 of 8 Photograph No.6 Pendant transmitter Component side of the RF PCB FCC ID:GSAMCT241MDRL Date: December 2004 Page 8 of 8 Photograph No.7 Pendant transmitter Print side of the RF PCB

Wireless Development Group MCT241MDRL_description_16101.doc 1/3 12-Dec-04 Visonic MCT-241MD Low Data Rate Wireless Devices Pendant Transmitter Wireless Transmission Protocol Revision 0.1 August 2004 NOTICE This document contains proprietary and confidential material of Visonic Ltd. Any unauthorized, reproduction, use or disclosure of this material, or any part thereof, is strictly prohibited. This document is solely for the use of Visonic employees and any authorized customers. Visonic Ltd. Reserves the right to make changes in the specifications at any time and without notice. Wireless Development Group MCT241MDRL_description_16101.doc 2/3 12-Dec-04 1 Introduction The MCT-241 MD is low power wireless pendant transmitter. It is designed to transmit coded alert signals manually or automatically. It has been designed to be used with personal security systems such as Home Healthcare Security system. 2 Scope This document describes the wireless protocol construction used with the MCT-241MD prepared for type approval testing. 3 General The MCT 241 MD is one-way transmission device with On Off Keying modulation. It is activated by pressing a push button or by tilting the transmitter more than 60°. 4 Protocol message construction The MCT-241 MD initiates messages transmission in response to activation. The coding uses return to zero pulsed width code. The following figure shows the start pulse and bit timing. "0""0""0""1"Start 1/3 T 1/32/32/31/3TTTT T = Bit period T = 1.2 ms The message starts with a start pulse after a pause of at least 2T ( ≥ 2.4 ms). The start pulse is of the duration of 1/3T (0.4 ms) , followed by the message bits (see figure). The end of the start pulse is used as time reference for the next bit, and the end of each bit is the reference for the next one. Bit “0” is starting at 1/3T from the end of the previous bit. Bit “1” will start transmission at 2/3T from the end of the previous bit. The transmission stops always at the end of the bit period. Wireless Development Group MCT241MDRL_description_16101.doc 3/3 12-Dec-04 The messages are transmitted in repeated blocks. Each message block is composed of a burst of 6 identical messages, separated by 4 ms from each other - see figure below A pause between messages 4ms one message -44ms A block time285ms - The blocks are transmitted six times. Each transmitted block is identical and there is a pause of 300ms between block transmissions.

Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 56 Report ID: VISRAD_FCC.16101_rev1.doc Date of Issue: December 2004 Electrical TEST REPORT ACCORDING TO: FCC 47CFR, Section 15.231 RSS-210, Section 6.1.1 FOR: Visonic Ltd. Pendant transmitter MCT-241 MD RL 315 MHz This report is in conformity with ISO/ IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: VISRAD_FCC.16101_rev1.doc Date of Issue: December 2004 Project: 16101 Page 2 of 56 Table of contents 1 Applicant information..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details.................................................................................................................................................................... 3 5 Tests summary.............................................................................................................................................................. 4 6 EUT description............................................................................................................................................................. 5 6.1 General information....................................................................................................................................................... 5 6.2 Operating frequencies ................................................................................................................................................... 5 6.3 Changes made in the EUT ............................................................................................................................................ 5 6.4 Test configuration.......................................................................................................................................................... 5 6.5 Transmitter characteristics ............................................................................................................................................ 6 7 Transmitter tests according to 47CFR part 15 subpart C requirements ........................................................................ 7 7.1 Periodic operation requirements ................................................................................................................................... 7 7.2 Field strength of emissions.......................................................................................................................................... 12 7.3 Occupied bandwidth test ............................................................................................................................................. 33 7.4 Antenna requirements ................................................................................................................................................. 35 7.5 Radiated emission measurements .............................................................................................................................. 36 8 APPENDIX A Test equipment and ancillaries used for tests....................................................................................... 40 9 APPENDIX B Measurement uncertainties................................................................................................................... 41 10 APPENDIX C Test facility description ......................................................................................................................... 42 11 APPENDIX D Specification references ....................................................................................................................... 42 12 APPENDIX E Abbreviations and acronyms................................................................................................................. 43 13 APPENDIX F Test equipment correction factors ......................................................................................................... 44 Report ID: VISRAD_FCC.16101_rev1.doc Date of Issue: December 2004 Project: 16101 Page 3 of 56 1 Applicant information Client name: Visonic Ltd. Address: 30, Habarzel street, Tel Aviv, 69710, Israel Telephone: +972 3645 6714 Fax: +972 3645 6891 E-mail: [email protected] Contact name: Mr. Arick Elshtein 2 Equipment under test attributes Product name: Pendant transmitter Operating frequency: 315 MHz Model: MCT-241 MD RL Serial number: 2704-10 Receipt date: 10/6/2004 3 Manufacturer information Manufacturer name: Visonic Ltd. Address: 30, Habarzel street, Tel Aviv, 69710, Israel Telephone: +972 3645 6714 Fax: +972 3645 6891 E-Mail: [email protected] Contact name: Mr. Arick Elshtein 4 Test details Project ID: 16101 Location: Hermon Laboratories Ltd. P.O.Box 23, Binyamina 30500, Israel Test started: 10/6/2004 Test completed: 12/23/2004 Test specifications: FCC 47CFR, Section 15.231 RSS-210, Section 6.1.1 Test suite: FCC_15.231(a) and RSS-210_6.1.1 (5/10/2004 8:29:24 AM, modified) Report ID: VISRAD_FCC.16101_rev1.doc Date of Issue: December 2004 Project: 16101 Page 4 of 56 5 Tests summary Test Status Transmitter characteristics FCC Part 15, Section 231(a) / RSS-210, Section 6.1.1(a), Periodic operation requirements Pass FCC Part 15, Section 231(b) / RSS-210, Section 6.1.1(…
