GSAMCT423Wireless Smoke Detector

DE3640 1 MCT-423 Supervised Wireless PowerCode Smoke Detector Installation Instructions 1. INSTALLATION SUMMARY 1.1 Disassembly A. Separate the unit from its mounting bracket as shown in Figure 1. Figure 1. Separating the MCT-423 from its Bracket B. Open the MCT-423 by pulling the cover away from the base at the point indicated by “OPEN HERE” in Figure 2. Figure 2. MCT-423 with Cover Swung Open 1.2 Setting the Function Switch The MCT-423 has a 4-position DIP switch function selector (see Figure 3). The switch levers are numbered 1 to 4, and each switch allows you to select one of two options. Open the cover and set the function switches as desired. The ON position is indicated by the arrow near the switch body. Table 1. Function selector settings Sw- Marking Pos. Selected Option Defaul t SW-1 LED ON OFF LED will light upon transmission LED is disabled ON SW-2 RESTOREON OFF “Restore” events reported “Restore” events not reported ON SW-3 TR-REP ON OFF Alarm reported every 3 min. Alarm reported only once OFF SW-4 BAT ON OFF Lithium battery is being used Alkaline battery is being used OFF Note: Transmissions initiated by “tamper” events will be repeated once every 3 minutes, regardless of SW-3 setting. Figure 3. Transmit Indicator and Function Switch 1.3 Battery Connection and Initial Test CAUTION: The MCT-423 comes with cover latches that will prevent the cover from closing if there is no battery inside. The smoke detector is supplied with a 9V alkaline battery seated within its holder but insulated from the battery terminals. A. Pull the battery out and peel off the insulating material to expose the terminals. B. Match the battery terminals with the flexible contacts on the detector PCB. Be sure to get the polarity right. If you reverse the [+] and [–], the battery will discharge completely within a very short time through the built in protection diode! C. When the terminals are properly matched, push the battery firmly in until it is seated tightly within the holder. Note: When the battery first makes contact with the detector, the alarm horn may sound for one second. This indicates that the battery is positioned properly. D. Close the cover, then press the test button for about 5 seconds until the horn sounds two sequences of a loud 3- beep alarm. This means that the smoke detection section is working properly. 1.4 Resetting the Transmitter Module and Enrolling its PowerCode ID A tamper protection switch is mounted on the transmitter board. The tamper actuator, extending through a hole in the base (see Figure 4), is pressed against the bracket when the unit is attached to the bracket. Removal of the unit from the bracket will cause the switch contacts to open, creating a tamper event, which will be reported by the transmitter to the control panel. Figure 4. Tamper Switch 2 DE3640 Besides its tamper protection role, the tamper switch is used to reset the transmitter at power up - this is important for proper function of the unit. To reset the transmitter and enroll its ID in the control panel’s memory, proceed as follows: A. Close the cover and turn the unit over, so that you can see the back of the base. B. Press the tamper switch once and release it. This will perform the reset necessary for smooth transmitter power-up. C. Refer to the control panel’s installation instructions and follow the procedure given there for enrolling transmitter IDs. When required to initiate a transmission for enrollment, press the smoke detector’s test button until the built-in horn sounds. Note: It is much easier to carry out this operation while holding the MCT-423 in your hand, close to the control panel. 1.5 Mounting the Bracket in Place Read Section 4 in this manual first, then decide where to install a detector. Refer to Figures 5 and 6 and proceed as follows: Figure 5. Aligning the Bracket Figure 6. Mounting the Bracket 1st.At the chosen location, draw a 15 cm (6”) long horizontal line. 2nd.Press the bracket against the mounting surface, aligning the two longest keyhole slots with the line drawn in Step A. Mark the drilling spots through two opposite keyhole slots. C. Drill two 5 mm (3/16”) holes at the marked spots. D. Attach the bracket to the wall, using the two screws and plastic wall anchors (supplied). 1.6 Final Assembly and Test 1st. Before attaching the detector unit to the bracket, it is a good practice to secure the cover to the base with two screws (supplied with the unit) through the holes shown in Figure 7. This will prevent unauthorized opening of the cover. DE3640 1 Note: Unauthorized removal of the unit from the bracket will initiate a tamper alert! Figure 7. Securing the Cover to the Base B. Press the test button until the built-in horn sounds. Verify that the transmitted signal has been received at the control panel, and that the control panel responds accordingly by activating the fire alarm siren or any other warning device. 3rd. Attach the detector to the bracket as shown in Figure 8. Pull outward to make sure that the detector is securely attached to the bracket. Figure 8. Final Assembly 2. DESCRIPTION AND APPLICATIONS The MCT-423 is photoelectric smoke detector designed to sense smoke, but not gas, heat or flame and fitted with a Power- Code- type UHF transmitter. It provides early warning of developing fire by sounding an alarm with its built-in alarm horn, and by transmitting a coded alarm signal to a PowerCode receiver or to a compatible wireless alarm control panel. It must be borne in mind, though, that effective pre-warning of fire accidents is only possible if the detector is located, installed and maintained properly as described in this manual. WARNING: This smoke detector is designed for use in a single residential unit only, which means that it should be used inside a single family home or apartment. It is not meant to be used in lobbies, hallways, basements or another apartment in multi-family buildings, unless there are already working detectors in each family unit.…

Text truncated - open the document above for the full version.

MCT-423 block-diagram

X:/QA/STANDARD/ hermon/dec...5.doc January 31, 2000 FEDERAL COMMUNICATIONS COMMISSION EQUIPMENT APPROVAL SERVICES P.O.B. 358315 Pittsburgh, PA 15251-5315 USA Subject: Application for certification of Wireless smoke detector, model MCT-423, FCC ID:GSAMCT423 Dear Gentlemen, Please find attached our application for certification of Wireless smoke detector, model MCT-423, FCC ID: GSAMCT423, prepared in accordance with FCC Rules, parts 2 and 15. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC. Hermon Labs responsible person is Dr. Edward Usoskin, tel: 01197266288001, fax:01197266288277, e-mail: [email protected] We hope this application satisfies your requirements. Sincerely yours, Arik Elshtein Std. Manager Visonic Ltd. Head Office 30 Habarzel Street Tel Aviv 69710 Israel Postal Address P.O.B. 22020 Tel Aviv 61220 Israel Tel 972 3 6456789 Fax 972 3 6456788

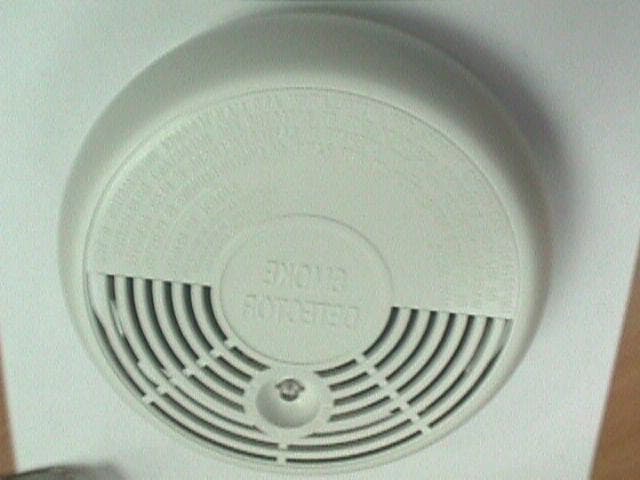

Photograph No.1 MCT-423 external view Photograph No.2 MCT-423 external view Photograph No.3 MCT-423 external bottom view

MCT-423 LABEL The identification label (material –polyester) is affixed on the device rear side. The drawing is shown below.

Photograph No.1 MCT-423 internal view Photograph No.2 MCT-423 internal view Photograph No.3 MCT-423, component side Photograph No.4 MCT-423, print side Photograph No.5 MCT-423, antenna top view Photograph No.6 MCT-423, antenna bottom view

Wireless smoke detector MCT-423 functional description The EUT, MCT-423, is a photoelectric smoke detector fitted with a PowerCode-type fully supervised UHF transmitter. It is designed to sense smoke, not gas, heat or flame. The detector provides early warning of developing fires by sounding an alarm with its built-in alarm horn and by transmitting a coded alarm signal to a wireless alarm control panel. SPECIFICATIONS Smoke detector: Detection sensitivity: 2.3 ± 1.2 % / ft 3 . Alarm sound level: 85 dB at 3 m Transmitter and coding: Operating frequencies (MHz): 315, 404, 418, 433.92 or other frequencies according to local requirements Message repetition: repetitive transmission (once every 3 minutes) or one-shot, as selected with on-board DIP switch. Supervision: automatic signaling at 60-minute intervals. Electrical data: Power source: 9 V Alkaline or Lithium Current drain: 28 μ A standby, 20 mA in operation Battery supervision: automatic transmission of battery status data as part of any transmitted message More detailed information is contained in Installation instructions. Antenna schematic diagram is on the next page.

MCT-423 schematic diagram

VISFCC.13686.doc Date: January, 2000 Page 1 of 24 HERMON LABORATORIES ELECTROMAGNETIC EMISSIONS TEST REPORT ACCORDING TO FCC PART 15, SUBPART C, §15.231 FOR VISONIC Ltd. EQUIPMENT UNDER TEST WIRELESS SMOKE DETECTOR model MCT-423 Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 6628 8001 Fax.+972 6628 8277 Email:[email protected] Electrical VISFCC.13686.doc Date: January, 2000 Page 2 of 24 HERMON LABORATORIES Description of equipment under test Test items Wireless smoke detector Manufacturer Visonic Ltd. Type (Model) MCT-423 Applicant information Applicant’s representative & Mr. Arick Elshtein, responsible person project manager Company Visonic Ltd. Address 30 Habarzel St. Postal code 69710 City Tel Aviv Country Israel Telephone number +972 3645 6714 Telefax number +972 3645 6743 Test performance Project Number 13686 Location of the test Hermon Laboratories, Binyamina, Israel Test started October 18, 1999 Test completed October 18, 1999 Purpose of test The EUT certification in accordance with CFR 47, part 2, §2.1033 Test specification(s) FCC part 15, subpart C, §15.231, §15.209, subpart B, §15.109 VISFCC.13686.doc Date: January, 2000 Page 3 of 24 HERMON LABORATORIES Table of Contents 1. SUMMARY AND SIGNATURES...................................................................................4 2. GENERAL INFORMATION..........................................................................................5 2.1 ABBREVIATIONS AND ACRONYMS...................................................................................5 2.2 SPECIFICATION REFERENCES........................................................................................6 2.3 EUT DESCRIPTION......................................................................................................6 3. TEST FACILITY DESCRIPTION...................................................................................8 3.1 GENERAL...................................................................................................................8 3.2 EQUIPMENT CALIBRATION.............................................................................................8 3.3 LABORATORY PERSONNEL...........................................................................................9 3.4 STATEMENT OF QUALIFICATION.....................................................................................9 4 RADIATED EMISSION MEASUREMENTS..................................................................10 4.1 FIELD STRENGTH OF EMISSIONS ACCORDING TO § 15.231 (B).........................................10 4.2 BANDWIDTH OF EMISSION ACCORDING TO § 15.231 (C)..................................................17 4.3 PERIODIC OPERATION REQUIREMENT §15.231 (A) (2)....................................................19 4.4 UNINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO §15.109................................20 APPENDIX A – TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS...........................22 APPENDIX B-TEST EQUIPMENT CORRECTION FACTORS.................................................23 VISFCC.13686.doc Date: January, 2000 Page 4 of 24 HERMON LABORATORIES 1. Summary and signatures The EUT, wireless smoke detector MCT-423, was tested according to FCC part 15 subpart C, §.15.231 and part 15 subpart B §.15.109 and found to comply with the standard requirements. Test performed by: Mr. M. Feldman, test technician ________________________ Test report prepared by: Mrs. V. Mednikov, certification engineer ________________________ Test report approved by: Mrs. E. Pitt, project manager ________________________ Mr. A. Usoskin, QA manager ________________________ The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation by A2LA. Through this report period is used as decimal separator while thousands are separated by comma. This report is in conformity with EN 45001 and ISO GUIDE 25. The test results relate only to the items tested. This test report must not be reproduced in any form except in full, with the approval of Hermon Labs Ltd. VISFCC.13686.doc Date: January, 2000 Page 5 of 24 HERMON LABORATORIES 2. General information 2.1 Abbreviations and acronyms The following abbreviations and acronyms are applicable to this test report: AC alternating current BW bandwidth dB decibel dBm decibel referred to one milliwatt dB(μV) decibel referred to one microvolt dB(μV/m) decibel referred to one microvolt per meter DC direct current EUT equipment under test GHz gigahertz H height HL Hermon Laboratories Hz hertz IF intermediate frequency kHz kilohertz L length m meter mm millimeter MHz megahertz msec millisecond NA not applicable NARTE National Association of Radio and Telecommunications Engineers, Inc. Ω Ohm QP quasi-peak (detector) RBW resolution bandwidth RF radio frequency RE radiated emission RMS root-mean-square sec second V volt VISFCC.13686.doc Date: January, 2000 Page 6 of 24 HERMON LABORATORIES 2.2 Specification references CFR 47 part 15: October 1998 Radio Frequency Devices. ANSI C63.2:06/1996 American National Standard for Instrumentation- Electromagnetic Noise and Field Strength, 10 kHz to 40 GHz-Specifications. ANSI C63.4:1992 American National Standard for Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2.3 EUT description The EUT, MCT-423, is a photoelectric smoke detector fitted with a PowerCode-type fully supervised UHF transmitter. It is designed to sense smoke, not gas, heat or flame. The detector provides early warning of developing fires by sounding an alarm with its built-in alarm horn and by transmitting a coded alarm signal to a wireless alarm control panel. SPECIFICATIONS Smoke detector: Detection sensitivity: 2.3 ± 1.2 % / ft 3 . Alarm sound level: 85 dB at 3 m. Transmitter and coding: Operating frequencies (MHz): 315, 404, 418, 433.92 or other frequencies accordi…

Text truncated - open the document above for the full version.
