GSAMCT430Photoelectric Smoke Detector

DE3643 1 MCT-430 Supervised Wireless PowerCode Smoke Detector Installation Instructions 1. INSTALLATION SUMMARY 1.1 General Description The MCT-430 is a low profile, battery operated, photoelectric smoke detector which shares its housing with a UHF PowerCode type transmitter. It has a 57°C (135°F) fixed temperature heat detector and a built-in sounder. The detector sends out the following messages to the control panel: • Smoke alarm • Heat alarm • Tamper alert • Low battery alert • Trouble message (when heat sensor malfunctions) • Service alert (degraded smoke detection sensitivity - internal screen requires cleaning). During normal and low battery conditions, the LED flashes approximately once every 40 seconds. The smoke/heat detector will sound its built-in temporal horn when smoke activates the detector (the LED flashes rapidly), or when the air temperature reaches 57°C (135°F). A message is also sent to the wireless control panel. After the horn stops, a RESTORE message is transmitted to the control panel and the ID number can be cleared from the panel. The built-in Drift Compensation algorithm automatically maintains the sensitivity of the detector. Once the detector reaches its limit of compensation, it transmits a maintenance signal to the panel. When maintenance is required, the LED stops flashing. The maintenance signal fully complies with the sensitivity test requirement specified in NFPA 72, 7 - 2.2. Figure 1. General View 1.2 Power Up and Initial Test The smoke detector is supplied with two 3V batteries seated within their holder but insulated from the battery terminals. A. Turn the detector upside down and pull out the paper tab that insulates the batteries from one of the terminals. B. Insert a sharp object into the test switch hole and push the switch in continuously, until the built-in horn sounds (about 2.5 seconds after depressing the button). The sounding sequence is: 3 beeps - short break - 3 beeps ......and so on until you release the switch. In addition, the LED will flash rapidly a few times. This means that the smoke detection section is working properly. 1.3 Enrolling Transmitter’s Power- Code ID The detector includes a tamper switch that causes a tamper alert when the main body is separated from its mounting bracket. This switch protects the unit against unauthorized handling. The detector has two separate PowerCode IDs: • The first ID is linked to messages containing alarm, low battery and supervision data. • The second ID is linked to messages containing tamper and maintenance data such as “clean” and circuit trouble. Enrolling process to the PowerMax is differennt from the enrolling process to other versions of the PowerMax (PowerMax+, PowerMax GSM....), as described in par. 1.3.1 and 1.3.2. 1.3.1 Enrolling to PowerMax Control Panel It is necessary that the control panel will learn the two IDs before the detector is actually mounted in place. This is best carried out in close proximity to the control panel. Each ID must be enrolled to a separate zone of the control panel. A. Refer to the control panel’s installation instructions and follow the procedure given there for enrolling transmitter IDs in the control panel's memory. 2nd. When required to initiate a transmission for enrollment of the first ID, activate the test switch (see fig. 1) until the built- in horn sounds (see Para. 1.2B). C. When you are instructed to initiate a transmission for enrollment of the second ID, separate the detector from the bracket to activate a tamper message. Important: If the second ID is not learnt by the control panel, the maintenance and tamper messages will not be received. Note: The PowerMax control panel can not distinguish between “clean” and circuit trouble data. Upon receiving a maintenance alert, clean the internal screen as described in Para. 5.2. If the maintenance alert persists, the trouble is probably due to a circuit failure. 1.3.2 Enrolling to Other Versions of PowerMax (PowerMax+, PowerMax GSM...) To enroll the transmitters IDs to the PowerMax+, PowerMax GSM and above, it is necessary to enrol only one ID, the first ID or the second ID (for IDs description refer to par. 1.3). When either ID is enrolled to one zone, the second ID is automatically enrolled. The enrolling process is as follows: A. Refer to the control panel’s installation instructions and follow the procedure given there for enrolling transmitter IDs in the control panel's memory. 2nd. When you are instructed to initiate a transmission for enrollment of the ID, activate the test switch until the built-in horn sounds (see Para. 1.2B), or separate the detector from the bracket to activate a tamper message. 1.4 Mounting the Bracket in Place Read Section 4 in this manual first, then decide where to install the detector. Refer to Figure 2 and proceed according to the following instructions. 2 DE3643 Figure 2. Mounting Bracket 1st.If the detector is attached to the bracket, separate it from the bracket by holding the bracket in one hand and turning the detector slightly counterclockwise with your other hand. Note: Removal of the unit from the bracket will initiate a tamper alert! The LED will flash but the horn will remain silent. 2nd.Press the bracket against the mounting surface and mark the drilling spots through two mounting screw bays. C. Drill two 5 mm (3/16”) holes at the marked spots. D. Attach the bracket to the wall, using the two screws and plastic wall anchors (supplied). 1.5 Assembly and Test A. Align the marks on the detector’s body with the arrows on the bracket. Push the detector against the bracket and turn it slightly clockwise until it snaps into place. Pull outward to make sure that the detector is securely attached to the bracket. B. Press the test button until the built-in horn sounds. Verify that the transmitted signal has been received at the control panel, and that the control panel responds accordingly by activating the fire alarm siren or any other warning device. 2. MISCELL…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM430 -MCT Microcontroler Cop 8 Two CR 123 Batteries Smoke Sensor (photoelectric) Heat Sensor (varistors) Transmitter RFT 1A(fcc) Tamper Switch Test Switch Buzzer 8Mhz Oscillator Led Osc. 315 MHz

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 16, 2002 RE: Visonic Ltd. FCC ID: GSAMCT430 After a review of the submitted information, I have a few comments on the above referenced Application. 1) The block diagram should show the frequency of all oscillators in the device (CFR2.1033(a)(5)). 2) Please provide external photographs of the back of the unit. 3) Please provide close up internal photographs of the top and bottom of each independent board, taking care to provide clear detailed photographs of the TX board. 4) It is not clear if the label goes on the top or bottom of the EUT. Please provide a photograph that shows the placement of the label on the devices. 5) Please provide a technical description of the information encoded into the transmission packets. 6) This application did not include a request for confidentiality. Please confirm that confidentiality is not requested on this application. 7) Please set the device to transmit normally and provide a plot of 10 seconds showing that once the device is triggered, it automatically stops transmitting in less that 5 seconds. 8) Please provide more information as to the duty cycle and duration of transmissions for the following conditions: Smoke Alarm, Heat Alarm, Trouble Message (when heat sensor malfunctions), Service alert (degraded sensitivity, cleaning is necessary). Which conditions shut off in less than 5 seconds or for the duration of the alarm condition. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

FCC ID: GSAMCT430 In reply to e-mail dated October 16, 2002 Dear Mr. Johnson, Below are the answers to your questions. 1. Please find an updated block diagram (MCT430 block-diagram.rev.pdf), submitted via "Add to existing application", Block diagram folder on October 23, 2002. 2. Please find an external photograph of the back of the unit (MCT430 external back view.pdf), submitted via "Add to existing application", External photos folder on October 23, 2002. 3. Please find the requested internal photographs (Additional internal photos.pdf), submitted via "Add to existing application", Internal photos folder on October 23, 2002. 4. The label is placed on the bottom of the EUT. Please find an updated Label location description (MCT430_label_rev.pdf), submitted via "Add to existing application", Label location folder on October 23, 2002. 5; 7. Please find an updated Operational description with requested information (MCT430 operational description_rev.pdf) , submitted via "Add to existing application", Operational description folder on October 23, 2002. Please refer also to paragraph 1.3 of MCT430 Installation Instructions. The details of MCT430 usage of PowerCode format are considered confidential information. 6. Visonic confirms that confidentiality is not requested. 8. Visonic claims that in all conditions a transmission shuts off in less than 5 s (there is only one transmission in any condition). With great respect, Valeria To: "'[email protected]'" <[email protected]> Subject: FCC ID:GSAMCT430 Page 1 of 1In 10/23/2002Printed for "Timothy R. Johnson" <[email protected]>

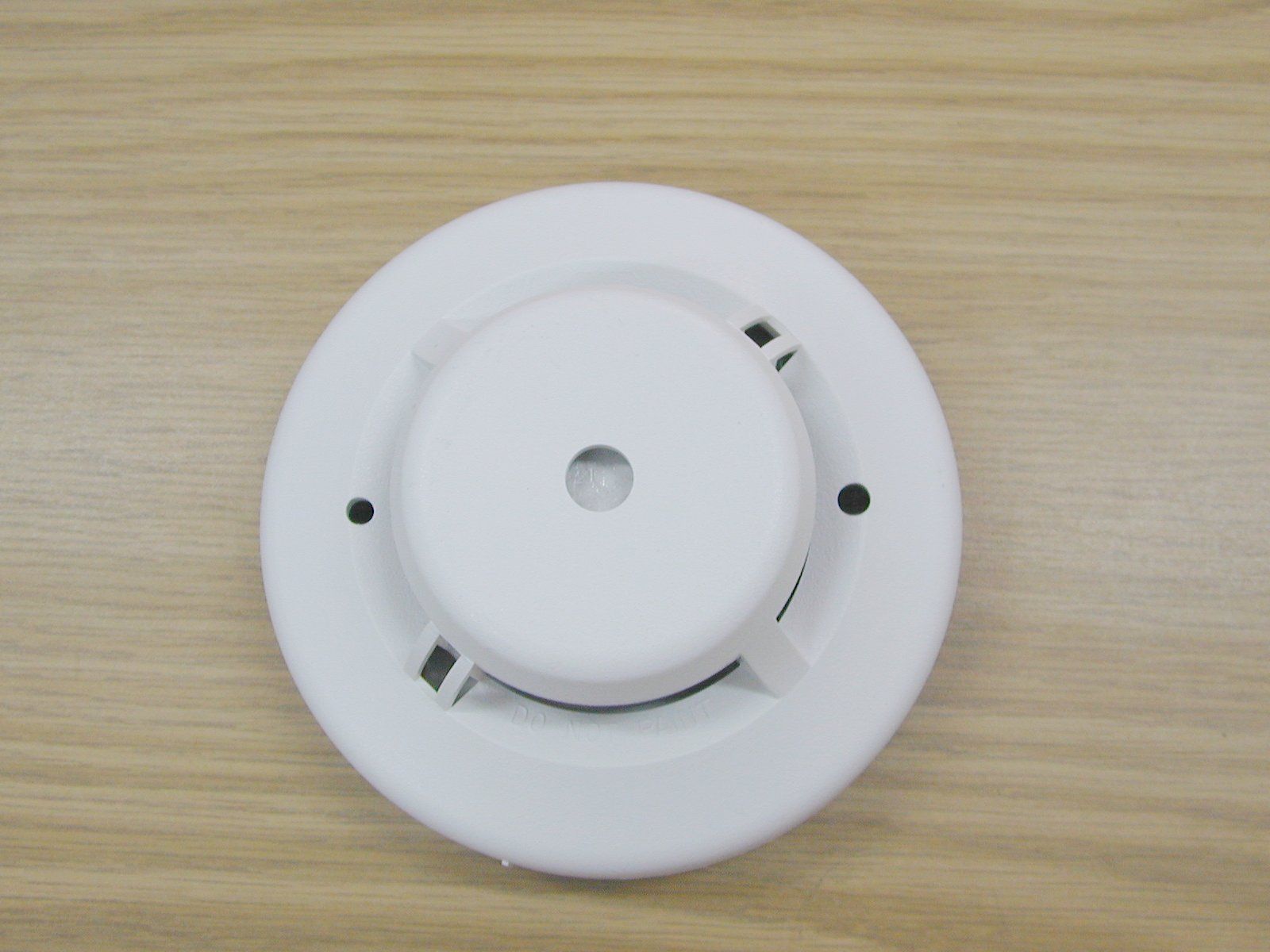

Back of the EUT. External view

The identification label (material –polyester) is affixed on the device rear side. Label

Internal view-1 Internal view-2 PCB print side

Big PCB first side Big PCB second side Small PCB first side Small PCB second side

DE3643 1 1. General Description The MCT-430 is a low profile, battery operated, photoelectric smoke detector which shares its housing with a UHF PowerCode type transmitter. It has a 57°C (135°F) fixed temperature heat detector and a built-in sounder. The detector sends out the following messages to the control panel: • Smoke alarm • Heat alarm • Tamper alert • Low battery alert • Trouble message (when heat sensor malfunctions) • Service alert (degraded smoke detection sensitivity - internal screen requires cleaning). During normal and low battery conditions, the LED flashes approximately once every 40 seconds. The smoke/heat detector will sound its built-in temporal horn when smoke activates the detector (the LED flashes rapidly), or when the air temperature reaches 57°C (135°F). A message is also sent to the wireless control panel. After the horn stops, a RESTORE message is transmitted to the control panel and the ID number can be cleared from the panel. The built-in Drift Compensation algorithm automatically maintains the sensitivity of the detector. Once the detector reaches its limit of compensation, it transmits a maintenance signal to the panel. When maintenance is required, the LED stops flashing. The maintenance signal fully complies with the sensitivity test requirement specified in NFPA 72, 7 - 2.2. Indicator Light Pulsing: Normal/Thermal Alarm Fast Blink: Smoke Alarm None: Call for Service Test Switch A78-2332-03














  Figure 1. General View 2. SPECIFICATIONS SMOKE AND HEAT DETECTION Activity Indicator: LED flashes once per 40 sec. Nominal Smoke Detection Sensitivity: 2.25% per foot obscuration Heat Detection: Alarm if ambient temperature exceeds 57°C (135 ° F) Alarm Sound Level: 85 dB min at 3 m (10 ft) at minimum battery voltage TRANSMITTER AND CODING Operating Frequency (MHz): 315 Transmitter's ID Code: 24-bit digital word, over 16 million combinations, pulse width modulation. Overall Message Length: 36 bits Supervision: Automatic signaling at 60-minute intervals. Tamper Alerts: Tamper event (removal of the unit from its bracket) is reported once. Tamper restore is also reported once. Compliance with standards: Designed to meet FCC part 15, MPT 1340 UL 268 recognized component. ELECTRICAL DATA Power Source: Two CR123A lithium batteries in series (6 VDC nominal). Operating Voltage Range: 4.8 - 6.5 VDC Current Drain: 14.5 μA standby (typical), 20 mA typical in operation Battery Life (at room temperature): 3 years typical Battery Supervision: Once every 60 minutes; automatic transmission of battery status data as part of any transmitted message. PHYSICAL DATA Operating Temperature: 0 ° C to 38 ° C (32 ° F to 100 ° F) Relative Humidity: 10% to 93%, non-condensing Dimensions: 140 mm (5.5") diameter with bracket x 52 mm (2.05") Weight (with batteries): 218 g (7 oz) DE3643 2 APPENDIX A. THE VISONIC LTD. POWERCODE SYSTEM A-1. The PowerCode Message Format The PowerCode message transmitted includes the detector's 24- bit ID and a status report (see Fig. A1). Figure A1. Transmitted Data A message includes the following data: • Detector's ID: Any message transmitted starts with the 24- bit ID assigned to the particular detector unit. • Tamper / Restore: Upon removal of the unit's front cover, a message will be transmitted with a "tamper marker" ON. If the unit's cover is put back, a message will be transmitted with the tamper marker OFF ("Tamper Restore"). • Alarm: Once the detector is in alarm, a message will be transmitted with an "alarm marker" ON. • Low Battery: A special battery condition marker is used to report the battery status in any message. The battery is tested once an hour and if found low, the "low battery marker" is set to ON in all following messages. • Supervision Message: A special "supervision message marker", when set to ON, identifies the periodic supervision messages transmitted automatically at 1 hour intervals. This marker will be OFF in all other messages. • Transmitter Type: A special marker indicates the type of the transmitter: ! Supervised or non-supervised ! Reports or does not report restorals after alarm • Checksum: Checksum bits at the end of the message allow the receiver to determine whether an incoming message is valid (error-free). This feature considerably upgrades the reliability of the wireless communication link. A-2. Anti-Collision To overcome message collisions at the receiving end, PowerCode transmitters transmit 3 data bursts at random intervals, with 6 repetitions of the same message in each burst (Fig. A2). This redundancy improves the probability of reception. Note: Periodic supervision messages are an exception to this rule - they consist of a single 6-message burst. Figure A2. Anti-Collision Transmission Sequence A 10 s plot, showing that transmitter stops transmitting in less than 5 s :

This report is in conformity with ISO/IEC 17025. The A2LA logo endorsement applies only to the test methods and the standards that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report must not be reproduced in any form except in full with the approval of Hermon Laboratories Ltd. Page 1 of 35 Document ID: visrad_fcc.15164.doc Date of Issue: July 02 HERMON LABORATORIES Electrical Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 66288001 Fax.+972 66288277 e-mail: [email protected] RADIO TEST REPORT ACCORDING TO 47 CFR Part 15 SUBPART C §15.231, §15.205, §15.209 and SUBPART B; RSS-210 Issue 5:2001; ICES-003 Issue 3:1997 for VISONIC Ltd. EQUIPMENT UNDER TEST: Supervised wireless Power Code smoke detector Model: MCT-430 @ 315 MHz Page 2 of 35 Document ID: visrad_fcc.15164.doc Date of Issue: July 02 HERMON LABORATORIES Contents CONTENTS.............................................................................................................................................................................. 2 1 PROJECT INFORMATION .............................................................................................................................................. 3 2 SUMMARY OF TESTS AND REQUIREMENTS .............................................................................................................. 4 3 EUT DESCRIPTION ......................................................................................................................................................... 6 3.1 G ENERAL DESCRIPTION ................................................................................................................................................ 6 3.2 EUT TEST CONFIGURATION .......................................................................................................................................... 6 3.3 T RANSMITTER DESCRIPTION .......................................................................................................................................... 7 4 TEST RESULTS............................................................................................................................................................... 8 4.1 B ANDWIDTH OF EMISSION ACCORDING TO § 15.231 ( C ) AND RSS-210 § 6.1.1( C ) ............................................................ 8 4.2 F IELD STRENGTH OF FUNDAMENTAL , § 15.231 AND RSS-210 § 6.1.1( B )......................................................................... 9 4.3 F IELD STRENGTH OF SPURIOUS RADIATION , § 15.231 AND RSS-210 § 6.1.1( B ) ............................................................. 10 4.4 U NINTENTIONAL RADIATED EMISSIONS TEST ACCORDING TO §15.109 AND ICES-003....................................................... 11 APPENDIX A - PLOTS .......................................................................................................................................................... 12 APPENDIX B – TEST SETUP PHOTOGRAPHS................................................................................................................... 23 APPENDIX C - TEST EQUIPMENT USED FOR TESTS ....................................................................................................... 27 APPENDIX D - GENERAL INFORMATION........................................................................................................................... 34 T EST FACILITY DESCRIPTION ................................................................................................................................................... 34 A BBREVIATIONS AND ACRONYMS ............................................................................................................................................. 34 S PECIFICATION REFERENCES .................................................................................................................................................. 34 FCC E QUIPMENT CODES AND DESCRIPTIONS ........................................................................................................................... 35 Page 3 of 35 Document ID: visrad_fcc.15164.doc Date of Issue: July 02 HERMON LABORATORIES 1 Project information Description of equipment under test Test items : Supervised wireless Power Code smoke detector Manufacturer : Visonic Ltd. Brand name : MCT-430 Equipment serial number : Cat 0-3643-1 Types (Models) : MCT-430 @ 315 MHz Equipment FCC code 1 : DSC Applicant information Applicant’s responsible person : Mr. Arick Elshtein, project manager Company : Visonic Ltd. Address : 27 Habarzel Street Postal code : 69710 City : Tel Aviv Country : Israel Telephone number : +972 3 6456714 Telefax number : +972 3 6456891 Test performance Project Number: : 15164 Location : Hermon Laboratories Receipt date : June 25, 2002 Test performed : July 14, 2002 Purpose of test : Apparatus compliance verification in accordance with emission requirements Test specification(s) : 47CFR Part 15, subpart C, §15.231, §15.205, §15.209, and subpart B §15.109; RSS-210 Issue 5: 2001 and ICES-003 Issue 3: 1997 1 FCC Equipment codes – see Appendix D Page 4 of 35 Document ID: visrad_fcc.15164.doc Date of Issue: July 02 HERMON LABORATORIES Hermon Laboratories Ltd. P.O.Box 23 Binyamina 30550, Israel Tel.+972 66288001 Fax.+972 66288277 e-mail: [email protected] 2 Summary of tests and requirements Parameter Subclause C NC NT NA Tested by Date tested Remarks Transmitter characteristics, §15.231 Periodic operation 15.231(a) X Refer to Installation instructions Bandwidth of emission 15.231(c) X Mrs. E. Pitt, test engineer July 14, 2002 Field strength of fundamental 15.231(b)(2) X Mr. M. Feldman, test engineer July 14, 2002 Field strength of spurious radiation 15.231(b)(3) X Mrs. E. Pitt, test engineer July 14, 2002 Unintentional radiation, §15.107, §15.109 Conducted emissions 15.107 X Radiated emissions 15.109 X Mrs. …

Text truncated - open the document above for the full version.

Test setup with loop antenna Test setup with biconical antenna Test setup with double ridged guide antenna EUT test setup
