DE5465 1 POWERMAX+ Fully Supervised Wireless Alarm Control System Installation Instructions TABLE OF CONTENTS 1. INTRODUCTION ........................................................ 2 2. SPECIFICATIONS ..................................................... 2 2.1 General Data....................................................... 2 2.2 RF Section .......................................................... 2 2.3 Electrical Data ..................................................... 2 2.4 Communication ................................................... 3 2.5 Physical Properties ............................................. 3 3. INSTALLATION.......................................................... 3 3.1 Unpacking the Equipment .................................... 3 3.2 Supplying Power to the Unit................................. 3 3.3 Programming........................................................ 3 3.4 Mounting ............................................................. 3 3.5 Wiring ................................................................... 3 3.6 Connecting the AC Transformer .......................... 6 3.7 PowerMax+ Compatible Detectors....................... 6 3.8 PowerMax+ Compatible Transmitters .................. 6 3.9 PowerMax+ Compatible WL Siren ....................... 7 3.10 Installing an Optional X-10 Siren.......................... 7 3.11 Connecting PowerMax+ to a Computer ............... 7 3.12 Connecting PowerMax+ to GSM Modem............. 7 4. TESTING PROCEDURES .......................................... 7 4.1 Preparations ........................................................ 7 4.2 Diagnostic Test.................................................... 7 4.3 Keyfob Transmitter Test ...................................... 7 4.4 Appliance ON/OFF Test ...................................... 8 4.5 Emergency Transmitter Test ............................... 8 5. MAINTENANCE.......................................................... 8 5.1 Dismounting the Control Panel............................ 8 5.2 Replacing the Backup Battery ............................. 8 5.3 Fuse Replacement .............................................. 8 5.4 Replacing/Relocating Detectors .......................... 8 APPENDIX A. DETECTOR DEPLOYMENT AND TRANSMITTER ASSIGNMENTS ............................... 9 A.1 Detector Deployment Plan .................................. 9 A.2 Keyfob Transmitter List ....................................... 9 A.3 Emergency Transmitter List .............................. 10 A.4 Non-Alarm Transmitter List ............................... 10 APPENDIX B. X-10 UNIT AND PGM OUTPUT ASSIGNMENTS ........................................................ 10 FCC STATEMENTS ....................................................... 11 MESSAGE TO THE INSTALLER The PowerMax+ control panel is supplied with 3 instruction manuals: „ Installation Instructions (this manual - for your exclusive use) „ Programming Guide (for your exclusive use) „ User’s Guide (for your use during installation only. Must be handed over to the master user after testing the system). Appendices A and B of the installation instructions will help you prepare an installation plan. Please take time to fill out the forms - your job will become much easier and confusion will be prevented. Filling out the forms will also help you create a list of detectors and transmitters that must be obtained for the particular application. Compatible detectors and transmitters are listed and described briefly in Paragraphs 3.7 and 3.8 of this manual. Remember - it is advisable to power up the control panel temporarily after unpacking and program it on the work bench, in accordance with the installation plan. Paragraph 3.3 of this manual refers you to the programming guide. The programming flow charts in the programming guide show all options available for each parameter. Factory defaults are marked with a dark box to their right, and other options (that can be selected instead) are marked by clear boxes. This method allows you to put a checkmark in the appropriate clear box whenever you deviate from the factory defaults. Although setting the correct time and date is one of the user tasks, we recommend that you set the time and date in the course of programming. Access to the “User Settings” for the installer is possible through item 10 on the installer‘s menu or through the user menu (see User’s manual section 7). After programming, proceed to install the system as detailed in the Installation Instructions, from paragraph 3.4 onward. WARNING! Zone type "emergency" can not be used for medical applications in UL-listed systems. The installer should verify line seizure. Be aware of other phone line services such as DSL. 2 DE5465 1. INTRODUCTION The PowerMax+ is a user and installer-friendly, 30-zone fully-supervised wireless control system. The system is designed to function in a way that appeals to the user but also offers features that make installers’ life easier than ever before: EASY TO INSTALL • Plug-in terminal blocks can be wired while detached from the unit. • Quick attach-detach TELCO sockets for telephone line and X-10 controller. Terminal block for telephone line & set. • Special wall-mounted bracket permits installation without having to open the unit’s cabinet. • Optional plug-in RS-232 module for local computer. EASY TO MAINTAIN • Status, alarm memory and trouble data are displayed upon request. • Diagnostic test provides visual and audible indication of the signal level of each detector. • Remote control and status verification from distant telephones. • Event log stores and displays information on 100 past events. • Upload / download from distant computer via telephone line and modem. QUICK PROGRAMMING • Multiple-choice selection of options for each parameter. • Unequivocal visual prompts and audible signals. • Installer access to the user menu. A fully equipped alarm system based on the PowerMax+ consists of the uni…

Text truncated - open the document above for the full version.

DE5467U 1 POWERMAX+ Fully Supervised Wireless Alarm Control System User’s Guide TABLE OF CONTENTS 1. INTRODUCTION..............................................................4 1.1 Overview ..................................................................4 1.2 System Features ......................................................5 1.3 Terms of the Trade ..................................................5 1.4 Symbols Used in This Manual..................................5 1.5 Control Pushbuttons ................................................5 1.6 Multi-Function Transmitter .......................................5 1.7 Voice Announcements .............................................6 1.8 Screen Saver Option................................................7 2. SECURING THE PROTECTED SITE .............................7 2.1 Security-Related Pushbuttons..................................7 2.2 Preparing to Arm ......................................................7 2.3 Arming ‘AWAY’.........................................................7 2.4 Arming ‘HOME’ ........................................................7 2.5 Switching from ‘HOME’ to ‘AWAY’ ...........................7 2.6 Switching from ‘AWAY’ to ‘HOME’ ...........................7 2.7 Arming ‘Instant’ ........................................................8 2.8 Forced Arming .........................................................8 2.9 Arming in the ‘Latchkey’ Mode .................................8 2.10 Initiating a Panic Alarm ............................................8 2.11 Initiating Fire Alarm ..................................................8 2.12 Initiating Emergency Alarm ......................................8 2.13 Disarming and Stopping Alarms...............................9 2.14 Siren Behavior..........................................................9 3. SPEECH AND SOUND CONTROL .................................9 3.1 Speech and Sound Control Pushbuttons .................9 3.2 Adjusting the Speech Volume ..................................9 3.3 Voice ON/OFF........................................................10 3.4 Recording a Message ............................................10 3.5 Message Playback .................................................10 3.6 Chime ON/OFF ......................................................10 4. ELECTRICAL APPLIANCE CONTROL.........................10 4.1 Control Options and Pushbuttons .........................10 4.2 Manual Switch-On.................................................10 4.3 Manual Switch-Off.................................................11 4.4 Light DIM/BRIGHT ................................................11 4.5 Automatic ON/OFF Control ...................................11 5. READING ALARM MEMORY & TROUBLE DATA.........11 5.1 Reviewing Alarm / Tamper Memory .......................11 5.2 Reviewing Trouble Information ..............................12 5.3 Reviewing Memory & Troubles at the Same Time .12 5.4 Correcting Trouble Situations ................................12 6. SPECIAL FUNCTIONS..................................................13 6.1 Looking after People Left at Home ........................13 6.2 Emergency Calls for Help ......................................13 6.3 Remote Control by Telephone ...............................13 6.4 Reporting to Private Telephone .............................14 6.5 Remote Control by SMS ........................................14 6.6 Reporting by SMS..................................................15 6.7 Reporting Messages to a Pager ............................15 6.8 Conducting a Walk Test.........................................15 7. USER SETTINGS ..........................................................15 7.1 What are the Settings You Need? .........................15 7.2 Entering the User Settings Menu ...........................16 7.3 Bypassing Zones ...................................................16 7.4 Reviewing the Bypassed Zone List ........................17 7.5 Recalling the Last Bypass Scheme .......................17 7.6 Programming Four Telephone Numbers ...............17 7.7 Setting the User Codes..........................................17 7.8 Enrolling Keyfob Transmitters......................................19 7.9 Deleting Keyfob......................................................19 7.10 Setting the Voice Options ......................................19 7.11 Automatic Arming Option .......................................20 7.12 Setting Arming Time ..............................................20 7.13 Enabling the Squawk Option..................................20 7.14 Setting Time and Time Format ..............................20 7.15 Setting the Date and Date Format .........................21 7.16 Scheduler Function ................................................21 7.17 Installer Mode ........................................................21 8. READING THE EVENT LOG.........................................21 8. 1 Event Log Description............................................21 8. 2 Reading Procedure ................................................21 9. MAINTENANCE.............................................................22 9.1 Replacing the Backup Battery................................22 9.2 Replacing Wireless Devices Batteries ...................22 9.3 Periodic Testing .....................................................22 9.4 Cleaning the Control Panel ....................................22 10. PERFORMANCE LIMITS .............................................22 APPENDIX A. GLOSSARY .................................................23 FCC Statements.................................................................24 QUICK REFERENCE TO PRIMARY ALARM CONTROL OPERATIONS Arming AWAY ................................................................  + [Code]* Arming AWAY-INSTANT................................................  + [Code]* +  Arming HOME .............................................…

Text truncated - open the document above for the full version.

February 25, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality for alarm control panel, model Powermax+, FCC ID: GSAPWRMAXPLUS Dear Gentlemen, We apply to you with request to withhold Visonic Ltd. trade secrets in Application for Certification for alarm control panel, model Powermax+, FCC ID: GSAPWRMAXPLUS. These trade secrets can be found in the RF_schematic_15189 and Common_ schematic_15189 diagrams (5 pages of this Application). Many thanks in advance. Yaacov Kotlicki Directing Manager Head Office 30 Habarzel Street Tel Aviv 69710 Israel Postal Address P.O.B. 22020 Tel Aviv 61220 Israel Tel 972 3 6456789 Fax 972 3 6456788

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 16, 2004 RE: Visonic Ltd. FCC ID: GSAPWRMAXPLUS I have a few comments on the above referenced Application. EMC Report 1) Please provide test data to support the timing diagrams of 700 and 350 us for the bits, and also the various portions of the preamble. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

March 25, 2004 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated March 16, 2004; Visonic Ltd. FCC ID:GSAPWRMAXPLUS Dear Mr. Johnson, Please find below the answer to your question. 1) The test data, file "Test data_15189" , were uploaded on March 25, 2004 via "Additional information" folder. Please send your comments to the following e-mail address: [email protected]. Sincerely, Marina Cherniavsky, certification engineer Hermon Laboratories To: "'[email protected]'" <[email protected]> Subject: FCC ID: GSAPWRMAXPLUS Page 1 of 1In 3/25/2004Printed for "Timothy R. Johnson" <[email protected]>

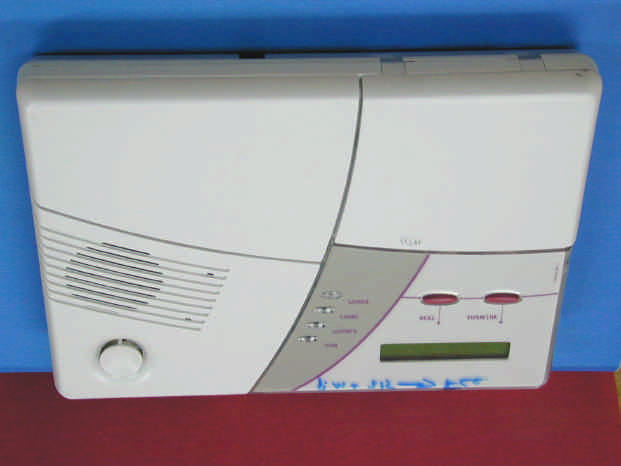

FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 1 of 3 EXTERNAL PHOTOGRAPHS This document contains 2 photographs FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 2 of 3 Photograph No.1 POWERMAX+ alarm control panel General view FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 3 of 3 Photograph No.2 POWERMAX+ alarm control panel Rear side view

Label_location_15189.doc Page 2 of 2 Label location FCC ID:GSAPWRMAXPLUS Label

FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 1 of 9 INTERNAL PHOTOGRAPHS This document contains 8 photographs FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 2 of 9 Photograph No.1 POWERMAX+ alarm control panel Internal view FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 3 of 9 Photograph No.2 POWERMAX+ alarm control panel Internal view, left upper part FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 4 of 9 Photograph No.3 POWERMAX+ alarm control panel Internal view, left low part FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 5 of 9 Photograph No.4 POWERMAX+ alarm control panel Internal view, right upper part FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 6 of 9 Photograph No.5 POWERMAX+ alarm control panel Transmitter module view FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 7 of 9 Photograph No.6 POWERMAX+ alarm control panel Transmitter module second side view FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 8 of 9 Photograph No.7 POWERMAX+ alarm control panel Data image module view FCC ID:GSAPWRMAXPLUS Date: February 2004 Page 9 of 9 Photograph No.8 POWERMAX+ alarm control panel Data image module second side view

Overview The PowerMax+ is a wireless alarm control system that provides protection against burglary, fire and tampering. In addition, it can be used to control lights and electrical appliances within household and/or to monitor the activity of disabled or elderly people left at home. Status information is presented visually and verbally, and in most cases a recorded voice prompts to take correct action. The PowerMax+ is governed by a control panel designed to collect data from various sensors that are strategically located within and along the perimeter of the protected site. In the disarmed state, the system provides visual and verbal status information, and initiates an alarm if smoke is detected or upon disturbance in a 24-hour zone (a zone which is active 24-hours a day). In the armed state, the system will initiate an alarm upon detection of disturbance in any one of the armed zones. A 4-digit security code is needed to master the system, and 7 other persons can be authorized to use the system by providing them with their own security codes. The system identifies a wide range of events - alarms, attempts to tamper with sensors and several types of trouble. Events are automatically reported via the public telephone network or GSM network to central monitoring stations (in digital form) and to private telephones (in plain language). The person receiving such a message is expected to investigate the event and act accordingly. Brief description of Transmissions from the Powermax+ The Powermax+ transmits two types of messages: 1. Alarm activation of Siren. This is activated in reaction to the detection of an intruder. 2. Acknowledge of supervision signal (one every hour) received from the wireless siren (MCS 700) In case of Alarm, the Powermax+ transmits a message consisting of 72 data bits and expects to get back an acknowledge signal of data 72 bits. In case of Supervision, the Powermax+ gets a 72 data bits message and sends an acknowledge signal of data 88 bits. The signal consists of a train of 1 and 0, whose duration is as per fig 1 Fig 1 Bits waveform/duration Total 1050 usec Head Office 30 Habarzel Street Tel Aviv 69710 Israel Postal Address P.O.B. 22020 Tel Aviv 61220 Israel Tel 972 3 6456789 Fax 972 3 6456788 700 usec 7 00 usec Bit 1 Bit 0 350 usec 3 5 0 usec Each transmission is superseded by a preamble part whose duration is as per fig 2, and then the "message" part is transmitted. duration/Preamble waveform2 Fig The total duration of the preamble is 54.8 msec The total ON during the preamble is 38.8 msec Since the total duration of a bit is 1050 usec, 88 bits (supervision ack.)duration is 92.4 msec, and 72 (alarm) bits are 75.6 msec Total duration of a supervision acknowledge signal then is: 54.8 msec + 92.4 msec = 147.2 msec Total duration of an alarm signal then is: 54.8 msec + 75.6 msec = 130.4 msec Each is less then 2 or 5 seconds (as limited/required by FCC part 15) Calculating the average factor of the supervision acknowledge signal The "worst" case of supervision acknowledge message is 83 bits "0" and 5 bits "1" which give a total ON of: 83 X 700 usec +5 X 350 usec = 59.85 msec Total signal (message + preamble) = 147.2 msec Total ON = 38.8 + 59.85 = 98.65 msec Duty cycle = 98.6/147.2 = 67.4% Average factor = 20 Log 0.674=-3.414 2.0 msec 0.4msec 0.4msec0.4msec 15 cycles 36 msec 20 cycles 16 msec Start Pulse 1.8 msec (2.0 msec for PM) 0.8msec

FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 1 of 7 Powermax+ TEST DATA FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 2 of 7 Date/Time 3/25/2004 Title Timing diagram EUT Model Number Powermax+ Operator Name M. Lerman Customer Name Visonic Ltd. Humidity 32% Temperature 25°C Air pressure 1017 hPa Plot No.1 Alarm signal Plot No.2 15 cycles of preamble (36 ms duration) FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 3 of 7 Plot No.3 One Tx duration within the first 15 cycles of preamble Plot No.4 One gap duration within the first 15 cycles of preamble FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 4 of 7 Plot No.5 20 cycles of preamble (16 ms duration) Plot No.6 One Tx duration within the second 20 cycles of preamble FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 5 of 7 Plot No.7 One gap duration within the second 20 cycles of preamble Plot No.8 Start pulse FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 6 of 7 Plot No.9 Bit 1 gap Plot No.10 Bit 1 pulse FCC ID:GSAPWRMAXPLUS Date: March 2004 Page 7 of 7 Plot No.11 Bit 0 gap Plot No.12 Bit 0 pulse Test equipment: HL 1425, 1562, 2470 Manufacturer information HL Serial No. Description Name Model No. Serial No. Due Calibr. Month/Year 1425 EMI receiver, 9 kHz – 2.9 GHz Agilent Technologies 8542E 3710A00222, 3705A00204 9/04 1562 Oscilloscope 100 MHz, DMM Tektronix THS720A 9444 9/04 2470 Cable RF, 2.2 m Belden M17/155 2470 12/04 Check
