GSAPWRMAXPROSecurity Control Panel

DE5468IP 1 POWERMAX POWERMAXPOWERMAX POWERMAX PRO PRO PRO PRO Fully Supervised Wireless Alarm Control System Installer Guide TABLE OF CONTENTS TABLE OF CONTENTSTABLE OF CONTENTS TABLE OF CONTENTS 1. INTRODUCTION ...........................................................3 2. SPECIFICATIONS ........................................................3 2.1 General Data...........................................................3 2.2 RF Section ..............................................................4 2.3 Electrical Data .........................................................4 2.4 Communication .......................................................4 2.5 Physical Properties .................................................4 3. INSTALLATION .............................................................4 3.1 Unpacking the Equipment ........................................4 3.2 Supplying Power to the Unit.....................................4 3.3 System Planning and Programming.........................4 3.4 Mounting .................................................................4 3.5 Wiring .......................................................................4 3.6 Backup Battery Insertion ..........................................6 3.7 X-10 Interface Module Connection................................ 6 3.8 Optional GSM Module Mounting.................................... 6 3.9 Additional Optional Module Mounting.......................6 3.10 Power Cable Connection .......................................7 3.11 Installing an Optional X-10 Siren............................9 3.12 Connecting PowerMax Pro to a Computer.............9 3.13 Connecting PowerMax Pro to GSM Modem ..........9 4. PROGRAMMING ........................................................10 4.1 INTRODUCTION ........................................................10 4.1.1 General Guidance ...............................................10 4.1.2 Entering an Invalid Installer Code .......................10 4.1.3 Installer's Menu ...................................................10 4.1.4 Setting a New Installer Code...............................10 4.1.5 Setting a New Installer Code in PowerMax Pro that has 2 Installer Codes ...................................10 4.2 ENROLLING WIRELESS DEVICES AND KEYFOBs11 4.2.1 General Guidance ...............................................11 4.2.2 Enrolling Type .....................................................12 4.2.3 Enroll / Delete Wireless Devices.........................12 4.2.4 Enroll / Delete Keyfob Transmitters ....................12 4.2.5 Enroll / Delete Wireless Commander..................12 4.2.6 Enroll / Delete 2-Way Keypad.............................12 4.2.7 Enroll / Delete Wireless Siren .............................12 4.2.8 Enroll / Delete Proximity Tags.............................13 4.3 DEFINING ZONE TYPES, NAMES & CHIME ZONES12 4.4 DEFINING CONTROL PANEL PARAMETERS ........13 4.4.1 Preliminary Guidance..........................................13 4.4.2 Entry Delays 1&2 ................................................13 4.4.3 Exit Delay ............................................................13 4.4.4 Bell Time .............................................................13 4.4.5 Abort Time...........................................................13 4.4.6 Alarm Cancel ......................................................13 4.4.7 Quick Arm ...........................................................14 4.4.8 Bypass ................................................................15 4.4.9 Exit Mode ............................................................15 4.4.10 Piezo Beeps ......................................................15 4.4.11 Trouble Beeps .................................................. 15 4.4.12 Panic Alarm ...................................................... 15 4.4.13 Swinger Stop .................................................... 15 4.4.14 Cross Zoning .................................................... 15 4.4.15 Supervision....................................................... 15 4.4.16 NOT READY..................................................... 15 4.4.17 AUX Button A ................................................... 15 4.4.18 AUX Button B 2-W-KF...................................... 15 4.4.19 Jam Detect ....................................................... 15 4.4.20 Latchkey ........................................................... 15 4.4.21 “Not Active”....................................................... 16 4.4.22 Back Light......................................................... 16 4.4.23 Duress .............................................................. 16 4.4.24 Piezo Siren ....................................................... 16 4.4.25 Reset Options................................................... 16 4.4.26 Tamper Option.................................................. 16 4.4.27 Siren on Line .................................................... 16 4.4.28 Memory Prompt ................................................ 16 4.4.29 Disarm Option .................................................. 16 4.4.30 Bell/Rep. Option ............................................... 16 4.4.31 Low-Bat ACK .................................................... 16 4.4.32 Screen Saver.................................................... 16 4.4.33 Confirm Alarm .................................................. 16 4.4.34 AC Fail Rep ...................................................... 16 4.4.36 User Permission ............................................... 16 4.5 DEFINING COMMUNICATION PARAMETERS ....... 18 4.5.1 Autotest Time ..................................................... 18 4.5.2 Autotest Cycle .................................................... 18 4.5.3 Area Code .......................................................... 18 4.5.4 Out Access Code ............................................... 18 4.5.5 First Central Station Telephone..…

Text truncated - open the document above for the full version.

16 DE5468IP 4.4.21 “Not Active” (fig. 4.4, location 21) Here you determine the time limit for reception of signals from sensors used to monitor the activity of sick, elderly or disabled people. If no device detects and reports movement at least once within the defined time limit, a “not-active” alert is initiated. Options: 3, 6, 12, 24, 48, 72 hours and no act disable. 4.4.22 Back Light (fig. 4.4, location 22) Here you determine whether the keypad back lighting will remain on at all times or will come on when a key is pressed and go off within 10 seconds if no further keystrokes are sensed. The two options are: always on and off after 10 s. 4.4.23 Duress (fig. 4.4, loc. 23) A duress alarm (ambush) message can be sent to the central station if the user is forced to disarm the system under violence or menace. To initiate a duress message, the user must disarm the system with the duress code (2580 by default). Here you can change the code digits or enter "0000" to disable the duress feature. The system does not allow the user to program the duress code saved in this memory location as an existing user code. 4.4.24 Piezo Siren (fig. 4.4, location 24) Here you determine whether the internal siren will sound or remain silent upon alarm (according to the user preference). Options: piezo siren on, piezo siren off. 4.4.25 Reset Option (fig. 4.4, location 25) (Not applicable in the USA) Here you determine whether the system can be rearmed (after an event) by the user or only by the installer. Options: user reset or engineer reset. If Engineer Reset is selected, the system can be rearmed only by the installer ; by entering and exiting the installer menu, by entering and exiting the event log (see section 7), or by remote telephone. To perform Engineer Reset via the telephone, establish communication with the PowerMax Pro (see user guide, par. 6.3A, steps 1-5) and continue as follows: a.  [*], [installer code], [#] b. Wait for 2 beeps c.  [*], [1], [#] d.  [*], [99], [#] 4.4.26 Tamper Option (fig. 4.4, location 26) Here you determine whether zone tamper will be reported or ignored. Available options are: zone tamper ON and zone tamper OFF. 4.4.27 Siren On Line (fig. 4.4, location 27) Here you determine whether the siren will be activated or not when the telephone line fails during system armed state. Available options are: enable on fail, disable on fail. 4.4.28 Memory Prompt (fig. 4.4, location 28) Here you determine whether the user will receive indication that an alarm has been activated. Available options are: enable and disable. 4.4.29 Disarm Option (fig. 4.4, location 29) Here you determine when it is possible to disarm the system: A. Any time. B. In AWAY mode, during entry delay, by using the PowerMax Pro keypad or wireless device (keyfob). C. In AWAY mode, during entry delay, by using a wireless device (keyfob) only (this is set as a default in UK to comply with DD423). D. During entry delay, or by using the PowerMax Pro keypad in AWAY mode. Options: any time, on entry all, on entry wireless, or entry + away kp. 4.4.30 Bell/Rep. Option (fig. 4.4, location 30) Here you determine whether an alarm will be initiated (siren / report) when there is a supervision / jamming failure during AWAY arming state. Available options are: EN standard and other. When "EN standard" is selected, if there is supervision / jamming failure during AWAY arming, the siren is activated and the events are reported as tamper events. When "Other" is selected, there is no such activity during AWAY arming. 4.4.31 Low-Bat Ack (fig. 4.4, location 31) Here you determine whether the user will hear or will not hear low battery sound when he tries to disarm the system with a keyfob whose battery voltage is low. Available options are: keyfob L-B on (the user has to acknowledge the keyfob low battery message) or keyfob L-B off (the user does not have to acknowledge the keyfob low battery message). 4.4.32 Screen Saver (fig. 4.4, location 32) Here you can determine that if no key is pressed during more than 30 seconds, the display will be “PowerMax” (to prevent possible intruder of knowing the system status). You can determine that normal display will return after pressing the button followed by entering user code (Refresh by Code) or after pressing any key (Refresh by Key). If Refresh by Key is selected, the first pressing of any key (except Fire and Emergency) will cause normal display return and the second press will perform the key function. Regarding the Fire and Emergency keys, the first key press will cause normal display return and also will perform the Fire/Emergency function. Options: scrn saver OFF, refresh by code, refresh by key. 4.4.33 Confirm Alarm (fig. 4.4, location 33) Here you determine that if 2 successive alarms will occur during a specific period, the second alarm will be considered as a confirmed alarm (for confirmed alarm reporting, see par. 4.5.12 REPORT CNF ALARM). Options: disable 30 min., 45 min., 60 min., or 90 min. 4.4.34 AC FAIL REP (fig. 4.4, location 34) Here you determine the time interval between AC power failure occurrence and the failure reporting. Options: 5 minutes, 30 minutes, 60 minutes or 180 minutes. 4.4.36 User Permission (fig. 4.4, location 36) Here you determine whether the access to the INSTALLER MODE requires user permission. If you select ENABLE, the installer mode will be accessible only through the user menu after entering the user code. Options: Enable, Disable. DE5468IP 17 READY 00:00 USER SETTINGS NORMAL MODE ENTER CODE 1. NEW INSTL CODE 2. ENROLLING 3. DEFINE ZONES 5. DEFINE COMM [installer code] INSTALLER MODE 05: ABORT TIME 09: EXIT MODE 13: SWINGER STOP 17: AUX BUTTON A status instant 01: ENTRY DELAY 102: ENTRY DELAY 203: EXIT DELAY04: BELL TIME 06: ALARM CANCEL07: QUICK ARM quick arm ON quick arm OFF 08: BYPASS manual bypass no bypass force arm 10: PIEZO BEEPS11: TROUBLE BEEPS12: PANIC ALARM cross zone ON cross zone OFF 14: CROSS ZONING15: SUPERVISION superv time 1 h supe…

Text truncated - open the document above for the full version.

FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO BATTERY PACK RED CARE ADAPTOR J1 RED CARE J2 LINE/SET J4 PLnk/ GSM/PC J3 EXT. AUDIO J6 PC J5 ZONES +POWER F.C F.C F.C F.C F.C F.C LINE/SET ADAPTOR AUDIO ADAPTOR Plnk/GSM ADAPTOR PC ADAPTOR POWER&ZONES ADAPTOR BRACKET ASSEMBLY MAIN BOARD PMPro Block Diagram LINE INTERFACE SPEAKER PHONE SWITCH COMP ARA TOR DTMF RCVR INT. GSM CON INT GSM MODULE RECOR DING CHIP MIC IF 3.7V STEP DOWN 3.3V REGULA TOR BAT CHARGE BAT SWITCH AC FAIL CPU LCD KEYBOARD 12V STEPUP Control 3.7V 3.3V 12V MIC SPEAKER INTER FACE SUM AMP +++ DTMF FROM CPU 220/110VTO 12.5V ACDC RF TRANSCEIVER RFTR CONN. 12.5VDC 12.5VDC 18.432Mhz 13Mhz (?) 26Mhz 4.19Mhz 512Khz FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO 1 Block diagram description 1.1 Bracket Assembly The bracket assembly is the rear part of the panel. It is fastened to the wall and contains small interface boards which contai n connectors to cables leading to external devices. Each interface board connects to the main board via flat cable (F.C). 1.1.1 RED CARE ADAPTOR This is an RS232 adaptor connecting to external dialer through proprietary serial interface. 1.1.2 LINE/SET ADAPTOR This connects the phone line and house telephone to the panel. 1.1.3 AUDIO ADAPTOR This an analog audio amplifiers interface to an external speaker and microphone unit. 1.1.4 Plnk/GSM ADAPTOR This is an RS232 interface for two standard UART links to PowerLink unit (connects to internet) and external GSM unit. 1.1.5 PC ADAPTOR This is an RS232 interface for one standard UART link to a PC for offline servicing. 1.1.6 POWER & ZONES ADAPTOR This adaptor receives power from the ACDC power supply. It also contains connectors for external wired detectors and sirens. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO 1.2 Main board on front panel 1.2.1 3.7V STEP DOWN This block is a switched DCDC power supply. It inputs 12.5VDC from the ACDC and outputs 3.7VDC 1.2.2 3.3V REGULATOR This block is a linear DCDC power supply. It inputs 3.7VDC and outputs 3.3VDC supply to most of the circuit. 1.2.3 12V STEPUP This block is a switched DCDC power supply. It inputs 9.6VDC from the Battery and outputs 12VDC for battery charge and for external 12V devices. 1.2.4 BAT CHARGE This circuit inputs 12V from the step up and outputs two levels of charge current to the battery controlled by the CPU. 1.2.5 BATTERY PACK This is a pack of 8 AA sized NiMH batteries with Nominal voltage 7.2V. Optionally another such pack can be plugged in parallel to increase backup time. 1.2.6 AC FAIL This block monitors the voltage of the ACDC and if it drops below threshold it notifies the CPU. 1.2.7 BAT SWITCH This circuit enables the CPU to monitor battery voltage and to switch off the battery when it is depleted. 1.2.8 LINE INTERFACE This circuit interfaces to the telephone line conforming with the relevant telephony standards. It inputs and outputs audio to the audio circuits. It also send a digital ring detect signal to the CPU. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO 1.2.9 SPEAKER PHONE SWITCH This block consists of a speaker phone half duplex voice switch. It receives audio from the line and from the units microphone. It has a switching decision logic to enable the microphone to the line or the line to the speaker. This enables hnds free conversation t hrough the unit while avoiding howling due to echo between the units speaker and microphone. 1.2.10 COMPARATOR This block receives audio from the line and converts it to digital wave form. The CPU analyzes its output and detects dial tone and central station modem tones. 1.2.11 DTMF RCVR This block consists of a DTMF receiver chip. It receives audio from the line interface and transmits the detected DTMF digits t o the CPU via serial link. 1.2.12 MIC IF This block serves as microphone preamplifier and automatic gain control. It enables speaking to the unit from far and from near . 1.2.13 RECORDING CHIP This block consists of an analog voice recording chip. It contains pre recorded messages and also space for user recorded messa ges. Messages can be recorded and erased from the units microphone or from the telephone line remotely. Messages can be played back either to the units speaker or to the telephone line. 1.2.14 SPEAKER INTERFACE This block consists of power amplifier for the speaker and also enables four steps of volume control by the CPU. 1.2.15 SUM AMP This block is a summing amplifier. It receives voice signals from the speaker phone switch, from the recording chip and analo D TMF signals from the CPU. It sums them up and transmits them to the telephone line through the line interface circuit. 1.2.16 LCD This block is the units liquid crystals display module. It is used to display system status messages. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO 1.2.17 KEYBOARD This block is the units keyboard .It is a separate small board containing the keyboard contacts and backlight LEDs. 1.2.18 CPU The CPU is a microcontroller chip including internal flash and RAM memories. It also has the necessary digital I/O ports, D/A a nd A/D to control the system. 1.2.19 INT GSM MODULE This is a user pluggable GSM module. It receives and transmits voice signals instead of the line interface. It is controlled by the CPU through serial interface. It is used optionally to backup the telephone line. 1.2.20 RF TRANSCEIVER This block transmits and receives RF messages to detectors and other devices on the wireless communication link.

December 25, 2006 American TCB 6731 Whittier Ave. American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Request for confidentiality, FCC ID:GSAPWRMAXPRO Dear Gentlemen, In regards the exhibits submitted in support of the application for FCC ID:GSAPWRMAXPRO, please classify the following as confidential under the provision of 47 CFR 0.459: 1) Schematic diagram, file “Schematic_diagram_17292_315M” (1 page) 2) Schematic diagram, file “Schematic_diagram_17292_common” (3 pages) 3) Schematic diagram, file “Schematic_diagram_17292_RFID” (1 page). The above material contains trade secrets or technical data which Visonic Ltd. deems to be proprietary. Therefore this information would customarily be guarded from competitors and cannot be accessible to the general public. Arick Elshtein, International Standards Manager

November 22, 2006 American TCB 6731 Whittier Ave. American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 USA Subject: Application for certification of the wireless alarm control panel, model PowerMax Pro, comprising 315 MHz transceiver and 128 kHz transmitter, FCC ID:GSAPWRMAXPRO Dear Gentlemen, Please find attached our application for certification of the wireless alarm control panel, model PowerMax Pro, FCC ID:GSAPWRMAXPRO, prepared in accordance with FCC Rules, parts 15 and 2. The devise includes the CDMA wireless module, FCC ID:O9EQ2438F-M. There is NO difference between the originally certified CDMA module and the one used in the Powermax Pro, except of antenna in the Powermax Pro is different. The CDMA module may be equipped with internal or external antenna. The peak output power and RF exposure measurements were performed, the Application for Class II Permissive Change was put at ATCB disposal. The product testing and this application for certification were performed by Hermon Laboratories, which is listed by FCC, Registration Numbers 90623, 90624, responsible person is Mr. Alex Usoskin, tel: 011 972 4628 8001, fax:011 972 4628 8277, e-mail: [email protected]. Please send an invoice to Hermon Labs. We hope this application satisfies your requirements. Arick Elshtein, International Standards Manager

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 18, 2006 RE: Visonic Ltd. FCC ID: GSAPWRMAXPRO After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please justify the use of the FCC DoC Logo. It is uncertain why this is used. 2) What is the correct information regarding the FCC ID of the CDMA module. It appears various cover letters and other information may have left off the grantee code, but it is uncertain. Please correct any affected exhibits. 3) There have been various concerns regarding the CDMA approval for the module used in this device ant that Dennis Ward has recently resolved. However it is noted that the PC still cites that the device may not be co-located. Therefore the PC done may not have clearly identified the co- located environment and therefore the current grant may not yet be covered as used in this device. Please review/explain as necessary. 4) It is uncertain if the schematics include the 15.209 RFID transmitter. Please review/explain. 5) FYI....Please note that the X-10 portion of the device must be Verified for compliance under 15.31(d) & (h) and 15.201 of the FCC rules, including 3 typical in-situ installations. The scope of this is not covered in the Certification of this application, but the manufacturer is responsible to ensure this testing has been performed. Please confirm this has been performed. 6) Table 7.3.3 states MHz. Is this correct? Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 27, 2006 RE: Visonic Ltd. FCC ID: GSAPWRMAXPRO After a review of the submitted information, I have a few comments on the above referenced Application. 1) A corrected cover letter was provided regarding the correct information regarding the FCC ID of the CDMA module. However various other exhibits (i.e. operational description) appear to still be incorrect. Please correct. 2) Regarding co-location, please provide specific information as to where this information is provided or found (specific training, dates and pages, and/or KDB reference numbers, etc.). Please note that the co-located discussion (in EMC) was poorly worded and created much discussion during training. Further updated slides were released at a later date to help clarify this concern. Note that May training in 2005 clarified that the FCC no longer required EMC co-location testing to be provided unless requested by the FCC. However this did NOT eliminate the fact that it must still be investigated and found to be compliant. Also, the training only clarified that it was no longer necessary to include this in applications to the FCC. Additionally, this fact is ONLY relevant to the EMC co-location and does not address RF co-location issues. RF co-location still followed all specified guidelines. Current information (released January 2006) clearly shows that co-location must be handled in ALL associated applications. Please see below slides and attach exhibits for further information. ----------Original slides ------------- z Page 2 December 28, 2006 ----------Updated slides ------------- z Page 3 December 28, 2006 Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

HERM O N LA BO RA TO RIES December 26, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated December 21, 2006; Visonic Ltd. FCC ID:GSAPWRMAXPRO, ATCB004283 Dear Mr. Johnson, Please find below the answers to your questions. 1) The “Label_location_17292_rev1” without FCC DoC Logo was uploaded on December 26, 2006. 2) The revised cover letter “Cover_letter_17292_rev1” was uploaded on December 26, 2006. 3) Following the provided training (After May. 2005 TCB/FCC workshop, FCC released the following guideline) such a configuration shall not be considered as a multiple co located transmitters- each transmitter has its own antenna. The RF exposure measurement results of the PowerMax Pro with CDMA module with internal and external antennas were provided in the test report VISRAD_FCC.17407. 4) The schematic diagram for RFID transmitter, file “Schematic_diagram_17292_RFID” and revised confidentiality letter “Confidentiality_letter_17292_rev1” were uploaded on December 26, 2006. 5) The X-10 is a digital interface intended for communication between the control panel and a power line interface module. The X-10 has no direct connection to power line and is intended for use with approved power line interface modules. 6) The revised test report VISRAD_FCC.17292_rev1 with corrected Table 7.3.3 was uploaded on December 26, 2006. Thank you. Marina Cherniavsky, certification engineer Hermon Laboratories

HERM O N LA BO RA TO RIES December 28, 2006 American TCB 6731 Whittier Ave Suite C110 McLean, VA 22101 Attn: Mr. T. Johnson, Examining Engineer RE: your e-mail dated December 27, 2006; Visonic Ltd. FCC ID:GSAPWRMAXPRO, ATCB004283 Dear Mr. Johnson, Please find below the answers to your questions. 1) The revised file “Operational_description_17292_rev1” was uploaded on December 28, 2006. 2) a) The RF exposure was measured with all 3 transmitter operated, please refer to the test report VISRAD_FCC.17407; b) We applied for Class II PC for CDMA module, FCC ID:O9EQ2438F-M, please refer to the grant issued by ATCB on December 14, 2006; c) All 3 transmitters use their own antennas (each one) and do not share the common antenna; d) Nevertheless the simultaneous Tx spurious of unlicensed transmitters was measured; e) EMC does not consider the RF emissions from Tx module at all, but the EMC training talks especially about RF transmission issues. We believe it was about the RF tests as appears in the training. Michael Nikishin, EMC and Radio group leader Hermon Laboratories

Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 2 of 5 Photograph No.1 PowerMax Pro general view Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 3 of 5 Photograph No.2 PowerMax Pro front view Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 4 of 5 Photograph No.3 PowerMax Pro external view without keypad cover Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 5 of 5 Photograph No.4 PowerMax Pro rear sideview

FCC ID:GSAPWRMAXPRO Label_location_17292_rev1.doc Page 1 of 2 Label location Label with FCC ID:GSAPWRMAXPRO will be located at the rear side panel FCC ID:GSAPWRMAXPRO MODEL: PWRMAX PROThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesired operation. Refer to Installation manual No DE5468IP Plug in Cable AC/AC,Input: 100-240V AC, 50/60 HZ, 1A. Output: 12.5V DC/ 1.6A Rechargeable Battery Pack: 9.6V/ 1800mAh. Manufactured by ??. Type: ?????? S-20* 65 mm 40 mm TEL: VSOAL03BPWRMXPRO FCC ID: GSAPWRMAXPRO IC: 1467C-PMAXPRO NOTES: Powermax Pro ñ Variable. 90-XXXXXX- Variable A - Variable (First letter from MFG Rev) WW- WEEK (VARIABLE) YY- YEAR (VARIABLE) ZZZZZZ-NUMERATOR (VARIABLE) increment by 1. Become equal to 000001 every week Barcode - Code 128 Other Fields - Fixed MATERIAL: S-0002-A P/N: 90-2XXXXXX REV.:0 Product Name: LABEL POWERMAX PRO FCC VISONIC LTD. Apx 2-1-3 Create:Approved: Document No: 4 Doc.Rev.: 00 Sheet No./of: 1/1 Name Date Signature Scale: 100% Title: Stamp and Sticker Drawing Upd ECM 12345 0 CONFIDENTIALThis document contains information which is proprietary to Visonic Ltd., Israel. The use, copy or dissemination of this material for any purpose other than that for which it is intended is prohibited without the prior written consent of Visonic Ltd. Date Released: To Whom: 10 Dan R. Yana K. 22.10.06 Catalog No.: S-20 Update: Contains: FCC ID:O9EQ2438F-M IC:3651C-Q2438

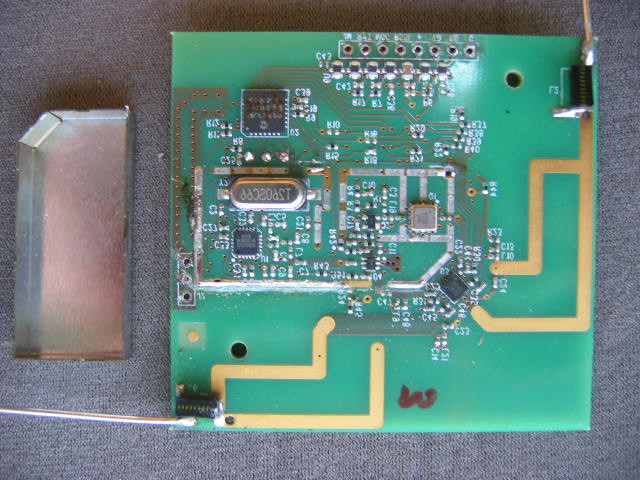

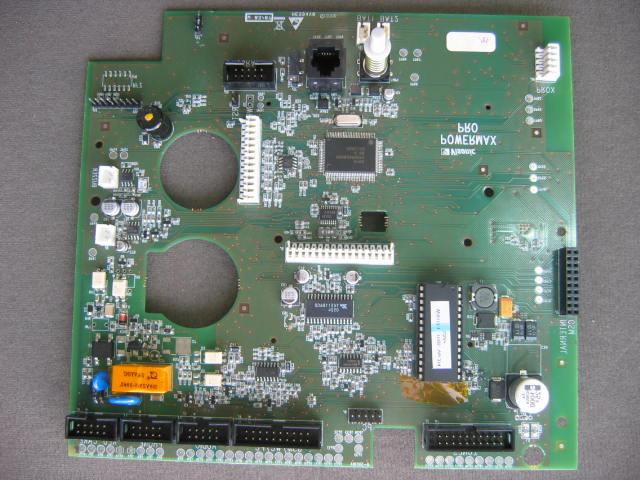

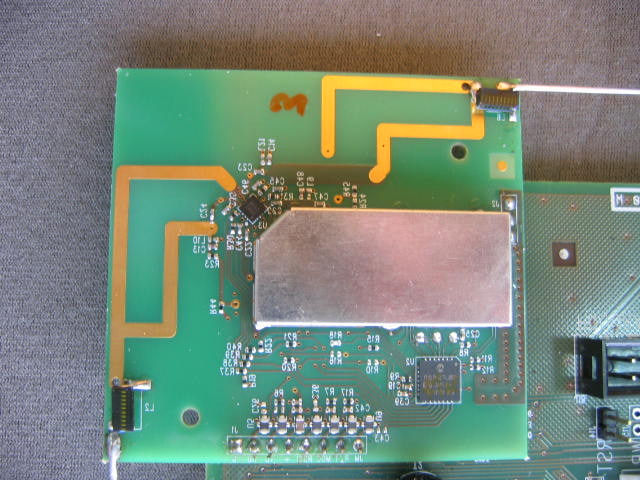

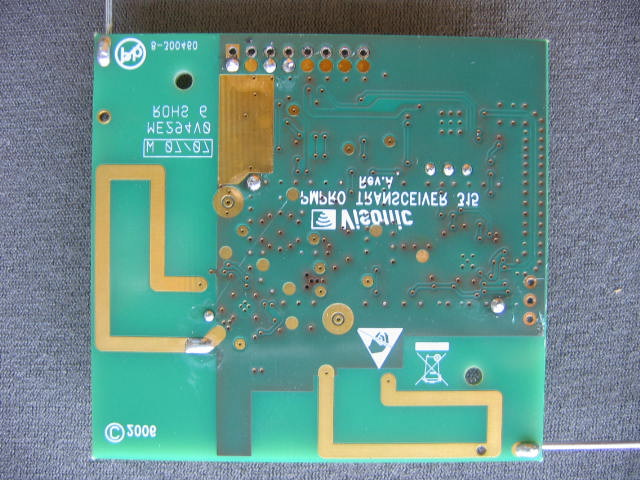

Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 1 of 23 INTERNAL PHOTOGRAPHS This document contains 25 photographs Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 2 of 23 Photograph No.1 PowerMax Pro internal view Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 3 of 23 Photograph No.2 PowerMax Pro main part internal view with covers Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 4 of 23 Photograph No.3 PowerMax Pro back cover internal view Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 5 of 23 Photograph No.4 PowerMax Pro with battery pack removed Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 6 of 23 Photograph No.5 PowerMax Pro with CDMA Q2438 module removed Visonic Ltd. FCC ID:GSAPWRMAXPRO IC:1467C-PMAXPRO Page 7 of 23 Photograph No.6 PowerMax Pro main part with cover removed view Visonic Ltd. FCC ID:GSAPWRMAXPRO …
