GTC029894TXR20dB INNCOM Zigbee Radio Module

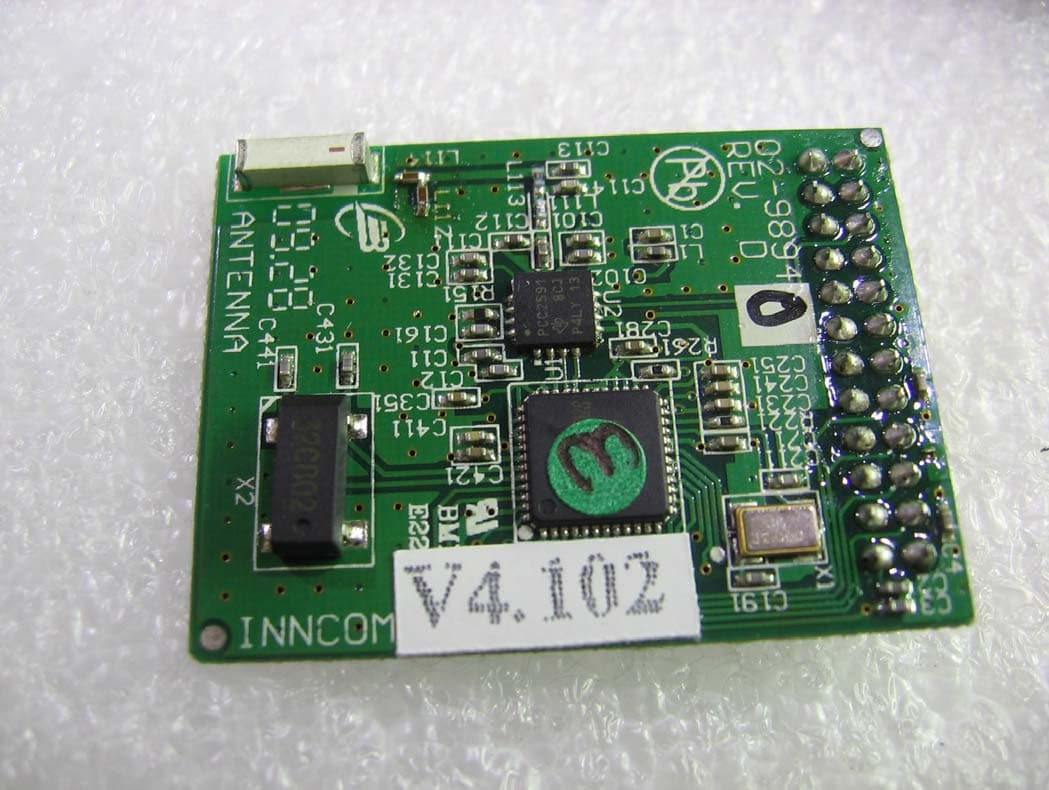

INNCOM TXR RF Module Datasheet Overview The INNCOM TXR series of embedded RF radio modules provides INNCOM products with a common radio platform. The TXR RF radios are used in the point to point Layer-1 in-room network and in Layer-2 802.15.4 Zigbee 2006 mesh network topologies at 2.4 GHz. Features • Common footprint designed for use with a variety of host products • Multiple antenna options • 2.4Ghz IEEE 802.15.4 compliant RF transceiver (CC2430 radio core) • Low power and long range variants available • Industrial temperature ratings 0-65 C° • FCC Part 15C Table 1 INNCOM TXR Radio Specifications Performance 02‐9994 02‐9894 02‐9927 RF Data Rate 250kbps 250kbps 250kbps Antenna Type SMT u.FL male connector SMT Indoor Range 70ft 98ft 100ft Outdoor/ RF line-of-sight range 540ft 980ft+ 1000ft+ Transmit Power 1mW (+0dBm) 2mW (+2dBm) 10mW (+18dBm) Receive Sensitivity -94.6dBm -94dBi -94.6dBm Frequency Band 2.4Ghz 2.4Ghz 2.4Ghz Encryption AES-128 AES-128 AES-128 Protocol 802.15.4 802.15.4 802.15.4 Frequency Channels 11-26 11-26 11-26 Dimensions 28mm x 38mm 28mm x 38mm 28mm x 38mm Ranges are determined by performing an RF link quality test using two identical e528.3G thermostats containing radios as defined in tables 2 and 3. The maximum distance threshold is based on a 95% overall link quality. Outdoor ranges were conducted in a low noise, free air environment. Indoor ranges are for reference. Indoor ranges are impacted by the ambient environmental noise floor, and building construction materials. INNCOM TXR RF Module Datasheet Page | 2 Secondary Range Performance Data The following table describes the indoor and outdoor range when using un-like antenna combinations. Table 2 INNCOM TXR Radio Indoor Range Transmitter Receiver Receiver Receiver 02-9994 02-9894 02-9927 02-9994 70ft (21m) 73ft (22m) 98ft (30m) 02-9894 100ft (31m) 100ft (31m) 100ft (31m) 02-9927 90ft (27m) 100ft (31m) 98ft (30m) Table 3 INNCOM TXR Radio Outdoor Range Transmitter Receiver Receiver Receiver 02-9994 02-9894 02-9927 02-9994 540ft (165m) 570ft (174m) 654ft (199m) 02-9894 640ft (195m) 980ft+ (299m+) 768ft (234m) 02-9927 550ft (168m) 620ft (189m) 980ft+ (299m+) Table 4 INNCOM TXR Operating Conditions Parameter Min Max Unit Operating ambient temperature range -40 85 °C Operating supply voltage 2.0 3.6 V The supply pins to the radio must be driven by the 1.8VDC on-chip voltage regulator. Table 5 INNCOM TXR Safety / Regulatory Agency Approval Specification Status FCC 15.247 02-9994 Certified under FCC ID: GTC029994TXR Only approved antennas can be used with this module. Additional antennas would require an application filing with the FCC in order to have them approved. Antennas which have either a higher gain or are of a different type may not be used, with this module, unless additional certification is obtained. All Final Products containing the INNCOM TXR 02-9994 must contain the following statements on their label: This device contains FCC ID: GTC029994TXR. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. All Final Products containing the INNCOM TXR 02-9894 should keep a safe distance of at least 20cm from all persons. The final product cannot be co located with any other antenna or transmitter. INNCOM TXR RF Module Datasheet Page | 3 Modifications not expressly approved by INNCOM International Inc. could void the user’s authority to operate the equipment. Ordering Information Part Number Model Number Assembly 02-9994 TXR-154.1 0dB radio with SMT antenna 02-9927 TXR-154.x 0dB radio with 5”u.fl to rpsma harness / ½ wave dipole antenna 02-9894 TXR-154.2 20dB radio with SMT antenna Document Revision History Revision Date Issued Reason 0.1 20-Mar-2009 FCC Reports for 02-9894, 02-9927 0.2 24-Mar-2009 Revised for formatting and style 0.3 27-Mar-2009 Revised to update range performance data 1.0 07-Apr-2009 Released 1.1 23-Dec-2009 Updated to add FCC statements 1.2 07-Jan-2010 Added modifications warning 1.3 14-Jan-2010 Updated FCC statements

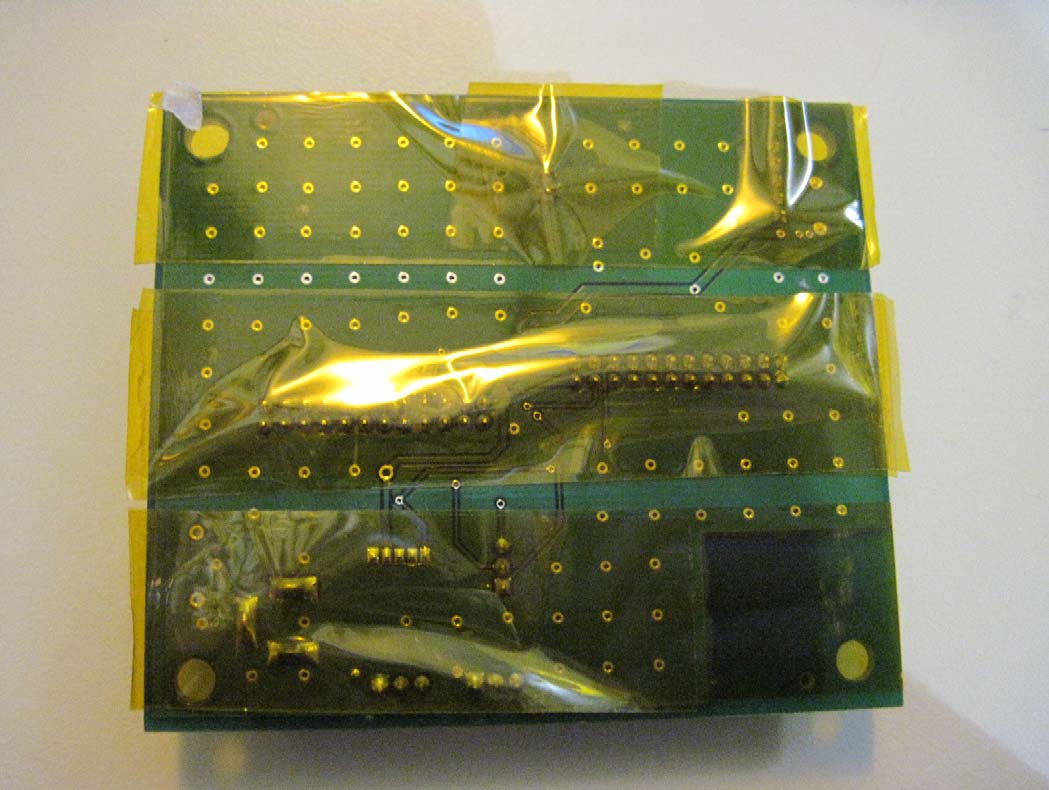

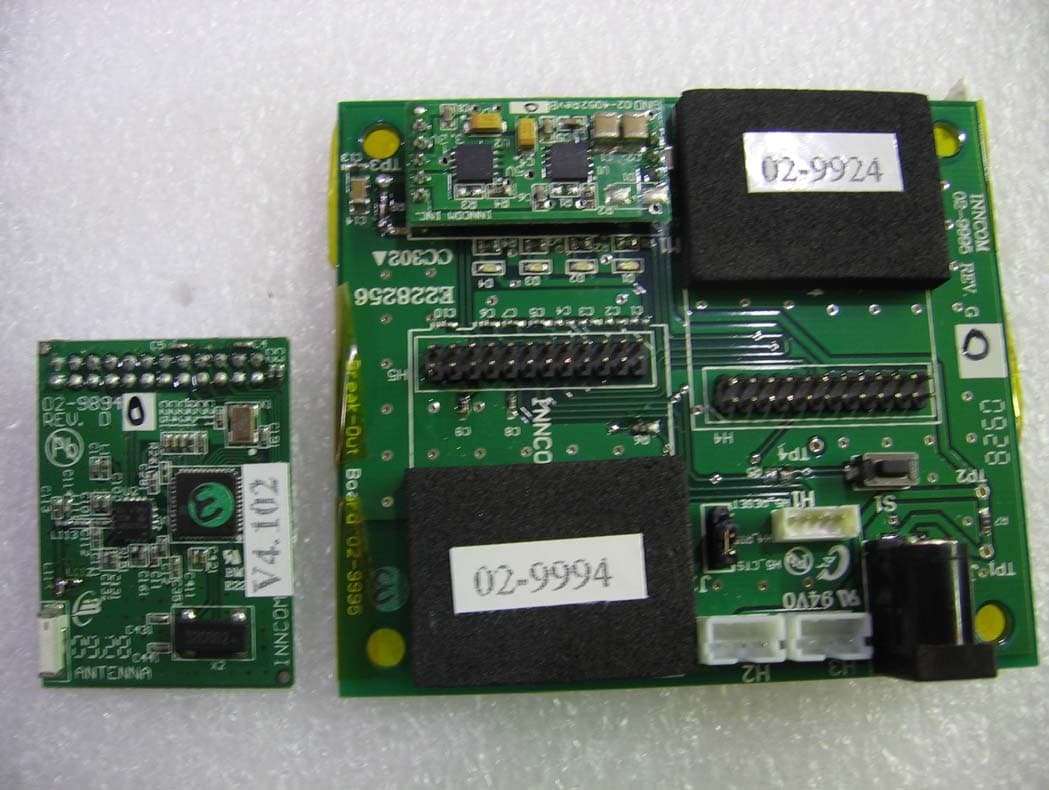

Non-Conformities FCC ID : GTC029894TXR (CKC CS Ref # E09-000157-FCC-01) The items listed below represent requests for information following review of this application for certification under United S tates (FCC) regulations. Further question may arise pending review of responses to these items. OK ID # Non-Conformity or Comment Submitted Response Respondent / Date of Response √ C 1 FCC ID label has an FCC logo on it for Declaration of Conformity type applications and also “FCC ID”. This device is going for Certification and not DoC. Please remove the FCC DoC label from the ID label. Also, the FCC ID number is incorrect since it is missing the Grantee part of the FCC ID number. Currently on the Product Code portion is included on the FCC ID number. OK-C Kendall , 21Jan10 Updated Label Provided. Ryan Gardner 1/20/10 √ TL 2 This device appears to be constructed by three separate PCB’s that interlock with each other. Are you su re this application is for singular modular approval? Item 3 below clears it up -it is a limited modular approval he is seeking. COK 21Jan10 Yes, The other two PCBs are only support equipment. To exercise the EUT. Yes, It is a module. A del Angel / 01/21/10 √ TL 3 The motherboard or largest PCB appears to be missing its bottom sides in the photos submitted. Please insure that complete photos are submitted of both the tops and bottom sides of each separate PCB that makes up the device. I can’t see where the shielding is located. OK-C Kendall , 21Jan10 The smallest PCB is not detachable, I cannot take the bottom picture. Regarding the shielding, this is the customer response: As I understand, with a limited modular FCC listing, the host product is sufficient to provide the shielding after the FCC finds the final product in compliance with either a general emissions test, or full product certification. This radio will never be sold as a standalone item or to a third party. It will be installed in only INNCOM products at our factory, and only handled by INNCOM employees. A del Angel / 01/21/10 √ C 4 Please annotate on the block diagram submitted the frequencies of each sub block on the block diagram. The schematic shows at least two clocks: X 1 (32 MHz) and X 2 (32.768kHz) and there is an output in the frequency range of 2405 – 2476.5 MHz). Confirmed that the answer is on page 3 of the provided exhibit. CKendall-1/26/10 New Block Diagram and Operational Description provided. I added the statements to clarify functionality of X1, and X2 in the schematic on page 3. Ryan Gardner 1/20/10 Ryan Gardner 1/25/10 √ TL 5 When I calculate the power presented in test report FC09-171A using page 42 of 55 pages, I get a lot less than what is reported in this test report. Additionally, why is the output power only listed under Band-Edge in this report and not under the section titled,”15.247(b)(3) RF Power Output?” I used 107.9 dB μ V/m @ 3m as the highest output power since this was the only data sheet in the report that stated this. Where are the datasheets for the output power? OK-C Kendall , 21Jan10 Updated Report Provided. Jeff Gilbert 1/18/10 √ C 6 Please include statement in the User’s Manual regarding safe separation distance of at least 20cm from all persons along with the statement regarding that the transmitter must not be co-located with any other antenna or transmitter. OK-C Kendall , 21Jan10 Updated Users Manual Provided. Ryan Gardner √ TL 7 Please profide an MPE re port for this application. OK-C Kendall , 21Jan10 MPE Report Provided. Jeff Gilbert 1/18/10 √ C 8 For a Class B digital device or peripheral, the instructions furnished the user shall include the following or similar statement, placed in a prominent location in the text of the manual: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the in structions, may cause harmfu l interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation betw een the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experi enced radio/TV tech nician for help. Ref: 15.105(b) Updated Users Manual Provided. Ryan Gardner 1/20/10 He now states compliance with 15C only- C Kendall-21Jan10. √ C 9 Please provide a si gned General Agreement. OK-C Kendall , 21Jan10 Signed General Agreement provided. Ryan Gardner 1/14/10 √ C 10 Please provide us with a signed copy of the Anti Drug Letter signed by Ryan Gardner. We have one signed by Mr. Roosli but he is not authorized. OK-C Kendall , 21Jan10 Anti-drug letter signed by myself Provided. Ryan Gardner 1/20/10 √ C/TL 11 The external photos exhibits are required. The internal photos have been placed in this field. OK-C Kendall , 21Jan10 There are no external photos. Unit was tested as shown in the pictures. It is a module. A del Angel / 01/21/10 √ C 12 Please note that the grantee code information must list the party responsible for compliance, including the contact name. Please update your grantee information to include a contact name. Please note that the contact name is the person authorized to sign form 731 applications and confidentiality letters. This authority may be delegated or assigned as necessary however the delegation of authority must be provided in the form of a letter and attac…

Text truncated - open the document above for the full version.

Page 1 of 5 Report No: FC09-171B- R MAXIMUM PERMISSIBLE EXPOSURE REPORT FOR THE 20dB INNCOM ZIGBEE RADIO MODULE, 02-9894 DATE OF ISSUE: JANUARY 15, 2010 PREPARED FOR: INNCOM International, Inc. 277 W. Main St. Niantic, CT 06357 PREPARED BY: Jeff Gilbert CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 W.O. No.: 89056 Report No.: FC09-171B-R Page 2 of 5 Report No: FC09-171B- R Purpose of Test: To demonstrate compliance with United States and Canada RF Exposure requirements for Mobile Equipment (devices used >20cm from the body), where Maximum Permissible Exposure (MPE) Calculations apply. United States MPE Limits in accordance with 1.1310: Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5 6 General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1 30 Note: Limit is calculated based on the mid-band frequency used in the operating frequency range. Page 3 of 5 Report No: FC09-171B- R Canadian MPE Limits in accordance with RSS-102: Occupational / Controlled Exposure: General Population / Uncontrolled Exposure Page 4 of 5 Report No: FC09-171B- R Equipment operational details: Operating Frequency (MHz) Measured Output Power (dBm) Maximum Mobile Antenna Gain (dBi) Maximum EIRP (dBm) 2400-2500 17.15 1.0 18.15 Measurements based from EMC Test Report: FC09-171 Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65 & ANSI C95.1 for the US and Health Canada Safety Code 6 & RSS 102 for Canada. Other Considerations: None MPE Calculations: Limit used: Occupational / Controlled Exposure X General Population / Uncontrolled Exposure MPE Limit = 1 (mW/cm 2 ) 2 2 4 )/( d EIRP cmmWDensityPower   Given: EIRP in mW and d in cm EIRP (mW) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) 65.31 20 0.012994 1.0 0.0012994 10 Page 5 of 5 Report No: FC09-171B- R Statement of Compliance: This device demonstrates compliance under the operating conditions specified in this document. Under normal operating conditions, the antenna is designed to be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. The MPE calculations shown above demonstrate compliance to the provisions of US and Canadian requirements. As can be seen from the MPE results, this device passes the specified limits at a distance of 20cm at the maximum output power under normal operating conditions.

Page 1 of 55 Report No: FC09-171B TESTING CERT #803.01, 803.02, 803.05, 803.06 INNCOM INTERNATIONAL, INC. ADDENDUM TEST REPORT TO FC09-171A FOR THE 20dB INNCOM ZIGBEE RADIO MODULE, 02-9894 FCC PART 15 SUBPART C SECTIONS 15.207 & 15.247 AND RSS-210 ISSUE 7 TESTING DATE OF ISSUE: JANUARY 15, 2010 PREPARED FOR: INNCOM International, Inc. 277 W. Main St. Niantic, CT 06357 PREPARED BY: Joyce Walker CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: W.O. No.: 00006341 89056 Date of test: September 21 - October 5, 2009 Report No.: FC09-171B This report contains a total of 55 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 55 Report No: FC09-171B TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 Summary of Results .........................................................................................................4 Conditions During Testing ...............................................................................................4 FCC 15.31(m) Number Of Channels ...............................................................................4 FCC 15.33(a) Frequency Ranges Tested .........................................................................4 FCC 15.203 Antenna Requirements ................................................................................4 EUT Operating Frequency ...............................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Measurement Uncertainties .............................................................................................6 Report of Emissions Measurements.................................................................................6 Testing Parameters ...............................................................................................6 FCC 15.31(e) – Voltage Variations .....................................................................8 FCC 15.207 – Conducted Emissions ...................................................................11 FCC 15.247(a)(2) – 6dB Bandwidth ....................................................................30 FCC 15.247(b)(3) – RF Power Output ................................................................33 FCC 15.247(d) – OATS Radiated Spurious Emissions .......................................35 FCC 15.247(d) - Band Edge ................................................................................40 FCC 15.247(e) - Peak Power Spectral Density ....................................................51 RSS-210 - 99% Bandwidth ..................................................................................53 Page 3 of 55 Report No: FC09-171B ADMINISTRATIVE INFORMATION DATE OF TEST: September 21 - October 5, 2009 DATE OF RECEIPT: September 21, 2009 REPRESENTATIVE: Ryan Gardner MANUFACTURER: INNCOM International, Inc. 277 W. Main St. Niantic, CT 06357 TEST LOCATION: CKC Laboratories, Inc. 1120 Fulton Place Fremont, CA 94539 TEST METHOD: ANSI C63.4 (2003), RSS-210 Issue 7 and RSS GEN Issue 2 PURPOSE OF TEST: Original: To perform the testing of the 20dB INNCOM Zigbee Radio Module, 02-9894 with the requirements for FCC Part 15 Subpart C Sections 15.207 & 15.247 and RSS-210 devices. Addendum A: To correct an error in the Power Output Table found on page 34. No additional testing was performed. Addendum B: To correct an error in the addendum report number referenced on the front page from FC09-071 to FC09-171. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE: TEST PERSONNEL: Steve Van Kirk, Senior EMC Engineer / Lab Manager Armando Del Angel, Test Engineer Page 4 of 55 Report No: FC09-171B SUMMARY OF RESULTS Test Specification/Method Results Voltage Variations FCC 15.31e Pass Conducted Emissions FCC 15.207 Pass 6dB Bandwidth FCC 15.247(a)(2) Pass RF Output Power FCC 15.247(b)(3) Pass OATS Spurious Emissions FCC 15.247(d) Pass Band Edge FCC 15.247(d) Pass Peak Power Spectral Density FCC 15.247(e) Pass 99% Bandwidth RSS-210 Issue 7 / RSS GEN Issue 2 Pass Site File No. FCC 318736 IC 3082C-1 CONDITIONS DURING TESTING No modifications to the EUT were necessary during testing. FCC 15.31(m) Number Of Channels This device was tested on three channels. FCC 15.33(a) Frequency Ranges Tested 15.207 Conducted Emissions: 150 kHz – 30 MHz 15.247 Radiated Emissions: 30 MHz – 24.8 GHz FCC 15.203 Antenna Requirements The antenna is an integral part of the EUT and is non-removable; therefore the EUT complies with Section 15.203 of the FCC rules. EUT Operating Frequency The EUT was operating at 2.405 GHz – 2.4765 GHz. Page 5 of 55 Report No: FC09-171B EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. EQUIPMENT UNDER TEST 20dB INNCOM Zigbee Radio Module Manuf: INNCOM International, Inc. Model: 02-9894 Serial: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Power Supply Manuf: NA Model: MW7EA08EL Serial: NA Page 6 of 55 Report No: FC09-171B MEASUREMENT UNCERTAINTIES Uncertainty Value Parameter 4.73 dB Radiated Emissions 3.34 dB Mains Conducted Emissions 3.30 dB Disturbance Power The reported measurement uncertainties are calculated based on the worst case of all laboratory envir…

Text truncated - open the document above for the full version.

Test Setup Photos
