H2WCASA6TCeiling fan and lamp remote contro.

W-62 Transmitter Block Diagram 32 kHz 4 MHz Crystal Crystal Depress Desired Button Pulse Encoder DIP switch ID code Antenna Output LCD Display 304 MHz carrier

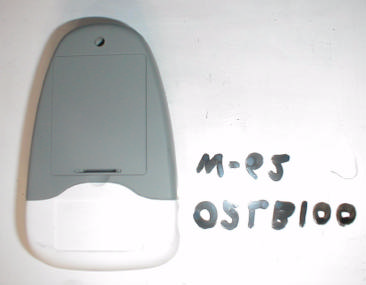

W-62 Transmitter External Photos FCC ID: H2WCASA6T Front Rear

FCC/Industry Canada Label Location FCC ID: H2WCASA6T

W-62 Internal Photos FCC ID: H2WCASA6T Solder Side Component Side W-62 Internal Photos FCC ID: H2WCASA6T Components side with rubber keypad gasket in place

W-62 Transmitter / Receiver Operational Description The W-62 Transmitter and Receiver is a remote control device for a ceiling fan with lamp. The remote works as follows. When a button is depressed on the remote a change of voltage occurs on the encoder chip inside the transmitter. This input causes the encoder to send a series of long and short pulses indicating the desired function (dim lamp, reverse fan direction, etc) and identify the ID code defined by 4 DIP switches in the remote. This series of pulses is then modulated at a 304 MHz transmit frequency (factory fixed) and transmitted via the internal, non-detachable antenna. The pulse duration and periods is further defined in the W-62 Transmitter Test Report. The receiver receives the 304 MHz encoded signal via a tuned receive circuit. Then the pulse durations are timed and, if matched to a valid function and ID code, operates the lamp dimmer circuit and fan off/low/high and forward/reverse settings.

Project: 02RT3660 File: MC1324 Report: 020156 Date: March 14, 2002 Model: W-62 Ceiling Fan/Lamp Remote Test Report On Electromagnetic Compatibility Testing Hunter Fan Co Memphis, TN Copyright  2002 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 2 of 49 Test Report: 020156 Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Hunter Fan Co 2500 Frisco Avenue Memphis, TN 38114 Applicant Contact: Mr. Robert Davis Safety and Test Engineer - International (901) 248-2212 (901) 248-2382 - FAX Test Report Number: 020156 Test Report Date: March 14, 2002 Product Type: Low-Power Transmitter Model Number: W-62 Sample Serial Number: Non-serialized Sample Sample Tag Number: S02LB100 EUT Category: Transmitter - Low Power EUT Type: Hand Held Sample Receive Date: February 12, 2002 Testing Start Date: February 18, 2002 Date Testing Complete: March 22, 2002 Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP or any agency of the US government. This report may contain data which is not covered by the NVLAP accreditation. Only data which is noted under Remarks of Summary of Testing as being NVLAP Accredited Data can be considered to be covered by the NVLAP accreditation. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 3 of 49 Test Report: 020156 Summary of Testing: Test Test Name Comply Does Not See # Test Requirement/Specification Comply Remark 1 Radiated Disturbance Emissions - Occupied Bandwidth X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 2 Radiated Disturbance Emissions - Peak-to-Average Ratio X - 1 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 3 Radiated Disturbance Emissions - 9 kHz to 30 MHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 4 Radiated Disturbance Emissions - 30 MHz to 1000 MHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 5 Radiated Disturbance Emissions - Above 1 GHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 6 Radiated Disturbance Emissions - Restricted Bands X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.205 Remarks: 1) Transmitter was observed to cease transmission within 0.5 seconds upon release of buttons. 2) Transmitter contains an antenna that is not removable. 3) Results can be considered applicable to Industry Canada standard RSS-210 Section 6.1 (Momentarily Operated Transmitters). All emissions data was collected on Alternative Measurement Site IC-2953. 4) All data was recorded using NVLAP accredited methods. See certificate on page 48. Conclusion : The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 4 of 49 Test Report: 020156 Test Facilities: Test Location A) 10-Meter Anechoic Chamber (Industry Canada - IC 2953, NVLAP - 200246-0, VCCI - R-722) Constructed by Lindgren RF Enclosures, this room consists of a 17.9 by 12 by 8.3 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunity testing is performed. Room is provided with a 4.0 m diameter embedded turntable and a 1.2 by 2.1 m and 2.4 by 2.4 m double knife edge doors for access. Also, the room is fed electrical EUT power via permanently installed filters and is provided with a permanently mounted video surveillance camera. A remotely controllable antenna mast is located in the room for positioning the measuring antenna from 1 to 4 m above the ground plane. Test Location B) Compact Anechoic Chamber Constructed by Lindgren RF Enclosures, this room consists of a 6 by 3 by 2.9 m (inside clearance) shielded room lined with TDK absorber material. The walls, floor (conducting ground plane) and ceiling are constructed of double sided galvanized sheet steel supported by 19 mm thick particle board. The interior walls and ceiling are covered with 10 by 10 cm, 4.6 mm thick ferrite tiles and partially covered with polystyrene absorber cones. Removable floor tiles and cones covering the floor between the EUT and antenna are provided when RF immunit…

Text truncated - open the document above for the full version.

Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 17 of 49 Test Report: 020156 Test 2, Item Total Period - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - Peak-to-Average Ratio Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 18 of 49 Test Report: 020156 Test 2, Item Bursts Detail - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - Peak-to-Average Ratio Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 19 of 49 Test Report: 020156 Test 3: Radiated Disturbance Emissions - 9 kHz to 30 MHz Test Requirement: 47 CFR Part 15, Subpart C Test Specification: 47 CFR Part 15, Subpart C, Section 15.209 Test Procedure: All testing was performed in UL’s 10 meter semi-anechoic chamber. The chamber meets the FCC’s site attenuation criteria for use as an alternative measurement site. The EUT was tested per ANSI C63.4:1992 test method placed on a non-conductive 1m x 1.5m table 80 cm above the ground plane. The receive antenna used was a loop antenna mounted on an antenna mast. The turntable was rotated from 0° to 360° to determine the worst-case emissions angle for each frequency. The antenna mast was raised and lowered between 1 and 4 meters above the ground plane to determine the worst-case height. The loop antenna was positioned in each of the three orthogonal axes (X, Y, and Z) and peak scans were taken for each test configuration. The peak field strength was recorded. Average field strength was calculated using the peak-to-average ratio documented elsewhere in this report. All measurements were made at a 3 meter distance in an attempt to identify any emission produced by the EUT. A 40 dB/decade adjustment was made to the signal for measurements below 30 MHz per FCC Section 15.31(f)(2). Magnetic Field to electric field conversion is made assuming the impedance of free space of 377Ω (or 51.5 dBΩ). Radiated Disturbance Limits - General Requirements Section 15.209 Frequency Range Field Strength Limit Field Strength Limit Measurement MHz μV/m dBμV/m Distance (m) 0.009 to 0.490 2400/F (kHz) 20*log(2400/F(kHz)) 300 0.490 to 1.705 24,000/F (kHz) 20*log(24,000/F(kHz)) 30 1.705 to 30 30 29.5 30 Limits adjusted to 3 meter measurement distance and converted to magnetic field Frequency Range Field Strength Limit Field Strength Limit Field Strength Limit Limit Range MHz μV/m dBμV/m (magnetic) dBμA/m dBμA/m 0.009 to 0.490 2400/F (kHz) * 10 4 20*log(24,000,000/F(kHz)) 20*log(2400/F(kHz))+28.5 77 to 42.3 0.490 to 1.705 24,000/F (kHz) * 100 20*log(2,400,000/F(kHz)) 20*log(24,000/F(kHz))-11.5 22.3 to 11.4 1.705 to 30 30 * 100 69.5 18 18 Test Deviations: None Test Setup: Only the following ports were tested. See EUT Information for details. Test Item Port # Port Name EUT Operation Mode EUT Configuration Power Interface A 0 Enclosure 1 1 1 Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 20 of 49 Test Report: 020156 Test 3 - Results: Radiated Disturbance Emissions - 9 kHz to 30 MHz Test Results Summary: Test Item Test Location Humidity (%) Temperature (ºC) Pressure (kPa) Pass/Fail (P/F) Date Completed Comment # A A 34.0 24.0 101.5 P 2/18/02 The EUT was considered to Pass the Requirements. Comments: Comment # Description Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 21 of 49 Test Report: 020156 Test 3 - Test Equipment Used: Radiated Disturbance Emissions - 9 kHz to 30 MHz Equipment ID Description Manufacturer Model Number Last Cal. Next Cal. AT0036 100kHz to 30MHz Loop Antenna Electro-Metrics EM-6872 12/5/01 12/31/02 AT0037 30Hz to 1MHz Loop Antenna Electro-Metrics EM-6971 12/15/01 12/31/02 ATA026 20 ft Cable, BNC - N UL RG-223 4/27/01 4/30/02 ATA095 6 ft, N male - N male Micro-Coax Coaxial Cable 4/26/01 4/30/02 ATA096 50 ft, N male - N male Micro-Coax Coaxial Cable 4/26/01 4/30/02 HI0034 Environmental Indicator Cole-Palmer 99760-00 10/1/01 10/31/02 SAR001 Spectrum Analyzer / Receiver Hewlett-Packard 8572A 12/3/01 12/31/02 The above equipment has been calibrated and is within the manufacturer’s published limit of error. Calibration is traceable to the National Institute of Standards & Technology(NIST) and conforms to ANSI/NCSL Z540-1-1994. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 22 of 49 Test Report: 020156 Test 3, Item A (Transmitter Active) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 9 kHz to 30 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 23 of 49 Test Report: 020156 Test 3, Item A (Transmitter Active) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 9 kHz to 30 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 24 of 49 Test Report: 020156 Test 3, Item A (Transmitter Active) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 9 kHz to 30 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 25 of 49 Test Report: 020156 Test 3, Item A (Transmitter Ready) - Discrete Data: Radiated Disturbance Emissions - 9 kHz to 30 MHz Test Item (A-Z) Detector Type* (P/Q/A) Antenna Polarity (0/90/Z) Antenna Distance (m) Measured Frequency (MHz) Measured Value (dBμV) Equipment Correction (dB/m) Corrected Value (dBμV/m) Specified Limit** (dBμV/m) Spec Margin (dB) See Comment (#) *** A P 0 3 0.0102 22.9 13.9 36.8 75.9 -39.1 A P 0 3 0.0111 22.6 13.7 36.3 75.2 -38.9 A P 0 3 0.0125 22.5 13.3 35.8 74.2 -38.4 A P 0 3 0…

Text truncated - open the document above for the full version.

Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 33 of 49 Test Report: 020156 Test 4, Item A (Transmitter Active) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 30 MHz to 1000 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 34 of 49 Test Report: 020156 Test 4, Item A (Transmitter Active) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 30 MHz to 1000 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 35 of 49 Test Report: 020156 Test 4, Item A (Transmitter Active) - Discrete Data: Radiated Disturbance Emissions - 30 MHz to 1000 MHz Test Item (A-Z) Detector Type* (P/Q/A) Antenna Polarity (H/V) Antenna Distance (m) Measured Frequency (MHz) Measured Value (dBμV) Equipment Correction (dB/m) Corrected Value (dBμV/m) Specified Limit** (dBμV/m) Spec Margin (dB) See Comment (#) *** A P H 3 303.948 75.8 -14.2 61.6 94.9 -33.3 A A H 3 303.948 66.4 -14.2 52.2 74.9 -22.7 A P H 3 607.796 44.5 -5.8 38.7 74.9 -36.2 A A H 3 607.796 35.1 -5.8 29.3 54.9 -25.6 A P H 3 607.796 44.5 -5.8 38.7 46.0 -7.3 Restr Band A P H 3 912.444 42.1 -2.8 39.3 74.9 -35.6 A A H 3 912.444 32.7 -2.8 29.9 54.9 -25.0 A P V 3 303.948 73.8 -14.2 59.6 94.9 -35.3 A A V 3 303.948 64.4 -14.2 50.2 74.9 -24.7 A P V 3 607.796 39.6 -5.8 33.8 74.9 -41.1 A A V 3 607.796 30.2 -5.8 24.4 54.9 -30.5 A P V 3 607.796 39.6 -5.8 33.8 46.0 -12.2 Restr Band A P V 3 912.444 36.8 -2.8 34.0 74.9 -40.9 A A V 3 912.444 27.4 -2.8 24.6 54.9 -30.3 Notes: * P = Peak, Q = Quasi-Peak, A = Average. ** The Specified Limit is for the type measurement indicated. When Peak data is indicated, the tightest limit applicable is indicated. *** # = See Comment Number Under This Test's Comments Section. Sample Calculation: Corrected Value = Measured Value + Equipment Correction Equipment Correction = Antenna Factor (dB/m) + Cable Loss (dB) - Amplifier Gain (dB, if used) Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 36 of 49 Test Report: 020156 Test 4, Item B (Transmitter Ready) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 30 MHz to 1000 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 37 of 49 Test Report: 020156 Test 4, Item B (Transmitter Ready) - Peak Plot (Amplitude in dBuV/m): Radiated Disturbance Emissions - 30 MHz to 1000 MHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 38 of 49 Test Report: 020156 Test 5: Radiated Disturbance Emissions - Above 1 GHz Test Requirement: 47 CFR Part 15, Subpart C Test Specification: 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 Test Procedure: The test was performed in accordance with the Test Requirement and Specification and configured as noted in the Test Setup. The EUT was placed inside the anechoic chamber with a fresh battery installed. A peak measurement was first made by scanning the entire test frequency range and maximizing the EUT emissions by rotating the EUT and raising the antenna height from 1 to 4 meters above the ground reference plane. Then, a measurement was taken for all peak emissions to verify each were below the Test Limits. Radiated Disturbance Limits for Manually Operated Transmitters - Section 15.231 at a measurement distance of 3 meters Frequency Range Field Strength of Fundamental Field Strength of Fundamental MHz μV/m (dBμV/m) μV/m (dBμV/m) 40.66 to 40.70 2250 67.04 225 47.04 70 to 130 1250 61.94 125 41.94 130 to 174 1250 to 3750 61.94 to 71.48 125 to 375 41.94 to 51.48 174 to 260 3750 71.48 375 51.48 260 to 470 3750 to 12,500 71.48 to 81.93 375 to 1250 51.48 to 61.93 above 470 12,500 81.93 1250 61.93 ** Linear Interpolations Test Clarifications (Specific Limits for this Transmit Frequency): At fundamental frequency, 350 MHz, Average field strength limit = 7500 μV/m (77.5 dBμV/m). Harmonic field strength limit = 750 μV/m (57.5 dBμV/m). Per 15.35(b) peak limit is 20 dB above average limit for each frequency. Test Deviations: None Test Setup: Only the following ports were tested. See EUT Information for details. Test Item Port # Port Name EUT Operation Mode EUT Configuration Power Interface A 0 Enclosure 1 1 1 B 0 Enclosure 2 1 1 Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 39 of 49 Test Report: 020156 Test 5 - Results: Radiated Disturbance Emissions - Above 1 GHz Test Results Summary: Test Item Test Location Humidity (%) Temperature (ºC) Pressure (kPa) Pass/Fail (P/F) Date Completed Comment # A A 44.0 23.0 100.1 P 3/11/02 B A 44.0 23.0 100.1 P 3/11/02 The EUT was considered to Pass the Requirements. Comments: Comment # Description 1 Average emissions were calculated using peak-to-average ratio of 9.4 dB determined in Test 2. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 40 of 49 Test Report: 020156 Test 5 - Test Equipment Used: Radiated Disturbance Emissions - Above 1 GHz Equipment ID Description Manufacturer Model Number Last Cal. Next Cal. AT0032 Horn Antenna, 1 to 18 GHz EMC Test Systems 3115 3/5/01 3/31/02 ATA123 27ft N-male to N-male Low Loss Coax Micro-coax Low-loss cable 8/1/01 8/31/02 ATA095 6 ft, N male - N male Micro-Coax Coaxial Cable 4/26/01 4/30/02 ATA108 10m, N male - N male UL RG214 8/23/01 8/31/02 HI0034 Environmental Indicator Cole-Palmer 99760-00 10/1/01 10/31/02 SAR001 Spectrum Analyzer / Receiver Hewlett-Packard 8572A 12/3/01 12/31/02 The above equipment has been calibrated and is within the manufacturer’s published limit of error. Calibration is traceable to th…

Text truncated - open the document above for the full version.

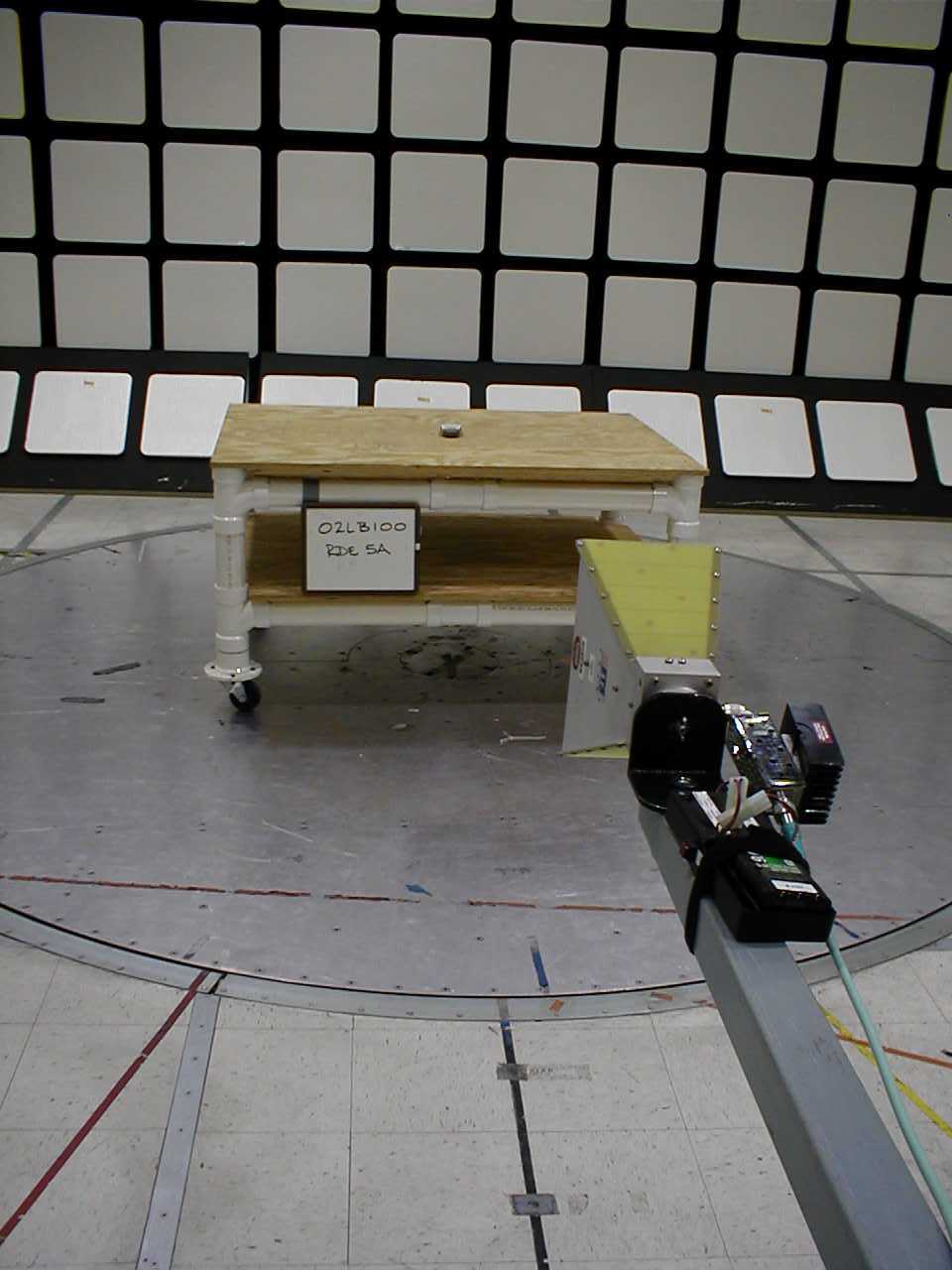

Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 45 of 49 Test Report: 020156 Test 5, Item A - Test Set-Up Photo - Maximum Emissions Configuration: Radiated Disturbance Emissions - Above 1 GHz Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 46 of 49 Test Report: 020156 Test 6: Radiated Disturbance Emissions - Restricted Bands Test Requirement: 47 CFR Part 15, Subpart C Test Specification: 47 CFR Part 15, Subpart C, Section 15.205 Test Procedure: The EUT is verified to produce only spurious emissions in the bands listed below. Where spurious emissions exist they must comply with the general limits from 47 CFR Part 15, Section 15.209. Results from measurements are examined to ensure that no spurious emission in a restricted band (below) exceeds the general limits in Section 15.209. The restricted bands from Section 15.205 are: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 608 - 614 4.5 - 5.15 0.495 - 0.505 16.69475 - 16.69525 960 - 1240 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475 1300 - 1427 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1435 - 1626.5 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1645.5 - 1646.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1660 - 1710 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1718.8 - 1722.2 10.6 - 12.7 6.26775 - 6.26825 108 - 121.94 2200 - 2300 13.25 - 13.4 6.31175 - 6.31225 123 - 138 2310 - 2390 14.47 - 14.5 8.291 - 8.294 149.9 - 150.05 2483.5 - 2500 15.35 - 16.2 8.362 - 8.366 156.52475 - 156.52525 2655 - 2900 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 3260 - 3267 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3332 -3339 23.6 - 24.0 12.29 - 12.293 127.72 - 167.17 3345.8 - 3358 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3600 - 4400 36.43 - 36.5 12.57675 - 12.57725 332-335.4 Above 38.6 13.36 - 13.41 399.9 - 410 All spurious emissions, including harmonics falling within restricted bands were observed to meet the general limits of 15.209. Test Deviations: None Test Setup: Only the following ports were tested. See EUT Information for details. Test Item Port # Port Name EUT Operation Mode EUT Configuration Power Interface A 1 1 1 1 Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 47 of 49 Test Report: 020156 Test 6 - Results: Radiated Disturbance Emissions - Restricted Bands Test Results Summary: Test Item Test Location Humidity (%) Temperature (ºC) Pressure (kPa) Pass/Fail (P/F) Date Completed Comment # A A 44.0 23.0 100.1 P 3/11/02 The EUT was considered to Pass the Requirements. Comments: Comment # Description 1 Restricted bands apply to spurious frequencies at 608 MHz, 1216 MHz, 1520 MHz, and 2736 MHz. 2 Emissions at these spuriour frequencies comply with General Limits of FCC Part 15.209. See Test 4 and Test 5 for measurements. Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 48 of 49 Test Report: 020156 Accreditation Certificates: Measurement Uncertainty Statement The limits and test levels used in this report are based on the referenced standards and/or specifications listed without regard to the estimated uncertainty of measurements factors listed below. Any statement in this report related to the compliance or non-compliance with the applicable limits does not include adjustments for the estimates of measurement uncertainty. 1. For those results that remain within the stated limits after the application of the estimate of measurement uncertainty factors, the statement of compliance of items, as tested, is confirmed. 2. For those results that do not remain within the stated limits after the application of the estimate of measurement uncertainty factors, the statement of compliance is not changed by UL; however, the manufacturer is advised that the margin of compliance should be improved to ensure that margin of compliance with condition 1 listed above is achieved. Note: The final determination of compliance or non-compliance with the limits of a particular standard and/or specification may require including the application of the measurement uncertainty factors listed, if required by the standard or specification. Manufacturers are advised to consider this possible requirement in issuing declarations of conformity, certificates of compliance, or the like based on this test report. Expanded Estimate of Uncertainty (k = 2, for 95% of a normal distribution) 1. Radiated Emissions (ANSI C63.4 Test Methods) • 0.01 to 30 MHz = +/- 2.4 dB (Vertical Rod Antenna) • 30 to 200 MHz = +/- 3.0 dB (Biconical or Dipole Antenna) • 200 to 1000 MHz = +/- 3.1 dB (Log Periodic, Horn, or Dipole Antenna) • Above 1000 MHz = +/- 3.1 dB (Horn Antenna) 2. Conducted Emissions (ANSI C63.4 Test Methods) • 0.01 to 30 MHz = +/- 1.0 dB Project: 02RT3660 Underwriters Laboratories, Inc. Issued: 03/14/02 File: MC1324 Test Report on Electromagnetic Compatibility Page 49 of 49 Test Report: 020156 Canadian Site Registration:
