H2WCASA7TFan and Light Control Transmitter

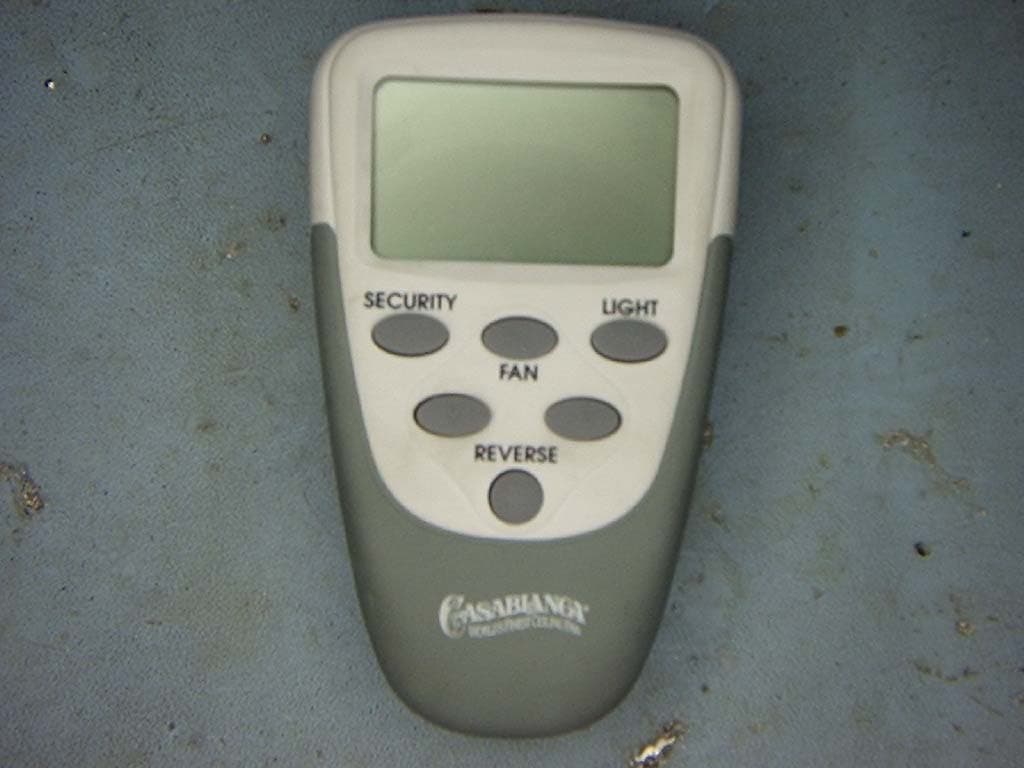

FCC ID: H2WCASA7T Exterior IC: 3558A-CASA7T Front FCC ID: H2WCASA7T Exterior IC: 3558A-CASA7T Rear

FCC/IC Label (W62) FCC/IC Label (W63)

FCC ID: H2WCASA7T Interior IC: 3558A-CASA7T Rear (with Address DIP switch and antenna) FCC ID: H2WCASA7T Interior IC: 3558A-CASA7T Front side (Circuit side with LCD in cover)

Casablanca Fan & Light Remote Control RF Transmitter Coding Description: The Hunter transmitter uses the following code words to modulate on a 303.5 MHz RF carrier by using ASK modulation. Code words for the different commands: 1-xxxxx-yyyyyyyyyyy (Where “x” can be set to “1” or “0” by the user with DIP switches. “yyyyyyy” respresent the command string – e.g. Fan On High.) Code “0” is represented as: 0.66 ms 0.34 ms Code “1” is represented as: 0.34 ms 0.66 ms W62/W63 transmitters incorporate a timer to limit the length of transmission, control the “Safe Exit” automatically activated transmission. A measurement of the transmission on/off time is shown in the test report.

Project: 03RT10105 File: MC1324 Report: 030364 Date: December 01, 2003 (Revised February 15, 2005) Model(s): W62 and W63 Part Number(s): 7801910, 7801920, 7854220, and 7854230 Test Report On Electromagnetic Compatibility Testing Hunter Fan Company Memphis, TN USA Copyright  2005 Underwriters Laboratories Inc. Underwriters Laboratories Inc. authorizes the above-named company to reproduce this Report provided it is reproduced in its entirety. Project: 03RT10105 Underwriters Laboratories, Inc. Issued: 12/01/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 2 of 39 FCC ID: H2WCASA7T Test Report: 030364A IC: 3558A-CASA7T Test Report Details: Tests Performed By: Underwriters Laboratories Inc. 12 Laboratory Drive Research Triangle Park, NC 27709 Tests Performed For: Hunter Fan Company 2500 Frisco Avenue Memphis, TN 38114 USA Applicant Contact: Mr. Chris Williams Safety and Test Engineer (901) 248-2342 (901) 248-2382 - FAX Test Report Number: 030364A Test Report Date: December 01, 2003 Revised 2-14-2005 to include new “Safe Exit” features Product Type: Remote Control for Ceiling Fan/Lamp Model Number: W62 and W63 Sample Serial Number: Unserialized, production sample Sample Tag Number: 0535367-001 EUT Category: Transmitter - Low Powered EUT Type: Hand Held Sample Receive Date: November 17, 2003 Testing Start Date: November 24, 2003 Date Testing Complete: November 24, 2003 (follow-up test performed February 2, 2005) Underwriters Laboratories Inc. reports apply only to the specific samples tested under stated test conditions. All samples tested were in good operating condition throughout the entire test program. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. Underwriters Laboratories Inc. shall have no liability for any deductions, inferences or generalizations drawn by the client or others from Underwriters Laboratories Inc. issued reports. This report shall not be used to claim, constitute or imply product certification, approval, or endorsement by NVLAP, A2LA, or any agency of the US government. This report may contain test results that are not covered by the NVLAP or A2LA accreditation. The scope of accreditation is limited to the specific tests that are listed on the NVLAP and/or A2LA certificates provided at the end of this report. Project: 03RT10105 Underwriters Laboratories, Inc. Issued: 12/01/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 3 of 39 FCC ID: H2WCASA7T Test Report: 030364A IC: 3558A-CASA7T Summary of Testing: Test Test Name Comply Does Not See # Test Requirement/Specification Comply Remark 1 Radiated Disturbance Emissions - 30 MHz to 1000 MHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.1.1(e) 2 Radiated Disturbance Emissions - Above 1 GHz X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.209 and 15.231 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.1.1(e) 3 Radiated Disturbance Emissions - Peak-to-Average Ratio X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.1.1(e) 4 Radiated Disturbance Emissions - Occupied Bandwidth X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.1.1(e) 5 Radiated Disturbance Emissions – Transmission Duration X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.231 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.1.1(e) 6 Radiated Disturbance Emissions - Restricted Bands X - 47 CFR Part 15, Subpart C / 47 CFR Part 15, Subpart C, Section 15.205 Canada RSS-210, Issue 5, Amendment / Canada RSS-210, Issue 5, Amendment Section 6.2.2(t1) Remarks: 1) Canada: Test performed on Industry Canada Registered Site IC-2953. Canada Emissions designator L1D14K4. 2) Device is exempt from routine RF exposure testing per FCC Part 2.1091. 3) Device contains an integrated antenna. It is not detachable or replaceable by the user. 4) Device contains a “Safe Exit” mode that performs a manually activated transmission and begins a countdown to an automatically activated transmission. a) The initial manually activated transmission lasts for 5.00 seconds after release of button. This dims the lamp to 50%. This is equal to the maximum 5 seconds permitted by FCC Part 15.231(a)(1) and RSS-210 Section 6.1.1. b) The automatically activated transmission begins 10 seconds after the manual transmission ends. This transmission is 4.9 seconds in duration and gradually dims the lamp to off. This is less than the 5 second maximum duration permitted for automatic devices in FCC Part 15.231(a)(2) and RSS-210 Section 6.1.1. 5) Other buttons cease transmission less than 1 second after button release. This satisfies the 5 second maximum permitted by FCC Part 15.231(a)(1) and RSS-210 Section 6.1.1. Conclusion: The tests listed in the Summary of Testing section of this report have been performed and the results recorded by Underwriters Laboratories Inc. in accordance with the procedures stated in each test requirement and specification. The test list was determined by the Applicant as being applicable to the Equipment Under Test. As a result, the subject product has been verified to comply or not comply as noted in the Summary of Testing with each test specification. The test results relate only to the items tested. Prepared By: Reviewed By: Jim Marley Mark Nolting NARTE Certified EMC Engineer NARTE Certified EMC Test Lab Engineer EMC-002278-NE ATL-0340-E (919) 549-1408 (919) 549-1584 Project: 03RT10105 Underwriters Laboratories, Inc. Issued: 12/01/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 4 of…

Text truncated - open the document above for the full version.

Project: 03RT10105 Underwriters Laboratories, Inc. Issued: 12/01/03 File: MC1324 Test Report on Electromagnetic Compatibility Page 15 of 39 FCC ID: H2WCASA7T Test Report: 030364A IC: 3558A-CASA7T Test 1, All Items - Test Set-Up Photo: Radiated Disturbance Emissions - 30 MHz to 1000 MHz
