H78KPMT150W2 WATT VHF AUTOMATIC METER READER-TX

J9 Meter Input Cables MT150W™ Long-Range Synthesized Radio Meter Transmitter Installation Manual Web Site: www.kpsystems.com ISRAEL Office Email: [email protected] Tefen Industrial Park, Tefen 24959 Tel: 972-4-987-3066 Fax: 972-4-987-3692 USA Office: KP ELECTRONICS INC. Email: [email protected] 109 Tudor Drive, North Wales, PA 19454 Tel: (215) 542-7460 Fax: (215) 542-7461 Book 95 Approved: Amir S. Rev: 01 01/11/04 MT150W™ General Description MT150W™ is a long-range, synthesized radio-metering transmitter in the VHF 172-174 MHz frequency range .. When the MT150W detects pulse conditions at one or more of its inputs the pulse is counted and saved. When the number of the pulse is equal to the Trans Scale defined by the GUP10™, it is then transmitted to the central station according to the WAT-NET TM protocol selected for the system in operation. MT150W™ has one connector (see Figure 1). 1. J9: The 10-pin programming jack is a serial port to connect a PC or a FTU (see Figure 1) . Unit parameters and meters values are easily programmed using Gup10™ utility-programming software. (See the MT150W™ Programming Guide) or by the FTU. 2. Meter Input: The meter input is a two wires cable. These wires connect to the meter output. Figure 1: MT150W™ View Preparing for Operation Before installing the MT150W™ on site, perform the following preparations: 1. Setting communication parameters 2. Self test Setting Communication Parameters • Connect GUP10 program to the MT150W™ (see the MT150W™ programming guide) Self-Test In order to perform a self-test please see the Field Programmer User Guide. Installing the MT150W There are two mounting methods: 1. Wall mounting 2. On-Pipe mounting Wall Mounting Installation 1. Fasten the mounting bracket on the wall with four screws (See figure 2) 2. Slide the MT150W unit on the mounting bracket until the 4 clips are locking the unit 3. Define the parameters with the field programmer (FTU100) see the FTU User Guide 4. Insert the terminator to J9 (See figure 1) 5. Put the cover On-Pipe Mounting Installation 1. Fasten the mounting bracket on the pipe with two screws and the “Omega” bracket (See figure 3) 2. Slide the MT150W unit on the mounting bracket until the 4 clips are locking the unit 3. Define the parameters with the field programmer (FTU100) see the FTU User Guide 4. Insert the terminator to J9 (See figure 1) 5. Put the cover Figure 2 2 2 2 : Wall Mounting Figure 3 3 3 3 : On-Pipe Mounting Restrictions: 1. Do not mount the unit on any kind of metal surface. 2. Do not mount any input cable next to the antenna (see figure). Meter types: 1. There are two main types of meters: 2. Meters that produces a ‘Passive Pulse’. 3. Meters that produces an ‘Active-Pulse’ (known also as-‘’Pulse Generator’). Technical Specifications: Operating Voltage 8–15 VDC Standby Current 30μA max. Tx Current 0.8A max. Power Output 2W Freq. Stability ± 5ppm at operating temp. range Operating Temp. -22 ° F ÷ 120 ° F (-30 ° C ÷ 60 ° C) Storage Temp. -40 ° F ÷ 158 ° F (-40 ° C ÷ 70 ° C) Weight 0.5 lb. (230 gr.) Wiring: 1. Connect the two polls of the Meter input cable to the meter using a self-stripping insulated connector (like 3M-Scotchlock or equivalent). 2. Polarity: if a ‘Passive Pulse’ type meter is connected, there is no polarity so the wires can be connected in any order, if an ‘Active Pulse’ type meter is connected, there is a polarity and the wires have to be connected in the following order: Red wire to the POSITIVE (+) poll and the Black wire to the NEGATIVE (-) poll, (see figure 4). Figure 4: Wiring THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Federal Communication Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:H78KPMT150WP Pursuant to Section 0.457 and 0.459 of the Commission’s Rules ,we hereby request confidential treatment of information accompanying this application as below: BLOCK DIAGRAM & SCHEMATICS The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Yoram Kenig President

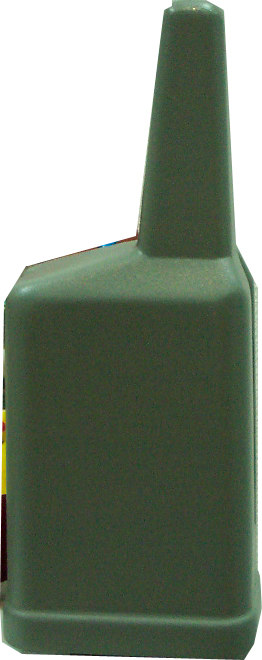

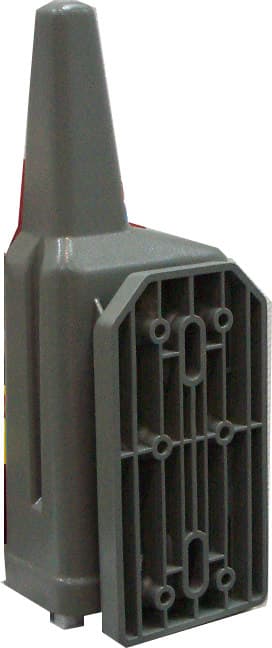

MT150WP Lebel location Rear view Front view (pic.1) (pic.2) The label is located on rear side of the MT150WP plastic cover, see pic1.

MODEL: MT150W PART NUMBER: MT150WP FREQUENCY: 173.2875 MHz SERIAL NO: 04080003 VOLTAGE: 12 VDC FCC ID NO: H78KPMT150W This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. KP ELECTRONICS SYSTEMS LTD. MADE IN ISRAEL

KP Electronic Systems, Ltd. MT150WP- Theory of operation and tuning procedures Rev: 0.1 KP Electronic Systems, Ltd. MT150WP WIRELESS VHF WAT-NETTM T RANSMITTER Theory of operation & tuning procedures File: Revision Details Rev . Date Description Reason of change Affect Paragraph/ Documents Initiator 1.0 2.08.2004 Initial release
V.Dashinsky Name Title Date Signature MT150WP- Theory of operation and tuning procedures Page 1 of 5
      KP Electronic Systems, Ltd. MT150WP- Theory of operation and tuning procedures Rev: 0.1 Revision History Rev. Date
Description Reason of change Affect Paragraph/ Documents Initiator MT150WP- Theory of operation and tuning procedures Page 2 of 5
      KP Electronic Systems, Ltd. MT150WP- Theory of operation and tuning procedures Rev: 0.1 MT150WP Circuit description MT150WP is a long-range synthesized radio alarm transmitter that is operated in VHF 136-174 MHz frequency band, and is intended for the operation into WAT-NET TM network. The MT150WP detects pulse on its inputs from water meters measuring devices and transmit it by one or four messages to WAT-NETTM monitoring center. When the number of the pulse is equal to the “Trans Scale” defined by the GUP10 utilities program or, else take place signal from internal timer or test button, the MT150WP also transmit data to monitoring central station. The MT150WP transmit data according to the WAT-NET TM data communications protocol. MT150WP consists of a single electronic board mounting inside a plastic housing. The metal plate is used for the MT150WP board and a plastic housing fastening. The MT150WP board contains three major parts; - Synthesized RF, FM transmitter - Digital encoder, based on Intel 87C52 micro controller. - Analog voltage control block - Power supply and power switches. Theory of operation (Refer to the Circuit Diagram ) The pulse from water meters measuring devices is follow through J11 input connector, passing trough U9 MC14017B decade counter and turn “ON” Q204 switch .The R120, C99 RC section is discharged to ground and Q19 switch pass VBAT voltage to VT+ track. The VT+ voltage activates U6, U7 and U4 power supplies. VCC voltage powering the U1 micro-controller. The micro-controller is initialize Tx mode and encodes the input data in FSK tones for the transmitter. When a transmission is initiated, a repetitive word block is prepared by the micro - controller for transmission. When PTT1 line is pulsed too low, the micro-controller sends the programmed frequency to the synthesizer and allows it to build up the carrier frequency. Subsequently the PTT2 line is also pulled too low and the amplifier link raises the RF signal from synthesizer to a power of minimum 2 watt. The Tx data is then activated and allow for the audio data to modulate RF signal. The micro-controller checks automatically the battery voltage before and during each transmission. If the battery voltage is lower than 10.5volts, a low battery message is transmitted and, if is lower than 8.5 volts, transmission is stopped. T150WP- Theory of operation and tuning procedures Page 3 of 5
      KP Electronic Systems, Ltd. MT150WP- Theory of operation and tuning procedures Rev: 0.1 MT 150WP has a self–test button, allowing the user, to test the proper operation of all circuits. As soon as it is pressed, the self-test LED 2 flashes: - Once System OK - Three times Battery fault (voltage lower than 8.5volts) - Four times Unlock frequency - Six times Low battery (voltage lower than 10.5volts) When the Q19 gate voltage will rise up to pinch-off voltage, the Q19 transistor switching off the transmitter circuits, micro-controller and in this case the sleep mode take place. The U11 timer is intend for the periodic timer diagnostic mode. RF Transmitter The transmit frequency is built around Fujitsu PLL MMB1501 chip U3.It uses 12.8MHz for reference frequency oscillator and 6.25KHz for step frequency. The loop filter is a low pass filter that attenuates noise and rejects the loop reference frequency. The loop filter consists of R33, R26, R38 and C17, C18, C19 passive elements. The voltage across C19 is the steering line voltage, which controls the VCO frequency. VCO consists of a BJT oscillator Q2 whose frequency is determined by D2 and L1. As the steering line varies over the range of 0.5V to 4.5V DC, the capacitance of the varactor D2 decreases as voltage is raised, causing the oscillator frequency to increase. Transistor Q5 is the buffer amplifier and raises the RF output of the VCO to the level required by the RF power amplifier. The 2 watts VHF power amplifier cover the range of 136-174MHz. It consists of three stages. The firs stage, Q6 is Class ”A” and has a gain of 15db and delivers 100mw of output power. The second stage, Q8, is operated in Class “A” and has 9db of gain. Its output level is 0.8 watt. The three stages, Q4 a Class “C” RF final power amplifier .It can output 2 watts. The harmonic filter is an Elliptic low-pass filter with a 3db frequency of approximately 200MHz, and less than 1db insertion loss in the pass-band. The PTT1 switch consists of Q9, supplying the synthesizer and VCO 5volts DC. The PTT2 switch supplies the amplifier bias of 5 volts DC also supplies output power amplifier VBT voltage. Digital Encoder The digital encoder is based an Intel 87C52 micro-controller. It scans its inputs P0.4.... P0.7 The battery voltage check is made trough P1.6. MT150WP- Theory of operation and tuning procedures Page 4of 5
      KP Electronic Systems, Ltd. MT150WP- Theory of operation and tuning procedures Rev: 0.1 The micro-controller switches the transmitter on using PTT1 through P2.2, PTT2 through P2.3. The micro-controller encodes the data to FSK audio tones through port P1.2, which passing through buffer-amplifier Q3 and injected to PLL modulation input through C25, R40 passive RC network and modulated output RF signal. The micro-controller programs the PLL…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPMT150W REPORT #: K\KP\1598YAT4\1598YAT4TestReport.doc COVER PAGE Test Report Product Name: 2 WATT VHF AUTOMATIC METER READER FCC ID: H78KPMT150W Applicant: KP ELECTRONIC SYSTEMS LTD. P.O. BOX 42 TEFEN INDUSTRIAL PARK TEFEN, 24959 ISRAEL Date Receipt: SEPTEMBER 29, 2004 Date Tested: OCTOBER 12, 2004 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPMT150W REPORT #: K\KP\1598YAT4\1598YAT4TestReport.doc TABLE OF CONTENTS APPLICANT: KP ELECTRONIC SYSTEMS LTD. FCC ID: H78KPMT150W TABLE OF CONTENTS LIST TEST REPORT: PAGE 1...........GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2...........TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT AUDIO FREQUENCY RESPONSE AUDIO LOW PASS FILTER PAGE 3-5.........OCCUPIED BANDWIDTH PAGE 6...........SPURIOUS EMISSIONS AT ANTENNA TERMINALS METHOD OF MEASURING SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 7...........FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 8...........METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 9...........FREQUENCY STABILITY PAGE 10-12.......TRANSIENT FREQUENCY STABILITY PAGE 13..........EQUIPMENT LIST EXHIBITS CONTAINING: CONFIDENTIALITY LETTER BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS TUNING PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPMT150W REPORT #: K\KP\1598YAT4\1598YAT4TestReport.doc Page 1 of 13 GENERAL INFORMATION REQUIRED FOR CERTIFICATION OF A LICENSED TRANSMITTER 2.1033(c)(1)(2) KP ELECTRONIC SYSTEMS LTD. will manufacture the FCCID: H78KPMT150W VHF TRANSCEIVER in quantity, for use under FCC RULES PART 90. KP ELECTRONIC SYSTEMS LTD. P.O. BOX 42 TEFEN INDUSTRIAL PARK TEFEN, 24959 ISRAEL 2.1033(c) TECHNICAL DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included. 2.1033(c)(4) Type of Emission: 6K0F1D 90.209 90.207 Bn = 2M + 2DK M = 4800 D = 600 Bn = 2(4800/2)+2(600) = 6.0k 2.1033(c)(5) Frequency Range: 173 - 174 MHz 90.209 (b)(5) 2.1033(c)(6)(7) Power Output shall not exceed 59 Watts into a 50 ohm 90.205 resistive load. There are no user power controls. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: POWER INPUT: FINAL AMPLIFIER ONLY INPUT POWER: (12.5V)(0.58A) = 7.25 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included. 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included. The block diagram is included. 2.1033(c)(11) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description. 2.1033(c)(12) A photograph or drawing of the equipment identification label is included. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPMT150W REPORT #: K\KP\1598YAT4\1598YAT4TestReport.doc Page 2 of 13 2.1033(c)(13) Photographs of the equipment of sufficient clarity to reveal equipment construction and layout and label location are included. 2.1033(c)(14) For equipment employing digital modulation, a detailed description of the modulation technique. This UUT uses FSK to modulate the transmitter. 2.1033(c)(15) The data required for 2.1046 through 2.1057 is submitted below. 2.1046(a) RF POWER OUTPUT RF power is measured by connecting a 50-ohm, resistive wattmeter to the RF output connector. With a nominal battery voltage, and the transmitter properly adjusted the RF output measures: OUTPUT POWER: 2 Watts 2.1047(a) Voice modulation characteristics : This UUT does not have an audio frequency responses plot. 2.1049 Audio Low Pass Filter This UUT does not have a low pass filter. Transmitter under Test Power Meter Audio Oscillator TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: KP ELECTRONICS SYSTEMS LTD. FCC ID: H78KPMT150W REPORT #: K\KP\1598YAT4\1598YAT4TestReport.doc Page 3 of 13 2.1049 Occupied bandwidth: 2.1049(c) EMISSION BANDWIDTH: 90.210 (b) 25kHz Channel Spacing : Data in the plots show that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the assigned frequency by more than 100%, but not more than 250%: At least 35 dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43 + 10log(P)dB. 90.210 (c) 12.5kHz Channel Spacing Not Equipped with a Low Pass Filter : For transmitters that are not equipped with an audio low pass filter pursuant to S90.211 (b), the power of any emission must be attenuated below the un-modulated carrier output power as follows; (1) On any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 5 kHz but not more than10 kHz: At least 83 log (fd/5) dB; (2) ON any frequency removed from the center of the authorized bandwidth by a displacement frequency (fd in kHz) of more than 10 kHz, but not more than 250% of the authorized bandwidth: At least 29 log(fd2/11)dB or 50 dB, whichever is the lesser attenuation; (3) On any frequency removed from the center of the authorized bandwidth by more than 250% of the authorized bandwidth: At least 43 + 10 log(Po)dB. 90.210 (d) Emission Mask D - 12.5 kHz channel BW equipment: For transmitters designed to operate with a 12.5 kHz channel bandwidth, any emi…
