MobileLAN WA21 Radio Replacement Instructions 1 About the Radio Upgrade Kit In the MobileLAN access WA21, you may need to add a second radio, replace a malfunctioning radio, or remove one type of radio and replace it with another type of radio. These instructions explain how to add or replace a radio, how to reconfigure the configuration matrix string, and how and where to apply the new labels. At the end of these instructions you can find some troubleshooting information. Note: The country code is programmed into the radio at the factory. The country code should always remain the same in an access point. You should not upgrade an access point with a radio with a different country code. There are three radio upgrade kits that you can order: 802.11b Radio (P/N RWA21A704) 802.11a Full-Range Radio (P/N RWA21A904) 802.11a Mid-Range Radio (P/N RWA21A954) • Mini-PCI radio card • Mini-PCI radio card • Mini-PCI radio card • Retainer clip • Retainer clip • Retainer clip • RF certification label • RF certification label • RF certification label • Radio upgrade kit label • Radio upgrade kit label • Radio upgrade kit label • Antenna cable assemblies (2) • Antenna cable assemblies (2) • Antenna cable assemblies (2) • Antennas (2) To maintain the IP54 rating, Intermec recommends that you also replace this part: • Gasket (P/N 065194-002) You need these tools: • Torx T20 (to open the access point) • Ratchet with 16 mm (5/8 in) socket • 16 mm (5/8 in) open-ended socket wrench 2 MobileLAN WA21 Radio Replacement Instructions • Calibrated torque screwdriver You may also need these tools: • Scissors (to trim the RF certification label) Integrated circuits on the printed circuit board (PCB) in the access point are very sensitive to damage by electrostatic discharge (ESD). Prevent ESD by always wearing skin contact ground straps firmly attached to the equipment metal base assembly when working inside the access point. Never open the unit package without safeguarding the entire work area with ESD protection. Failure to comply may result in damage to PCB components. Opening the Access Point Note: Opening this product can result in voiding the warranty. Only Intermec service personnel should perform radio upgrades and replacements. 1 Before you replace or add a radio, note the configuration settings. 2 Turn the access point over so it rests on its top cover. 3 Unscrew the two thumbscrews on the cable access door and remove the door. 4 Disconnect all cables. 5 Remove the seven screws that connect the top and bottom of the access point cover, and then turn the access point over so it rests on its feet. MobileLAN WA21 Radio Replacement Instructions 3 6 Slowly separate the cover from the chassis by tilting it from the back and disconnect the LED flex assembly from the main printed circuit board (PCB). 2100M.049 LED assembly 7 Completely remove the top cover. 8 Carefully remove the gasket. 2100M.045 4 MobileLAN WA21 Radio Replacement Instructions Removing a Radio and the Antenna Cable Assembly If you are replacing a malfunctioning radio or if you are replacing one type of radio with another type of radio, you must remove the existing radio and antenna cable assembly. To remove a radio 1 Lift the antenna cables off the radio. Retaining Clip Radio Antenna cable Antenna socket WA21I001.eps 2 Carefully pry one end of the retainer clip off the radio and remove the clip. 3 Pull apart the spring clips on either side of the radio until the radio tilts up. Gently rock the radio back and forth while pulling it out to remove it from the mini-PCI connector. WA21I009.eps Retaining clip (2 places)sO 4 Unscrew the antennas for the radio you are removing. MobileLAN WA21 Radio Replacement Instructions 5 5 Use the open-ended socket wrench or ratchet to remove the nut and lockwasher on the antenna cable assembly. Removing an Antenna Plug On the back of the access point, the antenna ports are numbered. If you are adding a second radio to the access point, antenna ports 1 and 2 may be plugged. You will need to remove these plugs to install the antenna cable assemblies. If you are using only one antenna, remove antenna port 2. To remove an antenna plug 1 For the 802.11a antenna you have to use the special insertion tool. 2 The 802.11b antenna connector can be removed by hand. Note: If the special tool is not used, the 802.11a connector will be destroyed and the radio rendered useless. Installing a Radio The access point has two radio slots. Radio slots 1 and 2 are identified in the next illustration. If your access point has only one radio and you are replacing this radio, install it in slot 1. 2100I.004 PICTURE - UPDATE To install a radio 1 Orient the radio so that the labels are facing up and the socket is facing the connector. 2 Tilt the radio toward the connector (approximately 45 degrees) and insert it into the connector. Make sure that the radio is firmly seated in the connector. 6 MobileLAN WA21 Radio Replacement Instructions WA21I003.eps 3 Push the radio down until it locks in the spring clips. 4 Orient the retaining clip so that the bevel faces the antenna ports. Retaining Clip Clip bevel Radio WA21I005.eps 5 Install the retaining clip over the radio and push down until both sides lock into place. Installing the Antenna Cable Assembly 1 From the inside of the access point, insert an antenna cable assembly through an antenna port. If you are using only one antenna, make sure you use antenna port 2 or antenna port 4. These are the primary ports. 2 From the outside of the access point, place the lockwasher on the antenna cable assembly and then screw on the nut. 3 Tighten the nut. MobileLAN WA21 Radio Replacement Instructions 7 2100I.002 Antenna cable assembly Lock washer Nut PICTURE – UPDATE (Too much detail) 4 If necessary, repeat Steps 1 through 3 for the other antenna cable assembly. 5 If you are installing an 802.11a full-range radio, two antennas shipped in the upgrade kit. Install the antennas. a Feed the antenna wire through …

Text truncated - open the document above for the full version.

Part No. 072831-001 1 Important WA21/WA22 Information! Contents For Users in the United States and Canada.......................................................................... 2 For Users Outside of the United States and Canada ............................................................ 3 Pour les utilisateurs en dehors du Canada et des Etat-unis ................................................... 3 Für Benutzer außerhalb von Kanada und den Vereinigten Staaten ....................................... 4 Per gli utenti al di fuori del Canada o degli Stati Uniti ........................................................ 4 Para Usuarios Fuera de Canada o de los Estados Unidos...................................................... 5 Para Usuários fora do Canadá ou dos Estados Unidos ......................................................... 5 .............................................................................................. 6 2 For Users in the United States and Canada Place this supplement in your manual. Federal Communications Commission Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that can cause undesired operation. This equipment is intended for operation in a commercial environment, in compliance with the requirements for a Class A digital device, pursuant to Part 15 of the FCC Rules, and it must not be used in a residential environment; however, it has also been tested and found to comply with the more stringent requirements for a Class B device, pursuant to Part 15 of the FCC Rules. It generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instruction manual, it may cause interference to radio communications. If this equipment causes interference, the user will be required to correct the interference at the user’s own expense. Caution Conseil Changes or modifications not expressly approved by Intermec could void the user’s authority to operate this equipment. Caution Conseil Regulatory statements relating to the transceivers contained in this product are in a separate manual supplement accompanying the transceiver. Note In order to maintain compliance with FCC Rules, the input/output (I/O) cables that interconnect between the device and any peripheral must be as specified by Intermec. Industry Canada Compliance This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilleur du Canada. Additional EMI/RFI Compliance This device meets the Class B limit requirements of CISPR 22. Safety Agency Approvals This device is UL and cUL Listed (UL 1950/C22.2 #950) and TÜV GS Licensed (EN 60950) for safety. 3 For Users Outside of the United States and Canada Place this supplement in your manual. This product complies with EN55022, EN55024, and EN 60950 as required by the EMC Directive 89/336/EEC as amended by 92/31/EEC and by the Low Voltage Directive 73/23/EEC as amended by 93/68/EEC. Safety Agency Approvals This device is UL and cUL Listed (UL 1950/C22.2 #950) and TÜV GS Licensed (EN 60950) for safety. Additional EMI/RFI Compliance This device meets the Class B limit requirements of CISPR 22. This device complies with AS/NZS 3548 and other applicable rules under the Australian EMC framework. Pour les utilisateurs en dehors du Canada et des Etat-unis Veuillez placer ce supplément dans votre manuel. Déclaration de conformité européenne Ce produit est conformé aux normes EN55022, EN55024 et EN 60950 tel qu’exigé par la directive de l’EMC nº 89/336/CEE amendée par l’article 92/31/CEE et par la directive sur la basse tension nº 73/23/CEE amendée par l’article 93/68/CEE. Approbations d'agences pour la sécurité Cet appareil fait partie de la liste UL et cUL (UL 1950/C22.2 n° 950) et il est sous licence TÜV GS (EN 60950) en termes de sécurité. Conformité additionelle à la norme EMI/RFI Cet appareil respecte les limites imposées pour la Classe B par le CISPR 22. 4 Für Benutzer außerhalb von Kanada und den Vereinigten Staaten Legen Sie diese Ergänzung in Ihr Handbuch. Europäische Übereinstimmungserklärung Dieses Produkt entspricht EN55022, EN55024, und EN 60950 in Übereinstimmung mit der EMC-Richtlinie 89/336/EWG, abgeändert durch 92/31/EWG, und der Richtlinie für Niederspannung 73/23/EWG, abgeändert durch 93/68/EWG. Sicherheitszulassungen durch Prüfstellen Dieses Gerät ist in die UL- und die c-UL-Liste (UL 1950/C22.2 Nr. 950) aufgenommen und vom TÜV GS (EN 60950) gemäß der Sicherheitsnorm lizenziert. Zusätzliche Elektromagnetische Störung-Übereinstimmung Dieses Gerät stimmt mit den Grenzbestimmungen der Klasse B von CISPR 22 überein. Per gli utenti al di fuori del Canada o degli Stati Uniti Si prega di collocare questo supplemento nel manuale. Dichiarazione europea di conformità Questo prodotto è conforme a EN55022, EN55024, e EN 60950 come richiesto dalla Direttiva EMC 89/336 CEE, modificata dalla 92/31/CEE e dalla Direttiva sulla bassa tensione 73/23/CEE, modificata dalla 93/68/CEE. Approvazioni relative alla sicurezza Questo prodotto è conforme agli standard di sicurezza UL e cUL (UL 1950/CC22.2 n.950) e TÜV GS (EN 60950). Ulteriore conformità con EMI/RFI Questo dispositivo è conforme ai limiti stabiliti in CISPR 22 per la Classe B. 5 Para Usuarios Fuera de Canada o de los Estados Unidos Por favor, coloque este suplemento dentro de su manual. Declaración de conformidad europea Este producto cumple con las normas EN55022, EN55024, y EN 60950 de acuerdo a lo establecido por la directiva de EMC 89/336/CEE corregida por 92/31/CEE y por la directiva referente al bajo voltaje 73/23/CEE corregida por 93/68/CEE. Aprobación de organismos de seguridad Este dispositivo está listado por UL y por …

Text truncated - open the document above for the full version.

MyriadPro Intermec’s MobileLAN™access family of access points delivers reliable and seamless wirelessperformance to almost any operational environment. The MobileLAN access WA22 ispowered by power over Ethernet to make installation easier. It is designed for standards- based connectivity and it may have up to two of the following radios installed: • IEEE 802.11a • IEEE 802.11b • IEEE 802.11b/g The WA22 with an IEEE 802.11b radio installed is Wi-Fi certified forinteroperability with other 802.11b wireless LAN devices. This quick start guide helps you to understand the WA22 ports and LEDs. You can also usethis quick start guide to get an overview of how to install the WA22, how to connect theWA22 to power and to your network, and how to use the MobileLAN access Utility toconfigure its IP address. Once you assign the WA22 an IP address, you can continueconfiguring it using a web browser interface or a telnet session.For complete instructions on how to install, operate, configure, maintain, and troubleshootyour WA22, see the MobileLAN access System Manual (P/N 067150). Please visit the Intermec web site at www.intermec.com to download this manual and other current manuals in PDFformat. Or, you can order printed documentation from your local Intermec representative. Out of the Box MobileLAN ™ access WA22 Heading 1 About the WA22 Safety First Quick Start Guide Specifications Software Updates MobileLAN access WA22 Quick Start Guide*072829-002**072829-002*Physical dimensions 4.6 cm x 16.0 cm x 25.0 cm (1.81 in x 6.27 in x 9.84 in) Power over Ethernetelectrical rating x 48V, 315 mA Operating temperature -20°C to 55°C (-4°F to 131°F) Storage temperature -40°C to 70°C (-40°F to 158°F) Humidity 10 to 90%, non-condensing Government regulatory agencies require that this access point only use approvedantennas. Therefore, this access point uses a custom antenna connector. Do notuse antennas that are not approved for use with this access point.Attention: Les organismes de réglementation gouvernementaux exigent que cepoint d’accès. Par conséquent, le point d’accès est doté d’un connecteurd’antenne personnalisé. N’utilisez pas des antennes qui ne sont pas approuvées.The WA22 is intended to be powered only from an Ethernet host that complieswith the IEEE 802.3af specification for power over Ethernet (POE).Le WA22 est conçu pour être alimenté à partir d’un hôte Ethernet qui estconforme à la spécification IEEE 802.3af pour l’alimentation par Ethernet (POE, del’anglais Power Over Ethernet). ™ You should check the Intermec MobileLAN web site at http://mobilelan.intermec.com forfree software downloads and the latest documentation. To upgrade your access pointsoftware, follow the instructions in the MobileLAN access System Manual . Click SoftwareDownloads. This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org).This product includes cryptographic software written by Eric Young ([email protected]). Note: The WA22 does not ship with an antenna (except one 802.11a radio configuration that ships with non-removable antennas). For a list of antennas and antenna accessories, see the MobileLAN access System Manual or contact your local Intermec representative. 6001 36th Avenue WestEverett, WA 98203U.S.A.www.intermec.com© 2003 Intermec Technologies Corp. All Rights Reserved Mounting bracket and shoulder scews (4) Documentpackage MobileLAN access WA22 CD MyriadPro Defining the LEDs and Ports MobileLAN ™ access WA22 Quick Start Guide 1 Mounting the WA22 Attach antennas to the WA22. Intermec offers a variety of antennas and antennaaccessories. For a complete list, see the MobileLAN access System Manual . Connect the WA22 to your network. You can either use an Ethernet cable toconnect the Ethernet port to an Ethernet drop, or you can use the fiber optic portoption. For help connecting the WA22 to your fiber optic network, see “Connectingto Your Fiber Optic Network” in the MobileLAN access System Manual . To power the WA22, use an Ethernet cable to connect the Ethernet port to aMobileLAN power bridge, a Cisco power bridge, or another 802.3af-compliantpower bridge. For help, see the documentation that shipped with your powerbridge. 3 4 Setting an Initial IP Address 1 2 Install the MobileLAN access Utility on your PC by inserting the enclosed CD,clicking Install Software, and following the instructions that appear on your screen.You can also download the software from http://mobilelan.intermec.com. Note: Your PC must be on the same Ethernet segment as the access point. Or, if your PC is communicating wirelessly with the access point, you musthave an active radio connection. Start the utility.Configure parameters A through C. See the screen to the right. Click Set.Reboot the access point by disconnecting it from and reconnecting it to a powersource. The Status box lets you know when the new IP address is successfully set. 1 54 32 Congratulations!Your wireless end devices can now begin transmitting data packets through the WA22 toyour wired network. To continue configuring the access point, from the Actions menuchoose Configure Access Point. Your web browser application (for example, InternetExplorer) starts and the Access Point Login screen appears. AClick the down arrow andchoose Set IP Address.BEnter the Ethernet MACaddress of the access point(printed on a label on theaccess point).CEnter the new IP address ofthe access point. Connecting the WA22 You can place the WA22 on a stable surface or you can mount it to a wall or beamusing the wall bracket. To use the mounting bracket Insert one shoulder screw into each of the brassinserts and tighten securely.Using the mounting bracket as a template, markthe location of the mounting holes on themounting surface.Drill the holes.Position the bracket on the wall with the arrowpointing up and use mounting screws that youprovide to secure the bracket to the wall. Note: Intermec offers a variety of mounting bracket kits. For a c…

Text truncated - open the document above for the full version.

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Inmc0088 Information about the Applicant Company Name INTERMEC Technologies Corporation Grantee Cheryl White Address 6001 36th Avenue West City, State, Zip Everett, WA 98203 Job Number INMC0088 Model 802MIG2 FCC ID HN2WAMIG2 Agent Northwest EMC, Inc. Approval Type Original Equipment Class DTS Digital Transmission System Rule Part 15.247 Overview This application is for a limited modular approval for the 802MIG2. This radio can be co-located with another identical radio, or with and 802.11(a) radio (FCC ID:HN2WN-5MP01) This module is designed to be used with the applicant's WA21 and WA22 access points as a mobile transmitter. The operating frequency range is from 2412 MHz to 2462 MHz, center frequency to center frequency. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 11/17/2003 Dave Tolman, TCB Committee Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Inmc0088 Findings Opinions Specification Requirements Description 47 Cfr 2.1033(b)(3) Installation guide, operating instructions,user manual Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual.pdf Specification Requirements Description 47 Cfr 2.1033(b)(4) Operational description Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Operational Description.pdf, User Manual - Professional Antenna Installation.pdf Specification Requirements Description 47 Cfr 2.1033(b)(5) Frequency block diagram Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Frequency Block Diagram.pdf Specification Requirements Description 47 Cfr 2.1033(b)(6) Schematic diagram Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Schematic.pdf Specification Requirements Description 47 Cfr 2.1033(b)(7) Internal and external photos Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Internal Photos.pdf, External Photos.pdf Specification Requirements Description 47 Cfr 2.1033(b)(6) Conversions showing how the test results were achieved Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference inmc0088_Report.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Inmc0088 Specification Requirements Description Required Exhibit Test Setup Photo Exhibit Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference Test Setup Photos.pdf Specification Requirements Description 47 Cfr 1.1307(b),2.1091,2.1093 RF Exposure Hazzard Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference RF Exposure.pdf Specification Requirements Description 47 Cfr 15.19 Labeling Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual WA21 and WA22 Supplementl.pdf, FCC ID Label and Location.pdf Specification Requirements Description 47 Cfr 15.21 Information for user Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference User Manual WA21 and WA22 Supplement.pdf Specification Requirements Description 47 Cfr 15.33 Frequency range of tests Opinion The device meets the requirements of the rule. Discussion The test report indicates that the necessary frequency range for radiated emissions was tested. Reference INMC0088_Report.pdf Specification Requirements Description 47 Cfr 15.35 Measurement detectors Opinion The device meets the requirements of the rule. Discussion The measurements were made using the proper detectors. Reference INMC0088_Report.pdf Specification Requirements Description ANSI C63.4 EUT Ports All EUT ports populated,emissions maximized,Antenna height adjusted Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference inmc0088_Report.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Inmc0088 Specification Requirements Description 47 Cfr 15.203 Antenna Requirements Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference antenna info.pdf Specification Requirements Description 47 Cfr 15.205 Restricted bands Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference inmc0088_Report.pdf Specification Requirements Description 47 Cfr 15.207 Power line Conducted emissions Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference INMC0088_Report.pdf Specification Requirements Description 47 Cfr 15.209 Spurious Emissions Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference INMC0088_Report.pdf Specification Requirements Description 47 Cfr 15.247(a) Occupied Bandwidth Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference INMC0088_Report.pdf Specification Requirements Description 47 Cfr 15.247(b) Output Power Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference INMC0088_Report.pdf Specification Requirements Description 47 Cfr 14.247(c) Band Edge Compliance Opinion The device meets the requirements of the rule. Discussion The client has provided the necessary exhibit. Reference INMC0088_Report.pdf Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Inmc0088 Specification Requirements Description 47 Cfr 14.247(c) …

Text truncated - open the document above for the full version.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 November 14, 2003 Dear Application Examiner: On behalf of Intermec Technologies Corporation, Northwest EMC Inc is submitting this application for the certification of Intermec’s 802MIG2 transmitter, FCC ID: HN2WAMIG2. It operates from 2412 – 2462 MHz (center frequency to center frequency), with a peak output power of 35 mW. This RF module is compliant with IEEE 802.11b and 802.11g specifications, and will be used only in the applicant’s WA21 and WA22 access points as a mobile transmitter. Limited modular approval is sought for use in access point models WA21 and WA22. Each access point can accommodate two radio modules. The 802MIG2 can be co-located with another identical radio, or with an 802.11(a) radio (FCC ID: HN2WN-5MP01). The radios can transmit simultaneously, but not on the same channel. Each radio transmits through its own antenna. The 802MIG2 can be configured with different antennas. A unique antenna connector is used to satisfy the requirements of 47 CFR 15.203. The technical report and associated exhibits are supplied in support of the antennas and co-location of the radio modules in the WA21 and WA22 access points. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 and FCC 97-114. Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.348.2633 www.intermec.com November 03, 2003 To Whom It May Concern: Intermec Technologies, Corp., the undersigned, hereby authorizes Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC and Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. If you have any questions, regarding this application, please feel free to contact me (phone: 425 348 2600, fax: 425 348 2633, email: [email protected] ). Sincerely, Cheryl D. White Compliance Engineer Intermec Technologies Corp.

Intermec Technologies Corporation 6001 36 th Avenue West PO Box 4280 Everett, WA 98203-9280 425.348.2600 ext 6214 tel 425.348.2633 fax www.intermec.com October 08, 2003 Northwest EMC To whom it may concern: This letter is to comply with provision 47 CFR 0.459 pertaining to confidential material. Intermec Technologies, Corp. would like the following documents regarding this submission for FCC ID: HN2WAMIG2 to be kept confidential. 1. Schematics 2. Operation Description 3. Block Diagrams The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Cheryl D. White Compliance Engineer

WA21 Access Point WA21 Access Point WA22 Access Point WA22 Access Point

WA22 B/G, B/G Option (WAMIG2, WAMIG2) WA22 With A, B/G Options (WN-5MP01, WAMIG2) WA22 With A, A Option (WN-5MP01, WN-5MP01) WA21 With B/G, B/G Opti on (WAMIG2, WAMIG2) WA2 1 With A, B/G Options (WN-5MP01, WAMIG2) WA2 1 With A, A Option (WN-5MP01, WN-5MP01)

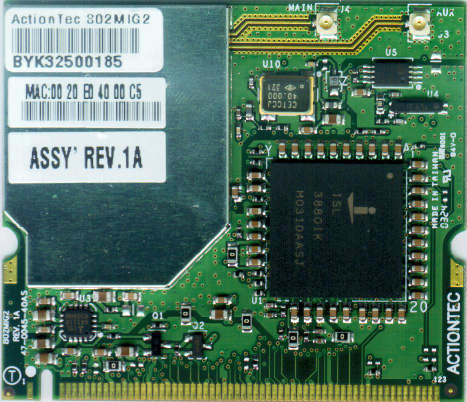

FCC ID: HN2WAMIG2 and FCC ID: HN2WN-5MP01 installed in WA21 HN2WAMIG2 FCC ID: HN2WAMIG2 FCC ID: HN2WN-5MP01 FCC ID: HN2WAMIG2 and FCC ID: HN2WAMIG2 installed in WA21 HN2WAMIG2 FCC ID: HN2WAMIG2 FCC ID: HN2WAMIG2 FCC ID: HN2WAMIG2 and FCC ID: HN2WAMIG2 installed in WA22 FCC ID: HN2WAMIG2 FCC ID: HN2WAMIG2 FCC ID: HN2WAMIG2 and FCC ID: HN2WN-5MP01 installed in WA22 FCC ID: HN2WAMIG2 FCC ID: HN2WN-5MP01 802MIG2 with Shield Removed

MPE Estimates for Self Co-located Device Antenna Type Antenna Part No. Transmit Frequency Max Peak Conducted Output Power Antenna Gain Minimum Antenna Cable Loss Power Density @ 20 cm General Population Exposure Limit from 1.1310 Ratio of Power Density to the Exposure Limit (MHz)(mW)(dBi)(dB) (mW/cm 2 )(mW/cm 2 ) Omni063363240035500.02210.022 Yagi0633652400351500.22010.220 Omni065349240035900.05510.055 Omni066147240035100.00910.009 Mini Omni067261240035300.01410.014 Flat Panel 067262240035500.02210.022 Flat Panel067263240035900.05510.055 Corner Reflector071122240035900.05510.055 Worst Case Ratio of Power Density to the Exposure Limit = 0.220 (Yagi Antenna) 802.11(b)/(g) Radio FCC ID: HN2WAMIG2 Compliance with 47 CFR 15.247(b)(5) “Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter.” The EUT will only be used with a separation distance of 20 centimeters or greater between the antenna and the body of the user or nearby persons and can therefore be considered a mobile transmitter per 47 CFR 2.1091 (b). The EUT has two antenna ports. One antenna port is for both transmit and receive, the other antenna port is for receive only. The EUT will only be used in the applicant’s WA21 or WA22 access points. The access point can accommodate up to two radios for a total of two transmit/receive ports and two receive only ports. The access point can be configured with either two 802.11(b)/(g) radios (FCC ID: HN2WAMIG2), or two 802.11(a) radios (FCC ID: HN2WN-5MP01), or one of each type of radio. The maximum peak power was measured to be 675 mW (ERP) for FCC ID: HN2WAMIG2 and 144 mW (ERP) for FCC ID: HN2WN-5MP01. The transmit frequency is greater than 1.5 GHz, therefore the EUT is categorically excluded from routine environmental evaluation per 47 CFR 2.1091(c). The MPE estimates are as follows: Table 1 in 47 CFR 1.1310 defines the maximum permissible exposure (MPE) for the general population as…
