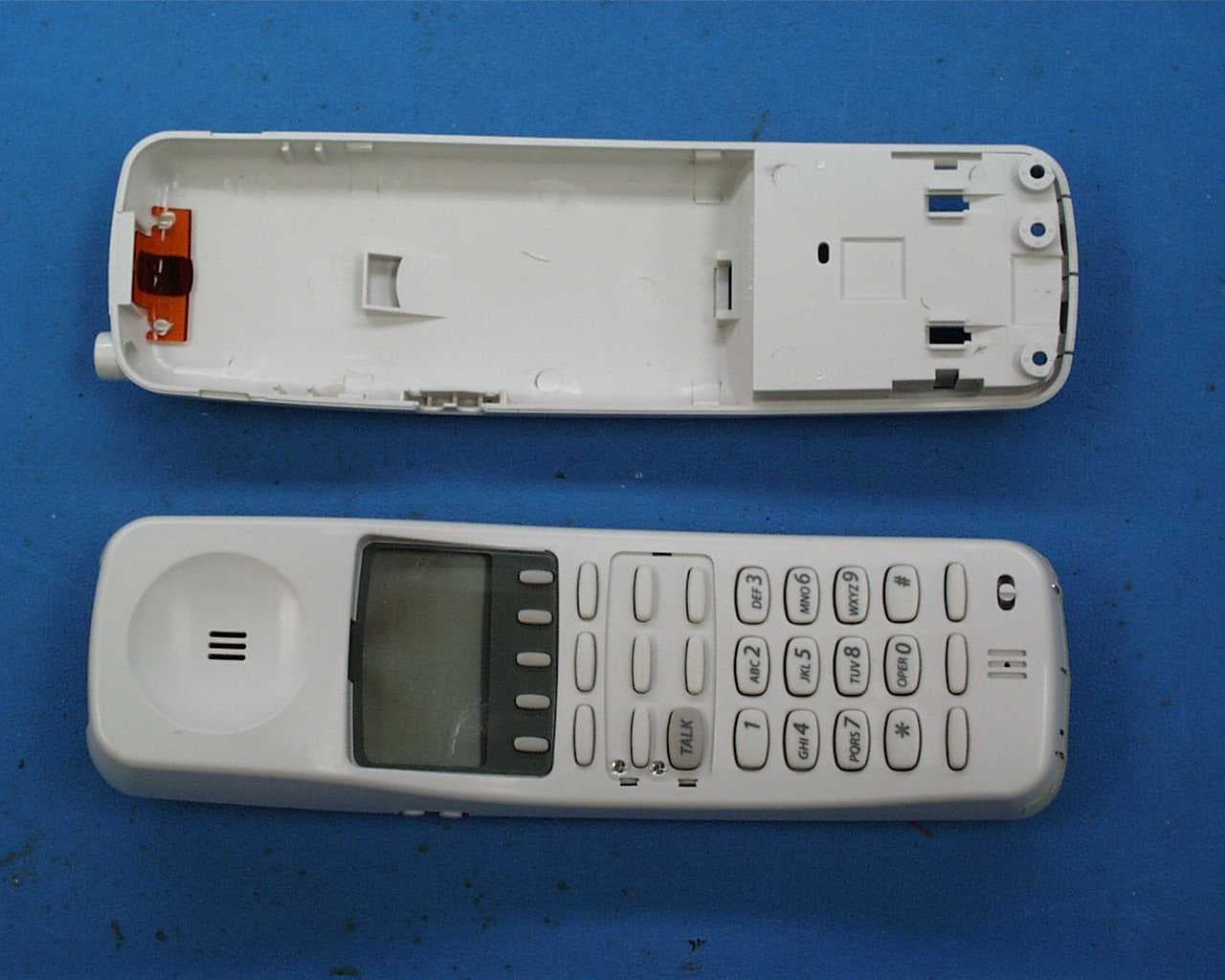

HOLCL9HSCordless Phone Handset

TITLE: DOC NO. REVISION SHEET 1 OF APPROVAL ENGINEERING : : : : Description/Title___________________________________________________________ Contact________________ Phone___________ Fax___________ Modem___________ Fold qWrap-around q FINISH Collate qSlip sheet q Staple q Drill qScore qPerf q Saddle stitch q PMS _______ Wire O qGBC q Spot color q INK Black q BINDING Color separations q SPECIAL INSTRUCTIONS EFFECTIVE PREPARED Text stock______________ Sample attached qFinished size ________ 1 Sided q2 Sided q Cover stock____________Insert stock_______________ PA P E R Color _______ Text stock (Asia)______________ FILM CHECKED BY:______________________________________________________ DATE:__________________________________________________________________ SWB CL940 English/Spanish User’s Manual 103478-01 B Jeanie Alexander 408.782.8228 408.776.2631 NA SWB CL940 English/Spanish User’s Manual 70 lb uncoated 70 lb glossy self-cover 115 g x White5.5X8.5 X X x X PDF only provided to both factory and Document Control. 8/12/99 3 No film generated TITLE: DOC NO. REVISION SHEET OF : : 2 103478-01 B 56 Setting Up YourPn.. 78910 1112 iii CoverCaution/ Copyright iiiiv TOC 12 Introducti on... 34 1314 Using Yo u r Phone 15161718 1920 .Using the Directory 21222324 Using Te l e p h o n e Company 25262728 2930 Troublesh ooting 31323231 Resolucio n de problema Resolucio n de problema 3029 Resolucio n de problema Como usar los Servicios 2827 Como guardar registros Como usar los Servicios 2625 Call Blocker Como usar los Servicios 2423 CallNotesUso del directorio 2221 Mercado desde registros Uso del directorio 2019 Creacion de su lista Como Usar Su Te l e f o n o 1817 Fuera De Alcance Como Usar Su Te l e f o n o 1615 Como Guardar Como Usa Su Te l e f o n o 1413 Como Contestar Llamadas Como Instalar Su Tele 3 SWB CL940 English/Spanish Owner’s Manual TITLE: DOC NO. REVISION SHEET OF : : 3 103478-01 B Conozca Su Nuevo Te l e f o n o Conozca Su Nuevo Te l e f o n o Conozca su Nuevo Te l e f o n o Conozca Su Nuevo Te l e f o n o TOCTOCCaucion and Copyright Spanish Cover Fije las funciones Como instalar su Te l e f o n o Instalacio n Detallada Como Instalar Su Tele Instalacio n Detallada Como Instalar Su Telefo Como Personaliz ar Como Instalar 3 SWB CL940 English/Spanish Owner’s Manual 1198765 4321iviiiii 1210 i &/ 2ZQHU∑V0DQXDO &DOOHU,'&DOO:DLWLQJ,' &RUGOHVV7HOHSKRQH CL940SwbRevAFinal.book Page 4 Thursday, August 19, 1999 5:45 PM Copyright © 1999 by CIDCO Incorporated. All rights reserved. CL940 103478-01 Rev. B No part of this publication may be reproduced, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of CIDCO Incorporated. One Time Viewing (OTV) and CIDCO are registered trademarks of Cidco Incorporated. EasyOptions and CallNotes are registered trademarks of Southwestern Bell. All other trademarks are the property of their respective owners. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. How- ever, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or tele- vision reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measurements: qReorient or relocate the receiving antenna. qIncrease the separation between the equipment and receiver. qConnect the equipment into an outlet on a circuit different from that to which the receiver is connected. qConsult the dealer or an experienced radio/TV technician for help. CAUTION ! Changes or modification to this device not expressly approved by CIDCO Incorporated could void the user’s authority to operate this equipment. CL940SwbRevAFinal.book Page 5 Thursday, August 19, 1999 5:45 PM qINTRODUCTION 1 qF EATURES 1 qU NPACKING YOUR PHONE 1 qLOCATING KEYS, LIGHTS, AND SWITCHES 2 qH EADSET JACK 4 qSETTING UP YOUR PHONE 5 qP ERSONALIZING YOUR PHONE 7 qEASY SETUP 7 qS ETUP FLOW CHART 8 q D ETAILED SETUP 9 qUSING YOUR PHONE 14 qANSWERING CALLS 14 qU SING TRADITIONAL DIALING 14 qU SING PRE-DIALING 14 qUSING SPEED DIALING 15 qU SING FLASH 17 qA DJUSTING THE VOLUME 17 qUSING HOLD 17 qT IMING CALLS 18 qG ETTING TEMPORARY TONE SERVICE 18 qGOING OUT OF RANGE 18 qL OCATING A LOST HANDSET 18 qR EADING DISPLAY MESSAGES 19 qUSING THE DIRECTORY 20 qC REATING YOUR DIRECTORY LIST 20 qD IALING FROM DIRECTORY RECORDS 22 qD ELETING DIRECTORY RECORDS 22 qUSING YOUR TELEPHONE COMPANY NETWORK SERVICES 24 qU SING YOUR EASYOPTIONS ® SERVICES 24 CL940SwbRevAFinal.book Page i Thursday, August 19, 1999 5:45 PM qCALLNOTES 24 qA CCESSING YOUR MAILBOX 24 qCALL RETURN 24 q AUTO REDIAL 25 q 3-WAY CALLING 25 qCALL BLOCKER 26 q CALLER ID AND CALL WAITING ID 26 qR ECEIVING NEW CALLS 27 qVIEWING CALL RECORDS 27 qD IALING FROM CALL RECORDS 27 qS AVING CALL RECORDS 28 qDELETING CALL RECORDS 28 qU SING CALL WAITING ID OPTIONS (CWIDO) 28 qTROUBLESHOOTING 30 CL940SwbRevAFinal.book Page ii Thursday, August 19, 1999 5:45 PM 1 INTRODUCTION Your new CL940 telephone incorporates all the features of a cordless telephone and blends them with Southwestern Bell’s best calling features, such as Caller ID, CallNotes ® and Call Waiting ID. If this is your first cordless telephone, you’ll soon discover that your cordless is sim- ilar to regular telephones, except without the cord. If you’ve owned a cordless in the past, you’ll discover that the CL940 telephone is the most powerful and full- function Caller ID cordless telephone on th…

Text truncated - open the document above for the full version.

220 Cochrane Circlepage 1 of 2 Morgan Hill, CA 9503756212 DATE: JULY 29, 1999 TO:SHARI MEYERSPHONE:(410) 354 - 3300 MET LABORATORIES, INC. FAX:(410) 354 - 3313 FROM:TERRY KILLIONDIRECT:(408) 778 - 8016 SENIOR MEMBER OF TECHNICAL STAFFMAIN:(408) 779 - 1162 WIRELESS COMMUNICATIONS DESIGN GROUPFAX:(408) 776 - 2631 [email protected] RE:CL980CR, CL990, CL940 FCC MODIFICATION FILING CC:RON ANGLIKOWSKI, S.A. FOO, CAN TRI NGUYEN This is a request to submit a modification filing for the CIDCO CL980CR, CL990, and CL940 model cordless telephones. The three models mentioned above are part of a product family of CIDCO 900MHz Digital Spread Spectrum Cordless Telephones which support Caller ID and Voicemail functions. They are derived from the original CIDCO CL980 Cordless Telephone, see figure 1. A brief description for each model is provided below. CL980CR: The CIDCO CL980CR is a cost reduced version of the original CIDCO CL980 Cordless Telephone. The reason for modification from the CL980 is purely for cost reduction and improved RF performance. The base “RF” platform was changed from the Conexant “Skyhawk” to the Conexant “Hummingbird” chipset. All functionality and overall user interface remains the same. The cordless telephone is a full featured 900MHz Direct Sequence Spread Spectrum cordless telephone which supports Caller ID, Call Waiting ID, Voicemail, and Call Disposition. It also includes a half-duplex speakerphone with base set/handset intercom. The handset is designed with a backlit display to view Caller ID and Directory records and the base set includes a spare battery charge compartment. 220 Cochrane Circlepage 2 of 2 Morgan Hill, CA 9503756212 CL990: The CIDCO CL990 is an enhanced version of the CL980CR Cordless Telephone. It has all of the features of the CL980CR except for the addition of a backlit LCD on the base set for viewing and managing CALLER ID information. One row of repertory keys was also removed from the base set to accommodate the extra space required for the LCD. CL940: The CIDCO CL940 is a feature-reduced version of the CL980CR. The following features were removed to create a basic version 900MHz Digital Spread Spectrum cordless telephone. The CL940 does not include the following features found on the CL980CR; • "Dial-In" Base • Speakerphone • Intercom • Spare Battery Charger • Base "Voicemail" keys • Base "Repertory" keys • Base "Dial" keys CIDCO 900MHz DSS CORDLESS TELEPHONE OVERVIEW: The CL980CR establishes a baseline for this CIDCO Cordless Telephone product family. From there a higher end product was developed which included an additional backlit LCD located on the base set, which gives the user the ability to monitor incoming calls and also manage CALLER ID and Directory records from the base set. Another lower end product was developed from the CL980CR, which eliminated many of the functions found on the base set to reduce cost. The idea was to have a product line to target the low, medium, and high end markets. All three cordless telephones operate from the same hardware and software platform. It is because of this commonality that we would like to treat this submission as a modification rather than a new filing. By: _______________________ ___________________________ Signed Printed Date: _______________________ Title: _______________________

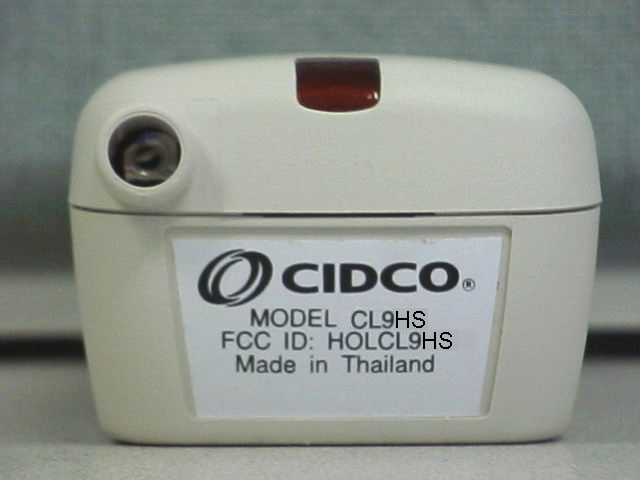

FCC ID: HOLCL9HS August 24, 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attention:Applications Examiner Reference:FCC ID: HOLCL9HS CIDCO Model CL9HS Cordless Telephone Handset Dear Examiner: The following equipment authorization application is presented on behalf of CIDCO , Inc. for the certification of their Model CL9HS Cordless Telephone Handset. Enclosed, please find complete data and documentation package demonstrating that this device complies with the technical requirements of 47 CFR, Part 15, Subpart C for an Intentional Radiator. The manufacturer seeks authorization under the FCC ID: HOLCL9HS. We look forward to an expeditious review of the report presented and a granting of the certification for CIDCO , Inc. If you have any questions or we can be of assistance, in this matter, please call us at (410) 354-3300. Best regards, Chris Harvey EMC Laboratory Director, MET Laboratories, Inc. Enclosures FCC ID: HOLCL9HS August 24, 1999 - 2 - EM IU9544A MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE !! BALTIMORE, MARYLAND 21230-3432 !! PHONE (410) 354-3300 !! FAX (410) 354-3313 ENGINEERING TEST REPORT in support of the Application for Grant of Equipment Authorization EQUIPMENT: Model CL9HS Cordless Telephone Handset FCC IDENTIFIER:HOLCL9HS SPECIFICATION:15.247(a) thru (e); 15.209(a). Manufacturer:CIDCO , Inc. 220 Cochrane Circle Morgan Hill, CA 95037 TESTING DATE(S):24, 25, May and 24 July 1999 MANUFACTURER'S REPRESENTATIVE: Mr. Can Nguyen ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. ______________________ Alvin Ilaraia Test Engineer, MET Laboratories, Inc. FCC ID: HOLCL9HS August 24, 1999 - 3 - EM IU9544A MODIFICATIONS STATEMENT I ATTEST: that the product will be manufactured with all modifications for Part 15 compliance as submitted in this report. Modifications made during testing appear below: 1. No modifications were made to the EUT. 1.0 INTRODUCTION The following test report is presented on behalf of the Applicant , as verification of the compliance of the CIDCO Direct Sequence, Spread -Spectrum Telephone Handset, Model CL9HS. 2.0 TEST SITE All testing was conducted at MET Laboratories, Inc., 914 West Patapsco Avenue, Baltimore, Maryland 21230-3432. Radiated emissions measurements were performed on a three-meter open air test site (OATS). A complete site description is on file with the FCC Laboratory Division as 31040/SIT/MET. 3.0 TEST EQUIPMENT USED ManufacturerEquipment Calibration DueCal. Interval Hewlett Packard8593EM Spectrum Analyzer12/1/99annual EMCOXwing Antenna 11454/1/00annual EMCOActive Rod Antenna2/15/00annual EMCODouble Ridge Horn 311511/18/99annual 4.0 TEST CONFIGURATION The CIDCO Cordless Telephone Handset model CL9HS, was configured in accordance with the manufacturer's instructions and operated in a manner representative of the typical usage of the equipment. The Hanset may be used with various model Bases. During testing of the EUT, the base Model # CL980CR was used while system components were manipulated within the confines of typical usage to maximize each emission. FCC ID: HOLCL9HS August 24, 1999 - 4 - EM IU9544A Equipment:Base Station (900MHz Cordless Telephone) Model #:CL980CR Serial #:not provided FCC ID:HOLCL980CR Equipment:Handset (900MHz cordless Telephone) Model #:CL9HS Serial #:not provided FCC ID:HOLCL9HS Equipment:CO simulator Model #:MET Labs 1.5m unshielded RJ-11 cable Serial #:n/a FCC ID #:n/a 6.0 TEST TYPE(S) 6.1As required by §15.247(b) of CFR 47, output power measurements radiated measurements were performed to verify compliance with the conducted limit. 6.2As required by §15.247(a)(2) of CFR 47, 6 dB bandwidth measurements were performed 6.3 As required by §15.247(e) of CFR 47, processing gain Measurements were not performed. Data is provided instead, by the spread spectrum chipset manufacturer 6.4As required by §15.247(c)(1 )& (c)(2) of CFR 47, out of band emissions measurements were performed. 6.5As required by §15.247(d) of CFR 47, power density measurements were performed 7.0 EUT CONFIGURATION INFORMATION FCC ID: HOLCL9HS August 24, 1999 - 5 - EM IU9544A Photograph(s) of Radiated Emissions Test Configuration CIDCO Model CL9HS Cordless Telephone FCC ID: HOLCL9HS August 24, 1999 - 6 - EM IU9544A SUBJECT:Peak Output PowerMET REPORT:EM9544A 15.247(b)MFG:CIDCO FCC Part 15, Subpart CTESTED BY:Ken Bass Intentional RadiatorTEST DATE(S):25 May 1999 EUT:CIDCO MODEL:CL9HS TECHNICAL SPECIFICATION:15.247(b) CARRIER POWER:Peak Output power was calculated through the following means: The raw reading from the analyzer was added to the cable loss and antenna factor (for the specific frequency of measurement). The final E-field strength limit is derived from the conversion of the power limit specified in FCC Part. 15.247(b) to V/m , considering a 50S system. Please see the attached plots Handset/FreqWorst caseDist (m)Cbl/HPF/CPreCorrTotal Total Base (GHz)Raw+ACFonamplevel(V/m)watts ReadingLoss(dB)(dBμV/m (dBuV/m)(dB)) Handset914.55111.253.02.8*n/a114.050.50 0.075 * - Cable losses only. No High-pass filter (i.e. insertion loss) factors, etc., associated with measurement. The Model CL9HS system results for the Handset are provided as the highest level of the system. (Across the entire channel range) FrequencyFrequencyMeasured Range(MHz)Signal E limit (V/m)E margin (dB) (MHz)(V/m) 902-928 914.550.503.6433.72 FCC ID: HOLCL9HS August 24, 1999 - 7 - EM IU9544A SUBJECT:6 dB BandwidthMET REPORT:EM9544A 15.247(a)(2)MFG:CIDCO FCC Part 15, Subpart CTESTED BY:Ken Bass Intentional RadiatorTEST DATE(S):25 MAY 1999 EUT:CIDCO MODEL…

Text truncated - open the document above for the full version.

FCC ID: HOLCL9HS The following Data is for the Peak to Average requirements of FCC 15.35(b). EMIU9544AHandset FreqPolRawAntCbldd corrPreAmpCorrLimits (dBuV)(dB/m)(dB)(m)(m)(dB)(dBuV)(dBu V 1829 H40.5825.53.11-9.5434.525.141 1829 V68.3226.63.11-9.5434.553.981 1829 H38.2525.53.11-9.5434.522.81 1829 V64.7326.63.11-9.5434.550.39 2743 H45.8229.14.21-9.5434.535.08 2743 V66.4129.34.21-9.5434.555.87 2743 H42.7329.14.21-9.5434.531.99 2743 V64.1529.34.21-9.5434.553.61 The above limit is based on the fundamental measurement below: EMIU9544AHandset FreqPolRawAntCbldCorrLimitsComments MHz(dBuV)(dB/m)(dB)(m)(dBuV)(dBuV) 904.42 V85.423.452.770111.62131 RBW=3 MHz, VBW = 3 MHz New spurious limit for non-restricted band measurements: 111.62 - 20dB = 91.62 dBuV The operating frequency range for this device, from center of lowest channel to the center of the highest channel is: Channel 1 904.2 MHz Channel 20 925.8 MHz

FCC ID: HOLCL9HS August 24, 1999 - 15 - EMIU9544A SUBJECT:Spurious Emissions MET REPORT:EM9544A 15.247(c)(paragraphs 1 & 2) MFG:CIDCO FCC Part 15, Subpart CTESTED BY:Ken Bass Intentional RadiatorTEST DATE(S):25 May 1999 EUT:CIDCO MODEL:CL980HS (Handset) TECHNICAL SPECIFICATION:15.247(c)(paragraphs 1 & 2) Test data is presented on the following plot @ 3MHz RBW: The marker was placed on the highest emission inside the band and the marker recorded. w/RBW = 3MHz, the highest emission within the band of operation was found to be =114.05dBuV. Therefore; all spurs harmonics must be 114.04 - 20 dB = 94.04 dBuV. spurs that fall in Restricted Band ( per 15.205) must meet the limits of 15.209 ( i.e. 54 dBuV): FreqAntRaw AntCbl/HPF/ddPre-AmpCorr.LimitsComments (GHz)orientReadingFactorConn Loss(m)corrGain Level(dBμV/m) H/V(dBμV)(dB/m)(dB)(dB)(dB)(dBμV/m) 1 0.350H22.8514.71.73.00.00.029.7194.05spur 0.350V22.8715.21.73.00.00.030.2794.05spur 1.829H38.2525.53.01.0- 9.5434.5022.9194.05spur 1.829V64.7326.63.11.0- 9.5434.5050.3994.05spur 2.743H42.7329.14.21.0- 9.5434.5031.9954.00 Restricted band 2.743*V64.1529.34.21.0- 9.5434.5053.61*54.00 Restricted band 3.685H52.3431.55.21.0- 9.5434.5045.0054.00 Restricted band 3.685V-31.2-1.0- 9.5434.50-54.00 Restricted band ( signal below noise floor ) *Note - All levels taken above 1GHz, were with VBW set to 10 Hz to simulate an average measurement. These levels are pulsed in nature, but HAVE NOT been adjusted for the peak-average correction factor.
