I4U-23WBMLTWIDEBAND MICROLITE HD COFDM TRANSMITTER 23WBMLT

MICROLITE TRANSMITTER HD/SD COFDM Transmitter User Manual IMT PUBLICATION: M22-MLT-1M1, REV 1.2 microLite Transmitter User Manual Revision 1.2 2 Revision History Date Revision Modified By Description 05/16/2011 – 06/13/2011 0.0D DLA(MH) Initial release to approvers 06/20/2011 0.1D DLA / MH Ongoing updates and clarifications (WIP) 08/17/2011 0.2D MH Added regulatory text (FCC and IC) 10/12/ 2011 0.3D (BETA) MH Updated to new form factor 11/15/2011 0.4D DLA Updated LED indicator descriptions, 21MLT 01/25/2012 – 02/03/2012 .5D SMV Updated Specifications, formatting, outline drawings, physical description. Added new models released. Added Appendix A. 02/05/12 1.0 SMV Initial Release 09/15/12 1.1 SMV Added new Frequency Ranges 02/25/2013 1.2 JW Added 2.4GHz band in FCC , IC Statements and RP-SMA note; MICROLITE TRANSMITTER User Manual IMT Publication: M22-MLT-1M1 Rev 1.2 IMT, LLC. 200 International Drive Mt. Olive, NJ, 07828, USA. T +1 908 852 3700 F +1 908 813 0399 www.imt-solutions.com We make every effort to ensure our documentation is as accurate and as complete as possible. In the event that you find any errors or omissions, please contact Customer Tech Support at (908) 852-3700, or via email at [email protected]. © Copyrighted 2011 - IMT, LLC - Mount Olive, New Jersey 07828 microLite Transmitter User Manual Revision 1.2 3 This product has been approved by the following regulatory bodies at 2.4 and 5.8 GHz: FCC (USA) IC (Canada) CE (EU) CAUTION! RISK OF ELECTRICAL SHOCK. DO NOT REMOVE COVERS.
................................................................ Do not remove any covers
................................................................ Refer servicing to qualified technicians only
................................................................ Disconnect all power before servicing
................................................................ Read and perform all instructions carefully
................................................................ Failure to follow suggested instructions and guidelines may void all warranties PRUDENCE! RISQUE DE CHOC ÉLECTRIQUE. NE SUPPRIMEZ PAS LES COUVERTURES.
............................................................... N e supprimez pas les couvertures
............................................................... V oir entretien à qualifiés Techniciens seulement.
............................................................... D éconnectez tous les pouvoir avant l'entretien.
............................................................... L ecture et effectuer toutes les instructions attentivement. microLite Transmitter User Manual Revision 1.2 4 FCC CAUTION/ PRUDENCE DE FAC Any change or modification not approved by the party responsible for compliance could void the user’s authority to operate this device. This device requires professional installation. For operation within 2.4 – 2.4835 and 5.725 - 5.850 GHz frequency ranges, the maximum EIRP must be less than 36 dBm. The qualified antenna types to be used with this device include: Low Gain Collinear Omni Antenna (4.5dBi or 6 dBi) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to maintain compliance with the FCC RF exposure guidelines, this device should be installed and operated with a minimum distance of 20cm between the radiator, and the body of the operator and/or nearby persons. Tout changement ou modification non approuvé par la partie responsable de la conformité pouvait annuler l'autorisation de l'utilisateur pour l'exploitation de ce dispositif. Ce dispositif nécessite l'installation professionnelle. Pour l'opération au sein de la gamme de fréquences de 2.4 – 2.4835 and 5.725-5.850 GHz, la pire maximale doit être inférieure à 36 dBm. Les types d'antenne qualifiés pour être utilisé avec ce dispositif, citons : Antenne Omni colinéaires faible Gain colinéaires Omni antenne (4.5dBi ou 6 dBi). Cet appareil est conforme à la partie 15 des règles de la FCC. Opération est soumis à deux conditions suivantes: (1) ce dispositif ne peut pas causer de brouillage préjudiciable, et (2) ce dispositif doit accepter toute ingérence a reçu, y compris le brouillage qui peut provoquer l'opération non désirée. Afin de maintenir la conformité avec les directives d'exposition RF FCC, ce dispositif doit être installé et exploité avec une distance minimale de 20 cm entre le radiateur et le corps de l'opérateur ou à proximité de personnes. FCC STATEMENT This equipment (FCC ID: I4U-23MLT and I4U-58MLT) has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. DÉCLARATION DE FAC Cet équipement (FCC ID: I4U-23MLT and I4U-58MLT) a été testé et de respecter les limites pour une classe b dispositif numérique, conformément à la partie 15 des règles de la FCC. microLite Transmitter User Manual Revision 1.2 5 IC Notice: IC Avis 1. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissem…

Text truncated - open the document above for the full version.

ANTENNA FACTOR PART NUMBER ANT-2.4-CW-HWR-SMA 931-0005-000-R ANTENNA 2.4GHZ 1/2WAV WHIP SMA KAM 11/23//10 02/24/11 Typical VSWR ™ ANT-2.4-CW-HWR-xxx DATA SHEET Product DimensionsDescription Features Electrical Specifications Ordering Information HWR Series 1/2-wave center-fed dipole antennas deliver outstanding performance in a rugged and cosmetically attractive package. The articulating base allows the antenna to tilt 90 degrees and rotate 360 degrees. The antenna's internal counterpoise eliminates external ground plane dependence and maximizes performance. HWR Series antennas attach via a standard SMA or Part 15 compliant RP-SMA connector. Custom colors and connectors are available for volume OEM customers. 5.59” (142.0) 1.02” (26.0) 0.32” (8.2) Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane 0.39” (10.0) 4.57” (116.0) Polar Plot & Gain Information Antenna Factor159 Ort Lane Merlin, OR 97532 www.antennafactor.com 541-956-0931 (phone) 541-471-6251 (fax) Rev 07-27-10 •Internal counterpoise •Low cost •Tilts and rotates •Omni-directional pattern •Outstanding VSWR •Rugged & damage-resistant •Standard SMA or Part 15 compliant RP-SMA connector •Custom colors and terminations for volume OEMs •Internal O-ring seal on connector •Center Freq.2.45GHz •Recmd. Freq. Range 2.3-2.6GHz •Wavelength1/2-wave •VSWR<2.0 typ. at center •Impedance50 ohms •ConnectorRP-SMA or SMA •ANT-2.4-CW-HWR-RPS (with RP-SMA connector) •ANT-2.4-CW-HWR-SMA (with SMA connector) CENTER 24500.000MHz SPAN 500.000MHz S11 SWR 1.084 LDCFRHS_B This document certifies that the Part Numbers listed in this document and manufactured by Linx Technologies, Antenna Factor, and Connector City do not to the knowledge of the certifier contain the substances listed in the table below in concentrations exceeding the Maximum Control Value (MCV), and will be compliant as of the date listed. Substance Maximum Control Value Lead 0.1% by weight (1000 ppm) (1) Mercury 0.1% by weight (1000 ppm) Cadmium 0.01% by weight (100 ppm) (1) Hexavalent Chromium 0.1% by weight (1000 ppm) Polybrominated Biphenyls (PBB) 0.1% by weight (1000 ppm) Polybrominated Diphenyl Ethers (PBDE) 0.1% by weight (1000 ppm) (1) The MCV does not apply to applications for which exemptions have been granted to the RoHS Directive Products containing the substances listed in the table above, in concentrations below the MCV, are understood to be in compliance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronics equipment (RoHS Directive) in accordance with the definitions set forth in the directives. RoHS Certificate of Compliance 159 ORT LANE MERLIN, OR 97532 PHONE: (800) 736-6677 FAX: (541) 471-6251 www.linxtechnologies.com LDCFRHS_B RoHS Compliance by Part Number Linx Part Number Description RoHS information RoHS Compatible Compliant Since Planned start of production of RoHS compatible components TXM-315-LC LC Series RF Transmitter 315MHz Yes LOT# 1043 Now Available TXM-418-LC LC Series RF Transmitter 418MHz Yes LOT# 2189 Now Available TXM-433-LC LC Series RF Transmitter 433MHz Yes LOT# 3043 Note 1 RXM-315-LR LR Series RF Receiver 315MHz Yes LOT# 10002 Now Available RXM-418-LR LR Series RF Receiver 418MHz Yes LOT# 10023 Now Available RXM-433-LR LR Series RF Receiver 433MHz Yes LOT# 10003 Now Available TXM-315-LR LR Series RF Transmitter 315MHz Yes LOT# 10001 Now Available TXM-418-LR LR Series RF Transmitter 418MHz Yes LOT# 10009 Now Available TXM-433-LR LR Series RF Transmitter 433MHz Yes LOT# 10003 Now Available RXD-315-KH2 KH2 Series RF Receiver/Decoder 315MHz Yes Start of Production Now Available RXD-418-KH2 KH2 Series RF Receiver/Decoder 418MHz Yes Start of Production Now Available RXD-433-KH2 KH2 Series RF Receiver/Decoder 433MHz Yes Start of Production Now Available TXE-315-KH2 KH2 Series RF Transmitter/Encoder 315MHz Yes Start of Production Now Available TXE-418-KH2 KH2 Series RF Transmitter/Encoder 418MHz Yes Start of Production Now Available TXE-433-KH2 KH2 Series RF Transmitter/Encoder 433MHz Yes Start of Production Now Available TRM-315-LT LT Series RF Transceiver 315MHz Yes Start of Production Now Available TRM-418-LT LT Series RF Transceiver 418MHz Yes Start of Production Now Available TRM-433-LT LT Series RF Transceiver 433MHz Yes Start of Production Now Available RXM-900-HP3-PPO HP3 Series RF Receiver 900MHz 8-CH SIP Pack Yes LOT# 10008 Now Available TXM-900-HP3-PPO HP3 Series RF Transmitter 900MHz 8-CH SIP Pack Yes LOT# 10006 Now Available RXM-900-HP3-PPS HP3 Series RF Receiver 900MHz 8 and 100-CH SIP Pack Yes LOT# 10003 Now Available TXM-900-HP3-PPS HP3 Series RF Transmitter 900MHz 8 and 100-CH SIP Pack Yes LOT# 10002 Now Available RXM-900-HP3-SPO HP3 Series RF Receiver 900MHz 8-CH SMD Pack No LOT# TBD Mar-2008, as inventories deplete TXM-900-HP3-SPO HP3 Series RF Transmitter 900MHz 8-CH SMD Pack No LOT# TBD Mar-2008, as inventories deplete RXM-900-HP3-SPS HP3 Series RF Receiver 900MHz 8 and 100-CH SMD Pack Yes LOT# 10000 Now Available TXM-900-HP3-SPS HP3 Series RF Transmitter 900MHz 8 and 100-CH SMD Pack Yes LOT# 10000 Now Available RXM-916-ES ES Series RF Receiver 916MHz Yes LOT# 10017 Now Available RXM-869-ES ES Series RF Receiver 869MHz Yes LOT# 10000 Now Available TXM-916-ES ES Series RF Transmitter 916MHz Yes LOT# 10018 Now Available TXM-869-ES ES Series RF Transmitter 869MHz Yes LOT# 1000 Now Available 159 ORT LANE MERLIN, OR 97532 PHONE: (800) 736-6677 FAX: (541) 471-6251 www.linxtechnologies.com LDCFRHS_B RoHS Compliance by Part Number RXM-GPS-SG SG Series GPS Receiver Yes Start of Production Now Available RXM-GPS-SR SR Series GPS Receiver Yes Start of Production Now Available SDM-USB-QS-S QS Series USB Module Yes LOT# 10004 Now Available CMD-HHCP-315 8 Button Compact Handheld Transmitter 315MHz Yes JAN-2011 Now Available CMD-HHCP-418 8 Button Compact Handheld Transmitter 418MHz Yes JAN-2011 N…

Text truncated - open the document above for the full version.

Date: 02/12/2013 To whom it may concern: We, the undersigned, hereby authorize Wei Li, Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; • use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to • make these records available to the Certification Division when requested; Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jason Wang FCC Contact Person, Compliance Engineer Integrated Microwave Technologies LLC

I4U-23WBMLT Confidentiality Request-Rev1.0.docx Created by wangj Page 1 of 1 21 February 2013 Confidentiality Request Pertaining to Request for Certification of FCC ID: I4U-23WBMLT TO WHOM IT MAY CONCERN Integrated Microwave Technologies (thereafter refers to as IMT) hereby respectfully requests confidentiality of certain materials pursuant to FCC 47 CRF 0.457(d) and 0.459 (IC RSP-100, Section 10), with respect to our Request for Certification of FCC ID: I4U-23WBMLT. The attachments and/or exhibits, henceforth collectively “Materials”, designated as followings are requested to remain confidential: Exhibit Type File Name Schematics I4U-23WBMLT Schematics-Rev1.0.pdf Operational Description I4U-23WBMLT Theory of Operation-Rev1.0.pdf Block Diagram I4U-23WBMLT Block Diagram-Rev1.0.pdf To protect these materials, IMT does not release them to the public. These materials contain commercial trade secret information that would reveal our unique proprietary system design which is a result of our proprietary Research and Development. These materials comprise information that differentiates our products from those of our significant market competition, and which allow us operate in the very competitive market for this product. These materials, if released, would result in substantial competitive harm due to unlicensed copying of our proprietary design(s) in whole or in part. Finally, IMT requests withholding these materials from public inspection in perpetuity due to the possibility and likelihood that the designs will be utilized, in whole or in part, by IMT as the basis for future products which would likewise be subject to the same competitor interest. Sincerely yours, . Jason Wang FCC Contact Person, Compliance Engineer Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company

I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 1 of 6 FCC Certification Report External Photographs (Per CFR TITLE 47, PART 2, SUB-PART J) FCC ID: I4U-23WBMLT Product name: MicroLite HD COFDM Transmitter Product base model: 23MLT PROPRIETARY INFORMATION This document contains proprietary information, which shall not be reproduced or transferred to other documents or disclosed to others or used for manufacturing or any other purpose without prior written permission of Integrated Microwave Technologies LLC. Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 2 of 6 Revision Control Cover Sheet Revision Date Section or paragraph affected Page(s) Change Description 1.0 2/12/2013 all all Initial Draft I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 3 of 6 Table of Photos Photo 1 Top View ........................................................................................................................... 4 Photo 2 Connector Side View ......................................................................................................... 4 Photo 3 Reversed Polarity (RP) SMA RF Out Connector .............................................................. 5 Photo 4 Side View .......................................................................................................................... 5 Photo 5 External Antenna Attached ................................................................................................ 6 I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 4 of 6 Photo 1 Top View Photo 2 Connector Side View I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 5 of 6 Photo 3 Reversed Polarity (RP) SMA RF Out Connector Photo 4 Side View I4U-23WBMLT External Photographs-Rev1.0.docx0 Created by wangj Page 6 of 6 Photo 5 External Antenna Attached

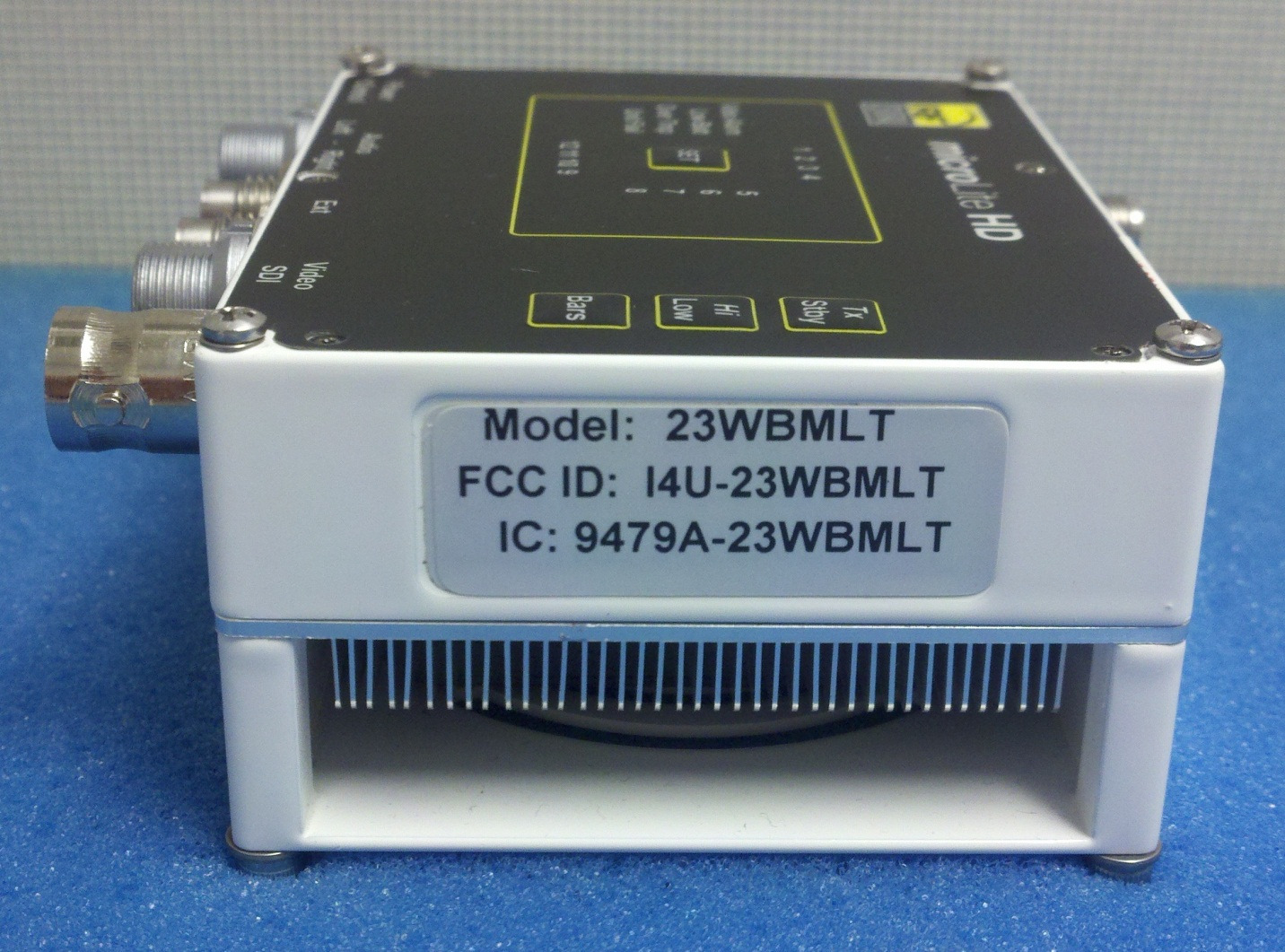

EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 117 of 121 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label IMT 2G Wideband MicroLite HD COFDM Transmitter Model : 23WBMLT FCC ID: I4U-23WBMLT IC: 9479A-23WBMLT This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 1 Proposed FCC/IC ID Label for 2G Wideband MicroLite HD COFDM Transmitter (The statement may be shown in its user manual for small size devices ) ID Label Figure 2 Proposed ( ID Label location )

I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 1 of 8 FCC Certification Report I nternal Photographs ( Per CFR TITLE 47, PART 2, SUB-PART J) FCC ID: I4U-23WBMLT Product name: MicroLite HD COFDM Transmitter Product base model: 23WBMLT PROPRIETARY INFORMATION This document contains proprietary information, which shall not be reproduced or transferred to other documents or disclosed to others or used for manufacturing or any other purpose without prior written permission of Integrated Microwave Technologies LLC. I ntegrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 2 of 8 Revision Control Cover Sheet Revision Date Section or paragraph affected Page(s) Change Description 1.0 2/12/2013 all all Initial Draft I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 3 of 8 Table of Photos Photo 1 Top Opened ....................................................................................................................... 4 Photo 2 Bottom Opened .................................................................................................................. 4 Photo 3 Transmitter LED Interface – Top ...................................................................................... 5 Photo 4 Transmitter LED Interface – Bottom ................................................................................. 5 Photo 5 Encoding – Top ................................................................................................................. 6 Photo 6 Encoding – Bottom ............................................................................................................ 6 Photo 7 Modulator- Top.................................................................................................................. 7 Photo 8 Modulator- Bottom ............................................................................................................ 7 Photo 9 Connector Board – Top ..................................................................................................... 8 Photo 10 Connector Board – Bottom .............................................................................................. 8 I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 4 of 8 Photo 1 Top Opened Photo 2 Bottom Opened I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 5 of 8 Photo 3 Transmitter LED Interface – Top Photo 4 Transmitter LED Interface – Bottom I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 6 of 8 Photo 5 Encoding – Top Photo 6 Encoding – Bottom I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 7 of 8 Photo 7 Modulator- Top Photo 8 Modulator- Bottom I4U-23WBMLT Internal Photographs-Rev1.0.docx0 Created by wangj Page 8 of 8 Photo 9 Connector Board – Top Photo 10 Connector Board – Bottom

EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 49 of 120 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 7.3. MAXIMUM PERMISSIBLE EXPOSURE LIMITS & RSS-102 §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 50 of 120 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 CALCULATIONS Given and where E = — (30 * P * G) / d S = E ^ 2 / 3770 E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = — ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P (mW) = P (W) / 1000 and d (cm) =100 * d (m) yields where d = 100 * — ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * — (P * G / S) d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yields where d = 0.282 * 10 ^ ((P + G) / 20) / — S Equation (1) S = 0.0795 * 10 ^ ((P + G)/10)/ d^2 Equation (2) d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 51 of 120 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Equation (1) and the measured peak power is used to calculate the MPE distance. Equation (2) and the measured peak power is used to calculate the Power density. LIMITS From §1.1310 Table 1 (B), for Public S = 1.0 mW/cm 2 for Professional, S = 5.0 mW/cm 2 RESULTS No non-compliance noted: For this EUT, Max. P (peak)= 25.97 dBm, Max G= 5.0 dBi, and d=20cm Plug all three items into equation (2), and yields, Power Density Output Antenna Power Limit Power Gain Density (mW/cm 2 ) (dBm) (dBi) (mW/cm 2 ) 1.0/5.0 25.97 5.0 0 . 3 1 5 NOTE: For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less.

FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For 2G Wideband MicroLite HD COFDM Transmitter Model Number: 23WBMLT FCC ID: I4U-23WBMLT IC: 9479A-23WBMLT Report Number: 0048-120822-01 Prepared for Integrated Microwave Technologies, LLC. 101 Bilby Road, Suite 1 Hackettstown, NJ 07840 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 2/19/2013 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 2 of 120 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.......................................................................................... 3 2. EUT DESCRIPTION ............................................................................................................... 4 3. TEST METHODOLOGY......................................................................................................... 5 4. FACILITIES AND ACCREDITATION................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.................................................................................. 6 5.1. MEASURING INSTRUMENT CALIBRATION...................................................................... 6 5.2. MEASUREMENT UNCERTAINTY....................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1. 6 dB&99% BANDWIDTH................................................................................................... 9 7.2. PEAK OUTPUT POWER.................................................................................................. 22 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................ 42 7.4. AVERAGE POWER ..........................................................................................................45 7.5. PEAK POWER SPECTRAL DENSITY ................................................................................48 7.6. CONDUCTED SPURIOUS EMISSIONS ............................................................................53 7.7. RADIATED EMISSIONS..................................................................................................93 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS .............................................. 93 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA................ ........... ......... ...................... 97 8. SETUP PHOTOS ................................................................................................................... 113 9. APENDEX .... ..... ................................................................................................................... 117 EUT: 2G Wideband MicroLite HD COFDM Transmitter Report No: 0048-120822-01 Model: 23WBMLT FCC ID:I4U-23WBMLT IC: 9479A-23WBMLT Page 3 of 120 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: INTEGRATED MICROWAVE TECHNOLOGIES, LLC. 101 Bilby Road, Suite 1 Hackettstown, NJ 07840, USA EUT DESCRIPTION: 2G Wideband MicroLite HD COFDM Transmitter MODEL: 23WBMLT DATE TESTED: Nov. 04, 2012 to February 19, 2013 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e…

Text truncated - open the document above for the full version.
