I4U-58MLTMicroLITE HD Transmitter Model NO. 58MLT

MICROLITE TRANSMITTER HD/SD COFDM Transmitter User Manual IMT PUBLICATION: M22-0005-00A, REV 0.2D MicroLite Transmitter User Manual Revision 0.2D 2 Revision History Date Revision Modified By Description May 16, 2011- June 13, 2011 0.0D DLA(MH) Initial release to approvers July 20, 2011 0.1D DLA / MH Ongoing updates and clarifications (WIP) August 17. 2011 0.2D MH Added regulatory text (FCC and IC) MICROLITE TRANSMITTER User Manual IMT Publication: M22-0005-00A IMT, LLC. 200 International Drive Mt. Olive, NJ, 07828, USA. T +1 908 852 3700 F +1 908 813 0399 www.imt-solutions.com We make every effort to ensure our documentation is as accurate and as complete as possible. In the event that you find any errors or omissions, please contact Customer Tech Support at (908) 852-3700, or via email a [email protected]. © Copyrighted 2011 - IMT, LLC - Mount Olive, New Jersey 07828 MicroLite Transmitter User Manual Revision 0.2D 3 CAUTION! RISK OF ELECTRICAL SHOCK. DO NOT REMOVE COVERS.
Do not remove any covers
Refer servicing to qualified technicians only
Disconnect all power before servicing
Read and perform all instructions carefully
Failure to follow suggested instructions and guidelines may void all warranties PRUDENCE! RISQUE DE CHOC ÉLECTRIQUE. NE SUPPRIMEZ PAS LES COUVERTURES.
Ne supprimez pas les couvertures
Voir entretien à qualifiés Techniciens seulement.
Déconnectez tous les pouvoir avant l'entretien.
Lecture et effectuer toutes les instructions attentivement.
Échec de suivre les lignes directrices et les instructions proposées peut-être annuler toutes les garanties. MicroLite Transmitter User Manual Revision 0.2D 4 FCC CAUTION/ PRUDENCE DE FAC Any change or modification not approved by the party responsible for compliance could void the user’s authority to operate this device. This device requires professional installation. For operation within 5.725 - 5.850 GHz frequency range, the maximum EIRP must be less than 36 dBm. The qualified antenna types to be used with this device include: Low Gain Collinear Omni Antenna (4.5dBi or 6 dBi) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In order to maintain compliance with the FCC RF exposure guidelines, this device should be installed and operated with a minimum distance of 20cm between the radiator, and the body of the operator and/or nearby persons. Tout changement ou modification non approuvé par la partie responsable de la conformité pouvait annuler l'autorisation de l'utilisateur pour l'exploitation de ce dispositif. Ce dispositif nécessite l'installation professionnelle. Pour l'opération au sein de la gamme de fréquences de 5.725-5.850 GHz, la pire maximale doit être inférieure à 36 dBm. Les types d'antenne qualifiés pour être utilisé avec ce dispositif, citons : Antenne Omni colinéaires faible Gain colinéaires Omni antenne (4.5dBi ou 6 dBi). Cet appareil est conforme à la partie 15 des règles de la FCC. Opération est soumis à deux conditions suivantes: (1) ce dispositif ne peut pas causer de brouillage préjudiciable, et (2) ce dispositif doit accepter toute ingérence a reçu, y compris le brouillage qui peut provoquer l'opération non désirée. Afin de maintenir la conformité avec les directives d'exposition RF FCC, ce dispositif doit être installé et exploité avec une distance minimale de 20 cm entre le radiateur et le corps de l'opérateur ou à proximité de personnes. FCC STATEMENT This equipment (FCC ID: I4U-58MLT) has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. DÉCLARATION DE FAC Cet équipement (FCC ID: I4U-58MLT) a été testé et de respecter les limites pour une classe b dispositif numérique, conformément à la partie 15 des règles de la FCC. MicroLite Transmitter User Manual Revision 0.2D 5 IC Notice/:IC Avis 1. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. 2. This radio transmitter (IC: 9479A-58MLT) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Antenna Approved/Antenne approuvé Type/Type Max. Gain/Max. Gain Impedance/Impédance Collinear Omni Antennas/Colinéaires Omni antennes 6 …

Text truncated - open the document above for the full version.

I4U-58MLT Confidentiality Request-Rev1.0 Created by wangj Page 1 of 2 Confidentiality Request Pertaining to Request for Certification of FCC ID: I4U-58MLT TO WHOM IT MAY CONCERN Integrated Microwave Technologies (thereafter refers to as IMT) hereby respectfully requests confidentiality of certain materials pursuant to published FCC guidelines, with respect to our Request for Certification of FCC ID: I4U- 58CP2, in accordance with FCC Sections 0.459(b), and 0.457(d) IMT has submitted a Technical Report, as required by FCC guidelines, in conjunction with the Request for Certification. Certain parts of this Technical Report and/or the attendant submittals contain information that are trade secrets and are requested to be withheld from public inspection. The attachments and/or exhibits, henceforth collectively “Materials”, designated as followings are requested to remain confidential: Exhibit Type File Name Schematics I4U-58MLT Schematics-Rev1.0.pdf Operational Description I4U-58MLT Theory of Operation-Rev1.0.pdf Bill of Material I4U-58MLT Bill of Material-Rev1.0.pdf Block Diagram I4U-58MLT Block Diagram-Rev1.0.pdf Tune Up Procedure I4U-58MLT Tune Up Procedures-Rev1.0.pdf Internal Photo* I4U-58MLT Internal Photos-Rev1.0.pdf *previously approved case: Tracking Number 248266, IMT is formerly known as RF Extreme, LLC. These materials contain commercial trade secret information that would reveal our unique proprietary system design which is a result of our proprietary Research and Development. These materials comprise information that differentiates our products from those of our significant market competition, and which allow us operate in the very competitive market for this product. These materials, if released, would result in substantial competitive harm due to unlicensed copying of our proprietary design(s) in whole or in part. Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-58MLT Confidentiality Request-Rev1.0 Created by wangj Page 2 of 2 To protect these materials, IMT does not release them to the public, and protects them from unauthorized disclosure by third parties via the execution of Non-Disclosure Agreement’s. In respect to the internal photo of the Final Power Amplifiers, IMT feels that additional justification for confidentiality exists due to the fact that the amplifier circuit board(s) are mounted inside a sealed component that can sustain damage upon opening, and that said component itself is mounted inside an enclosure that the end-user may not readily open, and that so opening would nullify any equipment warranty since the equipment is only serviceable by IMT or our designated technicians. The internal images of the amplifier would provide any reasonably savvy RF engineer the means to replicate the design and result in substantial competitive harm to IMT. Also, the internal photos show the digital circuitries and IC markings, which would provide competitors information on the technologies used. Therefore, internal photos would expose our proprietary design information, would provide any reasonably savvy digital design engineer the means to replicate the design, and result in substantial competitive harm to IMT. 58MLT is a microwave transmitter. It is only operated by and under the control of Studio professionals. It is not a general consumer product, and it is not accessible by general public. Furthermore, the equipment is only serviceable by us, the manufacture or our trained designated technicians IMT requests that these materials be withheld from public inspection in perpetuity due to the possibility and likelihood that the designs will be utilized, in whole or in part, by IMT as the basis for future products which would likewise be subject to the same competitor interest. Sincerely yours, . Jason Wang Compliance Engineer

Date: 08/18/2011 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; • use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company • make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jason Wang FCC Contact Person, Compliance Engineer Integrated Microwave Technologies LLC

I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 1 of 7 FCC Certification Report External Photographs (Per CFR TITLE 47, PART 2, SUB-PART J) FCC ID: I4U-58MLT Product name: MicroLite HD COFDM Transmitter Product base model: 58MLT PROPRIETARY INFORMATION This document contains proprietary information, which shall not be reproduced or transferred to other documents or disclosed to others or used for manufacturing or any other purpose without prior written permission of Integrated Microwave Technologies LLC. Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 2 of 7 Revision Control Cover Sheet Revision Date Section or paragraph affected Page(s) Change Description 1.0 8/18/2011 all all Initial Draft 1.1 8/30/2011 Photo 5, 6 and 7 6 - 7 Added more photos show external antenna connection I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 3 of 7 Table of Photos Photo 1 Top View ........................................................................................................................... 4 Photo 2 Connector Side View ......................................................................................................... 4 Photo 3 Reversed Polarity (RP) SMA RF Out Connector .............................................................. 5 Photo 4 Side View .......................................................................................................................... 5 Photo 5 External Antenna Attached ................................................................................................ 6 Photo 6 Zoomed in Antenna Connection ........................................................................................ 6 Photo 7 RP-SMA Connectors ......................................................................................................... 7 I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 4 of 7 Photo 1 Top View Photo 2 Connector Side View I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 5 of 7 Photo 3 Reversed Polarity (RP) SMA RF Out Connector Photo 4 Side View I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 6 of 7 Photo 5 External Antenna Attached Photo 6 Zoomed in Antenna Connection I4U-58MLT External Photographs-Rev1.1 Created by wangj Page 7 of 7 Photo 7 RP-SMA Connectors

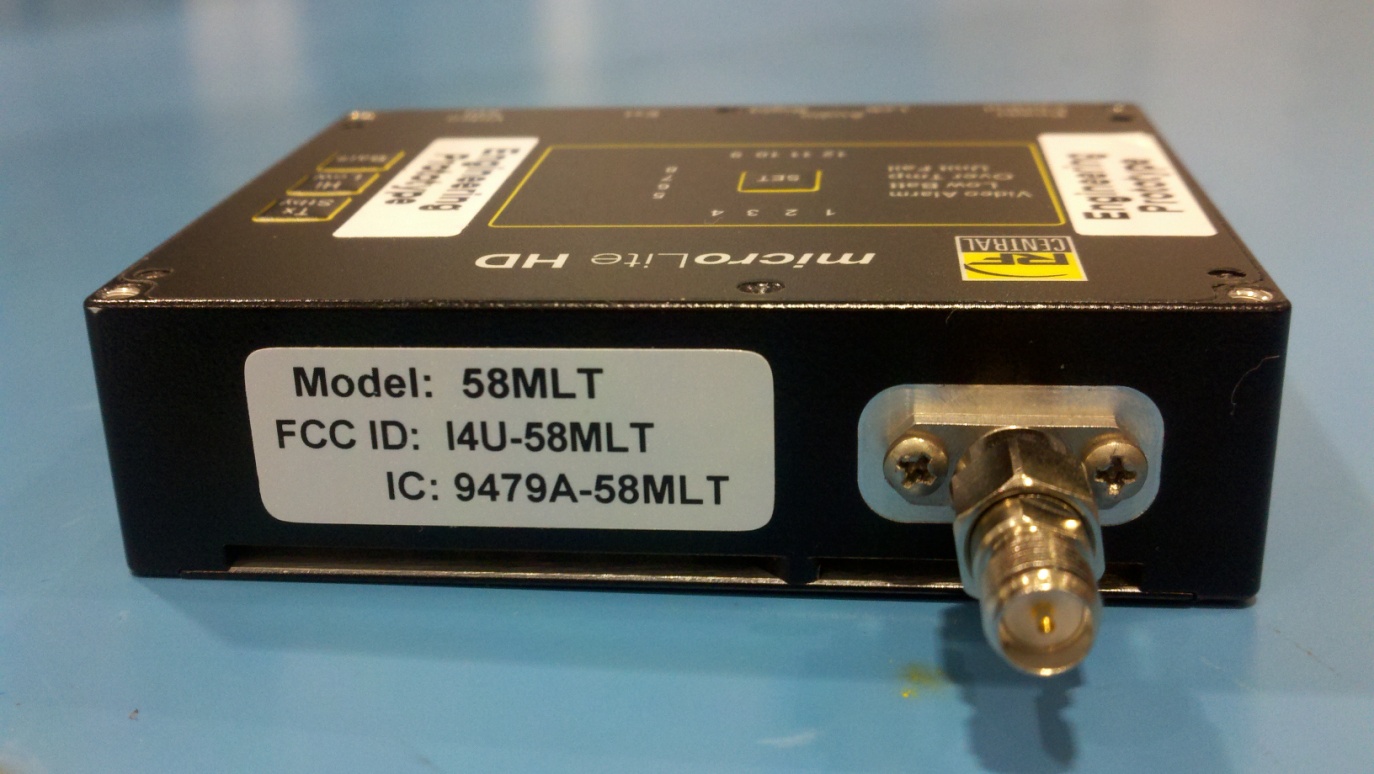

I4U-58MLT FCC ID Label and Label Location-Rev1.0 Created by wangj Page 1 of 3 FCC Certification Report FCC ID Label and Label Location (Per CFR TITLE 47, PART 2, SUB-PART J) FCC ID: I4U-58MLT Product name: MicroLite HD COFDM Transmitter Product base model: 58MLT PROPRIETARY INFORMATION This document contains proprietary information, which shall not be reproduced or transferred to other documents or disclosed to others or used for manufacturing or any other purpose without prior written permission of Integrated Microwave Technologies LLC. Integrated Microwave Technologies 200 International Drive Budd Lake, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-58MLT FCC ID Label and Label Location-Rev1.0 Created by wangj Page 2 of 3 Table of Photos Photo 1 FCC ID Label .................................................................................................................... 3 Photo 2 FCC ID Label Location ..................................................................................................... 3 I4U-58MLT FCC ID Label and Label Location-Rev1.0 Created by wangj Page 3 of 3 Photo 1 FCC ID Label Photo 2 FCC ID Label Location

FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For 5.8GHz MicroLITE Model Number: 58MLT (5725-5850MHZ) FCC ID: I4U-58MLT IC: 9479A-58MLT Report Number: 0048-110525-01 Prepared for Intergrated Microwave Technologies, LLC. 101 Bilby Road, Suite 1 Hackettstown, NJ 07840 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 8/19/2011 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 2 of 100 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION.......................................................................................... 3 2. EUT DESCRIPTION ............................................................................................................... 4 3. TEST METHODOLOGY......................................................................................................... 5 4. FACILITIES AND ACCREDITATION................................................................................... 5 5. CALIBRATION AND UNCERTAINTY.................................................................................. 6 5.1. MEASURING INSTRUMENT CALIBRATION...................................................................... 6 5.2. MEASUREMENT UNCERTAINTY....................................................................................... 6 5.3. TEST AND MEASUREMENT EQUIPMENT......................................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1. 6 dB&99% BANDWIDTH................................................................................................... 9 7.2. PEAK OUTPUT POWER.................................................................................................. 24 7.3. MAXIMUM PERMISSIBLE EXPOSURE............................................................................ 45 7.4. AVERAGE POWER ..........................................................................................................48 7.5. PEAK POWER SPECTRAL DENSITY ................................................................................50 7.6. CONDUCTED SPURIOUS EMISSIONS ............................................................................55 7.7. RADIATED EMISSIONS..................................................................................................88 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS .............................................. 88 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA................ ........... ......... ...................... 90 8. SETUP PHOTOS ................................................................................................................... 92 9. APENDEX .... ..... ................................................................................................................... 96 EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 3 of 100 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: INTERGRATED MICROWAVE TECHNOLOGIES, LLC. 101 Bilby Road, Suite 1 Hackettstown, NJ 07840, USA EUT DESCRIPTION: 5.8GHZ MICROLITE MODEL: 58MLT(5725-5850MHZ) DATE TESTED: May 25, 2011 to August 19, 2011 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 4 of 100 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT is a Low power transmitter, using digital modulation & operating in the 5725-5850 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Tested Average Power (dBm) Tested Peak Power (dBm) 5729-5841 19.36 27.86 The EUT can use a detachable antenna with Reversed Polarity SMA connector. The requirement for the antenna is specified by the applicant , i.e. max. output peak power at antenna shall be less than 36dBm. Qualified antenna type to be used: Low Gain Collinear Omni Antenna : CO580-6-SMAR-C: RPSMA, 6 dBi, Vertical Polarization EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 5 of 100 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST M ETHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/2003, FCC CFR 47 Part 2 & 15 and IC RSS-210. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect dat…

Text truncated - open the document above for the full version.

EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 108 of 116 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 8. SETUP PHOTOS Average Output Power Measurement EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 109 of 116 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Conducted BW Measurements at Antenna Port EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 110 of 116 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Conducted Spurious Measurements at Antenna Port EUT: 5.8GHz MicroLITE Report No: 0048-110525-01 Model: 58MLT(5725-5850MHZ) FCC ID:I4U-58MLT IC: 9479A-58CP2 Page 111 of 116 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 Field Strength of Spurious
