I4U-65SKTX-71Skymaster TX HD/SD COFDM Transmitter 65SKTX

The new SkymasterTX (SKTX) is a lightweight, full-featured digital COFDM video downlink transmitter built to address the unique requirements of aircraft downlink operation. The chassis design features either horizontal or vertical ARINC mounting. All of the connections and controls have been lo- cated on one side of the unit. This allows the SkymasterTX to be removed from one aircraft and installed in another with ease. A unique feature of the SkymasterTX is a built-in GPS receiver. This allows aircraft position data to be downlinked to the command center for display on a moving map system. This feature allows rapid location of the aircraft. The SkymasterTX can operate in a wide variety of bands delivering High Definition and Standard Definition video resolutions. The SkymasterTX can output up to 8W of RF power extending and improving link reliability. The SkymasterTX features COFDM digital modulation. COFDM modulation is unaffected by multipath – unlike single-carrier modulation formats such as FM, CDL or QAM. The SkymasterTX has a built-in H.264 (MPEG-4) encoder or optional MPEG-2 encoder. MPEG-4 encoding is the latest encoding method. It requires 50% less bit-rate over MPEG-2 improving the reliability of the transmission even more. MPEG-4 also allows for the transmitting of High Definition video without sacrificing performance. IMT has taken great care with the design of the internal H.264 encoder. It has been designed with video quality as its cornerstone. The quality of the encoding rivals that of full-featured rack mounted encoders. Knowing that security of the video is critical, the SkymasterTX features the latest in AES 128 and 256 encryption. This feature can be enabled or disabled very easily allowing the mode to be selected depending on the mission requirements. To ensure interoperability between vendors we also conform to BCRYPT, a published, non-proprietary standard. The front panel LCD and a Remote Control user interface allow for quick control of preset selection, standby mode, and encryption mode. For ad- vanced functions such as changing frequency plans, AES encryption keys, or unit naming, an easy-to-use administration software package is sup- plied. Configuration is flexible with 16 or more different presets available. HD / SD COFDM Aircraft Transmitter SkymaStertX FeatureS: n Proven interoperable SD and HD encoding n 8W RF TX output power n Standard bands include 2GHz, 4.5 GHz and 6.5GHz n MPEG-4 Part-10/H.264 n Optimized size and weight for aircraft n Multiple ARINC mounting options n Superior broadcast quality video n Video, audio, data and telemetry n Front panel LCD screen and LED alarms n ASI multiplexing n GPS receiver n AES encryption (BCRYPT) n 16 or more user configurable presets OptiOnS: n Narrow band 1.25 MHz/2.5 MHz COFDM n Second MPEG-2 or MPEG-4 encoder * n IP streaming input * acceSSOrieS: n ACCESS remote control n ARINC mounting tray n GPS antenna RF Specifications: (Other bands are available, please consult the factory for more information.) Tuning Step Size: 250 KHz step size (others available) Frequency Stability: ± 30 ppm Modulation Modes: Modulation 1: Modulation Formats: COFDM (DVB-T) Carriers: 2k Constellation: QPSK, 16 QAM, 64 QAM Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8 Guard Interval: 1/32, 1/16, 1/8, 1/4 Bandwidth: 6 MHz, 7 MHz, and 8 MHz Modulation 2 (Optional): Modulation Formats: COFDM (Proprietary) Carriers: 2k Constellation: QPSK Code Rate: 1/2, 3/4 Guard Interval: 1/32 Bandwidth: 1.25MHz, 2.5 MHz Video: Video Input: Composite NTSC PA L SD-SDI Input: ANSI/SMPTE 259M HD-SDI Input: ANSI/SMPTE 292M Audio: Audio Channels: 1 Stereo, 2 Mono Standard Audio Input: Line, Gain selectable (-12 dB to +50 dB) Balanced 600Ω Audio Input: De-embedded from SDI Tone (-10dBfs/8dBm) Level Adj. (-10-26dBfs) MPEG Encoder: Video: Method: MPEG-4 Part 10/H.264 Video Coding: AVC Audio Coding: ISO/IEC 11172-3(MPEG Layer II) Audio Sample Rate: 48 kHz MPEG-4 Formats: 1080i/59.94 1080p/29.97 1080i/50 720p/59.94 720p/29.97 720p/50 480i (NTSC) 576i (PAL) Other formats are available. System: Video Present: Remote Standby/Test Generator selectable Test Generator (Dynamic): SMPTE CB(NTSC)/100% CB(PAL) 1kHz Tone ASI Input: Rate converted from 0mpbs-Max modulation rate PCR Retime stamp Encryption (optional): BCRYPT1 and 2 AES Block Cypher, key size of 128 and 256 bit (FIPS PUB 197) User Data: RS232 300-115k Baud Remote Control: Remote RS232 or Web GUI * Power Requirements: Input Range: +24 to +32 VDC Environmental: Temperature Range: Full Specification: -20° to +60°C Storage: -40° to +80°C Humidity: 0 to 95% non-condensing Physical Characteristics: Dimensions: 4.88" W x 7.5" H x 12.6" L (12.4 cm x 19.1 cm x 32.0 cm) Weight: <10 lbs (4.5 Kg) * Feature under development HD / SD COFDM — Aircraft Transmitter SkymaStertX Base Model NumberFrequency (GHz) 23SKTX2.000 - 2.500 * 25SKTX2.400 - 2.700 * 47SKTX4.400 - 5.000 65SKTX6.425 - 6.525 HD / SD COFDM — Aircraft Transmitter SkymaStertX SKTX Outline Drawing (inches): ARINC Horizontal Mounting Tray Drawing (inches): HD / SD COFDM — Aircraft Transmitter SkymaStertX SkymasterTX Suggested System Configuration: IMT reserves the right to make changes to specifications of products described in this datasheet at any time without notice and without obligation to notify any person of such changes. 413M_02_12 Integrated Microwave Technologies, LLC 200 International Drive, Mt. Olive, NJ 07828 USA T. +1.908.852.3700 F. +1.908.813.0399 www.imt-government.com HD-SDI RF Output Access RC – Cockpit Remote Control GPS RS232 UDP IP Stream

I4U-65SKTX-71 Confidentiality Request-Rev1.0.docx Created by wangj Page 1 of 2 Confidentiality Request Pertaining to Request for Certification of FCC ID: I4U-65SKTX-71 TO WHOM IT MAY CONCERN Integrated Microwave Technologies (thereafter refers to as IMT) hereby respectfully requests confidentiality of certain materials pursuant to published FCC guidelines, with respect to our Request for Certification of FCC ID: I4U- 65SKTX-71, in accordance with FCC Sections 0.459(b), and 0.457(d) IMT has submitted a Technical Report, as required by FCC guidelines, in conjunction with the Request for Certification. Certain parts of this Technical Report and/or the attendant submittals contain information that are trade secrets and are requested to be withheld from public inspection. The attachments and/or exhibits, henceforth collectively “Materials”, designated as followings are requested to remain confidential: Exhibit Type File Name Schematics I4U-65SKTX-71 Schematics-Rev1.0.pdf Operational Description I4U-65SKTX-71 Theory of Operation-Rev1.0.pdf Block Diagram I4U-65SKTX-71 Block Diagram-Rev1.0.pdf Internal Photo* I4U-65SKTX-71 Internal Photos-Rev1.0.pdf *previously approved case via KDB for same hardware approved under FCC ID I4U-65SKTX IMT is formerly known as RF Extreme, LLC, Nucomm Inc. These materials contain commercial trade secret information that would reveal our unique proprietary system design which is a result of our proprietary Research and Development. These materials comprise information that differentiates our products from those of our significant market competition, and which allow us operate in the very competitive market for this product. These materials, if released, would result in substantial competitive harm due to unlicensed copying of our proprietary design(s) in whole or in part. Integrated Microwave Technologies 200 International Drive Mt. Olive, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-65SKTX-71 Confidentiality Request-Rev1.0.docx Created by wangj Page 2 of 2 To protect these materials, IMT does not release them to the public, and protects them from unauthorized disclosure by third parties via the execution of Non-Disclosure Agreement’s. In respect to the internal photo of the Final Power Amplifiers, IMT feels that additional justification for confidentiality exists due to the fact that the amplifier circuit board(s) are mounted inside a sealed component that can sustain damage upon opening, and that said component itself is mounted inside an enclosure that the end-user may not readily open, and that so opening would nullify any equipment warranty since the equipment is only serviceable by IMT or our designated technicians. The internal images of the amplifier would provide any reasonably savvy RF engineer the means to replicate the design and result in substantial competitive harm to IMT. Also, the internal photos show the digital circuitries and IC markings, which would provide competitors information on the technologies used. Therefore, internal photos would expose our proprietary design information, would provide any reasonably savvy digital design engineer the means to replicate the design, and result in substantial competitive harm to IMT. 65SKTX is a microwave transmitter. It is only operated by and under the control of Studio professionals. It is not a general consumer product, and it is not accessible by general public. Furthermore, the equipment is only serviceable by us, the manufacture or our trained designated technicians IMT requests that these materials be withheld from public inspection in perpetuity due to the possibility and likelihood that the designs will be utilized, in whole or in part, by IMT as the basis for future products which would likewise be subject to the same competitor interest. Sincerely yours, . Jason Wang FCC Contact Person, Compliance Engineer

Date: 11/30/2011 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize Advanced Compliance Laboratory, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance Laboratory, Inc. as our agent, we still recognize that we are responsible to: • comply with the relevant provisions of the certification program; • make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; • make claims regarding certification only in respect of the scope for which certification has been granted; • do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; • upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; • use certification only to indicate the products are certified as being in conformity with specified standards; • endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; • ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; • keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to Integrated Microwave Technologies 200 International Drive Mt. Olive, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company • make these records available to the Certification Division when requested; • take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; • Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jason Wang FCC Contact Person, Compliance Engineer Integrated Microwave Technologies LLC

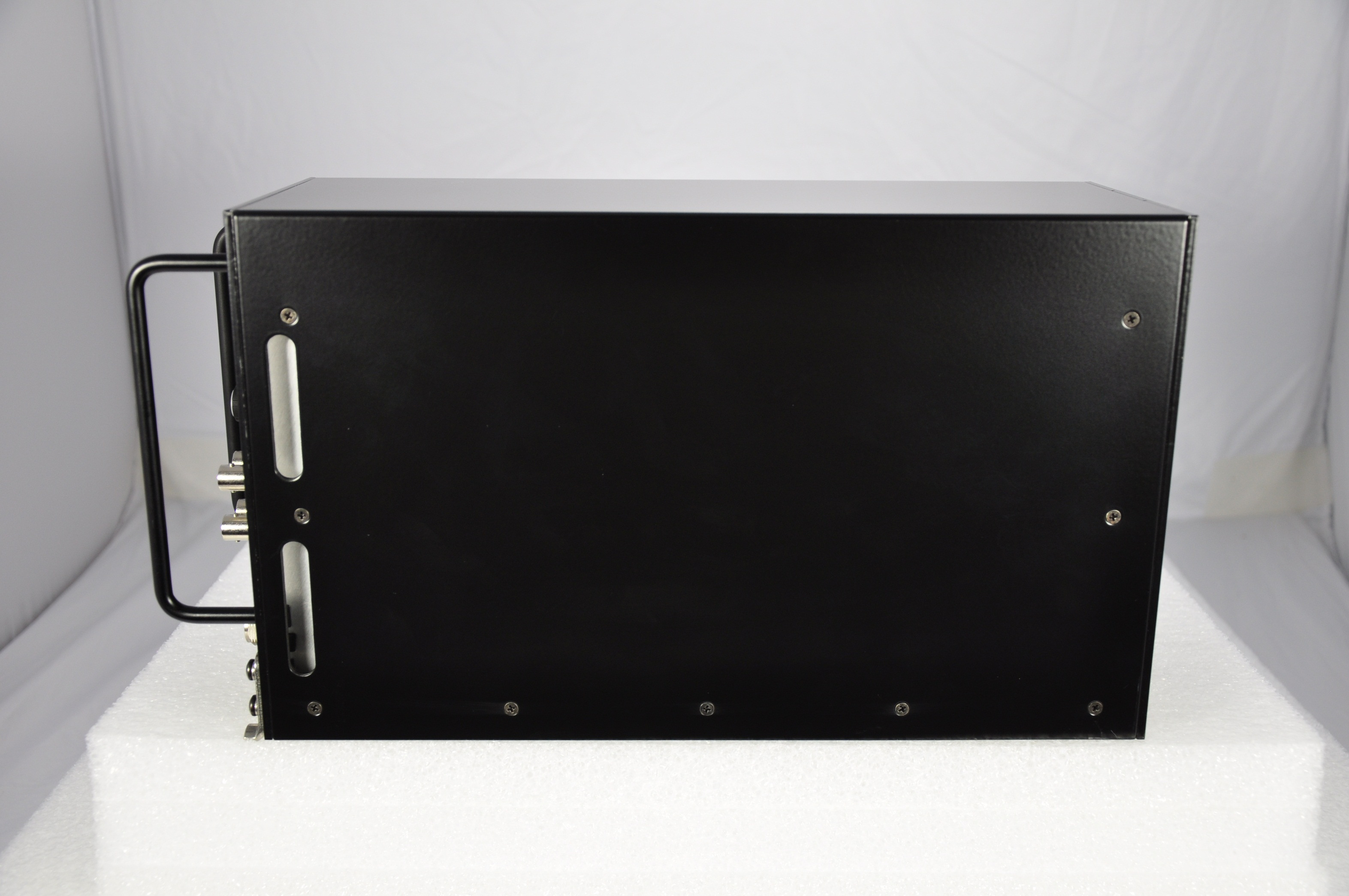

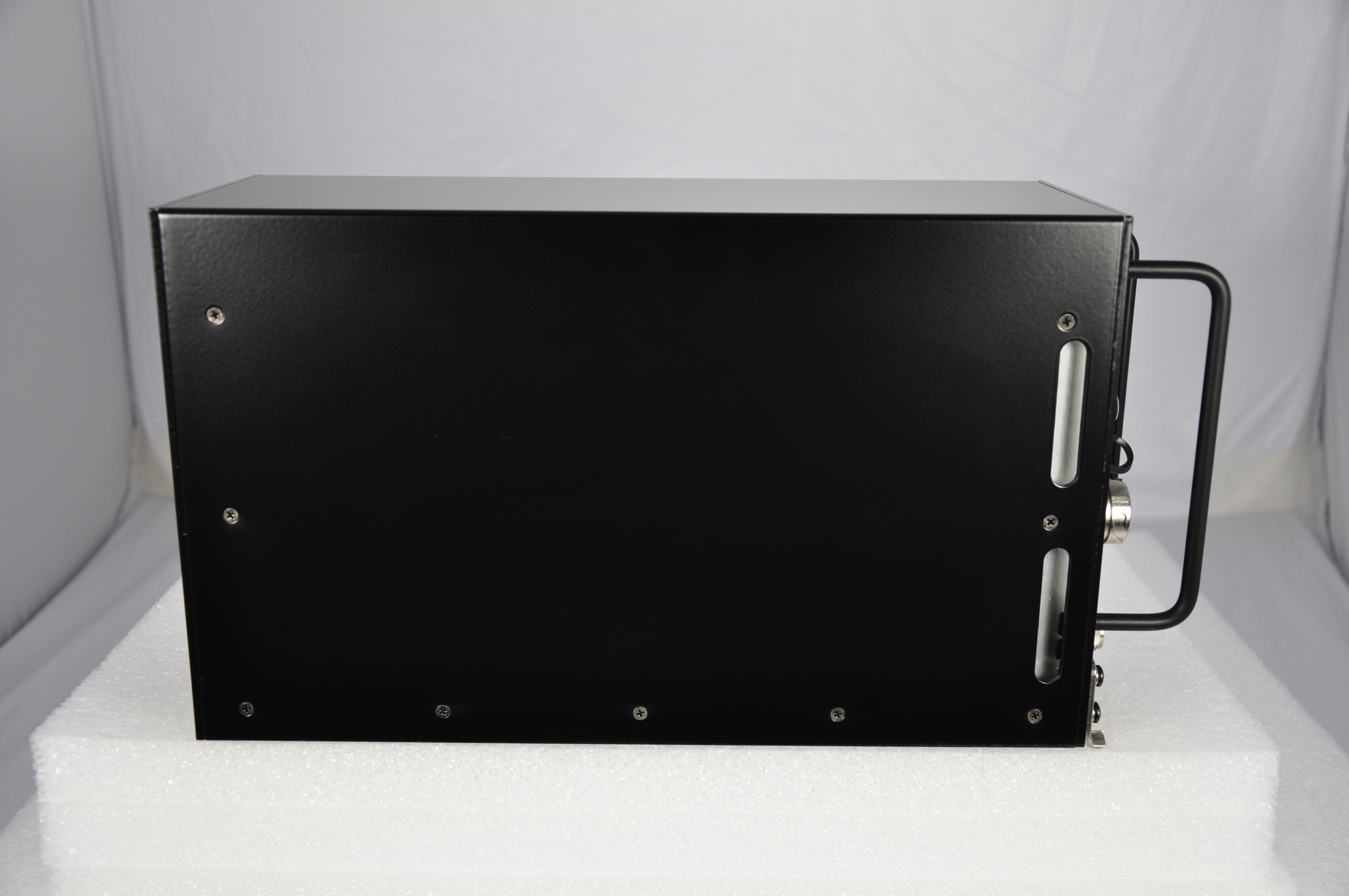

I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 1 of 6 FCC Certification Report E xternal Photographs ( Per CFR TITLE 47, PART 2, SUB-PART J) FCC ID: I4U-65SKTX-71 Product name: SkymasterTX HD/SD COFDM Transmitter Product base model: 65SKTX PROPRIETARY INFORMATION This document contains proprietary information, which shall not be reproduced or transferred to other documents or disclosed to others or used for manufacturing or any other purpose without prior written permission of Integrated Microwave Technologies LLC. Integrated Microwave Technologies 200 International Drive Mt. Olive, NJ 07828 T + 908 852 3700 F + 908 813 0399 www.imt-solutions.com You’ll know us by the company we keep: IMT Nucomm RF Central Microwave Service Company I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 2 of 6 Revision Control Cover Sheet Revision Date Section or paragraph affected Page(s) Change Description 1.0 04/19/2012 all all Initial Draft I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 3 of 6 Table of Photos Photo 1 EUT ................................................................................................................................... 4 Photo 2 Left Side View ................................................................................................................... 4 Photo 3 Right Side View................................................................................................................. 5 Photo 4 Front View ......................................................................................................................... 5 Photo 5 Back View ......................................................................................................................... 6 I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 4 of 6 Photo 1 EUT Photo 2 Left Side View I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 5 of 6 Photo 3 Right Side View Photo 4 Front View I4U-65SKTX-71 External Photographs-Rev1.0.docx0 Created by wangj Page 6 of 6 Photo 5 Back View

EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 91 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 11. FCC ID Labeling FCC ID Label Location of Label on Rear Side Wall FCC LABEL FCC ID: I4U-65SKTX-71 This device complies with Part 2, 74, 101 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Skymaster TX HD/SD COFDM Transmitter 65SKTX Applicant Integrated Microwave Technologies, LLC. In Accordance With FCC Part 74 ( /Part 2) Test by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date June 20, 2012 AC Lab Report Number 0048-120412-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Index Section 1. Summary of Test Results............................................................................. 3 Section 2. General Equipment Specification ............................................................... 5 Section 3. RF Output Power ........................................................................................ 8 Section 4. Occupied Bandwidth ................................................................................. 12 Section 5. Spurious Emissions at Antenna Terminals ............................................... 63 Section 6. Field Strength of Spurious ...................................................................... 114 Section 7. Emission Limitation Mask ...................................................................... 119 Section 8. Frequency Stability.................................................................................. 184 Section 9. Maximum Permissible Exposure ............................................................ 188 Section 10. Test Equipment List .............................................................................. 190 Section 11. FCC ID Labeling ................................................................................... 191 Section 12. Setup Photos .......................................................................................... 192 Section 13. EUT Photos ............................................................................................ 197 EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKT-71 Model: 65SKTX Report Number: 0048-120412-01 Page 3 of 199 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Integrated Microwave Technologies, LLC. Model No.: Skymaster TX HD/SD COFDM Transmitter 65SKTX Sample No.: ENGUNIT002 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 2& Part 74. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKT-71 Model: 65SKTX Report Number: 0048-120412-01 Page 4 of 199 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data RF Power Output 74.636/2.1046 12W (40.8dBm) (6425-6525MHz Band) EIRP Complies Occupied Bandwidth 74.637/2.1049 25MHz (6G Band) Complies Spurious Emissions at Antenna Terminals 74.637/2.1051 -13 dBm Complies Field Strength of Spurious Emissions 74.637/2.1051 -13 dBm E.I.R.P. Complies Emission Limitation Mask 74.637 Mask Complies Frequency Stability vs. Voltage &Temperature 74.661/2.1055 50ppm Complies The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: June 20, 2012 Lab Manager Advanced Compliance Lab EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKT-71 Model: 65SKTX Report Number: 0048-120412-01 Page 5 of 199 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage Nominal +28Vdc Extended +24-32Vdc Frequency Range 6425.0 - 6525.0 MHz Modulations All Modes Digital QPSK (D7W) Digital 16QAM (D7W) Digital 64QAM (D7W) Emission Designators / Max. Rated Power 7M0D7W/8M0D7W/11M0D7W/12M0D7W/12M5D7W/25M0D7W Max. Rate Power: 4W ( 36dBm) See Page 7 for details Output Impedance 50ohm Frequency Translation All Bands F1-F1 F1-F2 N/A Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the RF Circuitry was set as followings: 6GHz Band: 12Vdc/9Amax for & 28Vdc /5.3Amax for SKTX unit The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). Measured Maximum RF output : 35.95dBm (3.95W) Measured Minimum RF output: 0 dBm Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this portable Transmitter. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments. EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKT-71 Model: 65SKTX Report N…

Text truncated - open the document above for the full version.

Electromagnetic Emission Compliance Test Report Equipment Under Test (EUT) Skymaster TX HD/SD COFDM Transmitter 65SKTX Applicant Integrated Microwave Technologies, LLC. In Accordance With FCC Part 101 ( /Part 2) Test by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, New Jersey 08844 Authorized by Wei Li Lab Manager Signature Date January 8, 2013 AC Lab Report Number 0048-130108-01 The test result in this report is supported and covered by the NVLAP accreditation. Lab Code:200101-0 Advanced Compliance Laboratory 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Index Section 1. Summary of Test Results............................................................................. 3 Section 2. General Equipment Specification ............................................................... 5 Section 3. RF Output Power ........................................................................................ 8 Section 4. Occupied Bandwidth ................................................................................. 12 Section 5. Spurious Emissions at Antenna Terminals ............................................... 33 Section 6. Field Strength of Spurious ........................................................................ 54 Section 7. Emission Limitation Mask ........................................................................ 59 Section 8. Frequency Stability.................................................................................... 84 Section 9. Maximum Permissible Exposure .............................................................. 88 Section 10. Test Equipment List ................................................................................ 90 Section 11. FCC ID Labeling ..................................................................................... 91 Section 12. Setup Photos ............................................................................................ 92 Section 13. EUT Photos .............................................................................................. 97 EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 3 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 1. Summary of Test Results Manufacturer: Integrated Microwave Technologies, LLC. Model No.: Skymaster TX HD/SD COFDM Transmitter 65SKTX Sample No.: ENGUNIT002 General: All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 2& Part 101 Subparts C&H for mobile operation. New Submission Production Unit Class II Permissive Change Pre-Production Unit THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. “See Summary of Test Data” NVLAP LAB CODE: 200101-0 Advance Compliance Laboratory, Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Advance Compliance Laboratory, Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 4 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Summary of Test Data FCC Part 101, Subparts C&H Testing Items FCC Requirements Limit Result RF Power Output 101.113/2.1046 35dBW (65dBm) (6425- 6525MHz Band) EIRP Complies Occupied Bandwidth 101.109/2.1049 25MHz (6G Band) Complies Spurious Emissions at Antenna Terminals 101.111(a)(2)/2.1051 -13 dBm Complies Field Strength of Spurious Emissions 101.111(a)(2)/2.1051 -13 dBm E.I.R.P. Complies Emission Limitation Mask 101.111(a)(2) Mask Complies Frequency Stability vs. Voltage &Temperature 101.108/2.1055 50ppm Complies The estimated uncertainty of the test result is given as following. The method of uncertainty calculation is provided in Advanced Compliance Lab. Doc. No. 0048-01-01. Prob. Dist. Uncertainty(dB) Uncertainty(dB) Uncertainty(dB) 30-1000MHz 1-6.5GHz Conducted Combined Std. Uncertainty u c norm. ±2.36 ±2.99 ±1.83 Wei Li Date: January 8, 2013 Lab Manager Advanced Compliance Lab EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 5 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 2. General Equipment Specification Supply Voltage Nominal +28Vdc Extended +24-32Vdc EUT Type Mobile Operation Frequency Range 6G Band 6425.0 - 6525.0 MHz Modulations All Modes Digital QPSK (D7W) Digital 16QAM (D7W) Digital 64QAM (D7W) Emission Designators / Max. Rated Power 8M0D7W/25M0D7W Max. Rate Power: 4W ( 36dBm) See Page 7 for details Max. Antenna Gain <29dBi Output Impedance 50ohm Frequency Translation All Bands F1-F1 F1-F2 N/A Software Duplexer Change Full Band Coverage DC voltages and DC currents per 2.1033(c)(8) The input supply to the RF Circuitry was set as followings: 6GHz Band: 12Vdc/9Amax for & 28Vdc /5.3Amax for SKTX unit The RF power output was measured with the indicated voltage and current applied into the final RF amplifying device(s). Measured Maximum RF output : 35.95dBm (3.95W) Measured Minimum RF output: 0 dBm Tune-up procedure per 2.1033(c) (9) There are no user accessible adjustments or tuning in this portable Transmitter. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done…

Text truncated - open the document above for the full version.

EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 92 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Section 12. Setup Photos RF Output Power EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 93 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Conducted Measurement (OC, Spurious) EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 94 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Emission Limitation Mask EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 95 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Field Strength of Spurious EUT: Skymaster TX HD/SD COFDM Transmitter FCC ID: I4U-65SKTX-71 Model: 65SKTX Report Number: 0048-130108-01 Page 96 of 99 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, Tel: (908) 927 9288 Frequency Stability
