IFHAGGRES3DS2.4GHz Radio Control System

 )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5  )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5  )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5  )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5  )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5  )*\4CFKQ%QPVTQN5[UVGO#))4'5514&5 This Device has been evaluated to comply with RFe xposure requirement for general use limit in portab le c ondition. It is safe to be used in sold condition.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 November 17, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hitec RCD Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): 2.4GHz Radio Control System / AGGRESSOR 3DS (FCC ID: IFHAGGRES3DS) We affirm that between SIEMIC and Hitec RCD Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Tony Ohm / Service Dept. Manager Hitec RCD Inc. 12115 Paine Street, Poway, CA 92064, USA

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 November 17, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: IFHAGGRES3DS We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tony Ohm / Service Dept. Manager Hitec RCD Inc. 12115 Paine Street, Poway, CA 92064, USA

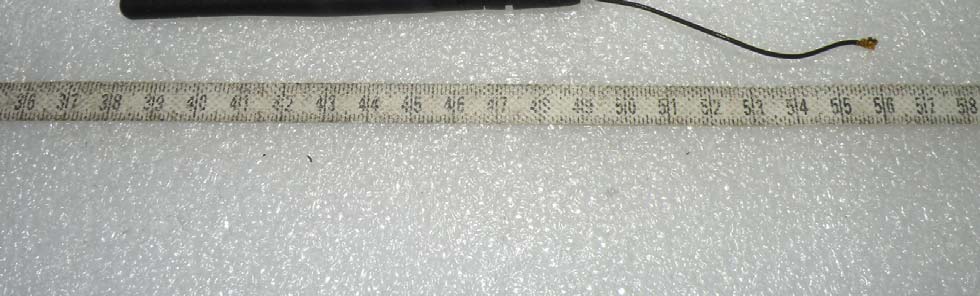

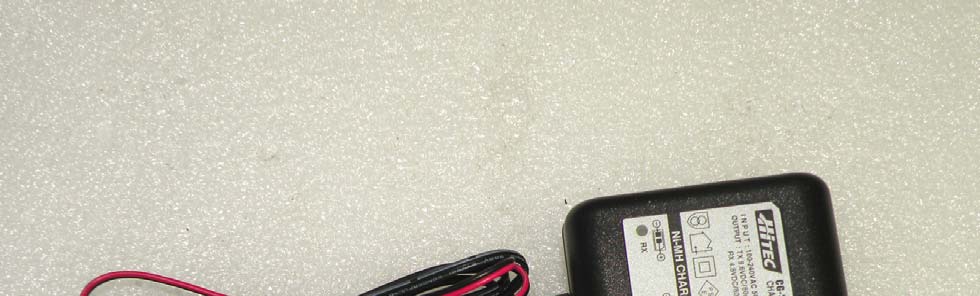

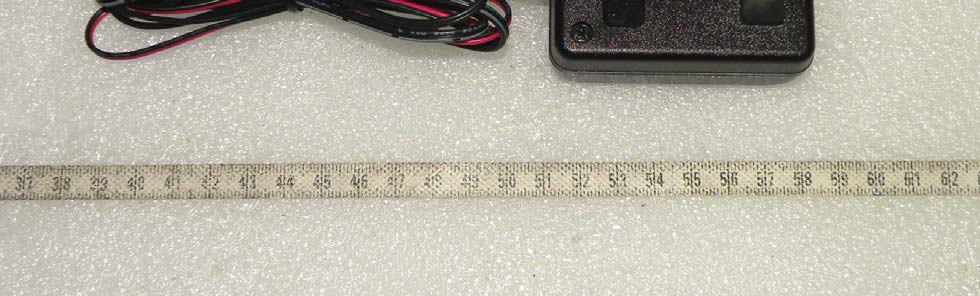

Appendix C. External Photographs Report no. ETLE101011.0570, Page C1 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE101011.0570, Page C2 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLE101011.0570, Page C3 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Bottom view of EUT (Battery cover open) Appendix C. External Photographs Report no. ETLE101011.0570, Page C4 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Side view of EUT Appendix C. External Photographs Report no. ETLE101011.0570, Page C5 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS View of total construct Appendix C. External Photographs Report no. ETLE101011.0570, Page C6 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS View of Adapter (for Battery Charger) Appendix C. External Photographs Report no. ETLE101011.0570, Page C7 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS View of Adapter label (for Battery Charger) Appendix C. External Photographs Report no. ETLE101011.0570, Page C8 of C8 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS View of Antenna

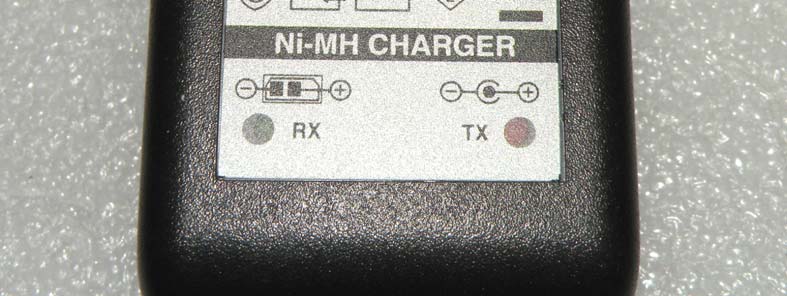

Appendix A. FCC ID Label and Location Report no. ETLE101011.0570, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Hitec RCD Inc. 2.4GHz Radio Control System FCC ID : IFHAGGRES3DS IC : 3420A-AGGRES3DS Model No. : AGGRESSOR 3DS POWER : 1. AC/DC adapter (for Battery Charger) Input Æ AC 100 V – 240 V; 50 Hz/60 Hz Output Æ TX: DC 9.6 V; 80 mA RX: DC 4.8 V; 80 mA 2. DC 12 V from Battery (DC 1.5 V ‘AA’ type battery; 8 EA) Serial No. : Proto type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Hitec RCD PHILIPPINES, INC. Made in Philippines Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D1 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Inside view of EUT Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D2 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Top side view of main board (with RF board) Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D3 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Top side view of main board Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D4 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Bottom side view of main board Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D5 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Top side view of RF board Appendix D. Internal Photographs Report no. ETLE101011.0570, Page D6 of D6 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Bottom side view of RF board

Aggressor 3DS Operating Description Aggressor 3DS have 74 Channels all scanning in 2.403GHz~2.476GH z. Aggressor 3DS have 1MHz Channel spacing.Aggressor 3DS operate, get only random 1channel among the 74cha nnels. The reason why get new random 1channels is to get the good receive sensitivi ty channel. 1Channel (2.403㎓) 2Channel (2.404㎓) 73Channel (2.475㎓ ) 74Channel (2.476㎓ ) ●●●●●● ●●●●●● ●●●●●● ●●●● The reason why get new random 1channels is to get the good receive sensitivity channel. ●●●●●● ● 1st CH 1st CH 1st CH 1st CH ●●●●●● The most clean Channel 회로S/W 개발팀 1 Aggressor 3DS Operating Description 1st CH 0.55 msec 1st CH 5.2 msec 4 52 Tx Tx Tx Tx Tx Tx 0.58 msec 4 . 52 msec 12.52 msec Frame Time ● Network method : Direct Sequence Spread Spectrum 16 b ● Data rate : 16 K b ps ● Preamble : 64 bit ● Sync word : 16 bit ● Network ID : 32 bit 회로S/W 개발팀 2

Report no. ETLE101011.0570 Page 42 of 44 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:IFHAGGRES3DS 5.8 Radio Frequency Exposure EUT 2.4GHz Radio Control System / AGGRESSOR 3DS Limit apply to FCC Part 15.247(i), RSS-102 2.5 Test Date November 04, 2010 Operating Condition RF transmits continuously during test mode Result Passed According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Low Frequency [MHz] High Frequency [MHz] Center Frequency [MHz] 60/f SAR Limitation [mW] 2 403 2 476 2 403 24.97 Maximum measured transmitter power: test mode Conducted AV power mode Conducted AV Power [dBm] Conducted AV Power [mW] Max Antenna Gain [dBi] EIRP [mW] 11.08 12.82 1.00 16.14 Conclusion: No Stand Alone SAR is required.

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL Inc. www.etl.re.kr Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement The 2.4GHz Radio Control System, Model AGGRESSOR 3DS has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the ETL Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C section 15.247 and RSS-210 Issue 7 - Category I Equipment, Annex 8. I attest to the accuracy of data. All measurement herein was performed by me or was made under my supervision and is correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel: 82-2-858-0786 Fax: 82-2-858-0788 PRODUCT : 2.4GHz Radio Control System MODEL/Serial No. : AGGRESSOR 3DS / Proto type MULTIPLE MODEL : - FCC ID : IFHAGGRES3DS IC : 3420A-AGGRES3DS APPLICANT : Hitec RCD Inc. 12115 Paine Street, Poway, CA 92064, USA Attn. : Tony Ohm / Service Dept. Manager MANUFACTURER : Hitec RCD PHILIPPINES, INC. Lot 6 and 8, Blk. 24, Phase 4 CEPZ, Rosario, Cavite, Philippines FCC CLASSIFICATION : DTS (Part 15 Digital Transmission System) TYPE OF MODULATION : DSSS FREQUENCY CHANNEL : 2 403 MHz to 2 476 MHz and Channel Spacing 1 MHz (74 Ch) AIR DATE RATE : 16 kbps ANTENNA TYPE : Dipole Antenna ANTENNA GAIN : 1.00 dBi max RULE PART(S) : FCC Part 15 Subpart C RSS-210 Issue 7 FCC PROCEDURE : ANSI C63.4-2003 TEST REPORT No. : ETLE101011.0570 DATES OF TEST : November 02, 2010 to November 09, 2010 REPORT ISSUE DATE : November 17, 2010 TEST LABORATORY : ETL Inc. (FCC Designation Number: KR0022, IC OATS Number: 6473B-1) Report no. ETLE101011.0570 Page 2 of 44 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:IFHAGGRES3DS Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Channel Bandwidth 5.3 Maximum Peak Output Power 5.4 Band Edges Measurement 5.5 Peak Power Spectral density 5.6 Spurious Emissions 5.7 Conducted Emissions Test 5.8 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. User Manual Appendix H. Operational Description Appendix I. Antenna Requirement Report no. ETLE101011.0570 Page 3 of 44 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:IFHAGGRES3DS FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : 2.4GHz Radio Control System z Model Number : AGGRESSOR 3DS z S/N : Proto type z Freq. Range : 2 403 MHz - 2 476 MHz z Number of Channels : 74 z Modulation Technique : DSSS z Frequency Channel : 2 403 MHz to 2 476 MHz and Channel Spacing 1 MHz (74 Ch) z Air Data Rate : 16 kbps z Antenna Type : Dipole Antenna z Antenna Gain : 1.00 dBi max z Rule Part(s) : FCC Part 15 Subpart C RSS-210 Issue 7 z Test Procedure : ANSI C63.4-2003 z FCC Classification : DTS (Part 15 Digital Transmission System) z IC Equipment Category : RSS-210 Issue 7 - Category I Equipment, Annex 8 z Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : Hitec RCD Inc. Address : 12115 Paine Street, Poway, CA 92064, USA Attention : Tony Ohm / Service Dept. Manager Report no. ETLE101011.0570 Page 4 of 44 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:IFHAGGRES3DS 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Hitec RCD Inc., Model: AGGRESSOR 3DS Report no. ETLE101011.0570 Page 5 of 44 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:IFHAGGRES3DS 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the 2.4GHz Radio Control System (model: AGGRESSOR 3DS). 2.2 General Specification General Specification Item Specification Ty…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B1 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Below 30 MHz) - Battery charging mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B2 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Below 30 MHz) - RF Transceiver mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B3 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Below 1 GHz) - Battery charging mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B4 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Below 1 GHz) - RF Transceiver mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B5 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Above 1 GHz) - Battery charging mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B6 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Radiated Emission Test Setup (Above 1 GHz) - RF Transceiver mode Appendix B. Test Setup Photographs Report no. ETLE101011.0570, Page B7 of B7 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:IFHAGGRES3DS Conducted Emission Test Setup - Battery charging mode
