IFHRX57MLINK7 CHANNEL 2.4 GHz TRANSCEIVER

Operating Instructions for RX-5 M-LINK / RX-7 M-LINK 2.4 GHz receivers Page 11 Instructions for RX-5/7 M-LINK 2.4 GHz receivers # 985 5312 (11-05-18/MIWA) • Errors and omissions excepted! • © MULTIPLEX ! These operating instructions are an integral part of the product, and contain important information and safety notes. Please store them in a safe place, where you can find them at any time, and pass them on to the new owner if you sell the receiver. 1. SPECIFICATION RX-5 M-LINK RX-7 M-LINK Order No. # 5 5817 # 5 5818 Reception system 2.4 GHz FHSS M-LINK Frequency Hopping Spread Spectrum MULTIPLEX-LINK Servo channel count 5 7 Servo frame rate Fast Response: 14 ms Standard: 21 ms Signal resolution 12-bit, 3872 steps Current drain Approx. 45 mA (excl. servos) Aerial length Total: approx. 20 cm, of which feed cable approx. 17 cm and active aerial section approx. 3 cm Operating voltage 3.5 V ... 9.0 V Î 4 - 6 NiCd / NiMH (NiXX) cells Î 2S LiPo / LiIo (LiXX) Operating temperature range - 20 °C ... + 55 °C Weight 13 g Dimensions Approx. 54.0 x 22.5 x 11.5 mm 2. SPECIAL FEATURES • High-quality 5-channel / 7-channel receivers assembled using the latest SMT methods, exploiting MULTIPLEX 2.4 GHz M-LINK technology. • Supplementary signal pre-amplification: For maximum sensitivity and great range. • In-line connectors arranged on the front and back: Ultra-compact dimensions: suitable for models with very little internal space. • HOLD / FAIL-SAFE function. • Integral SET button and LED: For binding, FAIL-SAFE programming, RESET and displaying operating status information. • Telemetry / feedback channel capability: Receiver battery voltage and connection quality = standard features. Integral sensor interface for connecting external sensor modules via MSB (MULTIPLEX Sensor Bus). • Prepared for two-receiver operation: Diversity lead (# 8 5070) required. • Prepared for serial servo output: Servo outputs as sum signal – SRXL-MULTIPLEX. The receiver’s first twelve channels are carried by a three- cord lead (# 8 5070) via the receiver’s B/D socket, e.g. for power supply / servo management systems, or for flybarless systems in model helicopters. • Prepared for selecting one sensor address as “priority address”: The selected sensor value is updated at a faster rate than all the other sensor values. • Integral error counter / data logger: For voltage and signal errors. • Compatible with the MULTImate (# 8 2094). • Integral PC interface: Carry out updates and adjustment using the MULTIPLEX Launcher PC program in conjunction with the UNI USB PC lead (# 8 5149). 3. SAFETY NOTES ! Please read the instructions before using the receiver. ! Use the receiver only for the intended applications (Î 4.). ! Ensure the power supply is of adequate capacity (Î 6.). ! Observe the installation notes (Î 13.). ! Carry out regular range checks (Î 14.). 4. APPLICATIONS The RX-5 M-LINK and RX-7 M-LINK 2.4 GHz receivers (abbre- viated to RX-5/7 M-LINK in this document) are radio control receivers intended exclusively for use in model sport. It is prohibited to employ them for other purposes such as full-size (people-carrying) vehicles or industrial installations. Typical applications for RX-5 M-LINK and RX-7 M-LINK re- ceivers: • Gliders and electric gliders up to about 2.50 m wingspan • Small to medium-sized RC helicopters with rotor diameters up to about 1 m • Model aircraft with electric and I.C. power systems and wingspans up to about 1.60 m • RC model cars • RC model boats 5. COMPATIBILITY RX-5/7 M-LINK 2.4 GHz receivers can only be operated in con- junction with transmitters which utilise MULTIPLEX M-LINK transmission technology. As of April 2011 these are: • ROYALpro 7, 9 and 16 M-LINK. • ROYALevo or pro 7, 9 and 12 with firmware version V3.xx and the HFM4 M-LINK 2.4 GHz RF module*. • PROFImc 3010, 3030 and 4000 with the HFM3 M-LINK 2.4 GHz RF module*. • COCKPIT SX M-LINK. • MULTIPLEX transmitters with the HFMx M-LINK 2.4 GHz RF module. • Graupner/JR transmitters with any of the following 2.4 GHz RF modules: HFMG1 M-LINK, HFMG2 M-LINK or HFMG3 M-LINK. ! * Note: Unless stated otherwise, when this document refers to the transmitter types ROYALevo, ROYALpro, and PROFImc 3010, 3030 and 4000, the terms refer to the 2.4 GHz M-LINK versions. 6. POWER SUPPLY RX-5/7-DR M-LINK receivers work within a broad range of vol- tages from 3.5 V ... 9.0 V, i.e. they can be used with receiver batteries consisting of four to six NiXX cells or 2S LiPo / 2S LiIo (LiXX). Operating Instructions for RX-5 M-LINK / RX-7 M-LINK 2.4 GHz receivers Page 12 Instructions for RX-5/7 M-LINK 2.4 GHz receivers # 985 5312 (11-05-18/MIWA) • Errors and omissions excepted! • © MULTIPLEX ! Note: if you intend to use a five-cell or six-cell NiXX battery, or a 2S LiPo or 2S LiIo pack, it is essential to check that all the servos, gyros and other components connected to the system are approved for use with this higher operating voltage. ! Note: ensure that the power supply is adequate A power supply system in good condition and of adequate capa- city for the specific application plays an indispensable role in the safe operation of any model: • Use only high-quality receiver batteries of adequate capacity. Balance and maintain them carefully, and charge them fully. • Ensure that all cables are of adequate conductor cross- section. Keep all wiring as short as possible, and use the absolute minimum of plug / socket connections. • Use high-quality switch harnesses exclusively. • Brief collapses in the power supply voltage (lasting a few milli-seconds) have no adverse effect on the receiver. Longer voltage collapses to below 3.5 V may cause a receiver reset, resulting in a brief interruption in reception. This may be due to a receiver battery which is almost flat, too weak or defective, cables of inadequate cross-section, poor-quality connectors or an overloaded or defective BEC system. 7. RECEIVER CONNECTIONS This receiver employs the UNI connector system, which is com- patibl…

Text truncated - open the document above for the full version.

Operating Instructions for RX-5 M-LINK / RX-7 M-LINK 2.4 GHz receivers Page 11 Instructions for RX-5/7 M-LINK 2.4 GHz receivers # 985 5312 LA 30.09.2014 • Errors and omissions excepted! •  MULTIPLEX ! These operating instructions are an integral part of the product, and contain important information and safety notes. Please store them in a safe place, where you can find them at any time, and pass them on to the new owner if you sell the receiver. 1. SPECIFICATION RX-5 M-LINK RX-7 M-LINK Order No. # 5 5817 # 5 5818 Reception system 2.4 GHz FHSS M-LINK Frequency Hopping Spread Spectrum MULTIPLEX-LINK Servo channel count 5 7 Servo frame rate Fast Response: 14 ms Standard: 21 ms Signal resolution 12-bit, 3872 steps Current drain Approx. 45 mA (excl. servos) Aerial length Total: approx. 20 cm, of which feed cable approx. 17 cm and active aerial section approx. 3 cm Operating voltage 3.5 V ... 9.0 V  4 - 6 NiCd / NiMH (NiXX) cells  2S LiPo / LiIo (LiXX) Operating temperature range - 20 °C ... + 55 °C Weight 13 g Dimensions Approx. 54.0 x 22.5 x 11.5 mm 2. SPECIAL FEATURES  High-quality 5-channel / 7-channel receivers assembled using the latest SMT methods, exploiting MULTIPLEX 2.4 GHz M-LINK technology.  Supplementary signal pre-amplification: For maximum sensitivity and great range.  In-line connectors arranged on the front and back: Ultra-compact dimensions: suitable for models with very little internal space.  HOLD / FAIL-SAFE function.  Integral SET button and LED: For binding, FAIL-SAFE programming, RESET and displaying operating status information.  Telemetry / feedback channel capability: Receiver battery voltage and connection quality = standard features. Integral sensor interface for connecting external sensor modules via MSB (MULTIPLEX Sensor Bus).  Prepared for two-receiver operation: Diversity lead (# 8 5070) required.  Prepared for serial servo output: Servo outputs as sum signal – SRXL-MULTIPLEX. The receiver’s first twelve channels are carried by a three- cord lead (# 8 5070) via the receiver’s B/D socket, e.g. for power supply / servo management systems, or for flybarless systems in model helicopters.  Prepared for selecting one sensor address as “priority address”: The selected sensor value is updated at a faster rate than all the other sensor values.  Integral error counter / data logger: For voltage and signal errors.  Compatible with the MULTImate (# 8 2094).  Integral PC interface: Carry out updates and adjustment using the MULTIPLEX Launcher PC program in conjunction with the UNI USB PC lead (# 8 5149). 3. SAFETY NOTES ! Please read the instructions before using the receiver. ! Use the receiver only for the intended applications ( 4.). ! Ensure the power supply is of adequate capacity ( 6.). ! Observe the installation notes ( 13.). ! Carry out regular range checks ( 14.). 4. APPLICATIONS The RX-5 M-LINK and RX-7 M-LINK 2.4 GHz receivers (abbre- viated to RX-5/7 M-LINK in this document) are radio control receivers intended exclusively for use in model sport. It is prohibited to employ them for other purposes such as full-size (people-carrying) vehicles or industrial installations. Typical applications for RX-5 M-LINK and RX-7 M-LINK re- ceivers:  Gliders and electric gliders up to about 2.50 m wingspan  Small to medium-sized RC helicopters with rotor diameters up to about 1 m  Model aircraft with electric and I.C. power systems and wingspans up to about 1.60 m  RC model cars  RC model boats  RX-5/7 M-LINK 2.4 GHz receivers can only be operated in conjunction with transmitters which utilise MULTIPLEX M- LINK transmission technology. 5. POWER SUPPLY RX-5/7-DR M-LINK receivers work within a broad range of vol- tages from 3.5 V ... 9.0 V, i.e. they can be used with receiver batteries consisting of four to six NiXX cells or 2S LiPo / 2S LiIo (LiXX). ! Note: if you intend to use a five-cell or six-cell NiXX battery, or a 2S LiPo or 2S LiIo pack, it is essential to check that all the servos, gyros and other components connected to the system are approved for use with this higher operating voltage. ! Note: ensure that the power supply is adequate A power supply system in good condition and of adequate capa- city for the specific application plays an indispensable role in the safe operation of any model:  Use only high-quality receiver batteries of adequate capacity. Balance and maintain them carefully, and charge them fully.  Ensure that all cables are of adequate conductor cross- section. Keep all wiring as short as possible, and use the absolute minimum of plug / socket connections.  Use high-quality switch harnesses exclusively.  Brief collapses in the power supply voltage (lasting a few milli-seconds) have no adverse effect on the receiver. Longer voltage collapses to below 3.5 V may cause a receiver reset, resulting in a brief interruption in reception. This may be due to a receiver battery which is almost flat, too weak or Operating Instructions for RX-5 M-LINK / RX-7 M-LINK 2.4 GHz receivers Page 12 Instructions for RX-5/7 M-LINK 2.4 GHz receivers # 985 5312 LA 30.09.2014 • Errors and omissions excepted! •  MULTIPLEX defective, cables of inadequate cross-section, poor-quality connectors or an overloaded or defective BEC system. 6. RECEIVER CONNECTIONS This receiver employs the UNI connector system, which is com- patible with the connector systems used by most radio control manufacturers (e.g. HiTEC, robbe/Futaba, Graupner/JR). The receiver sockets are marked as follows: 1, 2, 3 ... 5 (... 7) Servo sockets, channels 1, 2, 3 ... 5 (... 7). Alternatively: receiver battery socket. B In the case of the RX-5 M-LINK: Receiver battery socket (can also be connected to servo sockets 1 ... 5). Duplicated for extra security: twice the conductor cross-section, twice the number of contacts. B/D Receiver battery socket (can also be connected to servo sockets 1 ... 5 (... 7)). Duplicated for extra security: twice the conductor cross-section, twice the number o…

Text truncated - open the document above for the full version.

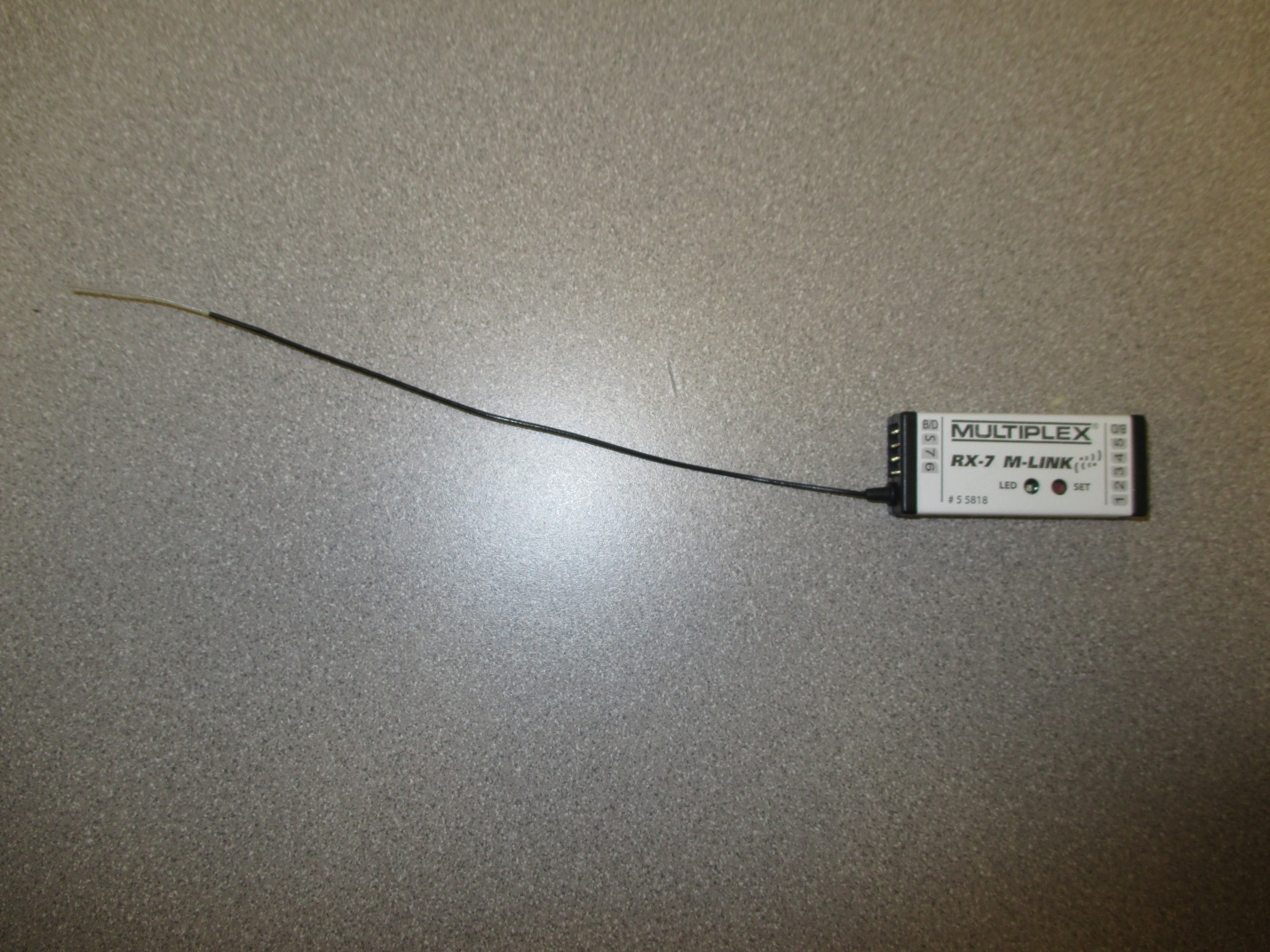

APPLICANT: HITEC RCD INC. FCC ID: IFHRX57MLINK EXTERNAL PHOTOS

Date: 2012-06-06 MPX-No.: 4094260, 4094270 Scale 1:1 ® LA 117563x montage.dsf RX-5/7 M-Link Contact PCB Assembly 1. Solder the headers on both sides of the Contact-PCB. Header must touch the PCB edge. 2. Push the Main-PCB between the other pin row and solder it. 3. Solder a pin or wire between the two PCBs soldering a pin or a piece of wire contact PCB --> main PCB CONFIDENTIAL

TEST REPORT FREQUENCEY HOPPING SPREAD SPECTRUM PER FCC PT 15.247 & IC RSS-210 ISSUE 8 APPLICANT HITEC RCD INC. ADDRESS 12115 PAINE STREET POWAY CALIFORNIA 92064 USA FCC ID IFHRX57MLINK IC 3420A-RX57MLINK MODELS RX-7 M-LINK and RX-5 M-LINK PRODUCT DESCRIPTION 7 CH 2.4 GHZ TRANSCEIVER DATE SAMPLE RECEIVED 9/23/2014 DATE TESTED 11/26/2014, 12/9/2014 TESTED BY Cory Leverett APPROVED BY Sid Sanders REPORT ISSUE DATE 12/10/2014 TIMCO REPORT NO. 1717AUT14TestReport.docx TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM APPLICANT: HITEC RCD INC. FCC ID: IFHRX57MLINK IC: 3420A-RX57MLINK REPORT: H\HITEC_IFH\1717AUT14\1717AUT14TestReport.docx Page 2 of 34 Table of Contents EUT DESCRIPTION ..................................................................................................... 5 ANTENNA REQUIREMENTS .......................................................................................... 6 §15.203 Antenna requirement. ............................................................................... 6 §15.204 Antenna modifications. .............................................................................. 7 §15.247 FHSS Technical requirements ......................................................................... 8 Section 15.247(a) ................................................................................................... 8 Section 15.247(g): .................................................................................................. 9 Section 15.247(h): .................................................................................................. 9 Pseudorandom Frequency Hopping Sequence ............................................................ 10 Equal Hopping Frequency Use ................................................................................. 10 De Facto EIRP Limit ............................................................................................... 10 Point-to-Point Operation ......................................................................................... 10 System Receiver Input Bandwidth ........................................................................... 11 System Receiver Hopping Capability ........................................................................ 11 TEST PROCEDURES .................................................................................................. 12 Conducted Testing Procedures ................................................................................ 12 Radiated Testing Procedures ................................................................................... 15 CONDUCTED TESTING RESULTS: ............................................................................... 16 Conducted RF power: ............................................................................................. 17 39 Hopping Channels ............................................................................................. 18 Hops per Channel .................................................................................................. 19 Channel dwell time per hop .................................................................................... 20 20 dB Occupied Bandwidth ..................................................................................... 21 Carrier Channel Separation ..................................................................................... 22 Low Band Edge with Hopping Stopped @ Lowest Channel Used in Band ....................... 23 Low Band Edge with Hopping On ............................................................................. 24 High Band Edge with Hopping Stopped @ Highest Channel Used in Band ...................... 25 High Band Edge with Hopping On ............................................................................ 26 RADIATED TESTING RESULTS: .................................................................................. 28 Radiated RF power: ............................................................................................... 28 Field Strength Lower Restricted Band Hopping On ..................................................... 30 Field Strength Upper Restricted Band Hopping On ..................................................... 31 Field Strength Lower Restricted Band Hopping Stopped .............................................. 32 Field Strength Upper Restricted Band Hopping Stopped Vertical .................................. 33 EMC EQUIPMENT LIST .............................................................................................. 34 APPLICANT: HITEC RCD INC. FCC ID: IFHRX57MLINK IC: 3420A-RX57MLINK REPORT: H\HITEC_IFH\1717AUT14\1717AUT14TestReport.docx Page 3 of 34 ATTESTATION This equipment has been tested in accordance with the standards identified in the referenced test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report and demonstrate that the equipment complies with the appropriate standards. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. I attest that the necessary measurements were made by me or under my supervision, at Timco Engineering, Inc. located at 849 N.W. State Road 45, Newberry, Florida 32669 USA. AUTHORIZED BY: Cory Leverett FUNCTION: Engineering Project Manager DATE: 12/10/2014 SIGNATURE: Table of Contents APPLICANT: HITEC RCD INC. FCC ID: IFHRX57MLINK IC: 3420A-RX57MLINK REPORT: H\HITEC_IFH\1717AUT14\1717AUT14TestReport.docx Page 4 of 34 REPORT SUMMARY Disclaimer: The test results relate only to the items tested. Purpose of Test: To demonstrate that the EU…

Text truncated - open the document above for the full version.

APPLICANT: HITEC RCD INC. FCC ID: IFHRX57MLINK TEST SET UP PHOTOS
