IFHAGGRESSOR-A75Remote Control Transmitter

4 Tuning Procedures 1. Attach 12.0 Vdc power supply 2. Using a Spectrum analyzer and a short-range pick-up antenna, look for 75MHz signal with sufficient scan width to see 30-150 MHz spurious. 3. Adjust T1, T2, T3, T4, and T5 for maximum output at operating frequency and minimum output at any harmonics. 4. Repeat step 6. 5. Check for minimum emissions from 30 to 760 MHz. Inspection Specifications Frequency: FO Modulation: AM 100% RF Power: 200 +/- 50mW Frame Time: 17~21mS General Description The Aggressor is a low power, non-voice, transmitter intended for remote control of ground based models in the 75MHz band. The unit is held with two hands in front of the body. The equipment employs a vertical polarized antenna, directly mounted on the unit and meets Paragraphs 95.645, 95.647, 95.649, and the technical requirements established in the Report & Order in PR Docket 90-222. Circuits and Devices to Stabilize Frequency Transmitter output frequency is determined and stabilized by crystal-controlled oscillator. Circuits to suppress Spurious Radiation Final RF amplifier spurious emissions are attenuated by a “PI” matching network consisting of L2, C18, C26, C31, C21, C11, C12, T4 and T3. Functions of Active Semiconductors Reference Type Function Q1 A812 Amplifier Q2 C1623 Modulator Q6 C2223 Driver/ X-Tal Oscillator Q7 C2223 Driver Q8 C4735 Final Amplifier IC1 M52460P Encoder

C22,C23,C24,C30,C31,C32, C33,C34,C36 2 1 CHIP CAP C25 CS1 608 X7R 474K 3 2 CHIP CAP C16,C10 CS1 608 X7R 223K 4 2 CHIP CAP C11,C18 CS1 608 COG 27P 5 1 CHIP CAP C12 CS1 608 COG 33P 6 1 CHIP CAP C20 CS1 608 COG 2P 7 1 CHIP CAP C21 CS1608 COG 180P 8 1 CHIP CAP C27 CS1608 COG 470P 9 1 CHIP CAP C28 CS1608 COG 100P 10 1 CHIP CAP C29 CS1 608 COG 18P 11 1 CHIP CAP C35 CS1608 COG 15P 12 1 CHIP DIODE D1 RLS 4148 13 1 CHIP Z/D ZD1 RLZ 5.1 B (5.1 V) 14 1 CHIP TANTAL EC2 ECSTICY 475KR (4.7uF) 15 1 CHIP TANTAL EC3 ECSTIVY 684KR (0.68uF) 16 1 CHIP TANTAL EC5 ECSTIAY 106KR (10uF) 17 1 CHIP TANTAL EC6 ECSTIVY 104KR (0. 1 uF) 18 1 CHIP TR 01 2SA812 19 1 CHIP TR Q2 2SC1623 20 2 CHIP TR Q4,Q5 2SC2223 21 14 CHIP RES J1 J2,J3,J4,J5,J6,J7,J8,J9 J1 0,J1 1,J1 2,J1 3,J1 4 RC 1/1 6W 0 ohm 22 2 CHIP RES R28,R1 RC 1/16W 2.2 ohm 23 3 CHIP RES R2, R3, R4 680ohm 24 2 CHIP RES R5,R32 330 25 2 CHIP RES R16,R6 470 26 2 CHIP RES R7, R 14 47 27 3 CHIP RES R8,R23,R25 10K 30 1 CHIP RES Rll 180K 31 3 CHIP RES R21,R12,R37 4.7K 32 2 CHIP RES Rl 3, R43 1.5K 33 1 CHIP RES R15 3.9K 34 2 CHIP RES R40, Rl 7 6.8K 35 2 CHIP RES Rl 8, R24 82K 36 4 CHIP RES R20, R38, R39, R42 2.2K 37 1 CHIP RES R22 3.3K 38 2 CHIP RES R26 27K 39 2 CHIP RES R29, R31 2.7K 40 1 CHIP RES R30 100 41 2 CHIP RES R33 68K 42 2 CHIP RES R34,R35 1.8K 43 1 CHIP RES R36 5.6K 44 1 CHIP RES R41 18K INSERT TYPE 46 1 X-TAL X-1 HTA 75M 47 1 ANTTENA ANT1 HT-7N-R 48 1 BATTERY BATT1 BATT 49 1 CHARGERJACK CHG1 DCP20-(2PIN) 50 1 MYLER CAP C8 J-TYPE 50V 473M 51 1 MYLER CAP C19 J-TYPE 50V 222(M) 52 1 DIODE D2 IN4003 53 2 ELEC.CAP EC4,ECl 1 00uF/l 6V SR 54 1 LED LED1 DL-llS2-ON1 (RED) 55 1 LED LED2 DL-l 1 S2-YNl (YELLOW 56 1 LED LED3 DL-l 1 S2-GNl (GREEN) 57 1 LOAD COIL Ll 0.27uH 58 1 INDUCTOR COIL L2 lOuH (HDQ-01) 59 1 TRANSISTOR Q3 2SC4735 60 1 SLIDE S/W SW1 KSK2202 61 2 SLIDE S/W SW2,SW3 SSSS-922CNSL4 62 2 RFT COIL T5,Tl HDR01S 64 2 RFT COIL T3,T4 HDR04S 65 1 IC Ul M52460P 66 2 WAFER WF1,WF2 8283-3P(HRP) 67 2 WAFER WF3,WF4 8283-2P(HRP) 68 6 JUMP WIRE JP1,JP2,JP3,JP4,JP5,JP6 0.6XlOJ (10mm) 69 1 SEMI V/R VR1 PT6KV-103A-2020 70 2 VOLUME VR3,VR2 V09 H CO 20F B10K 71 2 VOLUME VR5,VR4 TR133N 10.3F693Z 135K-1253 72 1 VOLUME VR6 V09 V CO 20F 132K 73 1 WIRE ASS'Y CH1 8283-3P 0.08X3OX50MM(HRP) 74 1 WIRE ASS'Y CH2 8283-3P 0.08X3OX90MM(HRP) 75 1 WIRE ASS'Y DUAL RATE 8283-2P 0.08X3OXl2OMM(HRP) 76 1 WIRE ASS'Y BATT 8283-2P 0.08X3OX215MM(HRP) 77 1 PCB MAIN AGG-AM-M02(HRP) 78 1 PCB DUAL RATE AG-DUAL01 (HRP) 79 1 CRYSTAL SOCKET ASS'Y HP-2TS SOLDER FLUX

4 Tuning Procedures 1. Attach 12.0 Vdc power supply 2. Using a Spectrum analyzer and a short-range pick-up antenna, look for 75MHz signal with sufficient scan width to see 30-150 MHz spurious. 3. Adjust T1, T2, T3, T4, and T5 for maximum output at operating frequency and minimum output at any harmonics. 4. Repeat step 6. 5. Check for minimum emissions from 30 to 760 MHz. Inspection Specifications Frequency: FO Modulation: AM 100% RF Power: 200 +/- 50mW Frame Time: 17~21mS General Description The Aggressor is a low power, non-voice, transmitter intended for remote control of ground based models in the 75MHz band. The unit is held with two hands in front of the body. The equipment employs a vertical polarized antenna, directly mounted on the unit and meets Paragraphs 95.645, 95.647, 95.649, and the technical requirements established in the Report & Order in PR Docket 90-222. Circuits and Devices to Stabilize Frequency Transmitter output frequency is determined and stabilized by crystal-controlled oscillator. Circuits to suppress Spurious Radiation Final RF amplifier spurious emissions are attenuated by a “PI” matching network consisting of L2, C18, C26, C31, C21, C11, C12, T4 and T3. Functions of Active Semiconductors Reference Type Function Q1 A812 Amplifier Q2 C1623 Modulator Q6 C2223 Driver/ X-Tal Oscillator Q7 C2223 Driver Q8 C4735 Final Amplifier IC1 M52460P Encoder

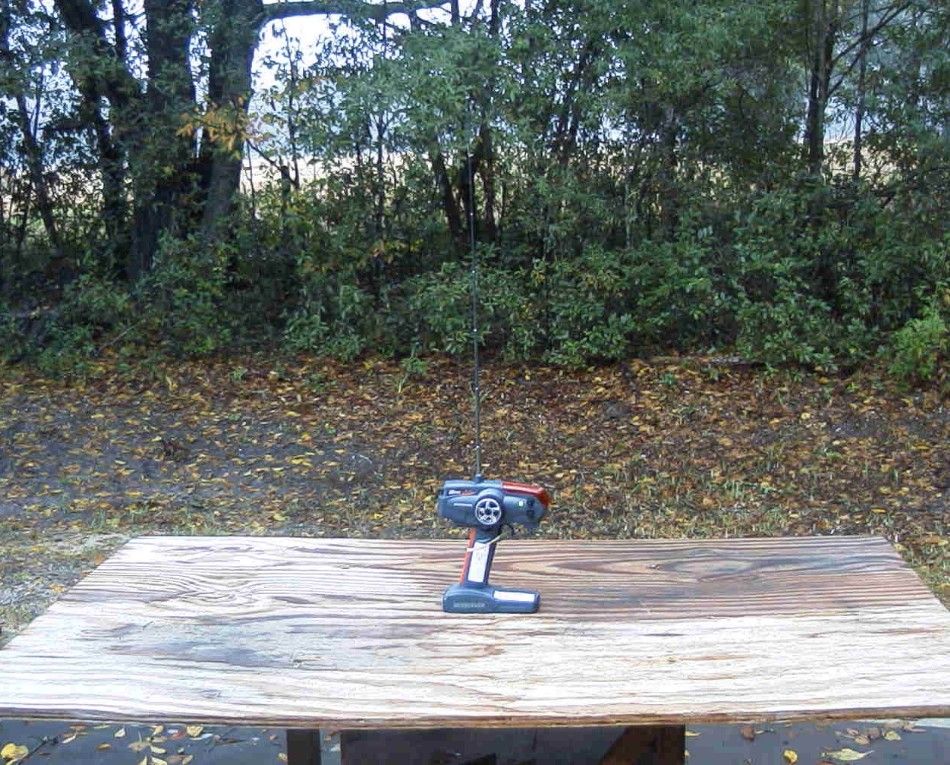

APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIP. CONTINUED. & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......OCCUPIED BANDWIDTH PLOT PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSION PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8-10...TEST EQUIPMENT LIST EXHIBIT CONTAINING: EXHIBIT 1..........FCC ID LABEL SAMPLE EXHIBIT 2..........FCC ID LABEL LOCATION EXHIBIT 3..........EXTERNAL PHOTOGRAPHS EXHIBIT 4..........INTERNAL PHOTOGRAPHS EXHIBIT 5..........SCHEMATIC EXHIBIT 6..........USER'S MANUAL EXHIBIT 7..........CIRCUIT DESCRIPTION EXHIBIT 8..........TUNING PROCEDURE EXHIBIT 9..........PARTS LIST EXHIBIT 10.........TEST SET UP PHOTO APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 1 of 10 GENERAL INFORMATION 2.1033(c)(1)(2) HITEC RCD INC. will sell the FCCID: IFHAGGRESSOR-A75 Radio Control transmitter in quantity, for use PART 95 SUBPART C. HITEC RCD INC. 12115 PAINE STREET POWAY, CA 92064 2.1033(c)(3) Instruction manual is included as exhibit #6. 2.1033 (4) Type of Emission: 8K0A1D 95.631(b)(1) Bn = 2M + 2DK M = 4,800 Bits per second D = 1600 Hz (Peak Deviation) K = 1 Bn = 2(4800/2) + 2(1600)(1) = 4.8K + 3.2K = 8.0k ALLOWED AUTHORIZED BANDWIDTH = 8.00 kHz. 95.633(b) Authorized Bandwidth 8 kHz for RC Transmitter 2.1033(c)(5) Frequency Range: 75.01 - 75.99 MHz 95.623(a) (6) Power Range and Controls: There are NO user Power controls. (6) Function of each electron tube or semiconductor device or other active circuit device: See Exhibit #7. (7) Maximum Output Power Rating: 0.087 W ERP. (8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 12.0Volts DC Ice = 0.039 A. Pin = 0.5Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included as Exhibit #8. APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 2 of 10 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as part of Exhibit #5. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is given in EXHIBIT #6. 2.1033(c)(11) The Equipment identification is shown as Exhibit #1. 2.1033(c)(12) Photographs of the equipment are shown as Exhibits #3-4. 2.1033(c)(13) Equipment employing Digital modulation. The equipment modulation technique is a pulse position with a variable bit rate not exceeding 4800 bps. This is amplitude modulated on to carrier. 2.1033(c)(14) The data required by 2.1046-2.1057 follows; 2.1046 RF power was measured by the SUBSTITUTION METHOD. There is no provisions to limit the power. With a nominal battery voltage of 12.0 VDC, and the transmitter properly adjusted the RF output measures: Po = 0.087 Watts ERP 2.1046 RF power output. APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 3 of 10 2.1047 Modulation characteristics: AUDIO FREQUENCY RESPONSE The Voice is NOT allowed in this band. 2.1049 Occupied bandwidth: 95.635(b) (1) At least 25dB on any frequency removed from the center of the authorized bandwith by more than 50% up to and including 100% of the authorized bandwidth. (10) At least 45 dB on any frequency removed from the center of the authorized bandwidth by more than 100% up to and including 125% of the authorized bandwidth. (11) At least 55 dB on any frequency removed from the center of the authorized bandwidth by more than 125% up to and including 250% of the authorized bandwidth. (12) At least 56 + 10 log 10 (T) dB on any frequency removed from the center of the authorized bandwidth by more than 250%. Radiotelephone transmitter with modulation limiter. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Coupler Transmitter 50 ohm under test Resistive Wattmeter Audio Spectrum Oscillator Analyzer APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 4 of 10 OCCUPIED BANDWIDTH PLOT APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 5 of 10 SPURIOUS EMISSIONS AT ANTENNA TERMINALS. NOT APPLICABLE, NO antenna port. This UUT has a permanently attached antenna. 2.1053 UNWANTED RADIATION: 95.635(1)(3)(7)(10)(11)(12) REQUIREMENTS: At least 56 + 10log(T) on any frequency removed from the center of the authorized bandwidth by more than 250%. 56 + 10log(0.087) = 45.40 dB TEST DATA: Emission Frequency MHz ATTN dBc dBm Margin dB 75.40 0 19.4 0.00 150.90 67 -48 21.60 226.40 73 -54 27.60 301.80 79 -60 33.60 377.30 75 -56 29.60 452.80 74 -55 28.60 528.30 80 -61 34.60 603.70 76 -57 30.60 679.20 72 -53 26.60 754.70 69 -50 23.60 METHOD OF MEASUREMENT: The tabulated data shows the results of the radiated field strength of emissions test. The spectrum was scanned from 30 MHz to at least the tenth harmonic of the fundamental. This test was conducted per TIA/EIA STANDARD 603 using the substitution method while comparing the unit operating into its permanently attached antenna at a height of 80cm. Measurements were made at the open field test site of TIMCO ENGINEERING, INC. located at 849 NW State Road 45, Newberry, FL 32669. APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 6 of 10 Method of Measuring Radiated Spurious Emissions APPLICANT: HITEC RCD INC. FCC ID: IFHAGGRESSOR-A75 REPORT #: H\HITEC\1162ZUT2\1162ZUT2TestReport.doc Page 7 of 10 2.1055(a)(1) Frequency stability: 95.623(b) Temperature and voltage tests were performed to verify that the frequency remains within the .002%, 20 ppm specification limit. The test was conducted as follows: The transmitter was placed in the temper…
