IFHHP-MIM75

June 30,1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Linda Oni Ref: Address Correction for HITEC RCD INC. GRANTEE CODE:IFH Dear Ms. Oni: Please correct the address in your records for the following applicant. HITEC RCD INC. 10729 WHEATLANDS AVE. SUITE C SANTEE, CA 92071 TELEPHONE NO: 619-258-4940. FAX NO:619-449-1002 CONTACT PERSON:TONY OHM / SERVICE MANAGER If you have any questions regarding this notice, please contact us at the following address: COMPLIANCE ENGINEERING SERVICES, INC. 3166 BORDEAUX DRIVE SUNNYVALE, CA 94089 TEL:(408) 752-8166 Sincerely yours, MIKE C.I. KUO / V.P. COMPLIANCE ENGINEERING SERVICES, INC.

PROPOSED FCC ID LABEL FORMAT AND LOCATION APPLICANT:HITEC RCD INC. MODEL NO:LYNX 3D FCC ID:IFHHP-MIM75 HITEC RCD INC.MODEL NO: LYNX 3D FCC ID:IFHHP-MIM75 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

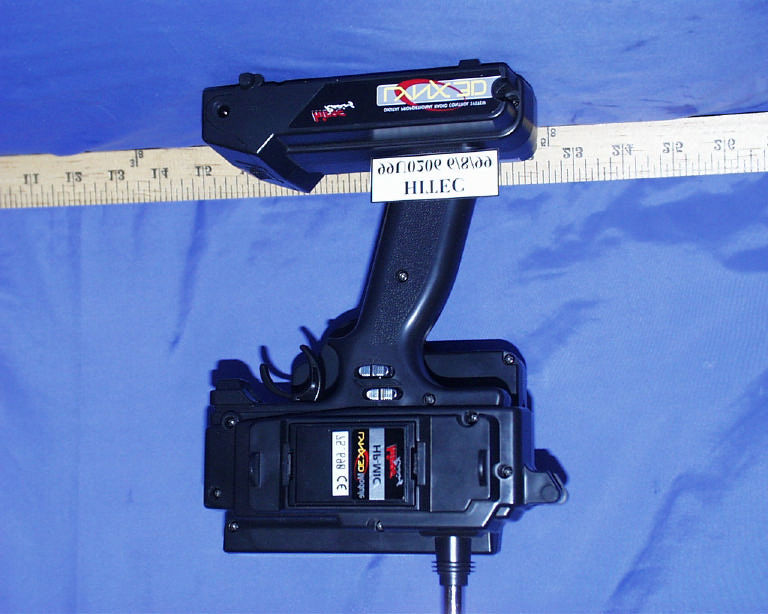

FCC CFR47 PART 95 SUBPART D CERTIFICATION TEST REPORT FOR 75 MHz – 3CHANNEL BROADCAST TRANSMITTER MODEL: LYNX 3D FCC ID: IFHHP-MIM75 REPORT NUMBER: 99U0206 ISSUE DATE: APRIL 28,1999 Prepared for HITEC RCD INC. 10729 WHEATLANDS AVE. #C SANTEE, CA 92071 Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 99u0206 DATE: April 28, 1999 FCC ID:IFHHP-MIM75 EUT: 75MHz – 3 CHANNEL BROADCAST TRANSMITTER 1 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4031A 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. FCC CERTIFICATION INFORMATION ..................................................................................................... 2 2.TEST FACILITY ................................................................................................................................................ 5 3.ACCREDITATION AND LISTING ................................................................................................................. 5 4.MEASUREMENT INSTRUMENTATION...................................................................................................... 5 5.MEASURING INSTRUMENT CALIBRATION ............................................................................................ 5 6.UNITS OF MEASUREMENT ........................................................................................................................... 5 7.CLASSIFICATION OF DIGITAL DEVICE ................................................................................................... 6 8.RADIATED EMISSION LIMITS ..................................................................................................................... 6 9.RADIATED EMISSION TEST PROCEDURE ............................................................................................... 7 10.AMBIENT CONDITIONS ............................................................................................................................. 8 11.EQUIPMENT MODIFICATIONS................................................................................................................ 8 12.TEST EQUIPMENT LIST............................................................................................................................. 8 13.FCC PART 2 CERTIFICATION TEST RESULTS:................................................................................... 9 REPORT NO: 99u0206 DATE: April 28, 1999 FCC ID:IFHHP-MIM75 EUT: 75MHz – 3 CHANNEL BROADCAST TRANSMITTER 2 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4031A 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2, Subpart J, sections 2.983 - 2.999. 2.983(a)Applicant: HITEC RCD INC. 10729 WHEATLANDS AVE. #C SANTEE, CA 92071 2.983(b)FCC ID:IFHHP-MIM75 2.983(c) Quantity production is planned. 2.983(d) Technical Description (1) Types of Emissions F1D (2) Frequency Range Transmitter: 75.41-75.99MHz. (3) Range of Operating Power 400 mW +/-50mW (4) Maximum Power Rating 450mW (5) Applied voltages and currents into the final transistor elements SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (6) List of each Active Device: SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (7) Complete Circuit Diagrams and Functional Block Diagram SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (8) Instructions/Installation Manual SEE ATTACHMENT: INSTRUCTION MANUAL REPORT NO: 99u0206 DATE: April 28, 1999 FCC ID:IFHHP-MIM75 EUT: 75MHz – 3 CHANNEL BROADCAST TRANSMITTER 3 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4031A 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. (9) Tune-up/Optimization Procedure 1. Attached 9.6 V dc power supply 2. Using a spectrum analyzer and a short pick-up antenna, look for 75 MHz signal with sufficient scan width to see 30- 150MHz spurious . 3. Adjust T1, T2, T3,T4, and T5 for maximum output at operating frequency and minimum output at any harmonics. 4. Repeat step 3 5. Check for minimum emission from 30 to 760 MHz. (10) Means for Frequency Stabilization SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (11) Means for Limiting Modulation SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (11) Means for Limiting Power SEE ATTACHMENT: SPECIFICATIONS OF TRANSMITTER (11) Means for Attenuating Higher Audio Frequencies Not Applicable (12) Description of Digital Modulation Techniques Not Applicable 2.983(e) Standard Test Conditions The transmitter was tested under the following conditions: Room Temperature: 20 - 23 °C Relative Humidity: 35 - 50% DC Supply Voltage: 9.6 Vdc The transmitter was aligned and tuned up according to manufacturer’s alignment procedure, prior to testing. All data presented represents the worst case parameter being measured. Section 2.983(f)Equipment Identification FCC ID:IFHHP-MIM75 Section 2.983(g)Photographs REPORT NO: 99u0206 DATE: April 28, 1999 FCC ID:IFHHP-MIM75 EUT: 75MHz – 3 CHANNEL BROADCAST TRANSMITTER 4 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4031A 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. SEE ATTACHMENT: PHOTOS .Section 2.983 Description of Various Base Station Configurations Not applicable Section 2.983 Use of Various Power Supplies Not applicable TYPE OF EQUIPMENT:RC TRANSMITTER MEASUREMENT DISTANCE:3 METER TECHNICAL LIMIT:95.635 FCC RULES:95.635 EQUIPMENT AUTHORIZATION PROCEDURECERTIFICATION MODIFICATIONS MADE ON EUTNO The above equipment was tested by C…

Text truncated - open the document above for the full version.

Section 2.1049: Occupied Bandwidth Minimum Requirement: Part 95.635 Emission Mask: 10. At least 45 dB (decibels) on any frequency removed from the center of the authorized bandwidth by more than 100% up to and including 125% of the authorized bandwidth. 11. At least 55 dB on any frequency removed from the center of the authorized bandwidth by more than 125% up to and including 250% of the authorized bandwidth. 12. At least 56 log(base10) (TP) dB on any frequency removed from the center of the authorized bandwidth by more than 250 percent. Test Procedures: 1. Place the EUT on the turntable. The EUT was placed as close as possible to the center of the turntable with the axis of rotation going through the EUT antenna when in vertical or horizontal polarization. Activated any auxiliary input or control equipment required to produce EUT’s normal modulated output signal. 2. The log periodic search antenna was place at a distance of 3 meters. The antenna was raised and lowered, the EUT rotated on the turntable, until the EUT azimuth, antenna elevation, and antenna polarity were found which yielded maximum received emission levels on the spectrum analyzer. All test were performed at maximum peak with the carrier modulating. TEST RESULT: Top Plot is with a RES BW: 100 KHz and VIDEO BW: 100KHz in Peak mode, but occupied bandwidth fails emission mask due to a large RES BW setting. Top Plot is with a RES BW: 300 Hz and VIDEO BW: 300 Hz, but occupied bandwidth fails emission mask in Peak Mode. Top Plot is with a RES BW: 300Hz and VIDEO BW: 10Hz. Occupied Bandwidth passes the emission mask in Average Mode using a linear VIDEO BW of 10Hz.

George Tannahill Ref: FCC ID: IFHHP-MIM75 Confirmation # EA94733 Per your 6 Dec 1999 inquiry , correspondence ref. # 10947: 1. Necessary bandwidth computation: system deviation 2.1 kHz. Nominal modulation frequency: 1000 Hz. 2D + 2M = N.B. 4.2 kHz + 2 kHz = 6.2 or 6k2F1D 2. Modulation is not FSK. Transmitter frequency is crystal controlled oscillator modulated by a varicap driven by six cycles of nominal 1 mS duration equivalent to a 1 kHz tone. (See Figure 2). This pattern is repeated at a nominal 20 millisecond rate. 3. Plot of occupied bandwidth with limits of 95.635 is included as Figure 1a (note that using a 100 kHz RBW does not resolve the modulation, see Figure 1b). Unmodulated carrier plot is Figure 1c. FIGURE 1a FCC ID: IFHHP-MIM75 OCCUPIED BANDWIDTH RBW 1 kHz, No Video Filter FIGURE 1a FIGURE 1b FCC ID: IFHHP-MIM75 OCCUPIED BANDWIDTH RBW 100 kHz, No Video Filtering (Modulation is not resolved with this RBW) FIGURE 1b FIGURE 1c FCC ID: IFHHP-MIM75 OCCUPIED BANDWIDTH RBW 1 kHz, No Video Filtering Unmodulated Carrier Reference FIGURE 1c FIGURE 2 FCC ID: IFHHP-MIM75 TIME DOMAIN 5 mS/Div (Slope Detection) FIGURE 2
