IFHZEBRA275REMOTE CONTROL TRANSMITTER

Instruction Manual 8 TROUBLESHOOTING GUIDE WARNINGS RACER TIPS Question: I installed the batteries in my transmitter, but the power lights do not come on: Answer: - Check that the batteries are properly installed by checking the polarity (+ and -). Question: My radio has power, but I have no control: Answers: - Make sure that the power switch is on and connected to the receiver. - Make sure that the batteries are charged (Replace or recharge if needed.) - Make sure that you are using the proper crystals. Question: My vehicle is glitching, or the servos and/or speed control is acting erratically: Answers: - Check that there are no radios operating on your channel. - Make sure your electric motor has capacitors and the commutator is clean and brushes are not worn out. Replace if needed. - Check for loose screws as metal-to-metal contact can cause interference. - Make sure your receiver antenna has not been damaged or cut. - Make sure that power wires are at least 2" away from the receiver. - Replace the crystals if needed. - If all fails, send your system to be serviced, as there may be internal damage. - Never operate your car or truck in a crowded street with traffic. - Always extend your transmitter antenna when in operation. - Always check the battery power indicator before use. - Do not operate two or more models on the same frequency at the same time. - Do not operate your model in the rain or run through standing water. - Do not operate your model within one mile of a radio control racetrack. - Do not operate your model while under the influence of drugs or alcohol. - Always turn your transmitter first and off last to prevent lost of control. - When collapsing your antenna, never push it from the top or it may bend. - Slower is faster, Do not overdrive your car. A cleaner line around the track is faster than more top speed. Don't overshoot the corners. - Reduce your steering dual rate if your car is over-steering or "Loose", and increase the rate if your car is under-steering or "Pushing." - Add more drag brake (see Steering and Throttle trims) if your vehicle is "Pushing" into the corners. Move the trim the other direction so your car creeps forward slightly when the throttle is at neutral if your car is "Loose" when entering the corners. - The most important thing to remember is to have fun! Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, The Netherland, Italy, Spain, Norway, Portugal, United Kingdom, Luxembourg, Sweden, Switzerland Made in the philippines Zebra 2 AM Instruction Manual 23 Welcome to the exciting world of R/C Modeling Thank you for purchasing the Zebra 2 AM. The Zebra 2 AM is ergonomically designed using the finest components available and engineered to provide years of trouble-free service. Look for the complete line of entry level, sport and competition quality Radio systems, servos, receivers, speed controls and battery charger at your favorite hobby dealer. CONTENTS FEATURES TRANSMITTER LAYOUT A. TRANSMITTER - SUPER-HETERODYNE DIGITAL PROPORTIONAL FOR EXTRA LONG RANGE - ALL CHANNEL SERVO REVERSING SHUNT SWITCHES - LED INDICATOR FOR BATTERY POWER - NEUTRAL POSITION ADJUSTMENT FOR THROTTLE - SMT CIRCUITRY - Size : 174X168mm (6.85X6.61in) - Weight : 330g (11.63oz) - Power supply: 7.2V (6 cell) Nicad/NiMh battery or 6cell Dry battery TRANSMITTER ANTENNA CARRYING HANDLE LED INDICATOR TRANSMITTER CRYSTAL THROTTLE CONTROL STICK NEUTRAL POSITION ADJUSTMENT LEVER THROTTLE TRIM LEVER STEERING TRIM LEVER STEERING CONTROL STICK POWER ON/OFF SWITCH THROTTLE SERVO REVERSE SHUNT SWITCH STEERING SERVO REVERSE SHUNT SWITCH FRONT BACK Page 2. Page 3. Page 4. Page 5. Page 6. Page 7. Page 8. INTRODUCTION FEATURES TRANSMITTER LAYOUT BATTERY INSTALLATION RADIO SYSTEM INSTALLATION OPERATION CHECKING HELPFUL HINTS TROUBLESHOOTING GUIDE WARNINGS RACERS TIPS POWER CHARGING JACK Zebra 2 AM Instruction ManualZebra 2 AM Instruction Manual CH1 CH2 BATT Battery Eliminator Circuit ZR-102SA AM 45 SET-UP AND INSTALLATION OF YOUR ZEBRA 2AM BATTERY INSTALLATION 5. Always return the battery cover first before turning on the transmitter power. 5. Please refer to the instructions manual in your electronic speed controller for proper installation. Please read the following section carefully before attempting to install the Zebra 2 AM system RADIO SYSTEM INSTALLATION 1. Install your receiver in the safe location to protect from vibration or potential crash damage. 2. Typically one servo will be used for the steering and the other servo will be used to operate a mechanical speed controller. or an optional electronic speed control will be used. 3. If your vehicle is electronic powered type, there will be a proportional speed control you wish to use. If your speed control is mechanical, it will require a servo to operate it. The battery and switch harness found in the kit must also be used to provide the receiver with power. 4. If your model is using an electronic speed controller that has the option of the B.E.C.(battery eliminator circuit), receiver batterys are not needed on this since motor battery will feed the receiver and servos through the speed control. When installing radio system on your R/C car, please follow the instruction included in your R/C car. BATTERY COVER TO OPEN THE BATTERY COVER OF THE ZEBRA 2 AM, YOU NEED TO PRESS THIS AND PUSH IT DOWNWARD. 6 AA SIZE BATTERY MUST BE LOADED IN CORRECT POLARITY AS SHOWN 7.2V - 8.4V ESC Installation ESC For ZEBRA 2 CHANNEL RECEIVER Normal Installation CH2 CH1 CH2 BATT 1. You need to have 6 cells of AA size batteries for transmitter, and 4 cells for receiver. (You can use Alkaline, Ni-cad or Ni-Mh cells according to your preference) 2. Always make sure the receiver and transmitter are off before loading the battery. 3. Open the battery cover on the back of the transmitter. 4. Load batteries appropriately into the slots. Please make sure to install the batteries with correct polarity as shown below. Zebra 2 AM Instruction…

Text truncated - open the document above for the full version.

12115 Paine Street, Poway CA 92064 TEL(858)748-6948 FAX(858)748-1767 WWW.HITECRCD.COM July 11, 2006 TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] SUBJECT: HITEC RCD INC. - FCC ID: IFHZEBRA275 REFERENCE: JOB 1085AUT6 The following lines will be added or modified to the manuals before product release: - FCC regulation in the USA prohibits changing the crystal in your transmitter. For channel changes send your system to the Manufacturer. The product sent in for testing are pre-production models. The final versions will have the crystals and covers glued in place to prevent users from tampering with them. Sincerely, Tony Ohm Service Manager Hitec RCD, Inc. HITEC RCD USA, INC

55 44 33 22 11 D D C C B B A A BATTERY SIGNAL TitleSize Document Number Rev Date: Sheet of <Doc> 1 BLOCK DIAGRAM A4 11 Wednesday, March 29, 2006 TitleSize Document Number Rev Date: Sheet of <Doc> 1 BLOCK DIAGRAM A4 11 Wednesday, March 29, 2006 TitleSize Document Number Rev Date: Sheet of <Doc> 1 BLOCK DIAGRAM A4 11 Wednesday, March 29, 2006 OUTPUTFILTER POWERAMPLIFIER DRIVERSTAGE CRYSTALOSCILATORPULSESHIFTER&MODULATOR 5.1VREGULATOR ANTENNA Q22SC2223Y Q32SC2223Y Q42SC4735 ZD15.1V Q12SA812Y

12115 Paine Street, Poway CA 92064 TEL(858)748-6948 FAX(858)748-1767 WWW.HITECRCD.COM 5/11/2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:IFHZEBRA275 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Description of Operation Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tony Ohm HITEC RCD USA, INC

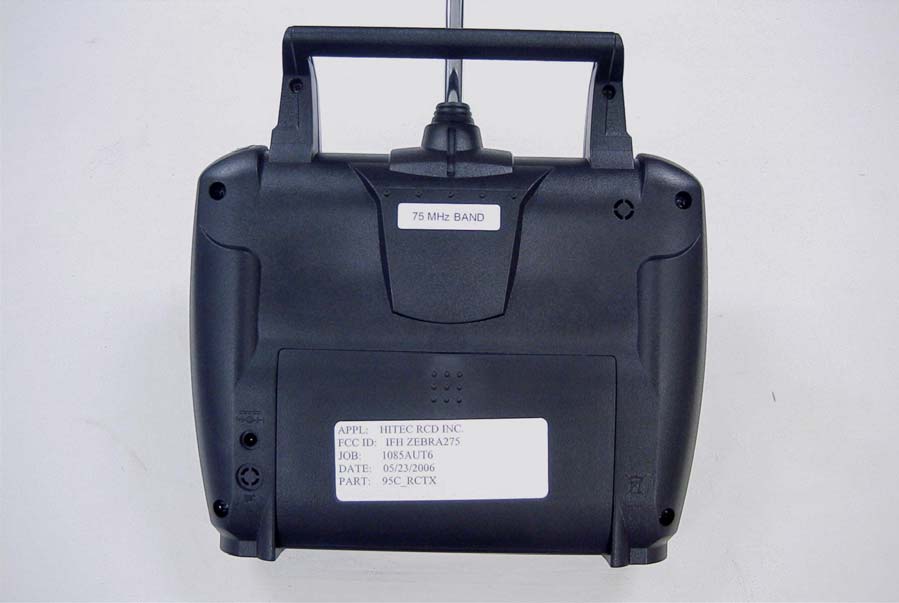

HITEC RCD INC. FCC ID: IFHZEBRA275 EXTERNAL PHOTOS

FCC ID and IC Sticker: FCC ID: IFHZEBRA275 IC: 3420A-ZEB2AM ZEBRA 2 AM ZEBRA MADE IN THE PHILIPPINES

HITEC RCD INC. FCC ID: IFHZEBRA275 INTERNAL PHOTOS

APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 The unit has no provisions for tuning.

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc COVER SHEET Test Report Product Name: REMOTE CONTROL FCC ID: IFHZEBRA275 Applicant: HITEC RCD INC. 12115 PAINE STREET POWAY CA 92064 Date Receipt: 5/23/2006 Date Tested: 6/29/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............OCCUPIED BANDWIDTH PAGE 4............OCCUPIED BANDWIDTH PLOT PAGE 5............FIELD STRENGTH OF SPURIOUS EMISSION PAGE 6............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7............FREQUENCY STABILITY PAGE 8............TEST EQUIPMENT LIST PAGE 9............TEST SET UP EXHIBITS INCLUDING: CONFIDENTIALITY REQUEST LETTER BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc Page 1 of 9 GENERAL INFORMATION 2.1033(c)(1)(2) HITEC RCD INC. will sell the FCC ID: IFHZEBRA275 Radio Control transmitter in quantity, for use under PART 95 SUBPART C. HITEC RCD INC. 12115 PAINE STREET POWAY CA 92064 2.1033(c)(3) Instruction manual is included in the exhibits. 2.1033 (4) Type of Emission: 8K0F1D 95.631 (b)(5) Bn = 2M + 2DK M = 4,800 Bits per second D = 1600 Hz (Peak Deviation) K = 1 Bn = 2(4.8/2) + 2(1600)(1) =4.8K + 3.2K =8.0k ALLOWED AUTHORIZED BANDWIDTH = 8.00 kHz. 95.631 (b) Authorized Bandwidth 8 kHz for RC Transmitter 2.1033(c)(6) Frequency Range: 75.41 – 75.99 MHz 95.623 (a)(7) Power Range and Controls: There are NO user Power controls. (8) Function of each electron tube or semiconductor device or other active circuit device are included in the exhibits (9) Maximum Output Power Rating: 0.200 W ERP. (10) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 7.2 VDC Ice = 0.07 A. Pin = 0.5 W 2.1033(c)(11) Tune-up procedure. The tune-up procedure is included in the exhibits. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc Page 2 of 9 2.1033(c)(12) Circuit Diagrams: Circuit diagram(s)are included in the exhibits. (13) Description of all circuitry and devices provided for determining and stabilizing frequency is given in the exhibits. 2.1033(c)(14) The Equipment identification is shown in the exhibits. 2.1033(c)(15) Photographs of the equipment are shown in the exhibits. 2.1033(c)(16) Equipment employing Digital modulation. N/A. 2.1033(c)(17) The data required by 2.1046-2.1057 follows; 2.1046 RF power is measured by the ERP METHOD. There are no provisions to limit the power. With a nominal battery voltage of 7.2 VDC, and the transmitter properly adjusted the RF output measures: Po = 0.200 Watts ERP 2.1046 RF power output. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc Page 3 of 9 2.1047 Modulation characteristics: AUDIO FREQUENCY RESPONSE The Voice is NOT allowed in this band. 2.1049 Occupied bandwidth: 95.635 (b) (1) At least 25dB on any frequency removed from the center of the authorized bandwidth by more than 50% up to and including 100% of the authorized bandwidth. (2) At least 45 dB on any frequency removed from the center of the authorized bandwidth by more than 100% up to and including 125% of the authorized bandwidth. (3) At least 55 dB on any frequency removed from the center of the authorized bandwidth by more than 125% up to and including 250% of the authorized bandwidth. (4) At least 56 + 10 log 10 (T) dB on any frequency removed from the center of the authorized bandwidth by more than 250%. Radiotelephone Transmitter with Modulation Limiter Test Procedure Diagram OCCUPIED BANDWIDTH MEASUREMENT TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc Page 4 of 9 OCCUPIED BANDWIDTH PLOT TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestReport.doc Page 5 of 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS NOT APPLICABLE, NO antenna port. This UUT has a permanently attached antenna. 2.1053 UNWANTED RADIATION: 95.635(1)(3)(7)(10)(11)(12) REQUIREMENTS: At least 56 + 10log(T) on any frequency removed from the center of the authorized bandwidth by more than 250%. 56 + 10log(0.200) = 49.01 dB TEST DATA: Emission Frequency MHz Ant. Polarity dB Below Carrier (dBc) 75.60 151.20V 74.01 226.80V 65.66 302.40V 79.17 378.00V 79.31 453.60H 71.30 529.20H 64.45 680.40V 71.23 756.00H 71.50 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA275 REPORT #: H\HITEC\1085AUT6\1085AUT6TestRep…

Text truncated - open the document above for the full version.
