IFHZEBRA375REMOTE CONTROL TRANSMITTER

8 A. TX Antenna (#58005) B. Neck strap (#58311) C. Trainer cord (#58318) D. Switch harness (#57215S) E. Heavy duty gold pin switch harness (#54407) This can be removed F. Stick extensions (#56381) G. Flight Preserver (#58480) 4. REPLACEMENT PARTS & ACCESSORIES Congratulations again and have fun! Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, The Netherland, Italy, Spain, Norway, Portugal, United Kingdom, Luxembourg, Sweden, Switzerland MADE IN THE PHILIPPINES Zebra 3 FM Instruction Manual The following is a listing of replacement parts and accessories available for the Zebra radio series from your hobby dealer. - Always turn your transmitter on first and off last. - Never operate your system without first performing a proper range check. - FCC regulation in the USA prohibits changing the crystal in your transmitter. For channel changes send your system to an authorized service/repair center. - Never fly around or over houses, people or power lines. - Always charge your batteries before you fly. - It's a good idea to check your receiver batteries with a tester This will verify the charge level in your receiver batteries. - Always fly responsibly and respect the rights of others. - Make sure your frequency is clear before turning on your system. 5. PRECAUTIONS Instruction Manual 23 Introduction Thank you for purchasing the Zebra 3 FM digital proportional radio control system. The Zebra 3 FM is easy to use and utilizes the latest in solid-state components for unsurpassed reliability and performance. It is important that you read and understand this manual before you operate your system. CONTENTS 1. TRANSMITTER A. Features - Ergonomically designed 3 channel FM transmitter. - Precision gimbals. - Neutral position adjustment for throttle - SMT circuitry - Servo reversing on CH1, CH2. - CH1, CH2 Mixing. (Aero only) - SIC(Simulating Interface Cable) Compatible - Easy to read 1 LED battery indicators. - Size: 174 x 168mm (6.85 x 6.61 in) - Weight: 330g - Power supply: 7.2V (6 cell) NiCd or NiMh battery or 6cell Dry battery B. Layout TRANSMITTER ANTENNA CARRYING HANDLE L.E.D INDICATOR TRANSMITTER CRYSTAL Ch.2 THROTTLE CONTROL STICK NEUTRAL POSITION ADJUSTMENT LEVER THROTTLE TRIM LEVER STEERING TRIM LEVER Ch.1 STEERING CONTROL STICK POWER ON/OFF SWITCH Ch.3 Slide Switch THROTTLE SERVO REVERSE SHUNT SWITCH CHARGING JACK MIXING SHUNT SWITCH (Aero Only) SIC JACK(Aero Only) STEERING SERVO REVERSE SHUNT SWITCH FRONT BACK Zebra 3 FM Instruction ManualZebra 3 FM Instruction Manual 1. Transmitter a. Features b. Layout c. Servo Reversing d. Mixing (Aero only) e. Trim lever f. Reading the LED Battery Indicator 2. Battery Installation 3. Operation a. Installation of Receiver and Servos b. Transmitter, Receiver and Servo Settings c. Simulator System d. Range checking 4. Replacement Parts & Accessories 5. Precautions Page 2. Page 3 Page 4. Page 5. Page 6. Page 7. Page 8. 45 1. The transmitter requires six and the receiver battery pack needs four AA size batteries. These can be Alkaline, Ni-cd or Ni-Mh cells 2. Always make sure that the receiver and transmitter are off before loading the battery. 3. Open the battery cover in the back of the transmitter. 4. Load batteries into the appropriate slots, install the batteries with correct polarity as shown. 5. Always return the battery cover first before turning the transmitter power on. C. Servo Reversing - The Zebra 3 FM transmitter is equipped with servo reversing on CH1, CH2. - If you need to change travel direction of rotation, open the battery case and pull the shunt switch there should be a picture of how to do this and put it to the opposite side again. D. Mixing (Aero version only) - The Zebra 3 FM Aero transmitters is equipped with a switch that will mix CH1 and CH2 for Elevon /V-tail aircraft, or common flying wing type aircraft. -Put the shunt switch into left side(ch1,2) -If you don't need mixing, leave shunt switch in right side E. Trim Levers - The trim levers associated with each control stick are used to correct or (trim-out) the tracking of the aircraft. - Make sure that the trims will move the surface past neutral when moved to their extremes. This will assure you have adequate trim control. - After your plane's first test flight, note the positions of the control surfaces that required trim. Next, center the trims and turn the receiver off. Now adjust the control linkage on the plane so the surfaces are in the same position before the trim levers were re-centered. - Turn on the radio and receiver and recheck the control surfaces to ensure that all the corrections were applied in the proper direction. F. Reading the LED Battery Indicator - There is one indicator light on the face of the radio marked High (solid glowing LED) and Low (blinking LED). - These relate to the condition of your transmitter battery. Please pay attention to these LEDs and stop flying when the LED light is blinking. 2. BATTERY INSTALLATION Zebra 3 FM Instruction ManualZebra 3 FM Instruction Manual Ch.2 THROTTLE SERVO REVERSE SHUNT SWITCH MIXING SHUNT SWITCH Ch.1 STEERING SERVO REVERSE SHUNT SWITCH BACK CH1CH2 CH1CH2 Up ElevatorRight Rudder (view from rear) V-Tail MIXINGElevon MIXING CH1CH2 Aileron Operation Elevator Operation BATTERY COVER 6 AA SIZE BATTERY MUST BE LOADED IN CORRECT POLARITY AS SHOWN TO OPEN THE BATTERY COVER OF THE ZEBRA 3 FM, YOU NEED TO PRESS THIS AND PUSH IT DOWNWARD. 67 B. Transmitter, Receiver and Servo Settings Checking Operation of the Servo After installation of the servo and receiver into your model is complete, turn on the transmitter (fully extend the antenna) now turn on the receiver. Check to see if all servos are working properly. If not, check the connections and/or make sure that the main battery pack is charged. If the servos check out is fine, connect the linkage to the servo horns. Check that the servos are moving in the correct direction. If not, change the servo direction with the reversing shunt switches l…

Text truncated - open the document above for the full version.

12115 Paine Street, Poway CA 92064 TEL(858)748-6948 FAX(858)748-1767 WWW.HITECRCD.COM July 11, 2006 TIMCO ENGINEERING INC. TCB & FCB 849 NW State Road 45 FCC Approvals Newberry, Florida 32669 Industry Canada Approvals http://www.timcoengr.com Notified Body for Europe 888.472.2424 F 352.472.2030 email: [email protected] SUBJECT: HITEC RCD INC. - FCC ID: IFHZEBRA375 REFERENCE: JOB 1086AUT6 The following lines will be added or modified to the manuals before product release: - FCC regulation in the USA prohibits changing the crystal in your transmitter. For channel changes send your system to the Manufacturer. The product sent in for testing are pre-production models. The final versions will have the crystals and covers glued in place to prevent users from tampering with them. Sincerely, Tony Ohm Service Manager Hitec RCD, Inc. HITEC RCD USA, INC

12115 Paine Street, Poway CA 92064 TEL(858)748-6948 FAX(858)748-1767 WWW.HITECRCD.COM 5/11/2006 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:IFHZEBRA375 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics Description of Operation Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Tony Ohm HITEC RCD USA, INC

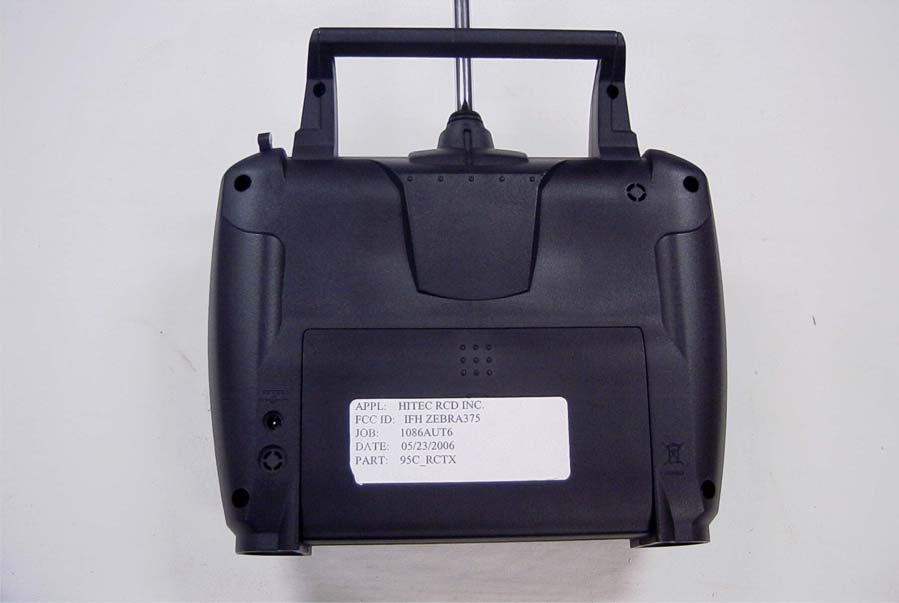

HITEC RCD INC. FCC ID: IFHZEBRA375 EXTERNAL PHOTOS

FCC ID and IC Sticker: FCC ID: IFHZEBRA375 IC: 3420A-ZEB3FM ZEBRA 3 FM ZEBRA MADE IN THE PHILIPPINES

HITEC RCD INC. FCC ID: IFHZEBRA375 INTERNAL PHOTOS

APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 The unit has no provisions for tuning.

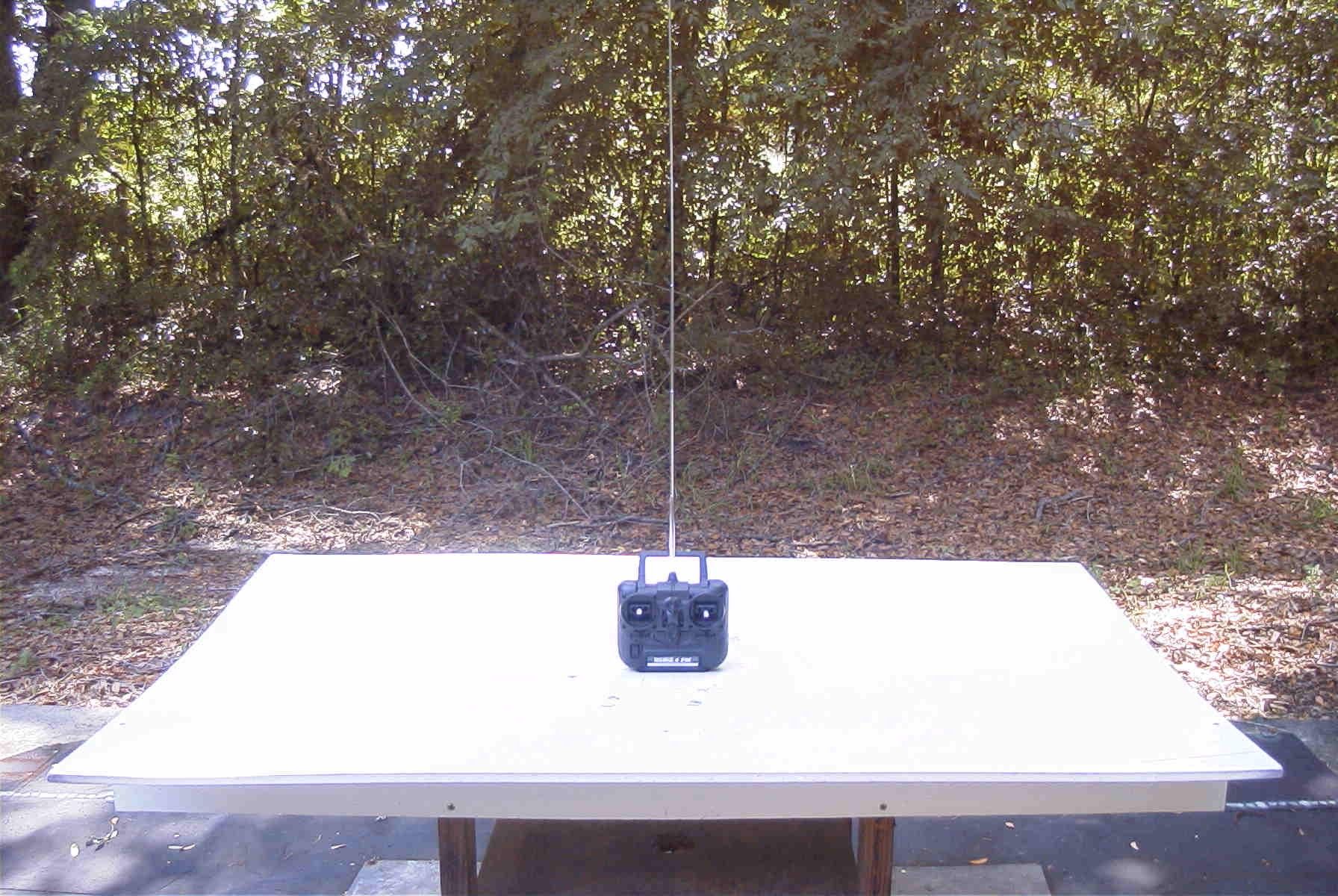

TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc COVER SHEET Test Report Product Name: REMOTE CONTROL FCC ID: IFHZEBRA375 Applicant: HITEC RCD INC. 12115 PAINE STREET POWAY CA 92064 Date Receipt: 5/23/2006 Date Tested: 6/29/2006 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc TABLE OF CONTENTS TABLE OF CONTENTS LIST TEST REPORT: PAGE 1............GENERAL INFORMATION & TECHNICAL DESCRIPTION PAGE 2............TECHNICAL DESCRIPTION CONTINUED RF POWER OUTPUT PAGE 3............OCCUPIED BANDWIDTH PAGE 4............OCCUPIED BANDWIDTH PLOT PAGE 5............FIELD STRENGTH OF SPURIOUS EMISSION PAGE 6............METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7............FREQUENCY STABILITY PAGE 8............TEST EQUIPMENT LIST PAGE 9............TEST SET UP PHOTO EXHIBITS INCLUDING: BLOCK DIAGRAM SCHEMATIC PARTS LIST USERS MANUAL LABEL SAMPLE LABEL LOCATION EXTERNAL PHOTOGRAPHS INTERNAL PHOTOGRAPHS ALIGNMENT PROCEDURE OPERATIONAL DESCRIPTION TEST SET UP PHOTOGRAPH TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 1 of 9 GENERAL INFORMATION 2.1033(c)(1)(2) HITEC RCD INC. will sell the FCC ID: IFHZEBRA375 Radio Control transmitter in quantity, for use under PART 95 SUBPART C. HITEC RCD INC. 12115 PAINE STREET POWAY CA 92064 2.1033(c)(3) Instruction manual is included in the exhibits. 2.1033 (4) Type of Emission: 8K0F1D 95.631 (b)(5) Bn = 2M + 2DK M = 4,800 Bits per second D = 1600 Hz (Peak Deviation) K = 1 Bn = 2(4.8/2) + 2(1600)(1) =4.8K + 3.2K =8.0k ALLOWED AUTHORIZED BANDWIDTH = 8.00 kHz. 95.631 (b) Authorized Bandwidth 8 kHz for RC Transmitter 2.1033(c)(6) Frequency Range: 75.41 - 75.99 MHz 95.623 (a)(7) Power Range and Controls: There are NO user Power controls. (8) Function of each electron tube or semiconductor device or other active circuit device are included in the exhibits (9) Maximum Output Power Rating: 0.200 W ERP. (10) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 7.2 VDC Ice = 0.07 A. Pin = 0.5 W 2.1033(c)(11) Tune-up procedure. The tune-up procedure is included in the exhibits. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 2 of 9 2.1033(c)(12) Complete Circuit Diagrams: The circuit diagram are included in the exhibits. (13) Description of all circuitry and devices provided for determining and stabilizing frequency is given in the exhibits. 2.1033(c)(14) The Equipment identification is shown in the exhibits. 2.1033(c)(15) Photographs of the equipment are shown in the exhibits. 2.1033(c)(16) Equipment employing Digital modulation. N/A. 2.1033(c)(17) The data required by 2.1046-2.1057 follows; 2.1046 RF power is measured by the ERP METHOD. There are no provisions to limit the power. With a nominal battery voltage of 7.2 VDC, and the transmitter properly adjusted the RF output measures: Po = 0.200 Watts ERP 2.1046 RF power output. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 3 of 9 2.1047 Modulation characteristics: AUDIO FREQUENCY RESPONSE The Voice is NOT allowed in this band. 2.1049 Occupied bandwidth: 95.635 (b) (1) At least 25dB on any frequency removed from the center of the authorized bandwidth by more than 50% up to and including 100% of the authorized bandwidth. (2) At least 45 dB on any frequency removed from the center of the authorized bandwidth by more than 100% up to and including 125% of the authorized bandwidth. (3) At least 55 dB on any frequency removed from the center of the authorized bandwidth by more than 125% up to and including 250% of the authorized bandwidth. (4) At least 56 + 10 log 10 (T) dB on any frequency removed from the center of the authorized bandwidth by more than 250%. Radiotelephone Transmitter with Modulation Limiter Test Procedure Diagram OCCUPIED BANDWIDTH MEASUREMENT TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 4 of 9 OCCUPIED BANDWIDTH PLOT TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 5 of 9 2.1051 SPURIOUS EMISSIONS AT ANTENNA TERMINALS NOT APPLICABLE, NO antenna port. This UUT has a permanently attached antenna. 2.1053 UNWANTED RADIATION: 95.635(1)(3)(7)(10)(11)(12) REQUIREMENTS: At least 56 + 10log(T) on any frequency removed from the center of the authorized bandwidth by more than 250%. 56 + 10log(0.200) = 49.01 dB TEST DATA: Emission Frequency MHz Ant. Polarity dB Below Carrier (dBc) 75.64 151.28H 79.31 226.92H 73.36 302.56H 75.47 378.20V 65.21 453.84V 70.1 529.48H 62.85 680.76V 62.53 756.40V 63.8 TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 email: [email protected] APPLICANT: HITEC RCD INC. FCC ID: IFHZEBRA375 REPORT #: H\HITEC\1086AUT6\1086AUT6TestReport.doc Page 6 o…
