Automated Acceptance Test Procedures – All–inclusive TX & RX Mar 2001 4-1 SCt4812T CDMA BTS Optimization/ATP DRAFT Introduction The Automated Acceptance Test Procedure (ATP) allows Cellular Field Engineers (CFEs) to run automated acceptance tests on all equipped BTS subsystem devices using the Local Maintenance Facility (LMF) and supported test equipment per the current Cell Site Data File (CDF) assignment. The results of these tests (at the option of the operator) are written to a file that can be printed. All tests are controlled from the LMF platform using the GPIB interface, therefore, only recommended test equipment supported by the LMF can be used. This chapter describes the tests run from the GUI environment, which is the recommended method. The GUI provides the advantages of simplifying the LMF user interface, reducing the potential for miskeying commmands and associated parameters, and speeding up the execution of complex operations involving multiple command strings. If you feel the command line interface (CLI) will provide additional insight into the progress of ATPs and problems that could possibly be encountered, refer to LMF CLI Commands, R15.X (68P09251A59). Before performing any tests, use an editor to view the “CAVEATS” section of the “readme.txt” file in the c:\wlmf folder for any applicable information. The ATP test is to be performed on out-of-service (OOS) sectors only. DO NOT substitute test equipment not supported by the LMF. IMPORTANT * Refer to Chapter 3 for detailed information on test set connections for calibrating equipment, cables and other test set components, if required. NOTE Customer requirements determine which ATP tests to are to be performed, and the craftsperson selects the appropriate ATP tests to run. The tests can be run individually or as one of the following groups:
All TX: TX tests verify the performance of the BTS transmit line up. These include the GLI, MCC, BBX, and CIO cards, the LPAs and passive components including splitters, combiners, bandpass filters, and RF cables.
All RX: RX tests verify the performance of the BTS receiver line up. These include the MPC (for starter frames), EMPC (for expansion frames), CIO, BBX, MCC, and GLI cards and the passive components including RX filters (starter frame only), and RF cables. . . . continued on next page 4 Automated Acceptance Test Procedure – All–inclusive TX & RX – continued DRAFT SCt4812T CDMA BTS Optimization/ATP Mar 2001 4-2
All TX/RX: Executes all the TX and RX tests.
Full Optimization: Executes the TX calibration, downloads the BLO, and executes the TX audit before running all of the TX and RX tests. ATP Test Prerequisites Before attempting to run any ATP tests, ensure the following have been completed:
BTS has been optimized and calibrated (see Chapter 3).
LMF is logged into the BTS.
CSMs, GLIs, BBXs, MCCs, and TSU (if the RFDS is installed) have correct code load and data load.
Primary CSM, GLI, and MCCs are INS_ACT.
BBXs are calibrated and BLOs are downloaded.
BBXs are OOS_RAM.
Test cables are calibrated.
Test equipment is connected for ATP tests (see Figure 3-13 through Figure 3-16 starting on page 3-50).
Test equipment has been warmed up 60 minutes and calibrated.
GPIB is on. Before performing the FER, be sure that all LPAs are turned OFF (circuit breakers pulled) or that all transmitter ports are properly terminated. All transmit ports must be properly terminated for all ATP tests. Failure to observe these warnings may result in bodily injury or equipment damage. WARNING TX OUT Connection Many of the acceptance test procedures require taking measurements at the TX OUT (BTS/RFDS) connector. At sites without RFDS installed, all measurements will be via the BTS TX OUT connector. At sites with RFDS installed, all measurements will be via the RFDS directional coupler TX OUT connector. IMPORTANT * 4 Automated Acceptance Test Procedure – All–inclusive TX & RX – continued Mar 2001 4-3 SCt4812T CDMA BTS Optimization/ATP DRAFT ATP Test Procedure There are three different ATP testing options that can be performed to completely test a BTS. Depending on your requirements, one of the following ATP testing options should be run.
ATP Testing Option 1 –All TX/RX
ATP Testing Option 2 –All TX –All RX
ATP Testing Option 3 –TX Mask Test –Rho Test –Pilot Time Offset Test –Code Domain Power Test –FER Test The Full Optimization test can be run if you want the TX path calibrated before all the TX and RX tests are run. NOTE If manual testing has been performed with the HP analyzer, remove the manual control/system memory card from the card slot and set the I/O Config to the Talk & Lstn mode before starting the automated testing. IMPORTANT * Follow the procedure in Table 4-1 to perform any ATP test. The STOP button can be used to stop the testing process. NOTE Table 4-1: ATP Test Procedure StepAction 1Select the device(s) to be tested. 2From the Tests menu, select the test you want to run. 3Select the appropriate carrier(s) (carrier-bts#-sector#-carrier#) displayed in the Channels/Carrier pick list. NOTE To select multiple items, hold down the <Shift> or <Ctrl> key while making the selections. . . . continued on next page 4 Automated Acceptance Test Procedure – All–inclusive TX & RX – continued DRAFT SCt4812T CDMA BTS Optimization/ATP Mar 2001 4-4 Table 4-1: ATP Test Procedure ActionStep 4Enter the appropriate channel number in the Carrier n Channels box. The default channel number displayed is determined by the CdmaChans[n] number in the cbsc–n.cdf file for the BTS. 5Click on the OK button. The status report window and a Directions pop-up are displayed. 6Follow the cable connection directions as they are displayed. The test results are displayed in the status report window. 7Click on Save Results or Dismiss. NOTE If Dismiss is used, the test results will not be saved in the test report file. 4 TX Output Acceptance Tests: Introduction Mar 2001 4-5 SCt4812T CDMA BTS Optimization/ATP DRAFT I…

Text truncated - open the document above for the full version.

SCt4812T BTS Optimization/ATP System Software Release 2.16.0 800/1700/1900 MHz CDMA English Mar 2001 68P09253A61–1 DRAFT English Mar 2001 68P09253A61–1 SC t 4812T BTS Optimization/ATP 800/1700/1900 MHz CDMA SCt4812T BTS Optimization/ATP System Software Release 2.16.0 800/1700/1900 MHz CDMA English Mar 2001 68P09253A61–1 DRAFT Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2001 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV010598 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Mar 2001 i SCt4812T CDMA BTS Optimization/ATP DRAFT Table of Contents SCt4812T CDMA BTS Optimization/ATP CDMA 800/1700/1900 MHz List of Figuresiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . List of Tablesvi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Product Informationx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15xi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 68xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1: Introduction Optimization Manual: Scope and Layout1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Purpose of the Optimization1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Test Equipment1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Documentation1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BTS Equipment Identification1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frame Module Location & Identification1-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 2: Preliminary Operations Preliminary Operations: Overview2-1. . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Mar 2001 SCt4812T CDMA BTS Optimization/ATP DRAFT Chapter 2: Preliminary Operations Table of Contents Preliminary Operations: Overview2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cell Site Types2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CDF2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Site Equipage Verification2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Installation of Boards/Modules2-1. . . . . . . . . . . . . . . . . . . . . . . . . . Setting Frame C–CCP Shelf Configuration Switch2-3. . . . . . . . . . . . . . . Pre–Power–up Tests2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Objective2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Test Equipment2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cabling Inspection2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC Power Pre-test (BTS Frame)2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC Power Pre-test (RFDS)2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Power–up Tests2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power-up Procedures2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Common Power Supply Verification2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Power-up (RFDS)2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Power-up (BTS)2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Table of Contents – continued DRAFT SCt4812T CDMA BTS Optimization/ATP Mar 2001 Notes 2 Preliminary Operations: Overview Mar 2001 2-1 SCt4812T CDMA BTS Optimization/ATP DRAFT Introduction This section first verifies proper frame equipage. This includes verifying module placement, jumper, and dual in–line package (DIP) switch settings against the site-specific documentation supplied for each BTS application. Next, pre-power up and initial power-up procedures are presented. Cell Site Types Sites are configured as Omni with a maximum of 4 carriers, 3–sectored with a maximum of 4 carriers, and 6–sectored with a maximum of 2 carriers. Each type has unique characteristics and must be optimized accordingly. For more information on the differences in site types, please refer to the BTS/Modem Frame Hardware Installation manual. CDF The Cell-site Data File (CDF) contains site type and equipage data information and passes it directly to the LMF during optimization. The number of modem frames, C–CCP shelves, BBX boards, MCC boards (per cage), and linear power amplifier assignments are some of the equipage data included in the CDF. Be sure that the correct bts–#.cdf and cbsc–#.cdf files are used for the BTS. These should be the CDF files that are provided for the BTS by the CBSC. Failure to use the correct CDF files can cause system errors. Failure to use the correct CDF files to log into a live (traffic carrying) site can shut down the site. IMPORTANT * Site Equipage Verification Review the site documentation. Match the site engineering equipage data to the actual boards and modules shipped to the site. Physically inspect and verify the equipment provided for the BTS or Modem frame and ancillary equipment frame. Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD. After removal, the card/module should be placed on a conductive surface or back into the anti–static shipping bag. CAUTION Initial Installation of Boards/Modules Follow the procedure in Table 2-1 to verify the initial installation of boards/modules. . . . continued on next page 2 Preliminary Operations: Overview – continued DRAFT SCt4812T CDMA BTS Optimization/ATP Mar 2001 2-2 Table 2-1: Initial Installation of Boards/Modules StepAction 1Refer to the site documentation and install all boards and modules into the appropriate shelves as required. Verify they are NOT SEATED at this time. NOTE On 800 MHz systems, the Switch Card has a configuration switch that must match the site configuration (see Figure 2-1). 2As the actual site hardware is installed, record the serial number of each module on a “Serial Number Checklist” in the site logbook. Figure 2-1: Switch Card ÂÂÂÂÂÂ ÂÂÂÂÂÂ ÂÂÂÂÂÂ ÂÂÂÂÂÂ ÁÁ Á Á Á Á Á Á Á Switch Card 1234 ON BTS MF 3 Sector 6 Sector J1 J2 J3 J4 J5 SHIELDS Configuration Switch NOTE:CONFIGURATION SWITCH ON 800 MHZ SWITCH CARD ONLY. SHOWN FOR 3 SECTOR BTS. SWITCH 1 CHOOSES BTS OR MF. SWITCH 4 CHOOSES 3–SECTOR OR 6 SECTOR. SWITCHES 2 & 3 ARE NOT USED. FW00379 2 Preliminary Operations: Overview – continued Mar 2001 2-3 SCt4812T CDMA BTS Optimization/ATP DRAFT Setting Frame C–CCP Shelf Configuration Switch The backplane switch settings behind the fan module nearest the breaker panel should be set as shown in Figure 2-2. The switch setting must be verified and set before power is applied to the BTS equipment. Figure 2-2: Backplane DIP Switch Settings – SC 4812T 19 mm Filter Panel Power Supply AMR / MACH HSOCSMCSM 39 mm Filter Panel AMR / MACH GLI2 GLI2 MCC24 – 6 BBX2 – 1 BBX2 – 2 BBX2 – 3 BBX2 – 4 BBX2 – 5 BBX2 – 6 BBX2 – R Switch MPC MPC CIO BBX2 – 7 BBX2 – 8 BBX2 – 9 BBX2 – 10 BBX2 – 11 BBX2 – 12 MCC24 – 5 MCC24 – 4 MCC24 – 3 MCC24 – 2 MCC24 – 1 MCC24 – 12 MCC24 – 11 MCC24 – 10 MCC24 – 9 MCC24 – 8 MCC24 – 7 Power SupplyPower Supply CCD CCD FAN MODULE PWR/ALM REAR FRONT FAN MODULE PWR/ALM REAR FRONT ON OFF SC 4812T C–CCP SHELF FAN MODULE REMOVED STARTER FRAME SETTING ON OFF EXPANSION FRAME 1 SETTING ON OFF EXPANSION FRAME 2 SETTING BOTTOM / TOP RIGHT / LEFT MODEM_FRAME_ID_1MODEM…

Text truncated - open the document above for the full version.

________________________________________________________________________________________________ _________ FCC Filing - SC4812T @ 800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5BL1 STATEMENTS OF CERTIFICATION EXHIBIT

Global Telecom Solutions Sector August 10, 2001 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 1475 W. Shure Drive, Arlington Heights, Illinois 60004, herein submits: Filing fee, Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a Cellular Transceiver, FCC ID: IHET5BL1. Motorola is also the manufacturer of this equipment. Motorola requests that the following Sections of the Schematics Exhibit be kept confidential: Section A MPC6 - Multicoupler Preselector Card Section B GLI2 - Group Line Interface Card Section C BBX 1X- Broadband Transceiver Card Section D BBX2- Broadband Transceiver Card Section E MCC 1X - Multi Channel CDMA Card Section F MCC x 24E - Multi Channel CDMA Card Section G CCD - CDMA Clock Distribution Card Section H CSM2 - Clock Synchronization Module w/GPS Section I LPA - Linear Power Amplifier Section J CIO - Combiner Input/Output Card Section K Switch Card Section L HSO - High Stability Oscillator Section M SPAN I/O Section N RGD - Remote GPS Distribution Section O LFR – Low Frequency Receiver Special Note The confidential portions have been identified as such on the Uploading Sections Form. The filing fee includes fee for a confidential filing.

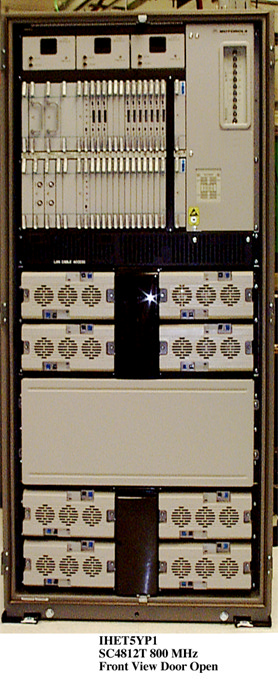

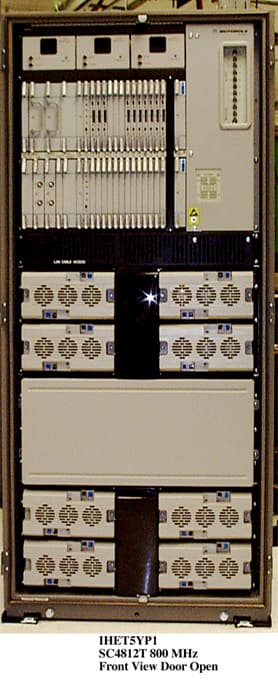

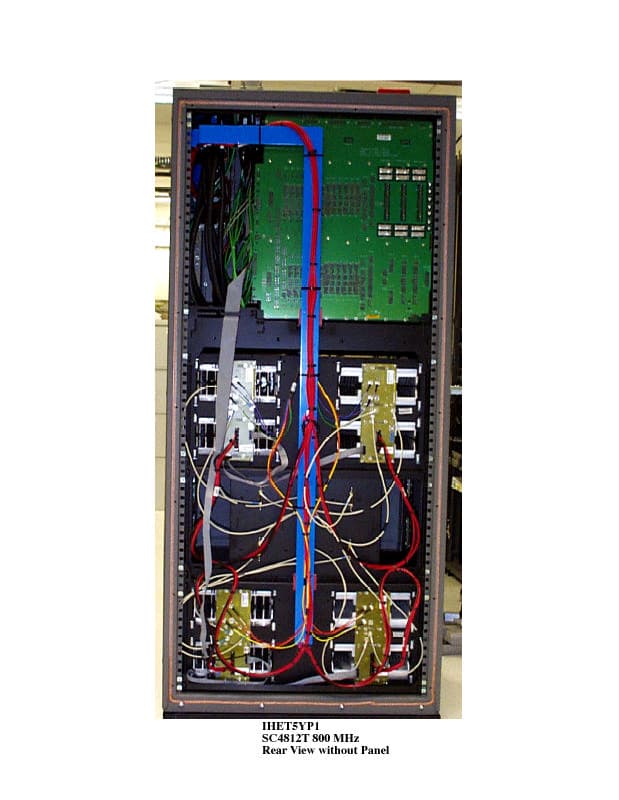

FCC Filing - SC4812T @ 800 MHz CDMA BTS Frame Cellular Infrastructure Group APPLICANT: MOTOROLA TRANSCEIVER TYPE: IHET5BL1 SC4812T @ 800 MHz CDMA BTS Frame EXTERNAL PHOTOS EXHIBIT List of External Photographs NO. PHOTOGRAPH 01 Front View Door Closed 02 Front View Door Open 03 Rear View with Panel 04 Rear View without Panel 05 Left Side View 06 Right Side View 07 Top View

APPLICANT: MOTOROLA FCC ID: IHET5BL1 EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | ||||||| | Model No.__________________ |||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | Serial No.__________________ MOTOROLA FCC ID: IHET5BL1 Complies with Part 68, FCC Rules FCC Reg. No. IHEUSA-35778-DE-E REN: 03B USOC: RJ11C

FCC Filing- SC4812T @ 800 MHz CDMA BTS 1 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812T @800 MHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2. 1033 (b) Identification of Equipment: IHET5BL1 Section 2. 1033 (c) Quantity Production: Quantity Production is planned. Section 2. 1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 22(H). This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 128 Walsh codes to support Pilot, Sync, Paging, Supplemental, and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS-CDMA) digital communication techniques. For this transmitter, the emission designator is 1M25F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 869.70 to 893.31 MHz Band (per FCC Part 22). This base station will support CDMA operations on channel numbers 1013 through 1023 and 1 through 777 inclusive. (3) Range of Operating Power The rated maximum average power out of the SC4812T @800 MHz CDMA BTS is 40 W (46.0 dBm) per RF carrier. However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. For a typical system setup, the theoretical difference between minimum power and maximum power is about 20 dB. The output power is variable in 0.25 dB steps. FCC Filing- SC4812T @ 800 MHz CDMA BTS 2 (3) Range of Operating Power (cont.) In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 100 Watts as defined in Part 22.913(a). (5) Applied voltages and currents into the final transistor elements of the transmitter output: In the CDMA system, the applied voltages and currents into the final transistor elements SRF7042X4 for 40 W output: Drain 27.7 VDC Drain Current 1.0 AMPS x 3 Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. FCC Filing- SC4812T @ 800 MHz CDMA BTS 3 (10) Means for Frequency Stabilization Refer to Section F of the Test Report Exhibit. The Clock Synchronization Module (CSM/CSM2) provides clock and time signals for an SC4812T @800 MHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM/CSM2 relies on a GPS receiver, either riding piggyback onto the CSM/CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM/CSM2 cards provide redundancy in case of primary CSM/CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM/CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM/CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards . The CSM/CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM/CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM/CSM2 from the GLI2. The CSM/CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM/CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. FCC Filing- SC4812T @ 800 MHz CDMA BTS 4 (11) Means for Attenuation of Spurious Emissions Refer to Section C of the Test Report Exhibit. Band pass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. In addition to the digital filters described below, the baseband also employs a discrete anti-alias filter that attenuates signals greater than 2MHz. Out of band emissions are also attenuated by ceramic filters in the transmit RF lineup. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to Sections B and F of the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to 1.23 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one voice channel), then the two signals are simply layered one atop the other within the 1.23 MHz band. So, to some extent, the bandwidth of the transmitted signal is limited by the chip rat…

Text truncated - open the document above for the full version.

FCC Filing- SC4812T @ 800MHz CDMA BTS Summary of Active Devices APPLICANT: MOTOROLA TRANSMITTER TYPE: IHET5BL1 Multicoupler Preselector Card (MPC6) Device Type Component Description Operating Frequencies MMPT3906LT1Transistor PNP 40V 2AD.C. MMBT3904LT1Transistor NPN 40V 2AD.C. MC33164D-5R2 IC Undervolt Sensing Ckt, MotorolaD.C. MMSZ6685TZener Diode 3.9V 500mV, MotorolaD.C. MMBD6050LT1Diode 70V, 5A, MotorolaD.C. HSMP-3800-L31 RF PIN Diode1850-1910 MHz PALCE22VIOH-15JC/4 IC Programmable Logic DeviceD.C. BRPG1204W-TRBicolor LED 70mA 2.5VD.C. BCW69Transistor PNPD.C. CFK-0301 RF FET1850-1910 MHz MGA-82563IC RF Amplifier1850-1910 MHz SNA-486IC RF Amplifier1850-1910 MHz MMBZV6ALT1 Dual Diode Common Anode 5.6VD.C. MC33060ADR2 PWM Control CircuitD.C. MTD2955ET4 Power MOSFET Pch 60V, 12AD.C. MBRD340T4 Rectifier Schottky, 3A, 40VD.C. MC33182DR2 Low Pwr Dual Op-AmpD.C P6SMB12CAT3 12V Transient Suppressor D.C. FCC Filing- SC4812T @ 800MHz CDMA BTS Multicoupler Preselector Card (MPC6) (continued) Device Type Component Description Operating Frequencies MMBD7000 Zener DiodeD.C. RELAY_G6S_2G_DC12 DPDT 12V RelayD.C. MBRS140T3 Schottky Rectifier40V 1AD.C. LT1054IS IC Voltage Converter with Regulator D.C. LM317 Adj. Voltage Regulator 500mA D.C. X9241 IC CMOS Quad EEPOT D.C. MC3303DR2 IC Gen Purpose Quad Op-Amp D.C. X2502D IC EPROM 256x8 D.C. FCC Filing- SC4812T @ 800MHz CDMA BTS Group Line Interface II (GLI2) Device Type Component Description Operating Frequencies MB3240T10TBDG60DRAM 4Mx32 DIMM40 MHz VSA5101532.768MHz PLL-VCXO32.768 MHz SG-636PCE40MHz OSC40 MHz MAX732CWEFLASH PWR SUPPLY170 kHz I74F776AFUTURE BUS RX2.048 MHz I74F777AFUTURE BUS TX2.048 MHz LTC1435CSSWITCHER IC230 kHz MPC860MHzP40MICROPROCESSOR40MHz MC10ELT21PECL3 MHz MPC946FAR2CLOCK DIST IC40 MHz, 20 MHz MC68160CFBEEST20 MHz MC34058FTARS485 XCVR4.096 MHz MC74LCX16244DTR2BUFFERS2.048 MHz SX05TR009ZQ01PPC ASIC40MHz MT9082APTSI DIGITAL SWITCH8.192 MHz PEB2254H-V13E1/T1 FRAMER/LIU/HDLC8.192, 12.352 MHz, 16.384 MHz OR2C26A-3PS208-DBLUCENT FPGA8.192, 16.384 MHz 20 MHz W42C70-01GZERO DELAY BUFFER16 MHz MAX250ESDRS232 XCVR9600 - 19.2K BPS MAX251ESD 9600 - 19.2K BPSRS232 XCVR Broadband Transceiver/Digital Baseband Processor 800MHz BBX 1X Device TypeComponent DescriptionOperating Frequency LVCO3992Uoscillator585 - 611MHz LVCO3992Uoscillator824 - 849MHz SG615HCoscillator50MHz BFP420NPN transistor238.4 MHz BRPG1204WRed/Green LED0-2 Hz MMBT3904LT1NPN transistorD.C. MMDF2P02HDP-channel mos FETD.C. MTB75N05HDNPN transistorD.C. MMBT3904LT1PNP transistorD.C. MMBT3906LT1PNP transistorD.C. MBT3906DW1T1NPN transistorD.C. MBT3904DW1T1NPN transistorD.C. MMBT3904WT1diode19.6608 MHz MBT3946DW1T1dual PNP/NPN transistorD.C. MMBD301LT1diodeD.C. MMBZ5240BLT1zener diodeD.C. MMSZ5237BT1zener diodeD.C. MMSZ5243BT1zener diodeD.C. MBRD340T4diodeD.C. FCC Filing- SC4812T @ 800MHz CDMA BTS Broadband Transceiver/Digital Baseband Processor 800MHz BBX 1X Device TypeComponent DescriptionOperating Frequency MBR0530T1Schottky Power Rectifier DiodeD.C. MMBD7000LT1Dual Swithing DiodeD.C. & D.C. MMBD914LT1High-Speed Swithing DiodeD.C. HSM63320 MHz Crystal Oscillator20 MHz HSMS-2825-L31RF Schottky Barrier Diodes6 MHz BFG-541Wideband Transistor800 MHz HSMS282kRF Schottky Barrier Diodes625 kHz & 800 MHz MA4P274-1068Dual PIN Diodes800 MHz AD826ARopampD.C. AD6802.5 V Bandgap ReferenceD.C. max148beapAnalog to Digital Converter694.4 kHz LM2991SNegative Low Dropout Adjustable RegulatorD.C. MSM13R2850DBP ASIC0.…
