68P09258A31–A Oct 2003 ENGLISH CDMA Software Release R2.16.3.x Technical Information 1X SCt 4812T BTS Optimization/ATP 800 and 1900 Mhz SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Motorola and its licensors contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Copyright 2003 Motorola, Inc. Printed on Recyclable Paper REV091302 1X SCt 4812T BTS Optimization/ATP i Oct 2003 1X SCt 4812T BTS Optimization/ATP Table of Contents . . . Table of Contents 68P09258A31–A 1X SCt 4812T BTS Optimization/ATP ii Oct 2003 Contents FCC Requirementsxviii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Contentxviii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15 Requirementsxviii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 68 Requirementsxix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxxii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxxiv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1 Introduction1-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optimization Manual: Scope and Layout1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Scope and Layout1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Assumptions and Prerequisites1-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Document Composition1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Using the LMF68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-21 Figure 3-4: BTS Login screen – identifying circuit and packet BTS files 3 Using the LMF 68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-22 Figure 3-5: Self–Managed Network Elements (NEs) state of a packet mode SC4812T 3 Using the LMF68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-23 Figure 3-6: Available packet mode commands 3 Using the LMF 68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-24 Figure 3-7: Packet mode site with MCC–1 and BBX–1 under LMF control 3 Using the LMF68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-25 Command Line Interface Overview The LMF also provides Command Line Interface (CLI) capability. Activate the CLI by clicking on a shortcut icon on the desktop. The CLI can not be launched from the GUI, only from the desktop icon. Both the GUI and the CLI use a program known as the handler. Only one handler can be running at one time. Due to architectural limitations, the GUI must be started before the CLI if you want the GUI and CLI to use the same handler. When the CLI is launched after the GUI, the CLI automatically finds and uses an in–progress login session with a BTS initiated under the GUI. This allows the use of the GUI and the CLI in the same BTS login session. If a CLI handler is already running when the GUI is launched (this happens if the CLI window is already running when the user starts the GUI, or if another copy of the GUI is already running when the user starts the GUI), a dialog window displays the following warning message: The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application? Yes No This window also contains Yes and No buttons. Selecting Ye s starts the application. Selecting No terminates the application. CLI Format Conventions The CLI command syntax is as follows: Sverb Sdevice including device identifier parameters Sswitch Soption parameters consisting of: – keywords – equals signs (=) between the keywords and the parameter values – parameter values Spaces are required between the verb, device, switch, and option parameters. A hyphen is required between the device and its identifiers. Following is an example of a CLI command. measure bbx–<bts_id>–<bbx_id> rssi channel=6 sector=5 Refer to LMF CLI Commands for a complete explanation of the CLI commands and their usage. 3 Using the LMF 68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-26 Logging into a BTS Logging into a BTS establishes a communication link between the BTS and the LMF. An LMF session can be logged into only one BTS at a time. Prerequisites Before attempting to log into a BTS, ensure the following have been completed: SThe LMF is correctly installed on the LMF computer. SA bts-nnn folder with the correct CDF/NECF and CBSC files exists. SThe LMF computer was connected to the BTS before starting the Windows operating system and the LMF software. If necessary, restart the computer after connecting it to the BTS in accordance with Table 3-5 and Figure 3-3. CAUTION Be sure that the correct bts–#.cdf/necf and cbsc–#.cdf file are used for the BTS. These should be the CDF/NECF files that are provided for the BTS by the CBSC. Failure to use the correct CDF/NECF files can result in invalid optimization. Failure to use the correct CDF/NECF files to log into a live (traffic–carrying) site can shut down the site. BTS Login from the GUI Environment Follow the procedure in Table 3-6 to log into a BTS when using the GUI environment. Table 3-6: BTS GUI Login Procedure nStepAction 1Start the CDMA LMF GUI environment by double clicking on the WinLMF desktop icon (if the LMF is not running). NOTE If a warning similar to the following is displayed, select No, shut down other LMF sessions which may be running, and start the CDMA LMF GUI environment again: The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application? Yes No 2Click on the Login tab (if not displayed). 3If no base stations are displayed in the Available Base Stations pick list, double click on the CDMA icon. 4Click on the desired BTS number. For explanation of BTS numbering, see Figure 3-4. 5Click on the Network Login tab (if not already in the forefront). 6Enter the correct IP address (normally 128.0.0.2 for a field BTS) if not correctly displayed in the IP Address box. . . . continued on next page 3 Using the LMF68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 3-27 Table 3-6: BTS GUI Login Procedure nActionStep NOTE 128.0.0.2 is the default IP address for MGLI–1 in field BTS units. 128.0.0.1 is the default IP address for MGLI–2. 7Type in the correct IP Port number (normally 9216) if not correctly displayed in the IP Port box. 8Click on Ping. – If the connection is successful, the Ping Display window shows text similar to the following: Reply from 128 128.0.0.2: bytes=32 time=3ms TTL=255 – If there is no response the following is displayed: 128.0.0.2:9216:Timed out If the MGLI fails to respond, reset and perform the ping process again. If the MGLI still fails to respond, typical problems are shorted BNC to inter–frame cabling, open cables, crossed A and B link cables, missing 50–Ohm terminators, or the MGLI itself. 9Change the Multi-Channel Preselector (from the Multi-Channel Preselector pick list), normally MPC, corresponding to your BTS configuration, if required. NOTE When performing RX tests on expansion frames, do not choose EMPC if the test equipment is connected to the starter frame. 10Click on the Use a Tower Top Amplifier, if applicable. 11Click on Login. (A BTS tab with the BTS and frame numbers is displayed.) NOTE SIf you attempt to login to a BTS that is already logged on, all devices will be gray. SThere may be instances where the BTS initiates a log out due to a system error (i.e., a device failure). SIf the MGLI is OOS_ROM (blue), it will have to be downloaded with co…

Text truncated - open the document above for the full version.

C–CCP Backplane Troubleshooting68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 6-17 No AMR Control (MGLI good) Perform the procedure in Table 6-18 to troubleshoot an AMR control failure when the MGLI control is good. Table 6-18: MGLI Control Good – No Control over AMR StepAction 1Visually check the master GLI connector (both board and backplane) for damage. 2Replace the master GLI with a known good GLI. 3Replace the AMR with a known good AMR. No BBX Control in the Shelf – (No Control over Co–located GLIs) Perform the procedure in Table 6-19 to troubleshoot a BBX control in the shelf failure. Table 6-19: No BBX Control in the Shelf – No Control over Co–located GLIs StepAction 1Visually check all GLI connectors (both board and backplane) for damage. 2Replace the remaining GLI with a known good GLI. 3Visually check BBX connectors (both board and backplane) for damage. 4Replace the BBX with a known good BBX. No (or Missing) Span Line Traffic Perform the procedure in Table 6-20 to troubleshoot a span line traffic failure. Table 6-20: MGLI Control Good – No (or Missing) Span Line Traffic StepAction 1Visually check all GLI connectors (both board and backplane) for damage. 2Replace the remaining GLI with a known good GLI. 3Visually check all span line distribution (both connectors and cables) for damage. 4If the problem seems to be limited to one BBX, replace the MGLI with a known good MGLI. 5Perform the BTS Span Parameter Configuration ( see Table 5-4 on page 5-5). 6Ensure that ISB cabling is correct. 6 C–CCP Backplane Troubleshooting 68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 6-18 No (or Missing) MCC Channel Elements Perform the procedure in Table 6-21 to troubleshoot a channel elements failure. Table 6-21: No MCC Channel Elements StepAction 1Verify MCC channel elements (CEs) are correct. MCCTYPE codes are: MCC8E=0, MCC24E=2, MCC–1X=3. 2If the problem seems to be limited to one MCC, replace the MCC with a known good MCC. – Check connectors (both board and backplane) for damage. 3If no CEs on any MCC: – Verify clock reference to CIO. 6 C–CCP Backplane Troubleshooting68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 6-19 DC Power Problems Perform the procedure in Table 6-22 to troubleshoot a DC input voltage to power supply module failure. WARNING Potentially lethal voltage and current levels are routed to the BTS equipment. This test must be carried out with a second person present, acting in a safety role. Remove all rings, jewelry, and wrist watches prior to beginning this test. No DC Input Voltage to Power Supply Module Table 6-22: No DC Input Voltage to Power Supply Module StepAction 1Verify DC power is applied to the BTS frame. 2Verify there are no breakers tripped. * IMPORTANT If a breaker has tripped, remove all modules from the applicable shelf supplied by the breaker and attempt to reset it. – If the breaker trips again, there is probably a cable or breaker problem within the frame. – If the breaker does not trip, there is probably a defective module or sub–assembly within the shelf. 3Verify that the C–CCP shelf breaker on the BTS frame breaker panel is functional. 4Use a voltmeter to determine if the input voltage is being routed to the C–CCP backplane by measuring the DC voltage level on the PWR_IN cable. – If the voltage is not present, there is probably a cable or breaker problem within the frame. – If the voltage is present at the connector, reconnect and measure the level at the “VCC” power feed clip on the distribution backplane. – If the voltage is correct at the power clip, inspect the clip for damage. 5If everything appears to be correct, visually inspect the power supply module connectors. 6Replace the power supply module with a known good module. 7If steps 1 through 5 fail to indicate a problem, a C–CCP backplane failure (possibly an open trace) has occurred. 6 C–CCP Backplane Troubleshooting 68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 6-20 No DC Voltage (+5, +6.5, or +15 Volts) to a Specific GLI, BBX, or Switchboard Perform the procedure in Table 6-23 to troubleshoot a DC input voltage to GLI, BBX, or Switchboard failure. Table 6-23: No DC Input Voltage to any C–CCP Shelf Module StepAction 1Verify the steps in Table 6-22 have been performed. 2Inspect the defective board/module (both board and backplane) connector for damage. 3Replace suspect board/module with known good board/module. TX and RX Signal Routing Problems Perform the procedure in Table 6-24 to troubleshoot TX and RX signal routing problems. Table 6-24: TX and RX Signal Routing Problems StepAction 1Inspect all Harting Cable connectors and back–plane connectors for damage in all the affected board slots. 2Perform steps in the RF path troubleshooting flowchart in this manual. 6 Module Front Panel LED Indicators and Connectors68P09258A31–A Oct 2003 1X SCt 4812T BTS Optimization/ATP 6-21 Module Front Panel LED Indicators and Connectors Module Status Indicators Each of the non-passive plug-in modules has a bi-color (green & red) LED status indicator located on the module front panel. The indicator is labeled PWR/ALM. If both colors are turned on, the indicator is yellow. Each plug-in module, except for the fan module, has its own alarm (fault) detection circuitry that controls the state of the PWR/ALM LED. The fan TACH signal of each fan module is monitored by the AMR. Based on the status of this signal, the AMR controls the state of the PWR/ALM LED on the fan module. LED Status Combinations for All Modules (except GLI, CSM, BBX, MCC) PWR/ALM LED The following list describes the states of the module status indicator. SSolid GREEN – module operating in a normal (fault free) condition. SSolid RED – module is operating in a fault (alarm) condition due to electrical hardware failure. Note that a fault (alarm) indication may or may not be due to a complete module failure and normal service may or may not be reduced or interrupted. DC/DC Converter LED Status Combinations The PWR C…

Text truncated - open the document above for the full version.

m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Block Diagram Exhibit M 8/9/2004 9:03 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] 12 12 12RX Main 12 TX 12RX Div MCC1X/ MCC 1X-EVDO HP BBX1X (Redundant) HP Switch Power Supply CDMA Clock Distribution Clock Synch Module MPC3 Span IO High Stability Oscillator C-CCP Shelf AMR GPS RX Filters 6 or 12 6 or 12 6 or 12 Clk/Sync 2 12 if 3 sector TCH Data13 Fwd13 Rvs CT1 SpanTo/From CBSC RX To LPA frame Optional Comm / Bus Clk / Sync RF 2 2 Customer Alarms Site IO LAN In / Out To LMF HP BBX1X CIO Rx Rx Tx Tx Remote GPS Dist Optional GLI3 Frame Block Diagram

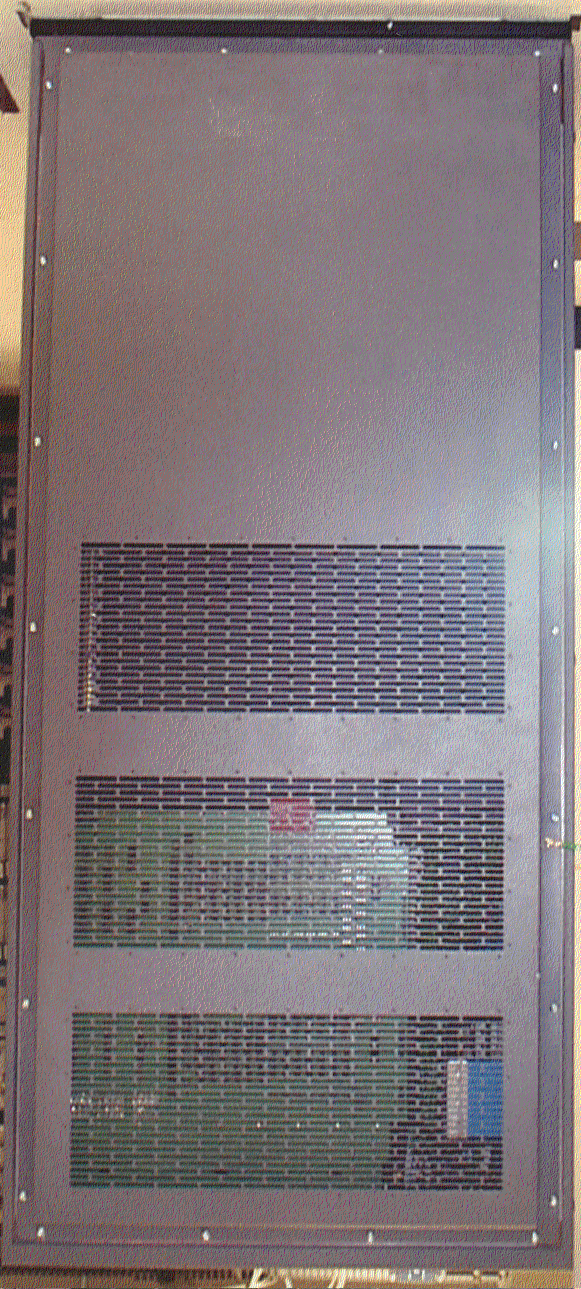

m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 External Photo Exhibit M 8/9/2004 10:07 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Photo Number Photograph Description Page 1 Front View with Doors Closed 2 2 Front View with Doors Open 3 3 Rear View with Panel 4 4 Rear View without Panel 5 5 Left Side View 6 6 Right Side View 7 7 Top View 8

m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 FCC Identification Nameplate/Frame Label Location Exhibit M 8/25/2004 10:41 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: IHET5BP1 m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 FCC Label Exhibit M 8/9/2004 2:58 PM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected]

IHET5BP1 FCC Filing- SC4812-MF 1X @ 800 MHz CDMA BTS 1 of 13 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812-MF 1X @ 800 MHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2. 1033 (b) Identification of Equipment: IHET5BP1 Section 2. 1033 (c) Quantity Production: Quantity Production is planned. Section 2. 1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 22(H). This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 128 Walsh codes to support Pilot, Sync, Paging, Supplemental, and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS-CDMA) digital communication techniques. For this transmitter, the emission designator is 1M30F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 869.70 to 893.31 MHz Band for 1X operation (per FCC Part 22). This base station will support CDMA operations on channel numbers 1013 through 1023 and 1 through 777 inclusive for 1X operation. (3) Range of Operating Power The rated maximum average power out of the SC4812-MF 1X @ 800 MHz CDMA BTS is .063mW (-12 dBm) per RF carrier. However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic IHET5BP1 FCC Filing- SC4812-MF 1X @ 800 MHz CDMA BTS 2 of 13 (3) Range of Operating Power (cont.) channels are present. For a typical system setup, the theoretical difference between minimum power and maximum power is about 8 dB. The output power is variable in 0.25 dB steps. In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 500 Watts as defined in Part 22.913(a). (5) Applied voltages and currents into the final transistor elements of the transmitter output: The applied voltages and currents into each of the Linear Power Amplifier’s final transistor elements are as follows: Drain 27.0 VDC Drain Current 1.0 AMPS Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. IHET5BP1 FCC Filing- SC4812-MF 1X @ 800 MHz CDMA BTS 3 of 13 (10) Means for Frequency Stabilization Refer to the Test Report Exhibit. The Clock Synchronization Module (CSM/CSM2) provides clock and time signals for an SC4812-MF 1X @ 800 MHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM/CSM2 relies on a GPS receiver, either riding piggyback onto the CSM/CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM/CSM2 cards provide redundancy in case of primary CSM/CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM/CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM/CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards . The CSM/CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM/CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM/CSM2 from the GLI2. The CSM/CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM/CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. IHET5BP1 FCC Filing- SC4812-MF 1X @ 800 MHz CDMA BTS 4 of 13 (11) Means for Attenuation of Spurious Emissions Refer to the Test Report Exhibit. Bandpass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. In addition to the digital filters described below, the baseband also employs a discrete anti-alias filter that attenuates signals greater than 2MHz. Out of band emissions are also attenuated by ceramic filters in the transmit RF lineup. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to approximately 1.28 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one channel), then the two signals are simply layered one atop the other within the 1.3 MHz ba…

Text truncated - open the document above for the full version.

m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION A RF Output Power - 47CFR2.1046 Channel Tune Frequency (MHz) Modulation Power Level (mW) Power Level (dBm) Power Level Measured (dBm) IS-97 Limit (dB) Pass/Fail 1013 869.70 1X-QPSK 0.063 -12 -11.94 +2/-4 Pass 777 893.31 1X-QPSK 0.063 -12 -12.00 +2/-4 Pass m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Summary of Radiated RF Measurements Worst Case Radiated RF Spur Level Transmit Channel Power Level (mW) Spur Freq. (GHz) Spur Level Measured (dBμV/meter) Spur Level Measured (dBm*) FCC Max Limit (dBm) Pass/Fail 777H 0.063 8.9331 37.873 -57.36 -13.0 Pass Summary of Conducted RF Measurements Worst Case Conducted RF Spur Level Transmit Channel Power Level (mW) Freq. (MHz) Spur Level Measured (dBm) FCC Max Limit (dBm) Pass/Fail 777 .063 1.78662 -75.29 -13.0 Pass m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION B Modulation Characteristics - 47CFR2.1047 Summary of Modulation Characteristics Channel Tune Frequency (MHz) Modulation Power Level (mW) RHO Measured RHO Spec Pass/Fail 1013 869.70 1X-QPSK .063 0.98443 >0.912 Pass 777 893.31 1X-QPSK .063 0.98459 >0.912 Pass Note: The BTS was configured for maximum power out of –12.0 dBm. The output power was set 0.063mW using a power meter. m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION C Occupied Bandwidth - 47CFR2.1049 Summary of Occupied Bandwidth Channel Frequency (MHz) Modulation Power Level (dBm) Measured (MHz) FCC Limit (MHz) Pass/Fail 1013 869.70 1X-QPSK -12.0 1.2233 1.30 Pass 777 893.31 1X-QPSK -12.0 1.2217 1.30 Pass Note: The BTS was configured for maximum power out of –12.0 dBm. The output power was set 0.063mW using a power meter. The following formula is used to obtain the correct power reference point from which the OBW of the CDMA signal is obtained. See example calculation below: Power (measured in 30kHz bandwidth) + 10 log (1.2288 MHz/30kHz) The occupied bandwidth is measured in a 30 kHz resolution bandwidth. Results are summarized above. m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Occupied Bandwidth – 0.063mW Channel 1013 – 869.70 MHz – QPSK Channel 777 – 893.31 MHz – QPSK m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812-MF 1X @ 800 MHz CDMA BTS FCC ID: IHET5BP1 Test Report Exhibit M 8/25/2004 Global Telecom Solutions Sector, 5555 North Beach Stre…
