IHET5CR1-48V SC4812T 800 MHz CDMA BTS Frame

1X SCt 4812T BTS Optimization/ATP Software Release 2.16.1.x 800, 1700, and 1900 MHz CDMA English Aug 2002 68P09255A61-4 FIELD TRIAL Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2002 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV012501 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 1X SC
4812T BTS Optimization/ATP Software Release 2.16.1.x FIELD TRIAL i Aug 2002 1X SCt 4812T BTS Optimization/ATP Table of Contents . . . Table of Contents 68P09255A61-4 1X SC
4812T BTS Optimization/ATP Software Release 2.16.1.x FIELD TRIAL ii Aug 2002 Contents Forewordxvi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1 Introduction1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optimization Manual: Scope and Layout1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Scope of This Document1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Document Composition1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CDMA LMF Product Description1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Purpose of the Optimization1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Why Optimize?1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . What Is Optimizat…

Text truncated - open the document above for the full version.

12 12 12RX Main 12 TX 12RX Div High Power LPAs + Trunking Modules MCC1X HP BBX1X (Redundant) HP Switch Power Supply CDMA Clock Distribution Clock Synch Module MPC3 Span IO High Stability Oscillator C-CCP Shelf GLI2 AMR GPS RX Filters 6 or 12 6 or 12 6 or 12 Clk/Sync 2 12 12 Filter / Combiner Filter / Combiner if 3 sector 3 TCH Data13 Fwd13 Rvs CT1 SpanTo/From CBSC 3 6 RX TX Optional Comm / Bus Clk / Sync RF 2 2 Customer Alarms Site IO LAN In / Out To LMF HP BBX1X CIO Rx Rx Tx Tx Remote GPS Dist Optional -48V SC4812T @ 800 MHz CDMA BTS Frame Block Diagram

1 of 2 Global Telecom Solutions Sector October 3, 2002 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 5555 N. Beach Street, Fort Worth, Texas 76137, herein submits: Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a Cellular Transceiver, FCC ID: IHET5CR1. Motorola is also the manufacturer of this equipment. Motorola requests that the following Sections of the Schematics Exhibit be kept confidential: HP BBX1X- Hi Power Broadband Transceiver Card CCD - CDMA Clock Distribution Card CIO - Combiner Input/Output Card CSM1 - Clock Synchronization Module w/GPS CSM2- Clock Synchronization Module w/GPS GLI2- Group Line Interface Card HSO - High Stability Oscillator LFR – Low Frequency Receiver (Special Vendor Note) CLPA – Linear Power Amplifier MCC1X - Multi Channel CDMA Card MPC3 - Multicoupler Preselector Card RGD – Remote GPS Distribution Card PAC – Power Alarm Card PSM – Power Supply Module SITE I/O – Site Input Output SPAN I/O – Spanline Input Output HP SW – Hi Power Switchboard The confidential portions have been identified as such on the Uploading Sections Form. The filing fee includes $135.00, the amount for a confidential filing.

1 of 1 Global Telecom Solutions Sector October 15, 2002 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification IHET5CR1 To whom it may concern: When submitting the online Form 731, one of the Schematic Exhibits (Schematic Exhibit Part 2) was not marked as confidential. The exhibit was re-sent a second time appropriately marked confidential. Would you please assure that all Schematic Exhibits are marked as confidential in reference to the Cover Letter exhibit, and delete the additional Schematic Exhibit Part 2 that was not marked as confidential upon the initial exhibit submission. Please note that the appropriate confidential payment has been made via Form 159. Please feel free to contact me if you have any questions. Thank you very much for your time, Melissa A. Van Drie GTSS FCC Coordinator Motorola, Inc. 5555 North Beach Street, TX14-7C Fort Worth, TX 76137 (817) 245-6039

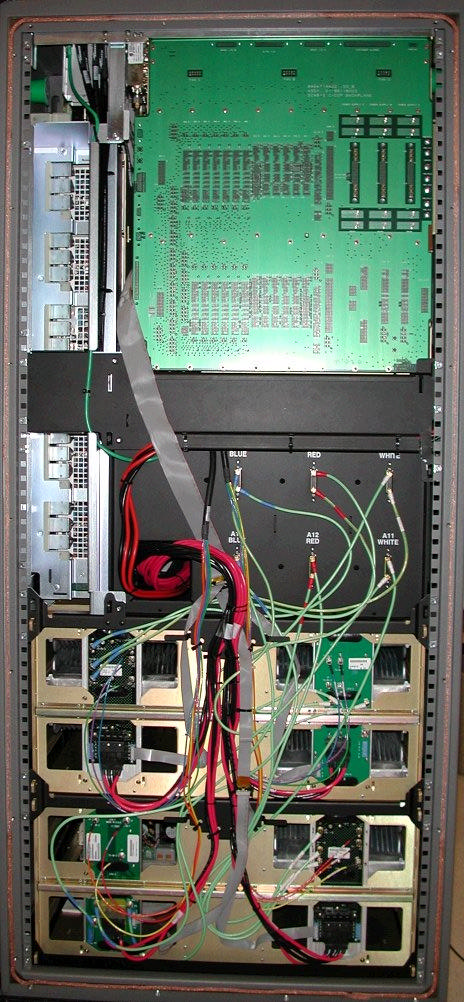

–48 Volt SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector External Photos Exhibit Index -48 Volt SC4812T @ 800 MHz CDMA BTS Frame No. PHOTOGRAPH 01 Front View with Doors Closed 02 Front View with Doors Open 03 Rear View with Panel 04 Rear View without Panel 05 Left Side View 06 Right Side View 07 Top View

EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: C S M 2 C S M 1 IF M/ DI S A M L F R/ H A M R/ M AC H B A M R/ M AC H B Cl oc k Cl oc k GL I2 B GL I2 A M CC 24 - 7 M CC 24 - 8 M CC 24 - 9 M CC 24 - 10 M CC 24 - 11 M CC 24 - 12 M CC 24 - 1 M CC 24 - 2 M CC 24 - 3 M CC 24 - 4 M CC 24 - 5 M CC 24 - 6 BB X 1 BB X 2 BB X 3 BB X 4 BB X 5 BB X 6 BB X Re du nd ant BB X 7 BB X 8 BB X 9 BB X 10 BB X 11 BB X 12 BB X Ma trix CI O M P C B M P C A B Po we r Su pp ly 2 C Po we r Su pp ly 3 A Po we r Su pp ly 1 19 m m Fill er Pa nel MOTOROLA PS2 PS3 1A 1B PS1 1C 1D 2A 2B 2C 2D 3A 3B 3C 3D 4A 4B 4C 4D L P A LPA MAPPING C C P LAN Access Panel - 48Volt SC4812T Frame Label Location ID Label Location

EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: IHET5CR1

–48 Volt SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector Internal Photos Exhibit Index -48 Volt SC4812T @ 800 MHz CDMA BTS Frame NO. PHOTOGRAPH 01 HP BBX 1X Front w/Cover 02 HP BBX 1X Front w/o Cover 03 HP BBX 1X Back 04 CCD Front w/ Cover 05 CCD Front w/o Cover 06 CCD Back 07 CIO Front 08 CIO Back 09 CSM Front 10 CSM Back 11 GLI Front 12 GLI Back 13 HSO Front 14 HSO Back 15 LFR Front 16 LFR Back 17 CLPA Front 18 CLPA w/o Cover 19 CLPA Back 20 MCC1X Front 21 MCC1X Back 22 MPC3 Front 23 MPC3 Back 24 RGD Front 25 RGD Back 26 SITE I/O Front 27 SITE I/O Back 28 SPAN I/O Front 29 SPAN I/O Back 30 HP SWITCH Card Front 31 HP SWITCH Card Back –48 Volt SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector Internal Photos Exhibit Index -48 Volt SC4812T @ 800 MHz CDMA BTS Frame NO. PHOTOGRAPH 32 PS Front 33 PS Back 34 FTM Front 35 FTM Back

–48 Volt SC4812T @ 800 MHz CDMA BTS FCC Filing 1 DESCRIPTIVE INFORMATION FCC FILING FOR –48 Volt SC4812T @ 800 MHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2.1033 (b) Identification of Equipment: IHET5CR1 Section 2.1033 (c) Quantity Production: Quantity Production is Planned. Section 2.1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 22(H).This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 64 Walsh codes to support Pilot, Sync, Paging and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS-CDMA) digital communication techniques. For this transmitter, the emission designator is 1M30F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 869.70 to 893.31 MHz Band (per FCC Part 22). This base station will support CDMA operations on channel numbers 1013 through 1023 and 1 through 777 inclusive. (3) Range of Operating Power The rated maximum average power out of the –48 Volt SC4812T @ 800 MHz CDMA BTS is 90 W (49.5 dBm). However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. –48 Volt SC4812T @ 800 MHz CDMA BTS FCC Filing 2 (3) Range of Operating Power (cont.) For a typical system setup, the theoretical difference between minimum power and maximum power is 8dB. The output power is variable in 0.25 dB steps. The range is 12 dB. In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 500 Watts as defined in Part 22.913 (a) (5) Applied voltages and currents into the final transistor elements of the transmitter output: The applied voltages and currents into each of the Linear Power Amplifier’s final transistor elements are as follows: Drain 27.0 VDC Drain Current 1.0 AMPS Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. –48 Volt SC4812T @ 800 MHz CDMA BTS FCC Filing 3 (10) Means for Frequency Stabilization Refer to the Test Report Exhibit. The Clock Synchronization Module (CSM/CSM2) provides clock and time signals for an –48 Volt SC4812T @800 MHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM/CSM2 relies on a GPS receiver, either riding piggyback onto the CSM/CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM/CSM2 cards provide redundancy in case of primary CSM/CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM/CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM/CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards . The CSM/CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM/CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM/CSM2 from the GLI2. The CSM/CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM/CSM2 cards, which derive the appropriate time references for the BTS. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. (11) Means for Attenuation of Spurious Emissions Refer to the Test Report Exhibit. Bandpass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. The baseband employs a discrete L-C 7-pole elliptic filter. This filter is used to attenuate sideband noise and close in spurious emissions. In addition, suppression of spurious radiation is obtained by proper shielding techniques. –48 Volt SC4812T @ 800 MHz CDMA BTS FCC Filing 4 Means for Limiting Modulation Refer to the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to approximately 1.25 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one voice channel), then the two signals are simply layered one atop the other within the 1.25 MHz band. So, to some extent, the bandwidth of the transmitted signal is limited by the chip rate of the PN spreading code. Primary limiting of the CDMA signal bandwidth is accomplished by the use …

Text truncated - open the document above for the full version.

Global Telecom Solutions Sector PARTS LIST (LIST OF ACTIVE DEVICES) EXHIBIT Description Page HP BBX 1X – Broadband Transceiver 2,3 CCD - CDMA Clock Distribution 4 CSM – Clock Synchronization Module 5,6 GLI – Group Line Interface 7 HSO – High Stability Oscillator 8 CLPA – Linear Power Amplifier 9 MPC – Multicoupler Preselector Card 10 HP SW – Hi Power Switchboard 11 Broadband Transceiver/Digital Baseband Processor (800 MHz HP BBX 1X) Device TypeComponent DescriptionOperating Frequencies LVCO3992UOSCILLATOR585 - 611 MHz LVCO3992UOSCILLATOR824 - 849 MHz SG615HCOSCILLATOR50 MHz BFP420NPN TRANSISTOR238.4 MHz BRPG1204WRED/GREEN LED0 - 2 Hz MMBT3904LT1NPN TRANSISTORD.C. MMDF2P02HDP-CHANNEL MOS FETD.C. MTB75N05HDNPN TRANSISTORD.C. MMBT3904LT1PNP TRANSISTORD.C. MMBT3906LT1PNP TRANSISTORD.C. MBT3906DW1T1NPN TRANSISTORD.C. MBT3904DW1T1NPN TRANSISTORD.C. MMBT3904WT1DIODE19.6608 MHz MBT3946DW1T1DUAL PNP/NPN TRANSISTORD.C. MMBD301LT1DIODED.C. MMBZ5240BLT1ZENER DIODED.C. MMSZ5237BT1ZENER DIODED.C. MMSZ5243BT1ZENER DIODED.C. MBRD340T4DIODED.C. MBR0530T1SCHOTTKY POWER RECTIFIER DIODED.C. MMBD7000LT1DUAL SWTICHING DIODED.C. & D.C. MMBD914LT1HIGH-SPEED SWITCHING DIODED.C. HSM63320 MHz CRYSTAL OSCILLATOR20 MHz HSMS-2825-L31RF SCHOTTKY BARRIER DIODE6 MHz BFG-541WIDEBAND TRANSISTOR800 MHz HSMS282KRF SCHOTTKY BARRIER DIODE625 kHz & 800 MHz HSMP-3810-TR1DUAL PIN DIODES800 MHz AD826AROPAMPD.C. AD6802.5 V BANDGAP REFERENCED.C. MAX148BEAPANALOG TO DIGITAL CONVERTER694.4 kHz LM2991SNEG LOW DROPOUT ADJ REGULATORD.C. MSM13R2850DBP ASIC 0.5 Hz, 625 kHz, 19.6608 MHz, 39.3216 MHz 74FCT162500ATPV18-BIT TRANSCEIVER19.6608 MHz & 39.3216 MHz LTC14211GHOT SWAP CONTROLLERD.C. MC68360ZP25VLQUICC PROCESSOR20 MHz MC74HC4066DR2ANALOG MUX3 MHz MC74VHCT244ADUAL TRI-STATE BUFFER625 kHz MC74ACT125DR2QUAD TRI-STATE BUFFER 0.5 Hz, 2 Hz, 3 MHz, 19.6608 MHz, 39.3216 MHz MC10H641PDECL-TTL 1:9 CLK DRIVER19.6608 MHz MC10EL16DR2PDECL RECEIVER19.6608 MHz MC100ELT23DR2PDECL TO TTL TRANSLATOR19.6608 MHz MC10ELT21PECL TO TTL CONVERTOR3 MHz, 19.6608 MHz MC10EL11DR25V ECL 1:2 DIFFERENTIAL FANOUT DRIVER19.6608 MHz Broadband Transceiver/Digital Baseband Processor (800 MHz HP BBX 1X) Device TypeComponent DescriptionOperating Frequencies MC100EL58DR22:1 MULTIPLEXER19.6608 MHz MC33063ADR2DC TO DC CONVERTOR45 kHz MC33161DUNIT VOLTAGE REFD.C. LM2903DR2DUAL COMPARATORD.C. MC74LCX02QUAD 2-INPUT NOR20 MHz MC74LCX08DTR2QUAD 2-INPUT AND20 MHz MC74LCX32DTR2QUAD 2-INPUT OR20 MHz MC74LCX244DTR2DUAL TRI-STATE BUFFER 100 Hz, 9.6 kHz, 625 kHz, 1 MHz, 4.096 MHz MC74LCX125DTR2QUAD TRI-STATE BUFFER17 Hz, 625 kHz MC74LCX574DTR2OCTAL D-TYPE FLIP FLOP19.6608 MHz MC74LCX374OCTAL D-TYPE FLIP FLOP39.3216 MHz DS1819AR-20RESET/WATCHDOG TIMER2 Hz AD600ANALOG TO DIGITAL CONVERTOR19.6608 MHz, 39.3216 MHz TMP01ESPROGRAMMABLE TEMP CONTROLLERD.C. AD603AROPAMP0 - 1.2289 MHz TLC5620IDDAC QUAD 8-BIT625 kHz - 5.0 MHz 74ACT16244BUFFER/DRIVERD.C. AT65-0413ATTENUATOR DIGITAL238.4 MHz AD976714 BIT DUAL TRANSMIT DAC10.0 MHz AD8402AR1POWER625 kHz - 5.0 MHz OPA2227OPAMPD.C. RF5187HIGH POWER LINEAR AMP869 - 894 MHz RF2484DIRECT QUAD MODULATOR800 - 2500 MHz LP3965EMPX-ADJVOLTAGE REGULATORD.C. RF2172AMP585 - 610 MHz ISPLSI2032VE- 180LT44I LATTICE CPLD0.5 Hz, 3 MHz, 19.6088 MHz, 50 MHz RC28F321C3BA110FLASH MEMORY20 MHz KM416V1204CTDRAM20 MHz XCS40XL-4BG256IXILINC FPGA .5 Hz, 10 MHz, 20 MHz, 19.6608 MHz, 39.3216 MHz CY7B991-5JIPROGRAMMABLE SKEW CLOCK BUFFER19.6608 MHz ADF4118BRUOSCILLATOR3.0 GHz LM2991SVOLTAGE REGULATORD.C. TPS71H01QVOLTAGE REGULATORD.C. XCV800- 5BG560I0703 XILINC FPGA 0.5 Hz, 0.625 - 5 MHz, 19.6608 MHz, 39.3216 MHz MMBD6100LT1DIODE, DUAL, 70VD.C. SM15T10ADIODE, 10V, TRANSIENT SUPD.C. LM2931CDR2IC, REGULATOR, LOW DROPOUTD.C. MC79M05BDTRKIC, REGULATOR, 5V NEG, 500mAD.C. MC79L05ABDR2IC, REGULATOR, 5V NEG, 100mAD.C. LM2937IMP-5.0IC, REGULATOR, 5V DROPOUTD.C. LM1117DT-ADJIC, REGULATORD.C. CDMA Clock Distribution (CCD) Device TypeComponent DescriptionOperating Frequencies GAL22V10C-7LJPAL 50 MHz 2520N-50MHz XTAL OSC50 MHz MMBT3904NPN TransistorD.C. 74ACT04DHex Inverter D.C. MC10EL16DPDECL Receiver D.C. MC10EL111FNPDECL 1:9 Clk Driver19.6608 MHz MC10EL23DPDECL to TTL Translator19.6608 MHz DS1232SMicro Power MonitorD.C. X25020Serial 256x8 EEPROM D.C. Clock Synchronization Module (CSM 1,2) Device TypeComponent DescriptionOperating Frequencies MJD243RLQ13, Q11, Q10, Q9, Q8, Q13 MHz MJD2955T4Q15D.C. MMFT3055VQ17, Q18307.2 KHz MMBT3904Q19, Q14, Q12, Q7, Q5, Q4, Q2D.C. MMBT3906Q6, Q3D.C. MMBT3906Q16307.2 KHz 74ACT14DU10.5 Hz 74ACT14DU75, U66, U65, U371 Hz MC14538BU10D.C. IDT71024S15TYU82, U81, U12, U1116 MHz 74ACT00DU1319.6608 MHz 74ACT00DU60D.C. AM29F040U15, U1416 MHz AD817ARU1619.6608 MHz, 3 MHz 74ACT245DWU19, U171 Hz AD9850U1819.6608 MHz MC68302FCU216 MHz XC5206-160U20307.2 KHz, AD7846JPU241 Hz MC10ELT21DU2510 MHz MC78M12U26, U53D.C. MC10E1651FNU2719.6608 MHz LM317DU28D.C. MC78M15CDTRKU29D.C. LT1081ISU3130 KHz MC79M15CDTU30D.C. MC100ELT23DU3119.6608 MHz MC100ELT23DU73, U72D.C. MC100ELT23DU36, U3519.6608 MHz MC100ELT23DU78, U773 MHz LT1054ISU3225 kHz MC10EL16DU3319.6608 MHz GAL22V10B-7LJU3450 MHz 74ACT74DU389.8304 MHz X25020U4D.C. 78ST305HCU401 MHz 10H20EV8U4150 MHz MC10EL07DU49, U4319.6608 MHz MC10EL51DU52, U50, U45, U44D.C. MC10EL51DU550.5 Hz MC10EL31DU56, U51, U46D.C. 75175DU74, U598000 Hz 75175DU76, U474800 Hz 75175DU799600 Hz MC10EL04DU57, U48D.C. 74ACT05DU5D.C. Clock Synchronization Module (CSM 1,2) Device TypeComponent DescriptionOperating Frequencies 75172BDWU67, U544800 Hz 75172BDWU710.5 Hz MC10EL16DU62, U61, U58D.C. MC10EL16DU6319.6608 MHz MC10EL16DU64D.C. DS1232SU6D.C. MC10EL111FNU680.5 Hz MC10EL111FNU69D.C. MC10EL111FNU7019.6608 MHz MC68681FNU74 MHz, 9600 Hz 74ACT32DU816 MHz MC34025U83307.2 MHz 78M05U84D.C. 74ACT04DU916 MHz MA505-16MHzY116.0 MHz 19.6608 MHz VCXOY219.6608 MHz SG615H-50MHzY350 MHz Group Line Interface (GLI2) Device TypeComponent DescriptionOperating Frequencies MB3240T10TBDG60DRAM 4Mx32 DIMM40 MHz VSA5101532.768MHz PLL-VCXO32.768 MHz SG-636PCE40MHz OSC40 MHz MAX73…

Text truncated - open the document above for the full version.

-48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing APPLICANT: MOTOROLA TRANSCEIVER TYPE: IHET5CR1 -48V SC4812T @ 800 MHz CDMA BTS FRAME TEST REPORT EXHIBIT Index Section Description A Summary of RF Measurements B Modulation Characteristics C Spurious & Harmonic Emissions Radiated D Spurious & Harmonic Emissions Conducted E Occupied Bandwidth F Frequency Stability -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector FCC ID: IHET5CR1 SECTION A SUMMARY OF RF MEASUREMENTS -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector FCC ID: IHET5CR1 SECTION B MODULATION CHARACTERISTICS -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 1013 Maximum Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 1013 Mid Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 1013 Minimum Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 777 Maximum Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 777 Mid Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION B FCC ID: IHET5CR1 MODULATION CHARACTERISTICS CDMA Transmitter Channel 777 Minimum Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector FCC ID: IHET5CR1 SECTION C SPURIOUS & HARMONIC EMISSIONS RADIATED -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector FCC ID: IHET5CR1 SECTION D SPURIOUS & HARMONIC EMISSIONS CONDUCTED NOTE: The plots for conducted spurious and harmonic emissions are measured in peak mode. The higher (than 49.5 dBm) levels measured in peak mode are expected, due to typical CDMA peak to average performance. The average power level was set to 49.5 dBm using an HP438A power meter. -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION D FCC ID: IHET5CR1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1013 Maximum Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION D FCC ID: IHET5CR1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1013 Mid Power -48V SC4812T @ 800 MHz CDMA BTS Frame FCC Filing Global Telecom Solutions Sector SECTION D FCC ID: IHET5CR1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1013 Minimum Power

Network Solutions Sector 10-ft. x 12-ft. Storage Shed 8-ft. x 8-ft. Control Building 30 ft 6 inches Ground Plane 65 ft x 40 ft (Concrete slab covered with welded stainless steel sheets) Weather- Protection Enclosure 20 ft. Diameter 350 feet to Liberty School Road Turntable Open Area Test Site Located at 1605 Liberty School Road Pelican Bay, TX 76020 (Not drawn to scale) 3 Meter Junction Box 10 Meter Junction Box Equipment List: Moveable Antenna Mast EMCO 3115 - Horn Antenna 1-18 GHz EMCO 3104C – Biconical Antenna 30-200 MHz EMCO 3146 – Log Periodic Antenna 200 MHz – 1 GHz Control Building HP8593EM Spectrum Analyzer HP8546A EMI Receiver HP85460A RF Filter Section HP83712A Signal Generator Moveable Antenna Mast Concrete Sidewalks
