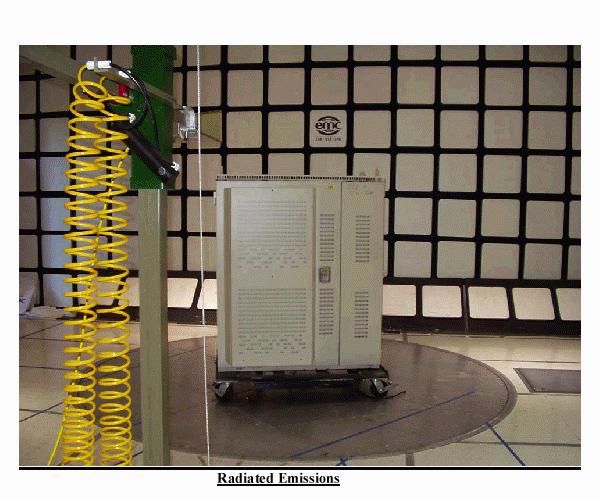

IHET5CS1Cellular CDMA Base Station

1X SCt4812ET Lite BTS Optimization/ATP Software Release 2.16.0.x and CDMA LMF Build 2.16.x.x 800 MHz and 1.9 GHz CDMA English 08/01/2001 68P09253A60–1 PRELIMINARY FOA Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2001 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV012501 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 08/01/2001 i 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY Table of Contents 1X SCt4812ET Lite BTS Optimization/ATP Software Release 2.16.0.x and CDMA LMF Build 2.16.x.x List of Figuresiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . List of Tablesvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Requirementsxv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1: Introduction Optimization Manual Scope and Layout1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Purpose of the Optimization1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . When to Optimize1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Test Equipment and Software1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Documents and Related Publications1-12. . . . . . . . . . . . . . . . . . . . . . . . . Terms and Abbreviations1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BTS Equipment Identification1-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cabinet Identification1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internal Assembly Location and Identification1-18. . . . . . . . . . . . . . . . . . . . . . . . . BTS S…

Text truncated - open the document above for the full version.

Using CDMA LMF – continued 08/01/2001 3-23 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY BTS Login from the GUI Environment Follow the procedures in Table 3-7 to log into a BTS when using the GUI environment. Table 3-7: BTS GUI Login Procedure nStepAction 1Start the CDMA LMF GUI environment by double–clicking on the WinLMF desktop icon (if the LMF is not running). NOTE If a warning similar to the following is displayed, select No, shut down other LMF sessions which may be running, and start the CDMA LMF GUI environment again: The CLI handler is already running. This may cause conflicts with the LMF. Are you sure you want to start the application? Yes No 2Click on Login tab (if not displayed). 3Double click on CDMA (in the Available Base Stations pick list). 4Click on the desired BTS number. 5Click on the Network Login tab (if not already in the forefront). 6Enter correct IP address (normally 128.0.0.2) for a field BTS, if not correctly displayed in the IP Address box. 7Type in the correct IP Port number (normally 9216) if not correctly displayed in the IP Port box. 8Change the Multi-channel Preselector from the Multi-channel Preselector pick list (normally MPC) to a device corresponding to your BTS configuration, if required. 9Use a Tower Top Amplifier is not applicable to the SC4812ET Lite. 10Click on Login. (A BTS tab with the BTS is displayed.) NOTE SIf you attempt to log into a BTS that is already logged on, all devices will be gray. SThere may be instances where the BTS initiates a log out due to a system error (i.e., a device failure). SIf the MGLI is OOS–ROM (blue), it must be downloaded with RAM code before other devices can be seen. SIf the MGLI is OOS–RAM (yellow), it must be enabled before other installed devices can be seen. 3 Using CDMA LMF – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 3-24 BTS Login from the CLI Environment Follow the procedures in Table 3-8 to log into a BTS when using the CLI environment. If the CLI and GUI environments are to be used at the same time, the GUI must be started first and BTS login must be performed from the GUI. Refer to Table 3-7 to start the GUI environment and log into a BTS. IMPORTANT * Table 3-8: BTS CLI Login Procedure nStepAction 1Double–click the WinLMF CLI desktop icon (if the LMF CLI environment is not already running). NOTE If a BTS was logged into under a GUI session before the CLI environment was started, the CLI session will be logged into the same BTS, and step 2 is not required. 2At the /wlmf prompt, enter the following command: login bts–<bts#> host=<host> port=<port> where: host = MGLI card IP address (defaults to address last logged into for this BTS or 128.0.0.2 if this is first login to this BTS) port = IP port of the BTS (defaults to port last logged into for this BTS or 9216 if this is first login to this BTS) A response similar to the following will be displayed: LMF> 13:08:18.882 Command Received and Accepted COMMAND=login bts–33 13:08:18.882 Command In Progress 13:08:21.275 Command Successfully Completed REASON_CODE=”No Reason” Logging Out Logging out of a BTS is accomplished differently for the GUI and CLI operating environments. 3 Using CDMA LMF – continued 08/01/2001 3-25 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY The GUI and CLI environments use the same connection to a BTS. If a BTS is logged into in both the GUI and CLI environments at the same time, logging out of the BTS in either environment will log out of it for both. When either a login or logout is performed in the CLI window, there is no GUI indication that the login or logout has occurred. IMPORTANT * Logging Out of a BTS from the GUI Environment Follow the procedure in Table 3-9 to logout of a BTS when using the GUI environment. Table 3-9: BTS GUI Logout Procedure nStepAction 1Click on Select on the BTS tab menu bar. 2Click the Logout item in the pulldown menu (a Confirm Logout pop-up message will appear). 3Click on Ye s (or press the Enter key) to confirm logout. The Login tab will appear. NOTE If a logout was previously performed on the BTS from a CLI window running at the same time as the GUI, a Logout Error popup message will appear stating the system could not log out of the BTS. When this occurs, the GUI must be exited and restarted before it can be used for further operations. 4If a Logout Error popup message appears stating that the system could not log out of the Base Station because the given BTS is not logged in, click OK and proceed to step 5. 5Select File > Exit in the window menu bar, click Ye s in the Confirm Logout popup, and click Ye s in the Logout Error popup which appears again. 6If further work is to be done in the GUI, restart it. NOTE SThe Select menu on the BTS tab will only log you out of the displayed BTS. SYou can also log out of all BTS sessions and exit CDMA LMF by clicking on the File selection in the menu bar and selecting Exit from the File menu list. A Confirm Logout pop–up message will appear. 3 Using CDMA LMF – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 3-26 Logging Out of a BTS from the CLI Environment Follow the procedure in Table 3-10 to logout of a BTS when using the CLI environment. Table 3-10: BTS CLI Logout Procedure nStepAction * IMPORTANT If the BTS is also logged into from a GUI running at the same time and further work must be done with it in the GUI, proceed to step 2. 1Logout of a BTS by entering the following command: logout bts–<bts#> A response similar to the following will be displayed: LMF> 13:24:51.028 Command Received and Accepted COMMAND=logout bts–33 13:24:51.028 Command In Progress 13:24:52.04 Command Successfully Completed REASON_CODE=”No Reason” 2If desired, close the CLI interface by entering the following command: exit A response similar to the following will be displayed before the window closes: Killing background processes.... Establishing an MMI Communication Session For those procedures which require MMI communicat…

Text truncated - open the document above for the full version.

Prepare to Leave the Site – continued 08/01/2001 5-5 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY Table 5-6: Remove LMF StepAction 6Disconnect the CDMA LMF terminal Ethernet port from the BTS frame. 7Disconnect the CDMA LMF terminal serial port, the RS–232–to–GPIB interface box, and the GPIB cables as required for equipment transport. Connecting BTS T1/E1 Spans Before leaving the site, connect any T1 or E1 span connectors removed previously to allow the LMF to control the BTS. Refer to Table 5-7 and Figure 3-7. Table 5-7: Connect T1 or E1 Spans StepAction 1Re–connect any disconnected span connectors to the Span I/O A and B boards. 2If equipped, ensure the CSU is powered on. 3Verify span status, ensuring the OMC–R/CBSC can communicate with the BTS. Before Leaving the site Be sure all requirements listed in Table 5-8 are completed before leaving the site. Table 5-8: Check Before Leaving the Site StepAction 1All battery circuit breakers (for occupied shelves) are ON (pushed in). 2Both heat exchanger circuit breakers on the DC PDA are set to ON (pushed in), and the heat exchanger blowers are running. 3The External Blower Assembly (EBA) power cable is connected, and the EBA is running. 4The MAP power switch is set to ON, and the POWER (green) LED is lighted. 5The BATT TEST switch on the MAP is set to OFF, and the BATT. TEST (amber) LED is not lighted. 6No alarm conditions are being reported to the CBSC with all frame doors closed. 5 Prepare to Leave the Site – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 5-6 Notes 5 08/01/2001 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY Chapter 6: Basic Troubleshooting Table of Contents Basic Troubleshooting Overview6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Overview6-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Troubleshooting: Installation6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cannot Log into Cell-Site6-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cannot Communicate with Power Meter6-5. . . . . . . . . . . . . . . . . . . . . . . Cannot Communicate with Communications Analyzer6-6. . . . . . . . . . . . Troubleshooting: Download6-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cannot Download DATA to Any Device (Card)6-7. . . . . . . . . . . . . . . . . . Cannot ENABLE Device6-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . LPA Errors6-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Troubleshooting: Calibration6-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bay Level Offset Calibration Failure6-10. . . . . . . . . . . . . . . . . . . . . . . . . . . Calibration Audit Failure6-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Basic Troubleshooting – RF Path Fault Isolation6-12. . . . . . . . . . . . . . . . . . . . . . . . Overview6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . If Every Test Fails6-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Verify BLO Checkbox6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . If Faults Are Isolated6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fault Isolation Flowchart6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flowchart Prerequisites6-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TX Power Output Fault Isolation Flowchart6-14. . . . . . . . . . . . . . . . . . . . . Troubleshooting: Transmit ATP6-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cannot Perform Txmask Measurement6-15. . . . . . . . . . . . . . . . . . . . . . . . . Cannot Perform Rho or Pilot Time Offset Measurement6-15. . . . . . . . . . . Cannot Perform Code Domain Power and Noise Floor Measurement6-16. Cannot Perform Carrier Measurement6-16. . . . . . . . . . . . . . . . . . . . . . . . . . Troubleshooting: Receive ATP6-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Multi–FER Test Failure6-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Troubleshooting: CSM Checklist6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Problem Description6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Intermittent 19.6608 MHz Reference Clock / GPS Receiver Operation6-18 No GPS Reference Source6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Checksum Failure6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GPS Bad RX Message Type6-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CSM Reference Source Configuration Error6-19. . . . . . . . . . . . . . . . . . . . . 6 Table of Contents – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 Takes Too Long for CSM to Come INS6-19. . . . . . . . . . . . . . . . . . . . . . . . SCCP Backplane Troubleshooting6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Connector Functionality6-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SCCP Backplane Troubleshooting Procedure6-21. . . . . . . . . . . . . . . . . . . . Digital Control Problems6-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC Power Problems6-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TX and RX Signal Routing Problems6-25. . . . . . . . . . . . . . . . . . . . . . . . . . RFDS – Fault Isolation6-26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Test Equipment Preparation – continued 08/01/2001 F-5 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY HP8921A System Connectivity Test Follow the steps outlined in Table F-3 to verify that the connections between the PCS Interface and the HP8921A are correct and cables are intact. The software also performs basic functionality checks of each instrument. Disconnect other GPIB devices, especially system controllers, from the system before running the connectivity software. IMPORTANT * Table F-3: System Connectivity StepAction * IMPORTANT –Perform this procedure after test equipment has been allowed to warm–up and stabilize for a minimum of 60 minutes. 1Insert HP 83236A Manual Control/System card into memory card slot. 2Press the [PRESET] pushbutton. 3Press the Screen Control [TESTS] pushbutton to display the “Tests” Main Menu screen. 4Position the cursor at Select Procedure Location and select it by pressing the cursor control knob. In the Choices selection box, select Card. 5Position the cursor at Select Procedure Filename and select it by pressing the cursor control knob. In the Choices selection box, select SYS_CONN. 6Position the cursor at RUN TEST and select it. The software will prompt you through the connectivity setup. 7Do the following when the test is complete, Sposition cursor on STOP TEST and select it SOR press the [K5] pushbutton. 8To return to the main menu, press the [K5] pushbutton. 9Press the [PRESET] pushbutton. F Test Equipment Preparation – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 F-6 Setting HP8921A and HP83236A/B GPIB Address Table F-4: Setting HP8921A GPIB Address StepAction 1If you have not already done so, turn the HP8921A power on. 2Verify that the GPIB addresses are set correctly. SHP8921A HP–IB Adrs = 18, accessed by pushing LOCAL and selecting More and I/O Configure on the HP8921A/600. (Consult test equipment OEM documentation for additional info as required). SHP83236A (or B) PCS Interface GPIB address=19. Set dip switches as follows: –A1=1, A2=1, A3=0, A4=0, A5=1, HP–IB/Ser = 1 Pretest Setup for HP8921A Before the HP8921A CDMA analyzer is used for LMF controlled testing it must be set up correctly for automatic testing. Table F-5: Pretest Setup for HP8921A StepAction 1Unplug the memory card if it is plugged in. 2Press the CURSOR CONTROL knob. 3Position the cursor at IO CONFIG (under To Screen and More) and select it. 4Select Mode and set for Talk&Lstn. Pretest Setup for HP8935 Before the HP8935 CDMA analyzer is used for LMF controlled testing it must be set up correctly for automatic testing. Table F-6: Pretest Setup for HP8935 StepAction 1Unplug the memory card if it is plugged in. 2Press the Shift button and then press the I/O Config button. 3Press the Push to Select knob. 4Position the cursor at IO CONFIG and select it. 5Select Mode and set for Talk&Lstn. F Test Equipment Preparation – continued 08/01/2001 F-7 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY Advantest R3465 Connection The following diagram depicts the rear panels of the Advantest test equipment as configured to perform automatic tests. All test equipment is controlled by the LMF via an IEEE–488/GPIB bus. The LMF expects each piece of test equipment to have a factory-set GPIB address (refer to Table F-7). If there is a communications problem between the LMF and any piece of test equipment, you should verify that the GPIB addresses have been set correctly and that the GPIB cables are firmly connected to the test equipment. Figure F-3 shows the connections when not using an external 10 MHz Rubidium reference. Figure F-3: Cable Connections for Test Set without 10 MHz Rubidium Reference ADVANTEST R3465 REAR PANEL GPIB CONNECTOR SERIAL I/O LOCAL IN SERIAL I/O SYN REF IN 10 MHZ OUT PARALLEL EXT TRIGGER 10 MHZ REF GATE IN GPIB CDMA CLOCK OUT AC POWER AC POWER R3561L REAR PANEL R3465 REAR PANEL TO T–CONNECTOR ON FRONT PANEL (EVEN/SEC/SYNC IN) X YZ IF OUT 421 MHZ TO POWER METER GPIB CONNECTOR TO GPIB INTERFACE BOX FW00370 F Test Equipment Preparation – continued PRELIMINARY 1X SCt4812ET Lite BTS Optimization/ATP 08/01/2001 F-8 Figure F-4 shows the connections when using an external 10 MHz Rubidium reference. SERIAL I/O GPIB CONNECTOR ADVANTEST R3465 REAR PANEL Figure F-4: Cable Connections for Test Set with 10 MHz Rubidium Reference FROM 10 MHZ RUBIDIUM REFERENCE LOCAL IN SERIAL I/O IF OUT SYN REF IN 10 MHZ OUT PARALLEL EXT TRIGGER 10 MHZ REF GATE IN GPIB CDMA CLOCK OUT AC POWER AC POWER R3465/3463 REAR PANEL R3561L REAR PANEL TO T–CONNECTOR ON FRONT PANEL (EVEN SEC/SYNC IN) X YZ 421 MHZ TO POWER METER GPIB CONNECTOR TO GPIB INTERFACE BOX FW00371 F Test Equipment Preparation – continued 08/01/2001 F-9 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY R3465 GPIB Address & Clock setup Table F-7 describes the steps to set the GPIB address and clock for the Advantest R3465 equipment. Table F-7: Advantest R3465 GPIB Address and Clock Setup StepAction 1Communications test set GPIB address=18 (perform the following to view/set as required) Perform the following to set the standard parameters on the test set: SPush the SHIFT then PRESET pushbutton (just below the CRT display). SPush the LCL pushbutton (CW in Measurement just below the CRT display) –Push the GPIB and Others CRT menu key to view the current address. –If required, change GPIB address to 18 (rotate the vernier knob to set, push the vernier knob to enter) 2Verify the current Date and Time in upper/right of the CRT display (perform the following to set if required) Communications test set GPIB address=18 (perform the following to view/set as required) SPush the Date/Time CRT menu key SIf required, change to correct Date/Time (rotate the vernier knob to select and set, push the vernier knob to enter) S Push the SHIFT then PRESET pushbutton (just below the CRT display). Pretest Setup for Advantest R3465 Before the Advantest R3465 analyzer is used for LMF controlled testing it must be set up correctly for automa…

Text truncated - open the document above for the full version.

JPreliminary VField Trial VControlled Introduction VVolume Deployment VDV&V Approval Form Number: 03/2002 - Rev. 2(ftw) 255a69-3_review  TIPS Document Manual Review Form  PCDMR No. & Title: 68P09255A69-3 SC4812ET Lite BTS Opt/ATP manual Review Period From: 08/23/02To: 09/06/02 Review by (Engineer/DV&V Evaluator): Deliver Reviewed Manual to: Bill CovertPhone: 817-245-7204 Located at TX14-Mail slot 5G The accompanying document(s) must be reviewed and approved prior to publishing. Carefully review/validate the document(s) and make any necessary technical corrections or comments. Mark the attached documents, but please use RED to mark any additions and YELLOW to mark items for deletion. Indicate your APPROVAL/DISAPPROVAL, along with any comments in the space provided below. Return this form along with the reviewed material to the person indicated above. If multiple reviewers are involved, the review coordinator should photocopy and distribute to all reviewers, then consolidate any comments/corrections onto a single copy before returning the material for correction. Please list the name of all reviewers. Comments:- APPROVED- NOT APPROVED Reviewer’s Signature: Date: Any delay in the review process could cause production delays and result in late delivery of manuals. This sheet must be returned with the reviewed material. Technical Information Products & Services 5555 North Beach, TX-14, 5G, Fort Worth, TX 76137 Fax: 817-245-7566 JPreliminary VField Trial VControlled Introduction VVolume Deployment VDV&V Approval Form Number: 03/2002 - Rev. 2(ftw) 255a69-3_review Notes: 1X SCt4812ET Lite BTS Optimization/ATP Software Release 2.16.1.x 800 and 1900 MHz CDMAS English Aug 2002 68P09255A69-3 PRELIMINARY Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2002 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV012501 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 1X SC
4812ET Lite BTS Optimization/ATP Software Release 2.16.1.x PRELIMINARY i Aug 2002 1X SCt4812ET Lite BTS Optimization/ATP Table of Contents . . . Table of Contents 68P09255A69-3 1X SC
4812ET Lite BTS Optimization/ATP Software Release 2.16.1.x PRELIMINARY ii Aug 2002 Contents Forewordxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …
