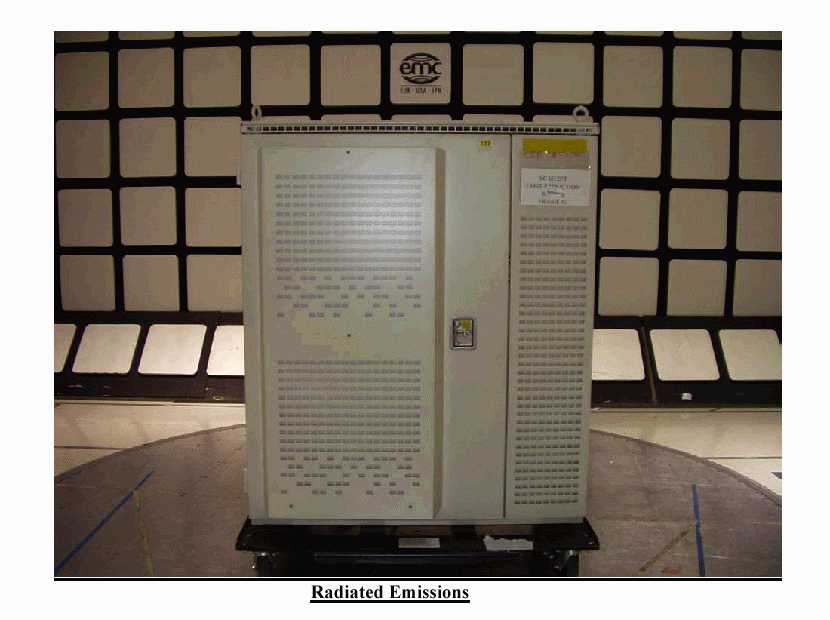

IHET5CT1Cellular CDMA base station

BTS Optimization/ATP CDMA LMF Software Release 2.16.X SC
4812ET 1.9 GHz and 800 MHz CDMA English Jan 2002 68P09253A74–A Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2002 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV010598 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Jan 2002 i SC
4812ET BTS Optimization/ATP — CDMA LMF Table of Contents SC
4812ET BTS Optimization/ATP — CDMA LMF CDMA 1.9 GHz and 800 MHz List of Figuresv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . List of Tablesix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Product Informationxiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15xv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 68xvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxxiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxxiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1: Introduction Optimization Overview1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BTS Equipment Identification1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 2: Preliminary Operations Preliminary Operations: Overview2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Power Up2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 3: Optimization/Calibration Optimization/Calibration – Introduction3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Isolate Span Lines/Connect LMF3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Preparing the LMF3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

BTS Equipment Identification – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 1-26 Battery Compartment Fan The battery compartment fan provides air circulation for the two battery compartments. It is located on the inside of the battery compartment door. Heat Exchanger The Heat Exchanger provides cooling to the rectifier compartment of the Power Cabinet. The Heat Exchanger is located in the primary front door of the Power Cabinet. Rectifiers The +27 Vdc rectifiers convert the AC power supplied to the Power Cabinet to +27 Vdc to power the RF Cabinet and maintain the charge of the batteries. AC Load Center The ACLC is the point of entry for AC Power to the Power Cabinet. It incorporates AC power distribution and surge protection. Punch Block The Punch Block is the interface for the alarm signalling between the Power Cabinet and the RF Cabinet. 1 Jan 2002 SC
4812ET BTS Optimization/ATP — CDMA LMF Chapter 2: Preliminary Operations Table of Contents Preliminary Operations: Overview2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cellsite Types2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CDF2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Site Equipage Verification2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Installation of Boards/Modules2-1. . . . . . . . . . . . . . . . . . . . . . . . . . Setting Frame C–CCP Shelf Configuration Switch2-2. . . . . . . . . . . . . . . Initial Power Up2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Tools2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cabling Inspection2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Initial Inspection and Setup2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Up Sequence2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Applying AC Power2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Power Cabinet Power Up Tests2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC Power Pre-test (BTS Frame)2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RF Cabinet Power Up2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Battery Charge Test (Connected Batteries)2-10. . . . . . . . . . . . . . . . . . . . . . Battery Discharge Test2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Heat Exchanger Power Up2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Table of Contents – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 Notes 2 Preliminary Operations: Overview Jan 2002 2-1 SC
4812ET BTS Optimization/ATP — CDMA LMF Introduction This section first verifies proper frame equipage. This includes verifying module placement, jumper, and dual in–line package (DIP) switch settings against the site-specific documentation supplied for each BTS application. Next, pre-power up and initial power-up procedures are presented. Cellsite Types Sites are configured as with a maximum of 4 carriers, 3–sectored with a maximum of 4 carriers, and 6–sectored with a maximum of 2 carriers. Each type has unique characteristics and must be optimized accordingly. CDF The Cell-site Data File (CDF) contains site type and equipage data information and passes it directly to the LMF during optimization. The number of modem frames, C–CCP shelves, BBX and MCC boards (per cage), and linear power amplifier assignments are some of the equipage data included in the CDF. Site Equipage Verification Review the site documentation. Match the site engineering equipage data to the actual boards and modules shipped to the site. Physically inspect and verify the equipment provided for the BTS or Modem frame and ancillary equipment frame. Always wear a conductive, high impedance wrist strap while handling any circuit card/module to prevent damage by ESD. After removal, the card/module should be placed on a conductive surface or back into the anti–static bag it was shipped in. CAUTION Initial Installation of Boards/Modules Table 2-1: Initial Installation of Boards/Modules StepAction 1Refer to the site documentation and install all boards and modules into the appropriate shelves as required. Verify they are NOT SEATED at this time. 2As the actual site hardware is installed, record the serial number of each module on a “Serial Number Checklist” in the site logbook. 2 Preliminary Operations: Overview – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 2-2 Setting Frame C–CCP Shelf Configuration Switch If the frame is a Starter BTS, the backplane switch settings behind the fan module should be set to the ON position (see Figure 2-1). The switch setting must be verified and set before power is applied to the BTS equipment. SC 4812ET C–CCP SHELF FAN MODULE REMOVED 5 RU RACK SPACE RFDS EBA ETIB ON OFF STARTER FRAME Figure 2-1: Backplane DIP Switch Settings FW00167 ON OFF EXPANSION FRAME 1 SETTING ON OFF EXPANSION FRAME 2 SETTING BOTTOM / TOP RIGHT / LEFT MODEM_FRAME_ID_1MODEM_FRAME_ID_0 BOTTOM / TOP RIGHT / LEFT MODEM_FRAME_ID_1MODEM_FRAME_ID_0 2 Initial Power Up Jan 2002 2-3 SC
4812ET BTS Optimization/ATP — CDMA LMF Introduction The following information is used to check for any electrical short circuits and to verify the operation and tolerances of the cellsite and BTS power supply units before applying power for the first time. It contains instructional information on the initial proper power up procedures for the SC 4812ET power cabinet and RF cabinet…

Text truncated - open the document above for the full version.

Preparing the LMF – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 3-30 Update Antenna Mapping Files Earlier release versions may require the antenna.map file to be updated. There are two antenna mapping files. These are antenna.map and antenna.asu. Follow the steps outlined in Table 3-13 to check the antenna mapping file and update as needed. Table 3-13: Update Antenna Mapping Files StepAction ! CAUTION If you are not familiar with the UNIX vi editor, create a “dummy” CDF file, and practice making changes to it, prior to altering the “real” one. NOTE For more information on file management, creating bts directories, viewing/editing CDF files, refer to LMF Users Guide, Motorola part no. 68P09226A13. 1View the antenna.map file (see below) and verify the Xcvrs listed in the CDF file (and that are equipped in the BTS) are also listed in the antenna.map file (for both RX and TX tables). Make sure the antenna.map file has enough RX and TX antennas listed to cover the number of sectors indicated by CDF’s SiteConf parameter. Example of Antenna Map File R––– Rx ––– –– Sec –– ––––– Xcvrs ––––– R 1:M :RX1: 1 :1,4,5,8 R 2:D :RX2: 1 :1,4,5,8 R 3:M :RX3: 2 :2,4,6,8 R 4:D :RX4: 2 :2,4,6,8 R 5:M :RX5: 3 :3,4,7,8 R 6:D :RX6: 3 :3,4,7,8 T––– Tx ––– –– Sec –– ––––– Xcvrs ––––– T 1:0 :TX1: 1 :1,4 T 2:0 :TX2: 2 :2,4 T 3:0 :TX3: 3 :3,4 T 4:0 :TX4: 1 :5,8 T 5:0 :TX5: 2 :6,8 T 6:0 :TX6: 3 :7,8 2Verify all RX and TX antennas listed in the file antenna.map are also listed in the antenna.asu file. NOTE Make edits to the antenna.map and antenna.asu. files as required (using the vi editor). The The antenna.asu file is required only if the BTS is equipped with RFDS. Be sure that the information in antenna files matches your actual configuration. 3 Using CDMA LMF Jan 2002 3-31 SC
4812ET BTS Optimization/ATP — CDMA LMF Basic LMF Operation The terms “CDMA LMF” and “WinLMF” are interchangeable NOTE The CDMA LMF allows the user to work in the two following operating environments which are accessed using the specified desktop icon: Graphical User Interface (GUI) using the WinLMF icon Command Line Interface (CLI) using the WinLMF CLI icon The GUI is the primary optimization and acceptance testing operating environment. The CLI environment provides additional capability to the user to perform manually controlled acceptance tests and audit the results of optimization and calibration actions. Basic operation of the LMF GUI includes the following: Selecting and deselecting BTS devices Enabling devices Disabling devices Resetting devices Obtaining device status Sorting a status report window For detailed information on performing these and other LMF operations, refer to the CDMA LMF Operator’s Guide, 68P64114A78. Basic LMF Operation . Both the GUI and the CLI use a program known as the handler. Only one handler can be running at one time. The architectural design is such that the GUI must be started before the CLI if you want the GUI and CLI to use the same handler. When the CLI is launched after the GUI, the CLI automatically finds and uses an in–progress login session with a BTS initiated under the GUI. This allows the use of the GUI and the CLI in the same BTS login session. If a CLI handler is already running when the GUI is launched (this happens if the CLI window is already running when the user starts the GUI, or if another copy of the GUI is already running when the user starts the GUI), a dialog window displays the following warning message: The CLI handler is already running. This may cause conflicts with the LMF. Are you sure that you want to start the application? Thi s window also contains yes and no buttons. Selecting yes starts the application. Selecting no terminates the application. 3 Using CDMA LMF – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 3-32 CLI Format Conventions The CLI command can be broken down in the following way: Verb Device including device identifier parameters Switch Option parameters consisting of: –Keywords –Equals sign (=) between the keyword and the parameter value –Parameter values Spaces are required between the verb, device, switch, and option parameters. A hyphen is required between the device and its identifiers. Following is an example of a CLI command. measure bbx–<bts_id>–<bbx_id> rssi channel=6 sector=5 Refer to the LMF CLI Commands (68P09251A59) for a complete explanation of the CLI commands and their usage. Logging into a BTS Be sure that the correct bts–#.cdf and cbsc–#.cdf file is used for the BTS. These should be the CDF files that are provided for the BTS by the CBSC. Failure to use the correct CDF files can result in wrong results. Failure to use the correct CDF files to log into a live (traffic carrying) site can shut down the site. IMPORTANT * Logging into a BTS establishes a communications link between the BTS and the CDMA LMF. You may be logged into one or more BTS’s at a time, but only one LMF may be logged into each BTS. Before attempting to log into the BTS, confirm the CDMA LMF is properly connected to the BTS (see Figure 3-4). Follow the procedure in Table 3-14 to log into a BTS. Prerequisites Before attempting to login to a BTS, ensure the following have been completed: The LMF is correctly installed and prepared. A bts-nnn folder with the correct CDF and CBSC file exists. The LMF is correctly installed and prepared, and the LMF computer was connected to the BTS before starting the Windows operating system and LMF software. If necessary, restart the computer after connecting it to the BTS (see Table 3-6 and Figure 3-4). 3 Using CDMA LMF – continued Jan 2002 3-33 SC
4812ET BTS Optimization/ATP — CDMA LMF BTS Login from the GUI Environment Follow the procedures in Table 3-14 to log into a BTS when using the GUI environment Table 3-14: BTS GUI Login Procedure StepAction 1Start the LMF GUI environment by double clicking on the WinLMF desktop icon (if the LMF’s not running). NOTE If a warning similar to the following is dis…

Text truncated - open the document above for the full version.

Prepare to Leave the Site Jan 2002 5-1 SC
4812ET BTS Optimization/ATP — CDMA LMF External Test Equipment Removal Perform the procedure in Table 5-1 to disconnect the test equipment and configure the BTS for active service. Table 5-1: External Test Equipment Removal StepAction 1Disconnect all external test equipment from all TX and RX connectors at the rear of the frame. 2Reconnect and visually inspect all TX and RX antenna feed lines at the rear of the frame. Verify all sector antenna feed lines are connected to the correct ports on the frame. Crossed antenna cables will cause system degradation of call processing. CAUTION Reset All Devices Reset all devices by cycling power before leaving the site. The CBSC configuration data and code loads could be different from data and code on the LMF. By resetting all devices, the CBSC can load the proper data and code when the span is active again. Updating BTS CAL LMF Files in the CBSC Updated CAL file information is moved from the LMF Windows environment back to the CBSC which resides in a Unix environment. The procedures that follow detail how to move files from the Windows environment to the CBSC. Copying CAL files from LMF to a Disk Follow the procedures in Table 5-2 to copy CAL files from a LMF computer to a 3.5 diskette. Table 5-2: Copy Files from LMF to a Diskette StepAction 1Insert a disk into your Windows A drive. NOTE If your disk has not been formatted, format it using Windows. The disk must be DOS formatted before copying any files. Consult your Windows/DOS documentation or online helps on how to format diskettes. 2Click on the Start button and launch the Windows Explorer program from your Programs menu list. 5 Prepare to Leave the Site – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 5-2 Table 5-2: Copy Files from LMF to a Diskette StepAction 3Click on your C: drive. 4Double Click on the wlmf folder. 5Double Click on the CDMA folder. 6Click on the bts–# folder for the calibration file you want to copy. 7Drag the BTS–#.cal file to the 3–1/2 floppy (A:) icon on the top left of the screen and release the mouse button. 8Continue step 6 and 7 until you have copied each file desired and close the Windows Explorer program by selecting Close from the File menu option. Copying CAL files from diskette to the CBSC Follow the procedure in Table 5-3 to copy CAL files from a diskette to the CBSC. Table 5-3: Copy CAL Files From Diskette to the CBSC StepAction 1Log into the CBSC workstation. 2Place your diskette containing CAL file(s) in the CBSC workstation diskette drive. 3Enter eject –q and press the Enter key. 4 Enter mount and press the Enter key. Verify that floppy/no_name is displayed. NOTE If the eject command has been previously entered, floppy/no_name will be appended with a number. Use the explicit floppy/no_name reference displayed. 5Enter cd /floppy/no_name and press the Enter key. 6Enter ls –lia and press the Enter key. Verify that the bts–#.cal file is on the disk. 7Enter cd and press the Enter key. 8Enter pwd and press the Enter key. Verify that you are in your home directory (/home/<name>). 9Enter dos2unix /floppy/no_name/bts–#.cal bts–#.cal and press the Enter key (where # is the BTS number). 10Enter ls –l *.cal and press the Enter key. Verify that the CAL file was successfully copied. 11Enter eject and press the Enter key. 12Remove the floppy disk from the workstation. 5 Prepare to Leave the Site – continued Jan 2002 5-3 SC
4812ET BTS Optimization/ATP — CDMA LMF BTS Site Span Configuration Verification Perform the procedure in Table 5-4 to verify the current Span Framing Format and Line Build Out (LBO) parameters. ALL MGLI2/SGLI2 boards in all C–CCP shelves that terminate a T1/E1 span should be verified. Table 5-4: BTS Span Parameter Configuration StepAction 1Connect a serial cable from the LMF COM1 port (via null modem board) to the front panel of the MGLI2 MMI port (see Figure 5-1). 2Start an MMI communication session with CSM–1 by using the Windows desktop shortcut icon. NOTE The LMF program must not be running when a Hyperterminal session is started if COM1 is being used for the MMI session. 3Enter the following MMI command to display the current MGLI2/SGLI2 framing format and line code configuration (in bold type): span view <cr> Observe a display similar to the options shown below: COMMAND ACCEPTED: span view The parameter in NVM is set to T1_2. The frame format in flash is set to use T1_2. Equalization: Span A – Default (0–131 feet for T1/J1, 120 Ohm for E1) Span B – Default (0–131 feet for T1/J1, 120 Ohm for E1) Span C – Default (0–131 feet for T1/J1, 120 Ohm for E1) SDD f lt (0131 f t f T1/J1 120 Oh f E1) Span D – Default (0–131 feet for T1/J1, 120 Ohm for E1) Span E – Default (0–131 feet for T1/J1, 120 Ohm for E1) Span F – Default (0–131 feet for T1/J1, 120 Ohm for E1) Linkspeed: Default (56K for T1 D4 AMI, 64K otherwise) Currently, the link is running at the default rate The actual rate is 0 NOTE Defaults for span equalization are 0–40 m for T1/J1 spans and 120 Ohm for E1. Default linkspeed is 56K for T1 D4 AMI spans and 64K for all other types. There is no need to change from defaults unless the OMC–R/CBSC span configuration requires it. If the current MGLI2/SGLI2 framing format and line code configuration does not display the correct choice, proceed to Table 5-5. 4Repeat steps 1 through 3 for all remaining GLIs. 5Exit the GLI MMI session and HyperTerminal connection by selecting File from the connection window menu bar, and then Exit from the dropdown menu. 5 Prepare to Leave the Site – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 5-4 REF– FW00344 9–PIN TO 9– PIN RS–232 CABLE NULL MODEM BOARD (PART# 8484877P01) RS–232 CABLE FROM LMF COM1 PORT MMI SERIAL PORT GLI BOARD Figure 5-1: MGLI2/SGLI2 MMI Port Connection Set BTS Site Span Configuration Perform the procedure in Table 5-5 to configure the Span Framing Format and Line Build Out (LBO) parameters. ALL MGLI2/SGLI2 boards in all C–CCP she…

Text truncated - open the document above for the full version.

Test Equipment Preparation – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 F-10 Agilent E4406A/E4432B Test Equipment Interconnection To provide proper operation during testing when both units are required, the 10 MHz reference signal from the E4406A transmitter test set must be provided to the E4432B signal generator. Connect a BNC (M)–BNC (M) cable from the E4406A 10 MHz OUT (SWITCHED) connector to the E4432B 10MHz IN connector as shown in Figure F-5. Figure F-5: Agilent 10 MHz Reference Connections E4406A 10 MHz OUT (SWITCHED) E4432B 10 MHz IN TO GPIB BOX F Manual Cable Calibration Jan 2002 F-11 SC
4812ET BTS Optimization/ATP — CDMA LMF Calibrating Test Cable Setup using HP PCS Interface (HP83236) Table F-9 covers the procedure to calibrate the test equipment using the HP8921 Cellular Communications Analyzer equipped with the HP83236 PCS Interface. This calibration method must be executed with great care. Some losses are measured close to the minimum limit of the power meter sensor (–30 dBm). NOTE Prerequisites Ensure the following prerequisites have been met before proceeding: Test equipment to be calibrated has been connected correctly for cable calibration. Test equipment has been selected and calibrated. Table F-9: Calibrating Test Cable Setup (using the HP PCS Interface) StepAction NOTE Verify that GPIB controller is turned off. 1Insert HP83236 Manual Control System card into memory card slot. 2Press the Preset pushbutton. 3Under Screen Controls, press the TESTS pushbutton to display the TESTS (Main Menu) screen. 4Position the cursor at Select Procedure Location and select it. In the Choices selection box, select CARD. 5Position the cursor at Select Procedure Filename and select it. In the Choices selection box, select MANUAL. 6Position the cursor at RUN TEST and select it. HP must be in Control Mode Select YES. 7If using HP 83236A: Set channel number=<chan#>: –Position cursor at Channel Number and select it. –Enter the chan# using the numeric keypad; press [Enter] and the screen will go blank. –When the screen reappears, the chan# will be displayed on the channel number line. If using HP 83236B: Set channel frequency: –Position cursor at Frequency Band and press Enter. –Select User Defined Frequency. –Go Back to Previous Menu. –Position the cursor to 83236 generator frequency and enter actual RX frequency. –Position the cursor to 83236 analyzer frequency and enter actual TX frequency. . . . continued on next page F Manual Cable Calibration – continued SC
4812ET BTS Optimization/ATP — CDMA LMF Jan 2002 F-12 Table F-9: Calibrating Test Cable Setup (using the HP PCS Interface) StepAction 8Set RF Generator level: –Position the cursor at RF Generator Level and select it. –Enter –10 using the numeric keypad; press [Enter] and the screen will go blank. –When the screen reappears, the value –10 dBm will be displayed on the RF Generator Level line. 9Set the user fixed Attenuation Setting to 0 dBm: –Position cursor at Analyzer Attenuation and select it –Position cursor at User Fixed Atten Settings and select it. –Enter 0 (zero) using the numeric keypad and press [Enter]. 10Select Back to Previous Menu. 11Record the HP83236 Generator Frequency Level: Record the HP83236B Generator Frequency Level: –Position cursor at Show Frequency and Level Details and select it. –Under HP83236 Frequencies and Levels, record the Generator Level. –Under HP83236B Frequencies and Levels, record the Generator Frequency Level (1850 – 1910 MHz). –Position cursor at Prev Menu and select it. 12Click on Pause for Manual Measurement. 13Connect the power sensor directly to the RF OUT ONLY port of the PCS Interface. 14On the HP8921A, under To Screen, select CDMA GEN. 15Move the cursor to the Amplitude field and click on the Amplitude value. 16 Increase the Amplitude value until the power meter reads 0 dBm ±0.2 dB. NOTE The Amplitude value can be increased coarsely until 0 dBM is reached; then fine tune the amplitude by adjusting the Increment Set to 0.1 dBm and targeting in on 0 dBm. 17 Disconnect the power sensor from the RF OUT ONLY port of the PCS Interface. * IMPORTANT The Power Meter sensor’s lower limit is –30 dBm. Thus, only components having losses ≤30 dB should be measured using this method. For further accuracy, always re-zero the power meter before connecting the power sensor to the component being calibrated. After connecting the power sensor to the component, record the calibrated loss immediately. 18Disconnect all components in the test setup and calibrate each one separately by connecting each component, one-at-a-time, between the RF OUT ONLY PORT and the power sensor. Record the calibrated loss value displayed on the power meter. Example:(A) Test Cable(s)=–1.4 dB (B) 20 dB Attenuator =–20.1 dB (B) Directional Coupler =–29.8 dB . . . continued on next page F Manual Cable Calibration – continued Jan 2002 F-13 SC
4812ET BTS Optimization/ATP — CDMA LMF Table F-9: Calibrating Test Cable Setup (using the HP PCS Interface) StepAction 19After all components are calibrated, reassemble all components together and calculate the total test setup loss by adding up all the individual losses: Example:Total test setup loss = –1.4 –29.8 –20.1 = –51.3 dB. This calculated value will be used in the next series of tests. 20Under Screen Controls press the TESTS button to display the TESTS (Main Menu) screen. 21Select Continue (K2). 22Select RF Generator Level and set to –119 dBm. 23Click on Pause for Manual Measurement. 24Verify the HP8921A Communication Analyzer/83203A CDMA interface setup is as follows (fields not indicated remain at default): Verify the GPIB (HP–IB) address: –under To Screen, select More –select IO CONFIG –Set HP–IB Adrs to 18 –set Mode to Talk&Lstn Verify the HP8921A is displaying frequency (instead of RF channel) –Press the blue [SHIFT] button, then press the Screen Control [DUPLEX] button; this switches to the CONFIG (CONFIGURE) screen. –Use the cursor control to set RF Display to …
