6 6 6RX Main 6 TX 6RX Div LPAs + Trunking Modules MCC (1 thru 12) BBX (Redundant) Switch Power Supply CDMA Clock Distribution Clock Synch Module MPC6 Span IO High Stability Oscillator SCCP Shelf GLI AMR 3 or 6 3 Clk/Sync 2 6 3 Filter / Combiner Duplexer/Directional Coupler RX Diversity TCH Data Fwd 7 Rvs 7 CT1 SpanTo/From CBSC 3 RX/TX Comm / Bus Clk / Sync RF 2 2 Customer Alarms Site IO LAN In / Out To LMF BBX (1 thru 12) CIO Rx Rx Tx Tx 3 RGD or Remote Head RF Antenna GPS CSU / Router Punch Block

M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 1 of 1 November 19, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 1475 W. Shure Drive, Arlington Heights, Illinois 60004, herein submits: Filing fee, Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a Cellular Transceiver, FCC ID: IHET5EG1. Motorola is also the manufacturer of this equipment. Motorola requests that the Internal Photos, Parts List, and Schematics Exhibit be kept confidential. The filing fee includes $145.00, the amount for a confidential filing. This equipment has the capability to operate using Code Division Multiple Access (CDMA) on a spread spectrum signal operating in the cellular band. This more efficient modulation scheme can provide 3 to 10 times the number of available voice channels when compared to existing analog technologies. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in section 22 Subpart H of the Commission’s rules) related to certification of this equipment, are provided in the Statements of Certification Exhibit, and throughout the other exhibits. Please contact me by phone at (847) 435-9487, by Fax at (847) 632-5936, or by correspondence at the address herein if there are further questions or if additional information is needed concerning this filing. Regards, Scott Munier Senior Resource Manager Customer Integration Engineering

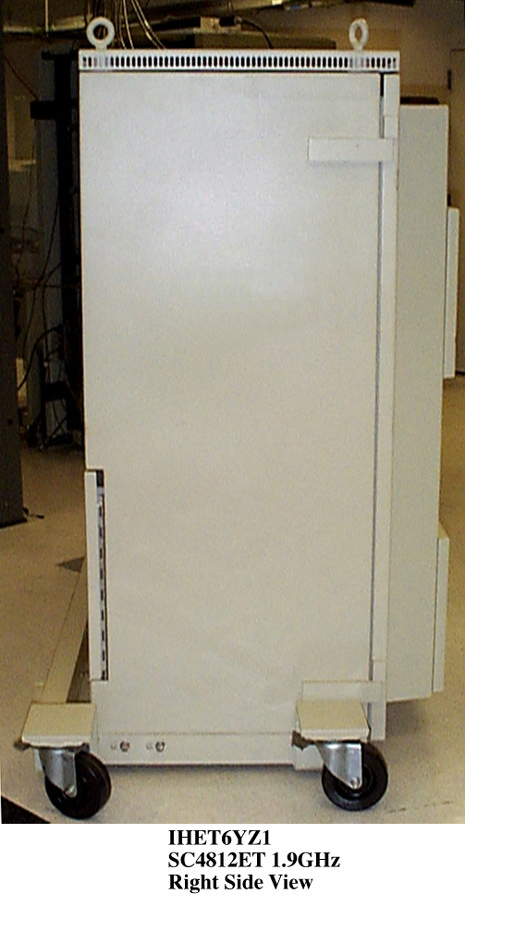

M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 1 of 8 External Photos Exhibit SC4812ET 1X/EVDO @ 800 MHz CDMA BTS Number Description 1 Front View Doors Closed 2 Front View Doors Open 3&4 Rear View with & without Panel 5 Left Side View 6 Right Side View 7 Top View M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 3 of 8

EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: SC4812ET 1X/EVDO @ 800MHz IHET5EG1 Location of FCC ID Label Side FCC Label (Top of Panel)

FCC Filing- SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 1 of 12 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812ET 1X/EVDO @ 800 MHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2. 1033 (b) Identification of Equipment: IHET5EG1 Section 2. 1033 (c) Quantity Production: Quantity Production is planned. Section 2. 1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 22(H). This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 128 Walsh codes to support Pilot, Sync, Paging, Supplemental, and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS-CDMA) digital communication techniques. For this transmitter, the emission designator is 1M30F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 869.70 to 893.31 MHz Band for 1X/EVDO operation (per FCC Part 22). This base station will support CDMA operations on channel numbers 1013 through 1023 and 1 through 777 inclusive for 1X operation. The base station will support CDMA operations on channel 1020 through 1023 and 1 through 770 inclusive for EVDO operation (3) Range of Operating Power The rated maximum average power out of the SC4812T Lite 1X @ 800 MHz CDMA BTS is 90 W (49.77 dBm) per RF carrier. However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. (3) Range of Operating Power (cont.) FCC Filing- SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 2 of 12 For a typical system setup, the theoretical difference between minimum power and maximum power is about 8 dB. The output power is variable in 0.25 dB steps. In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 500 Watts as defined in Part 22.913(a). (5) Applied voltages and currents into the final transistor elements of the transmitter output: The applied voltages and currents into each of the Linear Power Amplifier’s final transistor elements are as follows: Drain 27.0 VDC Drain Current 1.0 AMPS Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. FCC Filing- SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 3 of 12 (10) Means for Frequency Stabilization Refer to the Test Report Exhibit. The Clock Synchronization Module (CSM2) provides clock and time signals for an SC4812ET 1X/EVDO @ 800 MHz CDMA BTS. In addition, it provides the primary, source a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM2 relies on a GPS receiver, either riding piggyback onto the CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM2 cards provide redundancy in case of primary CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards. The CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM2 from the GLI2. The CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. FCC Filing- SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 4 of 12 (11) Means for Attenuation of Spurious Emissions Refer to the Test Report Exhibit. Band pass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. In addition to the digital filters described below, the baseband also employs a discrete anti-alias filter that attenuates signals greater than 2MHz. Out of band emissions are also attenuated by ceramic filters in the transmit RF lineup. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to approximately 1.25 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one voice channel), then…

Text truncated - open the document above for the full version.

M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 1 of 58 SC4812ET 1X /EVDO @ 800 MHz CDMA BTS TEST REPORT EXHIBIT Index Section Description A Summary of RF Measurements B Modulation Characteristics C Spurious & Harmonic Emissions Radiated D Spurious & Harmonic Emissions Conducted E Occupied Bandwidth F Frequency Stability M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 2 of 58 Section A Summary of RF Measurements M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 3 of 58 Summary of Radiated RF Measurements Worst Case Radiated RF Spur Level for SC4812ET EVDO @ 800MHz CDMA BTS Radiated RF Measurements Spec Result Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/m) Measured Radiated Field Strength (dBm) (Note 1) FCC Part 22/24 MAX LIMIT (dBm) (Pass/ Fail) 1020 1744.44 H 52.14 -43.09 -13 Pass Notes: 1. Converting dBuV/M to dBm at 3 meters: (dBuV/M) + 9.542 – 104.77 = dBm Converting dBuV/M to dBm at 10 meters: 2. (dBuV/M) + 20 – 104.77 = dBm 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 5 of 58 Summary of Conducted RF Measurements SC4812ET EVDO @ 800MHz CDMA BTS FCC Part 22 CHANNEL FREQUENCY (GHz SPUR LEVEL MEASURED (dBμV) SPUR LEVEL MEASURED (dBm) FCC MAX LIMIT (dBm) PASS / FAIL 770 7.725 71.08 -35.92 -13 Pass 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 7 of 58 Section B Summary of Modulation Characteristics SC4812ET EVDO @ 800MHz CDMA BTS CHANNEL TUNE FREQUENCY (MHz) RHO Measured RHO Specifications PASS / FAIL 1020 869.91 0.99729 > 0.970 Pass 770 893.10 0.99780 > 0.970 Pass The BTS was configured for maximum power out of 46.00 dBm and minimum power out of 36.5 dBm respectively for EVDO configuration. The output power was set respectively to 40.0 Watts or 4.5 Watts using an HP437B power meter 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 8 of 58 SC4812ET EVDO – Modulation Characteristics High Power – 46.00 dBm – 8PSK Channel 1020– 869.91 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 9 of 58 SC4812ET EVDO – Modulation Characteristics High Power – 46.00 dBm – 16QAM Channel 770 – 893.1 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 10 of 58 SC4812ET EVDO – Modulation Characteristics Low Power – 36.5 dBm – 8PSK Channel 1020– 869.91 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 11 of 58 SC4812ET EVDO – Modulation Characteristics Low Power – 36.5 dBm – 16QAM Channel 770 – 893.1 MHz FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 MODULATION CHARACTERISTICS Maximum Power FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 MODULATION CHARACTERISTICS Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 19 of 58 Section C Spurious and Harmonic Emissions Radiated M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 20 of 58 Radiated RF Measurements Worst Case Radiated RF Spur Levels for SC4812ET EVDO @ 800MHz CDMA BTS Radiated RF Measurements Spec Result Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/m) Measured Radiated Field Strength (dBm) (Note 1) FCC Part 22/24 MAX LIMIT (dBm) (Pass/ Fail) 1020 1744.44 H 52.14 -43.09 -13 Pass 770 5611.11 V 50.45 -44.78 -13 Pass Notes: 1. Converting dBuV/M to dBm at 3 meters: (dBuV/M) + 9.542 – 104.77 = dBm Converting dBuV/M to dBm at 10 meters: (dBuV/M) + 20 – 104.77 = dBm 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 21 of 58 Conducted RF Measurements SC4812ET EVDO @ 800 MHz CDMA BTS FCC Part 22 CHANNEL FREQUENCY (GHz) SPUR LEVEL MEASURED (dBμV) SPUR LEVEL MEASURED (dBm) FCC MAX LIMIT (dBm) PASS / FAIL 770 7.725 71.08 -35.92 -13 Pass 1020 7.680 70.85 -36.15 -13 Pass FCC Maximum Limit Per 47 CFR: “ = Transmitted Power (10 Log 10 (P watt )) – (43 + 10 Log 10 (P watt )) dBW “ = 10 Log 10 (P watt ) - (43 + 10 Log 10 (P watt )) dBW “ = -43 dBW “ = -13 dBm 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 22 of 58 Spurious and Harmonic Emissions Conducted CDMA EVDO Channel 1020 – 46.00 dBm – 8PSK M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 23 of 58 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 24 of 58 Spurious and Harmonic Emissions Conducted CDMA EVDO Channel 770 – 46.00 dBm – 16QAM M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 25 of 58 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 26 of 58 Spurious and Harmonic Emissions Conducted CDMA EVDO Channel 1020 – 36.5 dBm – 8PSK M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 27 of 58 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – S…

Text truncated - open the document above for the full version.

FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1013 Maximum Power FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1013 Minimum Power FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 777 Maximum Power FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector SECTION D FCC ID: IHET5EG1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 777 Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 44 of 58 SECTION E OCCUPIED BANDWIDTH NOTE: The BTS was configured for maximum power out of 46.00 dBm and minimum power out of 36.5 dBm respectively. The max and min output power was set to 40.0 Watts or 4.5 Watts respectively using an HP437B power meter. The following formula is used to obtain the correct power reference point from which the OBW of the CDMA signal is obtained. See example calculation below: Power (measured in 30 kHz bandwidth) + 10 log (1.30 MHz / 30 kHz) Example: 29.63 dBm + 16.37 dB = 46.00 dBm The occupied bandwidth is measured in a 30 kHz resolution bandwidth. The summary is listed below. SC4812ET EVDO @ 800MHz SUMMARY OF OCCUPIED BANDWIDTH CHANNEL Power Level (dBm) FREQUENCY (MHz) MEASURED (MHz) FCC LIMIT (MHz) Pass / Fail 1020 36.5 869.91 1.2716 1.30 Pass 770 46.0 893.10 1.2725 1.30 Pass 11.19.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 45 of 58 SC4812ET EVDO – Occupied Bandwidth – 46.00 dBm – 8PSK Channel 1020 – 869.91 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 46 of 58 SC4812ET EVDO – Occupied Bandwidth – 46.00 dBm – 16QAM Channel 770 – 893.1 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 47 of 58 SC4812T EVDO – Occupied Bandwidth – 36.5 dBm – 8PSK Channel 1020 – 869.91 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 48 of 58 SC4812ET EVDO – Occupied Bandwidth – 36.5 dBm – 16QAM Channel 770 – 893.1 MHz FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 OCCUPIED BANDWIDTH Maximum Power FCC Filing - SC4812ET @800 MHz CDMA BTS Frame Global Telecom Solutions Sector FCC ID: IHET5EG1 OCCUPIED BANDWIDTH Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 56 of 58 SECTION F FREQUENCY STABILITY MODE 27V POWER WORST CASE ∆ PPM FCC REQUIREMENT Pass / Fail CSM1 85-115% <0.02 +/- 1.5 PPM MAX Pass CSM2 85-115% <0.02 +/- 1.5 PPM MAX Pass MODE TEMPERATURE WORST CASE ∆ PPM FCC REQUIREMENT Pass / Fail CSM1 -30º to +50º C <0.2 +/- 1.5 PPM MAX Pass CSM2 -30º to +50º C <0.2 +/- 1.5 PPM MAX Pass 04.12.04 Signature Date Terry Schwenk M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 57 of 58 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 58 of 58

M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800 MHz CDMA BTS 1 of 4 Test Setup – Radiated Emissions M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 2 of 4 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X /EVDO @ 800 MHz CDMA BTS 3 of 4 Motorola 1475 W. Shure Drive Arlington Heights, IL. 60004 FCC Conducted Spurious & Harmonic Emissions Testing, Modulation Characteristics and Occupied Bandwidth Measurements Note: HPM13754 High Pass Filter only used during harmonic emissions. EUT Agilent E4440A PSA Series Spectrum Analyzer HP 437B Power Meter Narda High Power Attenuators Model 769-30dB and 766-10dB Micro-tronics HPM13754 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EG1 FCC Filing – SC4812ET 1X/EVDO @ 800MHz CDMA BTS 4 of 4
