IHET6AP1SC4812ETL 1.9GHz CDMA BTS

EA  tE B  !"!A A "
" Release 2.15.x.x and CDMA LMF Build 2.15.x.x 68P09250A99–1 English 08/15/2000 PRELIMINARY Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2000 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV010600 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 08/15/2000 i SC 4812ETL BTS Optimization/ATP PRELIMINARY Table of Contents SC 4812ETL BTS Optimization/ATP Release 2.15.x.x and CDMA LMF Build 2.15.x.x List of Figuresiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . List of Tablesvi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Product Informationxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1: Introduction Optimization Manual Scope and Layout1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Purpose of the Optimization1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . When to Optimize1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Test Equipment and Software1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Documents and Related Publications1-12. . . . . . . . . . . . . . . . . . . . . . . . . Terms and Abbreviations1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BTS Equipment Identification1-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cabinet Identification1-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internal Assembly Location and Identification1-17. . . . . . . . . . . . . . . . . . . . . . . . . BTS Sector Configurations1-22. . . . . …

Text truncated - open the document above for the full version.

_________________________________________________________________________________________________________ FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame FCC ID: IHET6AP1 STATEMENTS OF CERTIFICATION EXHIBIT

IHET6AP1 6 6 6RX Main 6 TX 6RX Div LPAs + Trunking Modules MCC-24E (1 thru 4) BBX2-7 (Redundant) Switch Power Supply CDMA Clock Distribution Clock Synch Module MPC6 Span IO High Stability Oscillator SCCP Shelf GLI2 AMR 3 or 6 3 Clk/Sync 2 6 3 Filter / Combiner Duplexer/Directional Coupler RX Diversity TCH Data Fwd 7 Rv s 7 CT1 SpanTo/From CBSC 3 RX/TX Comm / Bus Clk / Sync RF 2 2 Customer Alarms Site IO LAN In / Out To LMF BBX2(1 thru 6) CIO Rx Rx Tx Tx 3 RGD or Remote Head RF Antenna GPS Block Diagram of 1900 MHz SC  4812ET Lite

Cellular Infrastructure Group September 5, 2000 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 1475 W. Shure Drive, Arlington Heights, Illinois 60004, herein submits: Filing fee , Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a PCS Cellular Transceiver, FCC ID: IHET6AP1. Motorola is also the manufacturer of this equipment. Motorola requests that the following Sections of the Schematics Exhibit be kept confidential: Section A MPC6 - Multicoupler Preselector Card Section B GLI2 - Group Line Interface Card Section C BBX2- Broadband Transceiver Card Sec tion D MCC x 24E - Multi Channel CDMA Card Section E CCD - CDMA Clock Distribution Card Section F CSM2 - Clock Synchronization Module w/GPS Section G LPA - Linear Power Amplifier Section H CIO - Combiner Input/Output Card Sec tion I Switch Card Sec tion J HSO - High Stability Oscillator Section K SPAN I/O Section L RGD - Remote GPS Distribution Sec tion M LFR- Low Frequency Receiver Special Note The confidential portions have been identified as such on the Uploading Sections Form. The filing fee includes $135.00, the amount for a confidential filing. Page 1 of 2

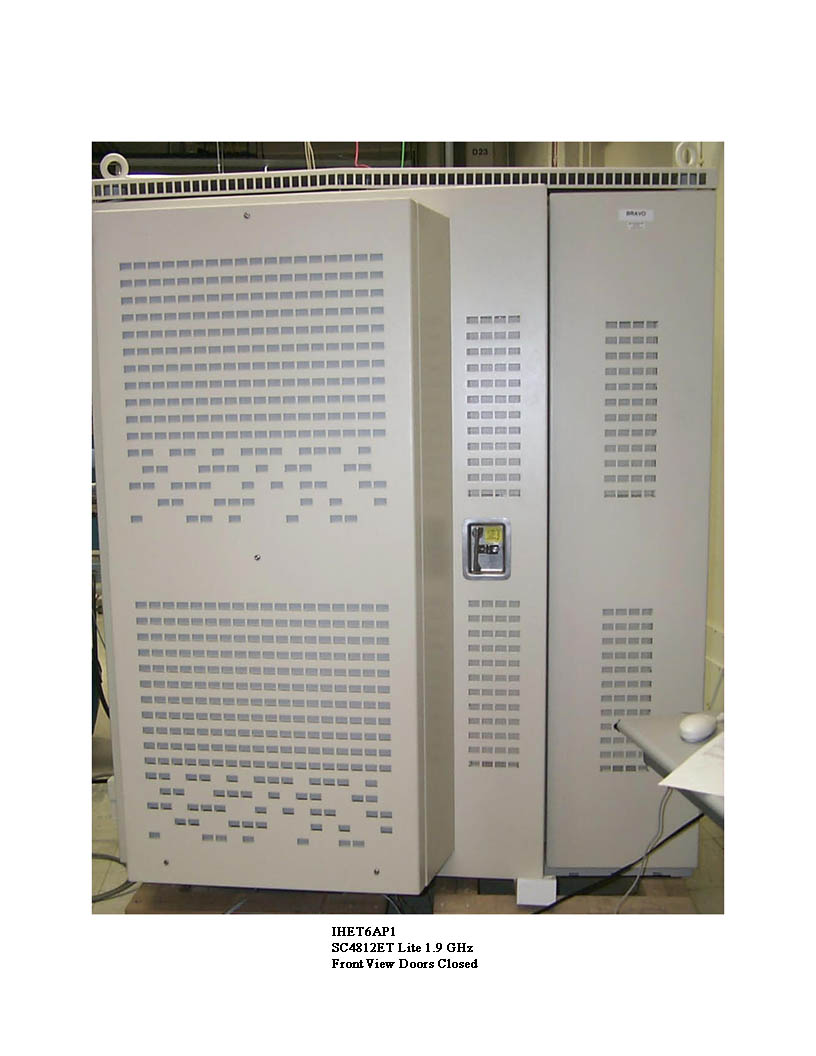

Cellular Infrastructure Group APPLICANT: MOTOROLATRANSCEIVER TYPE: IHET6AP1 SC4812ETL @ 1.9 GHz CDMA BTS EXTERNAL PHOTOS EXHIBIT List of External Photographs No. PHOTOGRAPH 1 Front View Doors Closed 2 Front View Doors Open 3 Rear View 4 Left Side View 5 Right Side View 6 Top View

APPLICANT: MOTOROLA FCC ID: IHET6AP1 EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | ||||||| | Model No.__________________ |||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | Serial No.__________________ MOTOROLA FCC ID: IHET6AP1 Complies with Part 68, FCC Rules FCC Reg. No. IHEUSA-33839-DE-E REN: 03B USOC: RJ11C 1.9 GHz 4812 ETLIHET6AP1 Location of FCC ID Label Side FCC Label (Top of Panel)

Cellular Infrastructure Group APPLICANT: MOTOROLATRANSCEIVER TYPE: IHET6AP1 SC4812ETL @ 1.9 GHz CDMA BTS INTERNAL PHOTOS EXHIBIT No. PHOTOGRAPH 1. MPC Front 2. MPC Back 3. GLI2 Front 4. GLI2 Back 5. BBX2 with Cover 6. BBX2 without Cover 7. BBX2 Back 8. MCC x 24E Front 9. MCC x 24E Back 10. CCD Front 11. CCD Back 12. CCD Front with Cover 13. CSM2 Front 14. CSM2 Back 15. LPA Front 16. LPA Back 17. LPA without Cover 18. Power Supply Front 19. Power Supply Back 20. CIO Front 21. CIO Back 22. Switch Card Front 23. Switch Card Back 24. AMR Front 25. AMR Back 26. HSO Front 27. HSO Back 28. Span I/O Front 29. Span I/O Back 30. RGD Front 31. RGD Back 32. LFR Front 33. LFR Back

FCC Filing- SC4812ETL @1.9 GHz CDMA BTS1 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812ET Lite @1.9 GHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.983 through 2.999 are addressed. Section 2.983 (a)Name of Applicant and Manufacturer: MOTOROLA Section 2.983 (b) Identification of Equipment: IHET6AP1 Section 2.983 (c) Quantity Production: Quantity Production is Planned. Section 2.983 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 24(E).This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 64 Walsh codes to support Pilot, Sync, Paging and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS- CDMA) digital communication techniques. For this transmitter, the emission designator is 1M25F9W (per FCC Part 2.201, subpart C). (2)Frequency Range This transmitter operates within the 1930 to 1990 MHz Band (per FCC Part 24). This base station will support CDMA operations on channel numbers 25 through 1175 (1931.25 MHz - 1988.75 MHz). (3) Range of Operating Power The rated maximum average power out of the SC4812ET Lite @1.9 GHz CDMA BTS is 40 W (46.0 dBm). However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. For a typical system setup, the theoretical difference between minimum power and maximum power is 8dB. The output power is variable in 0.25 dB steps. The range is 12 dB. FCC Filing- SC4812ETL @1.9 GHz CDMA BTS2 (3) Range of Operating Power (cont.) In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 100 Watts as defined in Part 24.232 (5)Applied voltages and currents into the final transistor elements of the transmitter output: In the CDMA system, the applied voltages and currents into the final transistor elements SRF7042X4 for 40 W output: Drain 27.7 VDC Drain Current 1.0 AMPS x 3 Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. FCC Filing- SC4812ETL @1.9 GHz CDMA BTS3 (10) Means for Frequency Stabilization Refer to Section F of the Test Report Exhibit. The Clock Synchronization Module (CSM/CSM2) provides clock and time signals for an SC4812ET Lite @1.9 GHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM/CSM2 relies on a GPS receiver, either riding piggyback onto the CSM/CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1)Dual CSM/CSM2 cards provide redundancy in case of primary CSM/CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM/CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM/CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards . The CSM/CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM/CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM/CSM2 from the GLI2. The CSM/CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM/CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. FCC Filing- SC4812ETL @1.9 GHz CDMA BTS4 (11) Means for Attenuation of Spurious Emissions Refer to Section C of the Test Report Exhibit. Bandpass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. The baseband employs a discrete L-C 7-pole elliptic filter. This filter is used to attenuate sideband noise and close in spurious emissions. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to Sections B and F of the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to 1.23 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one voice channel), then the two signals are simply layered one atop the other within the 1.23 MHz band. So, to some extent, the bandwidth of the transmitted signal is limited by the chip rate of the PN spreading code. Primary limiting of the CDMA signal bandwidth is accomplished by the use of a programmable dig…

Text truncated - open the document above for the full version.

FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Summary of Active Devices APPLICANT: MOTOROLA TRANSMITTER TYPE: IHET6AP1 Multicoupler Preselector Card (MPC6) Device Type Component Description Operating Frequencies MMPT3906LT1Transistor PNP 40V 2AD.C. MMBT3904LT1Transistor NPN 40V 2AD.C. MC33164D-5R2 IC Undervolt Sensing Ckt, MotorolaD.C. MMSZ6685TZener Diode 3.9V 500mV, MotorolaD.C. MMBD6050LT1Diode 70V, 5A, MotorolaD.C. HSMP-3800-L31 RF PIN Diode1850-1910 MHz PALCE22VIOH-15JC/4 IC Programmable Logic DeviceD.C. BRPG1204W-TRBicolor LED 70mA 2.5VD.C. BCW69Transistor PNPD.C. CFK-0301 RF FET1850-1910 MHz MGA-82563IC RF Amplifier1850-1910 MHz SNA-486IC RF Amplifier1850-1910 MHz MMBZV6ALT1 Dual Diode Common Anode 5.6VD.C. MC33060ADR2 PWM Control CircuitD.C. MTD2955ET4 Power MOSFET Pch 60V, 12AD.C. MBRD340T4 Rectifier Schottky, 3A, 40VD.C. MC33182DR2 Low Pwr Dual Op-AmpD.C P6SMB12CAT3 12V Transient Suppressor D.C. FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Multicoupler Preselector Card (MPC6) (continued) Device Type Component Description Operating Frequencies MMBD7000 Zener DiodeD.C. RELAY_G6S_2G_DC12 DPDT 12V RelayD.C. MBRS140T3 Schottky Rectifier40V 1AD.C. LT1054IS IC Voltage Converter with Regulator D.C. LM317 Adj. Voltage Regulator 500mA D.C. X9241 IC CMOS Quad EEPOT D.C. MC3303DR2 IC Gen Purpose Quad Op-Amp D.C. X2502D IC EPROM 256x8 D.C. FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Group Line Interface II (GLI2) Device Type Component Description Operating Frequencies MB3240T10TBDG60DRAM 4Mx32 DIMM40 MHz VSA5101532.768MHz PLL-VCXO32.768 MHz SG-636PCE40MHz OSC40 MHz MAX732CWEFLASH PWR SUPPLY170 kHz I74F776AFUTURE BUS RX2.048 MHz I74F777AFUTURE BUS TX2.048 MHz LTC1435CSSWITCHER IC230 kHz MPC860MHzP40MICROPROCESSOR40MHz MC10ELT21PECL3 MHz MPC946FAR2CLOCK DIST IC40 MHz, 20 MHz MC68160CFBEEST20 MHz MC34058FTARS485 XCVR4.096 MHz MC74LCX16244DTR2BUFFERS2.048 MHz SX05TR009ZQ01PPC ASIC40MHz MT9082APTSI DIGITAL SWITCH8.192 MHz PEB2254H-V13E1/T1 FRAMER/LIU/HDLC8.192, 12.352 MHz, 16.384 MHz OR2C26A-3PS208-DBLUCENT FPGA8.192, 16.384 MHz 20 MHz W42C70-01GZERO DELAY BUFFER16 MHz MAX250ESDRS232 XCVR9600 - 19.2K BPS MAX251ESD 9600 - 19.2K BPSRS232 XCVR FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Broadband Tranceiver Card (BBX2) (1.9GHZ BBX2 STLG4011AA) Digital Module Device Type Component Description Operating Frequencies XC5210 Xilinx FPGA20 MHz 19.6608 MHz 1 MHz 74LCX574 Octal FlipFlop19.6608 MHz BRPG1204W-TR Red/Green LED0 - 2 Hz MMBT3904LT1 NPN TransistorDC 0 - 2 Hz 74ACT02 Quad 2In NOR20 MHz AD9762 12Bit DAC4.9152 MHz AD826AR Dual Op Amp0 - 630 KHz MC79M05BDTRK 5V Linear RegulatorDC MC33269DT_3.3 3.3V Linear RegulatorDC MC33161 Univ Voltage RefDC MMSZ5237BT1 8.2V Zener DiodeDC MC33063AD DC to DC Converter45 KHz MMDF2P02HDR2 Dual P-channel FET45 KHz MBRS340T3 3.0A Schottky Diode45 KHz MC10ELT21D PECL to TTL Converter3 MHz MC10H641 Octal ECL to TTL Clk Distibutor19.6608 MHz MC10EL16D ECL Buffer19.6608 MHz MC10EL58 PECL Buffer19.6608 MHz MMBT3906LT1 PNP Transistor 19.6608 MHz FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Broadband Tranceiver Card (BBX2) (1.9 GHz BBX2 STLG4011AA) (continued) Digital Module cont. Device Type Component Description Operating Frequencies 74ABT125D BiCMOS Hex Tri-state BufferDC 0.5 Hz 4.096 MHz ISPLSI2032Lattice CPLD.5Hz 3 MHz 19.6608 MHz 50 MHz SG615HC50 MHz Crystal Oscillator50 MHz 74HC4066Analog Mux3 MHz 74ACT08Quad 2In AndDC 20 MHz 74LCX244Octal Tri-State Buffer4.096 MHz 100Hz MBR0530T10.5A Schottky Diode100Hz MC68EN360ZPQUICC20 MHz DS1232SReset/Watchdog2 Hz HSM63620 MHz Crystal Oscillator20 MHz 28F800CVFLASH20 MHz MCM518160DRAM20 MHz FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Broadband Tranceiver Card (BBX2) (1.9GHZ BBX2 STLG4011AA) (continued) Device Type Component Description Operating Frequencies SX02RH029DH01DTC ASIC0.5 Hz 19.6608 MHz 20 MHz IDT74FCT162500ATPV18Bit Transceiver19.6608 MHz MMBD7000LT1Dual Diode DC LT1081ISRS-232 Transceiver9.6 KHz MMSZ5243BT1Dual 13V Zener DiodeDC ADC Module Device Type Component Description Operating Frequencies AD90598 Bit ADC9.8304 MHz 0 - 630 KHz MMBD201LT130V Hot Carrier Diode DC RF Control Module Device Type Component Description Operating Frequencies MMBD201LT130V Hot Carrier Diode DC AD680AR2.5VDC ReferenceDC TLC5620Serial Quad DACDC MC14504111in Serial ADC0 - 630 KHz 1 MHz FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Multiple Channel CDMA (MCC-24E) Card: Issue O Device Type Component Description Operating Frequencies SG636PH-50MHzXTAL OSC X250 MHz SG636PFT-20MHzXTAL OSC X1, X320 MHz MTD20N03NDLT4N Ch FET 30V, 20AQ1, Q2~275 kHz MMBT3904LT1NPN Trans 40V .2AQ3, Q4DC MBRS140T3Schottky Diode 1A, 40VD1, D2~275 KHz SY38157JU02EMAXX-II ASICU100,101,200,20119.6608 MHz U300,301,400,40119.6608 MHz U500,501,600,60119.6608 MHz LTC1435CSSwitching RegulatorU38~275 kHz XC5204-6FQ160C4K Gate FPGAU6419.6608 MHz XC5215-6FQ160C15K Gate FPGAU674.096 MHz XC9572-7PQ100C1.6K Gate ISP EPLDU8,U16~8 MHz XC9572-10PQ100C 1.6K Gate ISP EPLDU50,U51~22 MHz DS1705ESAReset ControllerU3,U21,U44-U49DC 74LCX16500MEAX18Bit Trans LatchU53,U54,U58,U5919.6608 MHz 74LCX16501MEAX18Bit Trans LatchU63,U65,U68,U9019.6608 MHz MC68EN360ZP25 Comm uP with Ethernet U27 25 MHz DSP56167FV60Digital Signal ProcessorU104,U204,U30444 MHz U404,U504,U60444 MHz 74ACT00DNAND Quad 2 InputU10DC 74ACT02DNOR Quad 2 InputU17DC 74ACT08DAND Quad 2 InputU2,U39,U40,U41DC 74ACT14DHex Schimitt TrigU20,U22DC 74ACT32DOR Quad 2 InputU56DC 74ACT74DDual FFU1,U35,U36,U37DC 74ACT574DWOct D Flip/FlopU52DC 74ACT541DWOct 3ST Line DRVR/CVRU57DC 74ACT05DHex Inverter w/Opn DRNU13DC FCC Filing- SC4812ETL @1.9 GHz CDMA BTS Multiple Channel CDMA (MCC-24E) Card: Issue O (continued) Device Type Component Description Operating Frequencies MC10H641FNPDECL-TTL 1:9 Clk DrvrU6019.6608 MHz MC10EL16DPDECL Receiver U81,U8319.6608 MHz MC10EL58DPDECL 2:1 Mux.U8219.6608 MHz MC100ELT23DPDECL to TTL Translator U8019.6608 MHz MC88913DClk DriverU2650, 25 MHz U5520, 10 MHz 74LCX244DTOct Line DriverU66,U78,U884.096 MHz 74LCX86DTQUAD EOR 2 InputU69-77, U84-87 MCM6226…

Text truncated - open the document above for the full version.

FCC Filing – SC4812ETL @ 1.9 GHz CDMA BTS APPLICANT: MOTOROLA TRANSCEIVER TYPE: IHET6AP1 SC4812ETL @ 1.9 GHz CDMA BTS TEST REPORT EXHIBIT Index Section Description ASummary of RF Measurements BModulation Characteristics CSpurious and Harmonic Emissions Radiated DSpurious and Harmonic Emissions Conducted EOccupied Bandwidth FFrequency Stability FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION A Summary of RF Measurements FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION B Modulation Characteristics Maximum Power FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 Modulation Characteristics Minimum Power FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION C Spurious & Harmonic Emissions Radiated FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION D Spurious & Harmonic Emissions Conducted Cellular infrastructure group FCC ID: IHET6AP1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 25 Maximum Power Cellular infrastructure group FCC ID: IHET6AP1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 25 Minimum Power Network Systems Group CDMA Systems Division FCC ID: IHET6AP1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1175 Maximum Power Cellular infrastructure group FCC ID: IHET6AP1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1175 Minimum Power FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION E Occupied Bandwidth Maximum Power FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 Occupied Bandwidth Minimum Power FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION F Frequency Stability

FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION A Summary of RF Measurements 4812ETL 1.9GHz APPLICANT: MOTOROLA TRANSCEIVER TYPE: IHET6AP1 Summary of Radiated RF Measurements Worst Case Radiated RF Spur Levels for SC4812ETL @ 1.9GHz Radiated DataSubstituted PowerSpecResult TX Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/M) Measured Radiated Field Strength (dBm) (Note 1) TX Antenna Terminal Voltage (dBm) (Note 2) EDRP (dBm) (Note 3) FCC Part 24 MAX LIMIT (dBm) Pass/ Fail 253862.144H59.08-36.15-47.8-42.25- 13Pass Notes: 1. Converting dBuV/M to dBm at 3 meters (dBuV/M) +9.542-104.77dB=dBm Converting dBuV/M to dBm at 10 meters (dBuV/M) +20 -104.77dB=dBm 2. The same horn antenna and measurement system was used for EUT scan and during substitution method. After maximizing the receive antenna and adjusting signal generator power level to measure the same emission level with the spectrum analyzer as with the EUT. Signal generator output level was recorded for each of the spurious frequencies. Test cable was then disconnected from the transmit horn and was connected to the input of the S/A measuring the voltage at the terminals of the antenna. 3. This value was obtained by converting the Equivalent Isotropic Radiated Power (EIRP) to ideal half-wave dipole reference power - (Equivalent Di-Pole Radiated Power - EDRP) per (TIA-603, 2.2.12.2(i)(m) Radiated EngineerDate FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION C Spurious & Harmonic Emissions Radiated APPLICANT: MOTOROLA TRANSCEIVER TYPE: IHET6AP1 Radiated RF Measurements Worst Case Radiated RF Spur Levels for SC4812ETL @ 1.9GHz Radiated DataSubstituted PowerSpecResult TX Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/M) Measured Radiated Field Strength (dBm) (Note 1) TX Antenna Terminal Voltage (dBm) (Note 2) EDRP (dBm) (Note 3) FCC Part 24 MAX LIMIT (dBm) Pass/ Fail 253862.144H59.08-36.15-47.8-42.25- 13Pass 255791.965H53.31-41.85-53.1-46.45- 13Pass 11753978.33H56.27-38.96-51.3-45.85- 13Pass 11753918.82H52.17-43.06-55.6-50.15- 13Pass 253862.144V55.7-39.53-50.1-44.55- 13Pass 255791.96V48.57-46.66-59.19-52.54- 13Pass Notes: 1. Converting dBuV/M to dBm at 3 meters (dBuV/M) +9.542-104.77dB=dBm Converting dBuV/M to dBm at 10 meters (dBuV/M) +20 -104.77dB=dBm 2. The same horn antenna and measurement system was used for EUT scan and during substitution method. After maximizing the receive antenna and adjusting signal generator power level to measure the same emission level with the spectrum analyzer as with the EUT. Signal generator output level was recorded for each of the spurious frequencies. Test cable was then disconnected from the transmit horn and was connected to the input of the S/A measuring the voltage at the terminals of the antenna. 3. This value was obtained by converting the Equivalent Isotropic Radiated Power (EIRP) to ideal half-wave dipole reference power - (Equivalent Di-Pole Radiated Power - EDRP) per (TIA-603, 2.2.12.2(i)(m) Radiated EngineerDate

FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION A Summary of RF Measurements 4812ETL 1.9GHz FCC Filing - SC4812ETL @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6AP1 SECTION C Spurious & Harmonic Emissions Radiated
