IHET6DY1SC4812T-MC 1X/1X-DO @ 1.9GHz

The manual included is presently being edited and is a preliminary version representative of the SC4812T-MC 1X/1X-EVDO @ 1.9 GHz CDMA BTS Optimization Manual DRAFT 68P09260A64ñB 5/21/04 ENGLISH CDMA2000 1X SOFTWARE RELEASE 2.16.4.X Technical Information 1X SC4812TñMC BTS OPTIMIZATION/ATP 800 MHZ & 1.9 GHZ DRAFT SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and its licensors certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted material of Motorola and its licensors contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or thirdñparty products used in the product described herein are NOT faultñtolerant and are NOT designed, manufactured, or intended for use as onñline control equipment in the following hazardous environments requiring failñsafe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (ìHigh Risk Activitiesî). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © Copyright 2004 Motorola, Inc. Javat Technology and/or J2MEt: Java and all other Javañbased marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. UNIX R : UNIX is a registered trademark of The Open Group in the United States and other countries. REV091302 5/21/041X SC4812TñMC BTS Optimization/ATP i DRAFT Table of Contents 1X SC4812TñMC BTS Optimization/ATP Software Release 2.16.4.x ii1X SC4812TñMC BTS Optimization/ATP5/21/04 DRAFT List of Figures 1X SC4812TñMC BTS Optimization/ATP Software Release 2.16.4.x 5/21/041X SC4812TñMC BTS Optimization/ATP iii DRAFT List of Tables 1X SC4812TñMC BTS Optimization/ATP Software Release 2.16.4.x Foreword iv1X SC4812TñMC BTS Optimization/ATP5/21/04 DRAFT Scope of manual This manual is intended for use by cellular telephone system craftspersons in the day-to-day operation of Motorola cellular system equipment and ancillary devices. This manual is not intended to replace the system and equipment training offered by Motorola, although it can be used to supplement or enhance the knowledge gained through such training. Obtaining manuals To view, download, or order manuals (original or revised), visit the Motorola Lifecycles Customer web page at https://mynetworksupport.motorola.com/ , or contact your Motorola account representative. If Motorola changes the content of a manual after the original printing date, Motorola publishes a new version with the same part number but a different revision character. Text conventions The following special paragraphs are used in this manual to point out information that must be read. This information may be set-off from the surrounding text, but is always preceded by a bold title in capital letters. The four categories of these special paragraphs are: Presents additional, helpful, non-critical information that you can use. NOTE Presents information to help you avoid an undesirable situation or provides additional informa…

Text truncated - open the document above for the full version.

BTS Equipment Identification ñ continued 1-381X SC4812TñMC BTS Optimization/ATP5/21/04 DRAFT NOTE 1. Figure 1-17 identifies which BBXs are used for Omni and 2-Sector configurations. 2. The fourth PA quadrant (quadrant D) is populated with CLPAs only when the 4x4 ETM is used. 3.PHYSICAL APPEARANCE OF FRAMES: The physical appearance of the frame, especially the location of the MCM, Power Amplifier cage, and Power Distribution/Combiner cage, and the particular I/O plate used, may differ on frames converted from early version SC4812T BTSs. Functionally however, and for the purpose of optimization and acceptance testing, those frames are identical 4. For an SC4812T BTS frame which has been converted to multicarrier capability, a fourth threeñsector carrier, using BBXñ10 through BBXñ12, is supported in R16.4 and later software releases. In a converted multicarrier frame, PA slot 4 in all PA quadrants should never be populated. (see Figure 1-21). Figure 1-18: BBXs Used for Omni and TwoñSector Operation BBXñ1BBXñ4BBXñR BBXñ7 BBXñ10 BBXñ1BBXñ2BBXñ4BBXñ5BBXñR BBXñ7BBXñ8 BBXñ10 BBXñ11 CñCCP (Omni)CñCCP (2 Sector) 1 BTS Equipment Identification ñ continued 5/21/041X SC4812TñMC BTS Optimization/ATP 1-39 DRAFT Figure 1-19: TX Filter and 50Ω Termination Requirements for Omni, Twoñsector, and Threeñsector Configurations ñ OEM Multicarrier and Converted Multicarrier Frames (Minimum Power Configuration Shown) MCM 1 S1 S2 S3 CLPA CLPACLPA 1C 1A 1B Omni MCM 1 S1 S2 S3 CLPACLPA CLPACLPA 1C 1D 1A 1B TwoñSector ThreeñSector TX FILTERS TX FILTER 50W TERMINATORS TX FILTERS 50W TERMINATOR MCM 1 S1 S2 S3 CLPA CLPACLPA 1C 1A 1B 1 BTS Equipment Identification ñ continued 1-401X SC4812TñMC BTS Optimization/ATP5/21/04 DRAFT Figure 1-20: Omni, Twoñsector, and Threeñsector PA Configurations ñ OEM Multicarrier Frame MCM 1 S1 S2 S3 CLPA CLPACLPA 1C 1A 1B Minimum Power Configuration 3 x 3 ETM MCM 1 S1 S2 S3 CLPACLPA CLPACLPA 1C 1D 1A 1B Minimum Power Configuration 4 x 4 ETM MCM 1 S1 S2 S3 CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 4C 3A 2A 1A 1B 2B 3B 4B 4A CLPA CLPA CLPA CLPA Maximum Power Configuration 3 x 3 ETM MCM 1 S1 S2 S3 CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 4C 1D 2D 3D 4D 3A 2A 1A 1B 2B 3B 4B 4A CLPA CLPA CLPA CLPA Maximum Power Configuration 4 x 4 ETM 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 1 BTS Equipment Identification ñ continued 5/21/041X SC4812TñMC BTS Optimization/ATP 1-41 DRAFT Figure 1-21: Omni, Twoñsector, and Threeñsector PA Configurations ñ Converted Multicarrier Frame MCM 1 S1 S2 S3 CLPA CLPACLPA 1C 1A 1B Minimum Power Configuration 3 x 3 ETM MCM 1 S1 S2 S3 CLPACLPA CLPACLPA 1C 1D 1A 1B Minimum Power Configuration 4 x 4 ETM MCM 1 S1 S2 S3 CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 3A 2A 1A 1B 2B 3B CLPA CLPA Maximum Power Configuration 3 x 3 ETM MCM 1 S1 S2 S3 CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 1D 2D 3D 3A 2A 1A 1B 2B 3B CLPA CLPA Maximum Power Configuration 4 x 4 ETM 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 50 W TERMINATIONS and/or TX Filters (See NO TAG) 1 BTS Equipment Identification ñ continued 1-421X SC4812TñMC BTS Optimization/ATP5/21/04 DRAFT Figure 1-22: Sixñsector PA Configurations ñ OEM Multicarrier Frames Only S4 MCM 1 S5 S6 S1 S2 S3 MCM 2 CLPA CLPA CLPA CLPA CLPACLPA 1C 3C 3A 1A 1B 3B S4 MCM 1 S5 S6 S1 S2 S3 MCM 2 CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 3C 1D 3D 3A 1A 1B 3B Minimum Power Configuration 3 x 3 ETM Minimum Power Configuration 4 x 4 ETM TX FILTERS TX FILTERS S4 MCM 1 S5 S6 S1 S2 S3 MCM 2 CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 4C 3A 2A 1A 1B 2B 3B 4B 4A CLPA CLPA CLPA CLPA Maximum Power Configuration 3 x 3 ETM S4 MCM 1 S5 S6 S1 S2 S3 MCM 2 CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPA CLPACLPA 1C 2C 3C 4C 1D 2D 3D 4D 3A 2A 1A 1B 2B 3B 4B 4A CLPA CLPA CLPA CLPA Maximum Power Configuration 4 x 4 ETM TX FILTERS TX FILTERS 1 5/21/041X SC4812TñMC BTS Optimization/ATP DRAFT Chapter 2: Preliminary Operations Table of Contents Guide Book1ñ2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Document Overview1ñ2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . What Is In This Guide?1ñ2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Book Catalogs and Organization1ñ3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Book Directory1ñ3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Special Catalogs1ñ5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Physical Page Layouts1ñ6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A/A4 Page and Margin Sizes1ñ6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A/A4 Page Text Area1ñ7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A/A4 Page Components1ñ9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frame and Table Components1ñ10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frames With Tools1ñ10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Flow Charts and Block Diagrams1ñ10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Line Drawings1ñ11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table Types In This Template1ñ12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Item/Description Table…

Text truncated - open the document above for the full version.

m Global Telecom Solutions Sector M 1 of 2 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] May 26, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 5555 North Beach Street, Fort Worth, Texas 76137, herein submits: Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a PCS Cellular Transceiver, FCC ID: IHET6DY1. Motorola is also the manufacturer of this equipment. Motorola requests that the Internal Photos, Parts List, and all Sections of the Schematics Exhibit (noted below) be kept confidential: HP BBX1X- Hi Power Broadband Transceiver Card CCD - CDMA Clock Distribution Card CIO - Combiner Input/Output Card CSM1 - Clock Synchronization Module w/GPS CSM2- Clock Synchronization Module w/GPS GLI2 - Group Line Interface Card GLI3 – Group Line Interface Card HSO - High Stability Oscillator LFR – Low Frequency Receiver (Special Vendor Note) CLPA – Linear Power Amplifier MCC1X - Multi Channel CDMA Card MCC1X-DO - Multi Channel CDMA Card MPC3 - Multicoupler Preselector Card RGD – Remote GPS Distribution Card PAC – Power Alarm Card PSM – Power Supply Module SITE I/O – Site Input Output SPAN I/O – Spanline Input Output HP SW – Hi Power Switchboard

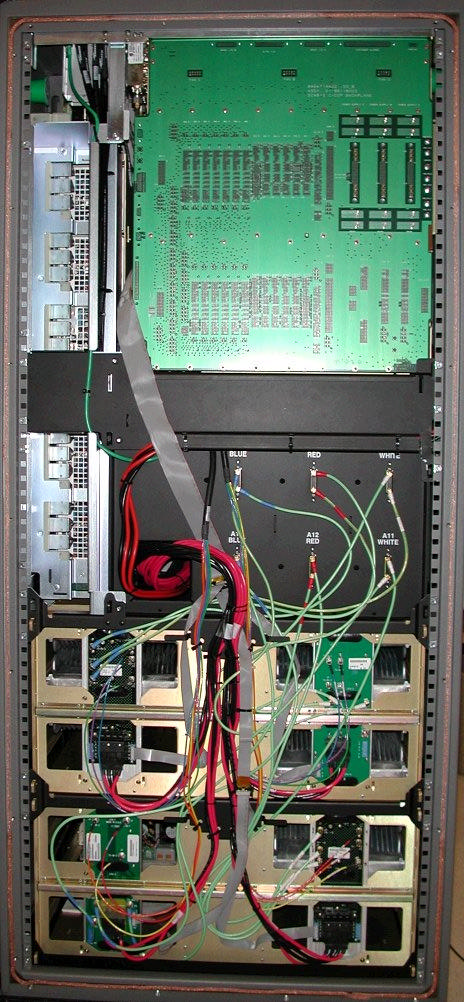

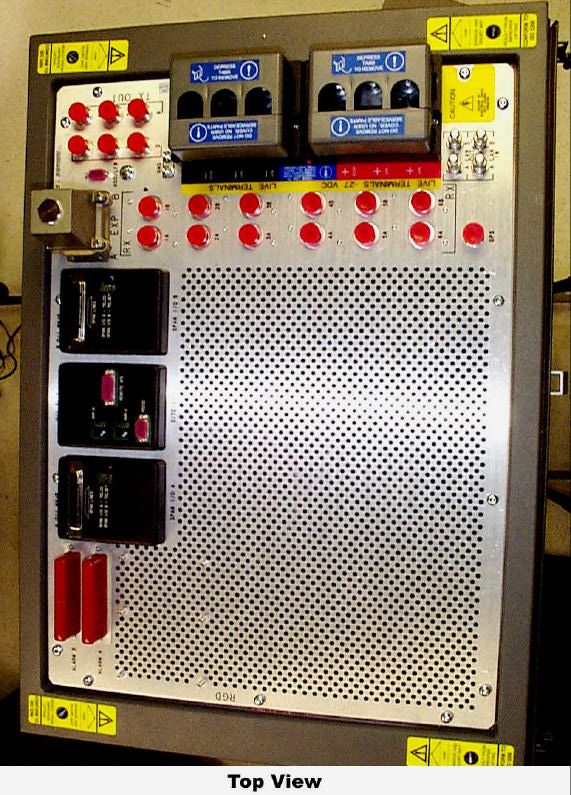

m Global Telecom Solutions Sector SC4812T-MC 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 External Photo Exhibit M 5/24/2004 10:28 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Photo Number Photograph Description Page 1 Front View with Doors Closed 2 2 Front View with Doors Open 3 3 Rear View with Panel 4 4 Rear View without Panel 5 5 Left Side View 6 6 Right Side View 7 7 Top View 8

m Global Telecom Solutions Sector SC4812T-MC 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 FCC Identification Nameplate/Frame Label Location Exhibit M 5/24/2004 10:30 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: IHET6DY1 m Global Telecom Solutions Sector SC4812T-MC 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 FCC Label Exhibit M 5/24/2004 10:29 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected]

m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION A RF Output Power - 47CFR2.1046 Channel Tune Frequency (MHz) Modulation Power Level (W) Power Level (dBm) Power Level Measured (dBm) IS-97 Limit (dB) Pass/Fail 25 1931.25 1X-QPSK 45 46.53 46.90 +2/-4 Pass 25 1931.25 1X-DO-16QAM 45 46.53 46.81 +2/-4 Pass 25 1931.25 1X-DO-8PSK 45 46.53 46.76 +2/-4 Pass 1175 1988.75 1X-QPSK 45 46.53 46.59 +2/-4 Pass 1175 1988.75 1X-DO-16QAM 45 46.53 46.73 +2/-4 Pass 1175 1988.75 1X-DO-8PSK 45 46.53 46.54 +2/-4 Pass 25 1931.25 1X-QPSK 0.45 26.50 26.47 +2/-4 Pass 25 1931.25 1X-DO-16QAM 0.45 26.50 26.71 +2/-4 Pass 25 1931.25 1X-DO-8PSK 0.45 26.50 26.70 +2/-4 Pass 1175 1988.75 1X-QPSK 0.45 26.50 26.80 +2/-4 Pass 1175 1988.75 1X-DO-16QAM 0.45 26.50 26.71 +2/-4 Pass 1175 1988.75 1X-DO-8PSK 0.45 26.50 26.69 +2/-4 Pass m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Summary of Radiated RF Measurements Worst Case Radiated RF Spur Level Transmit Channel Power Level (W) Spur Freq. (MHz) Spur Level Measured (dBμV/meter) Spur Level Measured (dBm*) FCC Max Limit (dBm) Pass/Fail 1175 45 7955.0 57.990 -37.24 -13.0 Pass Summary of Conducted RF Measurements Worst Case Conducted RF Spur Level Transmit Channel Power Level (W) Freq. (MHz) Spur Level Measured (dBm) FCC Max Limit (dBm) Pass/Fail 1175 45 5.96525 -25.20 -13 Pass m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION B Modulation Characteristics - 47CFR2.1047 Summary of Modulation Characteristics Channel Tune Frequency (MHz) Modulation Power Level (W) RHO Measured RHO Spec Pass/Fail 25 1931.25 1X-QPSK 45 0.98527 >0.912 Pass 25 1931.25 1X-DO-16QAM 45 0.99780 >0.912 Pass 25 1931.25 1X-DO-8PSK 45 0.99788 >0.912 Pass 1175 1988.75 1X-QPSK 45 0.98497 >0.912 Pass 1175 1988.75 1X-DO-16QAM 45 0.99807 >0.912 Pass 1175 1988.75 1X-DO-8PSK 45 0.99733 >0.912 Pass 25 1931.25 1X-QPSK 0.45 0.98526 >0.912 Pass 25 1931.25 1X-DO-16QAM 0.45 0.99736 >0.912 Pass 25 1931.25 1X-DO-8PSK 0.45 0.99818 >0.912 Pass 1175 1988.75 1X-QPSK 0.45 0.98521 >0.912 Pass 1175 1988.75 1X-DO-16QAM 0.45 0.99738 >0.912 Pass 1175 1988.75 1X-DO-8PSK 0.45 0.99794 >0.912 Pass Note: The BTS was configured for maximum power out of 46.53 dBm, and minimum power of 26.5dBm respectively. The output power was set respectively to 45W, and 450mW using a power meter. m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION C Occupied Bandwidth - 47CFR2.1049 Summary of Occupied Bandwidth Channel Frequency (MHz) Modulation Power Level (dBm) Measured (MHz) FCC Limit (MHz) Pass/Fail 25 1931.25 1X-QPSK 46.90 1.2280 1.30 Pass 25 1931.25 1X-DO-16QAM 46.81 1.2732 1.30 Pass 25 1931.25 1X-DO-8PSK 46.76 1.2747 1.30 Pass 1175 1988.75 1X-QPSK 46.59 1.2224 1.30 Pass 1175 1988.75 1X-DO-16QAM 46.73 1.2753 1.30 Pass 1175 1988.75 1X-DO-8PSK 46.54 1.2761 1.30 Pass 25 1931.25 1X-QPSK 26.47 1.2198 1.30 Pass 25 1931.25 1X-DO-16QAM 26.71 1.2747 1.30 Pass 25 1931.25 1X-DO-8PSK 26.70 1.2761 1.30 Pass 1175 1988.75 1X-QPSK 26.80 1.2241 1.30 Pass 1175 1988.75 1X-DO-16QAM 26.71 1.2764 1.30 Pass 1175 1988.75 1X-DO-8PSK 26.69 1.2741 1.30 Pass Note: The BTS was configured for maximum power out of 46.53 dBm, and minimum power of 26.5dBm respectively. The output power was set respectively to 45W, and 450mW using a power meter. The following formula is used to obtain the correct power reference point from which the OBW of the CDMA signal is obtained. See example calculation below: Power (measured in 30kHz bandwidth) + 10 log (1.2288 MHz/30kHz) The occupied bandwidth is measured in a 30 kHz resolution bandwidth. Results are summarized above. m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Occupied Bandwidth – 45W Channel 25 – 1.93125 GHz – QPSK Channel 25 – 1.93125 GHz – 16QAM m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Channel 25 – 1.93125 GHz – 8PSK Channel 1175 – 1.98875 GHz – QPSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Channel 1175 – 1.98875 GHz – 16QAM Channel 1175 – 1.98875 GHz – 8PSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Occupied Bandwidth – .45W Channel 25 – 1.93125 GHz - QPSK Channel 25 – 1.93125 GHz – 16QAM m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Ex…

Text truncated - open the document above for the full version.

m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 45W Channel 1175 – 1.98875 GHz – 8PSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 0.45W Channel 25 – 1.93325 GHz – QPSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 0.45W Channel 25 – 1.93325 GHz – 16QAM m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 0.45W Channel 25 – 1.93325 GHz – 8PSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report E…

Text truncated - open the document above for the full version.

m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 0.45W Channel 1175 – 1.98875 GHz – QPSK m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 0.45W Channel 1175 – 1.98875 GHz – 16QAM m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812T-MC 1X/1X-DO @ 1.9 GHz CDMA BTS FCC ID: IHET6DY1 Test Report Exhibit M 5/24/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global T…
