IHET6EQ1SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS

Nokia Solutions and Networks

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Nov 07, 2004
Application Purpose: Original Equipment
Date of Application: Nov 07, 2004
Equipment Note: SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS
Frequency Range: 1931.25000000 - 1988.75000000
Company: Nokia Solutions and Networks
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SCt4812ET Optimization/ATP Manual Software Release R16.1.x.x 800 and 1900 MHz CDMA English Aug 2002 68P09255A57-2 PRELIMINARY Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third-party products used in the product described herein are NOT fault-tolerant and are NOT designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright  Copyright 2002 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV012501 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE SC4812ET Optimization/ATP Manual Software Release R16.1.x.x PRELIMINARY i Aug 2002 SCt4812ET Optimization/ATP Manual Table of Contents . . . Table of Contents 68P09255A57-2 SC4812ET Optimization/ATP Manual Software Release R16.1.x.x PRELIMINARY ii Aug 2002 Contents FCC Requirementsxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Contentxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 15 Requirementsxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Part 68 Requirementsxix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxxiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1 Introduction1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Introduction1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Scope of This Document1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Document Composition1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Block Diagram

m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Block Diagram Exhibit M 11/3/2004 10:29 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] 12 12 12RX Main 12 TX 12RX Div High Power LPAs + Trunking Modules MCC1X/ MCC 1X-EVDO HP BBX1X (Redundant) HP Switch Power Supply CDMA Clock Distribution Clock Synch Module MPC3 Span IO High Stability Oscillator C-CCP Shelf GLI3 AMR GPS RX Filters 6 or 12 6 or 12 6 or 12 Clk/Sync 2 12 12 Filter / Combiner Filter / Combiner if 3 sector 3 TCH Data13 Fwd13 Rvs CT1 SpanTo/From CBSC 3 6 RX TX Optional Comm / Bus Clk / Sync RF 2 2 Customer Alarms Site IO LAN In / Out To LMF HP BBX1X CIO Rx Rx Tx Tx Remote GPS Dist Optional Frame Block Diagram

Cover Letter(s)

m Global Telecom Solutions Sector M 1 of 2 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] November 2, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 5555 North Beach Street, Fort Worth, Texas 76137, herein submits: Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a PCS Cellular Transceiver, FCC ID: IHET6EQ1. Motorola is also the manufacturer of this equipment. Motorola requests that the Internal Photos, Parts List, and all Sections of the Schematics Exhibit (noted below) be kept confidential. These exhibits contain technical trade secret information and should be guarded from competitors as stated under the Code of Federal Regulations Title 47 Section 0.457 and 0.459. HP BBX1X- Hi Power Broadband Transceiver Card CCD - CDMA Clock Distribution Card CIO - Combiner Input/Output Card CSM1 - Clock Synchronization Module w/GPS CSM2- Clock Synchronization Module w/GPS GLI2 - Group Line Interface Card GLI3 – Group Line Interface Card HSO - High Stability Oscillator LFR – Low Frequency Receiver (Special Vendor Note) CLPA – Linear Power Amplifier MCC1X - Multi Channel CDMA Card MCC1X-DO - Multi Channel CDMA Card MPC3 - Multicoupler Preselector Card RGD – Remote GPS Distribution Card PAC – Power Alarm Card PSM – Power Supply Module SITE I/O – Site Input Output SPAN I/O – Spanline Input Output HP SW – Hi Power Switchboard

External Photos

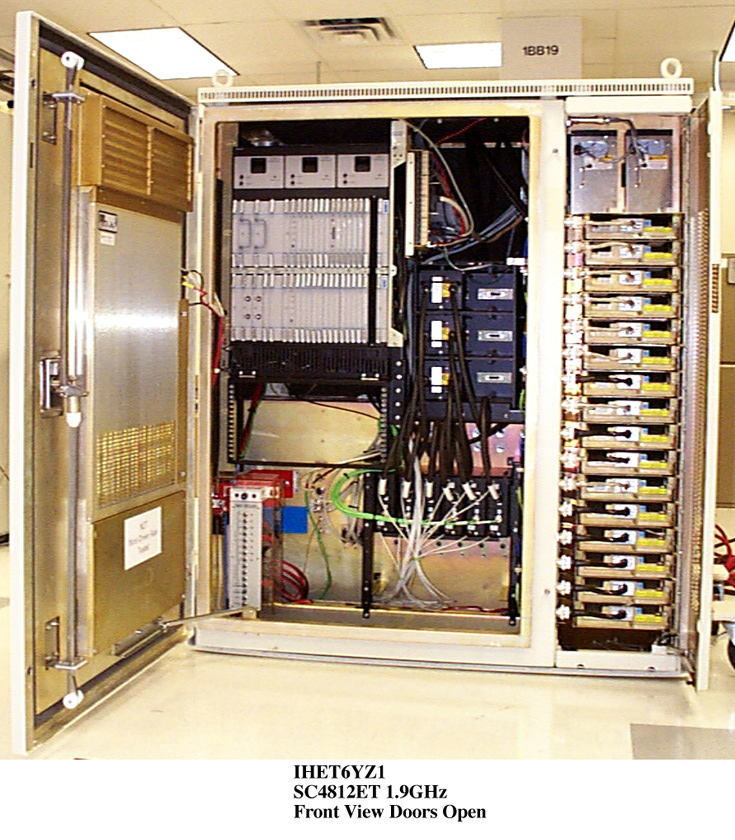

m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 External Photo Exhibit M 11/3/2004 10:15 AM Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Photo Number Photograph Description Page 1 Front View with Doors Closed 2 2 Front View with Doors Open 3 3 Rear View with Panel 4 4 Rear View without Panel 5 5 Left Side View 6 6 Right Side View 7 7 Top View 8

ID Label/Location Info

APPLICANT: MOTOROLA FCC ID: IHET6EQ1 EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | ||||||| | Model No.__________________ |||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | Serial No.__________________ MOTOROLA FCC ID: IHET6EQ1 Complies with Part 68, FCC Rules FCC Reg. No. IHEUSA-33839-DE-E REN: 03B USOC: RJ11C 800 MHz SC4812 ET IHET5CT1 Location of FCC ID Label Side FCC Label (Top of Panel)

Operational Description

FCC Filing- SC4812T 1X / 1X-EVDO @ 1.9GHz CDMA BTS 1 of 12 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812ET 1X / 1X-EVDO @ 1.9GHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2. 1033 (b) Identification of Equipment: IHET6EQ1 Section 2. 1033 (c) Quantity Production: Quantity Production is planned. Section 2. 1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 24. This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 128 Walsh codes to support Pilot, Sync, Paging, Supplemental, and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS-CDMA) digital communication techniques. For this transmitter, the emission designator is 1M30F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 1931.25-1988.75 MHz Band for 1X/1X-EVDO operation. (per FCC Part 24). This base station will support CDMA operations on channel numbers 25 through 1175 inclusive for 1X/1X-EVDO operation. (3) Range of Operating Power The rated maximum average power out of the SC4812ET 1X / 1X-EVDO @ 1.9 GHz CDMA BTS is 45 W (46.53 dBm) per RF carrier. However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. For a typical system setup, the theoretical difference between minimum power and maximum power is about 8 dB. The output power is variable in 0.25 dB steps. FCC Filing- SC4812T 1X / 1X-EVDO @ 1.9GHz CDMA BTS 2 of 12 (3) Range of Operating Power (cont.) In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 100 Watts as defined in Part 24.232. (5) Applied voltages and currents into the final transistor elements of the transmitter output: The applied voltages and currents into each of the Linear Power Amplifier’s final transistor elements are as follows: Drain 27.0 VDC Drain Current 1.0 AMPS Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. FCC Filing- SC4812T 1X / 1X-EVDO @ 1.9GHz CDMA BTS 3 of 12 (10) Means for Frequency Stabilization Refer to the Test Report Exhibit. The Clock Synchronization Module (CSM2) provides clock and time signals for an SC4812ET 1X / 1X-EVDO @ 1.9 GHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM2 relies on a GPS receiver, either riding piggyback onto the CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM2 cards provide redundancy in case of primary CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards. The CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM2 from the GLI2. The CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. FCC Filing- SC4812T 1X / 1X-EVDO @ 1.9GHz CDMA BTS 4 of 12 (11) Means for Attenuation of Spurious Emissions Refer to the Test Report Exhibit. Band pass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. In addition to the digital filters described below, the baseband also employs a discrete anti-alias filter that attenuates signals greater than 2MHz. Out of band emissions are also attenuated by ceramic filters in the transmit RF lineup. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to approximately 1.28 MHz by a pseudo-random spreading code. This spreading code sets the bandwidth of the spread-spectrum signal. If more than one signal is in operation (i.e. more than one channel), then the two signals are simply layered one atop the other within the 1.3 MHz band. So, to some extent, the bandwidth of…

Text truncated - open the document above for the full version.

Test Report

m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Equipment Authorization Measurements FCC Identifier: IHET6EQ1 Name of Grantee: Motorola, Inc Equipment Class: Licensed Non-Broadcast Transmitter Notes: SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC CFR Title 47 Description Section Compliant 2.1046 RF Output Power A Yes 2.1047 Modulation Characteristics B Yes 2.1049 Occupied Bandwidth C Yes 2.1051 Spurious Emissions at Antenna Terminals D Yes 2.1053 Field Strength of Spurious Radiation E Yes 2.1055 Frequency Stability F Yes Measurements Performed by: Motorola EMC Facility 5555 North Beach Street Fort Worth, TX 76137 Authorized Testing Laboratory FCC Test Firm Registration No. 90809 Test Engineer FCC/Package Coordination m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION A RF Output Power - 47CFR2.1046 Channel Tune Frequency (MHz) Modulation Power Level (W) Power Level (dBm) Power Level Measured (dBm) IS-97 Limit (dB) Pass/Fail 25 1931.25 1X-QPSK 45 46.53 46.12 +2/-4 Pass 25 1931.25 1X-DO-16QAM 45 46.53 46.51 +2/-4 Pass 25 1931.25 1X-DO-8PSK 45 46.53 46.41 +2/-4 Pass 1175 1988.75 1X-QPSK 45 46.53 46.74 +2/-4 Pass 1175 1988.75 1X-DO-16QAM 45 46.53 46.86 +2/-4 Pass 1175 1988.75 1X-DO-8PSK 45 46.53 46.84 +2/-4 Pass 25 1931.25 1X-QPSK 0.45 26.50 26.74 +2/-4 Pass 25 1931.25 1X-DO-16QAM 0.45 26.50 26.66 +2/-4 Pass 25 1931.25 1X-DO-8PSK 0.45 26.50 26.74 +2/-4 Pass 1175 1988.75 1X-QPSK 0.45 26.50 26.68 +2/-4 Pass 1175 1988.75 1X-DO-16QAM 0.45 26.50 26.83 +2/-4 Pass 1175 1988.75 1X-DO-8PSK 0.45 26.50 26.64 +2/-4 Pass m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Summary of Radiated RF Measurements Worst Case Radiated RF Spur Level Transmit Channel Power Level (W) Spur Freq. (GHz) Spur Level Measured (dBμV/meter) Spur Level Measured (dBm*) FCC Max Limit (dBm) Pass/Fail 25 45 15.450 72.370 -22.86 -13.0 Pass Summary of Conducted RF Measurements Worst Case Conducted RF Spur Level Transmit Channel Power Level (W) Mod Type Freq. (GHz) Spur Level Measured (dBm) FCC Max Limit (dBm) Pass/Fail 1175 45 16QAM 1.93035 -13.17 -13 Pass m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION B Modulation Characteristics - 47CFR2.1047 Summary of Modulation Characteristics Channel Tune Frequency (MHz) Modulation Power Level (W) RHO Measured RHO Spec Pass/Fail 25 1931.25 1X-QPSK 45 0.98184 >0.912 Pass 25 1931.25 1X-DO-16QAM 45 0.99736 >0.985 Pass 25 1931.25 1X-DO-8PSK 45 0.99716 >0.985 Pass 1175 1988.75 1X-QPSK 45 0.98271 >0.912 Pass 1175 1988.75 1X-DO-16QAM 45 0.99807 >0.985 Pass 1175 1988.75 1X-DO-8PSK 45 0.99765 >0.985 Pass 25 1931.25 1X-QPSK 0.45 0.98291 >0.912 Pass 25 1931.25 1X-DO-16QAM 0.45 0.99740 >0.985 Pass 25 1931.25 1X-DO-8PSK 0.45 0.99733 >0.985 Pass 1175 1988.75 1X-QPSK 0.45 0.98299 >0.912 Pass 1175 1988.75 1X-DO-16QAM 0.45 0.99825 >0.985 Pass 1175 1988.75 1X-DO-8PSK 0.45 0.99776 >0.985 Pass Note: The BTS was configured for maximum power out of 46.53 dBm, and minimum power of 26.5dBm respectively. The output power was set respectively to 45W, and 450mW using a power meter. m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION C Occupied Bandwidth - 47CFR2.1049 Summary of Occupied Bandwidth Channel Frequency (MHz) Modulation Power Level (dBm) Measured (MHz) FCC Limit (MHz) Pass/Fail 25 1931.25 1X-QPSK 46.90 1.2118 1.30 Pass 25 1931.25 1X-DO-16QAM 46.81 1.2717 1.30 Pass 25 1931.25 1X-DO-8PSK 46.76 1.2702 1.30 Pass 1175 1988.75 1X-QPSK 46.59 1.2285 1.30 Pass 1175 1988.75 1X-DO-16QAM 46.73 1.2801 1.30 Pass 1175 1988.75 1X-DO-8PSK 46.54 1.2672 1.30 Pass 25 1931.25 1X-QPSK 26.47 1.2150 1.30 Pass 25 1931.25 1X-DO-16QAM 26.71 1.2757 1.30 Pass 25 1931.25 1X-DO-8PSK 26.70 1.2653 1.30 Pass 1175 1988.75 1X-QPSK 26.80 1.2120 1.30 Pass 1175 1988.75 1X-DO-16QAM 26.71 1.2915 1.30 Pass 1175 1988.75 1X-DO-8PSK 26.69 1.2693 1.30 Pass Note: The BTS was configured for maximum power out of 46.53 dBm, and minimum power of 26.5dBm respectively. The output power was set respectively to 45W, and 450mW using a power meter. The following formula is used to obtain the correct power reference point from which the OBW of the CDMA signal is obtained. See example calculation below: Power (measured in 30kHz bandwidth) + 10 log (1.2288 MHz/30kHz) The occupied bandwidth is measured in a 30 kHz resolution bandwidth. Results are summarized above. m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Occupied Ba…

Text truncated - open the document above for the full version.

Test Report

m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] SECTION D Spurious Emissions at Antenna Terminal - 47 CFR 2.1051 Summary of Worst Case Spurious Emissions at Antenna Terminal Channel Modulation Freq. (GHz) Spur Level Measured (dBm) FCC Max Limit (dBm) Pass/Fail 25 1X-QPSK 1.93035 -13.59 -13 Pass 25 1X-DO-16QAM 1.93035 -13.17 -13 Pass 25 1X-DO-8PSK 1.93035 -13.33 -13 Pass 1175 1X-QPSK 1.98965 -18.61 -13 Pass 1175 1X-DO-16QAM 1.98965 -17.10 -13 Pass 1175 1X-DO-8PSK 1.98965 -19.52 -13 Pass FCC Max. Limit Per 47 CFR: = Transmitted Power (10 Log10 (Pwatt)) - (43 + 10 Log10 (Pwatt)) dBW = 10 Log10 (Pwatt) - (43 + 10 Log10 (Pwatt)) dBW = -43 dBW = -13 dBm m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 45W Channel 25 – 1.93125 GHz – QPSK m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 45W Channel 25 – 1.93125 GHz – 16QAM m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] Spurious Emissions at Antenna Terminal – 45W Channel 25 – 1.93125 GHz – 8PSK m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected] m Global Telecom Solutions Sector SC4812ET 1X/1X-EVDO @ 1.9 GHz CDMA BTS FCC ID: IHET6EQ1 Test Report Exhibit M 11/3/2004 Global Telecom Solutions Sector, 5555 North Beach Street TX14-7C, Fort Worth, Texas Telephone (817) 245-6039, Fax (817) 245-6248, Email [email protected]

Test Report

Text truncated - open the document above for the full version.

Contact Information

Applicant

Steve Mitchell

[email protected]972-936-7500Fax: 972-936-7273

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.93 GHz - 1.99 GHz	45 W	1M30F9W	0.0200000000 ppm

Confidentiality

Long Term

Grant Notes

Power Output listed in Conducted. The antenna used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of � 1.1307(b)(3).
