Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
1X SCt4812ET Lite BTS Optimization/ATP Software Release 2.16.0.x and CDMA LMF Build 2.16.x.x 800 MHz and 1.9 GHz CDMA English 08/01/2001 68P09253A60–1 PRELIMINARY FOA Notice While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies or omissions. Motorola, Inc. reserves the right to make changes to any products described herein and reserves the right to revise this document and to make changes from time to time in content hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability arising out of the application or use of any product, software, or circuit described herein; neither does it convey license under its patent rights or the rights of others. It is possible that this publication may contain references to, or information about Motorola products (machines and programs), programming, or services that are not announced in your country. Such references or information must not be construed to mean that Motorola intends to announce such Motorola products, programming, or services in your country. Copyrights This instruction manual, and the Motorola products described in this instruction manual may be, include or describe copyrighted Motorola material, such as computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted material, including the exclusive right to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly, any copyrighted Motorola material contained herein or in the Motorola products described in this instruction manual may not be copied, reproduced, distributed, merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents or patent applications of Motorola, as arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreement The software described in this document is the property of Motorola, Inc. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. Copyrighted Materials Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without prior written permission of Motorola, Inc. High Risk Activities Components, units, or third–party products used in the product described herein are NOT fault–tolerant and are NOT designed, manufactured, or intended for use as on–line control equipment in the following hazardous environments requiring fail–safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication Systems, Air Traffic Control, Life Support, or Weapons Systems (“High Risk Activities”). Motorola and its supplier(s) specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities. Trademarks and Motorola are registered trademarks of Motorola, Inc. Product and service names profiled herein are trademarks of Motorola, Inc. Other manufacturers’ products or services profiled herein may be referred to by trademarks of their respective companies. Copyright Copyright 2001 Motorola, Inc. All Rights Reserved Printed on Recyclable Paper REV012501 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE 08/01/2001 i 1X SCt4812ET Lite BTS Optimization/ATP PRELIMINARY Table of Contents 1X SCt4812ET Lite BTS Optimization/ATP Software Release 2.16.0.x and CDMA LMF Build 2.16.x.x List of Figuresiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . List of Tablesvii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forewordxii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FCC Requirementsxv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General Safetyxviii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Revision Historyxx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Patent Notificationxxi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Chapter 1: Introduction Optimization Manual Scope and Layout1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Purpose of the Optimization1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . When to Optimize1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Test Equipment and Software1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Required Documents and Related Publications1-12. . . . . . . . . . . . . . . . . . . . . . . . . Terms and Abbreviations1-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . BTS Equipment Identification1-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cabinet Identification1-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Internal Assembly Location and Identification1-18. . . . . . . . . . . . . . . . . . . . . . . . . BTS S…
Text truncated - open the document above for the full version.
M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 1 of 1 December 1, 2004 Federal Communications Commission Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Cellular Transceiver Certification Gentlemen: Motorola Inc., 1475 W. Shure Drive, Arlington Heights, Illinois 60004, herein submits: Filing fee, Application for Equipment Authorization (FCC Form 731) and Sections, for Certification of a Cellular Transceiver, FCC ID: IHET6ER1. Motorola is also the manufacturer of this equipment. Motorola requests that the Internal Photos, Parts List, and Schematics Exhibit be kept confidential in accordance with CFR47 0.459 and 0.457. The product is not generally accessible to the public and will be installed in a restricted area. The filing fee includes $145.00, the amount for a confidential filing. This equipment has the capability to operate using Code Division Multiple Access (CDMA) on a spread spectrum signal operating in the cellular band. This more efficient modulation scheme can provide 3 to 10 times the number of available voice channels when compared to existing analog technologies. Technical details for this alternate cellular technology (permitted under the cellular service option provisions in section 22 Subpart H of the Commission’s rules) related to certification of this equipment, are provided in the Statements of Certification Exhibit, and throughout the other exhibits. Please contact me by phone at (847) 435-9487, by Fax at (847) 632-5936, or by correspondence at the address herein if there are further questions or if additional information is needed concerning this filing. Regards, Scott Munier Senior Resource Manager Customer Integration Engineering

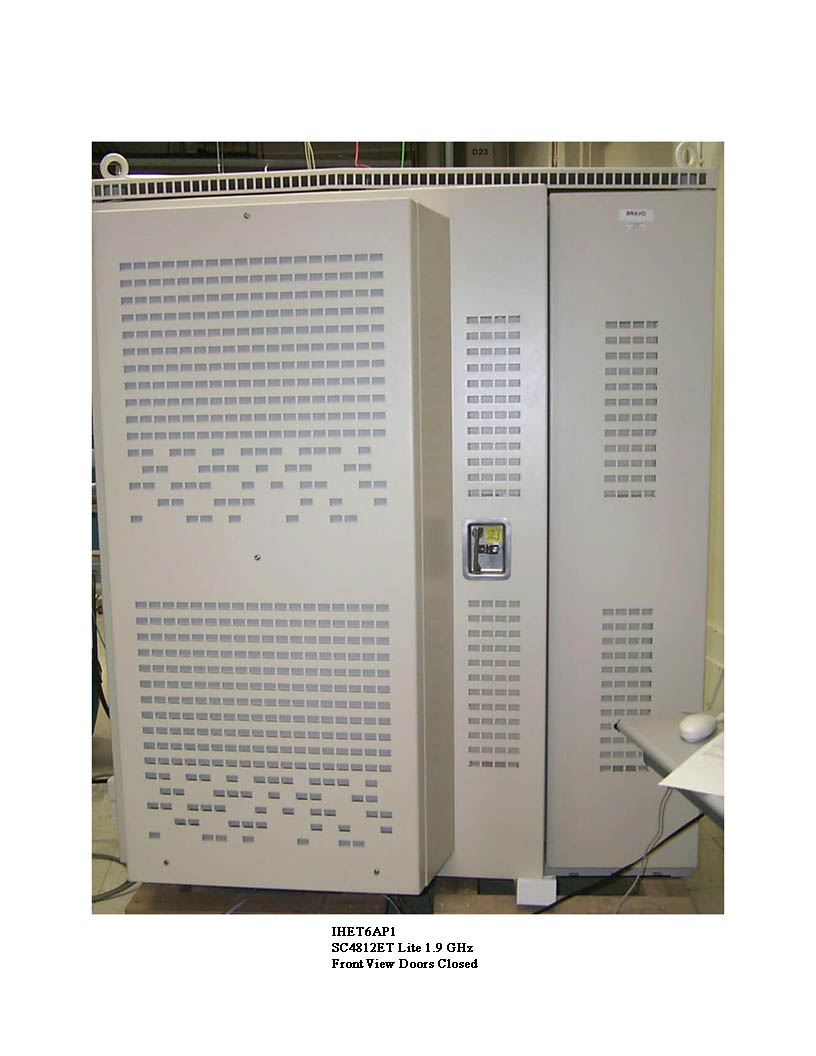

M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 1 of 7 External Photos Exhibit SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS Number Description 1 Front View Doors Closed 2 Front View Doors Open 3 Rear View 4 Left Side View 5 Right Side View 6 Top View
EQUIPMENT NAMEPLATE PER CFR., Title 47, Part 2.925 Bar Coding Graphics to be black A name plate of this type, or one similar to it, will be affixed to every base station. This label is permanent, indelible, and tamper evident. || | |||| | ||| | |||||| | | ||||| ||| ||| || | | |||||| Serial No. Complies with Part 68, FCC Rules Model No. _____________ ||||| | | ||| |||| ||||| | | | ||||| | |||| ||| || || || | | FCC Reg. No. REN: USOC: MOTOROLA FCC ID: SC4812ETLite 1X/EVDO @ 1.9GHz IHET6ER1 Location of FCC ID Label Side FCC Label (Top of Panel)
FCC Filing- SC4812ETLite 1X/EVDO @ 1.9GHz CDMA BTS 1 of 12 DESCRIPTIVE INFORMATION FCC FILING FOR SC4812ETLite 1X/EVDO @ 1.9GHz CDMA BTS The Information in this exhibit is in accordance with the FCC Rules and Regulations, Vol. II, Part 2, Subpart J. Sections 2.1033 through 2.1055 are addressed. Section 2.1033 (a) Name of Applicant and Manufacturer: MOTOROLA Section 2. 1033 (b) Identification of Equipment: IHET6ER1 Section 2. 1033 (c) Quantity Production: Quantity Production is planned. Section 2. 1033 (d) Technical Description This Transmitter is intended for use in the Public Cellular Radio Telecommunications Service and is designed in compliance with the FCC Rules and Regulations Title 47, Part 24. This transmitter is capable of spread spectrum (CDMA) operation, and allows up to 128 Walsh codes to support Pilot, Sync, Paging, Supplemental, and Traffic channels. (1) Types of Emissions This equipment will be capable of operation using wide band spread spectrum techniques employing Direct Sequence Code Division Multiple Access (DS- CDMA) digital communication techniques. For this transmitter, the emission designator is 1M30F9W (per FCC Part 2.201, subpart C). (2) Frequency Range This transmitter operates within the 1931.25-1988.75 MHz Band for 1X/ EVDO operation. (per FCC Part 24). This base station will support CDMA operations on channel numbers 25 through 1175 inclusive for 1X/EVDO operation. (3) Range of Operating Power The rated maximum average power out of the SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS is 40 W (46.00 dBm) per RF carrier. However, in CDMA the actual power output is based on the number of traffic channels in operation. The minimum power occurs when only a pilot signal is present. The maximum power occurs when a pilot along with synchronization, paging, and traffic channels are present. For a typical system setup, the theoretical difference between minimum FCC Filing- SC4812ETLite 1X/EVDO @ 1.9GHz CDMA BTS 2 of 12 power and maximum power is about 8 dB. The output power is variable in 0.25 dB steps. (3) Range of Operating Power (cont.) In addition, the dynamics of a CDMA system allow for what is called “cell breathing”. This allows an operator to vary the range of a cell by controlling the power of the pilot signal. (4) Maximum Power Limits The peak output power of a base station transmitter may not exceed 100 Watts as defined in Part 24.232. (5) Applied voltages and currents into the final transistor elements of the transmitter output: The applied voltages and currents into each of the Linear Power Amplifier’s final transistor elements are as follows: Drain 27.0 VDC Drain Current 1.0 AMPS Gate Voltage 4 VDC (6) Function of Each Active Device Refer to the Operational Description Exhibit. (7) Complete Circuit Diagrams Refer to the Schematics Exhibit. (8) Instruction/Installation Manual Refer to the Installation Manual Exhibit. (9) Tune-Up/Optimization Procedure Refer to the Users Manual Exhibit. FCC Filing- SC4812ETLite 1X/EVDO @ 1.9GHz CDMA BTS 3 of 12 (10) Means for Frequency Stabilization Refer to the Test Report Exhibit. The Clock Synchronization Module (CSM2) provides clock and time signals for an SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS. In addition, it provides the primary source, a 3 MHz clock, for the transmit synthesizer in the Broadband Transceiver. The CSM2 relies on a GPS receiver, either riding piggyback onto the CSM2 card or remotely located in an integrated package with the GPS antenna as the primary time reference for the ovenized oscillator. Two types of redundancy are provided: 1) Dual CSM2 cards provide redundancy in case of primary CSM2 failure. 2) Redundancy is also provided by either a High Stability Oscillator (HSO) or a Low Frequency Reference (LFR), such as a Loran C receiver, residing in a separate slot. The HSO is provided in case of GPS system failure. The CSM2 uses the received signals as a reference to provide the required clock for the site. The CSM2 distributes CDMA time, a 19.6608 MHz clock, and a two second synchronization pulse every even second of universal time to the CDMA Clock Distribution (CCD) Cards. The CSM2 is also responsible for configuration and management of the GPS and LFR systems. CSM2 software determines on a site basis what the GPS and LFR configurations should be. For future Commercial CDMA systems, GPS and LFR configuration information could optionally be downloaded to the CSM2 from the GLI2. The CSM2 is managed by the GLI2. The High Stability Oscillator (HSO) or Low Frequency Time Reference (LFR) is used to provide a stable time reference in case of a GPS system failure or shutdown. The output of the LFR card is routed to the CSM2 cards, which derive the appropriate time references for the RF section. The current LFR is a LoranC receiver. In areas where LoranC is unavailable, the HSO may be used. FCC Filing- SC4812ETLite 1X/EVDO @ 1.9GHz CDMA BTS 4 of 12 (11) Means for Attenuation of Spurious Emissions Refer to the Test Report Exhibit. Band pass filters are employed in the transmit RF circuit to attenuate far out spurious emissions. The filter used here is of an air dielectric cavity resonator type. In addition to the digital filters described below, the baseband also employs a discrete anti-alias filter that attenuates signals greater than 2MHz. Out of band emissions are also attenuated by ceramic filters in the transmit RF lineup. In addition, suppression of spurious radiation is obtained by proper shielding techniques. Means for Limiting Modulation Refer to the Test Report Exhibit. In a CDMA system, the input signal (voice for example) is sampled and coded in a vocoder. This signal is then spread to approximately 1.28 MHz by a pseudo- random spreading code. This spreading code sets the bandwidth of the spread- spectrum signal. If more than one signal is in operation (i.e. more than one channel), then the two signals are simply layered one atop the other within the 1.3 MHz band. So, to some extent, the bandwidth of the …
Text truncated - open the document above for the full version.
Conducted Emissions Test Results, Test Setup SC4812ET LITE LISN THERMAL CHAMBER AC Power Filter LISN LISN SC4812ET LITE 240 VAC L1 L2 Ground L1 L2 240 VAC M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 1 of 3 Conducted RFI Voltage Emissions Line 1 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 2 of 3 Conducted RFI Voltage Emissions Line 2 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 3 of 3 Conducted RFI Voltage Emissions Neutral
M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 1 of 55 SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS TEST REPORT EXHIBIT Index Section Description A Summary of RF Measurements B Modulation Characteristics C Spurious & Harmonic Emissions Radiated D Spurious & Harmonic Emissions Conducted E Occupied Bandwidth F Frequency Stability M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 2 of 55 Section A Summary of RF Measurements M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 3 of 55 Summary of Radiated RF Measurements Maximum Radiated RF Spur Level for SC4812ETLite EVDO @ 1.9 GHz CDMA BTS Radiated RF Measurements Spec Result Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/m) Measured Radiated Field Strength (dBm) (Note 1) FCC Part 22/24 MAX LIMIT (dBm) (Pass/ Fail) 25 12004.003 H 48.87 -46.36 -13 Pass Notes: 1. Converting dBuV/M to dBm at 3 meters: (dBuV/M) + 9.542 – 104.77 = dBm Converting dBuV/M to dBm at 10 meters: 2. (dBuV/M) + 20 – 104.77 = dBm 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 5 of 55 Summary of Conducted RF Measurements SC4812ETLite EVDO @ 1.9 GHz CDMA BTS FCC Part 24 CHANNEL FREQUENCY (MHz) SPUR LEVEL MEASURED (dBμV) SPUR LEVEL MEASURED (dBm) FCC MAX LIMIT (dBm) PASS / FAIL 1175 13911.182 89.19 -17.81 -13 Pass 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 7 of 55 Section B Summary of Modulation Characteristics SC4812ETLite EVDO @ 1.9 GHz CDMA BTS CHANNEL TUNE FREQUENCY (MHz) RHO Measured RHO Specifications PASS / FAIL 25 1931.25 0.99805 > 0.970 Pass 1175 1988.75 0.99802 > 0.970 Pass The BTS was configured for maximum power out of 46.00dBm and minimum power out of 36.5dBm depending on the configuration. The output power was set respectively to 40.0 Watts or 4.5 Watts using an HP437B power meter. The external attenuation was 46.0 dB for channel 25 and channel 1175. 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 8 of 55 SC4812ETLite EVDO – Modulation Characteristics High Power – 46.00dBm – 8PSK Channel 25 – 1931.25 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 9 of 55 SC4812ETLite EVDO – Modulation Characteristics High Power– 46.00dBm – 16QAM Channel 1175 – 1988.75 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 10 of 55 SC4812ETLite EVDO – Modulation Characteristics Low Power– 36.5dBm – 8PSK Channel 25 – 1931.25 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 11 of 55 SC4812ETLite EVDO – Modulation Characteristics Low Power– 36.5dBm – 16QAM Channel 1175 – 1988.75 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing - SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6ER1 Modulation Characteristics Maximum Power FCC Filing - SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS Frame Cellular Infrastructure Group FCC ID: IHET6ER1 Modulation Characteristics Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 19 of 55 Section C Spurious and Harmonic Emissions Radiated M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 20 of 55 Radiated RF Measurements Maximum Radiated RF Spur Levels for SC4812ETLite EVDO @ 1.9 GHz CDMA BTS Radiated RF Measurements Spec Result Channel Spurious Frequency (MHz) Antenna Polarity Measured Radiated Field Strength (dBuV/m) Measured Radiated Field Strength (dBm) (Note 1) FCC Part 22/24 MAX LIMIT (dBm) (Pass/ Fail) 25 12004.003 H 48.87 -46.36 -13 Pass 1175 3951.904 H 48.46 -46.77 -13 Pass Notes: 1. Converting dBuV/M to dBm at 3 meters: (dBuV/M) + 9.542 – 104.77 = dBm Converting dBuV/M to dBm at 10 meters: (dBuV/M) + 20 – 104.77 = dBm 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET5EE1 FCC Filing – SC4812T Lite 1X/EVDO @ 800MHz CDMA BTS 21 of 55 Section D Spurious and Harmonic Emissions Conducted M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 22 of 55 Conducted RF Measurements SC4812ETLite EVDO @ 1.9 GHz CDMA BTS FCC Part 24 CHANNEL FREQUENCY (MHz) SPUR LEVEL MEASURED (dBμV) SPUR LEVEL MEASURED (dBm) FCC MAX LIMIT (dBm) PASS / FAIL 1175 13911.182 89.19 -17.81 -13 Pass 25 13903.98 89.08 -17.92 -13 Pass FCC Maximum Limit Per 47 CFR: “ = Transmitted Power (10 Log 10 (P watt )) – (43 + 10 Log 10 (P watt )) dBW “ = 10 Log 10 (P watt ) - (43 + 10 Log 10 (P watt )) dBW “ = -43 dBW “ = -13 dBm 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 23 of 55 Spurious and Harmonic Emissions Conducted CDMA EVDO Channel 25 – 46.00dBm – 8PSK M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 24 of 55 Spurious and Harmonic Emissions Conducted CDMA EVDO Channel 1175 – 46.00dBm – 16QAM M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Fili…
Text truncated - open the document above for the full version.
Cellular infrastructure group FCC ID: IHET6ER1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 25 Maximum Power Cellular infrastructure group FCC ID: IHET6ER1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 25 Minimum Power Network Systems Group CDMA Systems Division FCC ID: IHET6ER1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1175 Maximum Power Cellular infrastructure group FCC ID: IHET6ER1 SPURIOUS & HARMONIC EMISSIONS CONDUCTED CDMA Transmitter Channel 1175 Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 41 of 55 SECTION E OCCUPIED BANDWIDTH NOTE: The BTS was configured for maximum power out of 46.00dBm and minimum power out of 36.5dBm depending on the configuration. The output power was set respectively to 40.0 Watts or 4.5 Watts using an HP437B power meter. The external attenuation was 46.0dB for channel 25 and channel 1175. The occupied bandwidth is measured in a 30 kHz resolution bandwidth. The summary is listed below. SC4812ETLite EVDO @ 1.9 GHz SUMMARY OF OCCUPIED BANDWIDTH CHANNEL Power Level (dBm) FREQUENCY (MHz) MEASURED (MHz) FCC LIMIT (MHz) Pass / Fail 25 46.0 1931.25 1.2749 1.30 Pass 1175 36.5 1988.75 1.2793 1.30 Pass 12.01.04 Signature Date Francisco Avalos M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 42 of 55 SC4812ETLite EVDO– Occupied Bandwidth – 46.00dBm- 8PSK Channel 25 – 1931.25 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 43 of 55 SC4812ETLite EVDO– Occupied Bandwidth – 46.00dBm – 16QAM Channel 1175 – 1988.75 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 44 of 55 SC4812ETLite EVDO– Occupied Bandwidth – 36.5 dBm – 8PSK Channel 25 – 1931.25 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 45 of 55 SC4812ETLite EVDO– Occupied Bandwidth – 36.5 dBm – 16QAM Channel 1175 – 1988.75 MHz M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing - SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS Cellular Infrastructure Group FCC ID: IHET6ER1 Occupied Bandwidth Maximum Power FCC Filing - SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS Cellular Infrastructure Group FCC ID: IHET6ER1 Occupied Bandwidth Minimum Power M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 53 of 55 SECTION F FREQUENCY STABILITY MODE 27V POWER WORST CASE ∆ PPM FCC REQUIREMENT Pass / Fail CSM1 85-115% <0.02 +/- 1.5 PPM MAX Pass CSM2 85-115% <0.02 +/- 1.5 PPM MAX Pass MODE TEMPERATURE WORST CASE ∆ PPM FCC REQUIREMENT Pass / Fail CSM1 -30º to +50º C <0.2 +/- 1.5 PPM MAX Pass CSM2 -30º to +50º C <0.2 +/- 1.5 PPM MAX Pass 04.12.04 Signature Date Terry Schwenk M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 54 of 55 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @ 1.9 GHz CDMA BTS 55 of 55
M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @1.9 GHz CDMA BTS 1 of 3 STATEMENTS OF CERTIFICATION EXHIBIT M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @1.9 GHz CDMA BTS 2 of 3 STATEMENT OF CERTIFICATION The technical data supplied with this application, having been taken under our supervision is hereby duly certified. We also certify that this transmit and receive equipment (transceiver type: IHET6ER1) for cellular system use is in full compliance with all parts of EIA/TIA/IS 97-D “Recommended Minimum Performance Standards for Base Stations Supporting Dual Mode Wideband Spread Spectrum Cellular Mobile Stations,” 3GPP2-C.S0032 (IS-856) “Recommended Minimum Performance Standards for cdma2000 High Rate Packet Data Access Network (EV-DO)”, and the applicable portions of FCC CFR 47 Part 24. Name: Terry Schwenk Position: Technical Project Manager Customer Integration Engineering Signed: Date: December 1, 2004 I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in this application and accompanying technical data are true and correct. Name: Scott Munier Position: Senior Resource Manager Customer Integration Engineering Signed: Date: December 1, 2004 M APPLICANT: MOTOROLA Global Telecom Solutions Sector FCC ID: IHET6ER1 FCC Filing – SC4812ETLite 1X/EVDO @1.9 GHz CDMA BTS 3 of 3 ATTESTATION OF COMPLIANCE TESTING The transceiver type IHET6ER1 has been tested in accordance with the requirement contained in the appropriate Commission’s regulations. To the best of my knowledge, these tests were performed using measurement procedures consistent with industry or Commission standards and demonstrate that this equipment complies with the appropriate standards. Each unit manufactured, imported or marketed, will conform to the sample tested within the variations that can be expected due to quantity production and testing on a statistical basis. I further certify that the necessary measurements were made at Motorola Inc., located at 1475 W. Shure Dr., Arlington Heights, IL 60004, or at the UL International EMC radiation test facility, located at 333 Pfingsten Road, Northbrook, IL 60062-2096. Name: Scott Munier Position: Senior Resource Manager Customer Integration Engineering Signed: Date: December 1, 2004
1475 W. Shure Drive, IL75, Room 400B · Arlington Heights, Illinois · United States
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 1 | 24E | 1.93 GHz - 1.99 GHz | 40 W | 1M30F9W | 1.5000000000 ppm |
