MULTIBAND P25 AIRBORNE TRANSCEIVER MODEL TDFM-600/6000 Installation and Operating Instructions Til Document No. 01RE293 Rev. January 23 / 2002 Technisonic Industries Limited 250 Watline Avenue, Mississauga, Ontario L4Z 1P4 Tel:(905)890-2113 Fax:(905)890-5338 3840 East Robinson Road, Suite 214, Amherst, New York 14228 Tel:(716)691-0669 CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provided reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications not expressly approved by Technisonic Industries could void the user=s authority to operate the equipment. WARRANTY INFORMATION The Model TDFM-600/6000 Transceiver is under warranty for one year from date of purchase. Failed units caused by defective parts, or workmanship should be returned to: Technisonic Industries LimitedTechnisonic Industries Limited 250 Watline Avenue3840 E. Robinson Road, Suite 214 Mississauga,Amherst, Ontario L4Z 1P4New York 14228 Tel: (905) 890-2113Fax: (905) 890-5338Tel: (716) 691-0669 A Page WARNING For compliance with FCC RF Exposure Requirements, the mobile transmitter antenna installation shall comply with the following two conditions: 1. The transmitter antenna gain shall not exceed 3 Bi 2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 70 cm meters or more between the transmitter antenna of this device and persons during operation. TABLE OF CONTENTS ParagraphTitlePage SECTION 1GENERAL DESCRIPTION 1.1Introduction..............................................................................................................1-1 1.2Description..............................................................................................................1-1 1.3Technical Summary..................................................................................................1-1 SECTION 2OPERATING INSTRUCTIONS 2.1General...................................................................................................................2-1 2.14Radio Service Software.............................................................................................2-4 SECTION 3INSTALLATION INSTRUCTIONS 3.1General...................................................................................................................3-1 3.2Equipment Packing Log............................................................................................3-1 3.3Transceiver Installation..............................................................................................3-1 3.4Installation Kit - Contents..........................................................................................3-1 3.5Pin Locations and Connections..................................................................................3-2 3.6Wiring Instructions....................................................................................................3-3 LIST OF TABLES Table No.TitlePage 3-125-pin D Connections................................................................................................3-2 LIST OF ILLUSTRATIONS Figure No.TitlePage 3-1Outline Drawing........................................................................................................3-1 3-2Wiring Connections and notes...................................................................................3-5 1-1 SECTION 1 GENERAL DESCRIPTION 1.1 INTRODUCTION This publication provides operating and installation information on the TDFM-600/6000 airborne transceiver. (The exact model number depends on which and how many RF modules are installed.) 1.2DESCRIPTION The TDFM-600/6000 series of transceivers are airborne multiband radios capable of conventional FM, P25, Smartnet and Smartzone trunking systems and any other feature supported by the Motorola XTS- 3000 portable radio. The modules are available in VHF, UHFLO, UHFHI and 800 MHz bands. The bands are numbered 1,4,5 and 8 respectively. TDFM-655-Two UHF high band modules TDFM-688-Two 800 MHz modules TDFM-6148-One VHF, UHF low and 800 MHz module TDFM-6158-One VHF, UHF high and 800 MHz module 1.3TECHNICAL CHARACTERISTICS SpecificationCharacteristic Model Designation:TDFM-600/6000 Physical Dimensions:Approx. 8" X 3" X 5.75" Weight:3 Lbs (1.2 kg) Operating Temperature Range:-45ΕC to +60ΕC Power Requirement: Voltage:28.0 Vdc, ∀ 15% Current:165mA minimum 5A maximum RF Output Power:1 or 5 Watts Frequency Range - VHF Module:136 to 178 MHz UHF LO Module:403 to 470 MHz UHF HI Module:450 to 512 MHz 800 Module:806 to 870 MHz Audio Output Power (including sidetone):500 mW into 600 ohms Microphone Inputs:Carbon or Equivalent Panel Back Lighting:28 VDC or 5VAC (specified when ordered) SECTION 2 2-2 OPERATING INSTRUCTIONS 2.1GENERAL The TDFM-600/6000 transceiver is designed to operate in the same fashion as the Motorola XTS-3000 portable radio. The display has been rearranged into a 2 line display from 4 and some of the numeric keys also double as function keys. Two or three XTS-3000 RF mod…

Text truncated - open the document above for the full version.

Technisonic Industries Limited 250 Watline Avenue Mississauga, ON L4Z1P4 CANADA 905-890-2113 Fax: 905-890-5338 January 21 / 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject:Authority to Act as an Agent to FCC Applicant:Technisonic Industries Ltd. Dear Sir/Madam, I hereby appoint UltraTech Engineering Labs Inc. (UltraTech) to act as my agent in preparation of this application to F.C.C. for authorization of equipment under F.C.C. Rules. I also certify that the information provided, properly described the device or system for which authorization is required. Regards Steve McIntosh Engineering Manager

Technisonic Industries Limited 250 Watline Avenue Mississauga, ON L4Z1P4 CANADA 905-890-2113 Fax: 905-890-5338 February 27 / 2002 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant:Technisonic Industries Limited Product:800 RF Module Models:P2088A-Q806AZ-H35BM FCC IDs:IMA-P2088A Dear Sir/Madam, We, Technisonic Industries Limited, would like to request that the schematic diagrams and system block diagrams, Technical Descriptions and Bills of Materials, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission's Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. Regards, Steve McIntosh Engineering Manager


         !

 !"#$%&' ( )* *+$$,$ -. /0$1'2*12& 34(5%67834%7834. -$)6  3     6 # 1''
    #%'11*91'2:*3;7+
  *#%'11 " "# !$$%&%'"3     6((%% %)$$*%%
"*%'"*"%'*%'%)+ $"*%,"+(*"-'$%
./% 0'-)+-1"$%)%%%*%*%-"/22
.. "3 /.2.,45.53 6 6 6  7"%"- /")2,.& 8,.&"& /2#4 .*









  # 0/ !9#/4# 9  9 6 9 9 6
6 :"%"* +%" 24; /$)<9 = 96
*<9 = 96  >%3(((%"%*)6* .3+*?%"%*)6*











Note: FCC ID number may be one or more of the following: FCC ID: IMA-P2085A FCC ID: IMA-P2086A FCC ID: IMA-P2087A FCC ID: IMA-P2088A

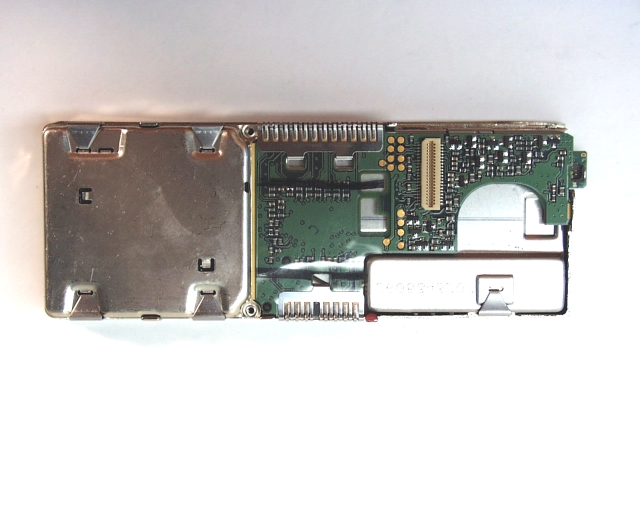

ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 1 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 2 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 3 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 4 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 5 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A ANNEX 4 - INTERNAL PHOTOGRAPHSPhoto # 6 TECHNISONIC 800 MODULEFCC ID: IMA-P2088A

CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. WARNING: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provided reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Warning: Changes or modifications not expressly approved by Technisonic Industries could void the user=s authority to operate the equipment. WARRANTY INFORMATION The Model TDFM-600/6000 Transceiver is under warranty for one year from date of purchase. Failed units caused by defective parts, or workmanship should be returned to: Technisonic Industries LimitedTechnisonic Industries Limited 250 Watline Avenue3840 E. Robinson Road, Suite 214 Mississauga,Amherst, Ontario L4Z 1P4New York 14228 Tel: (905) 890-2113Fax: (905) 890-5338Tel: (716) 691-0669 A Page WARNING For compliance with FCC RF Exposure Requirements, the mobile transmitter antenna installation shall comply with the following two conditions: 1. The transmitter antenna gain shall not exceed 3 Bi 2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 70 cm meters or more between the transmitter antenna of this device and persons during operation.

ANNEX 2 - PHOTOGRAPHS OF TEST SETUPPhoto # 1 FCC IDL I MA-P2088A Orthogonal Position # 1: ANNEX 2 - PHOTOGRAPHS OF TEST SETUPPhoto # 2 FCC IDL I MA-P2088A Orthogonal Position # 2: ANNEX 2 - PHOTOGRAPHS OF TEST SETUPPhoto # 3 FCC IDL I MA-P2088A Orthogonal Position # 3:



























  !




  "

























































































































































































         !
