IMA-T1088

Technisonic Industries Limited

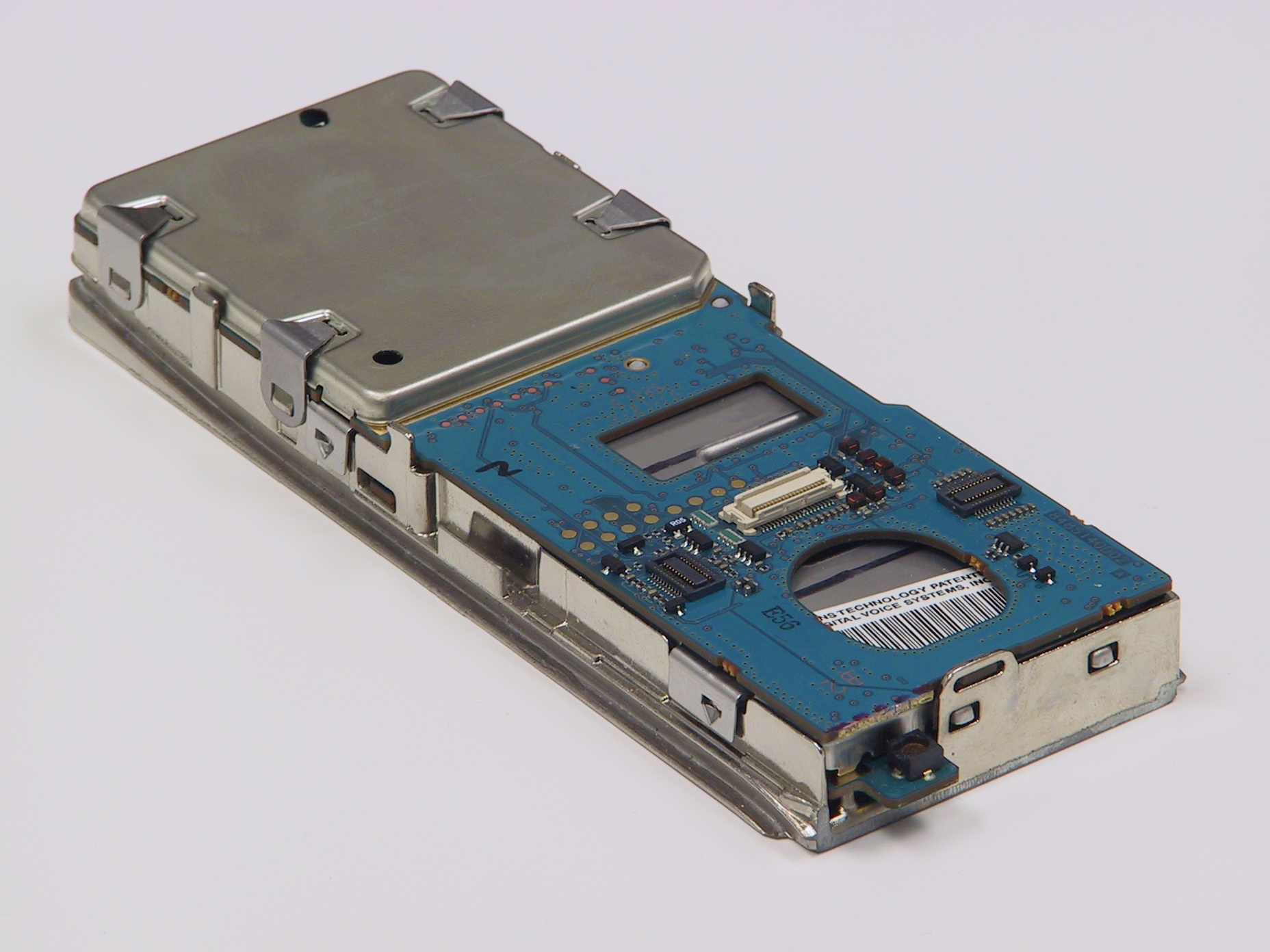

800 RF MODULE

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Mar 23, 2004
Application Purpose: Original Equipment
Date of Application: Mar 23, 2004
Equipment Note: 800 RF MODULE
Frequency Range: 806.00000000 - 869.00000000
Company: Technisonic Industries Limited
Country: Canada

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	9	806 MHz - 869 MHz	2.8 W	11K0F3E	1.5 ppm

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power output is conducted at the antenna terminal. This is an OEM modular transmitter approved for use in products operating as a mobile transmitting device with respect to 2.1091. MPE compliance was demonstrated for 3dBi antenna as shown in the filing. Final antenna installation and operating configurations of this transmitter including antenna gain and cable loss must not exceed the EIRP of the configuration used for calculating MPE. Products operating with this module are required to provide a minimum separation distance of at least 20 cm between the antenna and all persons during normal operation. Grantee must coordinate with OEM integrators to ensure the end-users of products operating with this module are provided with operating instructions to satisfy RF exposure requirements. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
