IMATDFM-136Digital VHF/FM Transceiver, Model TDFM-136

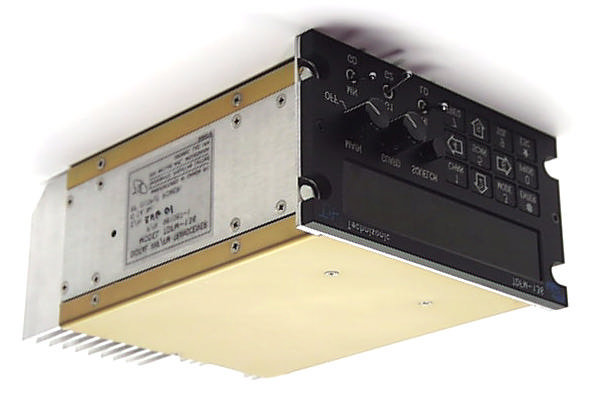

VHF/FM DIGITAL AIRBORNE TRANSCEIVER MODEL TDFM-136 Installation and Operating Instructions Til Document No. 99RE255 Rev. n/c Issue n/c DECEMBER 1999 Technisonic Industries Limited 250 Watline Avenue, Mississauga, Ontario L4Z 1P4 Tel:(905)890-2113 Fax:(905)890-5338 3840 East Robinson Road, Suite 214, Amherst, New York 14228 Tel:(716)691-0669 CAUTION This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves when handling printed circuit boards. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ΣReorient or relocate the receiving antenna ΣIncrease the separation between the equipment and receiver ΣConnect the equipment into an outlet or circuit different from that to which the receiver is connected. ΣConsult the dealer or an experienced radio/TV technician for help. WARRANTY INFORMATION The Model TDFM-136, VHF/FM Digital Transceiver is under warranty for one year from date of purchase. Failed units caused by defective parts, or workmanship should be returned to: Technisonic Industries LimitedTechnisonic Industries Limited 250 Watline Avenue3840 E. Robinson Road, Suite 214 Mississauga,Amherst, Ontario L4Z 1P4New York 14228 Tel: (905) 890-2113Fax: (905) 890-5338Tel: (716) 691-0669 A Page Summary of DO-160C Environmental Testing for Technisonic Model TDFM-136, VHF Digital Transceiver ConditionsSectionDescription of Conducted Tests Temperature and Altitude4.0Equipment tested to categories B2 and D1. Vibration8.0Equipment is tested without shock mounts to categories B, M and N. Magnetic Effect15.0Equipment is class Z. Power Input16.0Equipment tested to category B. Voltage Spike17.0Equipment tested to category B. RF Emission21.0Equipment tested to category Z. 1-1 B page SECTION 1 GENERAL DESCRIPTION 1.1 INTRODUCTION This publication provides operating and installation information on the TDFM-136, Digital Transceiver manufactured by Technisonic Industries Limited. The TDFM-136 is Project 25 (P25), Phase 1 compliant. The unit offers digital or conventional analog FM communications over an extended frequency range with selectable channel spacing and is intended for use (in the U.S.) only by government agencies or contractors thereto, who have obtained licensing for operation in the 136-150 MHz portion of the band. If the TDFM-136 transceiver is used in CANADA, operation is restricted to the following sub bands: 138-144, 148-148.99, 149.005-150.005 and 150.05-174 MHz. Furthermore the frequency agile transceiver is restricted to airborne use must not be operated as a base station in Canada. 1.2DESCRIPTION The TDFM-136, Transceiver is a frequency agile, fully synthesized airborne transceiver capable of operating in the 136.000 MHz to 174.000 MHz frequency range in 2.5 kHz increments with either 25 kHz analog, 12.5 kHz analog channel spacing and P25, 12.5 kHz digital modulation on a channel by channel basis. The Transceiver can operate without restriction on any split frequency pair in the band and also incorporates a two channel synthesized guard receiver. The TDFM-136 Transceiver provides 150 operator accessible memory positions, each of which is capable of storing a transmit frequency, receive frequency, transmit frequency CTCSS tone or DPL code, receive frequency CTCSS tone or DPL code, an alphanumeric identifier for each channel and in the TDFM-136, wideband (25 kHz analog) or narrowband (12.5 kHz analog) channel spacing assignment. The P25 mode (12.5 kHz digital) channels include both NAC and Talk Group capability. Operating frequency and other related data are presented on a 48 character, two line LED matrix display. Data entry and function control are performed via a 12 button keypad. Preset channels may also be scrolled and scanned through keypad function activation. 1.3PURPOSE OF EQUIPMENT The TDFM-136, Digital VHF/FM Transceiver is designed to provide secondary airborne communications to facilitate operations which are typically performed in a low altitude environment. The transmitter section of this unit has a minimum of 8 watts and does not exceed 10 watts output power, which may be reduced by a front panel switch to 1 watt, in order to reduce interference to land based systems. 1.4MODEL VARIATION There are four variations of the Model TDFM-136 Transceiver. All units offer identical features and performance except for the following differences: TDFM-136, P/N 981087-1GREEN display and 28 Volt back lighting. TDFM-136, P/N 981087-1 (5V)GREEN display and 5 Volt back lighting. TDFM-136, P/N 981087-2RED display and 28 Volt back ligting. 1-2 TDFM-136, P/N 981087-2 (5V)RED display and 5 Volt back lighting. Both P/N's 981087-1 and 981087-2 are always provided with 28 Volt back lighting unless a specific request is made for 5 Volt AC operation. 1.5TECHNICAL CHARACTERISTICS SpecificationCharacteristic GENERAL Model Designation:TDFM-136 Frequency Range:136.000 to 174.000 MHz Operating Modes:P25 CAI and conventional analog 12.5/25 kHz conventional analog 12 KB…

Text truncated - open the document above for the full version.

TECHNISONIC INDUSTRIES LIMITED 250 Watline Avenue Mississauga, Ontario L4Z 1P4 Tel.: (905)890-2113 Fax: (905)890-5338 14 December, 1999 FEDERAL Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: Request for withholding from public disclosure the schematic diagrams and system block diagrams pursuant to an application for certification. Applicant:Technisonic Industries Limited Product:DIGITAL VHF/FM Transceiver Model:TDFM-136 FCC ID:IMATDFM-136 Dear Sir/Madam, We, Technisonic Industries Limited, would like to request that the schematic diagrams and system block diagrams, submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457(d) of the Commission Rules, and Section 552(b)(4) of the Freedom of Information Act. These sections authorize as a withholding from public inspection materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. The detailed confidential materials are listed as follows: No. Title Drawing No. Sheet No. 1MCU Board Schematic9853401-7 2Main RF Interface Board Schematic9853411-4 3Guard RF Board Schematic9853421-3 4Keypad Board Schematic9753231 5Display Board Schematic9853511 6Front Panel Schematic9853481-5 7Front Panel Interface Schematic9853561 8Front Panel Backlight Schematic9451571 9Installation and Operating Instructions99RE255All 10TDFM-136 System Block Diagram9840651 If you have any queries, please do not hesitate to contact us. OUR TELEPHONE NO.: 905-890-2113 Yours truly, Robert Riel VP Sales and Contracts Technisonic Industries Ltd.

TECHNISONIC INDUSTRIES LIMITED 250 Watline Avenue Mississauga, Ontario L4Z 1P4 Tel.: (905)890-2113 Fax: (905)890-5338 14 December, 1999 FEDERAL Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Subject: AUTHORITY TO ACT AS AN AGENT TO FEDERAL COMMUNICATIONS COMMISSION. Applicant:Technisonic Industries Limited Product:DIGITAL VHF/FM Transceiver Model:TDFM-136 FCC ID:IMATDFM-136 Dear Sir/Madam, We, Technisonic Industries Limited, hereby appoint Ultratech Engineering Labs Inc. (Ultratech) to act as our agent in the preparation of this application to FCC for authorization of equipment under FCC rules. We also certify that the provided information properly describes the device or system for which authorization is required. If you have any queries, please do not hesitate to contact us. OUR TELEPHONE NO.: 905-890-2113 Yours truly, Robert Riel VP Sales and Contracts Technisonic Industries Ltd.

UltraTech Group of Labs December 21, 1999 FEDERAL COMMUNICATIONS COMMISSION 7435 Oakland Mills Road Columbia, MD 21046 USA Subject:Type Acceptance Application under FCC CFR 47, Parts 2 and 90 (Subpart I) - Radio Services Transmitters Operating in the frequency bands 138-174 MHz (12.5 kHz and 25 kHz Channel Spacing). Applicant:Technisonic Industries Ltd. Product:Digital VHF/FM Transceiver Model:TDFM-136 FCC ID:IMATDFM-136 Dear Sir/Madam, As appointed agent for Technisonic Industries Ltd., please find enclosed copy of the engineering report, authorization form, letter requesting for confidentiality and all the necessary information or documents pertaining to this submission. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.:1-800-263-7670 Yours truly, Tri Minh Luu, P. Eng., V.P., Engineering TML/AK Encl. 2 3000 Bristol Circle, Oakville, Ontario, Canada L6H 6G4 Telephone (905) 829-1570 Facsimile (905) 829-8050 Website: www.ultratech-labs.com Email: [email protected]
