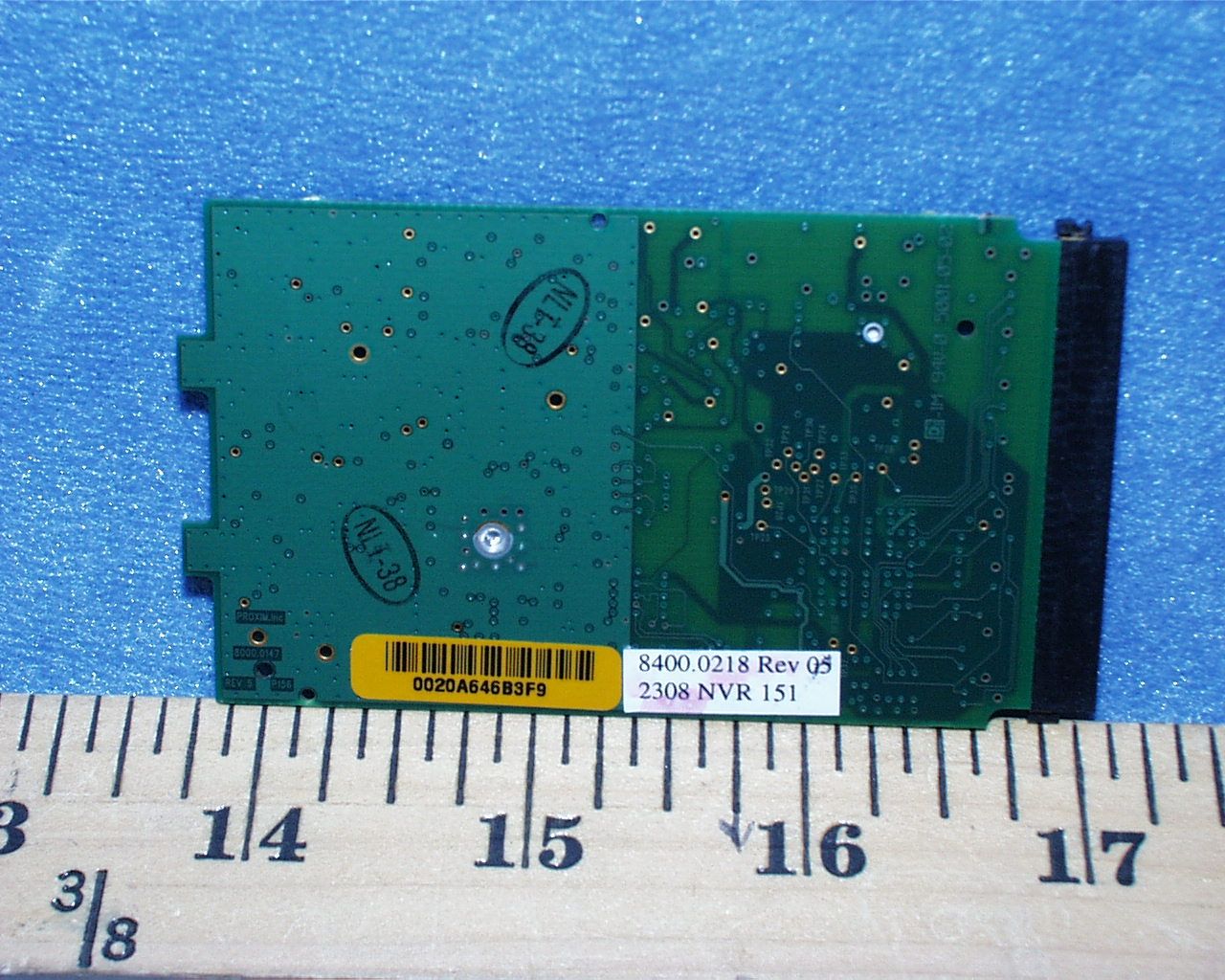

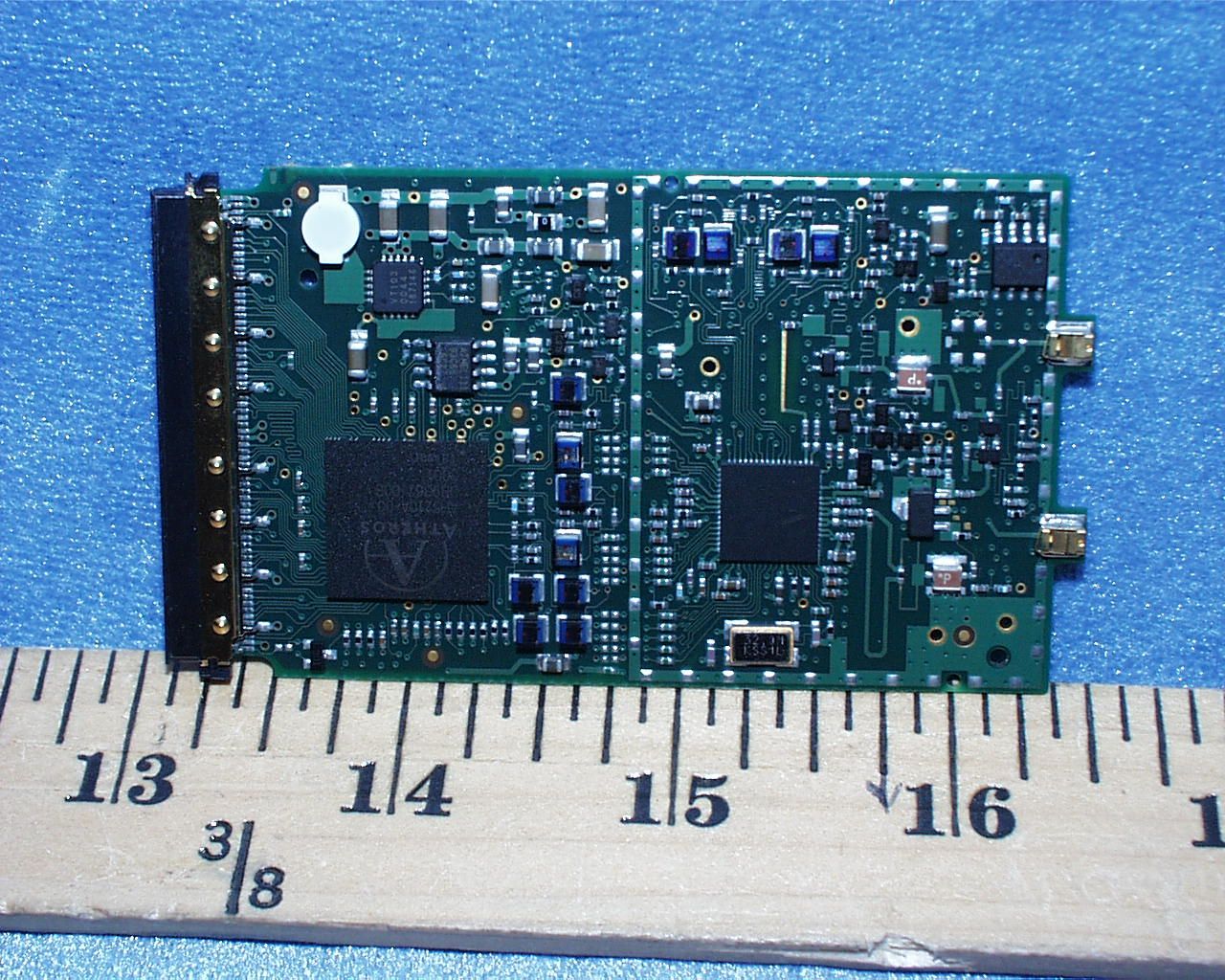

From: Mike Kuo Sent: Friday, March 08, 2002 3:48 PM To: Michael Heckrotte; Steve Cheng Cc: Chuck Cowden; Christine Vu; Denise Teng Subject: FW: PROXIM, INC., FCC ID:IMK-AP5C, AN02T1795 -----Original Message----- From: CERTADM Sent: Friday, March 08, 2002 3:45 PM To: '[email protected]' Subject: PROXIM, INC., FCC ID:IMK-AP5C, AN02T1795 Notice_content ------------- New submission Question #1: This application is changed from Class II permissive to new application with FCC ID:IMK-AP5C. The output power reported for this new submission has max. output power of 12.62dBm ( 0.01827W). The rated output power is 50mW. Please explain the difference . Please note: in the original application, the max. output power measured at 5320MHz is approx. 49mW. Please confirm the output power once again. If the output power measured is correct, please make sure all associated document are corrected with correct output power. Question #2: The internal photos provided to show the uncovered RF portion is too small. Please provide a clear copy of internal photos. Question #3: The MPE calculation is using the output power of 16dBm. Once again, this max. output power does not agree with measured power. Please make necessary changes. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 29 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EUT PHOTOGRAPHS REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 30 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 31 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 32 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 33 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1141-1 FCC ID: IMK-AP5 DATE: JANUARY 21, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT Page 34 of 49 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document.

PROXIM PROJECT: 02U1141-1 MPE CALCULATION for 5 dBi ANTENNA Formular used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) =1.00 from 1.1310 Table 1 P (dBm) = 12.6 EUT output power G (dBi) = 5.0 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.1 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE CALCULATION for 7 dBi ANTENNA Formular used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) =1.00 from 1.1310 Table 1 P (dBm) = 12.6 EUT output power G (dBi) = 7.0 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 2.7 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE CALCULATION for 12 dBi ANTENNA Formular used in the MPE Calculations: E^2/3770 = S, mW/cm2 Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5 --------- (A) Since S (mW/cm2) =1.00 from 1.1310 Table 1 P (dBm) = 12.6 EUT output power G (dBi) = 12.0 EUT antenna gain Substitute these parameters into the A above, we have MPE safe distance d (cm) = 4.8 NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC CFR47 PART 15 SUBPART E CERTIFICATION TEST REPORT FOR PROXIM HARMONY 802.11a ACCESS POINT MODEL: 8571 FCC ID: IMK-AP5C REPORT NUMBER: 02U1141-1 ISSUE DATE: FEBRUARY 27, 2002 Prepared for PROXIM 510 DE GUIGNE DRIVE SUNNYVALE, CA 94085 USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 2 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION---------------------------------------------------------------------------3 2. EUT DESCRIPTION---------------------------------------------------------------------------------------------4 3. TEST METHODOLOGY----------------------------------------------------------------------------------------4 4. TEST FACILITY--------------------------------------------------------------------------------------------------4 5. ACCREDITATION AND LISTING--------------------------------------------------------------------------4 5.1. Laboratory Accreditations and Listings-------------------------------------------------------------------5 6. MEASURING INSTRUMENT CALIBRATION----------------------------------------------------------6 6.1. Measurement Uncertainty-----------------------------------------------------------------------------------6 7. SUPPORT EQUIPMENT / TEST DIAGRAM-------------------------------------------------------------7 8. APPLICABLE RULES AND BRIEF TEST RESULT----------------------------------------------------9 9. TEST SETUP, PROCEDURE AND RESULT------------------------------------------------------------16 9.1. EMISSION BANDWIDTH---------------------------------------------------------------------------------16 9.2. PEAK POWER-----------------------------------------------------------------------------------------------20 9.3. PEAK POWER SPECTRAL DENSITY-------------------------------------------------------------------24 9.4. PEAK EXCURSION----------------------------------------------------------------------------------------28 9.5. UNDESIRABLE EMISSION - BAND EDGE-----------------------------------------------------------32 9.6. FREQUENCY STABILITY---------------------------------------------------------------------------------36 9.7. UNDESIRABLE EMISSION-------------------------------------------------------------------------------37 9.8. POWER LINE CONDUCTED EMISSION--------------------------------------------------------------60 9.9. RADIATED EMISSION------------------------------------------------------------------------------------64 9.10. SETUP PHOTOS--------------------------------------------------------------------------------------------69 ATTACHMENTS • EUT PHOTOGRAPHS • PROPOSED FCC ID LABEL • AGENT AUTHORIZATION LETTER • REQUEST FOR CONFIDENTIALITY • ANTENNA SPECIFICATION • USER'S MANUAL • PART LIST • PRODUCT SPECIFICATION • THEORY OF OPERATION • BLOCK DIAGRAM & SCHEMATIC DIAGRAM REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 3 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: PROXIM 510 DE GUIGNE DRIVE SUNNYVALE, CA 94085 USA CONTACT PERSON: MIKE REILLY / RF DESIGN ENGINEER TELPHONE NO: 408-731-2613 EUT DESCRIPTION: PROXIM HARMONY 802.11A ACCESS POINT MODEM NAME: 8571 DATE TESTED: JANUARY 21 – FEBRUARY 26, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 5.25 – 5.35 GHz TRANSCEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15.E Compliance Certification Services, Inc. tested the above equipment for compliance with the requirements set forth in CFR 47, PART 15, Subpart E. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: MIKE HECKROTTE KERWIN CORPUZ CHIEF ENGINEER ASSOCIATE EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 4 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION The product is a WLAN adapter operating in the 5.25-5.35GHz band with a maximum TX output power of 20mW. It is a small desktop box with associated wall plug mount 12 VDC power supply, dual external antenna connectors and a 10/100 baseT port for connec…

Text truncated - open the document above for the full version.

REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 69 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9.10. SETUP PHOTOS Radiated Emission 30 – 1000 MHz with PATCH antenna REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 70 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. With OMNI antenna REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 71 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Radiated Emission above 1 GHz REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 72 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Antenna Terminal Port Measurement REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 73 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Line Conduction Emission REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 74 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. REPORT NO: 02U1141-1 DATE: FEBRUARY 27, 2002 EUT: PROXIM HARMONY 802.11a ACCESS POINT FCC ID: IMK-AP5C Page 75 of 75 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT
